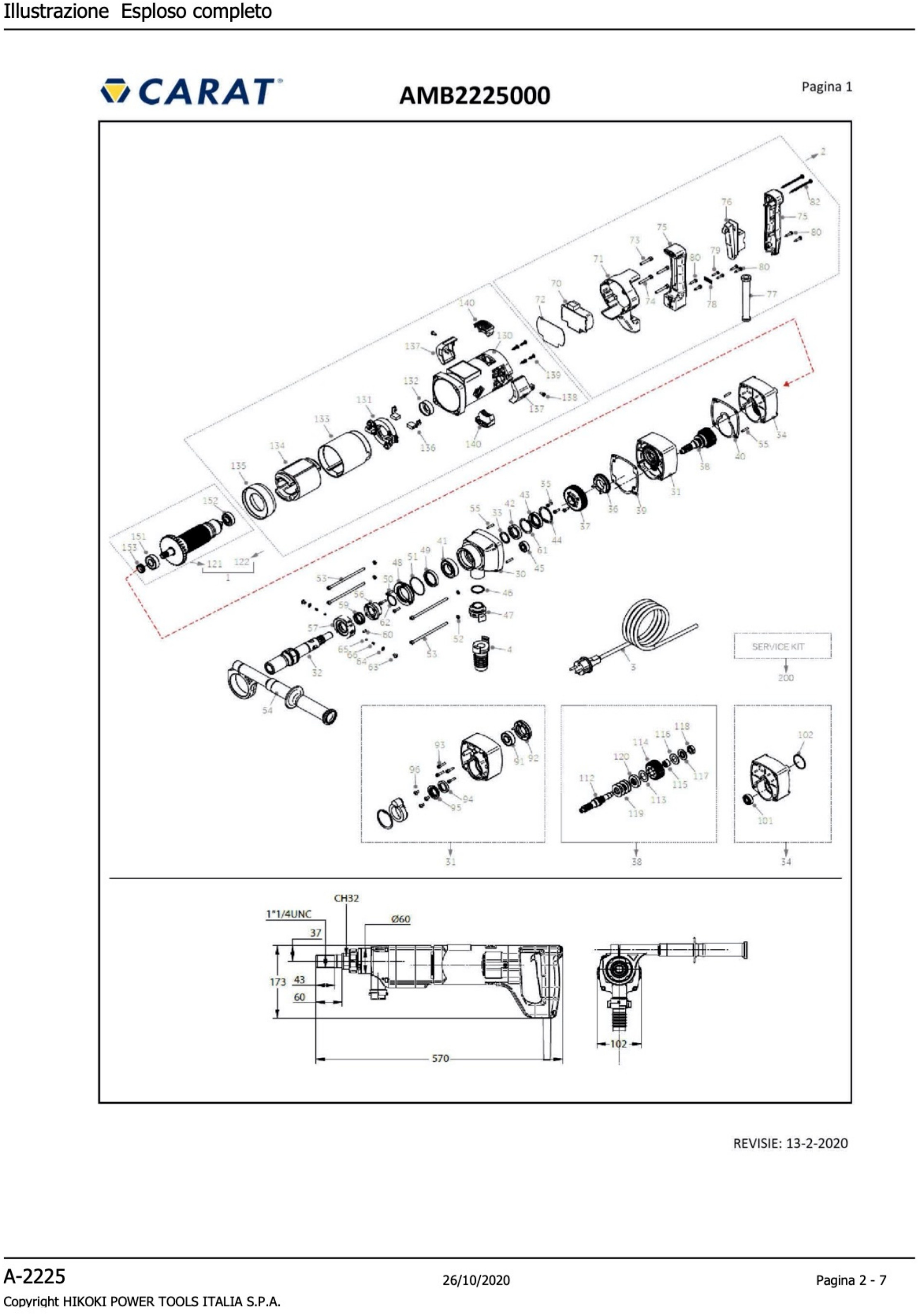

description 1 exploded view
picture_as_pdf Download Exploded PDF
CODICE ARTICOLO
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:: [email protected]
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

83 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 7/10 BUSINESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon XCA506520P MOTOR-PACK 2200W 230V BLACK WITH DPT LOGO €1,153.06
2
photo_cameraImage coming soon XCA5063660 BACK-HANDLE/SWITCH/ ELECTRONIC KIT FOR T1 230V (DRY) €469.11
3
photo_cameraImage coming soon XCA5063520 CABLE H07RN-F 2X1.5MMQ L=4 €68.62
4
photo_cameraImage coming soon XCA5042070 RUBBER FITTING EXPRESS 1 1""""1/4""" €58.00
30
photo_cameraImage coming soon XCA506324P FRONT GEARCASE €303.02
31
photo_cameraImage coming soon XCA506456P S.A. FLANGE FOR DP2200 BLACK €351.87
32
photo_cameraImage coming soon XCA5064470 1""""1/4 UNC SHAFT FOR DP2200/3000""" €351.87
33
photo_cameraImage coming soon XCA5015890 RING €2.74
34
photo_cameraImage coming soon XCA502380P S.A.BACK GEAR BOX €201.40
36
photo_cameraImage coming soon XCA5065010 DPT RATCHET DP2200/3000 (ROTATIVE) €201.40
37
photo_cameraImage coming soon XCA5063210 GEAR Z46 M 1.25 €175.50
38
photo_cameraImage coming soon XCA5063930 * MECHANICAL CLUTCH DP2200-16 (Z9/Z33) €381.18
39
photo_cameraImage coming soon XCA5023600 GASKET €5.33
40
photo_cameraImage coming soon XCA5023610 GASKET €5.33
41
photo_cameraImage coming soon XCA5061660 BALL BEARING 6005-2RS €46.43
42
photo_cameraImage coming soon XCA5061670 SEAL RING 25X37X7 €28.78
43
photo_cameraImage coming soon XCA5061680 SEAL RING 25X40X7 €23.27
44
photo_cameraImage coming soon XCA5011730 EXTERNAL CIRCLIPS €4.07
45
photo_cameraImage coming soon XCA5019470 BEARING €28.78
46
photo_cameraImage coming soon XCA5062100 GASKET IN NBR 26X30 SP.2 €34.62
47
photo_cameraImage coming soon XCA5058090 JUNCTION 3/4 MALE €34.62
48
photo_cameraImage coming soon XCA5064460 LOCK HOLDER RING FOR DP 2200/3000 €100.76
49
photo_cameraImage coming soon XCA5064310 SEALING RING GP32X42X7 NBR €23.27
50
photo_cameraImage coming soon XCA5022920 SCREW M4 X 16 UNI 5931 €1.45
51
photo_cameraImage coming soon XCA5016090 O-RING 2162 €1.45
52
photo_cameraImage coming soon XCA5000480 SPLIT WASHER 5.3""" €1.45
53
photo_cameraImage coming soon XCA5063480 SCREW M5X115 UNI 5931 12.9 €13.20
54
photo_cameraImage coming soon XCA504631P BLACK HANDLE WITH COLLAR D.60 €175.80
55
photo_cameraImage coming soon XCA5065540 PIN Ø4X20 H6 €1.45
56
photo_cameraImage coming soon XCA5064400 BUSH FOR DPT SELECTOR DP2200/3000 €125.98
57
photo_cameraImage coming soon XCA5066010 SELECTOR RING €174.04
59
photo_cameraImage coming soon XCA5064340 STAINLESS STEEL SPRING DE29.1 DF2 L = 10 €8.00
60
photo_cameraImage coming soon XCA5020910 PIN 4X8 €2.74
61
photo_cameraImage coming soon XCA5065270 SEEGER 37-I UNI 7437 €8.00
62
photo_cameraImage coming soon XCA5065170 O-RING 2100 (2512X1.78) NBR""" €1.45
63
photo_cameraImage coming soon XCA5066020 SCREW M5X6 ISO 7380 €8.00
64
photo_cameraImage coming soon XCA5020880 WASHER SCHNORR 5 €1.45
65
photo_cameraImage coming soon XCA5001190 STEEL BALL 5/32""""""" €1.45
66
photo_cameraImage coming soon XCA5001200 SPRING €2.74
70
photo_cameraImage coming soon XCA5063460 ELECTRONIC CLUT H 230V 12A €303.02
71
photo_cameraImage coming soon XCA5062810 PLASTIC HANDLE PART €100.76
72
photo_cameraImage coming soon XCA5032370 INSULATION FILM TLP 0-0L-1 MAN €34.62
73
photo_cameraImage coming soon XCA5009030 ALLEN SCREW M5 X 30 €1.45
74
photo_cameraImage coming soon XCA5001900 SCREW M 5 X 35 €1.45
75
photo_cameraImage coming soon XCA5065500 HANDLE FOR SWITCH €151.09
76
photo_cameraImage coming soon XCA5062800 SWITCH 25/20A 125/250V LOCK ON-OFF FOR HAND- HELD MACHINES €100.76
77
photo_cameraImage coming soon XCA5030420 CORD PROTECTOR DI 8.1 FOR TLP 1800 €4.07
78
photo_cameraImage coming soon XCA5011560 STEEL CORD CLAMP €8.00
79
photo_cameraImage coming soon XCA5000040 SCREW 3.5X19 UNI 6954 ZN""" €1.45
80
photo_cameraImage coming soon XCA5032500 SCREW 4X20 TC TCR ZNT-B €1.45
82
photo_cameraImage coming soon XCA5058740 SCREW 4.5X70 ZN""" €8.00
91
photo_cameraImage coming soon XCA5002100 STEEL BEARING 15X35X11 €46.43
92
photo_cameraImage coming soon XCA5065020 DPT RATCHET DP2200/3000 (NOT ROTATIVE) €201.40
93
photo_cameraImage coming soon XCA5065470 SCREW M 4 X 18 UNI 5931 €1.45
94
photo_cameraImage coming soon XCA5047530 SEAL RING 20X30X5 €28.78
95
photo_cameraImage coming soon XCA5018210 S.A.FELTER AND STEEL SEAL €23.27
96
photo_cameraImage coming soon XCA5052730 SCREW M5X8 ISO 7380 €8.00
101
photo_cameraImage coming soon XCA5000300 STEEL BEARING 10X26X8 €34.62
102
photo_cameraImage coming soon XCA5002450 O-RING 2137 €2.74
112
photo_cameraImage coming soon XCA5063250 CLUTCH SHAFT Z9 €201.40
113
photo_cameraImage coming soon XCA5004540 BRONZE CLUTCH DISK 18X29.7X1""" €17.42
114
photo_cameraImage coming soon XCA5063280 CLUTCH GEAR Z33 €175.80
115
photo_cameraImage coming soon XCA5000270 NEEDLE BEARING HK 12/10 €23.27
116
photo_cameraImage coming soon XCA5001030 BRONZE CLUTCH DISK 16X28X1 €10.66
117
photo_cameraImage coming soon XCA5065460 DP2200/3000 CLUTCH DISK €13.20
118
photo_cameraImage coming soon XCA5063300 NUT Z12X1.25 H=6.5 MM""" €60.70
119
photo_cameraImage coming soon XCA5008240 SPRING 16.3X31.5X1.25 €2.74
120
photo_cameraImage coming soon XCA5063270 CLUTCH DISC €58.00
121
photo_cameraImage coming soon XCA5053430 ARMATURE 230V TLP1 €351.87
122
photo_cameraImage coming soon XCA506521P MOTOR HOUSING 2200W BLACK LOGO DPT S.A. €625.44
130
photo_cameraImage coming soon XCA502972P MOTOR HOUSING 2200W - RAL 9005 BLACK DPT LOGO €201.40
131
photo_cameraImage coming soon XCA5065360 DPT BRUSHES HOLDER S.A. €151.09
132
photo_cameraImage coming soon XCA5018690 RUBBER COVER €2.74
133
photo_cameraImage coming soon XCA5021210 INSULATING PROTECTIVE COVERING X MOTOR 220W €23.27
134
photo_cameraImage coming soon XCA5021840 FIELD 230V €175.80
135
photo_cameraImage coming soon XCA5027960 FUN BAFFLE €17.42
136
Carbon Brush Set for Diamond Drill Carat A-2225 XCA5039400 Carbon Brush Set for Diamond Drill Carat A-2225 €68.12
137
photo_cameraImage coming soon XCA5021240 CARBON BRUSHES PLASTIC COVER €17.42
138
photo_cameraImage coming soon XCA5031660 SCREW M4X10 €1.45
139
photo_cameraImage coming soon XCA5020180 SCREW 4.2X16 TC TCR UNI 6954 Z N €1.45
140
photo_cameraImage coming soon XCA5021250 AIR INLET €17.42
151
photo_cameraImage coming soon XCA5002100 STEEL BEARING 15X35X11 €46.43
152
photo_cameraImage coming soon XCA5017500 BALL BEARING 6201-2RSL (12-32-10) €34.62
153
photo_cameraImage coming soon XCA5002160 RING FOR PINION €68.62

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Carat Spare Parts for A-2225 DIAMOND DRILL MACHINE

Carat service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for A-2225 DIAMOND DRILL.

In the following table , look for the model of the Angle Grinder and their respective spare parts.
Carat A-2225
A-2225 DIAMOND DRILL
# Part Num. Description
1 XCA506520P MOTOR-PACK 2200W 230V BLACK WITH DPT LOGO
2 XCA5063660 BACK-HANDLE/SWITCH/ ELECTRONIC KIT FOR T1 230V (DRY)
3 XCA5063520 CABLE H07RN-F 2X1.5MMQ L=4
4 XCA5042070 RUBBER FITTING EXPRESS 1 1""""1/4"""
30 XCA506324P FRONT GEARCASE
31 XCA506456P S.A. FLANGE FOR DP2200 BLACK
32 XCA5064470 1""""1/4 UNC SHAFT FOR DP2200/3000"""
33 XCA5015890 RING
34 XCA502380P S.A.BACK GEAR BOX
35 XCA5065600 SCREW M 4 X 12 BRUG.UNI 5931
36 XCA5065010 DPT RATCHET DP2200/3000 (ROTATIVE)
37 XCA5063210 GEAR Z46 M 1.25
38 XCA5063930 * MECHANICAL CLUTCH DP2200-16 (Z9/Z33)
39 XCA5023600 GASKET
40 XCA5023610 GASKET
41 XCA5061660 BALL BEARING 6005-2RS
42 XCA5061670 SEAL RING 25X37X7
43 XCA5061680 SEAL RING 25X40X7
44 XCA5011730 EXTERNAL CIRCLIPS
45 XCA5019470 BEARING
46 XCA5062100 GASKET IN NBR 26X30 SP.2
47 XCA5058090 JUNCTION 3/4 MALE
48 XCA5064460 LOCK HOLDER RING FOR DP 2200/3000
49 XCA5064310 SEALING RING GP32X42X7 NBR
50 XCA5022920 SCREW M4 X 16 UNI 5931
51 XCA5016090 O-RING 2162
52 XCA5000480 SPLIT WASHER 5.3"""
53 XCA5063480 SCREW M5X115 UNI 5931 12.9
54 XCA504631P BLACK HANDLE WITH COLLAR D.60
55 XCA5065540 PIN Ø4X20 H6
56 XCA5064400 BUSH FOR DPT SELECTOR DP2200/3000
57 XCA5066010 SELECTOR RING
59 XCA5064340 STAINLESS STEEL SPRING DE29.1 DF2 L = 10
60 XCA5020910 PIN 4X8
61 XCA5065270 SEEGER 37-I UNI 7437
62 XCA5065170 O-RING 2100 (2512X1.78) NBR"""
63 XCA5066020 SCREW M5X6 ISO 7380
64 XCA5020880 WASHER SCHNORR 5
65 XCA5001190 STEEL BALL 5/32"""""""
66 XCA5001200 SPRING
70 XCA5063460 ELECTRONIC CLUT H 230V 12A
71 XCA5062810 PLASTIC HANDLE PART
72 XCA5032370 INSULATION FILM TLP 0-0L-1 MAN
73 XCA5009030 ALLEN SCREW M5 X 30
74 XCA5001900 SCREW M 5 X 35
75 XCA5065500 HANDLE FOR SWITCH
76 XCA5062800 SWITCH 25/20A 125/250V LOCK ON-OFF FOR HAND- HELD MACHINES
77 XCA5030420 CORD PROTECTOR DI 8.1 FOR TLP 1800
78 XCA5011560 STEEL CORD CLAMP
79 XCA5000040 SCREW 3.5X19 UNI 6954 ZN"""
80 XCA5032500 SCREW 4X20 TC TCR ZNT-B
82 XCA5058740 SCREW 4.5X70 ZN"""
91 XCA5002100 STEEL BEARING 15X35X11
92 XCA5065020 DPT RATCHET DP2200/3000 (NOT ROTATIVE)
93 XCA5065470 SCREW M 4 X 18 UNI 5931
94 XCA5047530 SEAL RING 20X30X5
95 XCA5018210 S.A.FELTER AND STEEL SEAL
96 XCA5052730 SCREW M5X8 ISO 7380
101 XCA5000300 STEEL BEARING 10X26X8
102 XCA5002450 O-RING 2137
112 XCA5063250 CLUTCH SHAFT Z9
113 XCA5004540 BRONZE CLUTCH DISK 18X29.7X1"""
114 XCA5063280 CLUTCH GEAR Z33
115 XCA5000270 NEEDLE BEARING HK 12/10
116 XCA5001030 BRONZE CLUTCH DISK 16X28X1
117 XCA5065460 DP2200/3000 CLUTCH DISK
118 XCA5063300 NUT Z12X1.25 H=6.5 MM"""
119 XCA5008240 SPRING 16.3X31.5X1.25
120 XCA5063270 CLUTCH DISC
121 XCA5053430 ARMATURE 230V TLP1
122 XCA506521P MOTOR HOUSING 2200W BLACK LOGO DPT S.A.
130 XCA502972P MOTOR HOUSING 2200W - RAL 9005 BLACK DPT LOGO
131 XCA5065360 DPT BRUSHES HOLDER S.A.
132 XCA5018690 RUBBER COVER
133 XCA5021210 INSULATING PROTECTIVE COVERING X MOTOR 220W
134 XCA5021840 FIELD 230V
135 XCA5027960 FUN BAFFLE
136 XCA5039400 CARBON BRUSH SET 230V
137 XCA5021240 CARBON BRUSHES PLASTIC COVER
138 XCA5031660 SCREW M4X10
139 XCA5020180 SCREW 4.2X16 TC TCR UNI 6954 Z N
140 XCA5021250 AIR INLET
151 XCA5002100 STEEL BEARING 15X35X11
152 XCA5017500 BALL BEARING 6201-2RSL (12-32-10)
153 XCA5002160 RING FOR PINION
200 XCA5063510 SERVICE KIT DP2200/3000
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Carat websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Carat brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Carat A-2225
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 7/10 BUSINESS DAYS
MORE INFO:
[email protected]

Specific References

New

Download

Diagram Carat A-2225

Diagram Carat A-2225

Download (249.09KB)

You might also like

Carat N.V. SKU: XCA5039400

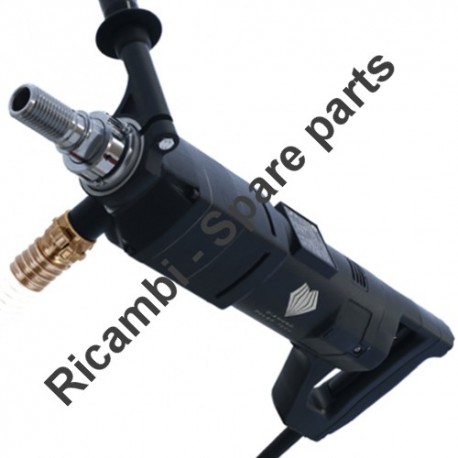

Carbon Brush Set for Diamond Drill Carat A-2225 Carat Original part, Carbon Brush Set for A-2225 DIAMOND DRILL. Ricambio per i seguenti prodotti: -  A-2225 DIAMOND DRILL - Codice: XCA5039400
on 10/15 Business Days Approx €68.12
Comments (0)
