Carat Spare Parts for A-2011 DIAMOND DRILL MACHINE

SKU: Carat A-2011
€6.59
VAT included

Carat Spare Parts for A-2011 DIAMOND DRILL MACHINE

Carat service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for A-2011 DIAMOND DRILL.
Carat Spare Parts for A-2011 DIAMOND DRILL MACHINE
  • Online only
  • Carat Spare Parts for A-2011 DIAMOND DRILL MACHINE
  • Carat Spare Parts for A-2011 DIAMOND DRILL MACHINE

Carat Spare Parts for A-2011 DIAMOND DRILL MACHINE

SKU: Carat A-2011 Condition: New
€6.59
VAT included

Carat Spare Parts for A-2011 DIAMOND DRILL MACHINE

Carat service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for A-2011 DIAMOND DRILL.
settings 102 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

102 spare parts

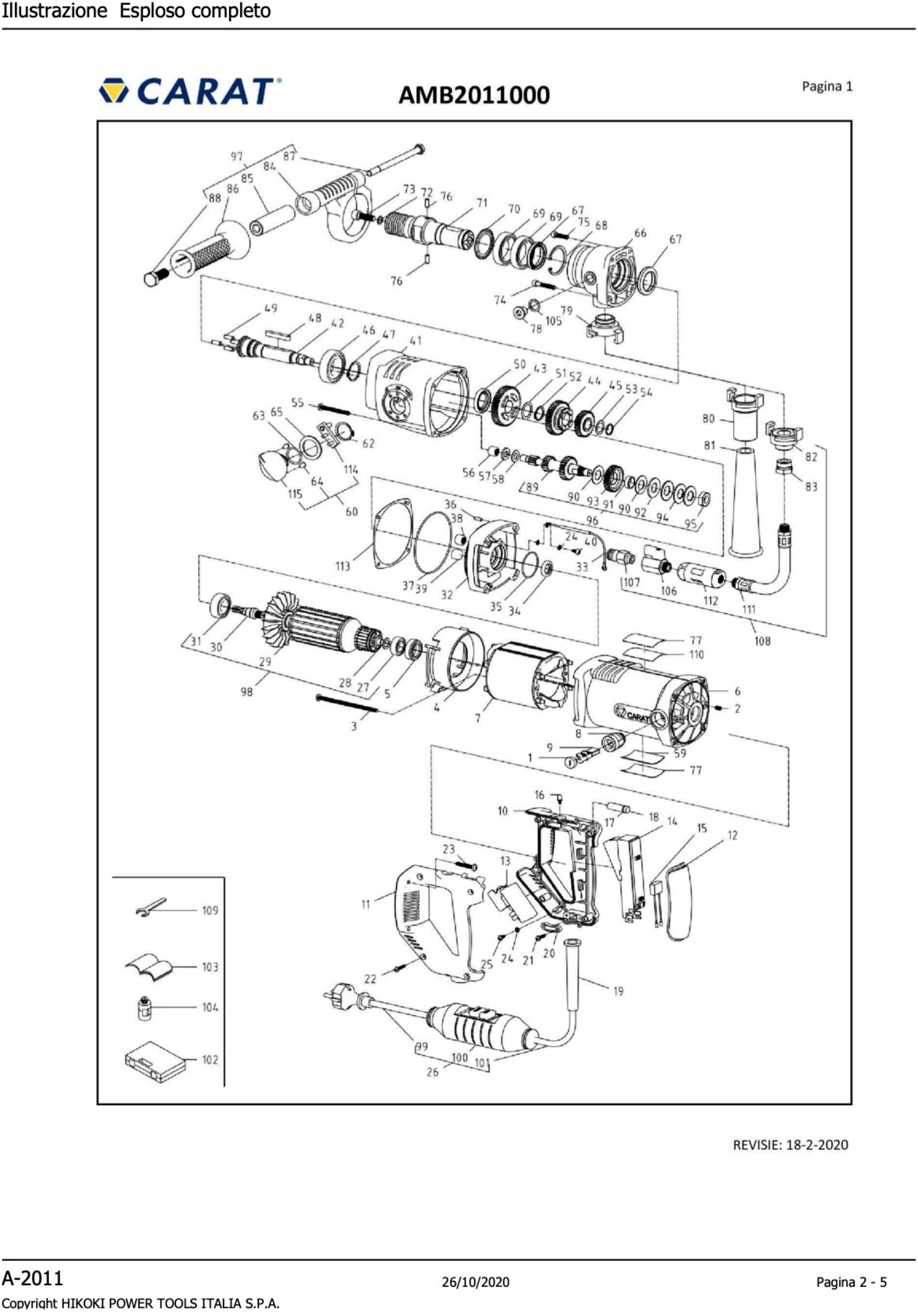

Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1
photo_cameraImage coming soon XAM-N14022 CARBON BRUSH COVER €4.57
3
photo_cameraImage coming soon XAM-FF1410 TAPPING SCREW €3.42
4
photo_cameraImage coming soon XAM-N14010 AIR RING €19.79
5
photo_cameraImage coming soon XAM-N14011 BEARING CARTER €11.17
6
photo_cameraImage coming soon XAM-N20017 MOTOR HOUSING 2000W CARAT €59.65
7
photo_cameraImage coming soon XAM-N20013 STATOR 2000W €127.54
8
photo_cameraImage coming soon XAM-N14020 CARBON BRUSH HOLDER €19.67
9
photo_cameraImage coming soon XAM-N14058 CARBON BRUSH SET A-20.. €29.31
10
photo_cameraImage coming soon XAM-N20020 GRIP PART RIGHT BACKSIDE 2011 €29.31
11
photo_cameraImage coming soon XAM-N20021 GRIP PART LEFT BACKSIDE 2011 €29.31
12
photo_cameraImage coming soon XAM-N20019 SOFT-GRIP €19.67
13
photo_cameraImage coming soon XAM-N20018 PRINTED CIRCUIT BOARD COMPLETE 2000 €106.34
14
Switch 10A per Diamond Drill Carat A-2011 XAM-N20030S Switch 10A per Diamond Drill Carat A-2011 €74.72
15
photo_cameraImage coming soon XAM-N20022 CONDENSER INCLUDING FASTONS €9.01
16
photo_cameraImage coming soon XAM-N14032 LED (A) 220V-240V €9.01
17
photo_cameraImage coming soon XAM-N14034 BULLS EYE CYLINDRICAL €11.17
18
photo_cameraImage coming soon XAM-N14035 BULLS EYE ROUND €11.17
19
photo_cameraImage coming soon XAM-N14023 CABLE GUIDE €6.85
20
photo_cameraImage coming soon XAM-N14024 CABLE CLAMP €2.28
21
photo_cameraImage coming soon XAM-N14039 SCREW 3,5X16 TAPPING €1.27
22
photo_cameraImage coming soon XAM-N14040 SCREW 4,0X20 TAPPING €1.27
23
photo_cameraImage coming soon XAM-FF1432 PANNED CYLINDRICAL SCREW 4,8X32 €2.28
26
photo_cameraImage coming soon XAM-N20050CA POWER CABLE COMPLETE 230V FOR A-221 €148.48
27
photo_cameraImage coming soon XAM-EA007D BALL BEARING 629 €19.67
28
photo_cameraImage coming soon XAM-FS10P2 SHIM RING 10X16MM €1.27
29
photo_cameraImage coming soon XAM-N20014 ROTOR 2000W €170.05
30
Diamond Drill Carat A-2011 Gear for Rotor XAM-N20005 Diamond Drill Carat A-2011 Gear for Rotor €74.61
31
photo_cameraImage coming soon XAM-EA028F BALL BEARING 6202 €24.37
32
photo_cameraImage coming soon XAM-N20015 COVER GEAR BOX CARAT €106.34
33
photo_cameraImage coming soon XAM-N20023 EARTH CABLE €19.67
34
photo_cameraImage coming soon XAM-E30A05 SEALING WASHER 12X22X4 €19.67
35
photo_cameraImage coming soon XAM-E4035A O-RING 35X1.5 €3.42
36
photo_cameraImage coming soon XAM-F6Q112 PIN 4X12 €2.28
37
photo_cameraImage coming soon XAM-E4084A O-RING 85X2,0 €4.57
38
photo_cameraImage coming soon XAM-EB012A NEEDLE BUSH HOUSING 1010 €11.17
39
photo_cameraImage coming soon XAM-EB012B NEEDLE BUSH HOUSING 1010 €11.17
41
photo_cameraImage coming soon XAM-N20001 GEAR BOX CARAT €170.05
42
photo_cameraImage coming soon XAM-N20002 MAIN AXE €106.34
43
photo_cameraImage coming soon XAM-N20003 GEAR €85.15
44
photo_cameraImage coming soon XAM-N20004 GEAR €68.14
45
photo_cameraImage coming soon XAM-N20006 GEAR €59.65
46
photo_cameraImage coming soon XAM-EA050A BALL BEARING 6005 €29.31
47
photo_cameraImage coming soon XAM-FR0250 SHIM RING 25MM €2.28
48
photo_cameraImage coming soon XAM-F6R340 KEY 6X6X40 €4.57
49
photo_cameraImage coming soon XAM-F6PG14 PIN 5X14 €3.42
50
photo_cameraImage coming soon XAM-E32030 SEALING WASHER 22X35X5 €11.17
51
photo_cameraImage coming soon XAM-FS18P2 SHIM RING 18X25 €2.28
52
photo_cameraImage coming soon XAM-FR0180 SHIM RING 18MM €1.27
53
photo_cameraImage coming soon XAM-FS14P2 SHIM RING 14X20 €1.27
54
photo_cameraImage coming soon XAM-FR4140 CIRCLIPS A-2011 €2.28
55
photo_cameraImage coming soon XAM-FF1450 PANNED CYLINDRICAL SCREW 4,8X50 €2.28
56
photo_cameraImage coming soon XAM-EB009A NEEDLE BUSH 0910 €11.17
57
photo_cameraImage coming soon XAM-EN0109 NEEDLE BUSH 917 €24.37
58
photo_cameraImage coming soon XAM-EN01091 NEEDLE BUSH 917 €9.01
59
photo_cameraImage coming soon XAM-N20221 TYPE PLATE A-2011 €9.01
60
photo_cameraImage coming soon XAM-N18006C2 GEAR KNOB ASSEMBLY 2000 €51.27
62
photo_cameraImage coming soon XAM-FR0240 SHIM RING 24MM €2.28
63
photo_cameraImage coming soon XAM-E4021B O-RING 21X2,0 €3.42
64
photo_cameraImage coming soon XAM-F42605 PRESSURE PLATE ROUND €6.85
65
photo_cameraImage coming soon XAM-FS25P2 SHIM RING 25X35 €3.42
66
photo_cameraImage coming soon XAM-N18022 AXE HOUSING €85.15
67
photo_cameraImage coming soon XAM-E30A28 SEALING WASHER 28X40X6 €24.37
68
photo_cameraImage coming soon XAM-FR1400 SHIM RING 40MM €3.42
69
photo_cameraImage coming soon XAM-EA057A Bearing 61906 €51.27
70
photo_cameraImage coming soon XAM-EXR100 BEARING RING 61906 €11.17
71
photo_cameraImage coming soon XAM-N18030 MAIN AXE 5/4''-1/2'' €170.05
72
photo_cameraImage coming soon XAM-903740 COPPER RING 8X12MM €1.27
73
photo_cameraImage coming soon XAM-FBC025 COVER SCREW M8X25 €1.27
76
photo_cameraImage coming soon XAM-F6PG12 PIN 5X12 €3.42
77
photo_cameraImage coming soon XAM-N140281 LAMINATE STICKER FOR TYPE PLATE €2.28
78
photo_cameraImage coming soon XAM-F45625 STOP G1/4'' €11.17
79
photo_cameraImage coming soon XAM-F43282 COUPLING G3/4''BU €19.67
80
photo_cameraImage coming soon XAM-F43283 GROMMET 5/4'' €24.37
81
photo_cameraImage coming soon XAM-N18045 GROMMET EXHAUST €19.67
82
photo_cameraImage coming soon XAM-F43281 COUPLING G1/2''BI €24.37
83
photo_cameraImage coming soon XAM-F45560 ADAPTER 1/2''BU-1/4''BI €11.17
84
photo_cameraImage coming soon XAM-N18032 LOCK RING €48.99
85
photo_cameraImage coming soon XAM-N18033 SHAFT SIDE GRIP €14.72
86
photo_cameraImage coming soon XAM-N14027 GRIP SIDE GRIP €19.67
87
photo_cameraImage coming soon XAM-FC0820 HEXAGONAL BOLT M8X120 €2.28
88
photo_cameraImage coming soon XAM-FB2030 HEXAGONAL BOLT M12X30 €1.27
89
photo_cameraImage coming soon XAM-N20007 GEAR AXE €106.34
90
photo_cameraImage coming soon XAM-N20009 SLIP RING €11.17
91
photo_cameraImage coming soon XAM-N20010 BEARING BUSH €14.72
92
photo_cameraImage coming soon XAM-N20011 LOCK RING €11.17
93
Diamond Drill Carat A-2011 Pinion XAM-N20008 Diamond Drill Carat A-2011 Pinion €86.81
94
photo_cameraImage coming soon XAM-FR6280 DISC SPRING FOR AM-2011 €6.85
95
photo_cameraImage coming soon XAM-N20012 NUT M12 €11.17
96
photo_cameraImage coming soon XAM-N20041 CLUTCH COMPLETE €170.05
97
photo_cameraImage coming soon XAM-N20042 GRIP COMPLETE €68.14
98
photo_cameraImage coming soon XAM-N20038 ROTOR COMPLETE €255.84
99
photo_cameraImage coming soon XAM-N18050 CABLE 3,5MTR + SCHUKO €24.37
101
photo_cameraImage coming soon XAM-N20051 POWER CABLE BETWEEN PRCD-MOTOR €14.72
104
photo_cameraImage coming soon XAM-N20045 OIL GEAR BOX 2000W €24.37
105
photo_cameraImage coming soon XAM-F43350 RING 13X18X1 €1.27
106
photo_cameraImage coming soon ZZ-KK02500 BALL VALVE 1/4'' €14.72
107
photo_cameraImage coming soon XAM-F20150 GARDENA GROMMET MESSING €14.72
110
photo_cameraImage coming soon XAM-N140283 STICKER CONTROTEC €6.85
111
photo_cameraImage coming soon XAM-N14081 WATER HOSE €11.17
112
photo_cameraImage coming soon XAM-N14082 FLOW METER €24.37
113
photo_cameraImage coming soon XAM-N14096 SEALING FOR A14../A18../A20.. €11.17
115
photo_cameraImage coming soon XAM-N18006A SWITCH KNOB €19.67

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Carat Spare Parts for A-2011 DIAMOND DRILL MACHINE

Carat service center and original spare parts Worldwide Distributor. We offer low prices and a professional repair service able to advise you for to buy the most suitable spare part to quickly solve any maintenance and repair issues for A-2011 DIAMOND DRILL.

In the following table , look for the model of the Angle Grinder and their respective spare parts.
Carat A-2011
A-2011 DIAMOND DRILL MACHINES
# Part Num. Description
1 XAM-N14022 CARBON BRUSH COVER
2 XAM-FIK051 SET SCREW M5X10
3 XAM-FF1410 TAPPING SCREW
4 XAM-N14010 AIR RING
5 XAM-N14011 BEARING CARTER
6 XAM-N20017 MOTOR HOUSING 2000W CARAT
7 XAM-N20013 STATOR 2000W
8 XAM-N14020 CARBON BRUSH HOLDER
9 XAM-N14058 CARBON BRUSH SET A-20..
10 XAM-N20020 GRIP PART RIGHT BACKSIDE 2011
11 XAM-N20021 GRIP PART LEFT BACKSIDE 2011
12 XAM-N20019 SOFT-GRIP
13 XAM-N20018 PRINTED CIRCUIT BOARD COMPLETE 2000
14 XAM-N20030S SWITCH 10A ''SPECIAL''
15 XAM-N20022 CONDENSER INCLUDING FASTONS
16 XAM-N14032 LED
17 XAM-N14034 BULLS EYE CYLINDRICAL
18 XAM-N14035 BULLS EYE ROUND
19 XAM-N14023 CABLE GUIDE
20 XAM-N14024 CABLE CLAMP
21 XAM-N14039 SCREW 3,5X16 TAPPING
22 XAM-N14040 SCREW 4,0X20 TAPPING
23 XAM-FF1432 PANNED CYLINDRICAL SCREW 4,8X32
24 XAM-FV04TV TOOTHED SPRING RING M4
25 XAM-FQ2408 COUNTERSUNK SCREW 3,5X8
26 XAM-N20050CA POWER CABLE COMPLETE 230V FOR A-221
27 XAM-EA007D BALL BEARING 629
28 XAM-FS10P2 SHIM RING 10X16MM
29 XAM-N20014 ROTOR 2000W
30 XAM-N20005 GEAR FOR ROTOR
31 XAM-EA028F CUSCINETTO 6202
32 XAM-N20015 COVER GEAR BOX CARAT
33 XAM-N20023 EARTH CABLE
34 XAM-E30A05 SEALING WASHER 12X22X4
35 XAM-E4035A O-RING 35X1,5
36 XAM-F6Q112 PIN 4X12
37 XAM-E4084A O-RING 85X2,0
38 XAM-EB012A NEEDLE BUSH HOUSING 1010
39 XAM-EB012B NEEDLE BUSH HOUSING 1010
40 XAM-FZ4110 CYLINDRICAL SCREW M4X10
41 XAM-N20001 GEAR BOX CARAT
42 XAM-N20002 MAIN AXE
43 XAM-N20003 GEAR
44 XAM-N20004 GEAR
45 XAM-N20006 GEAR
46 XAM-EA050A BALL BEARING 6005
47 XAM-FR0250 SHIM RING 25MM
48 XAM-F6R340 KEY 6X6X40
49 XAM-F6PG14 PIN 5X14
50 XAM-E32030 SEALING WASHER 22X35X5
51 XAM-FS18P2 SHIM RING 18X25
52 XAM-FR0180 SHIM RING 18MM
53 XAM-FS14P2 SHIM RING 14X20
54 XAM-FR4140 CIRCLIPS A-2011
55 XAM-FF1450 PANNED CYLINDRICAL SCREW 4,8X50
56 XAM-EB009A NEEDLE BUSH 0910
57 XAM-EN0109 NEEDLE BUSH 917
58 XAM-EN01091 NEEDLE BUSH 917
59 XAM-N20221 TYPE PLATE A-2011
60 XAM-N18006C2 GEAR KNOB ASSEMBLY 2000
62 XAM-FR0240 SHIM RING 24MM
63 XAM-E4021B O-RING 21X2,0
64 XAM-F42605 PRESSURE PLATE ROUND
65 XAM-FS25P2 SHIM RING 25X35
66 XAM-N18022 AXE HOUSING
67 XAM-E30A28 SEALING WASHER 28X40X6
68 XAM-FR1400 SHIM RING 40MM
69 XAM-EA057A CUSCINETTO 61906
70 XAM-EXR100 BEARING RING 61906
71 XAM-N18030 MAIN AXE 5/4''-1/2''
72 XAM-903740 COPPER RING 8X12MM
73 XAM-FBC025 COVER SCREW M8X25
74 XAM-FBC730 COVER SCREW BZK M5X30
75 XAM-FBC720 COVER SCREW BZK M5X20
76 XAM-F6PG12 PIN 5X12
77 XAM-N140281 LAMINATE STICKER FOR TYPE PLATE
78 XAM-F45625 STOP G1/4''
79 XAM-F43282 COUPLING G3/4''BU
80 XAM-F43283 GROMMET 5/4''
81 XAM-N18045 GROMMET EXHAUST
82 XAM-F43281 COUPLING G1/2''BI
83 XAM-F45560 ADAPTER 1/2''BU-1/4''BI
84 XAM-N18032 LOCK RING
85 XAM-N18033 SHAFT SIDE GRIP
86 XAM-N14027 GRIP SIDE GRIP
87 XAM-FC0820 HEXAGONAL BOLT M8X120
88 XAM-FB2030 HEXAGONAL BOLT M12X30
89 XAM-N20007 GEAR AXE
90 XAM-N20009 SLIP RING
91 XAM-N20010 BEARING BUSH
92 XAM-N20011 LOCK RING
93 XAM-N20008 PINION
94 XAM-FR6280 DISC SPRING FOR AM-2011
95 XAM-N20012 NUT M12
96 XAM-N20041 CLUTCH COMPLETE
97 XAM-N20042 GRIP COMPLETE
98 XAM-N20038 ROTOR COMPLETE
99 XAM-N18050 CABLE 3,5MTR + SCHUKO
100 BA08000000
101 XAM-N20051 POWER CABLE BETWEEN PRCD-MOTOR
102 ZVMKA20110
103 XAM-N20062
104 XAM-N20045 OIL GEAR BOX 2000W
105 XAM-F43350 RING 13X18X1
106 ZZ-KK02500 BALL VALVE 1/4''
107 XAM-F20150 GARDENA GROMMET MESSING
108 XAM-N18199
109 ZZ-SS32000
110 XAM-N140283 STICKER CONTROTEC
111 XAM-N14081 WATER HOSE
112 XAM-N14082 FLOW METER
113 XAM-N14096 SEALING FOR A14../A18../A20..
114 XAM-N20016A
115 XAM-N18006A SWITCH KNOB
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Carat websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Carat brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Carat A-2011
12 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram Carat A-2011

Diagram Carat A-2011

Download (299.9KB)

You might also like

Carat N.V. SKU: XAM-N20030S
Switch 10A per Diamond Drill Carat A-2011 Carat Original part, Switch 10A ''SPECIAL'' for A-2011 DIAMOND DRILL. Ricambio per i seguenti prodotti: -  Carotatore A-2011 - Codice: XAM-N20030S
on 10/15 Business Days Approx €74.72
Carat N.V. SKU: XAM-N20005
Diamond Drill Carat A-2011 Gear for Rotor Carat Original part, Gear for Rotor for DIAMOND DRILL A-2011. Ricambio per i seguenti prodotti: -  Carotatore A-2011 - Codice: XAM-N20005
Last items in stock €74.61
Carat N.V. SKU: XAM-N20008
Diamond Drill Carat A-2011 Pinion Carat Original part, Gear Pinion for DIAMOND DRILL A-2011. Ricambio per i seguenti prodotti: -  Carotatore A-2011 - Codice: XAM-N20008
Last items in stock €86.81
Comments (0)
