Briggs & Stratton Spare Parts for Engine Series 450

SKU: Briggs & Stratton Serie 450
€14.49
VAT included

Briggs & Stratton Spare Parts for Engine Series 450

Briggs & Stratton original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Engine Series 450 - 09T502-0002-H1.
Briggs & Stratton Spare Parts for Engine Series 450
  • Online only
  • Briggs & Stratton Spare Parts for Engine Series 450
  • Briggs & Stratton Spare Parts for Engine Series 450
  • Briggs & Stratton Spare Parts for Engine Series 450
  • Briggs & Stratton Spare Parts for Engine Series 450
  • Briggs & Stratton Spare Parts for Engine Series 450
  • Briggs & Stratton Spare Parts for Engine Series 450

Briggs & Stratton Spare Parts for Engine Series 450

SKU: Briggs & Stratton Serie 450 Condition: New
€14.49
VAT included

Briggs & Stratton Spare Parts for Engine Series 450

Briggs & Stratton original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Engine Series 450 - 09T502-0002-H1.
settings 115 spare parts
description 5 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

115 spare parts

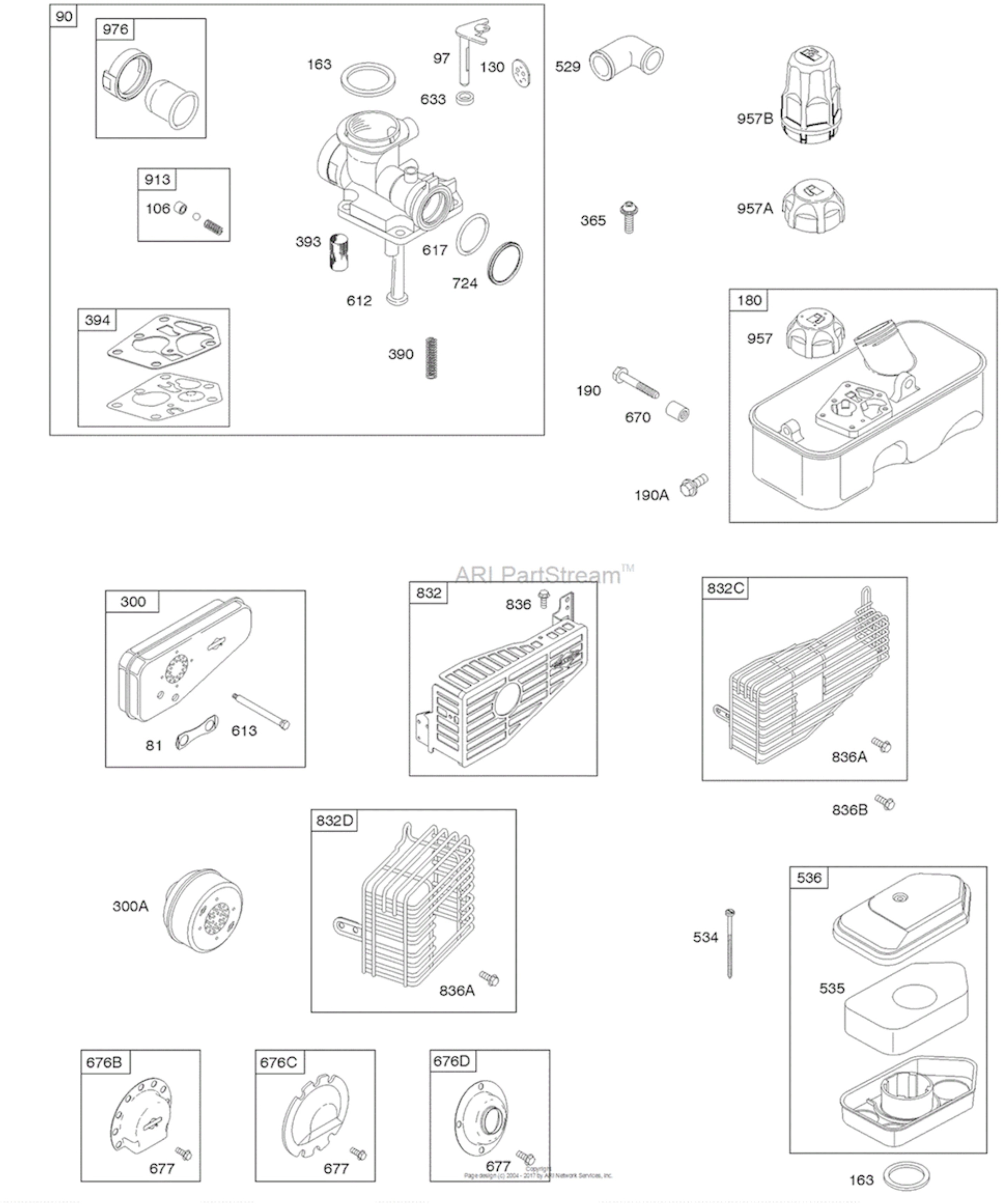

Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
81
photo_cameraImage coming soon 691179 Lock-Muffler Screw €6.51
97
photo_cameraImage coming soon 691931 Shaft-Throttle €20.28
106
photo_cameraImage coming soon 691901 Seat-Inlet €11.32
130
photo_cameraImage coming soon 691190 Valve-Throttle €6.17
163
photo_cameraImage coming soon 271139S Gasket-Air Cleaner €3.77
180
photo_cameraImage coming soon 494406 Tank-Fuel (Metal) €73.07
190A
photo_cameraImage coming soon 691108 Screw (Fuel Tank) (9/16in. Long) €5.68
190
photo_cameraImage coming soon 691640 Screw (Fuel Tank) (1 3/4in. Long) €5.93
300A
photo_cameraImage coming soon 394569S Muffler (Round Lo Tone) €19.70
300
photo_cameraImage coming soon 692307 Muffler €31.53
365
photo_cameraImage coming soon 790029 Screw (Carburetor) €5.93
390
photo_cameraImage coming soon 691839 Spring-Choke Diaphragm €6.17
393
photo_cameraImage coming soon 691837 Screen-Carburetor €9.00
394
photo_cameraImage coming soon 795083 Diaphragm-Carburetor €7.09
534
photo_cameraImage coming soon 691417 Screw (Air Cleaner) €6.34
535
Filter-Air Cleaner Foam for Engine Briggs & Stratton Series 450 698369 Filter-Air Cleaner Foam for Engine Briggs & Stratton Series 450 €9.18
536
photo_cameraImage coming soon 698472 Cleaner-Air €31.82
612
photo_cameraImage coming soon 496046S Tube-Pick Up €10.57
613
photo_cameraImage coming soon 691413 Screw (Muffler) €6.90
617
photo_cameraImage coming soon 270344S Seal-O Ring (Intake Manifold) €7.49
633
photo_cameraImage coming soon 691321 Seal-Choke/Thr Shaft (Throttle) €5.84
670
photo_cameraImage coming soon 691633 Spacer-Fuel Tank €5.43
676C
photo_cameraImage coming soon 393756 Deflector-Muffler €9.25
676D
photo_cameraImage coming soon 397931 Deflector-Muffler €11.07
677
photo_cameraImage coming soon 690661 Screw (Muffler Deflector) €5.59
724
photo_cameraImage coming soon 697478 Retainer-Seal €6.44
832
photo_cameraImage coming soon 699299 Guard-Muffler €50.33
832C
photo_cameraImage coming soon 790743 Guard-Muffler €34.64
832D
photo_cameraImage coming soon 790744 Guard-Muffler €23.85
836
photo_cameraImage coming soon 690664 Screw (Muffler Guard) (13/32in. Long) €5.93
836B
photo_cameraImage coming soon 691125 Screw (Muffler Guard) (5/8in. Long) €6.34
836A
photo_cameraImage coming soon 790745 Screw (Muffler Guard) €5.93
913
photo_cameraImage coming soon 494409 Seat-Check Valve €8.00
957
photo_cameraImage coming soon 497929S Cap-Fuel Tank (Plastic) €5.51
957B
photo_cameraImage coming soon 792878 Cap-Fuel Tank (Plastic) €23.60
976
Primer Pump for Engine Briggs & Stratton Series 450 694394 Primer Pump for Engine Briggs & Stratton Series 450 €6.78

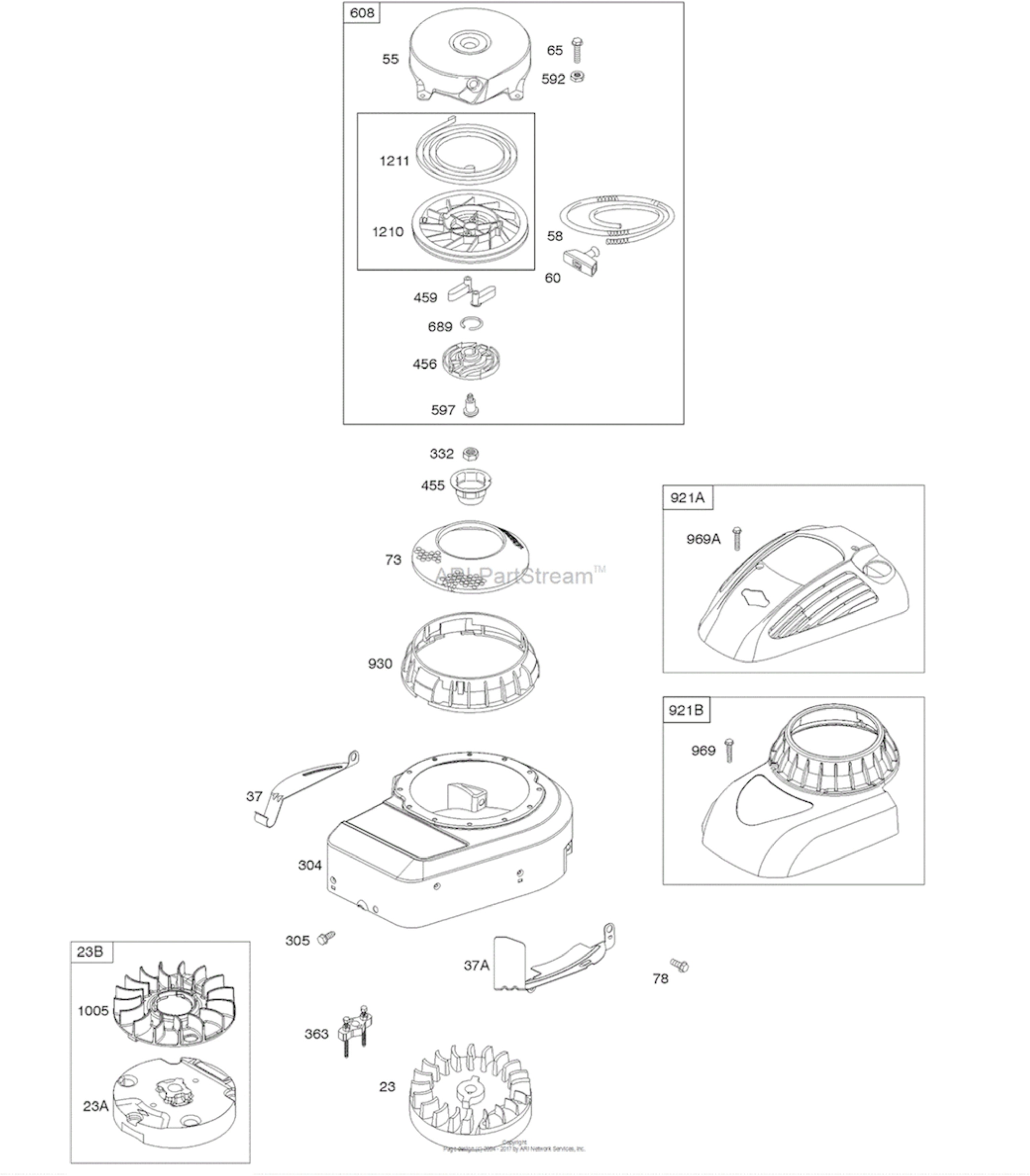

Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
23A
photo_cameraImage coming soon 592003 Flywheel €89.00
23B
photo_cameraImage coming soon 592370 Flywheel €94.56
37
photo_cameraImage coming soon 690482 Guard-Flywheel (Carburetor Side) €16.47
37A
photo_cameraImage coming soon 691209 Guard-Flywheel (Muffler Side) €9.83
55
photo_cameraImage coming soon 692144 Housing-Rewind Starter €73.32
58
Rope-Starter for Engine Briggs & Stratton Series 450 691921 Rope-Starter for Engine Briggs & Stratton Series 450 €19.73
60
photo_cameraImage coming soon 691915 Grip-Starter Rope €7.42
65
photo_cameraImage coming soon 690837 Screw (Rewind Starter) €5.59
332
photo_cameraImage coming soon 690662 Nut (Flywheel) €7.41
459
photo_cameraImage coming soon 281505S Pawl-Ratchet €6.84
1210
photo_cameraImage coming soon 499901 Pulley/Spring Assembly (Pulley) €25.23
1211
photo_cameraImage coming soon 499901 Pulley/Spring Assembly (Pulley) €25.23

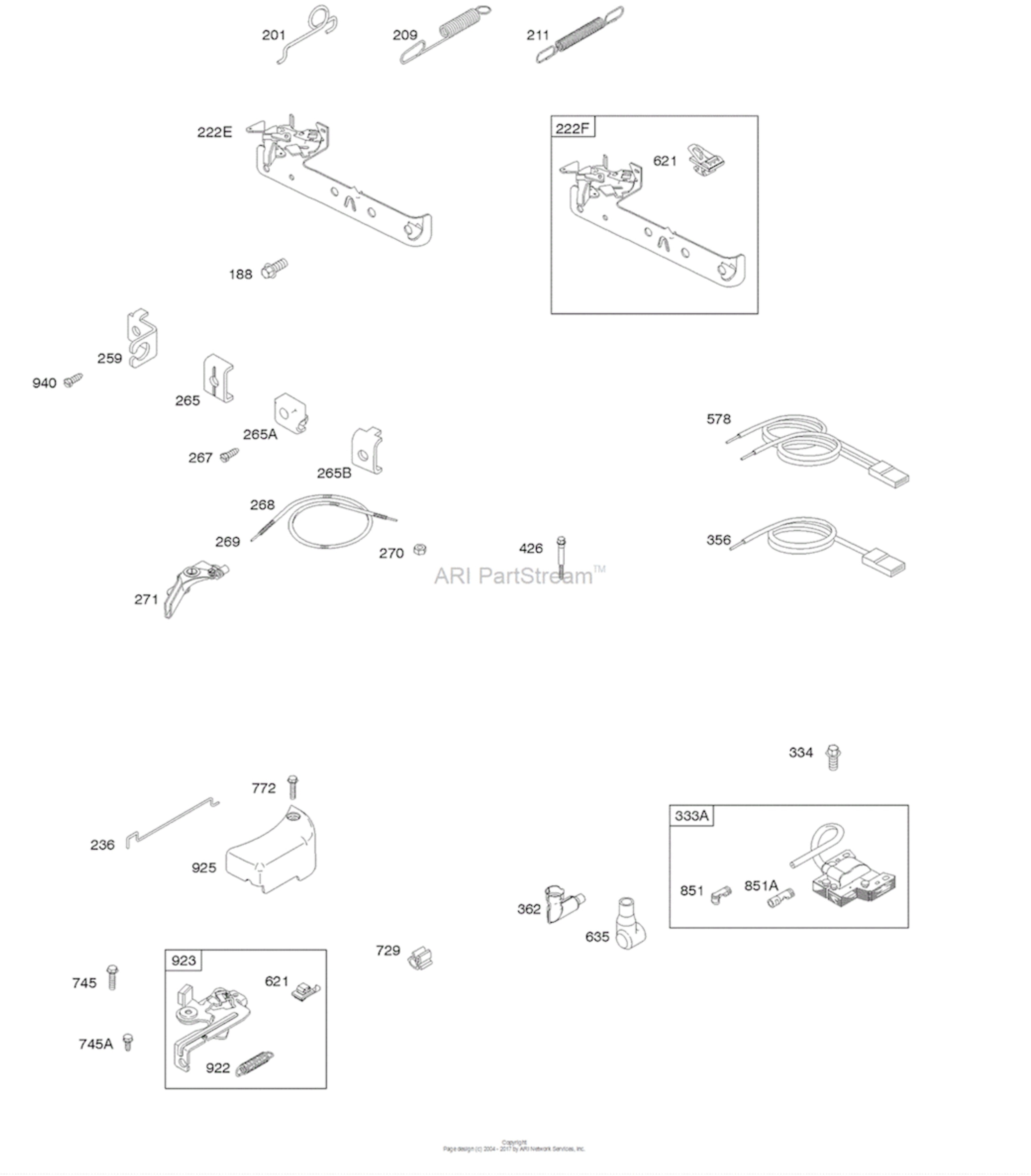

Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
201
photo_cameraImage coming soon 690347 Link-Air Vane €6.50
222F
photo_cameraImage coming soon 691445 Bracket-Control €40.48
236
photo_cameraImage coming soon 591292 Link-Lockout €4.58
268
photo_cameraImage coming soon 691025 Casing-Control Wire (Cut To Required Length) €39.13
269
photo_cameraImage coming soon 691026 Wire-Control (Cut To Required Length) €17.99
270
photo_cameraImage coming soon 691027 Nut (Control Wire Casing) €18.28
271
photo_cameraImage coming soon 691028 Lever-Control €68.32
333A
photo_cameraImage coming soon 591420 Armature-Magneto €65.02
334
photo_cameraImage coming soon 691061 Screw (Magneto Armature) €4.81
356
photo_cameraImage coming soon 692390 Wire-Stop €5.25
621
photo_cameraImage coming soon 692310 Switch-Stop €8.31
745A
photo_cameraImage coming soon 690859 Screw (Brake) (1/2in. Long) €4.81
745
photo_cameraImage coming soon 691146 Screw (Brake) (7/8in. Long) €4.81
922
photo_cameraImage coming soon 692135 Spring-Brake €8.83
923
photo_cameraImage coming soon 691487 Brake €40.47

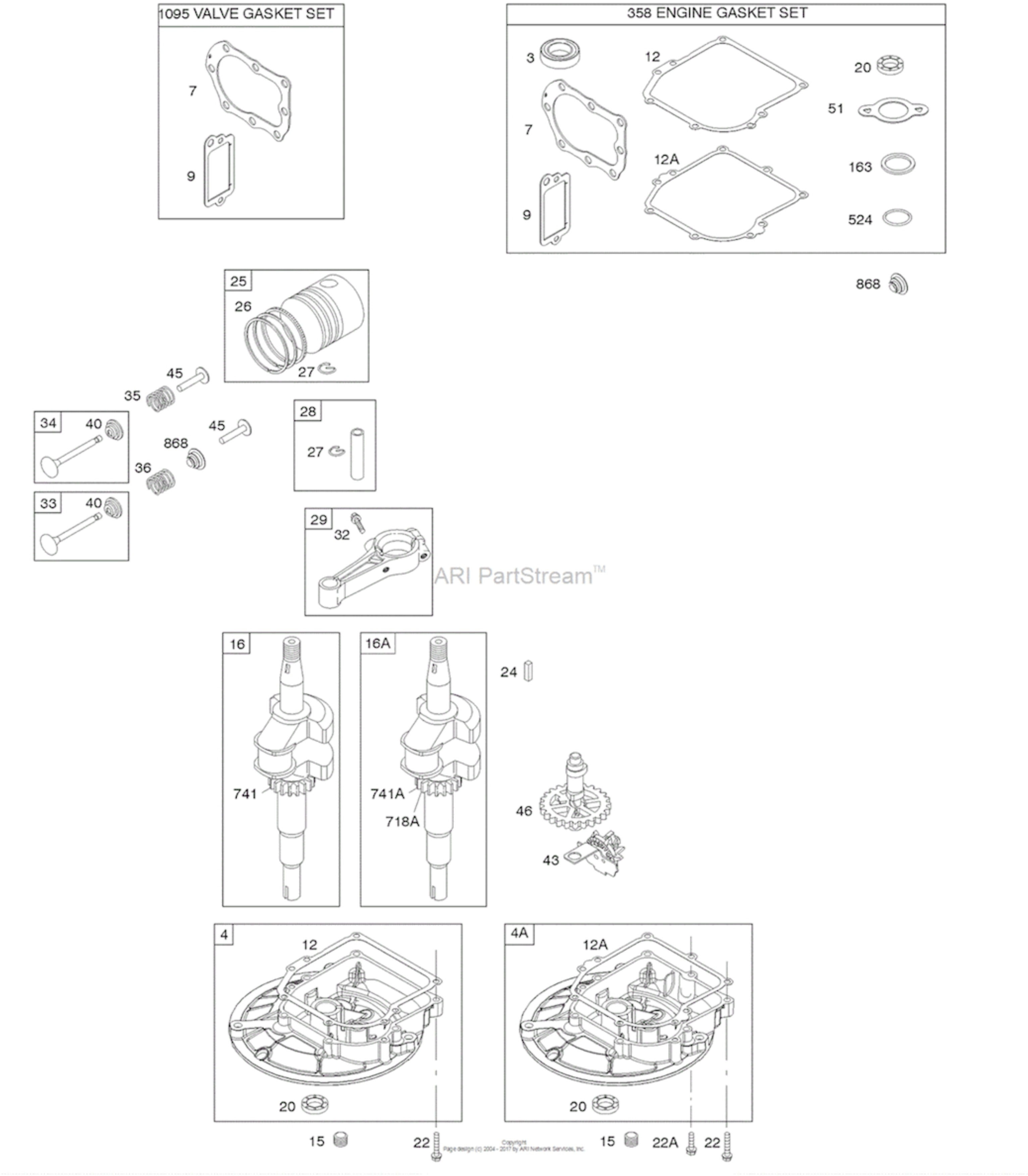

Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
3
photo_cameraImage coming soon 299819S Seal-Oil (Magneto Side) €4.88
4A
photo_cameraImage coming soon 590569 Sump-Engine (Engines with 7 Sump Screws) €55.66
12
photo_cameraImage coming soon 270896 Gasket-Crankcase (.009in. Thick)(Engines with 6 Sump Screws) €12.65
12A
photo_cameraImage coming soon 799587 Gasket-Crankcase (Engines with 7 Sump Screws) €16.47
15
photo_cameraImage coming soon 691680 Plug-Oil Drain €5.43
16
photo_cameraImage coming soon 796212 Crankshaft €72.98
20
photo_cameraImage coming soon 391483S Seal-Oil (PTO Side) €5.26
22A
photo_cameraImage coming soon 590763 Screw (Crankcase Cover/Sump) €5.51
22
photo_cameraImage coming soon 692551 Screw (Crankcase Cover/Sump) €6.09
24
photo_cameraImage coming soon 222698S Key-Flywheel €4.27
25
photo_cameraImage coming soon 795689 Piston Assembly (.020in. Oversize) €200.96
25
photo_cameraImage coming soon 795691 Piston Assembly (Standard) €99.21
26
photo_cameraImage coming soon 795688 Ring Set (.020in. Oversize) €153.07
26
photo_cameraImage coming soon 795690 Ring Set (Standard) €44.63
27
photo_cameraImage coming soon 691588 Lock-Piston Pin €5.10
28
photo_cameraImage coming soon 699659 Pin-Piston (Standard) €7.75
29
photo_cameraImage coming soon 699655 Rod-Connecting (Standard) €54.89
32
photo_cameraImage coming soon 691664 Screw (Connecting Rod) €5.55
33
photo_cameraImage coming soon 296676 Valve-Exhaust €28.92
34
photo_cameraImage coming soon 296677 Valve-Intake €23.02
35
photo_cameraImage coming soon 690520 Spring-Valve (Intake) €5.43
36
photo_cameraImage coming soon 690520 Spring-Valve (Intake) €5.43
40
photo_cameraImage coming soon 692194 Retainer-Valve €7.83
45
photo_cameraImage coming soon 691762 Tappet-Valve €12.23
46
photo_cameraImage coming soon 691998 Camshaft €83.11
51
photo_cameraImage coming soon 699649 Gasket-Intake €6.76
163
photo_cameraImage coming soon 271139S Gasket-Air Cleaner €3.77
358
photo_cameraImage coming soon 590777 Gasket Set-Engine €28.08
524
photo_cameraImage coming soon 691876 Seal-Dipstick Tube €5.35
718A
photo_cameraImage coming soon 499047 Pin-Locating (Crankshaft) Used Before Code Date 08071400 €5.93
741A
photo_cameraImage coming soon 691805 Gear-Timing (Metal) €20.03
741
photo_cameraImage coming soon 796210 Gear-Timing (Plastic) €4.85
868
photo_cameraImage coming soon 697338 Seal-Valve €14.72
1095
photo_cameraImage coming soon 498526 Gasket Set-Valve €16.47

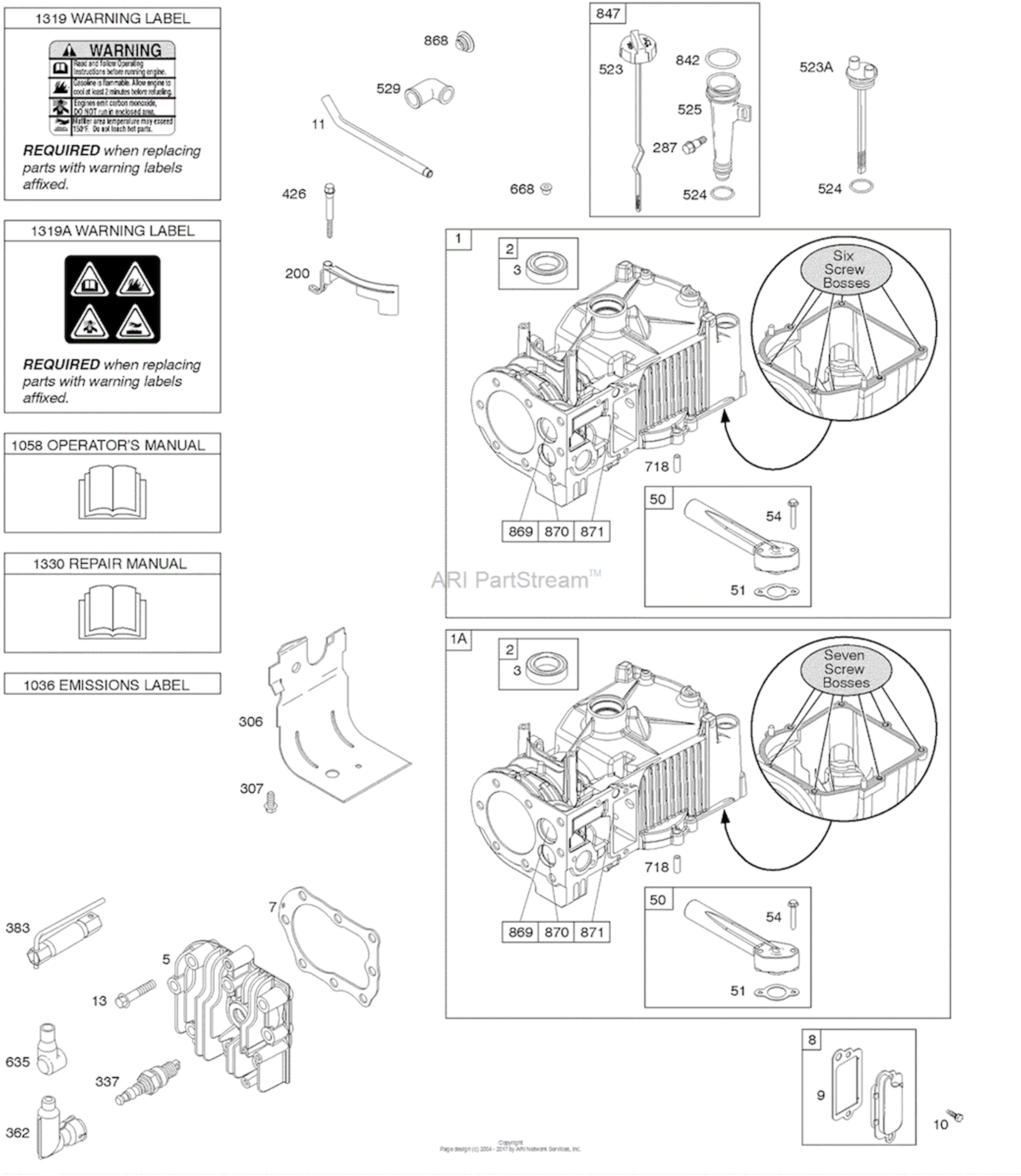

Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY
Pos. Item Price Buy
1A
photo_cameraImage coming soon 590772 Cylinder Assembly (Engines with 7 Sump Screws) €240.96
1
photo_cameraImage coming soon 699653 Cylinder Assembly (Engines with 6 Sump Screws) €240.96
2
photo_cameraImage coming soon 796961 Kit-Bushing/Seal (Magneto Side) €27.67
3
photo_cameraImage coming soon 299819S Seal-Oil (Magneto Side) €4.88
5
photo_cameraImage coming soon 790169 Head-Cylinder €109.50
8
photo_cameraImage coming soon 791781 Breather Assembly €10.16
10
photo_cameraImage coming soon 691666 Screw (Breather Assembly) €5.18
11
photo_cameraImage coming soon 691245 Tube-Breather €12.73
13
photo_cameraImage coming soon 691640 Screw (Fuel Tank) (1 3/4in. Long) €5.93
50
photo_cameraImage coming soon 699644 Manifold-Intake €19.04
51
photo_cameraImage coming soon 699649 Gasket-Intake €6.76
200
photo_cameraImage coming soon 691912 Blade-Governor €10.74
287
photo_cameraImage coming soon 691002 Screw (Dipstick Tube) €7.50
306
photo_cameraImage coming soon 690400 Shield-Cylinder €17.30
523A
photo_cameraImage coming soon 691913 Dipstick €9.66
523
photo_cameraImage coming soon 692040 Dipstick €22.36
524
photo_cameraImage coming soon 691876 Seal-Dipstick Tube €5.35
525
photo_cameraImage coming soon 691320 Tube-Dipstick €14.81
668
photo_cameraImage coming soon 692889 Spacer (Cylinder) €10.99
718
photo_cameraImage coming soon 690959 Pin-Locating (Cylinder) €5.93
842
photo_cameraImage coming soon 691870 Seal-O Ring (Dipstick Tube) €6.92
847
photo_cameraImage coming soon 691440 Dipstick/Tube Assembly €35.89
868
photo_cameraImage coming soon 697338 Seal-Valve €14.72
869
photo_cameraImage coming soon 699641 Seat-Valve (Intake) €14.31
870
photo_cameraImage coming soon 699642 Seat-Valve (Exhaust) €18.21
871
photo_cameraImage coming soon 699643 Bushing-Valve Guide (Exhaust Valve) €6.44

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Briggs & Stratton Spare Parts for Engine Series 450

Briggs & Stratton original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Engine Series 450 - 09T502-0002-H1.

Please make sure that the serial number of your engine matches the one shown on the page before making an order.
For More Information Contact Customer Service.


The model number is generally embossed in the metal part of the engine.
Below is an example of how the model/type/code is composed:

Briggs & Stratton Label

In the following table, look for the model of the Engine and the respective parts of the code.
Briggs & Stratton Serie 450

Air Cleaner, Carburetor, Exhaust System, Fuel Supply Pag.1
# Part Num. Description
81 691179 Lock-Muffler Screw
90 795477 Carburetor
97 691931 Shaft-Throttle
106 691901 Seat-Inlet
130 691190 Valve-Throttle
163 271139S Gasket-Air Cleaner
180 494406 Tank-Fuel (Metal)
190 691640 Screw (Fuel Tank) (1 3/4in. Long)
190A 691108 Screw (Fuel Tank) (9/16in. Long)
300 692307 Muffler
300A 394569S Muffler (Round Lo Tone)
365 790029 Screw (Carburetor)
390 691839 Spring-Choke Diaphragm
393 691837 Screen-Carburetor
394 795083 Diaphragm-Carburetor
529 692189 Grommet
534 691417 Screw (Air Cleaner)
535 698369 Filter-Air Cleaner Foam
536 698472 Cleaner-Air
612 496046S Tube-Pick Up
613 691413 Screw (Muffler)
617 270344S Seal-O Ring (Intake Manifold)
633 691321 Seal-Choke/Thr Shaft (Throttle)
670 691633 Spacer-Fuel Tank
676B 393760 Deflector-Muffler
676C 393756 Deflector-Muffler
676D 397931 Deflector-Muffler
677 690661 Screw (Muffler Deflector)
724 697478 Retainer-Seal
832 699299 Guard-Muffler
832C 790743 Guard-Muffler
832D 790744 Guard-Muffler
836 690664 Screw (Muffler Guard) (13/32in. Long)
836A 790745 Screw (Muffler Guard)
836B 691125 Screw (Muffler Guard) (5/8in. Long)
913 494409 Seat-Check Valve
957 497929S Cap-Fuel Tank (Plastic)
957B 792878 Cap-Fuel Tank (Plastic)
976 694394 Primer-Carburetor
Blower Housing/Shrouds, Flywheel, Rewind Starter Pag.2
23A 592003 Flywheel
23B 592370 Flywheel
37 690482 Guard-Flywheel (Carburetor Side)
37A 691209 Guard-Flywheel (Muffler Side)
55 692144 Housing-Rewind Starter
58 691921 Rope-Starter (70in. Rope)
60 691915 Grip-Starter Rope
65 690837 Screw (Rewind Starter)
73 699850 Screen-Rotating
78 692198 Screw (Flywheel Guard)
304 694051 Housing-Blower (Non Compliance Engines)
305 692198 Screw (Blower Housing)
332 690662 Nut (Flywheel)
363 19069 Puller-Flywheel
455 691236 Cup-Flywheel
456 692299 Plate-Pawl Friction
459 281505S Pawl-Ratchet
592 690800 Nut (Rewind Starter)
597 691696 Screw (Pawl Friction Plate)
608 690101 Starter-Rewind (70in. Rope)
689 691855 Spring-Friction
921A 793973 Cover-Blower Housing
921B 699796 Cover-Blower Housing
930 691348 Guard-Rewind
969 799013 Screw (Blower Housing Cover)
969A 799014 Screw (Blower Housing Cover)
1005 592366 Fan-Flywheel
1210 499901 Pulley/Spring Assembly (Pulley)
1211 499901 Pulley/Spring Assembly (Spring)
Brake, Controls, Covers, Governor Spring, Ignition Pag.3
188 692198 Screw (Control Bracket)
201 690347 Link-Air Vane
209 691297 Spring-Governor
211 691859 Spring-Governed Idle
222F 691445 Bracket-Control
236 591292 Link-Lockout
259 797041 Bracket-Casing Clamp
265 692179 Clamp-Casing
267 691044 Screw (Casing Clamp)
268 691025 Casing-Control Wire (Cut To Required Length)
269 691026 Wire-Control (Cut To Required Length)
270 691027 Nut (Control Wire Casing)
271 691028 Lever-Control
333A 591420 Armature-Magneto
334 691061 Screw (Magneto Armature)
356 692390 Wire-Stop
362 793351 Shield-Spark Plug
426 691107 Screw (Governor Blade)
578 398153 Wire Assembly
621 692310 Switch-Stop
635 66538S Boot-Spark Plug (Slip On Style)
729 690586 Clip-Wire
745 691146 Screw (Brake) (7/8in. Long)
745A 690859 Screw (Brake) (1/2in. Long)
772 691111 Screw (Linkage Cover)
851 493880S Terminal-Spark Plug
851A 692424 Terminal-Spark Plug
922 692135 Spring-Brake
923 691487 Brake
925 691349 Cover-Linkage
940 691044 Screw (Casing Clamp Bracket)
Camshaft, Crankcase Cover/Sump, Crankshaft, Gasket Set
Engine, Gasket Set - Valve, Piston/Rings/Connecting Rod Pag.4
3 299819S Seal-Oil (Magneto Side)
4 798264 Sump-Engine (Engines with 6 Sump Screws)
4A 590569 Sump-Engine (Engines with 7 Sump Screws)
7 698717 Gasket-Cylinder Head
9 695890 Gasket-Breather
12 692218 Gasket-Crankcase (.015in. Thick)(Engines with 6 Sump Screws)
12 270895 Gasket-Crankcase (.005in. Thick)(Engines with 6 Sump Screws)
12 270896 Gasket-Crankcase (.009in. Thick)(Engines with 6 Sump Screws)
12A 799587 Gasket-Crankcase (Engines with 7 Sump Screws)
15 691680 Plug-Oil Drain
16 796212 Crankshaft
20 391483S Seal-Oil (PTO Side)
22 692551 Screw (Crankcase Cover/Sump)
22A 590763 Screw (Crankcase Cover/Sump)
24 222698S Key-Flywheel
25 795689 Piston Assembly (.020in. Oversize)
25 795691 Piston Assembly (Standard)
26 795688 Ring Set (.020in. Oversize)
26 795690 Ring Set (Standard)
27 691588 Lock-Piston Pin
28 699659 Pin-Piston (Standard)
29 699655 Rod-Connecting (Standard)
32 691664 Screw (Connecting Rod)
33 296676 Valve-Exhaust
34 296677 Valve-Intake
35 690520 Spring-Valve (Intake)
36 690520 Spring-Valve (Exhaust)
40 692194 Retainer-Valve
43 698690 Slinger-Governor/Oil
45 691762 Tappet-Valve
46 691998 Camshaft
51 699649 Gasket-Intake
163 271139S Gasket-Air Cleaner
358 590777 Gasket Set-Engine
524 691876 Seal-Dipstick Tube
718A 499047 Pin-Locating (Crankshaft) Used Before Code Date 08071400
741 796210 Gear-Timing (Plastic)
741A 691805 Gear-Timing (Metal)
868 697338 Seal-Valve
1095 498526 Gasket Set-Valve
Cylinder, Cylinder Head, Lubrication, Operator's Manual, Warning Label Pag.5
1 699653 Cylinder Assembly (Engines with 6 Sump Screws)
1A 590772 Cylinder Assembly (Engines with 7 Sump Screws)
2 796961 Kit-Bushing/Seal (Magneto Side)
3 299819S Seal-Oil (Magneto Side)
5 790169 Head-Cylinder
7 698717 Gasket-Cylinder Head
8 791781 Breather Assembly
9 695890 Gasket-Breather
10 691666 Screw (Breather Assembly)
11 691245 Tube-Breather
13 691640 Screw (Cylinder Head)
50 699644 Manifold-Intake
51 699649 Gasket-Intake
54 691111 Screw (Intake Manifold)
200 691912 Blade-Governor
287 691002 Screw (Dipstick Tube)
306 690400 Shield-Cylinder
307 690345 Screw (Cylinder Shield)
337 796112S Plug-Spark
362 793351 Shield-Spark Plug
383 89838S Wrench-Spark Plug
426 691107 Screw (Governor Blade)
523 692040 Dipstick
523A 691913 Dipstick
524 691876 Seal-Dipstick Tube
525 691320 Tube-Dipstick
529 692189 Grommet
635 66538S Boot-Spark Plug (Slip On Style)
668 692889 Spacer (Cylinder)
718 690959 Pin-Locating (Cylinder)
842 691870 Seal-O Ring (Dipstick Tube)
847 691440 Dipstick/Tube Assembly
868 697338 Seal-Valve
869 699641 Seat-Valve (Intake)
870 699642 Seat-Valve (Exhaust)
871 699643 Bushing-Valve Guide (Exhaust Valve)
871 63709 Bushing-Valve Guide (Intake Valve)
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Briggs & Stratton websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Briggs & Stratton brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Briggs & Stratton Serie 450
11 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT

Specific References

New

Download

Diagram B&S Series 450

Diagram B&S Series 450

Download (1.05MB)

You might also like

A.M.A. S.p.A. SKU: 694394
Primer Pump for Engine Briggs & Stratton Series 450 Genuine replacement part Briggs & Stratton, Primer Pump for Engine Briggs & Stratton Series 450. Part for the following products: -  Engine Briggs & Stratton...
Last items in stock €6.78
Rope-Starter for Engine Briggs & Stratton Series 450 Sale
A.M.A. S.p.A. SKU: 691921
Rope-Starter for Engine Briggs & Stratton Series 450 Genuine replacement part Briggs & Stratton, Rope-Starter for Engine Briggs & Stratton Series 450. Part for the following products: -  Engine Briggs & Stratton...
Last items in stock €19.73
Comments (0)
