Bosch

Bosch Spare Parts for Demolition Hammer SDS-Max GBH11DE

SKU: Bosch GBH 11 DE - 0611245703
€2.60
VAT included

Bosch Spare Parts for Demolition Hammer SDS-Max GBH11DE

We have the original Spares BOSCH for Demolition Hammer GBH 11 DE - 0611245703, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Bosch GBH 11 DE - 0611245703
Bosch Spare Parts for Demolition Hammer SDS-Max GBH11DE
  • Bosch Spare Parts for Demolition Hammer SDS-Max GBH11DE
  • Bosch Spare Parts for Demolition Hammer SDS-Max GBH11DE
Bosch

Bosch Spare Parts for Demolition Hammer SDS-Max GBH11DE

SKU: Bosch GBH 11 DE - 0611245703 Condition: New
€2.60
VAT included

Bosch Spare Parts for Demolition Hammer SDS-Max GBH11DE

We have the original Spares BOSCH for Demolition Hammer GBH 11 DE - 0611245703, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Bosch GBH 11 DE - 0611245703
settings 111 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
106 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

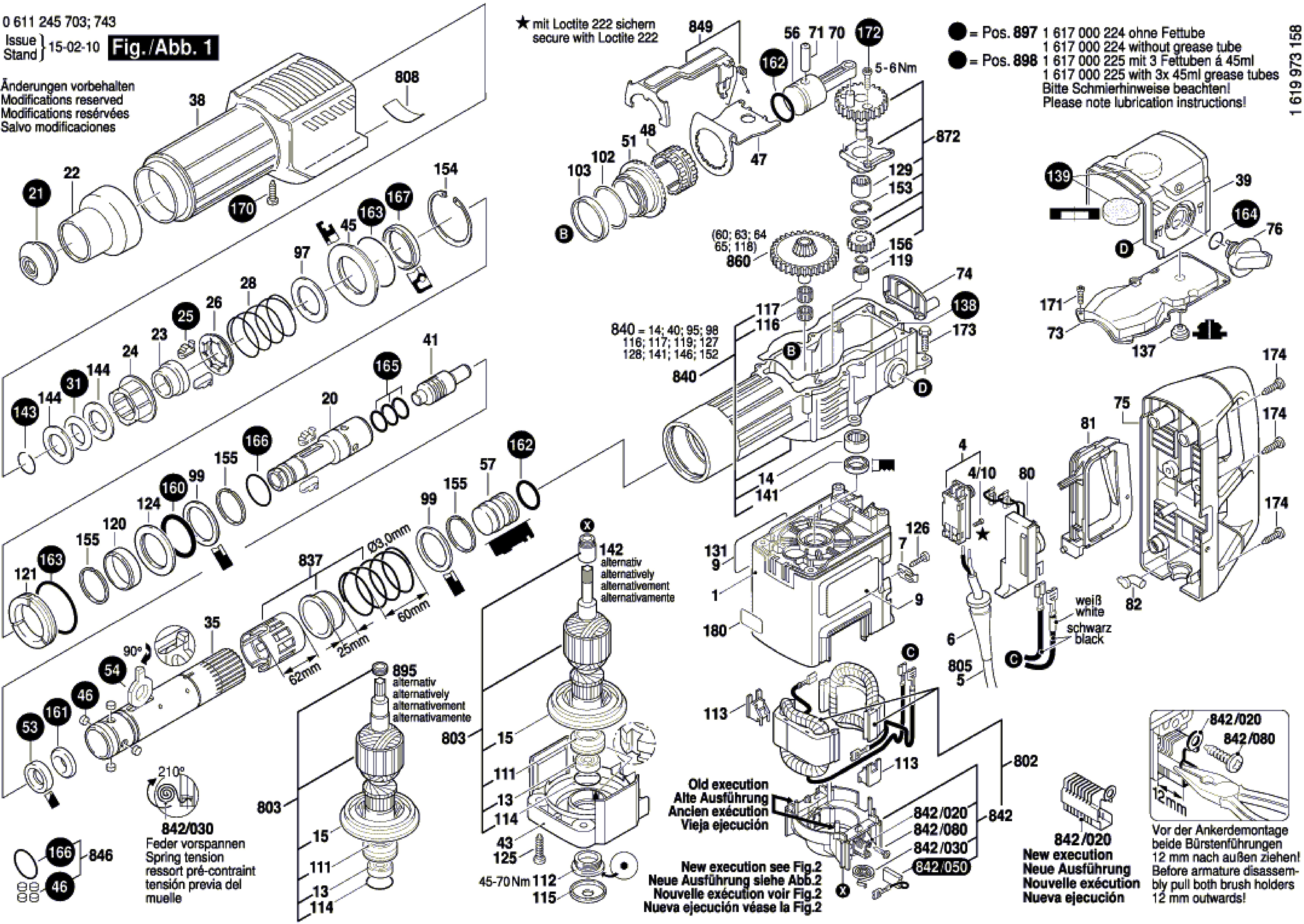

Esploso pagina 1
Pos. Item Price Buy
*
 photo_cameraImage coming soon 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8 €1.34
1
 photo_cameraImage coming soon 1615108091 Motor Housing BLUE €41.44
2
 photo_cameraImage coming soon 160422052J Field 230V €93.89
4
 Switch for Demolition Hammer Bosch GSH 11 E 1617200048 Switch for Demolition Hammer Bosch GSH 11 E €24.90
6
 photo_cameraImage coming soon 1610703053 Grommet Ø9,7-Ø12x89 MM €3.20
7
 photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
9
 photo_cameraImage coming soon 1611110889 Manufacturer's nameplate €3.31
13
 photo_cameraImage coming soon 2610909310 Deep-Groove Ball Bearing €14.90
14
 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 1610910089 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 €31.79
15
 photo_cameraImage coming soon 1616610083 Fan €23.52
20
 photo_cameraImage coming soon 1618597068 Toolholder €129.46
21
 Protective Cap for Demolition Hammer Bosch GBH 11 DE 1610508023 Protective Cap for Demolition Hammer Bosch GBH 11 DE €7.82
22
 photo_cameraImage coming soon 1610591014 Protection Sleeve €5.04
23
 photo_cameraImage coming soon 1610520001 Stop Sleeve €15.74
24
 Spacer Tube for Rotary Hammer Bosch GBH 11 DE 1610590006 Spacer Tube for Rotary Hammer Bosch GBH 11 DE €9.54
25
 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE 1612300027 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE €15.95
26
 Indexing Disk for Hammers Bosch GBH 5/40 1610290025 Indexing Disk for Hammers Bosch GBH 5/40 €9.44
28
 Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E 1614621000 Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E €11.05
31
 photo_cameraImage coming soon 1610290030 Damping Ring €2.22
38
 photo_cameraImage coming soon 1615190094 Covering hood BLUE €28.21
39
 Covering Hood BLUE for Rotary Hammer Bosch GBH 11 DE 1615190096 Covering Hood BLUE for Rotary Hammer Bosch GBH 11 DE €28.99
41
 photo_cameraImage coming soon 1613124046 Striker Pin €22.01
43
 photo_cameraImage coming soon 1615808083 Bearing cover BLUE €37.36
45
 photo_cameraImage coming soon 1610290032 Intermediate Ring €3.31
47
 photo_cameraImage coming soon 1611329016 Notched Plate €10.52
48
 photo_cameraImage coming soon 1616334011 Gear Sleeve €32.50
51
 photo_cameraImage coming soon 1616333031 Crown Gear Z=49 €112.68
53
 photo_cameraImage coming soon 1610190026 Stop Disc €5.23
54
 photo_cameraImage coming soon 1610190024 Control Disc €22.01
56
 photo_cameraImage coming soon 1618700066 Hammer Piston €22.01
70
 photo_cameraImage coming soon 1612001034 Connecting Rod €32.67
71
 photo_cameraImage coming soon 1613100020 Straight Pin €2.22
73
 photo_cameraImage coming soon 1615500291 Housing Cover €10.52
74
 photo_cameraImage coming soon 1612386004 Retaining Bracket €14.90
75
 photo_cameraImage coming soon 1615132083 Handle BLUE €41.44
76
 Clamp-Handle Black/Red for Hammer Bosch GBH 11 DE 1612026057 Clamp-Handle Black/Red for Hammer Bosch GBH 11 DE €13.28
80
 photo_cameraImage coming soon 1617233055 Speed governor 220-240V €96.63
81
 photo_cameraImage coming soon 1612026084 Switch-Pawl BLUE/GREY €9.24
82
 photo_cameraImage coming soon 1615510000 Light Conductor €1.95
84
 photo_cameraImage coming soon 1612025060 Auxiliary Handle M8 BLACK €7.20
85
 photo_cameraImage coming soon 1618040059 index turning toolholder €7.69
97
 photo_cameraImage coming soon 1610102032 Supporting Disc 2,0 MM THICK €3.31
99
 photo_cameraImage coming soon 1610114020 Supporting Disc €5.04
102
 photo_cameraImage coming soon 1610102036 Shim 0,2 MM THICK €2.22
103
 photo_cameraImage coming soon 1610290034 Thrust Ring €9.24
111
 Bushing for Hammer Bosch GBH 11 DE-GSH 11 E 3610501500 Bushing for Hammer Bosch GBH 11 DE-GSH 11 E €25.78
112
 Threaded Ring for Rotary Hammer Bosch GBH 11 DE 3613461500 Threaded Ring for Rotary Hammer Bosch GBH 11 DE €13.53
113
 Spacer for Hammer Bosch GBH 11 DE-GSH 11 E 1610009007 Spacer for Hammer Bosch GBH 11 DE-GSH 11 E €2.28
114
 O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE 1610210139 O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE €3.19
115
 photo_cameraImage coming soon 1610508027 Protective Cap BLACK €2.67
116
 photo_cameraImage coming soon 1610913004 Needle-Roller Assembly Ø13 MM €4.31
117
 photo_cameraImage coming soon 1610913011 Needle-Roller Assembly Ø10 MM €7.99
119
 photo_cameraImage coming soon 1610910081 Needle-Roller Bearing €19.67
120
 photo_cameraImage coming soon 1610290037 Inner Ring €17.08
121
 photo_cameraImage coming soon 1610290035 Bearing Ring €17.08
124
 photo_cameraImage coming soon 1610190029 Thrust Bearing Disc €14.90
125
 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH 1613435010 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH €2.48
126
 photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
129
 photo_cameraImage coming soon 1610910085 Needle-Roller Bearing €19.67
137
 photo_cameraImage coming soon 1610591015 Plug €3.31
138
 photo_cameraImage coming soon 1611015043 Sealing Frame €5.04
139
 photo_cameraImage coming soon 1610290036 Sealing disk €3.31
141
 Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 1610290028 Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 €5.32
142
 photo_cameraImage coming soon 1610300063 Bushing €17.08
143
 photo_cameraImage coming soon 1614601021 Retaining ring DIN 7993-28x2 €8.56
144
 photo_cameraImage coming soon 1610190028 Supporting Disc €4.31
154
 photo_cameraImage coming soon 2916660040 Spring retaining ring DIN 472-68x2,5MM €1.66
155
 photo_cameraImage coming soon 1614601020 Retaining ring €1.59
156
 photo_cameraImage coming soon 2916650003 Spring retaining ring DIN 471-12x1-FSt €2.09
160
 photo_cameraImage coming soon 1610210132 O-Ring 45,0x6,0 MM €2.67
161
 Damping Ring for Demolition Hammer Bosch GSH 16-30 1610290031 Damping Ring for Demolition Hammer Bosch GSH 16-30 €2.54
162
 photo_cameraImage coming soon 1610210133 O-Ring 28,0x5,0 MM €5.04
163
 photo_cameraImage coming soon 1610210134 O-Ring 62,0x3,0 MM €4.35
164
 photo_cameraImage coming soon 1900210117 O-Ring 18x3 MM €3.31
165
 O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE 1610210096 O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE €3.06
166
 photo_cameraImage coming soon 1610210084 O-Ring 34,0x2,0 MM €1.34
167
 photo_cameraImage coming soon 1610283026 Rotary shaft lip seal €4.31
170
 photo_cameraImage coming soon 2914551117 Microencapsulated Screw DIN 912-M 5x12-8.8 €1.48
172
 photo_cameraImage coming soon 1613414021 Microencapsulated Screw €1.32
173
 photo_cameraImage coming soon 1613433001 Screw and washer assembly 6,3x32 €1.32
174
 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH 1613435010 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH €2.48
661
 Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
802
 photo_cameraImage coming soon 1607000C3V Subassembly €141.32
803
 photo_cameraImage coming soon 1614011072 Armature 220-240V €299.13
805
 photo_cameraImage coming soon 1617000723 Power supply cord €45.86
808
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61
837
 photo_cameraImage coming soon 1617000294 Control Bushing €28.21
840
 photo_cameraImage coming soon 1617000992 Impact Mechanism Housing €299.13
842
 photo_cameraImage coming soon 1600A005AF Brush Holder €50.65
842/020
 photo_cameraImage coming soon 1614336017 Brush Guide €11.79
842/030
 photo_cameraImage coming soon 1614652004 Spiral Spring €9.47
842/050
 Carbon Brushes for Hammers Bosch GBH10DC-11DE-GSH10C-11E 1617014126 Carbon Brushes for Hammers Bosch GBH10DC-11DE-GSH10C-11E €29.88
846
 photo_cameraImage coming soon 1617000241 Cylindrical Roller €5.23
849
 photo_cameraImage coming soon 1617000991 Control Fork €19.18
850/050
 photo_cameraImage coming soon 1607000481 Carbon-Brush Set 10 x 1 617 014 126 €141.32
860
 photo_cameraImage coming soon 1617000993 Spur Wheel Clutch Z=53 €164.13
872
 photo_cameraImage coming soon 1617000994 Eccentric Cog Wheel Z=50 €133.81
884
 photo_cameraImage coming soon 1612025043 Auxiliary Handle €41.44
887
 photo_cameraImage coming soon 1617000807 Clamping Band Ø87 MM €25.35
890
 Special Grease Tube 225 ML for Bosch Hammers 1615430015 Special Grease Tube 225 ML for Bosch Hammers €53.09
891
 photo_cameraImage coming soon 1615430014 Grease Tube 45 ML €10.52
892
 Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE 1613001008 Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE €9.54 Not available for order
893
 Grease Tube 225 ML for Bosch Hammers GBH-GSH 1615430020 Grease Tube 225 ML for Bosch Hammers GBH-GSH €27.30
895
 photo_cameraImage coming soon 3613344500 Oil Return Ring €9.24
897
 photo_cameraImage coming soon 1617000224 Wear and Tear Part Set €96.63
898
 photo_cameraImage coming soon 1617000225 Wear and Tear Part Set €112.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Demolition Hammer SDS-Max GBH11DE

We have the original Spares BOSCH for Demolition Hammer GBH 11 DE - 0611245703, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch GBH 11 DE - 0611245703

Demolition Hammer GBH 11 DE/0 611 245 703
# Part Num. Description
1 1615108091 Motor Housing BLUE
2 160422052J Field 230V
4 1617200048 Switch
* 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8
6 1610703053 Grommet Ø9,7-Ø12x89 MM
7 1601302018 Fastening Clamp
9 1611110889 Manufacturer's nameplate
13 2610909310 Deep-Groove Ball Bearing
14 1610910089 Needle-Roller Bearing
15 1616610083 Fan
20 1618597068 Toolholder
21 1610508023 Protective Cap
22 1610591014 Protection Sleeve
23 1610520001 Stop Sleeve
24 1610590006 Spacer Tube
25 1612300027 Stopping Device
26 1610290025 Indexing Disk
28 1614621000 Compression Spring
31 1610290030 Damping Ring
35 1615806113 Hammer Pipe
38 1615190094 Covering hood BLUE
39 1615190096 Covering hood BLUE
41 1613124046 Striker Pin
43 1615808083 Bearing cover BLUE
45 1610290032 Intermediate Ring
47 1611329016 Notched Plate
48 1616334011 Gear Sleeve
51 1616333031 Crown Gear Z=49
53 1610190026 Stop Disc
54 1610190024 Control Disc
56 1618700066 Hammer Piston
57 1618710066 Striker
70 1612001034 Connecting Rod
71 1613100020 Straight Pin
73 1615500291 Housing Cover
74 1612386004 Retaining Bracket
75 1615132083 Handle BLUE
76 1612026057 Clamp Handle BLACK/RED
80 1617233055 Speed governor 220-240V
81 1612026084 Switch-Pawl BLUE/GREY
82 1615510000 Light Conductor
84 1612025060 Auxiliary Handle M8 BLACK
85 1618040059 index turning toolholder
97 1610102032 Supporting Disc 2,0 MM THICK
99 1610114020 Supporting Disc
102 1610102036 Shim 0,2 MM THICK
103 1610290034 Thrust Ring
111 3610501500 Bushing
112 3613461500 Threaded Ring
113 1610009007 Spacer
114 1610210139 O-Ring 30,0x2,5 MM
115 1610508027 Protective Cap BLACK
116 1610913004 Needle-Roller Assembly Ø13 MM
117 1610913011 Needle-Roller Assembly Ø10 MM
119 1610910081 Needle-Roller Bearing
120 1610290037 Inner Ring
121 1610290035 Bearing Ring
124 1610190029 Thrust Bearing Disc
125 1613435010 Torx Oval-Head Screw 5,5x25
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
129 1610910085 Needle-Roller Bearing
137 1610591015 Plug
138 1611015043 Sealing Frame
139 1610290036 Sealing disk
141 1610290028 Rotary shaft lip seal
142 1610300063 Bushing
143 1614601021 Retaining ring DIN 7993-28x2
144 1610190028 Supporting Disc
153 2916660007 Spring retaining ring DIN 472-22x1MM
154 2916660040 Spring retaining ring DIN 472-68x2,5MM
155 1614601020 Retaining ring
156 2916650003 Spring retaining ring DIN 471-12x1-FSt
160 1610210132 O-Ring 45,0x6,0 MM
161 1610290031 Damping Ring
162 1610210133 O-Ring 28,0x5,0 MM
163 1610210134 O-Ring 62,0x3,0 MM
164 1900210117 O-Ring 18x3 MM
165 1610210096 O-Ring 21,0x3,5 MM
166 1610210084 O-Ring 34,0x2,0 MM
167 1610283026 Rotary shaft lip seal
170 2914551117 Microencapsulated Screw DIN 912-M 5x12-8.8
171 2910141158 Hex Socket Head Cap Screw DIN 912-M5X16-8.8
172 1613414021 Microencapsulated Screw
173 1613433001 Screw and washer assembly 6,3x32
174 1613435010 Torx Oval-Head Screw 5,5x25
661 1615430010 Grease Tube 30 ML
802 1607000C3V Subassembly
803 1614011072 Armature 220-240V
805 1617000723 Power supply cord
808 1601106032 Nameplate 26x52 MM
837 1617000294 Control Bushing
840 1617000992 Impact Mechanism Housing
842 1600A005AF Brush Holder
842/020 1614336017 Brush Guide
842/030 1614652004 Spiral Spring
842/050 1617014126 Carbon-Brush Set
850/050 1607000481 Carbon-Brush Set 10 x 1 617 014 126
842/080 2910611012 Tapping Screw DIN 7981-ST3,5x16-C-H
846 1617000241 Cylindrical Roller
849 1617000991 Control Fork
860 1617000993 Spur Wheel Clutch Z=53
872 1617000994 Eccentric Cog Wheel Z=50
884 1612025043 Auxiliary Handle
887 1617000807 Clamping Band Ø87 MM
890 1615430015 Grease Tube 225 ML
891 1615430014 Grease Tube 45 ML
893 1615430020 Grease Tube 225 ML
892 1613001008 Depth-Gauge SW 6x330 MM
895 3613344500 Oil Return Ring
897 1617000224 Wear and Tear Part Set
898 1617000225 Wear and Tear Part Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 11 DE - 0611245703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GBH11DE

Diagram Bosch GBH11DE

Download (119.62KB)

You might also like

Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1617000271
Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE
Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE Genuine parts Bosch, Cylindrical Steel roller 5x5 mm for locking cylinder for Hammer GBH 5/40 DCE / 0611216703 Parts for the following products: - Hammer GBH 5/40 DCE /...
AVAILABLE €3.12
Details
Speed Governor for Hammers Bosch GBH 5/40 Sale
Bosch SKU: 1617233026
Speed Governor for Hammers Bosch GBH 5/40
Speed Governor for Hammers Bosch GBH 5/40 Bosch Original replacement part, 220-240V Speed Governor for hammers GBH 5/40 DCE/0 611 216 703. Parts for the following products: Hammer GBH 5/40 DCE/0 611 216 703 - Code: 1617233026
Last items in stock €95.95
Details
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46
Bosch SKU: 1610210109
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 DE Original spare Bosch, O-ring 26,0x4,0 MM for Hammers GBH 7-46 DE/0 611 263 703. Part for the following products: -  Hammer GBH...
AVAILABLE €6.73
Details
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE
Bosch SKU: 1617000873
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE Bosch original replacement part, Piston Assembly for Demolition Hammer GBH 7-46 DE. Part for the following products: -  GBH 7-46 DE / 0611263703 - Code: 1617000873
Last items in stock €58.97
Details
Indexing Disk for Hammers Bosch GBH 5/40
Bosch SKU: 1610290025
Indexing Disk for Hammers Bosch GBH 5/40
Indexing Disk for Hammers Bosch GBH 5/40 Bosch original parts, Steel Indexing Disk for Demolition Hammers GBH 5/40. Parts for the following products: -  Demolition Hammer GBH 5/40 DCE / 0611216703 - Code: 1610290025
Last items in stock €9.44
Details
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E
Bosch SKU: 1614621000
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E Bosch original parts, compression spring for Demolition Hammers GBH 5/40 - GBH 11 DE - GSH 3 E. Parts for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703...
AVAILABLE €11.05
Details
Stopping Device for Hammers Bosch GBH GBH 5/40 DCE-GBH 7-46 DE
Bosch SKU: 1612300027
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE Bosch Genuine part, Steel Stopping Device for Demolition Hammers 5/40 DCE - GBH 7-46 DE. Part for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703 -...
Last items in stock €15.95
Details
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703
Bosch SKU: 1617014122
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703 Genuine Parts Bosch, Carbon Brushes, for Demolition Hammers Bosch GBH38 - GBH5/40DCE - 0 611 216 703 - GSH4 - GSH5CE - PBH380 - GBH5DCE Part for the following products: -...
AVAILABLE €22.01
Details
Radial Seal for Rotary Hammer Bosch GBH 5/40
Bosch SKU: 1610283028
Radial Seal for Rotary Hammer Bosch GBH 5/40
Radial Seal for Rotary Hammer Bosch GBH 5/40 Bosch genuine part, Radial Seal DIN 3760-BS, Ø40x55x7 MM for Rotary Demolition Hammer GBH 5/40. Part for the following products: - Rotary Demolition Hammer GBH 5/40 DCE / 0611216703 -...
AVAILABLE €8.99
Details
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Bosch SKU: 1615430010
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Grease Tube 30 ML for Bosch Hammer GBH-GSH Genuine spare parts Bosch, Grease Tube 30 ML for Bosch Hammer GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH...
on 7/10 Business Days Approx €9.33
Details
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH Sale
Bosch SKU: 1613435010
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH Genuine spare parts Bosch, Torx Oval-Head Screw 5,5x25 for Hammer 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GSH 11 E/0 611 316 703. Parts for the following products: - HAMMER GBH...
AVAILABLE €2.48
Details
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 1610009007
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E Genuine spare parts Bosch, Spacer for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: -  DEMOLITION HAMMER GBH 11 DE/0 611 245 703 - HAMMER...
AVAILABLE €2.28
Details
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 3610501500
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E Original parts Bosch, Bushing for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: - HAMMER GBH 11 DE/0 611 245 703 - HAMMER GSH 11 E/0 611...
AVAILABLE €25.78
Details
Grease Tube 30 ML for Bosch Hammer GBH-GSH Sale
Bosch SKU: 1615430020
Grease Tube 225 ML for Bosch Hammers GBH-GSH
Grease Tube 225 ML for Bosch Hammers GBH-GSH Genuine spare part Bosch, Grease Tube 225 ML for Bosch Hammers GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH 8-45 D - 3...
AVAILABLE €27.30
Details
Carbon Brushes for Hammers Bosch GBH7/46DE
Bosch SKU: 1617014135
Carbon Brushes for Hammers Bosch GBH7/46DE
Carbon Brushes for Hammers Bosch GBH7/46DE Carbon Brushes for Hammers Bosch GBH7/46DE Genuine spare part Bosch, Carbon Brushes for Drilling Hammers GBH 7-46. Part for the following products: - GBH 7-46 DE/0 611 263 703 - Code :...
AVAILABLE €27.18
Details
Switch for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1617200048
Switch for Demolition Hammer Bosch GSH 11 E
Switch for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, Switch for Demolition Hammer GSH 11 E/0 611 316 703 - GBH 5/40 DCE/0 611 216 703. Part for the following products: -...
Last items in stock €24.90
Details
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Bosch SKU: 1610910089
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 Bosch original parts, Needle-Roller Bearing for Rotary Hammer GBH 7-46 DE - GBH 11 DE - GSH 11 E - GBH 8-45 D. Parts for the following products: - Rotary Hammer GBH 7-46 DE/0...
AVAILABLE €31.79
Details
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46
Bosch SKU: 1610290028
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 Bosch original parts, Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 DE/0 611 263 703 - GBH 11 DE/0 611 245 703 - Demolition Hammer Bosch GSH 11 E/0...
AVAILABLE €5.32
Details
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE
Bosch SKU: 1610210139
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE Original spare Bosch, O-Ring 30,0x2,5 mm for Hammers GBH 7-46 DE/0 611 263 703 - GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703 Part for the...
AVAILABLE €3.19
Details
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1613001008
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE Bosch original parts, Depth Adjustment Rod SW 6x330 MM for Rotary Hammer GBH 5/40 DCE - GBH 7/45 - GBH 11 DE - Impact Drill Bosch GBM 13 Parts for the following products: - Rotary...
AVAILABLE €9.54
Details
Spacer Tube for Rotary Hammer Bosch GBH 11 DE
Bosch SKU: 1610590006
Spacer Tube for Rotary Hammer Bosch GBH 11 DE
Spacer Tube for Rotary Hammer Bosch GBH 11 DE Genuine part Bosch, Spacer Tube for Rotary Hammer GBH 11 DE Parts for the following products: - Rotary Hammer GBH 11 DE/0 611 245 703 - Code: 1610590006
AVAILABLE €9.54
Details
Threaded Ring for Rotary Hammer Bosch GBH 11 DE
Bosch SKU: 3613461500
Threaded Ring for Rotary Hammer Bosch GBH 11 DE
Threaded Ring for Rotary Hammer Bosch GBH 11 DE Genuine part Bosch, Threaded Ring for Rotary Hammer GBH 11 DE - Demolition Hammer GSH 11 E - 0611316703 Parts for the following products: -  Rotary Hammer GBH 11 DE- 0611245703 -...
AVAILABLE €13.53
Details
O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1610210096
O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE
O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE Original part Bosch, O-Ring 21,0x3,5 mm for Rotary Hammer GBH 5/40 DCE/0 611 216 703 - GBH 11 DE/0 611 245 703 Part for the following products: - Rotary Hammer Bosch GBH 5/40...
AVAILABLE €3.06
Details
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1610210095
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE Original part Bosch, O-Ring 55,0x2,0 mm for Rotary Hammer GBH 5/40 DCE/0 611 216 703 - GBH 11 DE/0 611 245 703 Part for Following products: - Rotary Hammer Bosch GBH 5/40 DCE/0...
AVAILABLE €3.06
Details
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Bosch SKU: 1903230013
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE Bosch genuine parts, Ball DIN 5401-Ø7MM-III-ST, for Rotary Hammer PBH 220 RE - PBH 2000 RE - PBH 2000 SRE - GBH 36 V-LI - GBH 2-20 D Parts for the following products: - Rotary...
AVAILABLE €2.83
Details
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE
Bosch SKU: 1610210144
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE Original spare Bosch, O-Ring 22,0x3,0 mm for Hammers GBH 7-46 DE/0 611 263 703 - GSH 388 - GBH 5/40 DCE - GBH 11 DE - GBH 7 DE. Part for the following products: - Demolition Hammer GBH...
Last items in stock €6.73
Details
Damping Ring for Demolition Hammer Bosch GSH 16-30
Bosch SKU: 1610290031
Damping Ring for Demolition Hammer Bosch GSH 16-30
Damping Ring for Demolition Hammer Bosch GSH 16-30 Bosch original part, Damping Ring for Rotary Hammer GBH 10 DC - GBH 11 DE/0 611 245 703. Part for the following products: -  Demolition Hammer GBH 11 DE/0 611 245 703 - Code :...
AVAILABLE €2.54
Details
Covering Hood BLUE for Rotary Hammer Bosch GBH 11 DE
Bosch SKU: 1615190096
Covering Hood BLUE for Rotary Hammer Bosch GBH 11 DE
Covering Hood BLUE for Rotary Hammer Bosch GBH 11 DE Genuine part Bosch, Covering Hood BLUE for Rotary Hammer GBH 11 DE - GBH 11 DE (0611245703) EU - GBH 11 DE (0611245708) EU Part for the following products: -  Rotary Hammer Bosch...
Last items in stock €28.99
Details
Clamp-Handle Black/Red for Hammer Bosch GBH 11 DE
Bosch SKU: 1612026057
Clamp-Handle Black/Red for Hammer Bosch GBH 11 DE
Clamp-Handle Black/Red for Hammer Bosch GBH 11 DE Genuine part Bosch, Clamp-Handle Black/Red for Rotary Hammer GBH 11 DE - GBH 11 DE (0611245703) EU - GBH 11 DE (0611245708) EU Part for the following products: -  Rotary Hammer Bosch...
AVAILABLE €13.28
Details
Protective Cap for Demolition Hammer Bosch GBH 11 DE
Bosch SKU: 1610508023
Protective Cap for Demolition Hammer Bosch GBH 11 DE
Protective Cap for Demolition Hammer Bosch GBH 11 DE Genuine spare part Bosch, Protective Cap for Demolition Hammer Bosch GBH 11 DE - 0611245703. Part for the following products: -  DEMOLITION HAMMER GBH 11 DE - 0611245703 - Code :...
Last items in stock €7.82
Details
Comments (0)
