Bosch Spare Parts for Rotary Hammer SDS-Max GBH7-46DE

SKU: Bosch GBH 7-46 DE - 0611263703
€2.60
VAT included

Bosch Spare Parts for Rotary Hammer SDS-Max GBH7-46DE

Bosch Genuine spare parts or replacement parts for to repair Rotary Hammer GBH 7-46 DE - 0611263703.

Fix Your Rotary Hammer GBH 7-46 DE - 0611263703, All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Bosch GBH 7-46 DE - 0611263703
Bosch Spare Parts for Rotary Hammer SDS-Max GBH 7-46 DE
  • Bosch Spare Parts for Rotary Hammer SDS-Max GBH 7-46 DE
  • Bosch Spare Parts for Rotary Hammer SDS-Max GBH 7-46 DE
Bosch

Bosch Spare Parts for Rotary Hammer SDS-Max GBH7-46DE

SKU: Bosch GBH 7-46 DE - 0611263703 Condition: New
€2.60
VAT included

Bosch Spare Parts for Rotary Hammer SDS-Max GBH7-46DE

Bosch Genuine spare parts or replacement parts for to repair Rotary Hammer GBH 7-46 DE - 0611263703.

Fix Your Rotary Hammer GBH 7-46 DE - 0611263703, All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Bosch GBH 7-46 DE - 0611263703
settings 111 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
109 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

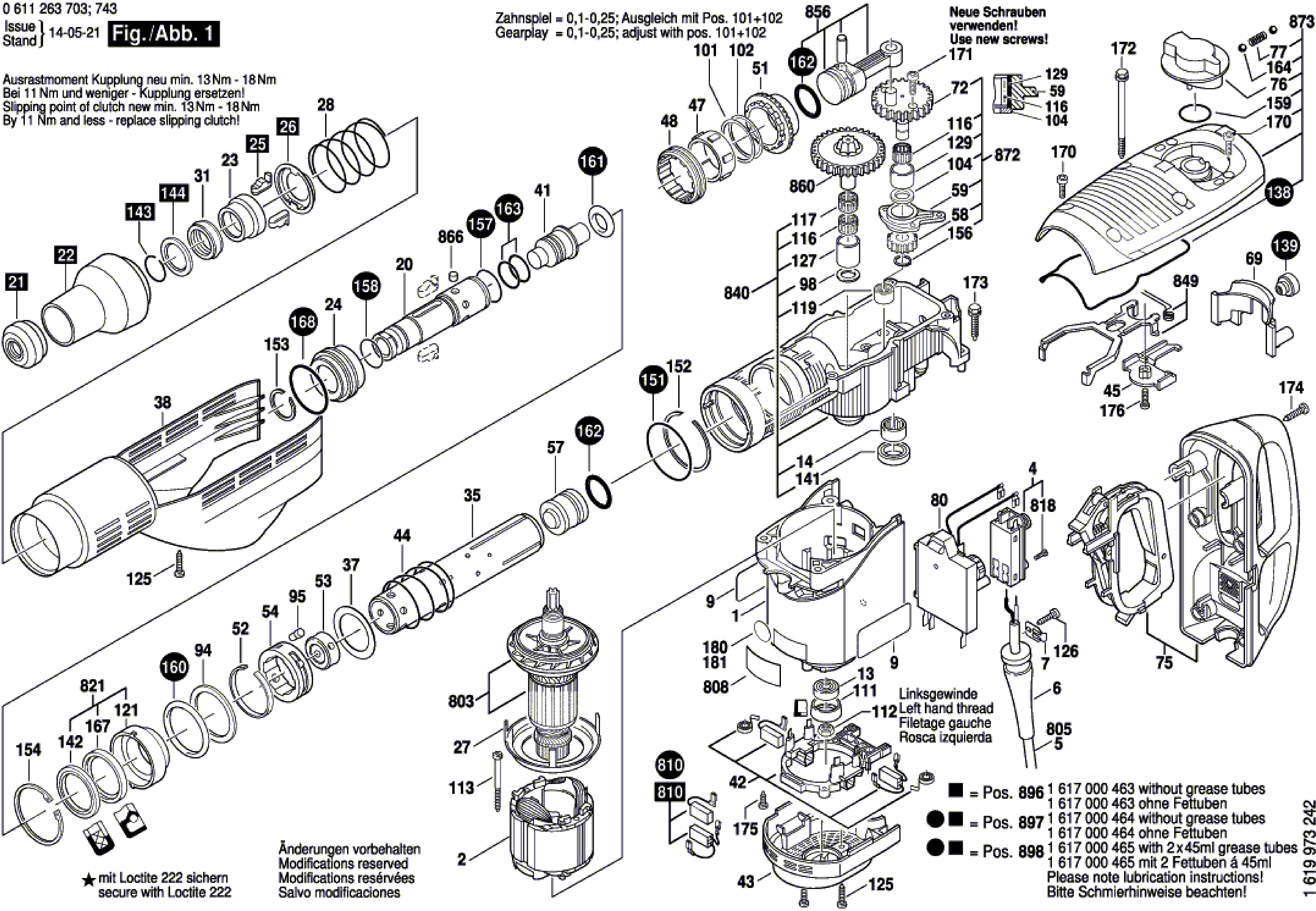

Esploso pagina 1
Pos. Item Price Buy
1
 Bosch GBH 7-46 DE Motor Housing 1615108131 Bosch GBH 7-46 DE Motor Housing €38.40
2
 photo_cameraImage coming soon 1614220124 Field 220-240V €48.38
4
 Switch for Demolition Hammer Bosch GSH 11 E 1617200048 Switch for Demolition Hammer Bosch GSH 11 E €24.90
6
 photo_cameraImage coming soon 1610703053 Grommet Ø9,7-Ø12x89 MM €3.20
7
 photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
9
 photo_cameraImage coming soon 1611110D11 Sticker €3.31
13
 Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D 1610900026 Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D €17.13
14
 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 1610910089 Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 €31.79
20
 photo_cameraImage coming soon 1618597072 Toolholder €164.13
21
 photo_cameraImage coming soon 1610508035 Protective Cap €6.78
22
 photo_cameraImage coming soon 1610591021 Protection Sleeve €7.19
23
 photo_cameraImage coming soon 1610520001 Stop Sleeve €15.74
24
 photo_cameraImage coming soon 1610500021 Headed Bush €8.72
25
 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE 1612300027 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE €15.95
26
 Indexing Disk for Hammers Bosch GBH 5/40 1610290025 Indexing Disk for Hammers Bosch GBH 5/40 €9.44
27
 Air-Deflector Ring for Demolition Hammer Bosch GBH 7-46 DE 1610591023 Air-Deflector Ring for Demolition Hammer Bosch GBH 7-46 DE €2.36
28
 photo_cameraImage coming soon 1614621004 Compression Spring €3.17
31
 photo_cameraImage coming soon 1610290049 Damping Ring €3.72
35
 photo_cameraImage coming soon 1615806156 Hammer Pipe €133.22
37
 photo_cameraImage coming soon 1610102047 Support Disc €3.72
38
 photo_cameraImage coming soon 1615190142 Covering hood €36.79
41
 photo_cameraImage coming soon 1613124080 Striker Pin €26.60
42
 photo_cameraImage coming soon 1614336026 Brush Holder €38.40
43
 photo_cameraImage coming soon 1615500305 Fan Cover €14.92
44
 photo_cameraImage coming soon 1614621005 Compression Spring €3.17
45
 photo_cameraImage coming soon 1610591039 Sealing plate €2.67
47
 photo_cameraImage coming soon 1619990149 Spacer Ring €39.07
48
 photo_cameraImage coming soon 1619990151 Clutch Sleeve €42.73
51
 photo_cameraImage coming soon 1616333035 Crown Gear Z=45 €83.69
52
 photo_cameraImage coming soon 1614601056 Retaining ring €1.32
53
 photo_cameraImage coming soon 1610231000 Guide Bushing €13.99
54
 photo_cameraImage coming soon 1610190033 Spacer Tube €7.99
57
 photo_cameraImage coming soon 1618710083 Striker €36.79
58
 photo_cameraImage coming soon 1616317056 Cylindrical Gear Z=17 €9.92
59
 photo_cameraImage coming soon 1615805067 Bearing Pedestal €8.72
69
 photo_cameraImage coming soon 1610099006 Retaining Bracket €4.93
72
 photo_cameraImage coming soon 1616317067 Eccentric Cog Wheel €123.00
75
 photo_cameraImage coming soon 1615132102 Handle BLACK €63.79
76
 photo_cameraImage coming soon 1612026100 Shift-Lever Knob BLACK €9.92
77
 photo_cameraImage coming soon 1614610010 Compression Spring €2.09
80
 Speed Governor for Rotary Hammer GBH 7-46 DE 1617233042 Speed Governor for Rotary Hammer GBH 7-46 DE €100.33
84
 photo_cameraImage coming soon 1612025060 Auxiliary Handle M8 BLACK €7.20
85
 photo_cameraImage coming soon 1618040071 index turning toolholder €7.11
87
 photo_cameraImage coming soon 1617000834 Clamping Band Ø77 MM, M8 €22.62
94
 photo_cameraImage coming soon 1610290052 Support Disc €3.17
95
 photo_cameraImage coming soon 1613120018 Driving Pin €3.17
98
 photo_cameraImage coming soon 1610101015 Shim ring 1,0 MM THICK €2.09
101
 photo_cameraImage coming soon 1610102049 Shim 0,45 MM THICK €2.62
102
 photo_cameraImage coming soon 1610102048 Shim 0,3 MM THICK €2.62
104
 photo_cameraImage coming soon 1610190027 Stop Disc €7.11
111
 Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D 1610290046 Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D €3.54
112
 Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D 1613300007 Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D €2.48
113
 photo_cameraImage coming soon 1613412001 Tapping Screw B 4,8x68 MM €2.09
116
 photo_cameraImage coming soon 1610913004 Needle-Roller Assembly Ø13 MM €4.31
117
 photo_cameraImage coming soon 1610913011 Needle-Roller Assembly Ø10 MM €7.99
119
 photo_cameraImage coming soon 1610910081 Needle-Roller Bearing €19.67
121
 photo_cameraImage coming soon 1610328016 Bushing €2.91
125
 photo_cameraImage coming soon 1613435011 Torx Oval-Head Screw 4,8x19 €2.09
126
 photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
127
 photo_cameraImage coming soon 1610300060 Bushing €8.84
129
 photo_cameraImage coming soon 1610300067 Bushing €15.74
138
 photo_cameraImage coming soon 1611015047 Sealing Frame €6.92
139
 photo_cameraImage coming soon 1610508050 Plug €2.47
141
 Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 1610290028 Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 €5.32
142
 photo_cameraImage coming soon 1610290050 Rotary shaft lip seal €6.78
143
 photo_cameraImage coming soon 1614601021 Retaining ring DIN 7993-28x2 €8.56
144
 photo_cameraImage coming soon 1610103021 Supporting Disc €3.72
151
 photo_cameraImage coming soon 1610210148 O-Ring 60,0x2,0 MM €3.17
152
 photo_cameraImage coming soon 1614601029 Retaining ring €2.09
153
 photo_cameraImage coming soon 1614601028 Retaining ring €1.62
154
 Spring Retaining Ring for Demolition Hammer Bosch GBH 7-46 DE 1610119011 Spring Retaining Ring for Demolition Hammer Bosch GBH 7-46 DE €4.25
156
 photo_cameraImage coming soon 2916650003 Spring retaining ring DIN 471-12x1-FSt €2.09
157
 O-Ring 31,0x1,5 mm for Rotary Hammer Bosch GBH7-46DE 1610210142 O-Ring 31,0x1,5 mm for Rotary Hammer Bosch GBH7-46DE €3.19
158
 O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE 1610210139 O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE €3.19
159
 photo_cameraImage coming soon 1610210141 O-Ring 27,0x2,5 MM €2.09
160
 photo_cameraImage coming soon 1610210140 O-Ring 46,0x7,0 MM €2.71
161
 photo_cameraImage coming soon 1610210145 O-Ring 18,0x8,0 MM €8.84
162
 O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 1610210109 O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 €6.73
163
 O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE 1610210144 O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE €6.73
164
 Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE 1903230013 Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE €2.83
167
 photo_cameraImage coming soon 1610290051 Rotary shaft lip seal €5.90
168
 O-Ring 46,0x5,0 mm for Rotary Hammer Bosch GBH 7-46 DE 1610210149 O-Ring 46,0x5,0 mm for Rotary Hammer Bosch GBH 7-46 DE €3.42
171
 photo_cameraImage coming soon 1613414021 Microencapsulated Screw €1.32
172
 photo_cameraImage coming soon 1613435028 Screw and washer assembly €1.85
173
 photo_cameraImage coming soon 1613433001 Screw and washer assembly 6,3x32 €1.32
174
 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH 1613435010 Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH €2.48
175
 photo_cameraImage coming soon 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z €1.41
661
 Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
803
 photo_cameraImage coming soon 1614010213 Armature 220-240V €274.78
805
 photo_cameraImage coming soon 1617000723 Power supply cord €45.86
808
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61
810
 photo_cameraImage coming soon 1607000487 Carbon-Brush Set 10 x 1 617 014 135 €164.13
810
 Carbon Brushes for Hammers Bosch GBH7/46DE 1617014135 Carbon Brushes for Hammers Bosch GBH7/46DE €27.18
818
 photo_cameraImage coming soon 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8 €1.34
821
 photo_cameraImage coming soon 1617000824 Bushing €34.02
840
 photo_cameraImage coming soon 1617000872 Impact Mechanism Housing €262.64
849
 photo_cameraImage coming soon 1617000826 Control Fork €83.69
856
 Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE 1617000873 Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE €58.97
860
 photo_cameraImage coming soon 1617000828 Spur Wheel Clutch Z=13/47 €317.70
866
 photo_cameraImage coming soon 1617000406 Roller Set €6.78
872
 photo_cameraImage coming soon 1617000874 Eccentric Cog Wheel €133.22
873
 photo_cameraImage coming soon 1617000875 Housing Cover €71.08
884
 photo_cameraImage coming soon 1612025051 Auxiliary Handle Ø77 MM, M8 €66.63
894
 Special Grease Tube 225 ML for Bosch Hammers 1615430015 Special Grease Tube 225 ML for Bosch Hammers €53.09
895
 photo_cameraImage coming soon 1615430002 Grease Tube 225 ML €66.26
896
 photo_cameraImage coming soon 1617000463 Service box €57.77
897
 photo_cameraImage coming soon 1617000464 Wear and Tear Part Set €84.49
898
 photo_cameraImage coming soon 1617000225 Wear and Tear Part Set €112.68
898
 photo_cameraImage coming soon 1617000465 Wear and Tear Part Set €112.68

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Rotary Hammer SDS-Max GBH7-46DE

Fix Your Rotary Hammer GBH 7-46 DE - 0611263703, All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch GBH 7-46 DE - 0611263703

Rotary Hammer GBH 7-46 DE/0 611 263 703
# Part Num. Description
1 1615108131 Motor Housing BLUE
2 1614220124 Field 220-240V
4 1617200048 Switch
6 1610703053 Grommet Ø9,7-Ø12x89 MM
7 1601302018 Fastening Clamp
9 1611110D11 Sticker
13 1610900026 Deep-Groove Ball Bearing 8x24x8
14 1610910089 Needle-Roller Bearing
20 1618597072 Toolholder
21 1610508035 Protective Cap
22 1610591021 Protection Sleeve
23 1610520001 Stop Sleeve
24 1610500021 Headed Bush
25 1612300027 Stopping Device
26 1610290025 Indexing Disk
27 1610591023 Air-Deflector Ring
28 1614621004 Compression Spring
31 1610290049 Damping Ring
35 1615806156 Hammer Pipe
37 1610102047 Support Disc
38 1615190142 Covering hood
41 1613124080 Striker Pin
42 1614336026 Brush Holder
43 1615500305 Fan Cover
44 1614621005 Compression Spring
45 1610591039 Sealing plate
47 1619990149 Spacer Ring
48 1619990151 Clutch Sleeve
51 1616333035 Crown Gear Z=45
52 1614601056 Retaining ring
53 1610231000 Guide Bushing
54 1610190033 Spacer Tube
57 1618710083 Striker
58 1616317056 Cylindrical Gear Z=17
59 1615805067 Bearing Pedestal
69 1610099006 Retaining Bracket
72 1616317067 Eccentric Cog Wheel
75 1615132102 Handle BLACK
76 1612026100 Shift-Lever Knob BLACK
77 1614610010 Compression Spring
80 1617233042 Speed governor 220-240V
84 1612025060 Auxiliary Handle M8 BLACK
85 1618040071 index turning toolholder
87 1617000834 Clamping Band Ø77 MM, M8
94 1610290052 Support Disc
95 1613120018 Driving Pin
98 1610101015 Shim ring 1,0 MM THICK
101 1610102049 Shim 0,45 MM THICK
102 1610102048 Shim 0,3 MM THICK
104 1610190027 Stop Disc
111 1610290046 Bushing
112 1613300007 Hex Nut
113 1613412001 Tapping Screw B 4,8x68 MM
116 1610913004 Needle-Roller Assembly Ø13 MM
117 1610913011 Needle-Roller Assembly Ø10 MM
119 1610910081 Needle-Roller Bearing
121 1610328016 Bushing
125 1613435011 Torx Oval-Head Screw 4,8x19
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
127 1610300060 Bushing
129 1610300067 Bushing
138 1611015047 Sealing Frame
139 1610508050 Plug
141 1610290028 Rotary shaft lip seal
142 1610290050 Rotary shaft lip seal
143 1614601021 Retaining ring DIN 7993-28x2
144 1610103021 Supporting Disc
151 1610210148 O-Ring 60,0x2,0 MM
152 1614601029 Retaining ring
153 1614601028 Retaining ring
154 1610119011 Spring retaining ring
156 2916650003 Spring retaining ring DIN 471-12x1-FSt
157 1610210142 O-Ring 31,0x1,5 MM
158 1610210139 O-Ring 30,0x2,5 MM
159 1610210141 O-Ring 27,0x2,5 MM
160 1610210140 O-Ring 46,0x7,0 MM
161 1610210145 O-Ring 18,0x8,0 MM
162 1610210109 O-Ring 26,0x4,0 MM
163 1610210144 O-Ring 22,0x3,0 MM
164 1903230013 Ball DIN 5401-Ø7MM-III-ST
167 1610290051 Rotary shaft lip seal
168 1610210149 O-Ring 46,0x5,0 MM
170 2914551164 Microencapsulated Screw
171 1613414021 Microencapsulated Screw
172 1613435028 Screw and washer assembly
173 1613433001 Screw and washer assembly 6,3x32
174 1613435010 Torx Oval-Head Screw 5,5x25
175 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z
176 1613435029 Thread-forming tap. Screw
661 1615430010 Grease Tube 30 ML
803 1614010213 Armature 220-240V
805 1617000723 Power supply cord
808 1601106032 Nameplate 26x52 MM
810 1617014135 Carbon-Brush Set
810 1607000487 Carbon-Brush Set 10 x 1 617 014 135
818 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8
821 1617000824 Bushing
840 1617000872 Impact Mechanism Housing
849 1617000826 Control Fork
856 1617000873 Hammer Piston
860 1617000828 Spur Wheel Clutch Z=13/47
866 1617000406 Roller Set
872 1617000874 Eccentric Cog Wheel
873 1617000875 Housing Cover
884 1612025051 Auxiliary Handle Ø77 MM, M8
894 1615430015 Grease Tube 225 ML
895 1615430002 Grease Tube 225 ML
896 1617000463 Service box
897 1617000464 Wear and Tear Part Set
898 1617000465 Wear and Tear Part Set
898 1617000225 Wear and Tear Part Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 7-46 DE - 0611263703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GBH7-46DE

Diagram Bosch GBH7-46DE

Download (110.83KB)

You might also like

Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1617000271
Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE
Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE Genuine parts Bosch, Cylindrical Steel roller 5x5 mm for locking cylinder for Hammer GBH 5/40 DCE / 0611216703 Parts for the following products: - Hammer GBH 5/40 DCE /...
AVAILABLE €3.12
Details
Speed Governor for Hammers Bosch GBH 5/40 Sale
Bosch SKU: 1617233026
Speed Governor for Hammers Bosch GBH 5/40
Speed Governor for Hammers Bosch GBH 5/40 Bosch Original replacement part, 220-240V Speed Governor for hammers GBH 5/40 DCE/0 611 216 703. Parts for the following products: Hammer GBH 5/40 DCE/0 611 216 703 - Code: 1617233026
Last items in stock €95.95
Details
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46
Bosch SKU: 1610210109
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 DE Original spare Bosch, O-ring 26,0x4,0 MM for Hammers GBH 7-46 DE/0 611 263 703. Part for the following products: -  Hammer GBH...
AVAILABLE €6.73
Details
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE
Bosch SKU: 1617000873
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE Bosch original replacement part, Piston Assembly for Demolition Hammer GBH 7-46 DE. Part for the following products: -  GBH 7-46 DE / 0611263703 - Code: 1617000873
Last items in stock €58.97
Details
Indexing Disk for Hammers Bosch GBH 5/40
Bosch SKU: 1610290025
Indexing Disk for Hammers Bosch GBH 5/40
Indexing Disk for Hammers Bosch GBH 5/40 Bosch original parts, Steel Indexing Disk for Demolition Hammers GBH 5/40. Parts for the following products: -  Demolition Hammer GBH 5/40 DCE / 0611216703 - Code: 1610290025
Last items in stock €9.44
Details
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E
Bosch SKU: 1614621000
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E Bosch original parts, compression spring for Demolition Hammers GBH 5/40 - GBH 11 DE - GSH 3 E. Parts for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703...
AVAILABLE €11.05
Details
Stopping Device for Hammers Bosch GBH GBH 5/40 DCE-GBH 7-46 DE
Bosch SKU: 1612300027
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE Bosch Genuine part, Steel Stopping Device for Demolition Hammers 5/40 DCE - GBH 7-46 DE. Part for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703 -...
Last items in stock €15.95
Details
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703
Bosch SKU: 1617014122
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703 Genuine Parts Bosch, Carbon Brushes, for Demolition Hammers Bosch GBH38 - GBH5/40DCE - 0 611 216 703 - GSH4 - GSH5CE - PBH380 - GBH5DCE Part for the following products: -...
AVAILABLE €22.01
Details
Radial Seal for Rotary Hammer Bosch GBH 5/40
Bosch SKU: 1610283028
Radial Seal for Rotary Hammer Bosch GBH 5/40
Radial Seal for Rotary Hammer Bosch GBH 5/40 Bosch genuine part, Radial Seal DIN 3760-BS, Ø40x55x7 MM for Rotary Demolition Hammer GBH 5/40. Part for the following products: - Rotary Demolition Hammer GBH 5/40 DCE / 0611216703 -...
AVAILABLE €8.99
Details
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Bosch SKU: 1615430010
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Grease Tube 30 ML for Bosch Hammer GBH-GSH Genuine spare parts Bosch, Grease Tube 30 ML for Bosch Hammer GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH...
on 7/10 Business Days Approx €9.33
Details
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH Sale
Bosch SKU: 1613435010
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH Genuine spare parts Bosch, Torx Oval-Head Screw 5,5x25 for Hammer 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GSH 11 E/0 611 316 703. Parts for the following products: - HAMMER GBH...
AVAILABLE €2.48
Details
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 1610009007
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E Genuine spare parts Bosch, Spacer for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: -  DEMOLITION HAMMER GBH 11 DE/0 611 245 703 - HAMMER...
AVAILABLE €2.28
Details
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 3610501500
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E Original parts Bosch, Bushing for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: - HAMMER GBH 11 DE/0 611 245 703 - HAMMER GSH 11 E/0 611...
AVAILABLE €25.78
Details
Grease Tube 30 ML for Bosch Hammer GBH-GSH Sale
Bosch SKU: 1615430020
Grease Tube 225 ML for Bosch Hammers GBH-GSH
Grease Tube 225 ML for Bosch Hammers GBH-GSH Genuine spare part Bosch, Grease Tube 225 ML for Bosch Hammers GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH 8-45 D - 3...
AVAILABLE €27.30
Details
Carbon Brushes for Hammers Bosch GBH7/46DE
Bosch SKU: 1617014135
Carbon Brushes for Hammers Bosch GBH7/46DE
Carbon Brushes for Hammers Bosch GBH7/46DE Carbon Brushes for Hammers Bosch GBH7/46DE Genuine spare part Bosch, Carbon Brushes for Drilling Hammers GBH 7-46. Part for the following products: - GBH 7-46 DE/0 611 263 703 - Code :...
AVAILABLE €27.18
Details
Switch for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1617200048
Switch for Demolition Hammer Bosch GSH 11 E
Switch for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, Switch for Demolition Hammer GSH 11 E/0 611 316 703 - GBH 5/40 DCE/0 611 216 703. Part for the following products: -...
Last items in stock €24.90
Details
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Bosch SKU: 1610910089
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 Bosch original parts, Needle-Roller Bearing for Rotary Hammer GBH 7-46 DE - GBH 11 DE - GSH 11 E - GBH 8-45 D. Parts for the following products: - Rotary Hammer GBH 7-46 DE/0...
AVAILABLE €31.79
Details
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46
Bosch SKU: 1610290028
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 Bosch original parts, Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 DE/0 611 263 703 - GBH 11 DE/0 611 245 703 - Demolition Hammer Bosch GSH 11 E/0...
AVAILABLE €5.32
Details
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE
Bosch SKU: 1610210139
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE
O-Ring 30,0x2,5 mm for Hammer Bosch GBH 7-46 DE Original spare Bosch, O-Ring 30,0x2,5 mm for Hammers GBH 7-46 DE/0 611 263 703 - GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703 Part for the...
AVAILABLE €3.19
Details
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1610210095
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE Original part Bosch, O-Ring 55,0x2,0 mm for Rotary Hammer GBH 5/40 DCE/0 611 216 703 - GBH 11 DE/0 611 245 703 Part for Following products: - Rotary Hammer Bosch GBH 5/40 DCE/0...
AVAILABLE €3.06
Details
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Bosch SKU: 1903230013
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE Bosch genuine parts, Ball DIN 5401-Ø7MM-III-ST, for Rotary Hammer PBH 220 RE - PBH 2000 RE - PBH 2000 SRE - GBH 36 V-LI - GBH 2-20 D Parts for the following products: - Rotary...
AVAILABLE €2.83
Details
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D
Bosch SKU: 1610290046
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D
Rubber Bushing for Demolition Hammer Bosch GBH 8-45 D Genuine replacement part Bosch, Rubber Bushing for Demolition Hammers GBH 8-45 D - 3 611 B65 100 - GBH 7-46 DE/0 611 263 703. Part for the following products: - Demolition Hammer...
Last items in stock €3.54
Details
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D
Bosch SKU: 1613300007
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D
Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D Original Spare Part Bosch, Left Hex Nut M8 for Rotary Hammer Bosch GBH 8-45 D - 3 611 B65 100 - GBH 7-46 DE/0 611 263 703. Part for the following...
AVAILABLE €2.48
Details
O-Ring 31,0x1,5 mm for Rotary Hammer Bosch GBH7-46DE
Bosch SKU: 1610210142
O-Ring 31,0x1,5 mm for Rotary Hammer Bosch GBH7-46DE
O-Ring 31,0x1,5 mm for Rotary Hammer Bosch GBH7-46DE Genuine spare part Bosch, O-Ring 20,35x1,78 mm Rotary Hammer GBH7-46DE. Part for the following products: - Rotary Hammer GBH7-46DE 0611263703 SDS-Max -...
AVAILABLE €3.19
Details
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE
Bosch SKU: 1610210144
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE Original spare Bosch, O-Ring 22,0x3,0 mm for Hammers GBH 7-46 DE/0 611 263 703 - GSH 388 - GBH 5/40 DCE - GBH 11 DE - GBH 7 DE. Part for the following products: - Demolition Hammer GBH...
Last items in stock €6.73
Details
O-Ring 46,0x5,0 mm for Rotary Hammer Bosch GBH 7-46 DE
Bosch SKU: 1610210149
O-Ring 46,0x5,0 mm for Rotary Hammer Bosch GBH 7-46 DE
O-Ring 46,0x5,0 mm for Rotary Hammer Bosch GBH 7-46 DE Original spare part Bosch, O-Ring 46,0x5,0 mm for Rotary Hammers GBH 7-46 DE/0611263703 - GBH 7 DE 0611235703. Part for the following products: - Rotary Hammer GBH 7-46 DE -...
AVAILABLE €3.42
Details
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D
Bosch SKU: 1610900026
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D Genuine Part Bosch, Groove Ball Bearing 8x24x8 for Rotary Hammer Bosch GBH 5-38 D - 0611240003. Part for the following products: -  Hammer Bosch GBH...
on 7/10 Business Days Approx €17.13
Details
Speed Governor for Rotary Hammer GBH 7-46 DE
Bosch SKU: 1617233042
Speed Governor for Rotary Hammer GBH 7-46 DE
Speed Governor for Rotary Hammer GBH 7-46 DE Bosch original parts, Speed Governor 220-240V for Rotary Hammers GBH 7-46 DE - GBH 7 DE /230 V/EU. Parts for the following products: -  Rotary...
Last items in stock €100.33
Details
Bosch GBH 7-46 DE Motor Housing
Bosch SKU: 1615108131
Bosch GBH 7-46 DE Motor Housing
Bosch GBH 7-46 DE Motor Housing Bosch original replacement part, Motor Housing BLUE for Demolition Hammer GBH 7-46 DE. Part for the following products: -  GBH 7-46 DE / 0611263703 - Code: 1615108131
build View Spare Parts
Comments (0)
