In the following table, look for the model of the Angle Grinder and the respective parts of the code.

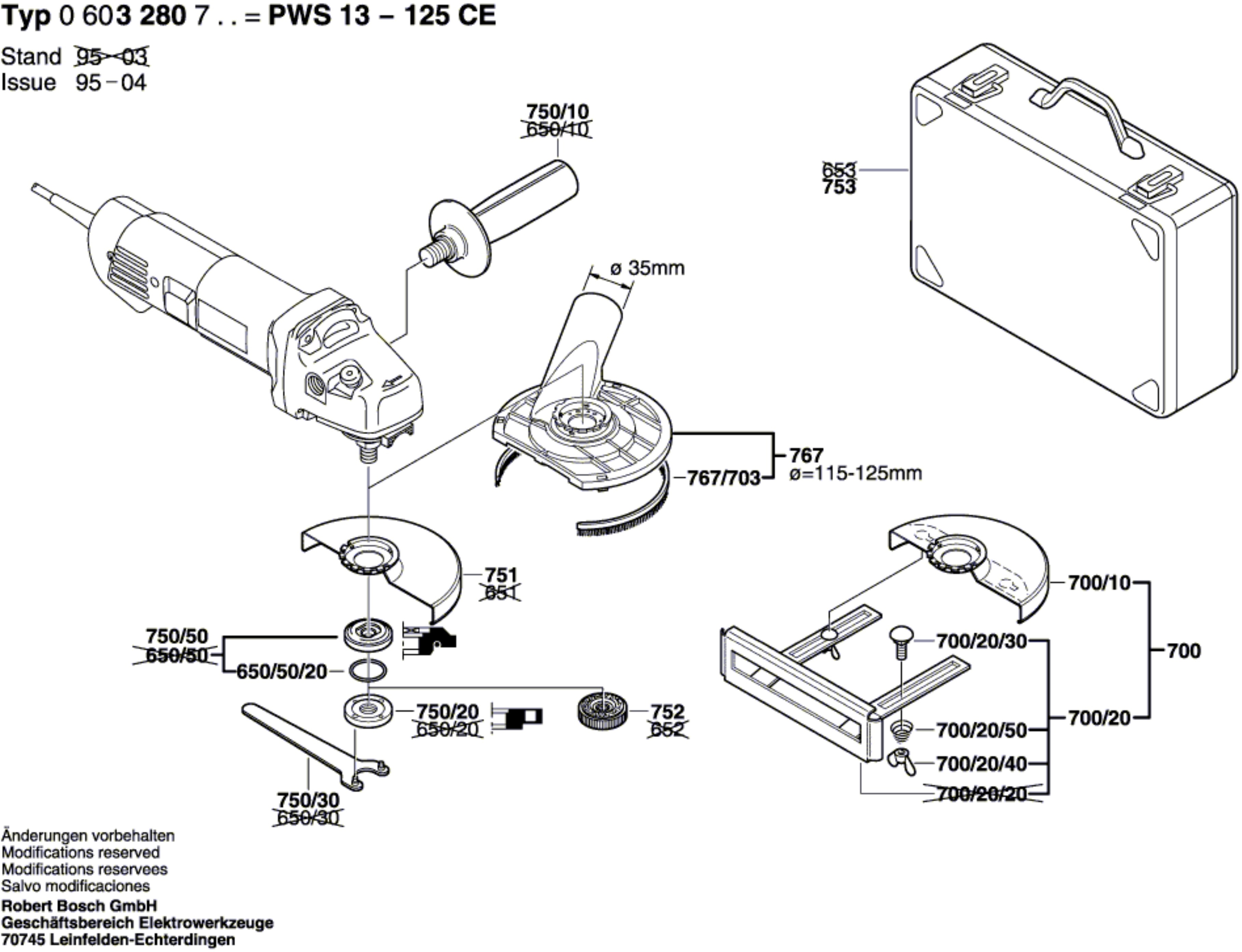

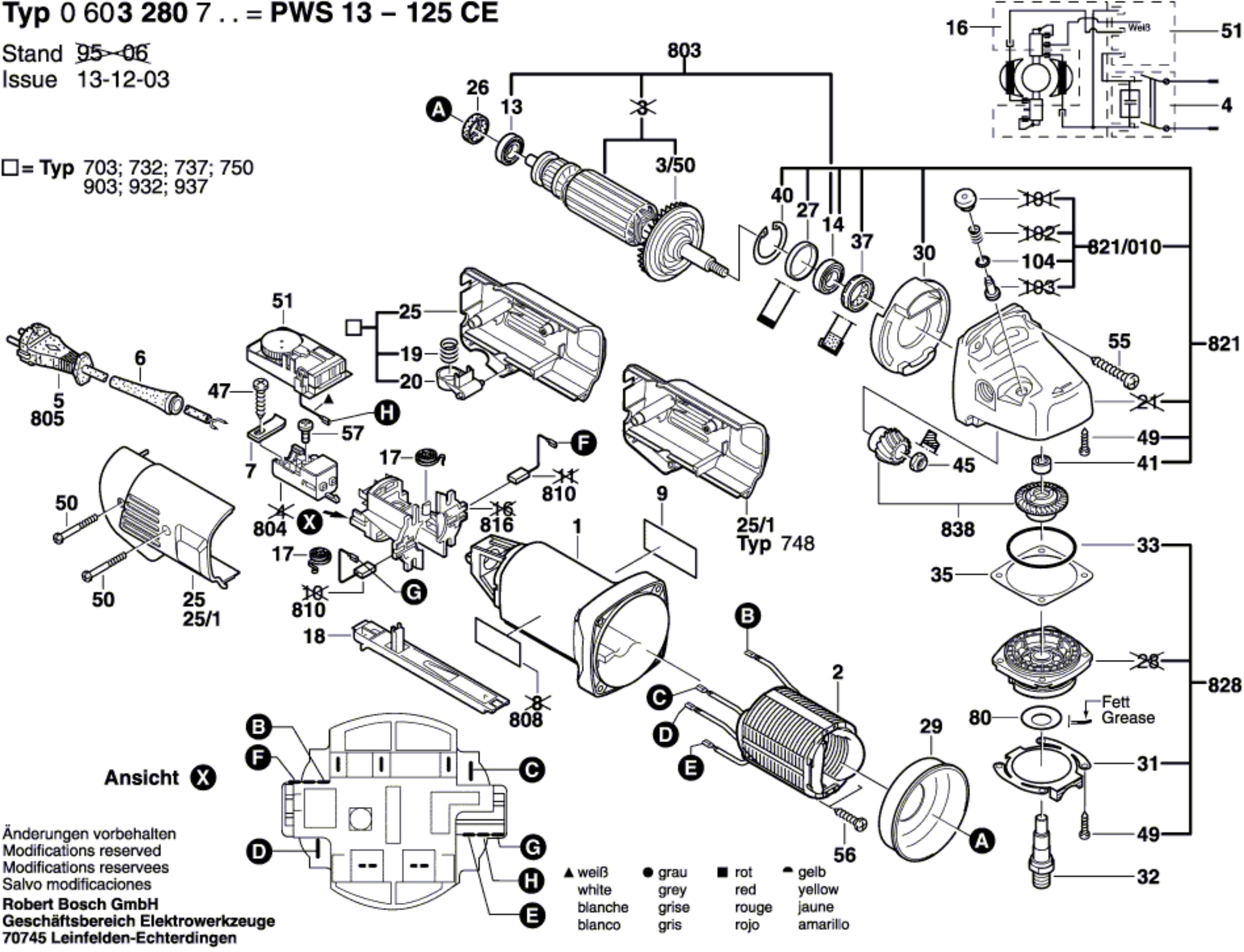

Angle Grinder PWS 13-125 CE/0 603 280 703
1
1 605 108 169
Motor Housing GREEN
2
1 604 220 284
Field 220-230V
3/50
1 606 610 132
Fan
6
1 600 703 030
Grommet Ø6,4-Ø7,2x67 MM
7
1 601 302 017
Fastening Clamp
9
1 601 110 998
Manufacturer's nameplate
13
2 600 905 032
Deep-Groove Ball Bearing 7x19x6
14
1 600 905 032
Deep-Groove Ball Bearing 8x22x7
17
1 604 652 013
Spiral Spring
18
1 602 319 013
Switch-Pawl BLACK
19
1 604 611 024
Compression Spring
20
1 602 319 007
Shift-Lever Knob BLACK
25
1 605 500 179
Housing Cover GREEN
26
1 600 206 036
Rubber Ring
27
1 600 206 025
Rubber Ring
29
1 600 591 013
Air-Deflector Ring
30
1 600 591 014
Air-Deflector Ring
31
1 601 290 007
Clamping Spring
32
1 603 523 110
Grinding Spindle M14, SW17
33
1 600 210 035
O-Ring 46,0x1,1 MM
35
1 600 136 013
Shim 0,1 MM THICK
1 600 136 020
Shim 0,15 MM THICK
1 600 136 014
Shim 0,2 MM THICK
1 600 136 015
Shim 0,3 MM THICK
37
1 600 290 016
Rotary shaft lip seal
40
1 600 119 011
Spring retaining ring
41
1 600 910 018
Needle bearing Ø8xØ12x8 MM
45
1 603 300 016
Hex Nut M7, SW10
47
2 912 401 018
Tapping Screw DIN7981-ST3,9x13-C-Z
49
1 603 435 026
Thread-forming tap. Screw
50
1 603 435 037
Plastic-Cutting Screw
51
1 607 233 056
Speed governor 230V
55
2 912 401 022
Tapping Screw DIN 7981-ST3,9x25-C-Z
56
1 603 435 044
Plastic-Cutting Screw
57
1 603 429 002
Socket head cap screw M3,5x7 MM
80
3 600 150 021
Sealing disk
104
1 600 210 044
O-Ring 4,5x1,0 MM BLUE
650/50/20
1 600 210 039
O-Ring 20,35x1,78 MM
700
2 607 001 188
Parts Set Ø 125 MM
700/10
2 605 510 101
Protective Cover Ø 125MM
700/20
1 608 135 004
Guide Block
700/20/30
2 910 281 158
Round-Head Bolt DIN 603-M 5x16
700/20/40
2 915 191 105
Wing Nut M 5 DIN 315-G-5
700/20/50
1 604 643 004
Compression Spring
750/10
2 602 025 067
Auxiliary Handle M10, Ø32,5x105 MM
750/20
1 603 340 040
Clamping Nut M14
750/30
1 607 950 043
Pin-Type Face-Wrench
750/50
1 605 703 099
Clamping-Flange Ø22,2x42 MM
751
2 605 510 104
Protective Cover Ø 125MM SILVER
752
1 603 340 031
Fast Locking Flange M14
753
1 605 438 089
Carrying Case
767
2 605 510 107
Suction Hood Ø115-125MM
767/703
2 605 730 036
Brush
803
1 604 010 445
Armature With Fan 220-230V
804
1 607 200 115
Switch
805
1 607 000 228
Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
808
1 601 106 032
Nameplate 26x52 MM
810
1 607 014 147
Carbon Brush
816
1 604 336 031
Brush Holder
821
1 605 806 451
Gear Housing
821/010
1 607 000 253
Push-Button BLACK
828
1 605 805 079
Bearing Flange BLACK
838
1 600 A00 22W
Gear Unit
