Bosch Spare Parts for Hammer GBH 7/45 DE

SKU: Bosch GBH 7 45 DE - 0611214703
€2.23
VAT included

Bosch Spare Parts for Hammer GBH 7/45 DE

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 7 45 DE - 0611214703.

Bosch GBH 7 45 DE - 0611214703
Bosch Spare Parts for Hammer GBH 7/45 DE
  • Bosch Spare Parts for Hammer GBH 7/45 DE
  • Bosch Spare Parts for Hammer GBH 7/45 DE
  • Bosch Spare Parts for Hammer GBH 7/45 DE

Bosch Spare Parts for Hammer GBH 7/45 DE

SKU: Bosch GBH 7 45 DE - 0611214703 Condition: New
€2.23
VAT included

Bosch Spare Parts for Hammer GBH 7/45 DE

Bosch original spare parts for to replace broken parts for to fix Rotary Hammer GBH 7 45 DE - 0611214703.

Bosch GBH 7 45 DE - 0611214703
settings 138 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

86 spare parts

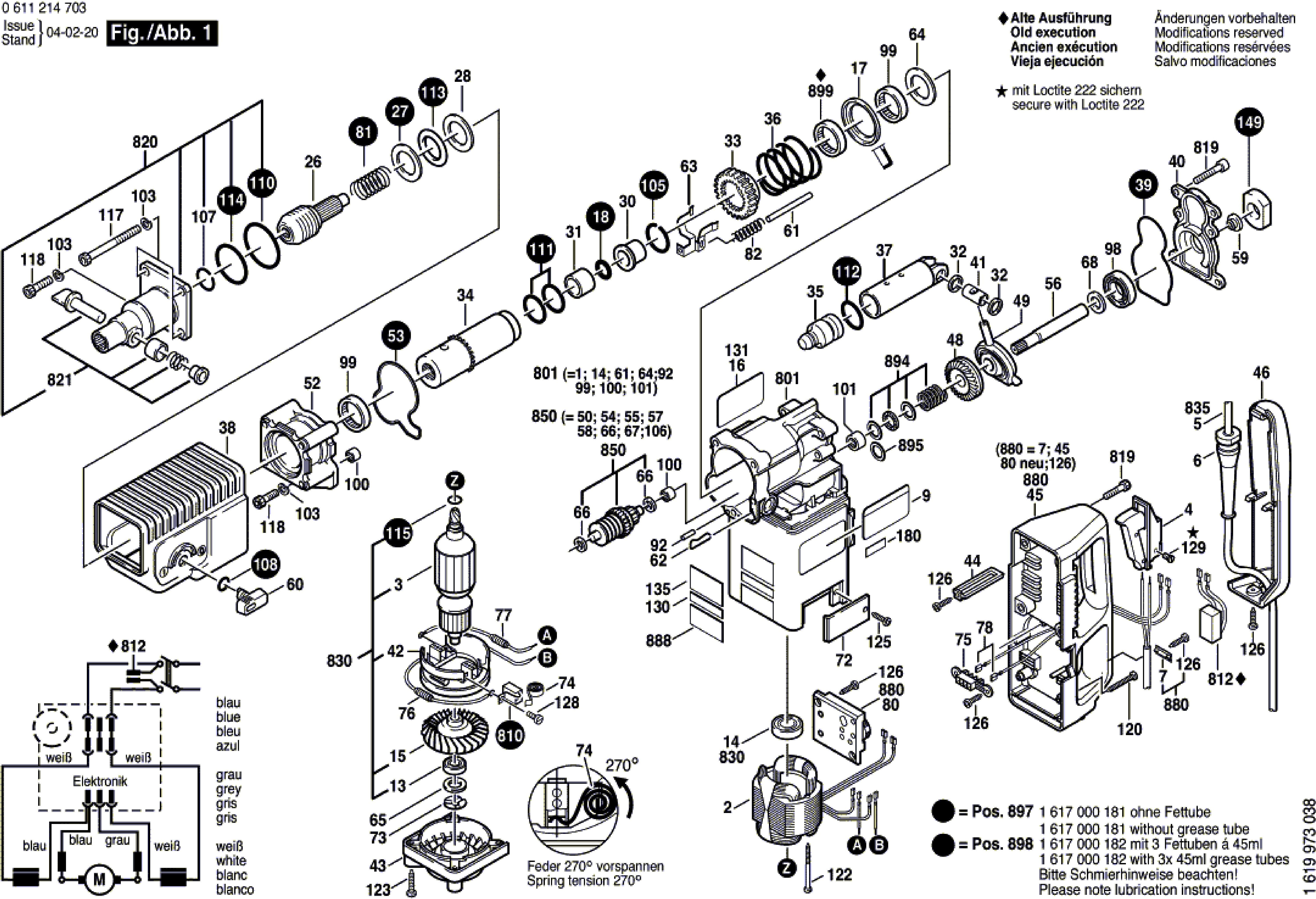

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 1610101621 Shim 0,1 MM THICK €1.26
photo_cameraImage coming soon 1612025019 Auxiliary Handle M8 €8.15
photo_cameraImage coming soon 3600703011 Grommet Ø9,2-Ø12x120 MM €2.38
2
photo_cameraImage coming soon 1614220090 Field 220-240V €90.02
6
photo_cameraImage coming soon 1610703053 Grommet Ø9,7-Ø12x89 MM €3.20
7
photo_cameraImage coming soon 1611034020 Fastening Clamp €1.26
9
photo_cameraImage coming soon 1611110480 Manufacturer's nameplate €1.76
14
photo_cameraImage coming soon 1610905008 groove ball bearing 12x32x10 €20.34
17
photo_cameraImage coming soon 1610500013 Friction Washer €2.09
26
photo_cameraImage coming soon 1618598150 Bit holder Ø 19 MM €193.91
27
photo_cameraImage coming soon 1610103018 Stop Disc Ø 26 MM €10.92
30
photo_cameraImage coming soon 1610523001 Damping Bushing €9.78
31
photo_cameraImage coming soon 1610309002 Damping Bushing €2.09
32
photo_cameraImage coming soon 1610101616 Supporting Disc 1,5 MM THICK €1.26
33
photo_cameraImage coming soon 1616317031 Cylindrical Gear Z=57/8 €58.98
34
photo_cameraImage coming soon 1615806073 Hammer Pipe €151.42
35
photo_cameraImage coming soon 1618710048 Striker €23.45
36
photo_cameraImage coming soon 1614616005 Compression Spring €2.49
38
photo_cameraImage coming soon 1615190010 Covering hood €23.45
40
photo_cameraImage coming soon 1615808059 Bearing cover €23.45
41
photo_cameraImage coming soon 1613219001 Piston Pin €7.15
42
photo_cameraImage coming soon 1614336005 Brush Holder €13.79
44
photo_cameraImage coming soon 1611015032 Frame €1.76
48
photo_cameraImage coming soon 1616333018 Bevel Gear Z=35 €58.98
52
photo_cameraImage coming soon 1615820086 Bearing Flange €58.98
59
photo_cameraImage coming soon 1610591010 Plug €1.26
60
photo_cameraImage coming soon 1612026022 Clamp Handle €12.23
61
photo_cameraImage coming soon 2917550138 Straight Pin 5M6x70 RIKO DIN 6325 €3.07
62
photo_cameraImage coming soon 1614680003 Holding Spring €1.26
64
photo_cameraImage coming soon 1610102620 Supporting Disc 1,0 MM THICK €2.49
66
photo_cameraImage coming soon 1610101615 Supporting Disc 0,5 MM THICK €2.09
68
photo_cameraImage coming soon 1610101618 Shim 0,3 MM THICK €1.26
72
photo_cameraImage coming soon 1615500284 Sealing cap BLUE €2.09
75
photo_cameraImage coming soon 1615190011 Socket Housing €1.76
76
photo_cameraImage coming soon 1617328016 Suppression Filter BLUE €4.04
77
photo_cameraImage coming soon 1617328017 Suppression Filter GRAY €4.70
78
photo_cameraImage coming soon 1614431022 Connecting Cable L=35 MM WHITE €1.64
82
photo_cameraImage coming soon 1614616006 Compression Spring €1.26
84
photo_cameraImage coming soon 1612025060 Auxiliary Handle M8 BLACK €7.20
85
photo_cameraImage coming soon 1618040076 index turning toolholder €26.16
86
photo_cameraImage coming soon 1613521003 Stud bolt M8 €12.23
87
photo_cameraImage coming soon 1611316003 Clamping Band Ø43 MM €2.09
88
photo_cameraImage coming soon 1613100012 Straight Pin €1.26
89
photo_cameraImage coming soon 1613480009 Wing Screw M6x25 MM €1.34
90
photo_cameraImage coming soon 1613300006 Hex Nut M6 €1.34
91
photo_cameraImage coming soon 1611030009 Clamping Plate €2.49
92
photo_cameraImage coming soon 2917550118 Straight Pin 5M6x12 RIKO DIN 6325 €1.26
98
photo_cameraImage coming soon 1610900023 groove ball bearing €13.79
99
photo_cameraImage coming soon 1610910068 Needle bearing €9.78
100
Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
101
photo_cameraImage coming soon 2600910000 Needle bearing €4.27
107
photo_cameraImage coming soon 2916601012 Retaining ring DIN 9045-24 €2.49
110
O-Ring 54,0x3,0 mm for Demolition Hammer Bosch GBH 7/45 DE 1600210004 O-Ring 54,0x3,0 mm for Demolition Hammer Bosch GBH 7/45 DE €2.17
112
O-ring 22,0x4,0 MM for Hammer Bosch GBH 5-38 D 1610210079 O-ring 22,0x4,0 MM for Hammer Bosch GBH 5-38 D €6.73
115
photo_cameraImage coming soon 1610210081 O-Ring 10,0x1,0 MM €3.23
118
photo_cameraImage coming soon 2910141244 Hex Socket Head Cap Screw DIN 912-M8x25-8.8 €1.26
120
photo_cameraImage coming soon 2910211038 Tapping Screw DIN 7971-ST4,8x38-F €1.26
122
photo_cameraImage coming soon 1603435008 Tapping Screw BZ4,8x63 MM €1.26
123
Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE 2910211236 Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE €1.05
129
photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
131
photo_cameraImage coming soon 1611110481 Manufacturer's nameplate €1.76
135
photo_cameraImage coming soon 1611110387 Reference Plate €1.43
149
photo_cameraImage coming soon 1610108014 Felt Disc €2.49
801
photo_cameraImage coming soon 1617000938 Assembly Of Service Parts €276.68
810
photo_cameraImage coming soon 1617014110 Carbon-Brush Set €27.12
812
photo_cameraImage coming soon 1617328015 Suppression Filter €4.87
819
photo_cameraImage coming soon 1617000123 Hex Socket Head Cap Screw DIN 912-M6x25-10.9 €4.70
820
photo_cameraImage coming soon 1617000912 Tool Holder Set €224.28
821
photo_cameraImage coming soon 1617000014 Locking Bolt Set €30.08
830
photo_cameraImage coming soon 1614011038 Armature 220-240V €249.92
835
photo_cameraImage coming soon 1607000228 Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F €37.86
850
photo_cameraImage coming soon 1617000927 Parts Set €103.93
879
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE 1613001008 Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE €9.54 Not available for order
888
photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61
894
photo_cameraImage coming soon 1617000169 Needle-Roller Assembly €5.53
895
photo_cameraImage coming soon 1610101008 Thrust Bearing Disc 1,0 MM THICK €1.48
899
photo_cameraImage coming soon 1610910068 Needle bearing €9.78

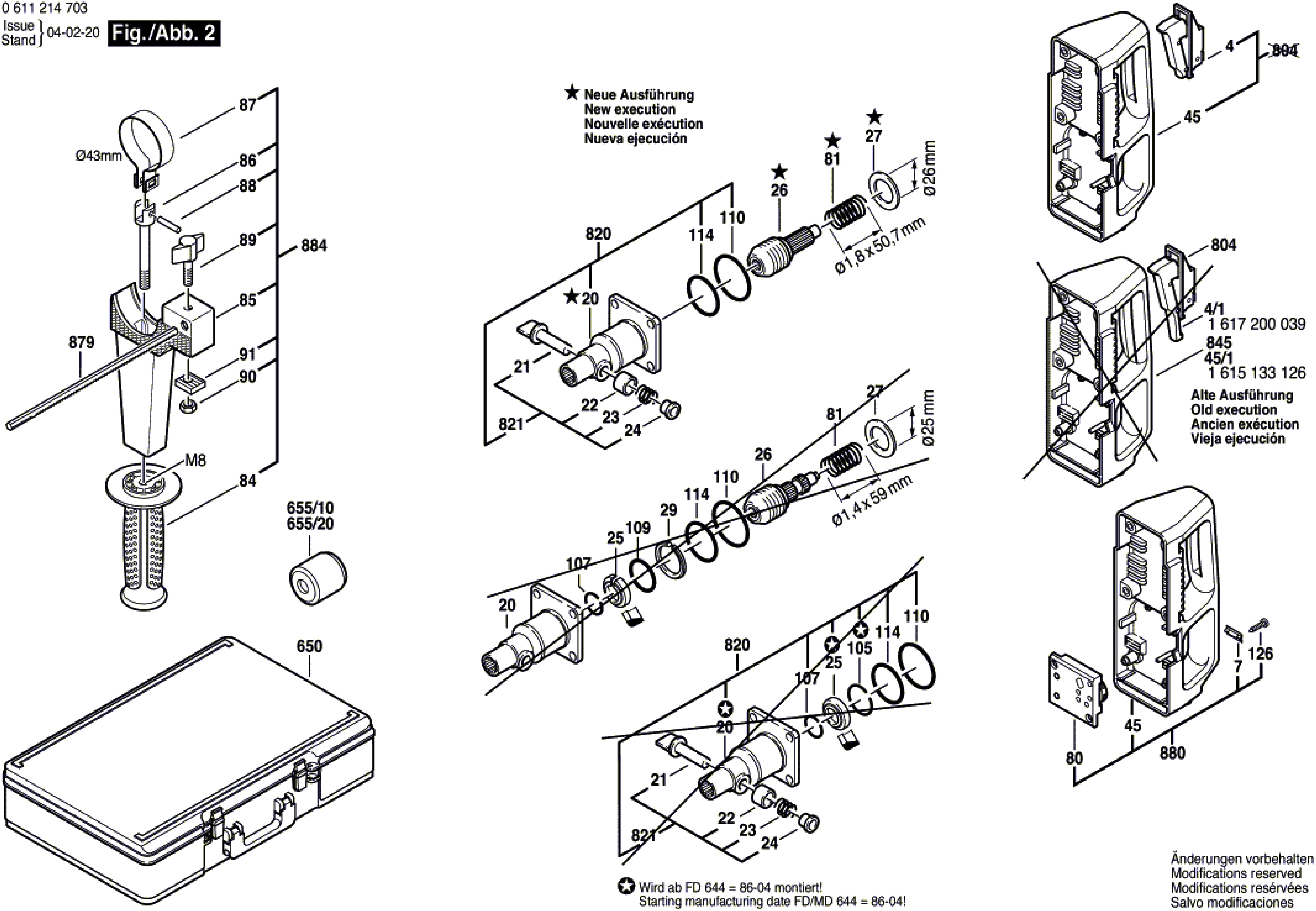

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
