Bosch Spare Parts for Cordless Screw Driver PSR 12 VES-2

€3.18
VAT included

Bosch Spare Parts for Cordless Screw Driver PSR 12 VES-2

Bosch genuine spare parts for replacing or repairing Cordless Screw Driver PSR 12 VES-2/0 603 936 520.
Bosch Spare Parts for Cordless Screw Driver PSR 12 VES-2
  • Bosch Spare Parts for Cordless Screw Driver PSR 12 VES-2
  • Bosch Spare Parts for Cordless Screw Driver PSR 12 VES-2

Bosch Spare Parts for Cordless Screw Driver PSR 12 VES-2

Condition: New
€3.18
VAT included

Bosch Spare Parts for Cordless Screw Driver PSR 12 VES-2

Bosch genuine spare parts for replacing or repairing Cordless Screw Driver PSR 12 VES-2/0 603 936 520.
settings 20 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

16 spare parts
Pos. Item Price Buy
da 85 a 90
Air Cleaner Set Complete for Lownmover Papillon GREEN 53 96765 Air Cleaner Set Complete for Lownmover Papillon GREEN 53 €26.41
1-3-4
Blade Holder Set for Lownmover Papillon Green 53 SP 96528 Blade Holder Set for Lownmover Papillon Green 53 SP €38.24
2
Blade for Lownmover Papillon Green 53 SP 97361 Blade for Lownmover Papillon Green 53 SP €30.59
3
Recoil Starter Assy for Lownmover Papillon Green 50AL-SP 96762 Recoil Starter Assy for Lownmover Papillon Green 50AL-SP €30.25
6
Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 RMGP65070200000 Recoil Starter Rotor for Engines AMA MVG - T100 - T375 - T475 €11.35
11
Recoil Starter Assy for Engine Auger Papillon EA 43 - 94973 97431 Recoil Starter Assy for Engine Auger Papillon EA 43 - 94973 €19.17
14-15-16
Tank Cap (Big) for Engines AMA MVG RMG251700500140 Tank Cap (Big) for Engines AMA MVG €6.83
17
V-Belt for Lownmover Papillon GREEN 53 98088 V-Belt for Lownmover Papillon GREEN 53 €12.62
68
V-Belt for Self Propelled Lawnmover Papillon Green 51SP 96621 V-Belt for Self Propelled Lawnmover Papillon Green 51SP €14.34
82-83-84
Primer Pump Assemby for Lownmover Papillon GREEN 53 98574 Primer Pump Assemby for Lownmover Papillon GREEN 53 €7.11
93
photo_cameraImage coming soon 1609200147 Screwdriver Blade 6 MM €2.47
101
Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch 2603490018 Torx Oval-Head Screw mm 3x18 for Cordless Drill Bosch €0.93
102
Retaining Bracket for Cordless Drill Bosch PSR 12 VES-2 2601329041 Retaining Bracket for Cordless Drill Bosch PSR 12 VES-2 €2.60
107
photo_cameraImage coming soon 2609110721 Countersunk-Head Screw M5x20 €1.52
500
Carburator for Motorpump Papillon PT 843 98016 Carburator for Motorpump Papillon PT 843 €56.71
653
photo_cameraImage coming soon 2607224425 Fast Charger EU 230/7,2-24V, 1h €176.29

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Screw Driver PSR 12 VES-2

Bosch genuine spare parts for replacing or repairing Cordless Screw Driver PSR 12 VES-2/0 603 936 520.

In the following table, look for the model of the Cordless Screw Driver and the respective parts of the code.
Ordered items will be shipped within 10 working days.

Cordless Screw Driver PSR 12 VES-2/0 603 936 520
2/10 2606316161 Pinion Z=12
5 2601099055 Adjusting Slide RED
9 2601118833 Manufacturer's nameplate SUNNY SIDE
20 2601118834 Reference Plate SHADOW SIDE
25 2608572214 Keyless Chuck
30 2602033008 Control Lever
32 2601099060 Adjusting Slide BLACK
45 2606200047 Planetary Gear Train
93 1609200147 Screwdriver Blade 6 MM
96 2608040079 Support
101 2603490018 Torx Oval-Head Screw 3x18
102 2601329041 Retaining Bracket
107 2609110721 Countersunk-Head Screw M5x20
653 2607224425 Fast Charger EU 230/7,2-24V, 1h
654 2607335054 Slide-In Accu Package 12V,1,4Ah,NiCd
797 2601398009 Carrying Loop
801 2605104511 Housing Section GREEN
802 2607022941 DC motor 7,2-12V
804 2607200353 On-Off Switch

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
12 Items

Specific References

New

Download

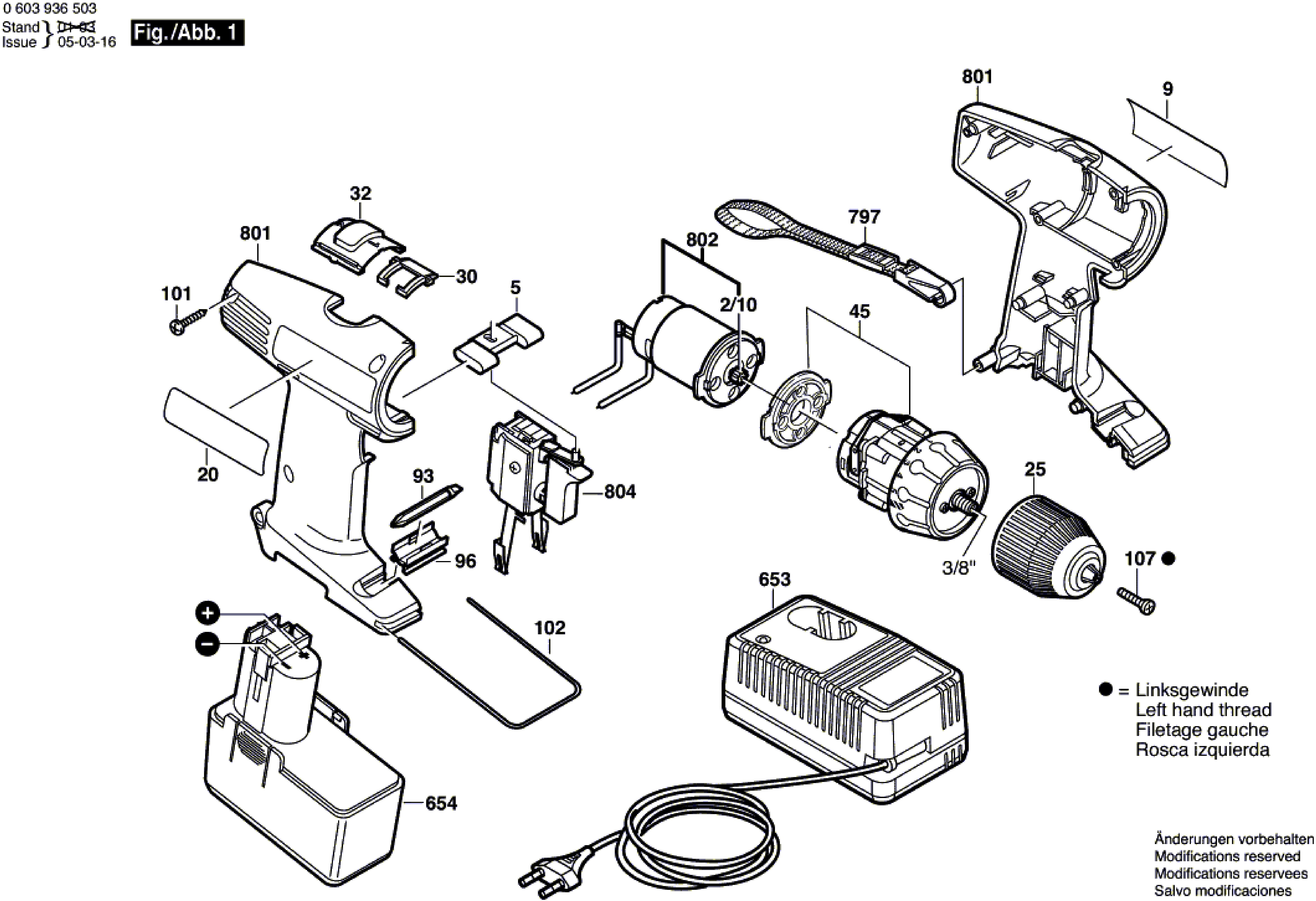

Diagram Bosch PSR 12 VES-2

Diagram Bosch PSR 12 VES-2

Download (63.87KB)
