Bosch Spare Parts for Bench Grinder GSM 200

SKU: Bosch GSM 200 - 0601277103
€3.91
VAT included

Bosch Spare Parts for Bench Grinder GSM 200

Bosch genuine replacement parts for to replace broken parts for to fix Bench Grinder GSM 200 - 0601277103.

Bench Grinder GSM 200 - 0601277103
Bosch Spare Parts for Bench Grinder GSM 200
  • Out-of-Stock
  • Bosch Spare Parts for Bench Grinder GSM 200
  • Bosch Spare Parts for Bench Grinder GSM 175 - GSM 200
Bosch

Bosch Spare Parts for Bench Grinder GSM 200

SKU: Bosch GSM 200 - 0601277103 Condition: New
€3.91
VAT included

Bosch Spare Parts for Bench Grinder GSM 200

Bosch genuine replacement parts for to replace broken parts for to fix Bench Grinder GSM 200 - 0601277103.

Bench Grinder GSM 200 - 0601277103
settings 70 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
Machine Type: Grinder
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
70 spare parts

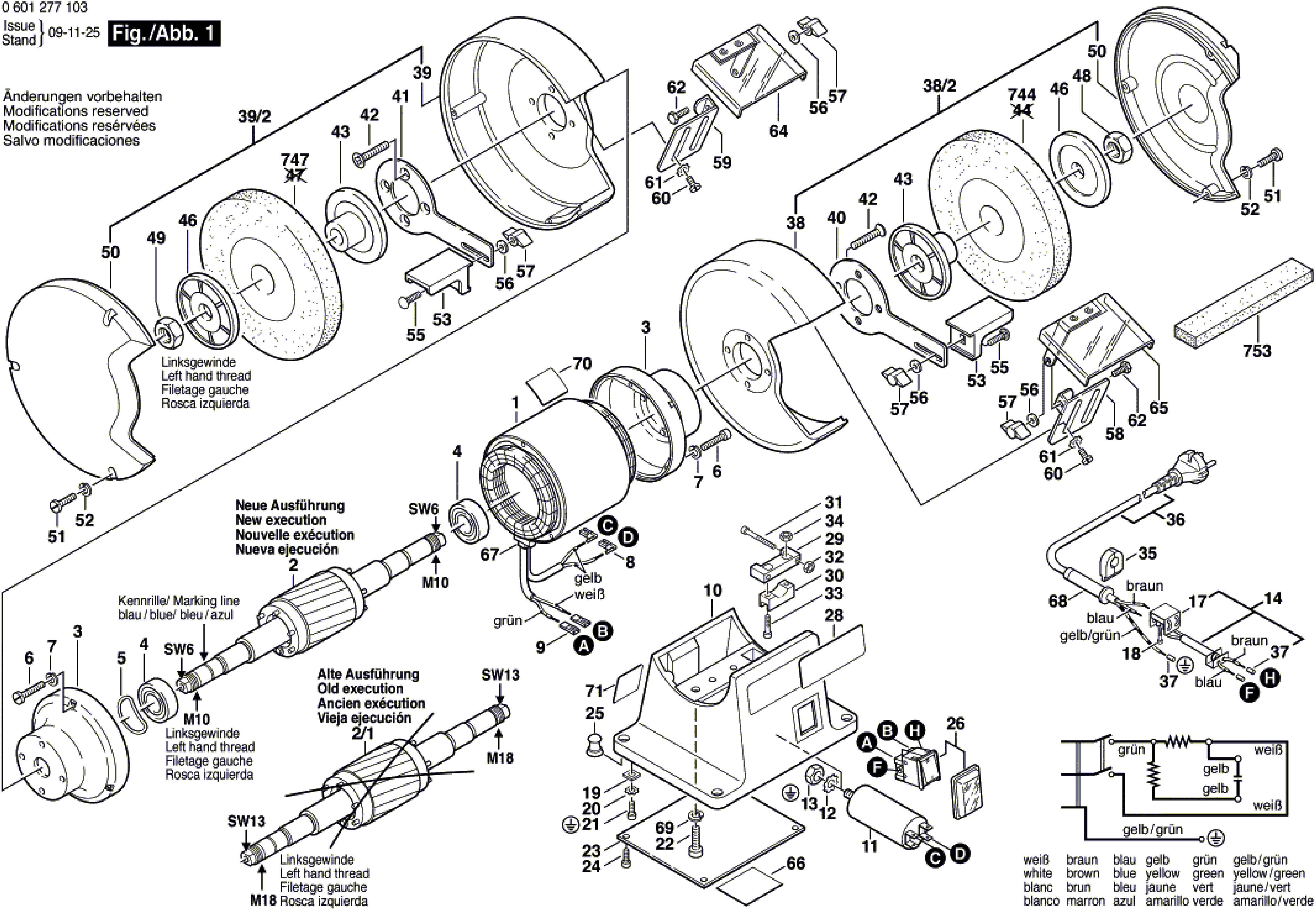

Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 1609203253 Counterflange Ø18 MM €4.82
photo_cameraImage coming soon 1609203278 Protective Cover €42.64
photo_cameraImage coming soon 1609203279 Protective Cover €42.64
photo_cameraImage coming soon 1609203282 Lateral Guard €26.78
photo_cameraImage coming soon 1609203299 Hex Nut M18 LEFTHAND THREADS €0.00 Not available for order
photo_cameraImage coming soon 2915011014 Hex Nut DIN 934 M18-8-A €0.00 Not available for order
1
 photo_cameraImage coming soon 1609203305 Stator 230V €120.72
2
 photo_cameraImage coming soon 1609203620 Rotor €73.14
3
 photo_cameraImage coming soon 1609203298 End Shield €20.68
4
 photo_cameraImage coming soon 1900905124 groove ball bearing 20x42x12 €64.60
5
 photo_cameraImage coming soon 1609203230 Corrugated Washer €0.00 Not available for order
6
 photo_cameraImage coming soon 2910011166 Socket head cap screw DIN 84-BM5x30-5.8 €0.00 Not available for order
7
 photo_cameraImage coming soon 2916690004 Spring Lock Washer DIN 128-A5-FST €0.00 Not available for order
8
 photo_cameraImage coming soon 1609203231 Insulating Sleeve €0.00 Not available for order
9
 photo_cameraImage coming soon 1609203247 End Splice €0.00 Not available for order
10
 photo_cameraImage coming soon 1609203226 Base Plate €35.32
11
 photo_cameraImage coming soon 1609203277 Motor Capacitor €12.14
12
 photo_cameraImage coming soon 2916040008 Spring Washer DIN 6797-J8,2-FST €0.00 Not available for order
13
 photo_cameraImage coming soon 2915011009 Hex Nut DIN 934-M8-8-A €1.16
14
 photo_cameraImage coming soon 1609203235 Connecting Cable €2.38
17
 photo_cameraImage coming soon 1901091001 Socket-Terminal Strip 2x2,5 MM/2 €0.00 Not available for order
18
 photo_cameraImage coming soon 2910011058 Socket head cap screw DIN 84-AM3X14-5.8 €0.00 Not available for order
19
 photo_cameraImage coming soon 1609203238 Clamping Plate €0.00 Not available for order
20
 photo_cameraImage coming soon 2916030006 Toothed lock washer DIN 6797-A4,3-FST €0.00 Not available for order
21
 photo_cameraImage coming soon 2910001118 Socket head cap screw DIN 84-AM4x8-4.8 €0.00 Not available for order
22
 photo_cameraImage coming soon 2910022197 Socket head cap screw DIN 84-M 6x16-8.8 €0.00 Not available for order
23
 photo_cameraImage coming soon 1609203239 Base Plate €3.60
24
 photo_cameraImage coming soon 2910011120 Socket head cap screw DIN 84-AM4x10-5.8 €0.00 Not available for order
25
 photo_cameraImage coming soon 1609203240 Rubber Base €0.00 Not available for order
26
 photo_cameraImage coming soon 1609203241 Tip Switch €7.26
28
 photo_cameraImage coming soon 1601118395 Manufacturer's nameplate €2.38
29
 photo_cameraImage coming soon 1609203243 Clamping Plate €0.00 Not available for order
30
 photo_cameraImage coming soon 1609203244 Clamping Plate €0.00 Not available for order
31
 photo_cameraImage coming soon 2910011064 Socket head cap screw DIN 84-AM3x25-5.8 €0.00 Not available for order
32
 photo_cameraImage coming soon 2915011003 Hex Nut DIN 934-M 3-m-8 €0.00 Not available for order
33
 photo_cameraImage coming soon 2910021130 Socket head cap screw DIN 84-AM4x20-8.8 €0.00 Not available for order
34
 Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A 2915011005 Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A €1.16
35
 photo_cameraImage coming soon 1609203245 Cable Passage €0.00 Not available for order
36
 photo_cameraImage coming soon 1609203246 Power supply cord €18.24
37
 photo_cameraImage coming soon 1609203247 End Splice €0.00 Not available for order
38
 photo_cameraImage coming soon 1609203642 Protective Cover €59.72
38/2
 photo_cameraImage coming soon 1609203643 Protective Cover €48.74
39
 photo_cameraImage coming soon 1609203644 Protective Cover €59.72
39/2
 photo_cameraImage coming soon 1609203645 Protective Cover €48.74
40
 photo_cameraImage coming soon 1609203280 Connecting Carrier €2.38
41
 photo_cameraImage coming soon 1609203281 Connecting Carrier €2.38
42
 photo_cameraImage coming soon 2912341203 Countersunk-Head Screw DIN 965-M6x25-8.8-Z €0.00 Not available for order
43
 photo_cameraImage coming soon 1609203252 Clamping Flange €4.82
46
 photo_cameraImage coming soon 1609203640 Counterflange Ø 10 MM €4.82
48
 photo_cameraImage coming soon 2915011010 Hex Nut DIN 934-M 10-m-8 €0.00 Not available for order
49
 photo_cameraImage coming soon 1609203621 Hex Nut M10 €0.00 Not available for order
50
 photo_cameraImage coming soon 1609203647 Lateral Guard €64.60
51
 photo_cameraImage coming soon 2910021126 Socket head cap screw DIN 84-AM4x16-8.8 €0.00 Not available for order
52
 photo_cameraImage coming soon 2916681005 Spring Lock Washer B 4 DIN 127 €0.00 Not available for order
53
 photo_cameraImage coming soon 1609203300 Support Plate €3.60
55
 photo_cameraImage coming soon 2910281201 Round-Head Bolt DIN 603-M6x20  €1.16
56
 photo_cameraImage coming soon 2916011013 Plain Washer DIN 433-6,4-ST 50  €0.00 Not available for order
57
 photo_cameraImage coming soon 1609203258 Wing Nut €2.38
58
 photo_cameraImage coming soon 1609203259 Guard Plate €4.82
59
 photo_cameraImage coming soon 1609203260 Guard Plate €1.16
60
 photo_cameraImage coming soon 2910021152 Socket head cap screw DIN 84-AM5x10-8.8 €0.00 Not available for order
61
 photo_cameraImage coming soon 2916060006 Spring Washer DIN 137-A5-FST €0.00 Not available for order
62
 photo_cameraImage coming soon 2911051195 Hex Screw ISO-4017-M6x14-5.6 €0.00 Not available for order
64
 photo_cameraImage coming soon 1609203261 Protective Glass €12.14
65
 photo_cameraImage coming soon 1609203295 Protective Glass €0.00 Not available for order
66
 photo_cameraImage coming soon 1601118386 Reference Plate €2.38
67
 photo_cameraImage coming soon 1609203293 Seal €0.00 Not available for order
68
 photo_cameraImage coming soon 1609203296 Grommet €0.00 Not available for order
69
 photo_cameraImage coming soon 2916690005 Spring Lock Washer M6 €0.00 Not available for order
70
 photo_cameraImage coming soon 1601118388 Reference Plate €2.38
71
 photo_cameraImage coming soon 1601118392 Nameplate €2.38

Shipping and delivery information will be available shortly.

Bosch Spare Parts for Bench Grinder GSM 200

Bosch genuine replacement parts for to replace broken parts for to fix Bench Grinder GSM 200 - 0601277103.

In the following table, look for the model of the Bench Grinder and the respective parts of the code.
Bench Grinder GSM 200 - 0601277103

Bench Grinder GSM 200/0 601 277 103
# Part Num. Description
1 1609203305 Stator 230V
2 1609203620 Rotor
3 1609203298 End Shield
4 1900905124 groove ball bearing 20x42x12
5 1609203230 Corrugated Washer
6 2910011166 Socket head cap screw DIN 84-BM5x30-5.8
7 2916690004 Spring Lock Washer DIN 128-A5-FST
8 1609203231 Insulating Sleeve
9 1609203247 End Splice
10 1609203226 Base Plate
11 1609203277 Motor Capacitor
12 2916040008 Spring Washer DIN 6797-J8,2-FST
13 2915011009 Hex Nut DIN 934-M8-8-A
14 1609203235 Connecting Cable
17 1901091001 Socket-Terminal Strip 2x2,5 MM/2
18 2910011058 Socket head cap screw DIN 84-AM3X14-5.8
19 1609203238 Clamping Plate
20 2916030006 Toothed lock washer DIN 6797-A4,3-FST
21 2910001118 Socket head cap screw DIN 84-AM4x8-4.8
22 2910022197 Socket head cap screw DIN 84-M 6x16-8.8
23 1609203239 Base Plate
24 2910011120 Socket head cap screw DIN 84-AM4x10-5.8
25 1609203240 Rubber Base
26 1609203241 Tip Switch
28 1601118395 Manufacturer's nameplate
29 1609203243 Clamping Plate
30 1609203244 Clamping Plate
31 2910011064 Socket head cap screw DIN 84-AM3x25-5.8
32 2915011003 Hex Nut DIN 934-M 3-m-8
33 2910021130 Socket head cap screw DIN 84-AM4x20-8.8
34 2915011005 Hex Nut DIN 934 -M4-m-8
35 1609203245 Cable Passage
36 1609203246 Power supply cord
37 1609203247 End Splice
38 1609203642 Protective Cover
1609203278 Protective Cover
38/2 1609203643 Protective Cover
39 1609203644 Protective Cover
1609203279 Protective Cover
39/2 1609203645 Protective Cover
40 1609203280 Connecting Carrier
41 1609203281 Connecting Carrier
42 2912341203 Countersunk-Head Screw DIN 965-M6x25-8.8-Z
43 1609203252 Clamping Flange
46 1609203640 Counterflange Ø 10 MM
1609203253 Counterflange Ø18 MM
48 2915011010 Hex Nut DIN 934-M 10-m-8
2915011014 Hex Nut DIN 934 M18-8-A
49 1609203621 Hex Nut M10
1609203299 Hex Nut M18 LEFTHAND THREADS
50 1609203647 Lateral Guard
1609203282 Lateral Guard
51 2910021126 Socket head cap screw DIN 84-AM4x16-8.8
2910021126 Socket head cap screw DIN 84-AM4x16-8.8
52 2916681005 Spring Lock Washer B 4 DIN 127
2916681005 Spring Lock Washer B 4 DIN 127
53 1609203300 Support Plate
55 2910281201 Round-Head Bolt DIN 603-M6x20
56 2916011013 Plain Washer DIN 433-6,4-ST 50
57 1609203258 Wing Nut
58 1609203259 Guard Plate
59 1609203260 Guard Plate
60 2910021152 Socket head cap screw DIN 84-AM5x10-8.8
61 2916060006 Spring Washer DIN 137-A5-FST
62 2911051195 Hex Screw ISO-4017-M6x14-5.6
64 1609203261 Protective Glass
65 1609203295 Protective Glass
66 1601118386 Reference Plate
67 1609203293 Seal
68 1609203296 Grommet
69 2916690005 Spring Lock Washer M6
70 1601118388 Reference Plate
71 1601118392 Nameplate

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSM 200 - 0601277103

Data sheet

SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
Machine Type
Grinder
CHECK S/N BOSCH
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GSM 200

Diagram Bosch GSM 200

Download (95.04KB)
