Bosch Spare Parts for Belt Sander GBS 75 AE

SKU: Bosch GBS 75 AE 0601274703
€1.77
VAT included

Bosch Spare Parts for Belt Sander GBS 75 AE

Bosch genuine replacement parts for to replace broken parts for to fix Belt Sander GBS 75 AE Professional- 0601274703.

Bosch GBS 75 AE 0601274703
Bosch Spare Parts for Belt Sander GBS 75 AE
  • Bosch Spare Parts for Belt Sander GBS 75 AE
  • Bosch Spare Parts for Belt Sander GBS 75 AE
Bosch

Bosch Spare Parts for Belt Sander GBS 75 AE

SKU: Bosch GBS 75 AE 0601274703 Condition: New
€1.77
VAT included

Bosch Spare Parts for Belt Sander GBS 75 AE

Bosch genuine replacement parts for to replace broken parts for to fix Belt Sander GBS 75 AE Professional- 0601274703.

Bosch GBS 75 AE 0601274703
settings 58 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

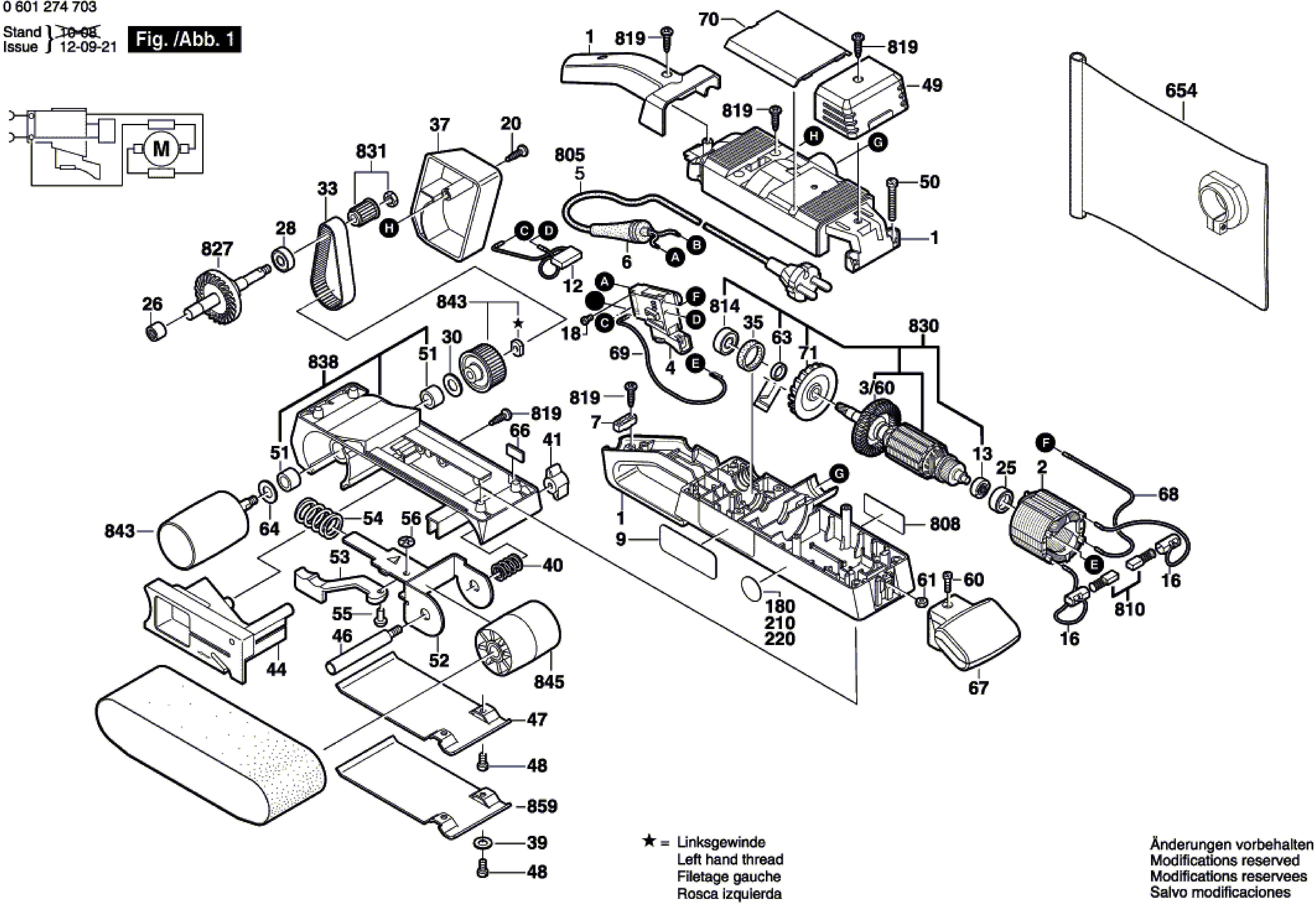

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2605104549 Motor Housing BLUE €45.38
2
 photo_cameraImage coming soon 2604220480 Field 230-240V €26.96
3/60
 photo_cameraImage coming soon 2606610049 Fan €2.22
4
 photo_cameraImage coming soon 2607200384 Switch €50.72
6
 photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
7
 Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
 photo_cameraImage coming soon 2601112057 Manufacturer's nameplate GBS 75 AE €2.45
12
 photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
13
 Flanged Bearing for Jig Saw Bosch GST 75 BE 2605805008 Flanged Bearing for Jig Saw Bosch GST 75 BE €5.96
16
 photo_cameraImage coming soon 2604449026 Brush Holder €1.59
18
 photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
20
 Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
25
 Intermediate Ring for Circular Saw Bosch PKS 54 1600502011 Intermediate Ring for Circular Saw Bosch PKS 54 €1.53
26
 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
28
 photo_cameraImage coming soon 1900905041 groove ball bearing 8x22x7 €14.47
30
 Shim 1.00 MM for Belt Sander Bosch PBS 75 A 2600100099 Shim 1.00 MM for Belt Sander Bosch PBS 75 A €2.30
33
 Toothed Belt for Bosch Belt Sanders PBS 75A-AE 2604736010 Toothed Belt for Bosch Belt Sanders PBS 75A-AE €12.80
35
 Armature Bearing Rubber Ring for Belt Sander Bosch GBS 75 AE 1600206024 Armature Bearing Rubber Ring for Belt Sander Bosch GBS 75 AE €1.69
37
 photo_cameraImage coming soon 1605510150 Covering hood BLACK €6.20
40
 Compression Spring for Bosch Belt Sanders PBS 75A-AE 2604630002 Compression Spring for Bosch Belt Sanders PBS 75A-AE €2.89
41
 photo_cameraImage coming soon 2603339005 Wing Nut €2.45
44
 photo_cameraImage coming soon 1608005004 Base BLUE €14.47
46
 photo_cameraImage coming soon 1603521027 Axle €9.71
47
 Base Plate for Belt Sanders Bosch PBS 75A-AE 2601098040 Base Plate for Belt Sanders Bosch PBS 75A-AE €8.99
48
 Socket Head Cap Screw M5x10 for Belt Sander Bosch PBS 75 A 2603410045 Socket Head Cap Screw M5x10 for Belt Sander Bosch PBS 75 A €1.76
49
 photo_cameraImage coming soon 1605500122 Brush-Cover BLACK €6.20
50
 photo_cameraImage coming soon 2910011170 Socket head cap screw DIN 84-BM5x40-5.8 €1.47
51
 photo_cameraImage coming soon 2600301089 Sintered-Metal Bushing DIN 1850-J12x18x12 Repl. 1900301018 €14.47
52
 Bearing Bracket for Belt Sander Bosch PBS 75 A 1605807013 Bearing Bracket for Belt Sander Bosch PBS 75 A €10.04
53
 Tensioning Leve for Bosch Belt Sanders GBS 75 AE 1602098006 Tensioning Leve for Bosch Belt Sanders GBS 75 AE €4.42
54
 Compression Spring for Belt Sander Bosch PBS 75 A 1604619017 Compression Spring for Belt Sander Bosch PBS 75 A €2.19
55
 photo_cameraImage coming soon 2917030110 Button-Head Rivet €2.45
56
 Locking Washer for Sanders Bosch PBS 75 A 1600146001 Locking Washer for Sanders Bosch PBS 75 A €1.59
61
 Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A 2915011005 Hex Nut DIN 934-M4 for Belt Sander Bosch PBS 75 A €0.95
63
 Seal Ring for Belt Sander Bosch PBS 75 A 2600290033 Seal Ring for Belt Sander Bosch PBS 75 A €3.90
64
 Shim 0.3 MM for Belt Sander Bosch PBS 75 A 1600101618 Shim 0.3 MM for Belt Sander Bosch PBS 75 A €1.77
66
 photo_cameraImage coming soon 1601010007 Ceramic Plate €2.45
67
 photo_cameraImage coming soon 1605133036 Handle BLACK €7.19
68
 photo_cameraImage coming soon 1604438018 Connecting Cable L=410 MM WHITE  €1.47
69
 photo_cameraImage coming soon 1604448000 Connecting Cable L=373 MM WHITE €2.07
70
 Housing Cover BLACK for Belt Sanders Bosch PBS 75A-AE 1605500120 Housing Cover BLACK for Belt Sanders Bosch PBS 75A-AE €4.64
71
 photo_cameraImage coming soon 1606610120 Fan €2.45
654
 photo_cameraImage coming soon 2605411170 Dust Bag €30.94
805
 photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.17
808
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61
810
 photo_cameraImage coming soon 1607000484 Carbon-Brush Set 10 x 2 604 321 905 €106.55
810
 Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE 2604321905 Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE €14.02
814
 photo_cameraImage coming soon 1610905011 groove ball bearing 9x24x7 €16.31
819
 photo_cameraImage coming soon 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H €1.68
827
 photo_cameraImage coming soon 2606333900 Crown Gear Z=45 €25.43
830
 photo_cameraImage coming soon 2604010935 Armature 230-240V €123.04
831
 Toothed Belt Gear for Bosch Belt Sanders GBS 75 AE 2606625907 Toothed Belt Gear for Bosch Belt Sanders GBS 75 AE €5.94
838
 photo_cameraImage coming soon 2605190900 Housing €69.81
843
 Roller for Belt Sander Bosch GBS 75 AE 2606625904 Roller for Belt Sander Bosch GBS 75 AE €58.38
845
 photo_cameraImage coming soon 2606625908 Roller €50.72
859
 Carbon Plate for Bosch Belt Sanders GBS 75 AE 2601098037 Carbon Plate for Bosch Belt Sanders GBS 75 AE €6.86

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Belt Sander GBS 75 AE

Bosch genuine replacement parts for to replace broken parts for to fix Belt Sander GBS 75 AE Professional- 0601274703.

In the following table, look for the model of the Belt Sander and the respective parts of the code.
Bosch GBS 75 AE 0601274703

Belt Sander GBS 75 AE- 0601274703.
# Part Num. Description
1 2605104549 Motor Housing BLUE
2 2604220480 Field 230-240V
3/60 2606610049 Fan
4 2607200384 Switch
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
7 2601035001 Cable Clip
9 2601112057 Manufacturer's nameplate GBS 75 AE
12 1607328028 Suppression Filter
13 2605805008 Flanged Bearing
16 2604449026 Brush Holder
18 2603410001 Socket head cap screw M3x6,5-4.8
20 2603490023 Torx Oval-Head Screw 4x20
25 1600502011 Intermediate Ring
26 2600910001 Needle bearing Ø14 MM
28 1900905041 groove ball bearing 8x22x7
30 2600100099 Shim
33 2604736010 Toothed Belt Z=75
35 1600206024 Intermediate Ring
37 1605510150 Covering hood BLACK
39 2918650007 Plain Washer DIN 125-A5,3-A2
40 2604630002 Compression Spring
41 2603339005 Wing Nut
44 1608005004 Base BLUE
46 1603521027 Axle
47 2601098040 Base Plate
48 2603410045 Socket head cap screw DIN 84-M5x10-4.8
49 1605500122 Brush-Cover BLACK
50 2910011170 Socket head cap screw DIN 84-BM5x40-5.8
51 2600301089 Sintered-Metal Bushing DIN 1850-J12x18x12
Repl. 1900301018
52 1605807013 Bearing Bracket
53 1602098006 Tensioning Lever BLACK
54 1604619017 Compression Spring
55 2917030110 Button-Head Rivet
56 1600146001 Locking Washer
60 2910021126 Socket head cap screw DIN 84-AM4x16-8.8
61 2915011005 Hex Nut DIN 934 -M4-m-8
63 2600290033 Seal ring
64 1600101618 Shim 0,3 MM THICK
66 1601010007 Ceramic Plate
67 1605133036 Handle BLACK
68 1604438018 Connecting Cable L=410 MM WHITE
69 1604448000 Connecting Cable L=373 MM WHITE
70 1605500120 Housing Cover BLACK
71 1606610120 Fan
654 2605411170 Dust Bag
805 1607000386 Power supply cord EU 230V 4,15m
2 x 1,0mm H05 RN-F
808 1601106032 Nameplate 26x52 MM
810 2604321905 Carbon-Brush Set
810 1607000484 Carbon-Brush Set 10 x 2 604 321 905
814 1610905011 groove ball bearing 9x24x7
819 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H
827 2606333900 Crown Gear Z=45
830 2604010935 Armature 230-240V
831 2606625907 Toothed Belt Wheel
838 2605190900 Housing
843 2606625904 Roller
845 2606625908 Roller
859 2601098037 Sliding Plate
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBS 75 AE 0601274703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GBS 75 AE

Diagram Bosch GBS 75 AE

Download (75.07KB)
