Bosch Spare Parts for High Pressure Cleaner GHP 5-13 C

SKU: Bosch GHP 5-13 C - 3600J10000
€25.54
VAT included

Bosch Spare Parts for High Pressure Cleaner GHP 5-13 C

Bosch genuine replacement parts for to replace broken parts for to fix High Pressure Cleaner  GHP 5-13 C - 3600J10000.

Bosch Spare Parts for High Pressure Cleaner GHP 5-13 C
  • Online only
  • Bosch Spare Parts for High Pressure Cleaner GHP 5-13 C
  • Bosch Spare Parts for High Pressure Cleaner GHP 5-13 C
  • Bosch Spare Parts for High Pressure Cleaner GHP 5-13 C
Bosch

Bosch Spare Parts for High Pressure Cleaner GHP 5-13 C

SKU: Bosch GHP 5-13 C - 3600J10000 Condition: New
€25.54
VAT included

Bosch Spare Parts for High Pressure Cleaner GHP 5-13 C

Bosch genuine replacement parts for to replace broken parts for to fix High Pressure Cleaner  GHP 5-13 C - 3600J10000.

settings 61 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
61 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

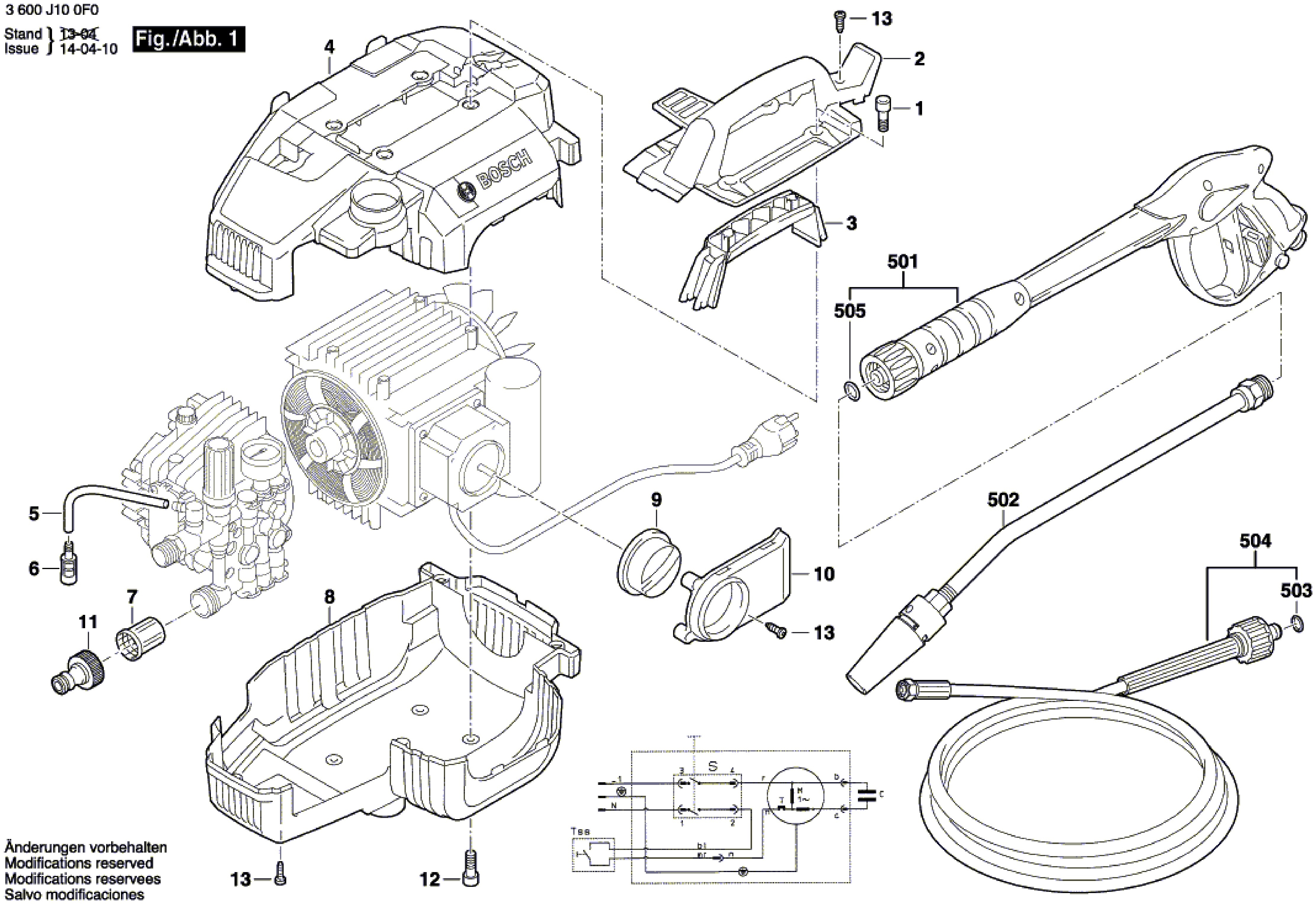

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon F016L72001 Handle €8.85
3
 photo_cameraImage coming soon F016L72002 Cover €6.48
4
 photo_cameraImage coming soon F016L72003 Housing €16.12
5
 photo_cameraImage coming soon F016L72004 Hose €4.40
6
 photo_cameraImage coming soon F016L72005 Filter €4.25
7
 photo_cameraImage coming soon F016L73591 Filter €2.13
8
 photo_cameraImage coming soon F016L72007 Housing €16.12
9
 photo_cameraImage coming soon F016L72008 Knob €5.41
10
 photo_cameraImage coming soon F016L72009 Safety Cover €7.78
11
 photo_cameraImage coming soon F016L72010 Adapter €2.49
101
 photo_cameraImage coming soon F016F04380 Adapter €14.36
103
 photo_cameraImage coming soon F016L72015 Injector €9.91
105
 photo_cameraImage coming soon F016L72017 Spring €2.13
106
 photo_cameraImage coming soon F016L72018 Valve Insert €9.70
108
 photo_cameraImage coming soon F016L72020 Pump head €108.65
109
 Valve for High Pressure Washer GHP 5-13 C F016L72021 Valve for High Pressure Washer GHP 5-13 C €6.58
111
 O-Ring mm 9.88x13.32x1.69 for High Pressure Washer GHP 5-13 C F016L72023 O-Ring mm 9.88x13.32x1.69 for High Pressure Washer GHP 5-13 C €0.91
112
 photo_cameraImage coming soon F016L72024 Plug €5.55
113
 photo_cameraImage coming soon F016L72025 Retaining clip €3.64
115
 photo_cameraImage coming soon F016L72027 Plug €3.64
116
 photo_cameraImage coming soon F016L72028 Nipple €1.88
117
 photo_cameraImage coming soon F016L72029 Plug €9.91
119
 photo_cameraImage coming soon F016L72031 Piston €17.83
120
 photo_cameraImage coming soon F016L72032 Piston €17.83
123
 photo_cameraImage coming soon F016L72034 Spacer Ring €1.58
126
 photo_cameraImage coming soon F016L72036 Piston Guide €20.02
127
 photo_cameraImage coming soon F016L72037 Wobble Plate €4.68
128
 photo_cameraImage coming soon F016L72038 Spring €5.41
129
 photo_cameraImage coming soon F016L72039 Wobble Plate €2.13
130
 photo_cameraImage coming soon F016L72040 Pin €1.58
131
 photo_cameraImage coming soon F016L72041 Insert €17.83
134
 photo_cameraImage coming soon F016L72044 Plug €14.36
135
 photo_cameraImage coming soon F016L72045 Pressure gauge €17.83
136
 photo_cameraImage coming soon F016L72046 Plug €4.25
140
 photo_cameraImage coming soon F016L72048 Piston Guide €6.48
143
 photo_cameraImage coming soon F016L72049 Pump unit €59.66
144
 photo_cameraImage coming soon F016L72050 Bushing €12.52
146
 photo_cameraImage coming soon F016L72051 Cover €11.06
149
 photo_cameraImage coming soon F016L72054 Plug €8.85
150
 photo_cameraImage coming soon F016L72055 Key €1.57
151
 photo_cameraImage coming soon F016L72056 Ball Bearing €9.91
153
 photo_cameraImage coming soon F016L72058 Retaining ring €2.27
160
 photo_cameraImage coming soon F016F04356 Washer €1.57
167
 photo_cameraImage coming soon F016L72066 Pin €11.07
168
 photo_cameraImage coming soon F016L72067 Spring €2.95
169
 photo_cameraImage coming soon F016L72068 Plain Washer €1.58
171
 photo_cameraImage coming soon F016L72070 Adapter €9.70
172
 photo_cameraImage coming soon F016L72071 Adapter €11.07
177
 photo_cameraImage coming soon F016F04328 Pump €526.58
178
 photo_cameraImage coming soon F016F04329 Pump head €313.79
179
 photo_cameraImage coming soon F016F04330 Valve €48.50
409
 photo_cameraImage coming soon F016L72087 Switch €17.83
414
 photo_cameraImage coming soon F016L72092 Grommet €5.41
415
 photo_cameraImage coming soon F016L72093 Electronic Module €22.85
416
 photo_cameraImage coming soon F016L72094 Clamp €8.15
418
 photo_cameraImage coming soon F016F04335 Motor €465.35
419
 photo_cameraImage coming soon F016L72096 Grommet €5.41
504
 photo_cameraImage coming soon F016F04475 Hose 8 m €118.61
838
 photo_cameraImage coming soon F016F04320 Seal €18.49
845
 photo_cameraImage coming soon F016F04321 Seal €12.52
861
 photo_cameraImage coming soon F016F04322 Piston €18.49
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

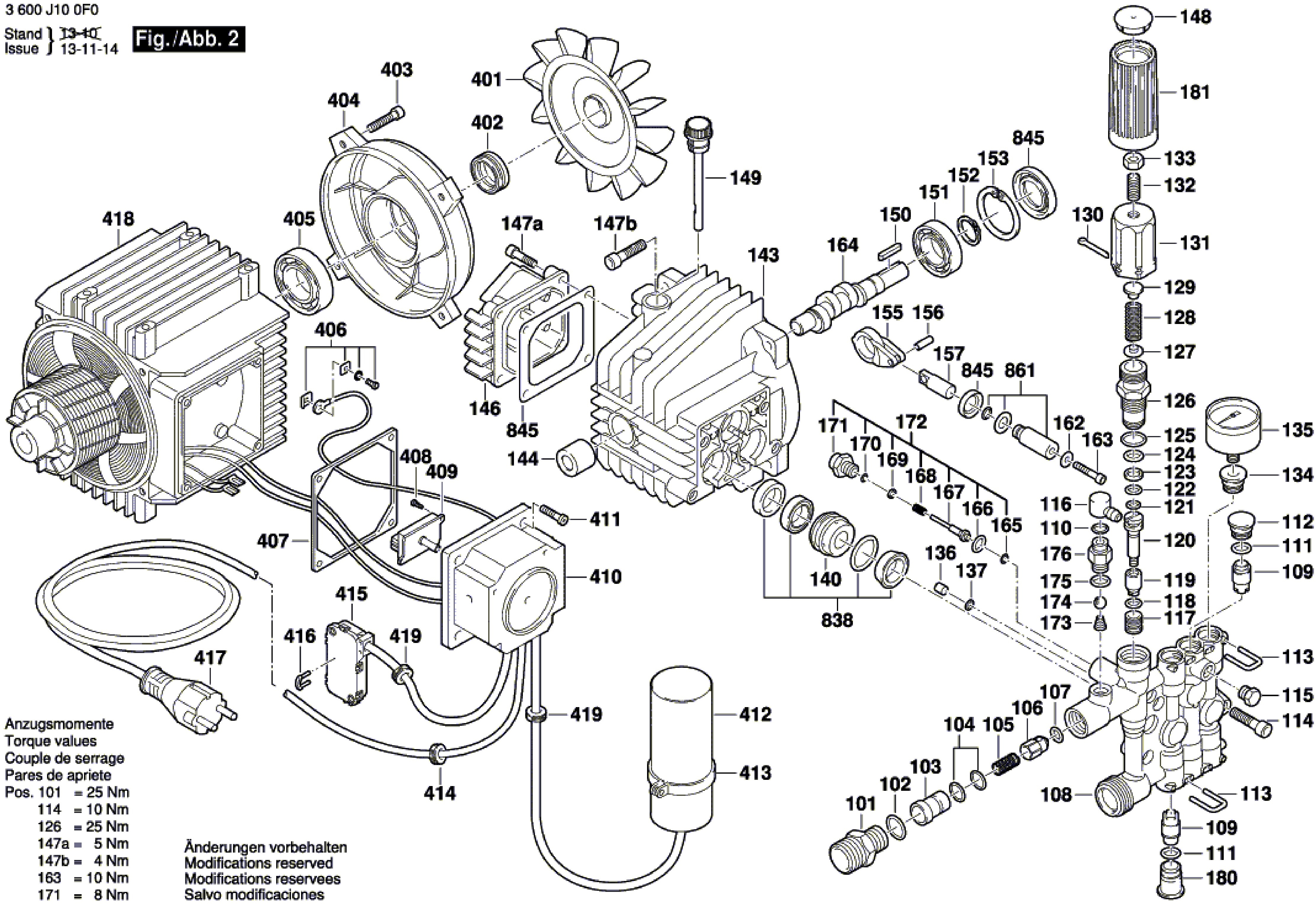

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
101
 photo_cameraImage coming soon F016F04380 Adapter €14.36
103
 photo_cameraImage coming soon F016L72015 Injector €9.91
105
 photo_cameraImage coming soon F016L72017 Spring €2.13
106
 photo_cameraImage coming soon F016L72018 Valve Insert €9.70
108
 photo_cameraImage coming soon F016L72020 Pump head €108.65
109
 Valve for High Pressure Washer GHP 5-13 C F016L72021 Valve for High Pressure Washer GHP 5-13 C €6.58
111
 O-Ring mm 9.88x13.32x1.69 for High Pressure Washer GHP 5-13 C F016L72023 O-Ring mm 9.88x13.32x1.69 for High Pressure Washer GHP 5-13 C €0.91
112
 photo_cameraImage coming soon F016L72024 Plug €5.55
113
 photo_cameraImage coming soon F016L72025 Retaining clip €3.64
115
 photo_cameraImage coming soon F016L72027 Plug €3.64
116
 photo_cameraImage coming soon F016L72028 Nipple €1.88
117
 photo_cameraImage coming soon F016L72029 Plug €9.91
119
 photo_cameraImage coming soon F016L72031 Piston €17.83
120
 photo_cameraImage coming soon F016L72032 Piston €17.83
123
 photo_cameraImage coming soon F016L72034 Spacer Ring €1.58
126
 photo_cameraImage coming soon F016L72036 Piston Guide €20.02
127
 photo_cameraImage coming soon F016L72037 Wobble Plate €4.68
128
 photo_cameraImage coming soon F016L72038 Spring €5.41
129
 photo_cameraImage coming soon F016L72039 Wobble Plate €2.13
130
 photo_cameraImage coming soon F016L72040 Pin €1.58
131
 photo_cameraImage coming soon F016L72041 Insert €17.83
134
 photo_cameraImage coming soon F016L72044 Plug €14.36
135
 photo_cameraImage coming soon F016L72045 Pressure gauge €17.83
136
 photo_cameraImage coming soon F016L72046 Plug €4.25
140
 photo_cameraImage coming soon F016L72048 Piston Guide €6.48
143
 photo_cameraImage coming soon F016L72049 Pump unit €59.66
144
 photo_cameraImage coming soon F016L72050 Bushing €12.52
146
 photo_cameraImage coming soon F016L72051 Cover €11.06
149
 photo_cameraImage coming soon F016L72054 Plug €8.85
150
 photo_cameraImage coming soon F016L72055 Key €1.57
151
 photo_cameraImage coming soon F016L72056 Ball Bearing €9.91
153
 photo_cameraImage coming soon F016L72058 Retaining ring €2.27
167
 photo_cameraImage coming soon F016L72066 Pin €11.07
168
 photo_cameraImage coming soon F016L72067 Spring €2.95
169
 photo_cameraImage coming soon F016L72068 Plain Washer €1.58
171
 photo_cameraImage coming soon F016L72070 Adapter €9.70
172
 photo_cameraImage coming soon F016L72071 Adapter €11.07
409
 photo_cameraImage coming soon F016L72087 Switch €17.83
414
 photo_cameraImage coming soon F016L72092 Grommet €5.41
415
 photo_cameraImage coming soon F016L72093 Electronic Module €22.85
416
 photo_cameraImage coming soon F016L72094 Clamp €8.15
418
 photo_cameraImage coming soon F016F04335 Motor €465.35
419
 photo_cameraImage coming soon F016L72096 Grommet €5.41
838
 photo_cameraImage coming soon F016F04320 Seal €18.49
845
 photo_cameraImage coming soon F016F04321 Seal €12.52
861
 photo_cameraImage coming soon F016F04322 Piston €18.49

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for High Pressure Cleaner GHP 5-13 C

Bosch genuine replacement parts for to replace broken parts for to fix High Pressure Cleaner  GHP 5-13 C - 3600J10000.

In the following table, look for the model of the Cleaner and the respective parts of the code.
BOSCH GHP 5-13 C - 3600J10000.

High Pressure Cleaner GHP 5-13 C/3 600 J10 000
# Part Num. Description
1 F016L72000 Screw
2 F016L72001 Handle
3 F016L72002 Cover
4 F016L72003 Housing
5 F016L72004 Hose
6 F016L72005 Filter
7 F016L73591 Filter
8 F016L72007 Housing
9 F016L72008 Knob
10 F016L72009 Safety Cover
11 F016L72010 Adapter
12 F016L72011 Screw
13 F016L72012 Screw
101 F016F04380 Adapter
102 F016L72014 O-Ring
103 F016L72015 Injector
104 F016L72016 O-Ring
105 F016L72017 Spring
106 F016L72018 Valve Insert
107 F016L72019 O-Ring
108 F016L72020 Pump head
109 F016L72021 Valve
110 F016L72022 O-Ring
111 F016L72023 O-Ring
112 F016L72024 Plug
113 F016L72025 Retaining clip
114 F016L72026 Screw
115 F016L72027 Plug
116 F016L72028 Nipple
117 F016L72029 Plug
118 F016L72030 O-Ring
119 F016L72031 Piston
120 F016L72032 Piston
121 F016L72033 O-Ring
122 F016L72030 O-Ring
123 F016L72034 Spacer Ring
124 F016L72035 O-Ring
125 F016L72014 O-Ring
126 F016L72036 Piston Guide
127 F016L72037 Wobble Plate
128 F016L72038 Spring
129 F016L72039 Wobble Plate
130 F016L72040 Pin
131 F016L72041 Insert
132 F016L72042 Plug
133 F016L72043 Nut
134 F016L72044 Plug
135 F016L72045 Pressure gauge
136 F016L72046 Plug
137 F016L72047 O-Ring
140 F016L72048 Piston Guide
143 F016L72049 Pump unit
144 F016L72050 Bushing
146 F016L72051 Cover
147 F016L72052 Screw
148 F016L72053 Plug
149 F016L72054 Plug
150 F016L72055 Key
151 F016L72056 Ball Bearing
152 F016L72057 Retaining ring
153 F016L72058 Retaining ring
155 F016L72059 Connecting Rod
156 F016L72060 Pin
157 F016L72061 Pin
160 F016F04356 Washer
162 F016L72062 Plain Washer
163 F016L72063 Screw
164 F016L72064 Crankshaft
165 F016L72065 O-Ring
166 F016L72030 O-Ring
167 F016L72066 Pin
168 F016L72067 Spring
169 F016L72068 Plain Washer
170 F016L72069 O-Ring
171 F016L72070 Adapter
172 F016L72071 Adapter
173 F016L72072 Spring
174 F016L72073 Ball
175 F016L72074 O-Ring
176 F016L72075 Adapter
177 F016F04328 Pump
178 F016F04329 Pump head
179 F016F04330 Valve
180 F016L72076 Plug
181 F016L72077 Rotary Handle
182 F016L72078 Screw
401 F016L72079 Fan
402 F016L72080 Seal
403 F016L72081 Screw
404 F016L72082 Cover
405 F016L72083 Ball Bearing
406 F016L72084 Clamp
407 F016L72085 Seal
408 F016L72086 Screw
409 F016L72087 Switch
410 F016L72088 Housing
411 F016L72089 Screw
412 F016L72090 Condenser
413 F016L72091 Clamp
414 F016L72092 Grommet
415 F016L72093 Electronic Module
416 F016L72094 Clamp
417 F016L72302 Power supply cord
418 F016F04335 Motor
419 F016L72096 Grommet
501 F016L72097 Handle
502 F016L72098 Jet Pipe
503 F016L72099 O-Ring
504 F016F04475 Hose 8 m
505 F016L72101 O-Ring
838 F016F04320 Seal
845 F016F04321 Seal
861 F016F04322 Piston
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GHP 5-13 C - 3600J10000
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GHP 5-13 C

Diagram Bosch GHP 5-13 C

Download (160.4KB)

You might also like

Valve for High Pressure Washer GHP 5-13 C Sale
Bosch SKU: F016L72021
Valve for High Pressure Washer GHP 5-13 C
Valve for High Pressure Washer GHP 5-13 C Genuine part Bosch, Valve for High Pressure Washer Bosch GHP 5-13 C/3 600 J10 000. Parts for the following products: - High Pressure Washer Bosch GHP 5-13 C/3 600 J10 000 - Code: F016L72021
AVAILABLE €6.58
Details
O-Ring mm 9.88x13.32x1.69 for High Pressure Washer GHP 5-13 C Sale
Bosch SKU: F016L72023
O-Ring mm 9.88x13.32x1.69 for High Pressure Washer GHP 5-13 C
O-Ring mm 9.88x13.32x1.69 for High Pressure Washer GHP 5-13 C Genuine part Bosch, O-Ring mm 9.88x13.32x1.69 for High Pressure Washer Bosch GHP 5-13 C/3 600 J10 000. Parts for the following products: - High Pressure Washer Bosch GHP...
AVAILABLE €0.91
Details
Comments (0)
