Bosch Spare Parts for Table Saw GTS 10

SKU: Bosch GTS 10 - 0601B30003
€2.81
VAT included

Bosch Spare Parts for Table Saw GTS 10

We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues fore Table Saw GTS 10 - 0601B30003.

Bosch GTS 10 - 0601B30003
Bosch Spare Parts for Bench Saw GTS 10
  • Online only
  • Bosch Spare Parts for Bench Saw GTS 10
  • Bosch Spare Parts for Bench Saw GTS 10
  • Bosch Spare Parts for Bench Saw GTS 10
  • Bosch Spare Parts for Bench Saw GTS 10
Bosch

Bosch Spare Parts for Table Saw GTS 10

SKU: Bosch GTS 10 - 0601B30003 Condition: New
€2.81
VAT included

Bosch Spare Parts for Table Saw GTS 10

We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues fore Table Saw GTS 10 - 0601B30003.

Bosch GTS 10 - 0601B30003
settings 158 spare parts

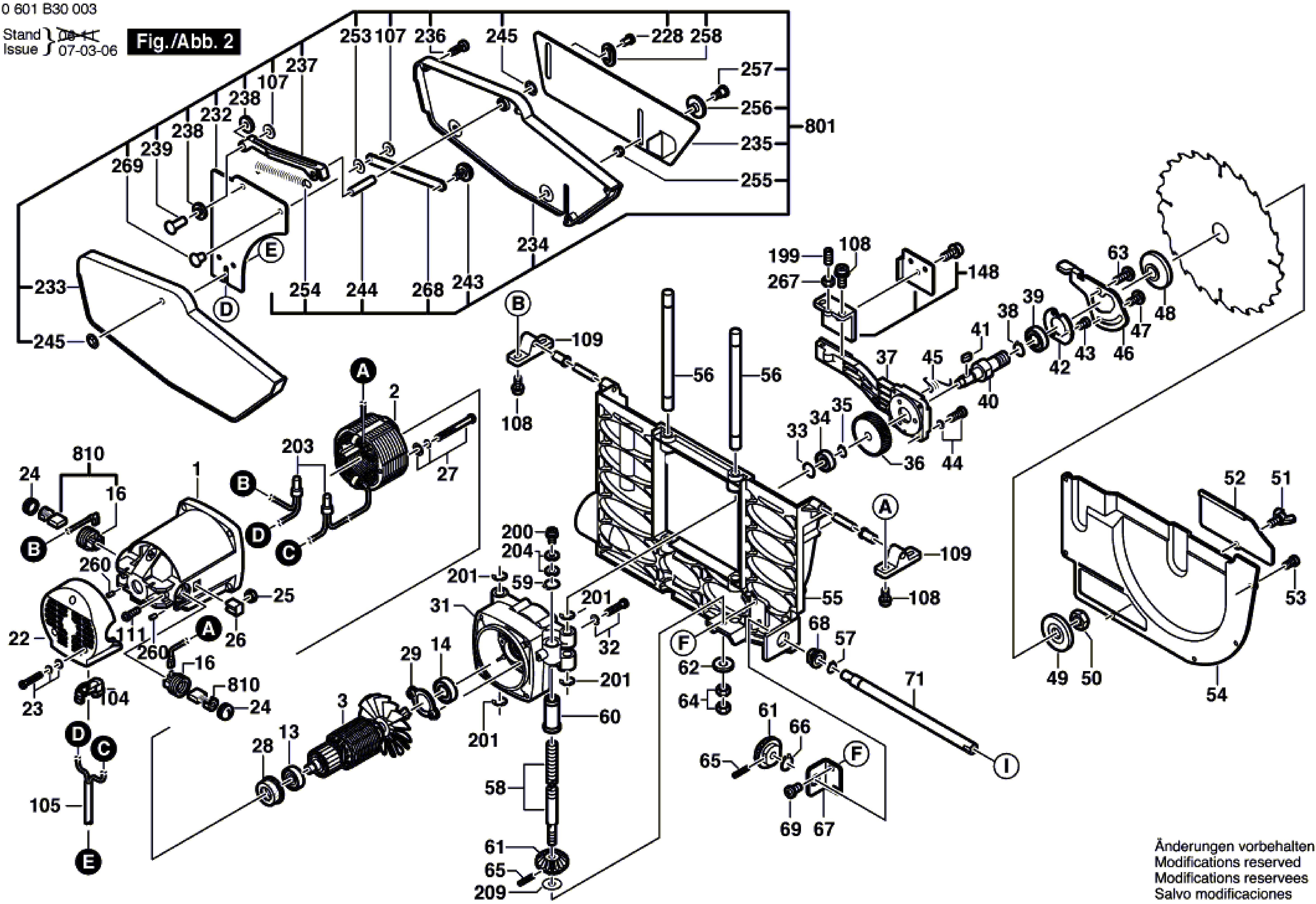

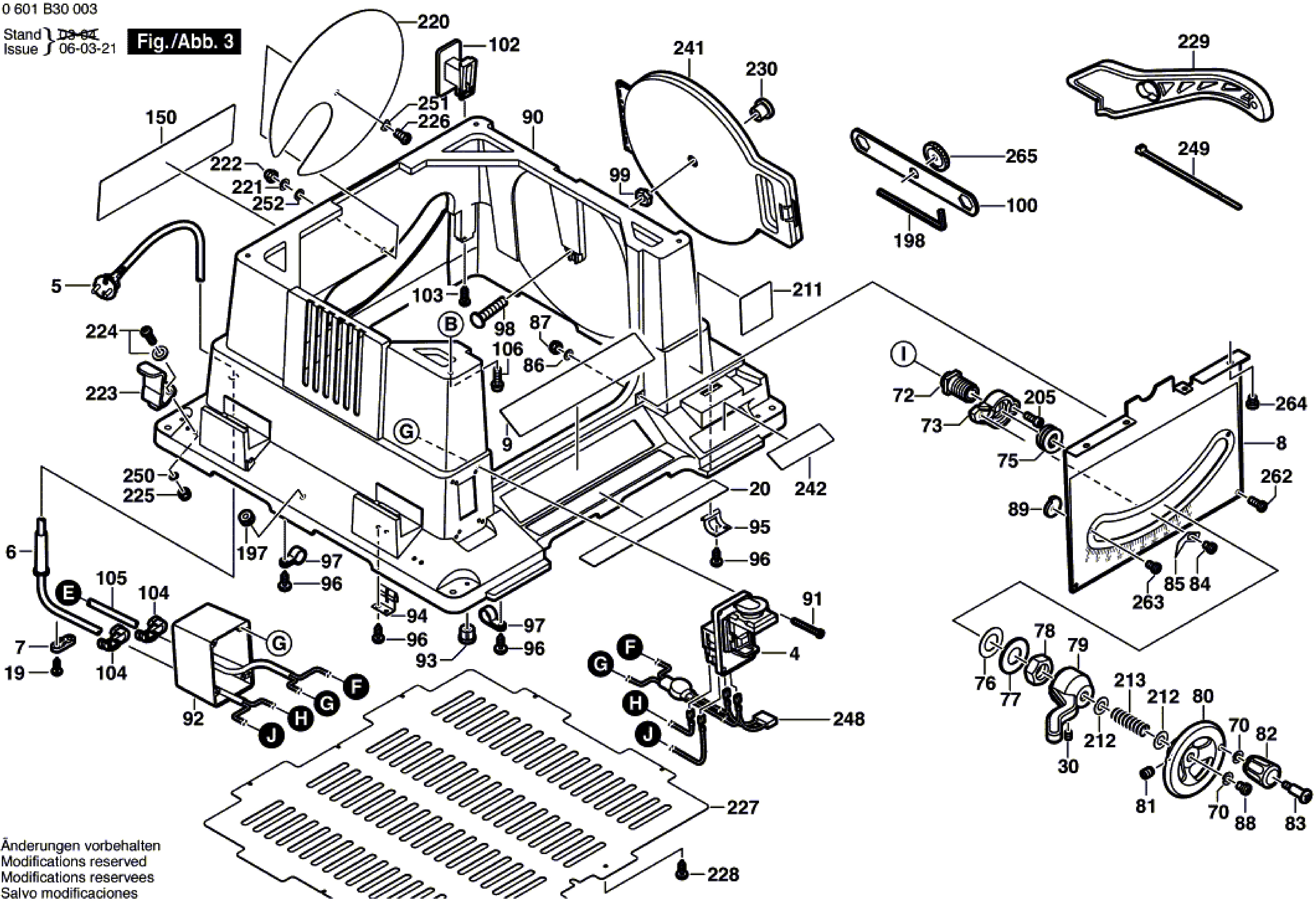

description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Shipped on: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
158 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

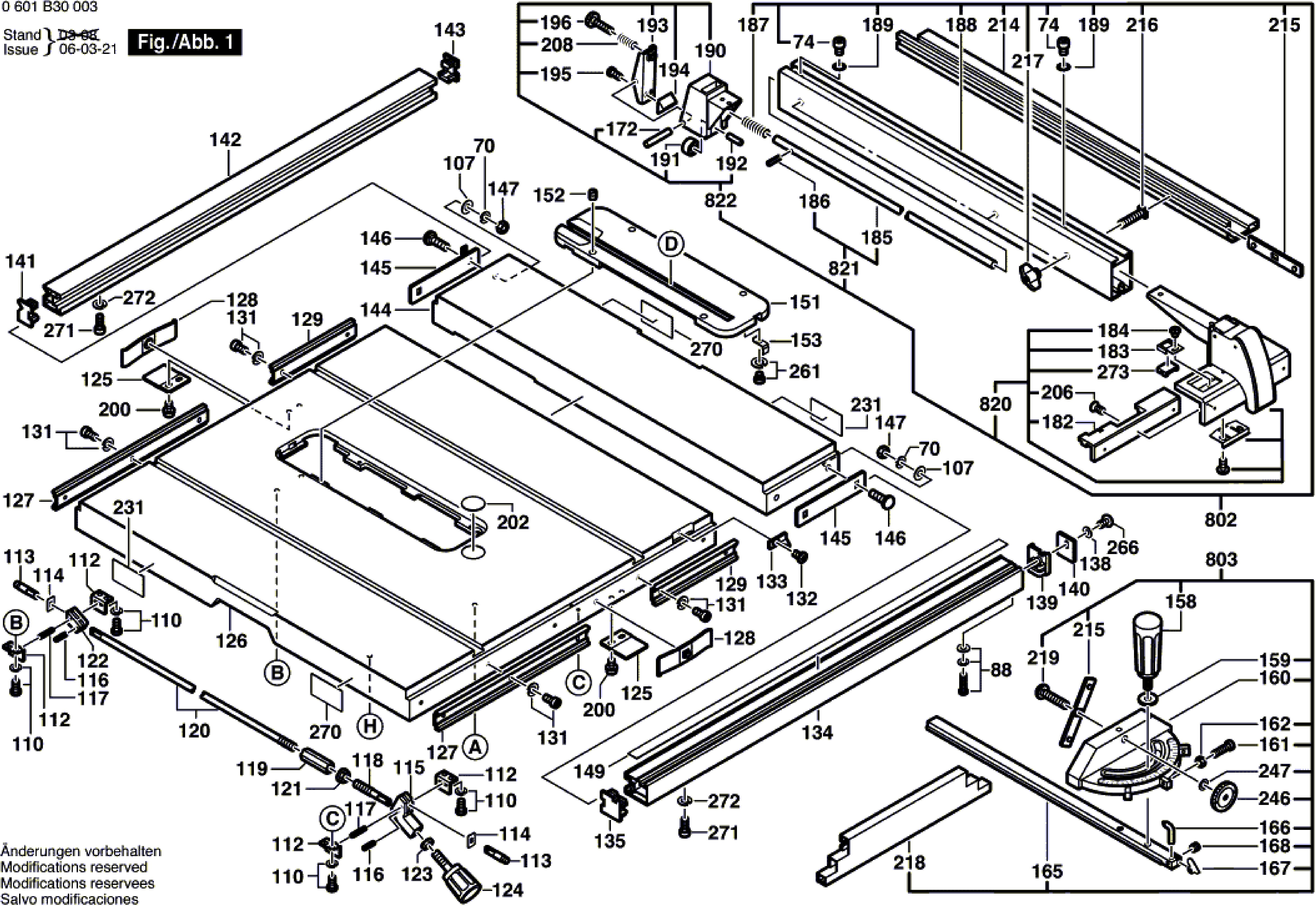

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2610996864 Motor Housing €57.92
2
 photo_cameraImage coming soon 1609203K86 Field 230V €72.10
3
 photo_cameraImage coming soon 1619P03278 Armature 230V €152.02
4
 photo_cameraImage coming soon 1609203K88 Switch €72.10
5
 Power Cord for Table Saw Bosch GTS 10 1609203K89 Power Cord for Table Saw Bosch GTS 10 €26.00
7
 photo_cameraImage coming soon 2610358842 Clamp €1.43
8
 photo_cameraImage coming soon 1609203K91 Front Panel €53.52
13
 photo_cameraImage coming soon 2610004595 Ball Bearing €11.16
14
 photo_cameraImage coming soon 2610911927 Ball Bearing €28.44
16
 photo_cameraImage coming soon 2610911858 Brush Holder €15.84
20
 photo_cameraImage coming soon 1609902557 Manufacturer's nameplate €3.07
21
 photo_cameraImage coming soon 1609902558 Nameplate €3.07
22
 photo_cameraImage coming soon 2610996865 Cover €13.80
24
 photo_cameraImage coming soon 2610911859 Brush-Cover Ø 20mm €1.92
26
 photo_cameraImage coming soon 2610911569 Insert €2.46
28
 photo_cameraImage coming soon 2610996948 Rubber Ring €1.62
29
 photo_cameraImage coming soon 2610911566 Bearing cover €2.87
30
 photo_cameraImage coming soon 2610355295 Screw €2.13
31
 photo_cameraImage coming soon 2610996863 Gear Housing €78.27
33
 photo_cameraImage coming soon 2610911924 Spring Washer €3.22
34
 photo_cameraImage coming soon 2610996949 Ball Bearing €13.95
36
 photo_cameraImage coming soon 2610997208 Toothed Gear €43.07
37
 photo_cameraImage coming soon 2610996869 Gear Cover €26.14
39
 photo_cameraImage coming soon 2610997210 Ball Bearing €13.95
40
 photo_cameraImage coming soon 2610997211 Output Shaft €34.08
41
 photo_cameraImage coming soon 2610993102 Woodruff Key €2.13
42
 photo_cameraImage coming soon 2610996932 Bearing Sleeve €2.29
43
 photo_cameraImage coming soon 2610355293 Screw €3.07
45
 photo_cameraImage coming soon 2610996875 Torsion Spring €1.51
46
 photo_cameraImage coming soon 2610996874 Locking Lever €9.93
47
 photo_cameraImage coming soon 2610996876 Shoulder Screw €1.51
48
 photo_cameraImage coming soon 1609203K93 Clamping Flange €11.16
50
 photo_cameraImage coming soon 2610358858 Nut €2.29
51
 Wing Screw M 5x12 for Bench Saw Bosch GTS 10 2610996879 Wing Screw M 5x12 for Bench Saw Bosch GTS 10 €2.51
52
 photo_cameraImage coming soon 2610996878 Cover Plate €4.84
54
 photo_cameraImage coming soon 2610996877 Cover Plate €26.14
55
 photo_cameraImage coming soon 2610996861 Holding Plate €168.92
56
 photo_cameraImage coming soon 2610996862 Guiding bolt €5.53
58
 photo_cameraImage coming soon 2610996895 Threaded Rod €8.57
60
 photo_cameraImage coming soon 2610997221 Bushing €4.68
61
 photo_cameraImage coming soon 2610996896 Toothed Gear €7.12
63
 photo_cameraImage coming soon 2610998588 Screw €1.51
65
 photo_cameraImage coming soon 2610910796 Bolt €2.66
67
 photo_cameraImage coming soon 2610997212 Mounting Bracket €2.66
68
 photo_cameraImage coming soon 2610997222 Bushing €1.51
71
 photo_cameraImage coming soon 2610996897 Shaft €9.75
73
 photo_cameraImage coming soon 2610996938 Bushing €7.31
75
 photo_cameraImage coming soon 2610997271 Spring €1.51
76
 photo_cameraImage coming soon 2610998550 Plain Washer €1.51
77
 photo_cameraImage coming soon 2610997299 Plain Washer €1.51
78
 photo_cameraImage coming soon 2610997298 Nut €4.83
79
 photo_cameraImage coming soon 2610996898 Clamping Lever €20.39
80
 photo_cameraImage coming soon 1609203K94 Handwheel €14.25
82
 photo_cameraImage coming soon 2610996925 Knob €2.06
83
 photo_cameraImage coming soon 2610997270 Shoulder Screw €1.98
85
 photo_cameraImage coming soon 2610996927 Pointer €1.72
86
 photo_cameraImage coming soon 2610355570 Washer €3.22
87
 photo_cameraImage coming soon 2610356706 Nut €2.29
89
 photo_cameraImage coming soon 2610996929 End stop €1.25
90
 photo_cameraImage coming soon 1609203L32 Housing €168.92
92
 photo_cameraImage coming soon 1609203K95 Switch Housing €9.75
93
 photo_cameraImage coming soon 2610358846 Rubber Bushing €1.62
94
 photo_cameraImage coming soon 2610996930 Pickup Clip €2.29
95
 photo_cameraImage coming soon 2610996931 Pickup Clip €1.72
98
 photo_cameraImage coming soon 2610997273 Screw €1.25
99
 photo_cameraImage coming soon 2610997246 Nut €1.25
100
 Blade Wrench for Table Saw Bosch GTS 10 2610996880 Blade Wrench for Table Saw Bosch GTS 10 €8.56
102
 photo_cameraImage coming soon 2610996922 Holder €2.49
105
 photo_cameraImage coming soon 1609203L33 Connecting Cable €8.57
107
 photo_cameraImage coming soon 2610910013 Washer €1.72
109
 photo_cameraImage coming soon 2610996894 Bearing Pedestal €5.53
110
 photo_cameraImage coming soon 2610908271 Tapping Screw €1.51
112
 photo_cameraImage coming soon 2610996921 Holding Bracket €1.51
114
 photo_cameraImage coming soon 2610996917 Plate €1.51
118
 photo_cameraImage coming soon 2610996918 Set screw €1.98
119
 photo_cameraImage coming soon 2610996920 Connecting Nut €5.06
120
 photo_cameraImage coming soon 1609203L34 Rod €6.11
121
 photo_cameraImage coming soon 2610994262 Clamp €1.72
122
 photo_cameraImage coming soon 2610996915 Clamping Piece €9.93
123
 photo_cameraImage coming soon 2610355272 Nut €3.07
124
 photo_cameraImage coming soon 2610996916 Tommy Screw €3.07
125
 photo_cameraImage coming soon 2610997217 End stop €1.72
126
 photo_cameraImage coming soon 1609203L35 Table top €445.19
127
 photo_cameraImage coming soon 2610996855 Mounting Rail €6.11
128
 photo_cameraImage coming soon 2610996912 Fixing Plate €5.06
129
 photo_cameraImage coming soon 2610996856 Mounting Rail €4.68
133
 photo_cameraImage coming soon 2610996941 Pointer €1.25
134
 photo_cameraImage coming soon 2610996853 Profile Rail €59.08
138
 photo_cameraImage coming soon 2610908270 Washer €1.25
139
 photo_cameraImage coming soon 2610997244 Cover €1.72
140
 photo_cameraImage coming soon 2610996926 End stop €1.25
142
 photo_cameraImage coming soon 2610996854 Profile Rail €53.52
144
 photo_cameraImage coming soon 1609203L36 Table top €152.02
145
 photo_cameraImage coming soon 2610996928 Retaining Plate €1.72
147
 photo_cameraImage coming soon 2610304772 Nut €1.51
148
 photo_cameraImage coming soon 2610998577 Protective Cover €9.75
149
 photo_cameraImage coming soon 1609203K97 Rule €7.14
150
 photo_cameraImage coming soon 2610997807 Sticker €3.07
151
 photo_cameraImage coming soon 1609203L37 Insert €34.08
158
 photo_cameraImage coming soon 2610998579 Clamp Handle €5.53
160
 End Stop for Table Saw Bosch GTS 10 1609203L38 End Stop for Table Saw Bosch GTS 10 €50.52
165
 photo_cameraImage coming soon 1609203L39 Guide Bar €23.44
166
 photo_cameraImage coming soon 2610997214 Pointer €1.72
167
 photo_cameraImage coming soon 2610997215 End stop €1.51
172
 photo_cameraImage coming soon 2610997291 Pin €1.72
183
 photo_cameraImage coming soon 2610998570 Bracket €3.07
184
 photo_cameraImage coming soon 2610358892 Cover €1.72
185
 photo_cameraImage coming soon 1609203K99 Rod €7.14
187
 photo_cameraImage coming soon 2610996888 Spring €1.51
189
 photo_cameraImage coming soon 2610358802 Washer €1.51
190
 photo_cameraImage coming soon 2610996884 Housing €20.39
191
 photo_cameraImage coming soon 2610996886 Locking Lever €1.25
192
 photo_cameraImage coming soon 2610997292 Pin €1.25
193
 photo_cameraImage coming soon 2610996885 Clamping Plate €4.68
194
 photo_cameraImage coming soon 2610997240 Clamping Piece €1.98
196
 photo_cameraImage coming soon 2610997245 Adjusting Screw €2.29
198
 Hexagon Socket Screw Key for Table Saw Bosch GTS 10 2610998551 Hexagon Socket Screw Key for Table Saw Bosch GTS 10 €2.48
202
 photo_cameraImage coming soon 1609203L00 Sticker €9.93
203
 photo_cameraImage coming soon 2610358932 Connector €1.51
211
 photo_cameraImage coming soon 1609203L01 Sticker €3.07
212
 photo_cameraImage coming soon 2610341465 Washer €1.98
213
 photo_cameraImage coming soon 2610913192 Compression Spring €2.49
214
 photo_cameraImage coming soon 1609203L03 End stop €38.39
215
 photo_cameraImage coming soon 1609203L04 Clamping Plate €1.98
217
 photo_cameraImage coming soon 1609203L06 Knob €3.22
218
 photo_cameraImage coming soon 1609203L07 Profile Rail €20.52
219
 photo_cameraImage coming soon 1609203L08 Bolt €1.51
220
 photo_cameraImage coming soon 1609203L09 Guard Plate €8.78
222
 photo_cameraImage coming soon 1609203L11 Nut €1.51
223
 photo_cameraImage coming soon 1609203L12 Holding Plate €5.53
227
 photo_cameraImage coming soon 1609203L16 Guard Plate €34.08
229
 photo_cameraImage coming soon 1609203L18 Pusher €9.75
230
 photo_cameraImage coming soon 1609203L19 Nut €1.72
231
 photo_cameraImage coming soon 1609203L20 Sticker €3.07
233
 photo_cameraImage coming soon 1609902025 Flap Guard €20.39
234
 photo_cameraImage coming soon 1609902026 Flap Guard €20.39
235
 photo_cameraImage coming soon 1609902045 Cover Plate €9.75
237
 photo_cameraImage coming soon 1609902030 Guard Holder €4.68
242
 photo_cameraImage coming soon 1609203L31 Sticker €3.07
243
 photo_cameraImage coming soon 1609902033 Screw €1.25
244
 photo_cameraImage coming soon 1609902023 Pin €1.72
246
 photo_cameraImage coming soon 1609902047 Round Nut €2.29
248
 photo_cameraImage coming soon 1609902048 Coil €12.20
250
 photo_cameraImage coming soon 1609902051 Cupped Washer €5.53
254
 photo_cameraImage coming soon 1609902031 Extension Spring €1.25
258
 photo_cameraImage coming soon 1609902042 Washer €1.51
264
 photo_cameraImage coming soon 2610355278 Screw €4.83
265
 Round Nut for Bench Saw Bosch GTS 10 1609902022 Round Nut for Bench Saw Bosch GTS 10 €2.75
268
 photo_cameraImage coming soon 1609902039 Linkage part €1.72
272
 photo_cameraImage coming soon 2610358936 Washer €1.25
273
 photo_cameraImage coming soon 1609902063 Lens €1.25
670
 photo_cameraImage coming soon 2610919255 Fitting €4.68
801
 photo_cameraImage coming soon 1609203L41 Protective Cover €104.38
802
 photo_cameraImage coming soon 1609203L42 Edge Guide €224.67
803
 photo_cameraImage coming soon 1609203L43 Mitre Fence €104.38
810
 Carbon Brushe Set for Table Saw Bosch GTS 10 1609203L02 Carbon Brushe Set for Table Saw Bosch GTS 10 €17.84
821
 photo_cameraImage coming soon 1609902077 Rod €14.92
822
 photo_cameraImage coming soon 1609902078 Locking clamps €30.10
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
3
 photo_cameraImage coming soon 1619P03278 Armature 230V €152.02
13
 photo_cameraImage coming soon 2610004595 Ball Bearing €11.16
14
 photo_cameraImage coming soon 2610911927 Ball Bearing €28.44
16
 photo_cameraImage coming soon 2610911858 Brush Holder €15.84
22
 photo_cameraImage coming soon 2610996865 Cover €13.80
24
 photo_cameraImage coming soon 2610911859 Brush-Cover Ø 20mm €1.92
28
 photo_cameraImage coming soon 2610996948 Rubber Ring €1.62
29
 photo_cameraImage coming soon 2610911566 Bearing cover €2.87
31
 photo_cameraImage coming soon 2610996863 Gear Housing €78.27
34
 photo_cameraImage coming soon 2610996949 Ball Bearing €13.95
36
 photo_cameraImage coming soon 2610997208 Toothed Gear €43.07
37
 photo_cameraImage coming soon 2610996869 Gear Cover €26.14
39
 photo_cameraImage coming soon 2610997210 Ball Bearing €13.95
40
 photo_cameraImage coming soon 2610997211 Output Shaft €34.08
41
 photo_cameraImage coming soon 2610993102 Woodruff Key €2.13
42
 photo_cameraImage coming soon 2610996932 Bearing Sleeve €2.29
43
 photo_cameraImage coming soon 2610355293 Screw €3.07
45
 photo_cameraImage coming soon 2610996875 Torsion Spring €1.51
46
 photo_cameraImage coming soon 2610996874 Locking Lever €9.93
47
 photo_cameraImage coming soon 2610996876 Shoulder Screw €1.51
48
 photo_cameraImage coming soon 1609203K93 Clamping Flange €11.16
50
 photo_cameraImage coming soon 2610358858 Nut €2.29
51
 Wing Screw M 5x12 for Bench Saw Bosch GTS 10 2610996879 Wing Screw M 5x12 for Bench Saw Bosch GTS 10 €2.51
52
 photo_cameraImage coming soon 2610996878 Cover Plate €4.84
54
 photo_cameraImage coming soon 2610996877 Cover Plate €26.14
55
 photo_cameraImage coming soon 2610996861 Holding Plate €168.92
56
 photo_cameraImage coming soon 2610996862 Guiding bolt €5.53
58
 photo_cameraImage coming soon 2610996895 Threaded Rod €8.57
60
 photo_cameraImage coming soon 2610997221 Bushing €4.68
61
 photo_cameraImage coming soon 2610996896 Toothed Gear €7.12
63
 photo_cameraImage coming soon 2610998588 Screw €1.51
65
 photo_cameraImage coming soon 2610910796 Bolt €2.66
67
 photo_cameraImage coming soon 2610997212 Mounting Bracket €2.66
68
 photo_cameraImage coming soon 2610997222 Bushing €1.51
71
 photo_cameraImage coming soon 2610996897 Shaft €9.75
109
 photo_cameraImage coming soon 2610996894 Bearing Pedestal €5.53
148
 photo_cameraImage coming soon 2610998577 Protective Cover €9.75
203
 photo_cameraImage coming soon 2610358932 Connector €1.51
233
 photo_cameraImage coming soon 1609902025 Flap Guard €20.39
234
 photo_cameraImage coming soon 1609902026 Flap Guard €20.39
235
 photo_cameraImage coming soon 1609902045 Cover Plate €9.75
243
 photo_cameraImage coming soon 1609902033 Screw €1.25
244
 photo_cameraImage coming soon 1609902023 Pin €1.72
254
 photo_cameraImage coming soon 1609902031 Extension Spring €1.25
258
 photo_cameraImage coming soon 1609902042 Washer €1.51
801
 photo_cameraImage coming soon 1609203L41 Protective Cover €104.38
810
 Carbon Brushe Set for Table Saw Bosch GTS 10 1609203L02 Carbon Brushe Set for Table Saw Bosch GTS 10 €17.84
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
5
 Power Cord for Table Saw Bosch GTS 10 1609203K89 Power Cord for Table Saw Bosch GTS 10 €26.00
20
 photo_cameraImage coming soon 1609902557 Manufacturer's nameplate €3.07
30
 photo_cameraImage coming soon 2610355295 Screw €2.13
73
 photo_cameraImage coming soon 2610996938 Bushing €7.31
75
 photo_cameraImage coming soon 2610997271 Spring €1.51
76
 photo_cameraImage coming soon 2610998550 Plain Washer €1.51
77
 photo_cameraImage coming soon 2610997299 Plain Washer €1.51
78
 photo_cameraImage coming soon 2610997298 Nut €4.83
79
 photo_cameraImage coming soon 2610996898 Clamping Lever €20.39
80
 photo_cameraImage coming soon 1609203K94 Handwheel €14.25
82
 photo_cameraImage coming soon 2610996925 Knob €2.06
83
 photo_cameraImage coming soon 2610997270 Shoulder Screw €1.98
85
 photo_cameraImage coming soon 2610996927 Pointer €1.72
86
 photo_cameraImage coming soon 2610355570 Washer €3.22
87
 photo_cameraImage coming soon 2610356706 Nut €2.29
89
 photo_cameraImage coming soon 2610996929 End stop €1.25
90
 photo_cameraImage coming soon 1609203L32 Housing €168.92
92
 photo_cameraImage coming soon 1609203K95 Switch Housing €9.75
94
 photo_cameraImage coming soon 2610996930 Pickup Clip €2.29
95
 photo_cameraImage coming soon 2610996931 Pickup Clip €1.72
98
 photo_cameraImage coming soon 2610997273 Screw €1.25
99
 photo_cameraImage coming soon 2610997246 Nut €1.25
100
 Blade Wrench for Table Saw Bosch GTS 10 2610996880 Blade Wrench for Table Saw Bosch GTS 10 €8.56
102
 photo_cameraImage coming soon 2610996922 Holder €2.49
150
 photo_cameraImage coming soon 2610997807 Sticker €3.07
198
 Hexagon Socket Screw Key for Table Saw Bosch GTS 10 2610998551 Hexagon Socket Screw Key for Table Saw Bosch GTS 10 €2.48
211
 photo_cameraImage coming soon 1609203L01 Sticker €3.07
212
 photo_cameraImage coming soon 2610341465 Washer €1.98
213
 photo_cameraImage coming soon 2610913192 Compression Spring €2.49
220
 photo_cameraImage coming soon 1609203L09 Guard Plate €8.78
222
 photo_cameraImage coming soon 1609203L11 Nut €1.51
223
 photo_cameraImage coming soon 1609203L12 Holding Plate €5.53
227
 photo_cameraImage coming soon 1609203L16 Guard Plate €34.08
229
 photo_cameraImage coming soon 1609203L18 Pusher €9.75
230
 photo_cameraImage coming soon 1609203L19 Nut €1.72
242
 photo_cameraImage coming soon 1609203L31 Sticker €3.07
248
 photo_cameraImage coming soon 1609902048 Coil €12.20
250
 photo_cameraImage coming soon 1609902051 Cupped Washer €5.53
265
 Round Nut for Bench Saw Bosch GTS 10 1609902022 Round Nut for Bench Saw Bosch GTS 10 €2.75

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Table Saw GTS 10

We are BOSCH original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues fore Table Saw GTS 10 - 0601B30003.

In the following table, look for the model of the Bench Saw and the respective parts of the code.
Bosch GTS 10 - 0601B30003

Bench Saw GTS 10/0 601 B30 003
# Part Num. Description
1 2610996864 Motor Housing
2 1609203K86 Field 230V
3 1619P03278 Armature 230V
4 1609203K88 Switch
5 1609203K89 Power supply cord
6 1609203K90 Cord guard
7 2610358842 Clamp
8 1609203K91 Front Panel
9 2610997806 Sticker
13 2610004595 Ball Bearing
14 2610911927 Ball Bearing
16 2610911858 Brush Holder
19 2610358844 Screw
20 1609902557 Manufacturer's nameplate
21 1609902558 Nameplate
22 2610996865 Cover
23 2610998571 Screw
24 2610911859 Brush-Cover Ø 20mm
25 2610327868 Nut
26 2610911569 Insert
27 2610911929 Screw
28 2610996948 Rubber Ring
29 2610911566 Bearing cover
30 2610355295 Screw
31 2610996863 Gear Housing
32 1609902670 Screw
33 2610911924 Spring Washer
34 2610996949 Ball Bearing
35 2610997281 Spring retaining ring
36 2610997208 Toothed Gear
37 2610996869 Gear Cover
38 2610997282 Spring retaining ring
39 2610997210 Ball Bearing
40 2610997211 Output Shaft
41 2610993102 Woodruff Key
42 2610996932 Bearing Sleeve
43 2610355293 Screw
44 1609902679 Screw
45 2610996875 Torsion Spring
46 2610996874 Locking Lever
47 2610996876 Shoulder Screw
48 1609203K93 Clamping Flange
49 2610996871 Clamping Flange
50 2610358858 Nut
51 2610996879 Wing Screw
52 2610996878 Cover Plate
53 1609902699 Screw
54 2610996877 Cover Plate
55 2610996861 Holding Plate
56 2610996862 Guiding bolt
57 2610997276 Spring retaining ring
58 2610996895 Threaded Rod
59 2610998573 Spring retaining ring
60 2610997221 Bushing
61 2610996896 Toothed Gear
62 1609902672 Spring Washer
63 2610998588 Screw
64 2610358149 Nut
65 2610910796 Bolt
66 2610997277 Spring retaining ring
67 2610997212 Mounting Bracket
68 2610997222 Bushing
69 2610297323 Screw
70 2610355325 Spring Washer
71 2610996897 Shaft
72 2610996933 Threaded Bushing
73 2610996938 Bushing
74 2610303023 Screw
75 2610997271 Spring
76 2610998550 Plain Washer
77 2610997299 Plain Washer
78 2610997298 Nut
79 2610996898 Clamping Lever
80 1609203K94 Handwheel
81 1609902669 Set screw
82 2610996925 Knob
83 2610997270 Shoulder Screw
84 1609902696 Screw
85 2610996927 Pointer
86 2610355570 Washer
87 2610356706 Nut
88 2610997286 Screw
89 2610996929 End stop
90 1609203L32 Housing
91 2610997294 Screw
92 1609203K95 Switch Housing
93 2610358846 Rubber Bushing
94 2610996930 Pickup Clip
95 2610996931 Pickup Clip
96 2610910047 Screw
97 2610990504 Cable Clip
98 2610997273 Screw
99 2610997246 Nut
100 2610996880 Key
102 2610996922 Holder
103 2610998574 Screw
104 1609203K96 Cable Clip
105 1609203L33 Connecting Cable
106 2610997297 Screw
107 2610910013 Washer
108 2610998575 Screw
109 2610996894 Bearing Pedestal
110 2610908271 Tapping Screw
111 2610998587 Screw
112 2610996921 Holding Bracket
113 2610996913 Pin
114 2610996917 Plate
115 2610996914 Gusset
116 2610997275 Pin
117 2610997274 Pin
118 2610996918 Set screw
119 2610996920 Connecting Nut
120 1609203L34 Rod
121 2610994262 Clamp
122 2610996915 Clamping Piece
123 2610355272 Nut
124 2610996916 Tommy Screw
125 2610997217 End stop
126 1609203L35 Table top
127 2610996855 Mounting Rail
128 2610996912 Fixing Plate
129 2610996856 Mounting Rail
131 2610303029 Screw
132 2610320339 Screw
133 2610996941 Pointer
134 2610996853 Profile Rail
135 2610996923 Cover
138 2610908270 Washer
139 2610997244 Cover
140 2610996926 End stop
141 2610997218 Cover
142 2610996854 Profile Rail
143 2610997216 Cover
144 1609203L36 Table top
145 2610996928 Retaining Plate
146 1619P01539 Trunnion
147 2610304772 Nut
148 2610998577 Protective Cover
149 1609203K97 Rule
150 2610997807 Sticker
151 1609203L37 Insert
152 2610997283 Stud
153 2610011716 Holding Spring
158 2610998579 Clamp Handle
159 2610909178 Plain Washer
160 1609203L38 End stop
161 1609902697 Screw
162 2610908272 Nut
165 1609203L39 Guide Bar
166 2610997214 Pointer
167 2610997215 End stop
168 2610296243 Screw
172 2610997291 Pin
182 2610996891 Slide Rail
183 2610998570 Bracket
184 2610358892 Cover
185 1609203K99 Rod
186 1609902703 Retaining Pin
187 2610996888 Spring
188 1609203L40 Profile Rail
189 2610358802 Washer
190 2610996884 Housing
191 2610996886 Locking Lever
192 2610997292 Pin
193 2610996885 Clamping Plate
194 2610997240 Clamping Piece
195 2610997293 Screw
196 2610997245 Adjusting Screw
197 2610911920 Rubber Bushing
198 2610998551 Hexagon Socket Screw Key
199 2610998580 Screw
200 2610328617 Screw
201 2610992380 Spring retaining ring
202 1609203L00 Sticker
203 2610358932 Connector
204 2610303020 Plain Washer
205 2610303026 Screw
206 2610967422 Screw
208 2610998593 Spring
209 2610912588 Plain Washer
211 1609203L01 Sticker
212 2610341465 Washer
213 2610913192 Compression Spring
214 1609203L03 End stop
215 1609203L04 Clamping Plate
216 1609203L05 Screw
217 1609203L06 Knob
218 1609203L07 Profile Rail
219 1609203L08 Bolt
220 1609203L09 Guard Plate
221 1609203L10 Plain Washer
222 1609203L11 Nut
223 1609203L12 Holding Plate
224 1609203L13 Screw
225 1609203L14 Nut
226 1609203L15 Screw
227 1609203L16 Guard Plate
228 1609902044 Screw
229 1609203L18 Pusher
230 1609203L19 Nut
231 1609203L20 Sticker
232 1609902027 Riving Knife
233 1609902025 Flap Guard
234 1609902026 Flap Guard
235 1609902045 Cover Plate
236 1609902040 Screw
237 1609902030 Guard Holder
238 1609902029 Spacer
239 1609902028 Screw
241 1609203L30 Container
242 1609203L31 Sticker
243 1609902033 Screw
244 1609902023 Pin
245 1609902024 Nut
246 1609902047 Round Nut
247 2610993221 Plain Washer
248 1609902048 Coil
249 1609902050 Cable Strap
250 1609902051 Cupped Washer
251 1609902052 Spring Washer
252 1609902053 Plain Washer
253 1609902032 Cupped Washer
254 1609902031 Extension Spring
255 1609902041 Spacer
256 1609902046 Screw
257 1609902043 Washer
258 1609902042 Washer
260 1609902054 Set screw
261 1609902055 Screw
262 1609902056 Screw
263 1609902057 Screw
264 2610355278 Screw
265 1609902022 Round Nut
266 2610911896 Nut
267 1609902058 Nut
268 1609902039 Linkage part
269 1609902059 Screw
270 1609902060 Label
271 2610997296 Screw
272 2610358936 Washer
273 1609902063 Lens
274 1609902616 Washer
670 2610919255 Fitting
801 1609203L41 Protective Cover
802 1609203L42 Edge Guide
803 1609203L43 Mitre Fence
810 1609203L02 Carbon-Brush Set
820 1609902076 Clamp Handle
821 1609902077 Rod
822 1609902078 Locking clamps
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GTS 10 - 0601B30003
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GTS 10

Diagram Bosch GTS 10

Download (241.31KB)

You might also like

Power Cord for Table Saw Bosch GTS 10 Sale
Bosch SKU: 1609203K89
Power Cord for Table Saw Bosch GTS 10
Power Cord for Table Saw Bosch GTS 10 Genuine spare parts Bosch, 220-230V Power Cord 2x1 mmq Mt for Table Saw Bosch GTS 10 Part for the following products: -  Table Saw Bosch GTS 10 - Code : 1609203K89
AVAILABLE €26.00
Details
Wing Screw M 5x12 for Bench Saw Bosch GTS 10 Sale
Bosch SKU: 2610996879
Wing Screw M 5x12 for Bench Saw Bosch GTS 10
Wing Screw M 5x12 for Bench Saw Bosch GTS 10 Genuine spare part Bosch, Wing Screw M 5x12 for Bench Saw Bosch GTS 10. Part for the following products: - Bench Saw Bosch GTS 10 - Code : 2610996879
AVAILABLE €2.51
Details
Round Nut for Bench Saw Bosch GTS 10 Sale
Bosch SKU: 1609902022
Round Nut for Bench Saw Bosch GTS 10
Round Nut for Bench Saw Bosch GTS 10 Genuine spare part Bosch, Round Nut for Bench Saw Bosch GTS 10/0 601 B30 003. Part for the following products: - Bench Saw Bosch GTS 10/0 601 B30 003 - Code : 1609902022
AVAILABLE €2.75
Details
Blade Wrench for Table Saw Bosch GTS 10 Sale
Bosch SKU: 2610996880
Blade Wrench for Table Saw Bosch GTS 10
Blade Wrench for Table Saw Bosch GTS 10 Genuine spare parts Bosch, Blade Wrench for Table Saw Bosch GTS 10/0 601 B30 003 Part for the following products: - Table Saw Bosch GTS 10/0 601 B30 003 - Code : 2610996880
AVAILABLE €8.56
Details
Carbon Brushe Set for Table Saw Bosch GTS 10
Bosch SKU: 1609203L02
Carbon Brushe Set for Table Saw Bosch GTS 10
Carbon Brushe Set for Table Saw Bosch GTS 10 Genuine spare parts Bosch, Carbon Brushe Set for Table Saw Bosch GTS 10/0 601 B30 003 Part for the following products: - Table Saw Bosch GTS 10/0 601 B30 003...
on 7/10 Business Days Approx. €17.84
Details
Hexagon Socket Screw Key for Table Saw Bosch GTS 10 Sale
Bosch SKU: 2610998551
Hexagon Socket Screw Key for Table Saw Bosch GTS 10
Hexagon Socket Screw Key for Table Saw Bosch GTS 10 Genuine spare part Bosch, Hexagon Socket Screw Key for Table Saw Bosch GTS 10/0 601 B30 003. Part for the following products: - Table Saw Bosch GTS 10/0 601 B30 003 - Code : 2610998551
AVAILABLE €2.48
Details
End Stop for Table Saw Bosch GTS 10
Bosch SKU: 1609203L38
End Stop for Table Saw Bosch GTS 10
End Stop for Table Saw Bosch GTS 10 Genuine spare parts Bosch, End Stop for Table Saw Bosch GTS 10 - GTS 10 XC. Part for the following products: -  Table Saw Bosch GTS 10 -  Table Saw Bosch GTS-10-XC /230 V/EU - 3601M30401 - Code :...
Last items in stock €50.52
Details
Comments (0)
