Bosch

Bosch Spare Parts for Planer GHO 26-82

SKU: Bosch GHO 26-82 - 0601594103
€2.60
VAT included

Bosch Spare Parts for Planer GHO 26-82

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Planer GHO 26-82 - 0601594103.

Bosch GHO 26-82 - 0601594103
Bosch Spare Parts for Planer GHO 26-82
  • Bosch Spare Parts for Planer GHO 26-82
  • Bosch Spare Parts for Planer GHO 26-82
Bosch

Bosch Spare Parts for Planer GHO 26-82

SKU: Bosch GHO 26-82 - 0601594103 Condition: New
€2.60
VAT included

Bosch Spare Parts for Planer GHO 26-82

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Planer GHO 26-82 - 0601594103.

Bosch GHO 26-82 - 0601594103
settings 48 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

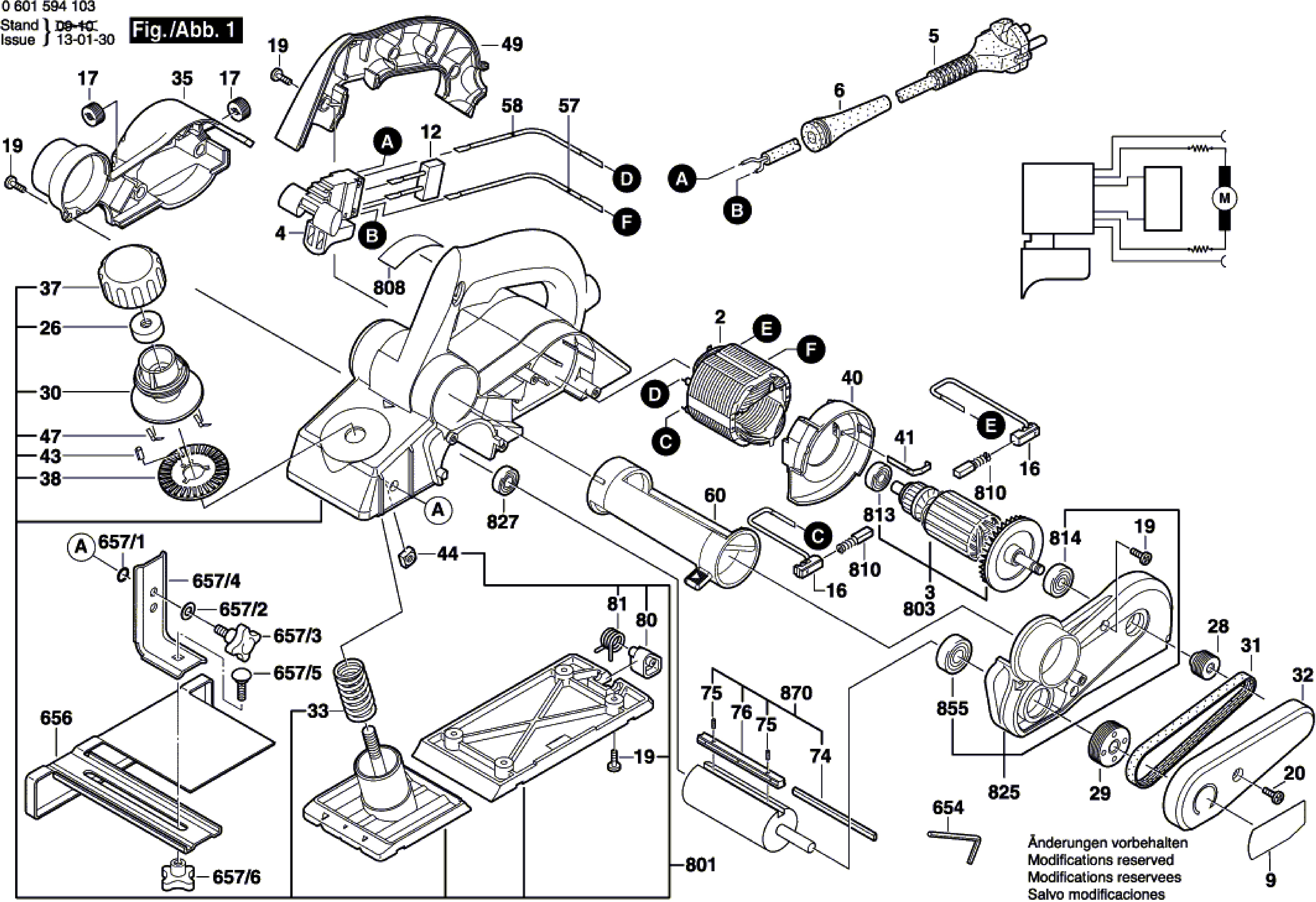

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 2604220480 Field 230-240V €26.96
4
 photo_cameraImage coming soon 1607200158 Switch €9.92
5
 photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.17
6
 photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
9
 photo_cameraImage coming soon 2609130771 Manufacturer's nameplate GHO 26-82 €2.41
12
 photo_cameraImage coming soon 2609120049 Suppression Filter €2.41
16
 photo_cameraImage coming soon 2604449055 Carbon Brush Holder €2.02
19
 photo_cameraImage coming soon 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H €1.68
26
 photo_cameraImage coming soon 2609110131 Adjusting Nut €2.92
28
 photo_cameraImage coming soon 2609110268 Pulley €2.92
29
 photo_cameraImage coming soon 2609110267 Pulley €4.71
30
 photo_cameraImage coming soon 2609100186 Rotary Knob €8.41
31
 Micro Poli-V Belt for Planer Bosch GHO 15-82 2609100410 Micro Poli-V Belt for Planer Bosch GHO 15-82 €10.86
32
 photo_cameraImage coming soon 2609100024 Gear Cover €4.65
33
 photo_cameraImage coming soon 2609110077 Compression Spring €2.41
35
 photo_cameraImage coming soon 2609100023 Brush-Cover BLUE €6.52
37
 photo_cameraImage coming soon 2609100140 Cap-Handle €3.61
38
 photo_cameraImage coming soon 2609110162 Ratchet Disc €2.92
40
 photo_cameraImage coming soon 2609100028 Air-Deflector Ring €2.41
41
 photo_cameraImage coming soon 2601329053 Contact Strap €1.72
44
 photo_cameraImage coming soon 2603320004 Square Nut M6 €1.63
47
 photo_cameraImage coming soon 2601254000 Ratchet Spring €1.68
49
 photo_cameraImage coming soon 2609100022 Handle Cover BLUE €7.20
57
 photo_cameraImage coming soon 2604448181 Connecting Cable L=233 MM WHITE €2.02
58
 photo_cameraImage coming soon 2604448118 Connecting Cable L=213 MM BLUE €1.46
60
 photo_cameraImage coming soon 2609100148 Deflector Pipe BLACK €11.50
74
 Carbide Planing Knife for Planer Bosch GHO 15-82 2608635341 Carbide Planing Knife for Planer Bosch GHO 15-82 €18.86
75
 photo_cameraImage coming soon 2603400016 Set screw €1.63
76
 photo_cameraImage coming soon 2603111001 Gripping Wedge €13.78
80
 photo_cameraImage coming soon 2609100088 Knife Guard €2.92
81
 photo_cameraImage coming soon 2609110109 Spring €2.02
654
 photo_cameraImage coming soon 1907950003 Offset Screwdriver DIN 911 SW2,5 €2.41
655
 photo_cameraImage coming soon 2609170013 Dust Bag €33.54
656
 photo_cameraImage coming soon 2608005015 Stop Bracket €11.03
657/4
 photo_cameraImage coming soon 1601332018 Stop Bracket €3.58
657/1
 photo_cameraImage coming soon 1610210043 O-Ring 4,0x1,5 MM €1.63
657/3
 photo_cameraImage coming soon 2603480003 Wing Screw M 6x16 MM €2.51
657/6
 photo_cameraImage coming soon 2609199008 Wing Nut €1.46
657/5
 photo_cameraImage coming soon 2910281201 Round-Head Bolt DIN 603-M6x20  €1.34
801
 photo_cameraImage coming soon 2609199578 Motor Housing €85.18
803
 photo_cameraImage coming soon 2609199269 Armature 230-240V €50.65
808
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61
810
 photo_cameraImage coming soon 2609120398 Carbon Brush €11.50
813
 photo_cameraImage coming soon 2600905051 groove ball bearing 7x19x6 €8.33
814
 photo_cameraImage coming soon 2600905052 Deep-Groove Ball Bearing 8x22x7 €7.36
825
 photo_cameraImage coming soon 2609110175 Bearing Flange €45.35
827
 photo_cameraImage coming soon 2600905051 groove ball bearing 7x19x6 €8.33
855
 photo_cameraImage coming soon 2600905064 groove ball bearing 10x26x8 €11.03
870
 photo_cameraImage coming soon 2609110193 Planer Head €85.18

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Planer GHO 26-82

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Planer GHO 26-82 - 0601594103.

In the following table, look for the model of the Planer and the respective parts of the code.
Bosch GHO 26-82 - 0601594103
Planer GHO 26-82/0 601 594 103
# Part Num. Description
2 2604220480 Field 230-240V
4 1607200158 Switch
5 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
9 2609130771 Manufacturer's nameplate GHO 26-82
12 2609120049 Suppression Filter
16 2604449055 Carbon Brush Holder
17 2609100087 Cover
19 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H
20 2609110155 Screw
26 2609110131 Adjusting Nut
28 2609110268 Pulley
29 2609110267 Pulley
30 2609100186 Rotary Knob
31 2609100410 Micro Poli-V-Belt 5PH271
32 2609100024 Gear Cover
33 2609110077 Compression Spring
35 2609100023 Brush-Cover BLUE
37 2609100140 Cap-Handle
38 2609110162 Ratchet Disc
40 2609100028 Air-Deflector Ring
41 2601329053 Contact Strap
43 2917800053 Coiled Spring Pin DIN 7343-5x2,5
44 2603320004 Square Nut M6
47 2601254000 Ratchet Spring
49 2609100022 Handle Cover BLUE
57 2604448181 Connecting Cable L=233 MM WHITE
58 2604448118 Connecting Cable L=213 MM BLUE
60 2609100148 Deflector Pipe BLACK
74 2608635341 Planing Knife
75 2603400016 Set screw
76 2603111001 Gripping Wedge
80 2609100088 Knife Guard
81 2609110109 Spring
654 1907950003 Offset Screwdriver DIN 911 SW2,5
655 2609170013 Dust Bag
656 2608005015 Stop Bracket
657/1 1610210043 O-Ring 4,0x1,5 MM
657/2 2916011014 Plain Washer DIN 125-A 6,4-ST
657/3 2603480003 Wing Screw M 6x16 MM
657/4 1601332018 Stop Bracket
657/5 2910281201 Round-Head Bolt DIN 603-M6x20
657/6 2609199008 Wing Nut
801 2609199578 Motor Housing
803 2609199269 Armature 230-240V
808 1601106032 Nameplate 26x52 MM
810 2609120398 Carbon Brush
813 2600905051 groove ball bearing 7x19x6
814 2600905052 groove ball bearing 8x22x7
825 2609110175 Bearing Flange
827 2600905051 groove ball bearing 7x19x6
855 2600905064 groove ball bearing 10x26x8
870 2609110193 Planer Head
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GHO 26-82 - 0601594103
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GHO 26-82

Diagram Bosch GHO 26-82

Download (84.64KB)
