Bosch

Bosch Spare Parts for Lawnmower ARM 32

SKU: Bosch ARM 32 - 0600897003
€5.84
VAT included

Bosch Spare Parts for Lawnmower ARM 32

Bosch Genuine spare parts or replacement parts for to repair Lawnmower ARM 32 - 0600897003.

Bosch ARM 32 - 0600897003
Bosch Spare Parts for Lawnmower ARM
  • Online only
  • Bosch Spare Parts for Lawnmower ARM
  • Bosch Spare Parts for Lawnmower ARM
  • Bosch Spare Parts for Lawnmower ARM
Bosch

Bosch Spare Parts for Lawnmower ARM 32

SKU: Bosch ARM 32 - 0600897003 Condition: New
€5.84
VAT included

Bosch Spare Parts for Lawnmower ARM 32

Bosch Genuine spare parts or replacement parts for to repair Lawnmower ARM 32 - 0600897003.

Bosch ARM 32 - 0600897003
settings 56 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

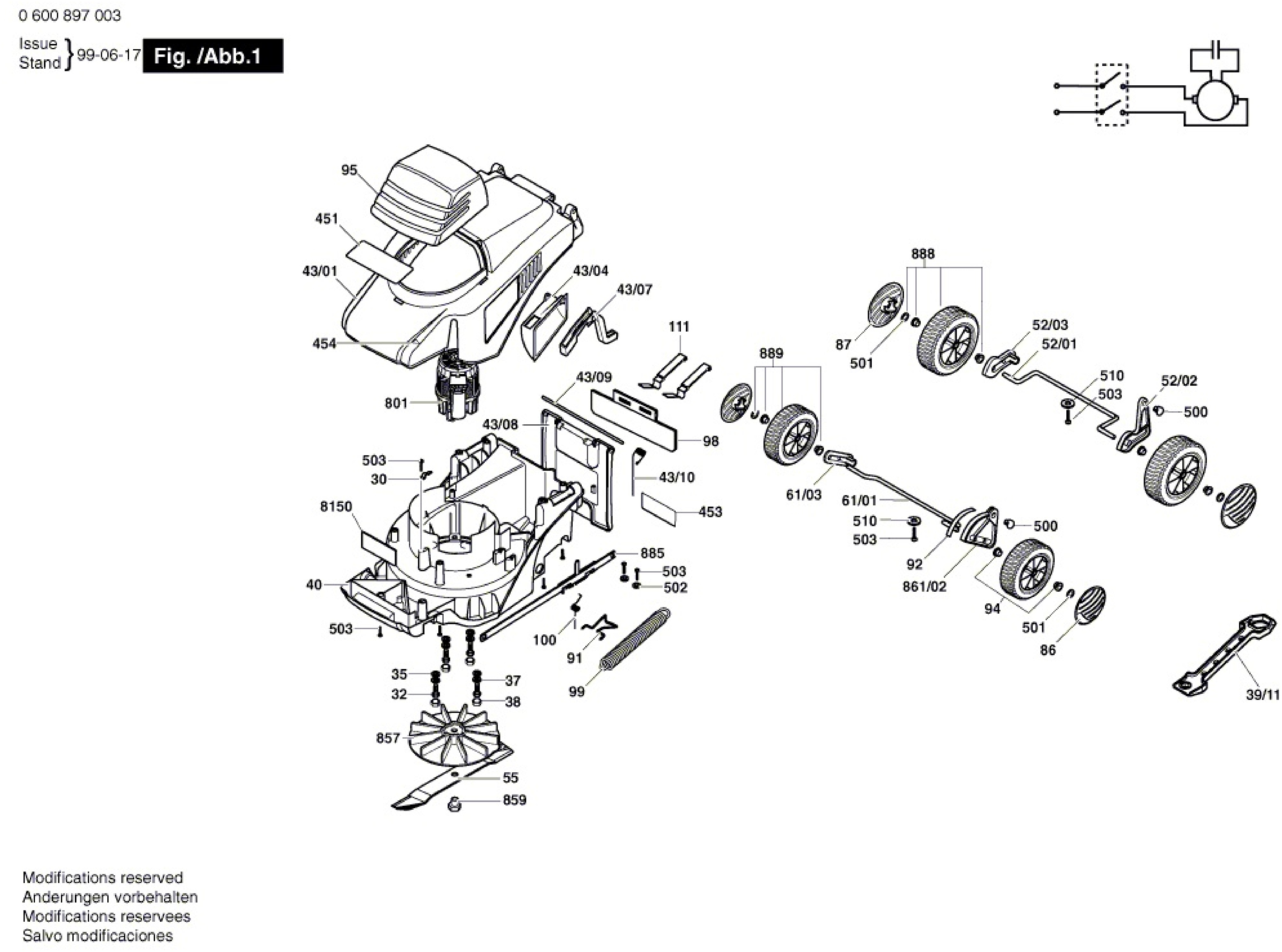

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
30
 photo_cameraImage coming soon F016T46305 Cable Cleat €1.88
38
 photo_cameraImage coming soon F016L61530 Sealing cap €2.26
39/17
 photo_cameraImage coming soon F016L62095 Pivot Pin €2.80
40
 photo_cameraImage coming soon F016L59301 Housing Base €42.52
43/04
 photo_cameraImage coming soon F016L59186 Sealing cap €4.25
43/08
 photo_cameraImage coming soon F016L59311 Guard Plate €8.84
43/07
 photo_cameraImage coming soon F016L59334 Clamping Lever €2.26
43/10
 Coiled Spring for Lawnmover Bosch ARM 32 F016L59352 Coiled Spring for Lawnmover Bosch ARM 32 €3.74
43/09
 photo_cameraImage coming soon F016L59353 Hinge Bolt €1.57
43/01
 photo_cameraImage coming soon F016L62162 Cover GREEN €48.49
52/03
 Spacer for Lawnmover Bosch ARM 32 F016L59373 Spacer for Lawnmover Bosch ARM 32 €1.72
61/03
 photo_cameraImage coming soon F016L59325 Spacer €1.94
75/07
 photo_cameraImage coming soon F016103606 On-Off Switch €14.52
75/04
 photo_cameraImage coming soon F016L36449 Switch Cover €2.26
75/15
 photo_cameraImage coming soon F016L59243 Reference Plate €2.80
75/01
 photo_cameraImage coming soon F016L59351 Pipe Frame €34.79
75/16
 photo_cameraImage coming soon F016L65387 Strain-Relief Clamp €9.05
75/10
 photo_cameraImage coming soon F016T49223 Knob €1.88
75/11
 photo_cameraImage coming soon F016T49226 Compression Spring €4.37
75/14
 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 F016T49429 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 €1.43
75/18/02
 photo_cameraImage coming soon F016T49627 Limit Switch €1.57
75/22
 photo_cameraImage coming soon F016T49628 Holder €2.80
75/21
 photo_cameraImage coming soon F016T49629 Holder €4.40
75/06
 photo_cameraImage coming soon F016T49630 Cable Cleat €2.84
75/09
 photo_cameraImage coming soon F016T49633 Spiral Spring €2.26
75/18/03
 photo_cameraImage coming soon F016T49634 Holder €1.57
75/12
 photo_cameraImage coming soon F016T49636 Cable Cleat €1.88
75/05
 photo_cameraImage coming soon F016T49637 Switch Housing €5.02
75/18/04
 photo_cameraImage coming soon F016T56145 Straight Pin €1.57
83
 photo_cameraImage coming soon F016L61774 Sealing cap €18.49
86
 photo_cameraImage coming soon F016L59159 Cover €1.57
87
 photo_cameraImage coming soon F016L59360 Cover €2.26
91
 photo_cameraImage coming soon F016L61882 Linkage part €4.40
92
 photo_cameraImage coming soon F016L59346 Display €2.80
94
 photo_cameraImage coming soon F016L59372 Plug €1.52
95
 photo_cameraImage coming soon F016L59318 Cover GREEN €6.47
98
 photo_cameraImage coming soon F016L61602 Protective Shield €5.55
99
 Spring for Lawnmover Bosch ARM 32 F016L59327 Spring for Lawnmover Bosch ARM 32 €4.74
100
 photo_cameraImage coming soon F016L61597 Coiled Spring €1.88
111
 photo_cameraImage coming soon F016L61609 Leaf Spring €3.64
120
 photo_cameraImage coming soon F016L61752 Flap €1.57
450
 photo_cameraImage coming soon F016L59346 Display €2.80
453
 photo_cameraImage coming soon F016L61441 Warning Plate €2.80
454
 photo_cameraImage coming soon F016L61268 Reference Plate €2.80
500
 photo_cameraImage coming soon F016L61747 Pickup Clip €1.57
501
 Wheel Spring Retaining Ring for Lawnmover Bosch ARM 32 F016T46941 Wheel Spring Retaining Ring for Lawnmover Bosch ARM 32 €1.54
503
 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 F016T49429 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 €1.43
505
 photo_cameraImage coming soon F016L61750 Blade €1.57
510
 photo_cameraImage coming soon F016L57338 Plain Washer €2.31
801
 photo_cameraImage coming soon F016L59335 Motor €108.66
839/18
 photo_cameraImage coming soon F016L66136 Wing Nut €3.80
859
 Blade Nut for Lawnmover Bosch ARM 32 F016102096 Blade Nut for Lawnmover Bosch ARM 32 €4.21
861/02
 photo_cameraImage coming soon F016102101 Vertical Adjustment €4.25
875/02
 photo_cameraImage coming soon F016102164 Connecting Cable €2.80
883/02
 photo_cameraImage coming soon F016L59150 Indicator Holder €2.80
883/01
 photo_cameraImage coming soon F016L59370 Cover €4.40
885
 photo_cameraImage coming soon F016102106 Axle €3.64
8150
 photo_cameraImage coming soon F016102207 Balance Weights €6.47
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

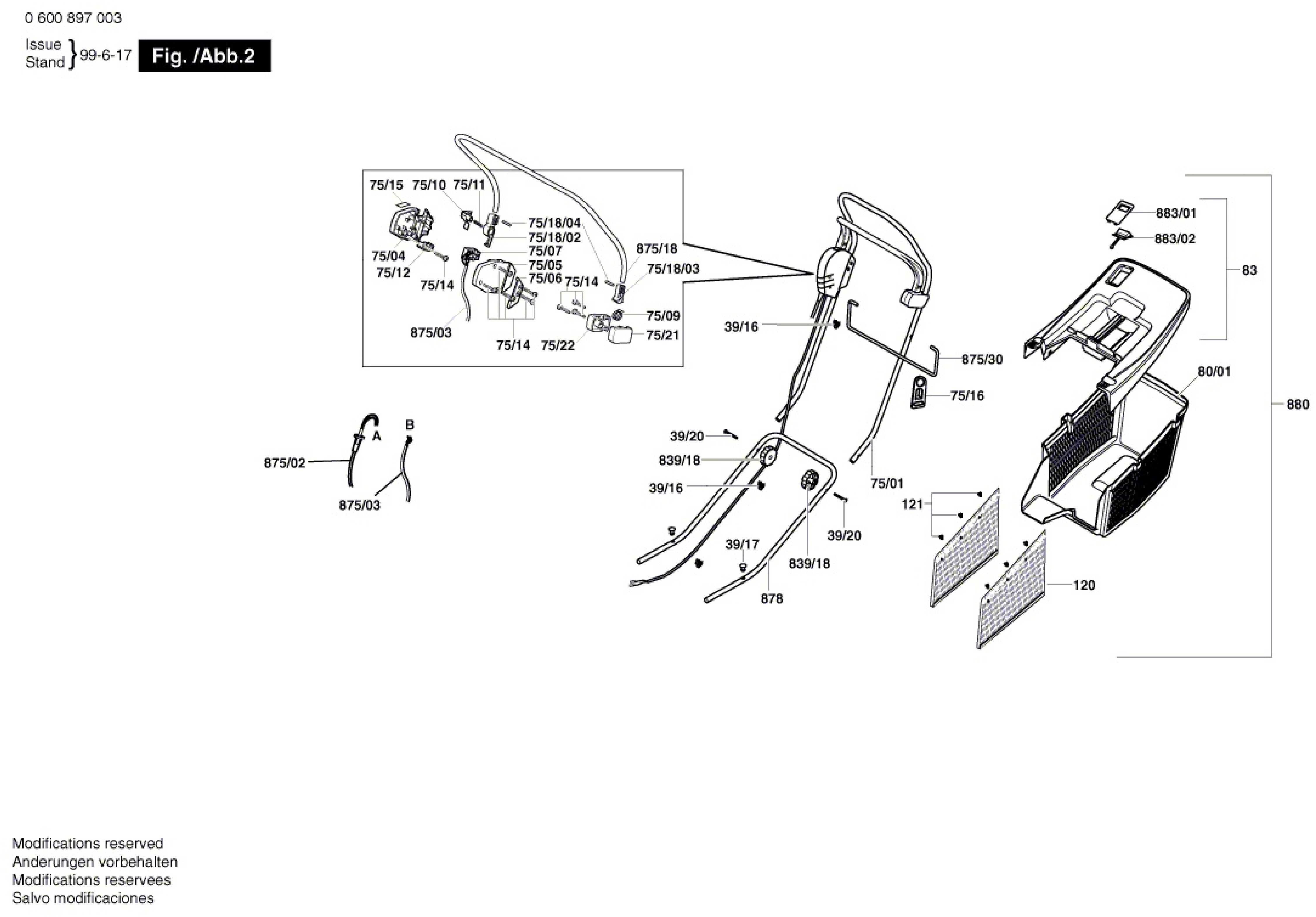

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
39/17
 photo_cameraImage coming soon F016L62095 Pivot Pin €2.80
75/07
 photo_cameraImage coming soon F016103606 On-Off Switch €14.52
75/04
 photo_cameraImage coming soon F016L36449 Switch Cover €2.26
75/15
 photo_cameraImage coming soon F016L59243 Reference Plate €2.80
75/01
 photo_cameraImage coming soon F016L59351 Pipe Frame €34.79
75/16
 photo_cameraImage coming soon F016L65387 Strain-Relief Clamp €9.05
75/10
 photo_cameraImage coming soon F016T49223 Knob €1.88
75/11
 photo_cameraImage coming soon F016T49226 Compression Spring €4.37
75/14
 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 F016T49429 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 €1.43
75/18/02
 photo_cameraImage coming soon F016T49627 Limit Switch €1.57
75/22
 photo_cameraImage coming soon F016T49628 Holder €2.80
75/21
 photo_cameraImage coming soon F016T49629 Holder €4.40
75/06
 photo_cameraImage coming soon F016T49630 Cable Cleat €2.84
75/09
 photo_cameraImage coming soon F016T49633 Spiral Spring €2.26
75/18/03
 photo_cameraImage coming soon F016T49634 Holder €1.57
75/12
 photo_cameraImage coming soon F016T49636 Cable Cleat €1.88
75/05
 photo_cameraImage coming soon F016T49637 Switch Housing €5.02
75/18/04
 photo_cameraImage coming soon F016T56145 Straight Pin €1.57
83
 photo_cameraImage coming soon F016L61774 Sealing cap €18.49
120
 photo_cameraImage coming soon F016L61752 Flap €1.57
839/18
 photo_cameraImage coming soon F016L66136 Wing Nut €3.80
875/02
 photo_cameraImage coming soon F016102164 Connecting Cable €2.80
883/02
 photo_cameraImage coming soon F016L59150 Indicator Holder €2.80
883/01
 photo_cameraImage coming soon F016L59370 Cover €4.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Lawnmower ARM 32

Bosch Genuine spare parts or replacement parts for to repair Lawnmower ARM 32 - 0600897003.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Bosch ARM 32 - 0600897003

Lawnmower ARM 32/0 600 897 003
# Part Num. Description
30 F016T46305 Cable Cleat
32 F016L11301 Stud bolt M8x20
35 F016L35411 Plain Washer 8,5 MM
37 F016L35307 Spring Washer 5/16 SW SE
38 F016L61530 Sealing cap
39/11 F016L35411 Plain Washer 8,5 MM
39/16 F016L59236 Cable Clip
39/17 F016L62095 Pivot Pin
39/20 F016L59277 Bolt M6x50
40 F016L59301 Housing Base
43/01 F016L62162 Cover GREEN
43/04 F016L59186 Sealing cap
43/07 F016L59334 Clamping Lever
43/08 F016L59311 Guard Plate
43/09 F016L59353 Hinge Bolt
43/10 F016L59352 Coiled Spring
52/01 F016L59315 Axle
52/02 F016L59324 Adjusting lever
52/03 F016L59373 Spacer
55 F016L59314 Cutter Blade
61/01 F016L59315 Axle
61/03 F016L59325 Spacer
75/01 F016L59351 Pipe Frame
75/04 F016L36449 Switch Cover
75/05 F016T49637 Switch Housing
75/06 F016T49630 Cable Cleat
75/07 F016103606 On-Off Switch
75/09 F016T49633 Spiral Spring
75/10 F016T49223 Knob
75/11 F016T49226 Compression Spring
75/12 F016T49636 Cable Cleat
75/14 F016T49429 Self-Cutting Screw 4x19 MM
75/15 F016L59243 Reference Plate
75/16 F016L65387 Strain-Relief Clamp
75/18/02 F016T49627 Limit Switch
75/18/03 F016T49634 Holder
75/18/04 F016T56145 Straight Pin
75/21 F016T49629 Holder
75/22 F016T49628 Holder
80/01 F016L62806 Catcher Container
83 F016L61774 Sealing cap
86 F016L59159 Cover
87 F016L59360 Cover
91 F016L61882 Linkage part
92 F016L59346 Display
94 F016L59372 Plug
95 F016L59318 Cover GREEN
98 F016L61602 Protective Shield
99 F016L59327 Spring
100 F016L61597 Coiled Spring
111 F016L61609 Leaf Spring
120 F016L61752 Flap
121 F016L61751 Clip
450 F016L59346 Display
451 F016L59364 Reference Plate
453 F016L61441 Warning Plate
454 F016L61268 Reference Plate
500 F016L61747 Pickup Clip
501 F016T46941 Spring retaining ring
502 F016T48428 Plain Washer M5
503 F016T49429 Self-Cutting Screw 4x19 MM
505 F016L61750 Blade
510 F016L57338 Plain Washer
801 F016L59335 Motor
839/18 F016L66136 Wing Nut
857 F016102328 Fan
859 F016102096 Nut
861/02 F016102101 Vertical Adjustment
875/02 F016102164 Connecting Cable
875/18 F016102166 Bow
875/30 F016102163 Bow
878 F016102211 Pipe Frame
883/01 F016L59370 Cover
883/02 F016L59150 Indicator Holder
885 F016102106 Axle
888 F016102145 Wheel
889 F016102146 Wheel
8150 F016102207 Balance Weights
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch ARM 32 - 0600897003
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
MORE INFO:
ON DEMAND ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch ARM 32

Diagram Bosch ARM 32

Download (251.98KB)

You might also like

Wheel for Lawnmowers Bosch ARM 34/37 Sale
Bosch SKU: F016F04510
Wheel for Lawnmowers Bosch ARM 34/37
Wheel for Lawnmowers Bosch ARM 34/37 Genuine spare part Bosch, Wheel for Lawnmowers ARM 34/3 600 HA6 101 - ARM 37/3 600 HA6 201. Part for the following products: -  Lawnmower Bosch ARM 34/3 600 HA6 101 -  Lawnmower Bosch ARM 37/3 600...
Last items in stock €16.79
Details
Blade Nut for Lawnmover Bosch ARM 32
Bosch SKU: F016102096
Blade Nut for Lawnmover Bosch ARM 32
Blade Nut for Lawnmover Bosch ARM 32 Genuine spare part Bosch,  Blade Nut for Lawnmover Bosch ARM 32/0 600 897 003 Part for the following products: - Lawnmover Bosch ARM 32/0 600 897 003 - Code : F016102096
AVAILABLE €4.21
Details
Coiled Spring for Lawnmover Bosch ARM 32
Bosch SKU: F016L59352
Coiled Spring for Lawnmover Bosch ARM 32
Coiled Spring for Lawnmover Bosch ARM 32 Genuine spare part Bosch, Coiled Spring for Lawnmover Bosch ARM 32/0 600 897 003. Part for the following products: - Lawnmover Bosch ARM 32/0 600 897 003 - Code : F016L59352
AVAILABLE €3.74
Details
Spacer for Lawnmover Bosch ARM 32
Bosch SKU: F016L59373
Spacer for Lawnmover Bosch ARM 32
Spacer for Lawnmover Bosch ARM 32 Genuine spare part Bosch, Spacer for Lawnmover Bosch ARM 32/0 600 897 003 - Rotak 40/0 600 883 003. Part for the following products: - Lawnmover Bosch ARM 32/0 600 897 003 - Lawnmover Bosch Rotak 40/0...
AVAILABLE €1.72
Details
Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32
Bosch SKU: F016T49429
Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32
Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 Original Spare Part Bosch, Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 - 40 - Arm 32 - Chopper AXT RAPID 2000 Part for the following article : - Lawnmover Bosch ROTAK...
AVAILABLE €1.43
Details
Wheel Spring Retaining Ring for Lawnmover Bosch ARM 32
Bosch SKU: F016T46941
Wheel Spring Retaining Ring for Lawnmover Bosch ARM 32
Wheel Spring Retaining Ring for Lawnmover Bosch ARM 32 Genuine spare part Bosch, Wheel Spring Retaining Ring for Lawnmover Bosch ARM 32/ 0 600 897 003 Part for the following products: - Lawnmover Bosch ARM 32/- 0 600 897 003 - 0 600...
Ships in: 7/10 Business Days Approx. €1.54
Details
Spring for Lawnmover Bosch ARM 32
Bosch SKU: F016L59327
Spring for Lawnmover Bosch ARM 32
Spring for Lawnmover Bosch ARM 32 Genuine spare part Bosch, Spring for Lawnmover ARM 32 - Rotak 37 - Rotak 40 - Universal Rotak 450 Part for the following products: -  Lawnmover ARM 32 - 0600897003 -  Lawnmover Rotak 37 - 3600HA4100...
on 7/10 Business Days Approx €4.74
Details
Comments (0)
