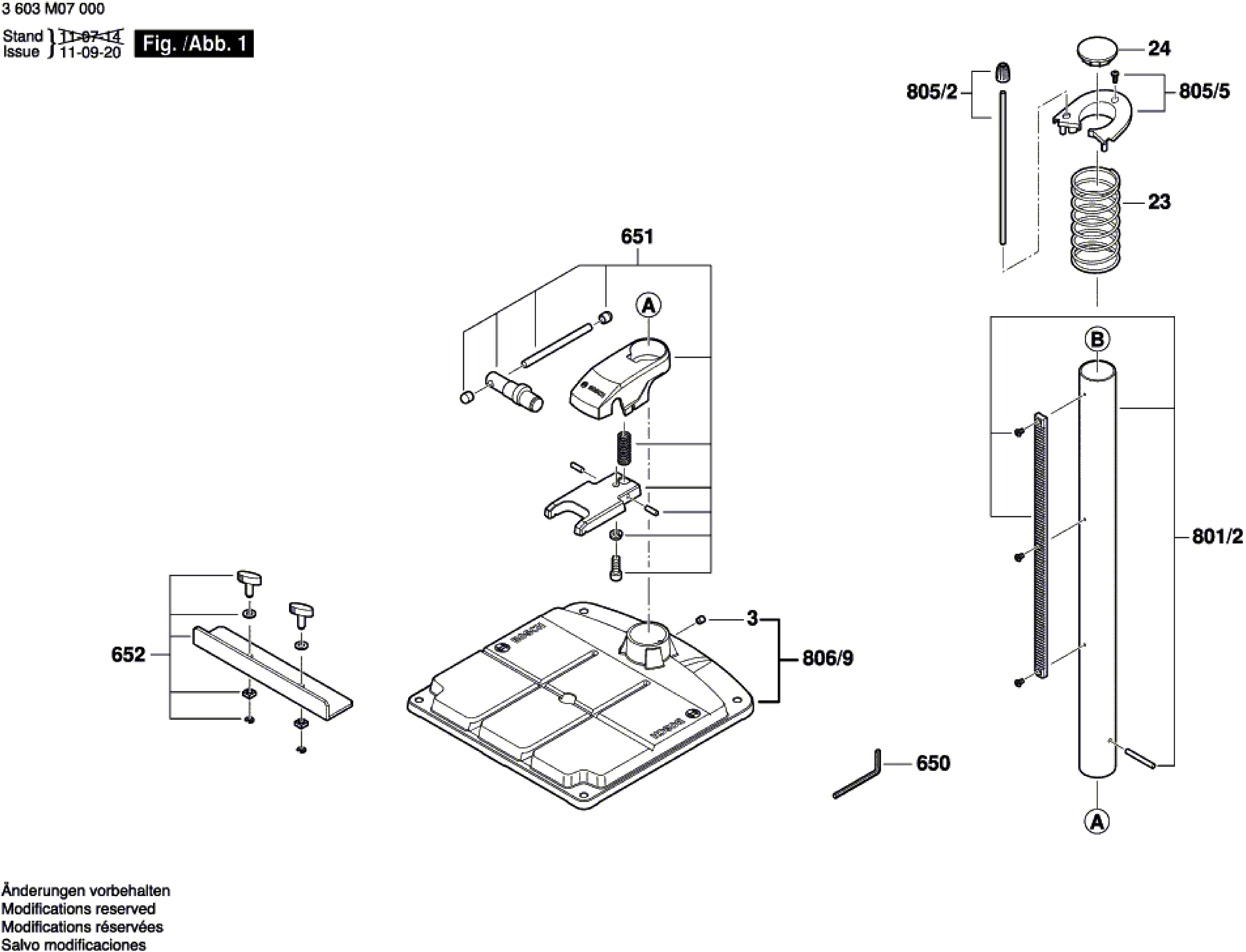

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
10
 photo_cameraImage coming soon 1600A000SG Tapping Screw €1.38
23
 photo_cameraImage coming soon 1600A000SL Spring €7.93
36
 photo_cameraImage coming soon 1600A000SP Baffle €2.28
43
 photo_cameraImage coming soon 1600A000SR Toothed Gear €12.16
70
 Knob for Bench Drill Press Bosch PBD40 1600A000SS Knob for Bench Drill Press Bosch PBD40 €1.88
74
 photo_cameraImage coming soon 1600A000ST Ball Bearing €5.20
75
 photo_cameraImage coming soon 1600A000SU Cord guard €1.38
76
 photo_cameraImage coming soon 1600A000SV Power supply cord €12.16
86
 photo_cameraImage coming soon 1600A000SZ Chuck €148.91
91
 photo_cameraImage coming soon 1600A000SX Ball Bearing €5.39
131
 photo_cameraImage coming soon 160111A19T Nameplate €2.28
149
 photo_cameraImage coming soon 1600A000SY Sealing €2.75
650
 photo_cameraImage coming soon 1600A000VD Hexagon Socket Screw Key €2.75
651
 photo_cameraImage coming soon 1600A000TT Quick-Clamping Device €37.95
652
 End Stop Fence for Bench Drill Press Bosch PBD40 1600A000UA End Stop Fence for Bench Drill Press Bosch PBD40 €22.70
800/1
 photo_cameraImage coming soon 1600A000T2 Handwheel €59.60
800/6
 photo_cameraImage coming soon 1600A000T3 Lever €5.39
801/1
 photo_cameraImage coming soon 1600A000T4 Housing Section €26.09
801/2
 photo_cameraImage coming soon 1600A000T5 Column €145.80
801/9
 photo_cameraImage coming soon 1600A000T7 Dial €2.75
801/7
 photo_cameraImage coming soon 1600A0010P Wheel Shaft €13.58
802
 photo_cameraImage coming soon 1600A000T8 Brake €2.75
802/2
 photo_cameraImage coming soon 1600A000T9 Clamping Piece €22.71
802/6
 photo_cameraImage coming soon 1600A000TA Housing Cover €10.85
803
 Clamping Lever for Bench Drill Press Bosch PBD40 1600A000TB Clamping Lever for Bench Drill Press Bosch PBD40 €13.95
803/2
 photo_cameraImage coming soon 1600A000TC Carbon Brush €16.28
803/3
 photo_cameraImage coming soon 1600A000TD Brush Holder €9.53
803/5
 photo_cameraImage coming soon 1600A000TE Motor Housing €22.71
803/9
 photo_cameraImage coming soon 1600A000TF Pole Shoe 230V €52.26
804/5
 photo_cameraImage coming soon 1600A000TG Armature 230V €87.17
804/9
 Printed Circuit Board for Bench Drill Press Bosch PBD40 1600A000TH Printed Circuit Board for Bench Drill Press Bosch PBD40 €56.85
805
 photo_cameraImage coming soon 1600A000TJ Rule €19.79
805/2
 photo_cameraImage coming soon 1600A000TK Depth-Gauge €7.93
805/3
 photo_cameraImage coming soon 1600A000TL Clamp €1.38
805/5
 photo_cameraImage coming soon 1600A000TM Cover €2.28
805/7
 photo_cameraImage coming soon 1600A000TN Bracket €96.87
805/9
 photo_cameraImage coming soon 1600A000TP Clamping Piece €1.38
806
 photo_cameraImage coming soon 1600A000TR Hall Sensor €15.37
806/1
 photo_cameraImage coming soon 1600A000TS Light-Emitting-Diode €10.85
806/9
 photo_cameraImage coming soon 1600A000TU Base Plate €133.57
807/2
 photo_cameraImage coming soon 1600A000TV Clamping Lever €7.93
808/2
 photo_cameraImage coming soon 1600A000TW Clutch €52.26
808/7
 photo_cameraImage coming soon 1600A000TX Gear Shaft €26.09
808/9
 photo_cameraImage coming soon 1600A000TY Guide Shaft €6.14
809/5
 photo_cameraImage coming soon 1600A000TZ spindle assembly €22.71
809/8
 photo_cameraImage coming soon 1600A000U0 Housing Section €26.09
809/9
 photo_cameraImage coming soon 1600A000U1 Cable Cleat €2.28
810/2
 photo_cameraImage coming soon 1600A000U3 Induction Coil €17.62
810/4
 photo_cameraImage coming soon 1600A000U4 Transformer €15.37
810/8
 photo_cameraImage coming soon 1600A000U5 Switch €29.10
810/9
 photo_cameraImage coming soon 1600A000UF Linkage €2.28
811/3
 photo_cameraImage coming soon 1600A000T6 front panel €15.37
811/4
 photo_cameraImage coming soon 1600A000U8 Switch Button €1.38
811/5
 photo_cameraImage coming soon 1600A000U9 Control Knob €2.28
812/8
 photo_cameraImage coming soon 1600A000UB Gear Housing €33.53
814
 photo_cameraImage coming soon 1600A000UC Laser €37.95
815/5
 photo_cameraImage coming soon 1600A000UD Cable Set €5.20
815/9
 photo_cameraImage coming soon 1600A000UE Cable Set €4.45
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

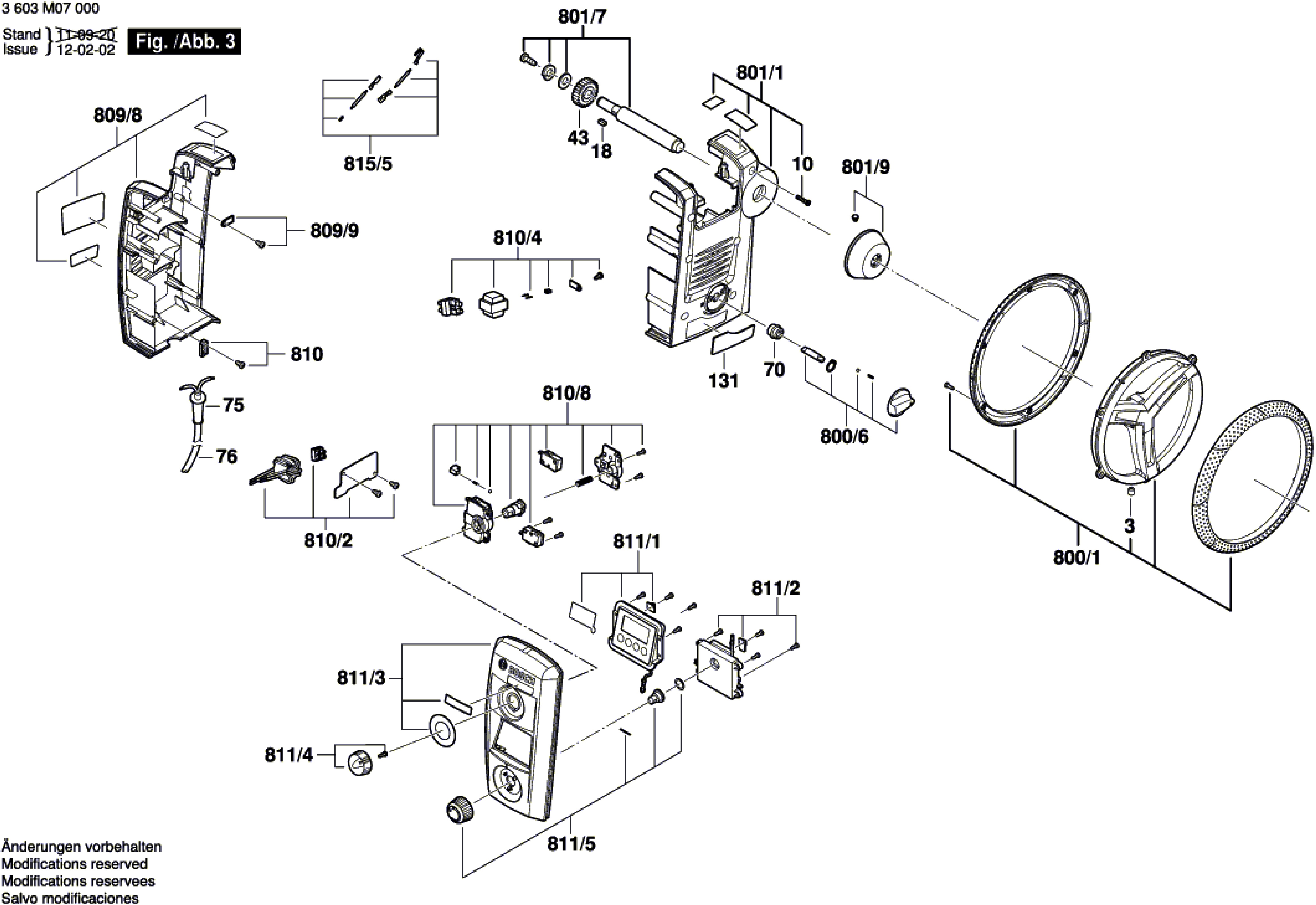

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
10
 photo_cameraImage coming soon 1600A000SG Tapping Screw €1.38
43
 photo_cameraImage coming soon 1600A000SR Toothed Gear €12.16
70
 Knob for Bench Drill Press Bosch PBD40 1600A000SS Knob for Bench Drill Press Bosch PBD40 €1.88
75
 photo_cameraImage coming soon 1600A000SU Cord guard €1.38
76
 photo_cameraImage coming soon 1600A000SV Power supply cord €12.16
131
 photo_cameraImage coming soon 160111A19T Nameplate €2.28
800/1
 photo_cameraImage coming soon 1600A000T2 Handwheel €59.60
800/6
 photo_cameraImage coming soon 1600A000T3 Lever €5.39
801/1
 photo_cameraImage coming soon 1600A000T4 Housing Section €26.09
801/9
 photo_cameraImage coming soon 1600A000T7 Dial €2.75
801/7
 photo_cameraImage coming soon 1600A0010P Wheel Shaft €13.58
809/8
 photo_cameraImage coming soon 1600A000U0 Housing Section €26.09
809/9
 photo_cameraImage coming soon 1600A000U1 Cable Cleat €2.28
810/2
 photo_cameraImage coming soon 1600A000U3 Induction Coil €17.62
810/4
 photo_cameraImage coming soon 1600A000U4 Transformer €15.37
810/8
 photo_cameraImage coming soon 1600A000U5 Switch €29.10
811/3
 photo_cameraImage coming soon 1600A000T6 front panel €15.37
811/4
 photo_cameraImage coming soon 1600A000U8 Switch Button €1.38
811/5
 photo_cameraImage coming soon 1600A000U9 Control Knob €2.28
815/5
 photo_cameraImage coming soon 1600A000UD Cable Set €5.20
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY

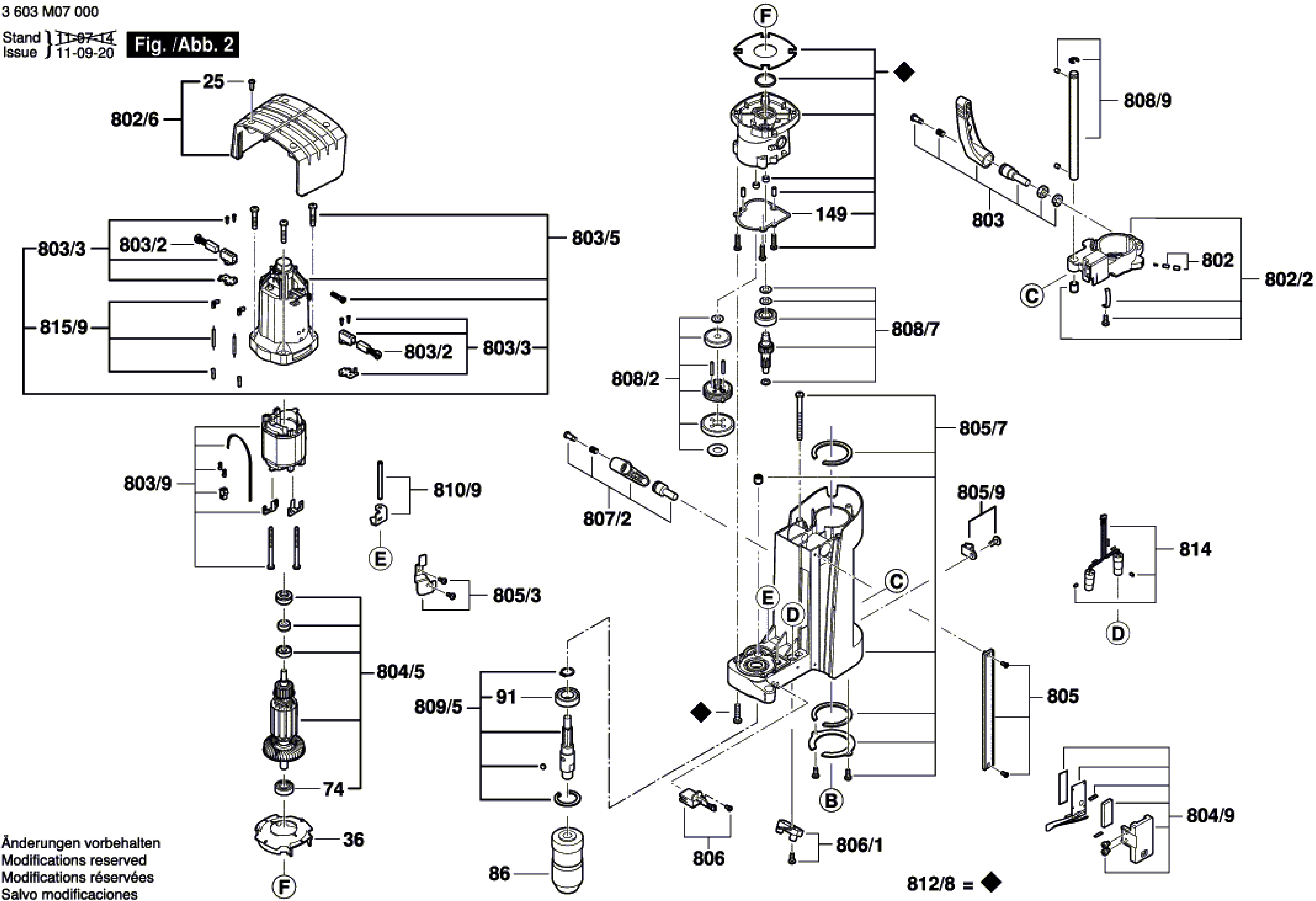

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
36
 photo_cameraImage coming soon 1600A000SP Baffle €2.28
74
 photo_cameraImage coming soon 1600A000ST Ball Bearing €5.20
86
 photo_cameraImage coming soon 1600A000SZ Chuck €148.91
91
 photo_cameraImage coming soon 1600A000SX Ball Bearing €5.39
149
 photo_cameraImage coming soon 1600A000SY Sealing €2.75
802
 photo_cameraImage coming soon 1600A000T8 Brake €2.75
802/2
 photo_cameraImage coming soon 1600A000T9 Clamping Piece €22.71
802/6
 photo_cameraImage coming soon 1600A000TA Housing Cover €10.85
803
 Clamping Lever for Bench Drill Press Bosch PBD40 1600A000TB Clamping Lever for Bench Drill Press Bosch PBD40 €13.95
803/2
 photo_cameraImage coming soon 1600A000TC Carbon Brush €16.28
803/3
 photo_cameraImage coming soon 1600A000TD Brush Holder €9.53
803/5
 photo_cameraImage coming soon 1600A000TE Motor Housing €22.71
803/9
 photo_cameraImage coming soon 1600A000TF Pole Shoe 230V €52.26
804/5
 photo_cameraImage coming soon 1600A000TG Armature 230V €87.17
804/9
 Printed Circuit Board for Bench Drill Press Bosch PBD40 1600A000TH Printed Circuit Board for Bench Drill Press Bosch PBD40 €56.85
805
 photo_cameraImage coming soon 1600A000TJ Rule €19.79
805/3
 photo_cameraImage coming soon 1600A000TL Clamp €1.38
805/7
 photo_cameraImage coming soon 1600A000TN Bracket €96.87
805/9
 photo_cameraImage coming soon 1600A000TP Clamping Piece €1.38
806
 photo_cameraImage coming soon 1600A000TR Hall Sensor €15.37
806/1
 photo_cameraImage coming soon 1600A000TS Light-Emitting-Diode €10.85
807/2
 photo_cameraImage coming soon 1600A000TV Clamping Lever €7.93
808/2
 photo_cameraImage coming soon 1600A000TW Clutch €52.26
808/7
 photo_cameraImage coming soon 1600A000TX Gear Shaft €26.09
808/9
 photo_cameraImage coming soon 1600A000TY Guide Shaft €6.14
809/5
 photo_cameraImage coming soon 1600A000TZ spindle assembly €22.71
810/9
 photo_cameraImage coming soon 1600A000UF Linkage €2.28
812/8
 photo_cameraImage coming soon 1600A000UB Gear Housing €33.53
814
 photo_cameraImage coming soon 1600A000UC Laser €37.95
815/9
 photo_cameraImage coming soon 1600A000UE Cable Set €4.45

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Bench Drill Press PBD 40

Fix Your Bench Drill Press PBD 40 - 3603M07000. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Bench Drill and the respective parts of the code.
Bosch PBD40 - 3603M07000
Bench Drill PBD 40/3 603 M07 000
# Part Num. Description
3 1600A000SF Hex Socket Head Cap Screw
10 1600A000SG Tapping Screw
18 1600A000SK Parallel Key
23 1600A000SL Spring
24 1600A000SM Cover
25 1600A000SN Tapping Screw
36 1600A000SP Baffle
43 1600A000SR Toothed Gear
70 1600A000SS Knob
74 1600A000ST Ball Bearing
75 1600A000SU Cord guard
76 1600A000SV Power supply cord
86 1600A000SZ Chuck
91 1600A000SX Ball Bearing
131 160111A19T Nameplate
149 1600A000SY Sealing
650 1600A000VD Hexagon Socket Screw Key
651 1600A000TT Quick-Clamping Device
652 1600A000UA End stop
800/1 1600A000T2 Handwheel
800/6 1600A000T3 Lever
801/1 1600A000T4 Housing Section
801/2 1600A000T5 Column
801/7 1600A0010P Wheel Shaft
801/9 1600A000T7 Dial
802 1600A000T8 Brake
802/2 1600A000T9 Clamping Piece
802/6 1600A000TA Housing Cover
803 1600A000TB Clamping Lever
803/2 1600A000TC Carbon Brush
803/3 1600A000TD Brush Holder
803/5 1600A000TE Motor Housing
803/9 1600A000TF Pole Shoe 230V
804/5 1600A000TG Armature 230V
804/9 1600A000TH Printed Circuit Board
805 1600A000TJ Rule
805/2 1600A000TK Depth-Gauge
805/3 1600A000TL Clamp
805/5 1600A000TM Cover
805/7 1600A000TN Bracket
805/9 1600A000TP Clamping Piece
806 1600A000TR Hall Sensor
806/1 1600A000TS Light-Emitting-Diode
806/9 1600A000TU Base Plate
807/2 1600A000TV Clamping Lever
808/2 1600A000TW Clutch
808/7 1600A000TX Gear Shaft
808/9 1600A000TY Guide Shaft
809/5 1600A000TZ spindle assembly
809/8 1600A000U0 Housing Section
809/9 1600A000U1 Cable Cleat
810 1600A000U2 Strain-Relief Clamp
810/2 1600A000U3 Induction Coil
810/4 1600A000U4 Transformer
810/8 1600A000U5 Switch
810/9 1600A000UF Linkage
811/1 1600A000U6 Lcd-Display
811/2 1600A000U7 Printed Circuit Board
811/3 1600A000T6 front panel
811/4 1600A000U8 Switch Button
811/5 1600A000U9 Control Knob
812/8 1600A000UB Gear Housing
814 1600A000UC Laser
815/5 1600A000UD Cable Set
815/9 1600A000UE Cable Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PBD40 - 3603M07000
10 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
CALL US FOR AVAILABILITY AND SHIPPING TIMES
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch PBD40

Diagram Bosch PBD40

Download (123.6KB)

You might also like

End Stop Fence for Bench Drill Press Bosch PBD40
Bosch SKU: 1600A000UA
End Stop Fence for Bench Drill Press Bosch PBD40
End Stop Fence for Bench Drill Press Bosch PBD40 Original replacement part Bosch, End Stop Fence for Bench Drill Press Bosch PBD40. Part for the following products : -  Bench...
Last items in stock €22.70
Details
Clamping Lever for Bench Drill Press Bosch PBD40
Bosch SKU: 1600A000TB
Clamping Lever for Bench Drill Press Bosch PBD40
Clamping Lever for Bench Drill Press Bosch PBD40 Original replacement part Bosch, Clamping Lever for Bench Drill Press Bosch PBD40. Part for the following products : - Bench...
Usually Ships in: 15/20 Business Days Approx. €13.95
Details
Printed Circuit Board for Bench Drill Press Bosch PBD40
Bosch SKU: 1600A000TH
Printed Circuit Board for Bench Drill Press Bosch PBD40
Printed Circuit Board for Bench Drill Press Bosch PBD40 Original replacement part Bosch, Printed Circuit Board for Bench Drill Press Bosch PBD40. Part for the following products : - Bench Drill Press Bosch PBD40 -  3 603 M07 000 PBD...
on 10/15 Business Days Approx €56.85
Details
Knob for Bench Drill Press Bosch PBD40
Bosch SKU: 1600A000SS
Knob for Bench Drill Press Bosch PBD40
Knob for Bench Drill Press Bosch PBD40 Original replacement part Bosch, Knob for Bench Drill Press Bosch PBD40. Part for the following products : - Bench Drill Press Bosch...
on 7/10 Business Days Approx. €1.88
Details
Comments (0)
