Bosch Spare Parts for Belt Sander PBS 7 A

Name: Bosch Spare Parts for Belt Sander PBS 7 A
Brand: Bosch
SKU: Bosch PBS7A - 0603391003
Availability: InStock

SKU: Bosch PBS7A - 0603391003

€2.89

VAT included

Bosch Spare Parts for Belt Sander PBS7A

We are BOSCH original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Belt Sander PBS 7 A Green Line - 0603391003.
Bosch PBS 7 A - 0603391003

32 spare parts

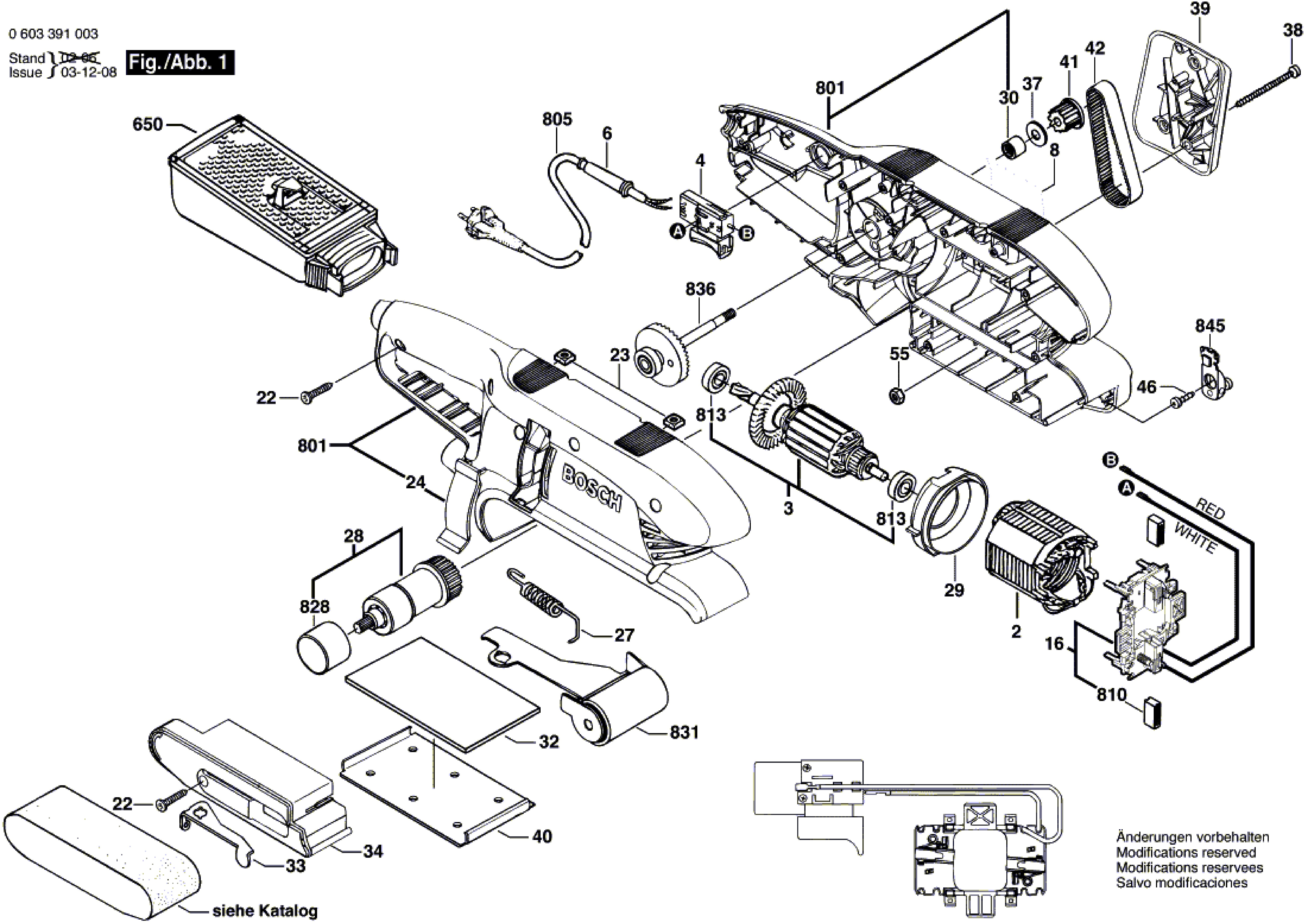

Page 1 View exploded Usually Ships in 10 BUSYNESS DAYS

Click on the exploded view to buy spare parts

Pos.		Item	Price	Buy
2	Image coming soon	2610390992 Field 230V	€15.07	Not available for order
3	Image coming soon	2610391052 Armature 230V	€0.00	Not available for order
4		2610390848 Switch for Belt Sanders Bosch PBS 7 A-AE	€15.80
6		2600703012 Power Cord Grommet Ø6,5-Ø6,9x95 MM for Power Tools Bosch	€2.38
8	Image coming soon	2610389977 Nameplate	€2.38
16	Image coming soon	2610391288 Brush Holder	€9.70
22		2610374919 Torx Oval-Head Screw T20-8x19 mm for Circular Saw Skil 5750	€1.05
23	Image coming soon	2610385585 Square Nut	€0.00	Not available for order
24	Image coming soon	2610389694 Cover Plate	€0.00	Not available for order
27	Image coming soon	2610392308 Spring	€1.16
28	Image coming soon	2609000812 Pulley	€18.24
29	Image coming soon	2610389927 Air Guide Plate	€3.60	Not available for order
30	Image coming soon	2610377223 Needle bearing	€10.92	Not available for order
32	Image coming soon	2610389697 Felt Sheet	€8.10
33	Image coming soon	2610390971 Lever	€2.38	Not available for order
34	Image coming soon	2610387965 Covering hood	€4.82
37	Image coming soon	2610391223 Disc Spring	€0.00	Not available for order
38		2610374994 Torx Oval Head Screw for Belt Sanders Bosch PBS 7 A-AE	€1.16
39	Image coming soon	2610389693 Belt Cover	€4.82
40		2610389698 Base Support for Belt Sanders Bosch PBS 7 A-AE	€8.10
41	Image coming soon	2610387991 Toothed Belt Wheel	€2.38
42		2610387984 Toothed Belt for Bosch Belt Sanders PBS 7A-AE	€15.80
46	Image coming soon	2610374916 Torx Oval-Head Screw 8x16	€1.16
55	Image coming soon	2610061550 Nut M6	€1.16	Not available for order
650		2605411129 Dust Chamber for Belt Sander Bosch PBS 7 A	€15.80
801	Image coming soon	2610391451 Housing Set	€46.30
805	Image coming soon	2610362954 Power supply cord EU 2,65m 2 x 1,0mm H05 VV-F	€7.49	Not available for order
810		2610391290 Carbon Brushes for Orbital Sanders PSS 200-250-300 AE	€9.70
813	Image coming soon	2610376473 Ring Ball Bearing	€0.00	Not available for order
828		2610391336 Rubber Ring for Belt Sanders Bosch PBS 7 A-AE	€4.82
831		2610376140 Fork Assy for Belt Sanders Bosch PBS 7 A - 7 AE	€0.00	Not available for order
836	Image coming soon	2610387990 Spindle With Gear	€0.00	Not available for order

Shipping and delivery information will be available shortly.

Bosch Spare Parts for Belt Sander PBS 7 A

We are BOSCH original spare parts and Accessories Worldwide Dealers at low at Amazing price guarantee, tech assistance with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Belt Sander PBS7A Green Line - 0603391003.

In the following table, look for the model of the Belt Sander and the respective parts of the code.

Belt Sander PBS 7 A/0 603 391 003
#	Part Num.	Description
2	2610390992	Field 230V
3	2610391052	Armature 230V
4	2610390848	Switch
6	2600703012	Grommet Ø6,5-Ø6,9x95 MM
8	2610389977	Nameplate
16	2610391288	Brush Holder
22	2610374919	Torx Oval-Head Screw T20-8x19 MM
23	2610385585	Square Nut
24	2610389694	Cover Plate
27	2610392308	Spring
28	2609000812	Pulley
29	2610389927	Air Guide Plate
30	2610377223	Needle bearing
32	2610389697	Felt Sheet
33	2610390971	Lever
34	2610387965	Covering hood
37	2610391223	Disc Spring
38	2610374994	Torx Oval-Head Screw 8x60
39	2610389693	Belt Cover
40	2610389698	Base Support
41	2610387991	Toothed Belt Wheel
42	2610387984	Toothed Belt
46	2610374916	Torx Oval-Head Screw 8x16
55	2610061550	Nut M6
650	2605411129	Dust Chamber
801	2610391451	Housing Set
805	2610362954	Power supply cord EU 2,65m 2 x 1,0mm H05 VV-F
810	2610391290	Carbon-Brush Set
813	2610376473	Ring Ball Bearing
828	2610391336	Rubber Ring
831	2610376140	Fork
836	2610387990	Spindle With Gear
845	2610392590	Lever Arm

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Reference Bosch PBS7A - 0603391003

Data sheet

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
Machine Type: Sander

Specific References

Condition New

Download

Diagram Bosch PBS 7 A

Download (82.02KB)
