Bosch Spare Parts for Planer PHO30-82

SKU: Bosch PHO 30-82 - 0603259250
€1.56
VAT included

Bosch Spare Parts for Planer PHO30-82

Bosch Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Planer PHO 30-82 - 0603259250.

Bosch PHO 30-82 - 0603259250
Bosch Spare Parts for Planer PHO30-82
  • Bosch Spare Parts for Planer PHO30-82
  • Bosch Spare Parts for Planer PHO30-82

Bosch Spare Parts for Planer PHO30-82

SKU: Bosch PHO 30-82 - 0603259250 Condition: New
€1.56
VAT included

Bosch Spare Parts for Planer PHO30-82

Bosch Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Planer PHO 30-82 - 0603259250.

Bosch PHO 30-82 - 0603259250
settings 87 spare parts

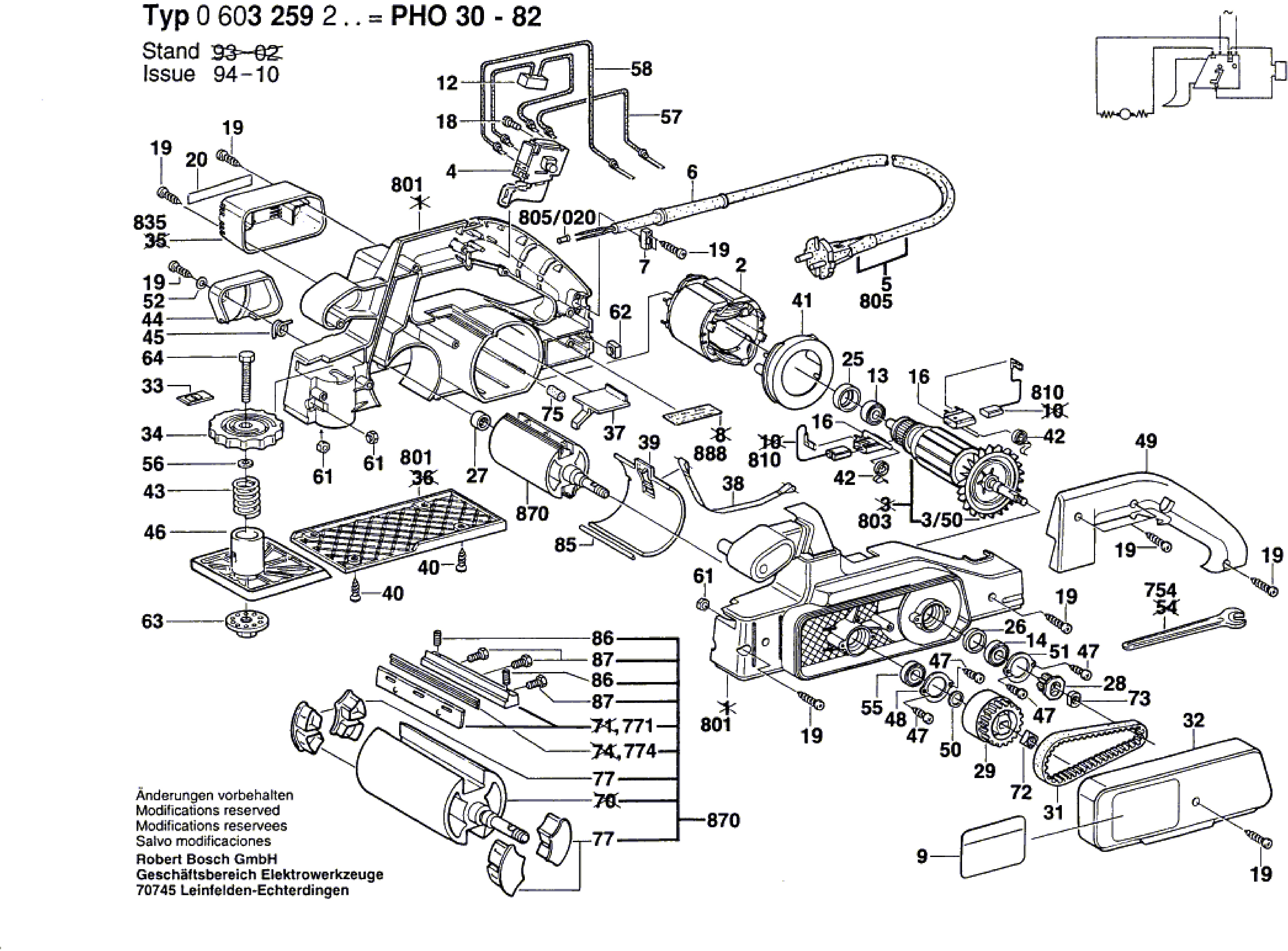

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

73 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
Maktec Spare Parts for Jigsaw MT431 MT431 Maktec Spare Parts for Jigsaw MT431 €12.95
2
photo_cameraImage coming soon 1604220231 Field 220V €51.53
2
photo_cameraImage coming soon 7250360000 Pressure Switch €38.56
3/50
photo_cameraImage coming soon 1606610122 Fan €2.46
3
photo_cameraImage coming soon 7110020000 Manometer €19.55
4
photo_cameraImage coming soon 7090070000 Cap M1/4" €4.52
5
photo_cameraImage coming soon 7130440000 MF ball valve 1/4 " €16.97
5
photo_cameraImage coming soon 7151780000 COVER INNER PLASTIC RAL9005 €6.39
6
photo_cameraImage coming soon 2600703011 Grommet Ø8,3-Ø9,4x95 MM  €2.53
6
Power Cord Grommet Ø6,5-Ø6,9x95 MM for Power Tools Bosch 2600703012 Power Cord Grommet Ø6,5-Ø6,9x95 MM for Power Tools Bosch €2.53
6
photo_cameraImage coming soon 7082050000 Fitting "T" fourth FFM €12.10
7
Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
7
Fiac Safety Valve M1/4" 8,5 Bar CE 7192020000 Fiac Safety Valve M1/4" 8,5 Bar CE €19.19
7
photo_cameraImage coming soon 7300310000 SWITCH €7.62
8
photo_cameraImage coming soon 7082280000 Fitting 1 / 4M 3PZ.IN LINE L = 58 €11.53
8
Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX 7110240000 Pressure Gauge Ø40-1/8" for Air Compressors Fiac Cosmos-ECU-FX €17.72
9
Pressure Regulator for Air Compressors Michelin MCX 6 - MCX 20 7100760000 Pressure Regulator for Air Compressors Michelin MCX 6 - MCX 20 €22.36
9
photo_cameraImage coming soon 7234760000 tube feeding €143.52
10
”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 7084240000 ”L” joint 1/4" for RILSAN hose D.6 for Compressor Black & Decker CP6 €12.09
11
photo_cameraImage coming soon 7088110000 FITTING 1/4 MF €12.83
12
photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
12
photo_cameraImage coming soon 7130570000 Tap Universal M1/4" €11.96
13
photo_cameraImage coming soon 2600905051 groove ball bearing 7x19x6 €8.33
13
photo_cameraImage coming soon 7016150000 Silencer F 1/8 " €9.68
14
photo_cameraImage coming soon 2600905052 Deep-Groove Ball Bearing 8x22x7 €7.36
14
photo_cameraImage coming soon 7194240000 Solenoid €80.71
15
photo_cameraImage coming soon 7083120000 The Fitting 1/4-Pipe Ø8 €9.26
15
photo_cameraImage coming soon 7085180000 Fitting 1 / 4-1 / 8 MF €6.97
16
photo_cameraImage coming soon 7080180000 The 1/4 MF Connection €8.35
16
photo_cameraImage coming soon 7190290000 CHECK VALVE MM 1/4" €15.79
17
photo_cameraImage coming soon 7083160000 FITTING 1/4 FXD.8 €11.26
18
photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
18
FIAC F205 Drain Tap 1/4" 7130090000 FIAC F205 Drain Tap 1/4" €10.00
18
photo_cameraImage coming soon 7422250000 GROUP UMC V.230 / 50-60HZ €209.61
19
photo_cameraImage coming soon 2910611019 Tapping Screw DIN 7981-ST3,9x16-C-H €1.96
19
Valve Plate Kit for Air Compressors B&D CP 6 - Michelin  MCX 6-MCX 20 7422250010 Valve Plate Kit for Air Compressors B&D CP 6 - Michelin MCX 6-MCX 20 €36.17
20
photo_cameraImage coming soon 1601110481 Manufacturer's nameplate SHADOW SIDE €1.34
20
Belt for Air Compressor Yamato Oil-Less 6-1,5 7422250030 Belt for Air Compressor Yamato Oil-Less 6-1,5 €24.80
21
Conrod + Piston Kit for Air Compressor Black & Decker CP6 7422250040 Conrod + Piston Kit for Air Compressor Black & Decker CP6 €54.33
22
Cylinder for Air Compressor Black & Decker CP6 7422250020 Cylinder for Air Compressor Black & Decker CP6 €15.97
25
Intermediate Ring for Circular Saw Bosch PKS 54 1600502011 Intermediate Ring for Circular Saw Bosch PKS 54 €1.53
25
photo_cameraImage coming soon 7230030000 TUBE RILSAN Ø10X8 €8.96
26
photo_cameraImage coming soon 1600206026 Intermediate Ring €1.40
26
photo_cameraImage coming soon 7084560000 Fitting F3 / 8 "TUBE 10X8 €14.76
26
Michelin MCX 20 Wheel D.175 F.15 7260290000 Michelin MCX 20 Wheel D.175 F.15 €13.70
27
Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
27
Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin 7190180000 Check Valve MM 1/2"x3/8"- SX for Air Compressor Fiac-B&D-Michelin €28.12
28
photo_cameraImage coming soon 2600324009 Toothed Belt Wheel Z=19 €4.31
29
photo_cameraImage coming soon 7090030000 Cap M1/2" €7.24
30
photo_cameraImage coming soon 7020070000 Nut M8 UNI-5587 €1.48
30
photo_cameraImage coming soon 7085200000 Fitting 1 / 2-1 / 4 MM €6.03
31
Toothed Belt for Planer Bosch PHO 30-82 2604736002 Toothed Belt for Planer Bosch PHO 30-82 €17.45
31
photo_cameraImage coming soon 7030030000 Washer 8 UNI-6592 €1.42
32
photo_cameraImage coming soon 7090060000 Cap M1 " €4.24
32
Black Rilsan Tube Ø 6X4 for Compressors Fiac 7230010000 Black Rilsan Tube Ø 6X4 for Compressors Fiac €7.28
33
photo_cameraImage coming soon 7084220000 Fitting DIR.M1 / 4 "-6 QUICK €6.64
34
photo_cameraImage coming soon 7364310000 Antivibration Ø30X20 MM8 40 sh €12.85
35
photo_cameraImage coming soon 7085190000 3/8 "-1/4" MF €15.97
36
photo_cameraImage coming soon 7031010000 Washer 8 UNI-3703 €1.52
37
photo_cameraImage coming soon 7011090000 Screw M8x20 UNI-5739 €1.52
37
Pressure Switch 8 BAR CE for air Compressors FIAC 7250740000 Pressure Switch 8 BAR CE for air Compressors FIAC €27.75
39
photo_cameraImage coming soon 1605510142 Protective Cover €6.58
42
photo_cameraImage coming soon 2604652008 Spiral Spring €1.48
43
Compression Spring for Belt Sander Bosch PBS 75 A 1604619017 Compression Spring for Belt Sander Bosch PBS 75 A €2.19
44
photo_cameraImage coming soon 1605510139 Protective Cover €1.91
47
photo_cameraImage coming soon 2603490017 Torx Oval-Head Screw 3x10 €2.82
52
photo_cameraImage coming soon 2600100588 Washer Compensation 0.5 MM €1.23
53
photo_cameraImage coming soon 1600100632 Shim 0,2 MM THICK €1.57
61
DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 2915011007 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 €1.32
62
photo_cameraImage coming soon 2603320004 Square Nut M6 €1.63
63
Adjusting Nut for Planers Bosch PHO 20-82 - PHO 30-82 3603342003 Adjusting Nut for Planers Bosch PHO 20-82 - PHO 30-82 €1.53
72
photo_cameraImage coming soon 2603320003 Square Nut M8 €1.48
73
photo_cameraImage coming soon 2603342006 Round Nut M6 LEFTHAND THREADS €1.48

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Planer PHO30-82

Bosch Original spare parts sourced from the manufacturer, with after-sales service at the lowest price on the web for to make maintenance or repair deteriorated parts for Planer PHO 30-82 - 0603259250.

In the following table, look for the model of the Planer and the respective parts of the code.
Bosch PHO 30-82 - 0603259250

Planer PHO 30-82/0 603 259 250
2 1604220231 Field 220V
3/50 1606610122 Fan
4 2607200261 On-Off Switch
5 2604460102 Power supply cord I 4,15m 2 x 1,0mm H05VV-F
6 2600703012 Grommet Ø6,5-Ø6,9x95 MM
6 2600703011 Grommet Ø8,3-Ø9,4x95 MM
7 2601035001 Cable Clip
9 2601110791 Sticker SUNNY SIDE
12 1607328028 Suppression Filter
13 2600905051 Deep-Groove Ball Bearing 7x19x6
14 2600905052 Deep-Groove Ball Bearing 8x22x7
16 2604337002 Brush Holder
18 2603410001 Socket head cap screw M3x6,5-4.8
19 2910611019 Tapping Screw DIN 7981-ST3,9x16-C-H
20 1601110481 Manufacturer's nameplate SHADOW SIDE
25 1600502011 Intermediate Ring
26 1600206026 Intermediate Ring
27 2600910001 Needle bearing Ø14 MM
28 2600324009 Toothed Belt Wheel Z=19
29 2606625009 Toothed Belt Wheel Z=43
31 2604736002 Toothed Belt 14 MM, Z=85
32 3605500024 Gear Cover BLACK
33 1601099010 Scale Window
34 2606621001 Graduated Dial
37 3601320001 Adjusting Slide
38 1601006006 Rubber band
39 1605510142 Protective Cover
40 2910601320 Rec ct-sunk tapping screw DIN7982-ST3,9x19-C-H
41 3600290011 Air-Deflector Ring
42 2604652008 Spiral Spring
43 1604619017 Compression Spring
44 1605510139 Protective Cover
45 1604651007 Compression Spring
46 2608000059 Adjusting Disc
47 2603490017 Torx Oval-Head Screw 3x10
48 1600190016 Tab Washer
49 2605500096 Handle Cover GREEN
50 2600100033 Shim
51 2600190008 Tab Washer
52 2600100588 Shim 0,5 MM
53 1600100632 Shim 0,2 MM THICK
55 2600905052 Deep-Groove Ball Bearing 8x22x7
56 3600100005 Shim 0,5 MM THICK
57 3604431005 Connecting Cable L=238 MM WHITE
58 3604431006 Connecting Cable L=383 MM WHITE
61 2915011007 Hex Nut DIN 934-M6-8-A
62 2603320004 Square Nut M6
63 3603342003 Adjusting Nut
64 3603450005 Hex Screw
72 2603320003 Square Nut M8
73 2603342006 Round Nut M6 LEFTHAND THREADS
75 1603100036 Rubber Buffer
77 2605510036 Cover
85 1600410003 Slotted Spring Pin
86 2603400014 Set screw
87 2603450005 Hex Screw
704 1605411022 Chips Bag
704/10 1605190030 Fitting
704/20 1605703073 Clamping Piece
704/30 2608045003 Retaining Bracket
704/40 1605411022 Chips Bag
704/50 2603490017 Torx Oval-Head Screw 3x10
705 1607000154 Connecting Pipe Ø 35 MM
706 1608132006 Depth-Gauge
706/10 1601331039 Stop Bracket
706/20 2603480003 Wing Screw M 6x16 MM
706/30 2916011014 Plain Washer DIN 125-A 6,4-ST
706/40 1610210043 O-Ring 4,0x1,5 MM
707 2607001078 Width Stop 45°
712 603095002 Base
714 2607000102 Parallel-Guide
754 2607950504 Single-Head Eng. Wrench
771 2608040039 Grip-Spring Tensioning E
774 2607000096 Planing Knife
801 2605104991 Housing Section GREEN
801 2605104981 Housing Section BLUE
803 2604010924 Armature 220V
810 2607014003 Carbon-Brush Set
813 1610905025 Deep-Groove Ball Bearing 7x19x6
835 3605510012 Covering hood
870 2603204903 Planer Head
888 1601106032 Nameplate 26x52 MM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
