Bosch Spare Parts for Rotary Hammer PBH 2000 SRE

SKU: Bosch PBH 2000 SRE 3603C44301
€2.25
VAT included

Bosch Spare Parts for Rotary Hammer PBH 2000 SRE

Bosch Genuine spare parts or replacement parts for to repair Rotary Hammer PBH 2000 SRE - 3603C44301

Bosch PBH 2000 SRE 3603C44301
Bosch Spare Parts for Rotary Hammer PBH
  • Bosch Spare Parts for Rotary Hammer PBH
  • Bosch Spare Parts for Rotary Hammer PBH 2000 SRE
  • Bosch Spare Parts for Rotary Hammer PBH 2000 SRE

Bosch Spare Parts for Rotary Hammer PBH 2000 SRE

SKU: Bosch PBH 2000 SRE 3603C44301 Condition: New
€2.25
VAT included

Bosch Spare Parts for Rotary Hammer PBH 2000 SRE

Bosch Genuine spare parts or replacement parts for to repair Rotary Hammer PBH 2000 SRE - 3603C44301

Bosch PBH 2000 SRE 3603C44301
settings 77 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

65 spare parts

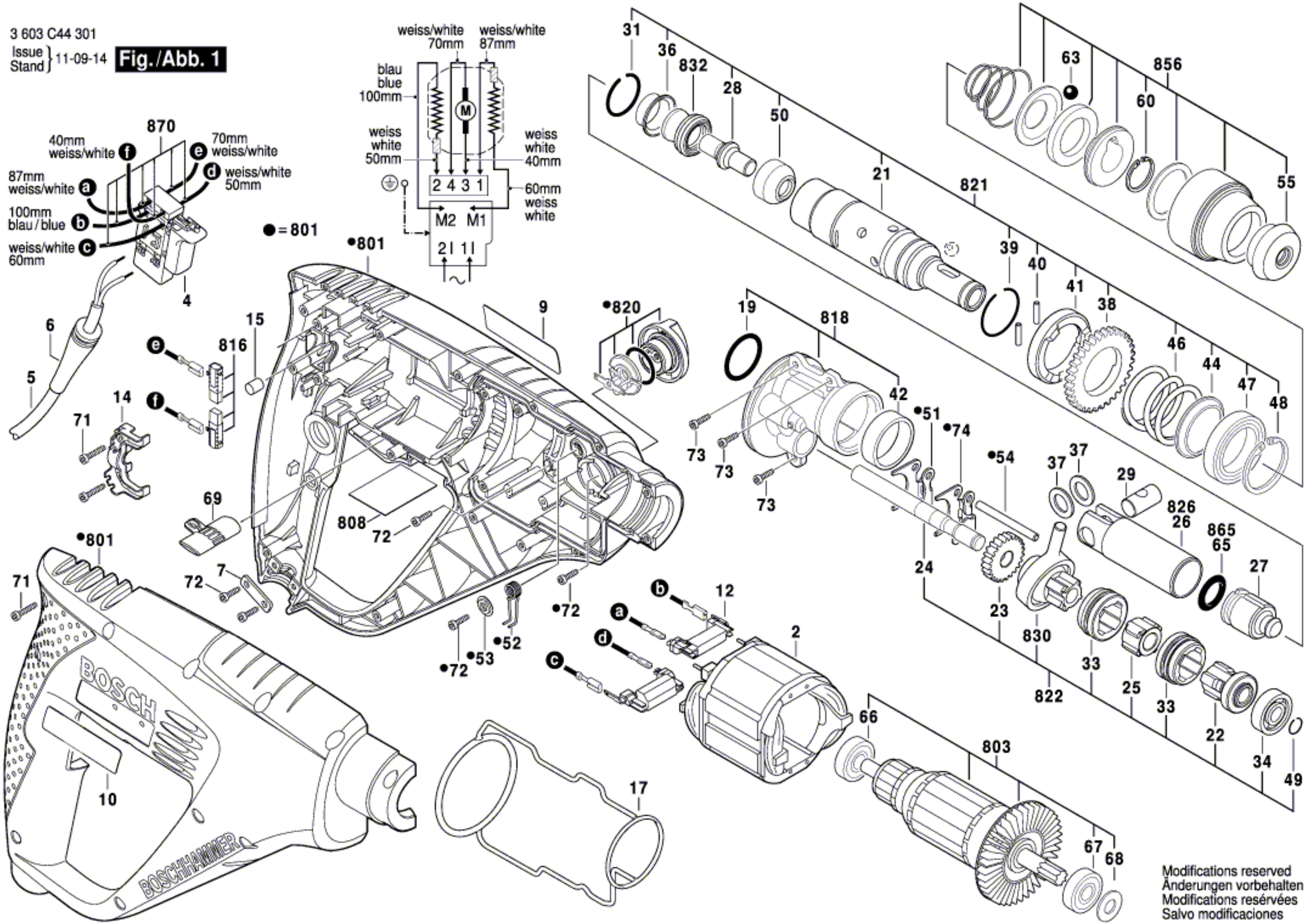

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 1619P00860 Manufacturer's nameplate PBH 2000 SRE €2.86
2
photo_cameraImage coming soon 1614220182 Field 230V €23.73
4
Switch for Hammer Bosch PBH 2000 RE-SRE 1617200515 Switch for Hammer Bosch PBH 2000 RE-SRE €37.98
5
photo_cameraImage coming soon 3607030489 Power supply cord €31.69
6
photo_cameraImage coming soon 2600703018 Grommet Ø7,3-Ø8,6x76 MM €2.22
9
photo_cameraImage coming soon 1619P00861 Manufacturer's nameplate PBH 2000 RE €2.86
10
photo_cameraImage coming soon 1619P00830 Manufacturer's nameplate €2.86
12
photo_cameraImage coming soon 1617328032 Suppression Filter €6.29
14
photo_cameraImage coming soon 1615806187 Bearing Bracket €1.77
15
photo_cameraImage coming soon 2603100056 Rubber Buffer €1.54
17
Sealing Frame for Ratary Hammer Bosch PBH 2000 RE 1611015054 Sealing Frame for Ratary Hammer Bosch PBH 2000 RE €7.20
19
O-Ring 22,0x2,5 mm for Rotary Hammer Bosch PBH 2000 RE 1610210184 O-Ring 22,0x2,5 mm for Rotary Hammer Bosch PBH 2000 RE €0.93
21
photo_cameraImage coming soon 1615806188 Hammer Pipe €28.03
22
photo_cameraImage coming soon 1619P01786 Pinion €7.97
23
photo_cameraImage coming soon 1616317070 Cylindrical Gear €6.68
24
photo_cameraImage coming soon 1613101010 Transmission Shaft €4.54
25
photo_cameraImage coming soon 1619P01784 Coupling hub €1.73
27
photo_cameraImage coming soon 1618710085 Striker €11.34
28
photo_cameraImage coming soon 1613124084 Striker Pin €5.86
29
photo_cameraImage coming soon 1613100034 Piston Pin €3.71
33
photo_cameraImage coming soon 1619P01785 Switching Element €1.73
34
photo_cameraImage coming soon 1610905034 Deep-Groove Ball Bearing 8x22x6 €5.15
36
photo_cameraImage coming soon 1610551008 Holding Plate €3.15
37
photo_cameraImage coming soon 1610100016 Guide Disc €4.16
38
photo_cameraImage coming soon 1616317072 Cylindrical Gear €5.10
39
photo_cameraImage coming soon 1614601055 Retaining ring €1.32
40
photo_cameraImage coming soon 1613100032 Straight Pin €1.36
41
photo_cameraImage coming soon 1610102072 Ratchet Disc €7.05
42
photo_cameraImage coming soon 1610301004 Plain bearing €2.86
44
Support Disc for Rotary Hammer Bosh PBH 2000 RE 1610190054 Support Disc for Rotary Hammer Bosh PBH 2000 RE €1.72
46
photo_cameraImage coming soon 1614630002 Compression Spring €2.86
47
photo_cameraImage coming soon 1610905035 Deep-Groove Ball Bearing €16.59
48
photo_cameraImage coming soon 1614601054 Retaining ring €1.47
49
photo_cameraImage coming soon 1619P00829 Retaining ring €1.23
50
photo_cameraImage coming soon 1610400039 Guide Bushing €5.54
51
Shift Plate for Rotary Hammer Bosch PBH 2000 RE 1619P01787 Shift Plate for Rotary Hammer Bosch PBH 2000 RE €1.36
54
Bosch Guide Rod for PBH 2000 SRE 1613100033 Bosch Guide Rod for PBH 2000 SRE €1.75
55
photo_cameraImage coming soon 1610508052 Protective Cap €2.07
60
photo_cameraImage coming soon 3600224038 Spring retaining ring €1.24
63
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE 1903230013 Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE €2.83
66
photo_cameraImage coming soon 1900905029 Deep-Groove Ball Bearing 8x22x7 €17.97
67
photo_cameraImage coming soon 1610905033 Ball Bearing €6.68
74
photo_cameraImage coming soon 1619P01788 Shift Plate €1.31
651
photo_cameraImage coming soon 2602025125 Auxiliary Handle BLACK €8.38
652
photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
655
photo_cameraImage coming soon 1618571031 Key Chuck €35.73
655/872
photo_cameraImage coming soon 2607950007 Chuck Wrench SG2 €16.17
801
photo_cameraImage coming soon 1619P01768 Housing Set €21.85
803
photo_cameraImage coming soon 1619P01771 Armature 220-240V €61.28
808
photo_cameraImage coming soon 1619P01982 Nameplate €2.86
816
Carbon Brushes for Hammers Bosch PBH 2000 RE - PBH 2000 SRE 1619P01777 Carbon Brushes for Hammers Bosch PBH 2000 RE - PBH 2000 SRE €13.57
818
photo_cameraImage coming soon 1619P01772 Intermediate Flange €11.40
820
Switch Button for Rotary Hammer Bosh PBH 2000 RE 1619P01782 Switch Button for Rotary Hammer Bosh PBH 2000 RE €4.55
821
photo_cameraImage coming soon 1619P01773 Hammer Pipe €60.72
822
photo_cameraImage coming soon 1619P01778 Transmission Shaft €39.93
826
Piston for Rotary Hammer Bosch PBH 2000 RE 1618700083 Piston for Rotary Hammer Bosch PBH 2000 RE €13.71
830
photo_cameraImage coming soon 1619P01775 Drive end shield €21.85
832
photo_cameraImage coming soon 1610508051 Rubber Bushing €5.86
856
Front Hood Set for Hammer Bosch PBH 2000 RE 1619P02182 Front Hood Set for Hammer Bosch PBH 2000 RE €21.20
865
O-Ring 13,0x3,0 mm for Rotary Hammer Bosch PBH 2000 RE 1610210186 O-Ring 13,0x3,0 mm for Rotary Hammer Bosch PBH 2000 RE €2.54
870
photo_cameraImage coming soon 1619P01776 Connecting Cable €4.12

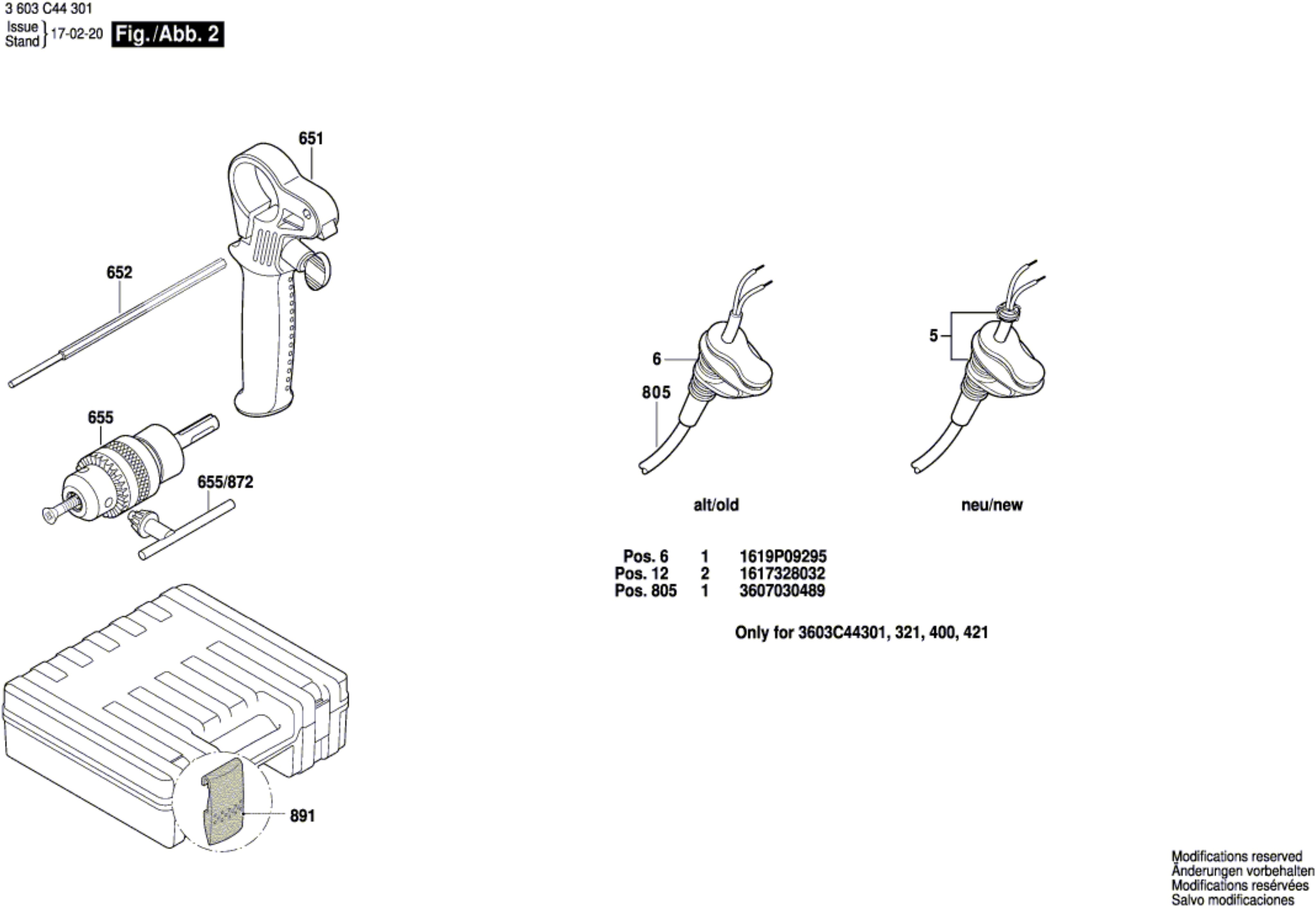

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
651
photo_cameraImage coming soon 2602025125 Auxiliary Handle BLACK €8.38
652
photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
655
photo_cameraImage coming soon 1618571031 Key Chuck €35.73
655/872
photo_cameraImage coming soon 2607950007 Chuck Wrench SG2 €16.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Rotary Hammer PBH 2000 SRE

Bosch Genuine spare parts or replacement parts for to repair Rotary Hammer PBH 2000 SRE - 3603C44301.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch PBH 2000 SRE 3603C44301

Rotary Hammer PBH 2000 SRE/3 603 C44 301
# Part Num. Description
2 1614220182 Field 230V
4 1617200515 Switch
5 3607030489 Power supply cord
6 2600703018 Grommet Ø7,3-Ø8,6x76 MM
7 1611035007 Cable Clip
9 1619P00861 Manufacturer's nameplate PBH 2000 RE
1619P00860 Manufacturer's nameplate PBH 2000 SRE
1619P00899 Manufacturer's nameplate PBH 2000 FRE
10 1619P00830 Manufacturer's nameplate
12 1617328032 Suppression Filter
14 1615806187 Bearing Bracket
15 2603100056 Rubber Buffer
17 1611015054 Sealing Frame
19 1610210184 O-Ring 22,0x2,5 MM
21 1615806188 Hammer Pipe
22 1619P01786 Pinion
23 1616317070 Cylindrical Gear
24 1613101010 Transmission Shaft
25 1619P01784 Coupling hub
27 1618710085 Striker
28 1613124084 Striker Pin
29 1613100034 Piston Pin
31 1614601053 Retaining ring
33 1619P01785 Switching Element
34 1610905034 Deep-Groove Ball Bearing 8x22x6
36 1610551008 Holding Plate
37 1610100016 Guide Disc
38 1616317072 Cylindrical Gear
39 1614601055 Retaining ring
40 1613100032 Straight Pin
41 1610102072 Ratchet Disc
42 1610301004 Plain bearing
44 1610190054 Support Disc
46 1614630002 Compression Spring
47 1610905035 Deep-Groove Ball Bearing
48 1614601054 Retaining ring
49 1619P00829 Retaining ring
50 1610400039 Guide Bushing
51 1619P01787 Shift Plate
52 1619P01789 Coiled Spring
53 1619P00828 Pressure Disc
54 1613100033 Guide Rod
55 1610508052 Protective Cap
60 3600224038 Spring retaining ring
63 1903230013 Ball DIN 5401-Ø7MM-III-ST
66 1900905029 Deep-Groove Ball Bearing 8x22x7
67 1610905033 Ball Bearing
68 1614601052 Plain Washer
69 1613231025 Change-Over Switch
71 1619P00219 Tapping Screw
72 1619P00220 Torx Oval-Head Screw 3x10
73 2914201483 Torx Oval-Head Screw
74 1619P01788 Shift Plate
651 2602025125 Auxiliary Handle BLACK
652 2609005615 Depth-Gauge
655 1618571031 Key Chuck
655/872 2607950007 Chuck Wrench SG2
801 1619P01768 Housing Set
803 1619P01771 Armature 220-240V
808 1619P01982 Nameplate
816 1619P01777 Carbon-Brush Set
818 1619P01772 Intermediate Flange
820 1619P01782 Switch Button
821 1619P01773 Hammer Pipe
822 1619P01778 Transmission Shaft
826 1618700083 Hammer Piston
830 1619P01775 Drive end shield
832 1610508051 Rubber Bushing
856 1619P02182 Protection Sleeve
865 1610210186 O-Ring 13,0x3,0 MM
870 1619P01776 Connecting Cable
891 1619P00832 Lock

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
