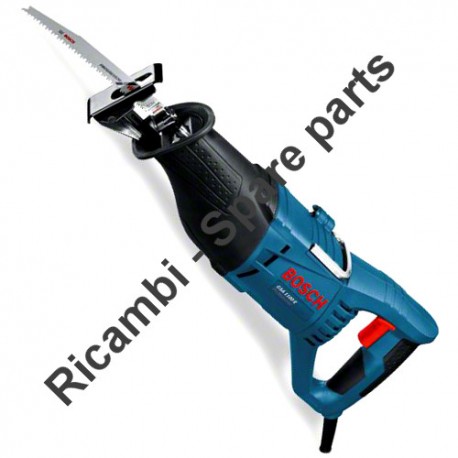

Bosch Spare Parts for Reciprocating Saws GSA 1200 E
€38.38
VAT included
Bosch Spare Parts for Reciprocating Saws GSA 1200 E
Bosch genuine replacement parts for to replace broken parts for to fix Reciprocating Saw GSA 1200 E - 3601F4E003.
Bosch Spare Parts for Reciprocating Saws GSA 1200 E
€38.38
VAT included
Bosch Spare Parts for Reciprocating Saws GSA 1200 E
Bosch genuine replacement parts for to replace broken parts for to fix Reciprocating Saw GSA 1200 E - 3601F4E003.
settings
38 spare parts
description
1 exploded view
verified_user
Original Product
Manufacturer warranty included
support_agent
Technical Support
Our team helps you choose
Secure and guaranteed payments
38 spare parts
Page 1

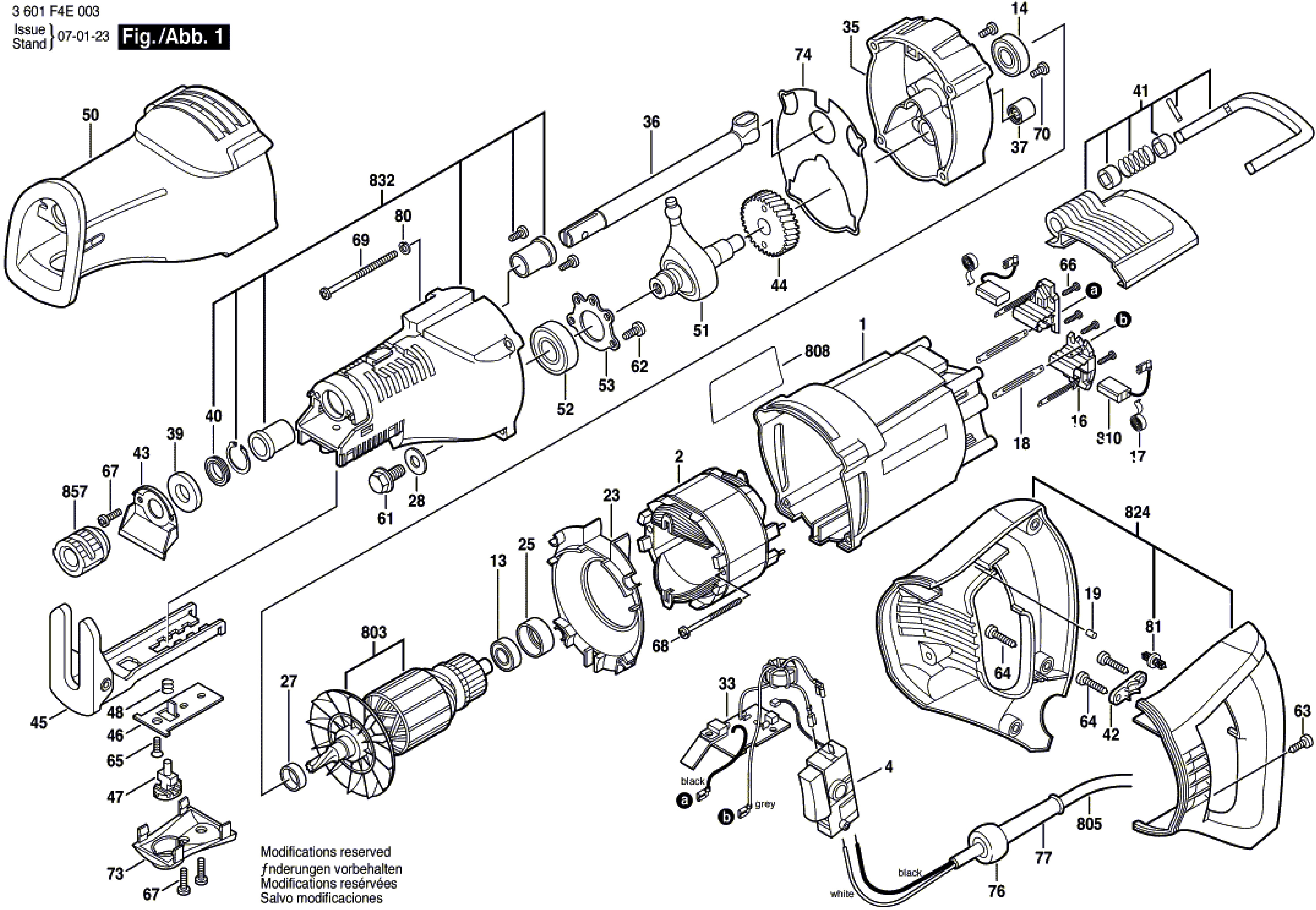

zoom_in View exploded
local_shipping Usually Ships in: 10 BUSYNESS DAYS
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
Bosch Spare Parts for Reciprocating Saws GSA 1200 E
Bosch genuine replacement parts for to replace broken parts for to fix Reciprocating Saw GSA 1200 E - 3601F4E003.In the following table, look for the model of the Reciprocating Saw and the respective parts of the code.
| GSA 1200 E/3 601 F4E 003 | ||
| # | Part Num. | Description |
| 1 | 2610918050 | Motor Housing |
| 2 | 1604220367 | Field 230V |
| 4 | 2610925949 | Switch |
| 13 | 1619P01511 | Ball Bearing |
| 14 | 1900905161 | Deep-Groove Ball Bearing 12x28x8 |
| 16 | 2610913034 | Brush Holder |
| 17 | 3604652500 | Spiral Spring |
| 18 | 1604477005 | Blade terminal |
| 19 | 2610350103 | Pin |
| 23 | 2610919119 | Baffle |
| 25 | 3600206501 | Rubber Bushing |
| 27 | 2610918033 | Spacer |
| 28 | 2610908804 | Protective Washer |
| 33 | 2610930253 | Printed Circuit Board |
| 35 | 2610918048 | Bearing Plate |
| 36 | 2610917060 | Spindle Assembly |
| 37 | 2610908698 | Bearing Shell |
| 39 | 2610030004 | Felt Washer SP 14,0 |
| 40 | 2610995815 | Shaft Seal |
| 41 | 2610918077 | Assembly Hook |
| 42 | 2610993191 | Cable Clip |
| 43 | 1619P01757 | Sealing Plate |
| 44 | 2610908802 | Toothed Gear |
| 45 | 2610923226 | Supporting foot |
| 46 | 1619P01307 | Retaining Plate |
| 47 | 2610922567 | Locking Piece |
| 48 | 2610918060 | Compression Spring |
| 50 | 2610918061 | Insulating Sleeve |
| 51 | 2610918075 | Wobble Plate |
| 52 | 2610015361 | Deep-Groove Ball Bearing |
| 53 | 1619P01308 | Retaining Plate |
| 61 | 2610918051 | Trunnion |
| 62 | 1619P01447 | Screw |
| 63 | 1619P01505 | Screw |
| 64 | 1619X00504 | Screw |
| 65 | 2610918063 | Screw |
| 66 | 2610909719 | Screw BLACK |
| 67 | 1619P01491 | Screw |
| 68 | 1619P01508 | Screw |
| 69 | 2610918049 | Screw |
| 70 | 2610907504 | Screw |
| 73 | 2610919447 | Support Plate |
| 74 | 2610918038 | Sealing Plate |
| 76 | 2610937394 | Swivel ball |
| 77 | 3600703500 | Grommet |
| 80 | 2916683006 | Spring Lock Washer DIN 127-B 5 |
| 81 | 2610947364 | Clip |
| 803 | 2610927652 | Armature 220-230V |
| 805 | 3604460557 | Power supply cord EU 4,25m 2 x 1,0mm H07 RN-F |
| 808 | 2610927649 | Nameplate |
| 810 | 2610920682 | Carbon-Brush Set |
| 824 | 2610947790 | Set Of Handles |
| 832 | 2610920683 | Gear Housing |
| 857 | 2610920684 | Toolholder |
