| Pos. | Item | Price | Buy | |
|---|---|---|---|---|
|
654
|
photo_cameraImage coming soon | 2605411193 Dust Chamber | €23.20 | |
|
656
|
|
2605702039 Adapter for Orbital Sander BOSCH GSS 230 AE | €4.16 |
Informazioni sulle spedizioni e consegne saranno disponibili a breve.
at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly resolve any maintenance or repair issues for Orbiatal Sander GSS 230 AE - 0601292703.

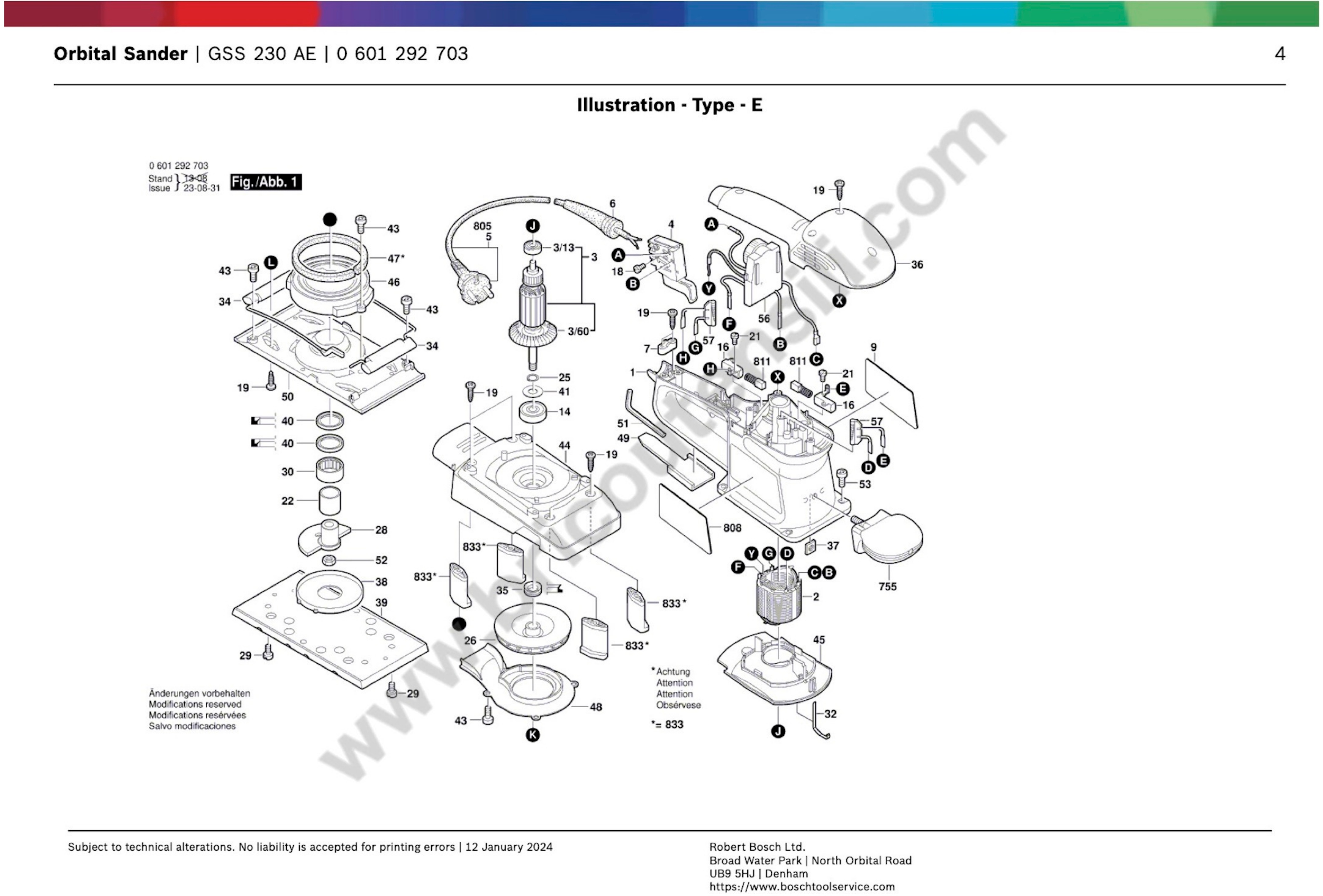

In the following table, look for the model of the Orbital Sander and the respective parts of the code.
| Orbital Sander GSS 230 AE - 0601292703 | ||
| # | Part Num. | Description |
| 1 | 2605104538 | Motor Housing BLUE |
| 2 | 2604220529 | Field 230-240V |
| 3 | 2604011110 | Armature 230-240V |
| 3/13 | 2600905051 | groove ball bearing 7x19x6 |
| 3/60 | 2606610076 | Fan |
| 4 | 2607200260 | Switch |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2x76 MM |
| 7 | 2601035001 | Cable Clip |
| 9 | 2601116493 | Manufacturer's nameplate |
| 14 | 1619P00290 | groove ball bearing |
| 16 | 2604337016 | Brush Holder |
| 18 | 2603410001 | Socket head cap screw M3x6,5-4.8 |
| 19 | 2603490022 | Screw 4x16 |
| 21 | 2603490017 | Torx Oval-Head Screw 3x10 |
| 22 | 2600400035 | Inner Ring |
| 25 | 2916640006 | Spring retaining ring DIN 471 9x1MM |
| 26 | 2606610085 | Fan |
| 28 | 2600499041 | Eccentric |
| 29 | 2603410048 | Thread-forming tap. Screw M4x8 |
| 30 | 2600910012 | Needle bearing |
| 32 | 2601329053 | Contact Strap |
| 34 | 2608045022 | Tensioning Lever |
| 35 | 2600290030 | V-Ring |
| 36 | 2605500124 | Housing Cover BLUE |
| 37 | 2915121006 | Square Nut DIN 562-M6-04 |
| 38 | 2600500019 | Sealing Cover |
| 39 | 2608000165 | Sander Plate |
| 40 | 2600290031 | Shaft Seal |
| 41 | 2600590013 | Sealing disk |
| 43 | 2603435042 | Thread-forming tap. Screw |
| 44 | 2600282017 | Suction Hood |
| 45 | 2601328055 | Air Guide Plate |
| 46 | 2601328053 | Suction Socket |
| 47 | 2601005017 | Felt Strip |
| 48 | 2600034006 | Air-Deflector Ring |
| 49 | 2601035002 | Pusher |
| 50 | 2608000166 | Swing-Plate |
| 51 | 2610364015 | Hexagon Socket Screw Key 5 MM |
| 52 | 2915051107 | Hex Nut DIN 439-BM8-04 |
| 53 | 2603410049 | Thread-forming tap. Screw M4x12 MM |
| 56 | 2607230047 | Speed governor 230-240V |
| 57 | 2604465090 | Suppression Filter |
| 755 | 2602026069 | Auxiliary Handle BLACK |
| 805 | 1607000386 | Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F |
| 808 | 2601119353 | Marking Plate |
| 811 | 1607014117 | Carbon Brush |
| 833 | 2608005902 | Spring 4 PIECE |

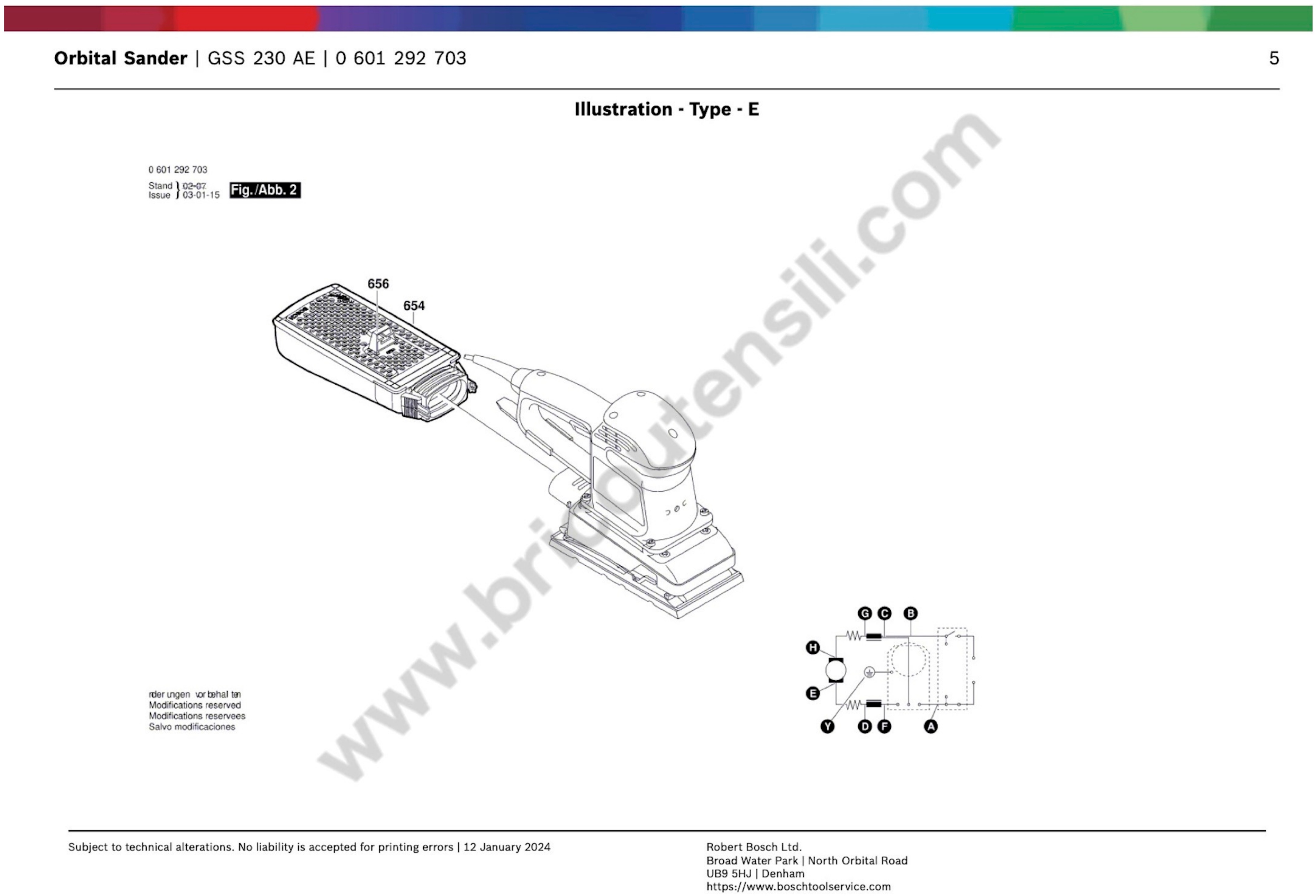

| 654 | 2605411112 | Dust Bag 1 PIECE |
| 654 | 2605411113 | Dust Bag 3 PIECE |
| 654 | 2605411114 | Dust Bag 10 PIECE |
| 654 | 2605411193 | Dust Chamber |
| 656 | 2605702039 | Adapter |
