Bosch

Bosch Parts for Random Orbital Sander GEX 150 TURBO

SKU: Bosch GEX 150 TURBO - 0601250703
€3.09
VAT included

Bosch Parts for Random Orbital Sander GEX 150 TURBO

We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Random Orbital Sander GEX 150 TURBO - 0601250703.

Bosch GEX 150 TURBO - 0601250703
Bosch Spare Parts for Random Orbital Sander GEX 150 TURBO
  • Bosch Spare Parts for Random Orbital Sander GEX 150 TURBO
  • Bosch Spare Parts for Random Orbital Sander GEX 150 TURBO -Drawing
  • Bosch Spare Parts for Random Orbital Sander GEX 150 TURBO - Drawing 1
Bosch

Bosch Parts for Random Orbital Sander GEX 150 TURBO

SKU: Bosch GEX 150 TURBO - 0601250703 Condition: New
€3.09
VAT included

Bosch Parts for Random Orbital Sander GEX 150 TURBO

We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Random Orbital Sander GEX 150 TURBO - 0601250703.

Bosch GEX 150 TURBO - 0601250703
settings 58 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
58 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

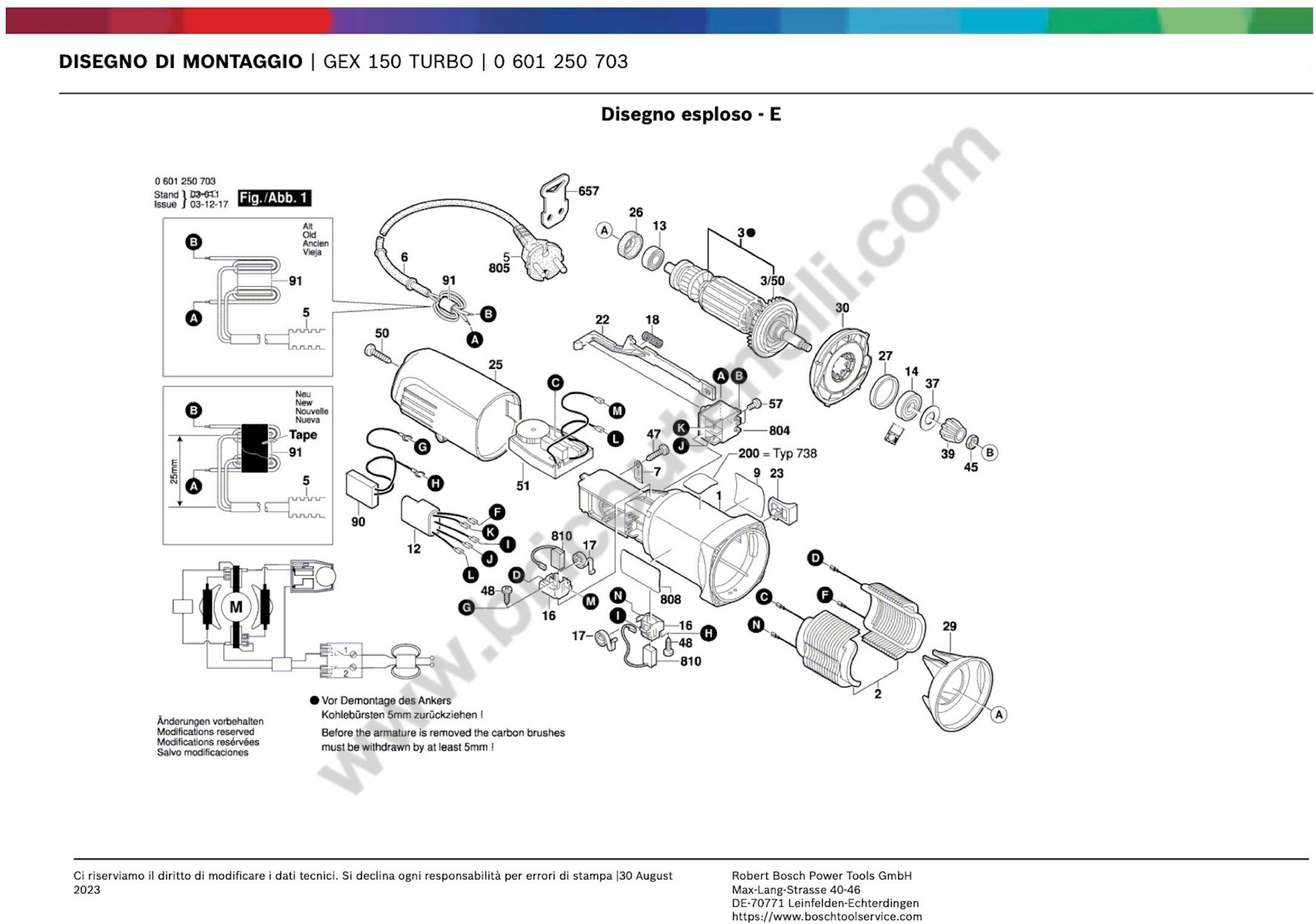

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
Shim 0,2 mm for Angle Grinder Bosch GWS 6-115 1600136017 Shim 0,2 mm for Angle Grinder Bosch GWS 6-115 €2.55
1
 photo_cameraImage coming soon 1619P09772 Motor Housing €14.47
2
 Stator for Angle Grinder and Sander Bosch GWS-GEX 150 Turbo 1604220328 Stator for Angle Grinder and Sander Bosch GWS-GEX 150 Turbo €30.35
3
 Armature for Angle Grinders Bosch GWS660/6-115 1604010626 Armature for Angle Grinders Bosch GWS660/6-115 €46.09
3/50
 photo_cameraImage coming soon 1606610141 Fan €4.77
6
 Power Cord Grommet Ø6,5-Ø6,9x95 MM for Power Tools Bosch 2600703012 Power Cord Grommet Ø6,5-Ø6,9x95 MM for Power Tools Bosch €2.53
7
 Fastening Clamp for Angle grinder Bosch GWS 6-115 1601302017 Fastening Clamp for Angle grinder Bosch GWS 6-115 €1.09
9
 photo_cameraImage coming soon 2601116002 Manufacturer's nameplate €3.57
12
 Suppression Filter for Random Orbital Sander Bosch GEX 150 TURBO 2609120008 Suppression Filter for Random Orbital Sander Bosch GEX 150 TURBO €13.96
13
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
14
 Bearing for Angle Grinder and Sander Bosch GWS-GEX 150 Turbo 1619P11240 Bearing for Angle Grinder and Sander Bosch GWS-GEX 150 Turbo €4.42
16
 Carbon Brushes Holder for Angle Grinders Bosch GWS6-115 1604336035 Carbon Brushes Holder for Angle Grinders Bosch GWS6-115 €4.00
17
 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 1604652013 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 €2.07
18
 photo_cameraImage coming soon 1604611031 Compression Spring €2.46
21
 photo_cameraImage coming soon 2605806438 Gear Housing €39.78
22
 Adjusting Slide for Angle Grinders Bosch GWS 6-115-GWS 660 1602319009 Adjusting Slide for Angle Grinders Bosch GWS 6-115-GWS 660 €2.75
23
 Switch Handle BLACK for Angle Grinder and Sander Bosch GWS-GEX 1602026068 Switch Handle BLACK for Angle Grinder and Sander Bosch GWS-GEX €2.89
25
 photo_cameraImage coming soon 2605500167 Housing Cover €9.98
26
 Rubber Bearing Sleeve for Angle Grinder Bosch GWS 6-115 E 1600502024 Rubber Bearing Sleeve for Angle Grinder Bosch GWS 6-115 E €2.26
27
 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 1600206025 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 €2.28
29
 photo_cameraImage coming soon 1600591023 Air-Deflector Ring €3.61
30
 photo_cameraImage coming soon 2601328071 Air-Deflector Ring €2.39
37
 Cover Disc for Angle Grinder GWS 1600100033 Cover Disc for Angle Grinder GWS €3.03
39
 photo_cameraImage coming soon 2609110149 Bevel Gear €7.54
41
 photo_cameraImage coming soon 2600917003 Needle bearing Ø8x8 MM €2.96
45
 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 2915011007 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 €1.32
47
 photo_cameraImage coming soon 2609110052 Special Screw €1.47
50
 photo_cameraImage coming soon 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H €1.68
51
 photo_cameraImage coming soon 1607233167 Speed governor 230-240V €54.77
90
 photo_cameraImage coming soon 2607329147 Suppression Filter €9.98
110
 photo_cameraImage coming soon 2601119008 Reference Plate €3.57
112
 photo_cameraImage coming soon 1600136016 Shim 0,1 MM THICK €2.45
114
 photo_cameraImage coming soon 2601990030 Changeover Lever €7.12
115
 photo_cameraImage coming soon 2604601089 Compression Spring €1.44
124
 photo_cameraImage coming soon 2600206019 Friction Ring €5.45
125
 Backing Pad for Sander BOSCH GEX 150 AC 2608601106 Backing Pad for Sander BOSCH GEX 150 AC €48.66
127
 photo_cameraImage coming soon 2910130240 Hex Socket Head Cap Screw DIN 7984-M8x18-8.8 €1.44
128
 photo_cameraImage coming soon 2601015087 Seal €27.35
129
 Thread-form. Tap. Screw M4x10 for Random Orb. Sander Bosch GEX 125 AC 2603435042 Thread-form. Tap. Screw M4x10 for Random Orb. Sander Bosch GEX 125 AC €1.54
131
 photo_cameraImage coming soon 2601328072 Suction Tube €20.74
133
 photo_cameraImage coming soon 2910141203 Hex Socket Head Cap Screw DIN 912-M6x25-8.8 €1.44
135
 photo_cameraImage coming soon 2604421013 Torx Flat-Head Screw €1.44
136
 photo_cameraImage coming soon 2600015008 Seal ring €2.39
137
 photo_cameraImage coming soon 3600210101 O-Ring 5,0x1,0 MM €1.44
140
 photo_cameraImage coming soon 2603102010 Crank Rod €12.74
142
 photo_cameraImage coming soon 2608012010 Counterweight €8.31
143
 photo_cameraImage coming soon 2602026115 Control Lever RED €5.64
655
 photo_cameraImage coming soon 1907950006 Offset Screwdriver DIN 911-SW5 BLACK €5.40
656
 photo_cameraImage coming soon 2602025067 Auxiliary Handle M10, Ø32,5x105 MM €3.67
657
 photo_cameraImage coming soon 1619P06843 Key Holder €1.99
804
 photo_cameraImage coming soon 1607200146 Switch €9.98
805
 photo_cameraImage coming soon 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm  €16.29
810
 Carbon Brushes for Angle Grinders Bosch GWS660/6-115 1607014145 Carbon Brushes for Angle Grinders Bosch GWS660/6-115 €11.05
819
 photo_cameraImage coming soon 2606316902 Pinion €104.49
821
 photo_cameraImage coming soon 2606319903 Toothed Belt Wheel €177.49
832
 photo_cameraImage coming soon 3607031724 Assembly Of Service Parts €5.45
838
 Bosch GEX 150 TURBO Gear Housing 2605806890 Bosch GEX 150 TURBO Gear Housing €193.95 €174.55 -10%
844
 photo_cameraImage coming soon 2602026106 Cap-Handle €20.74
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

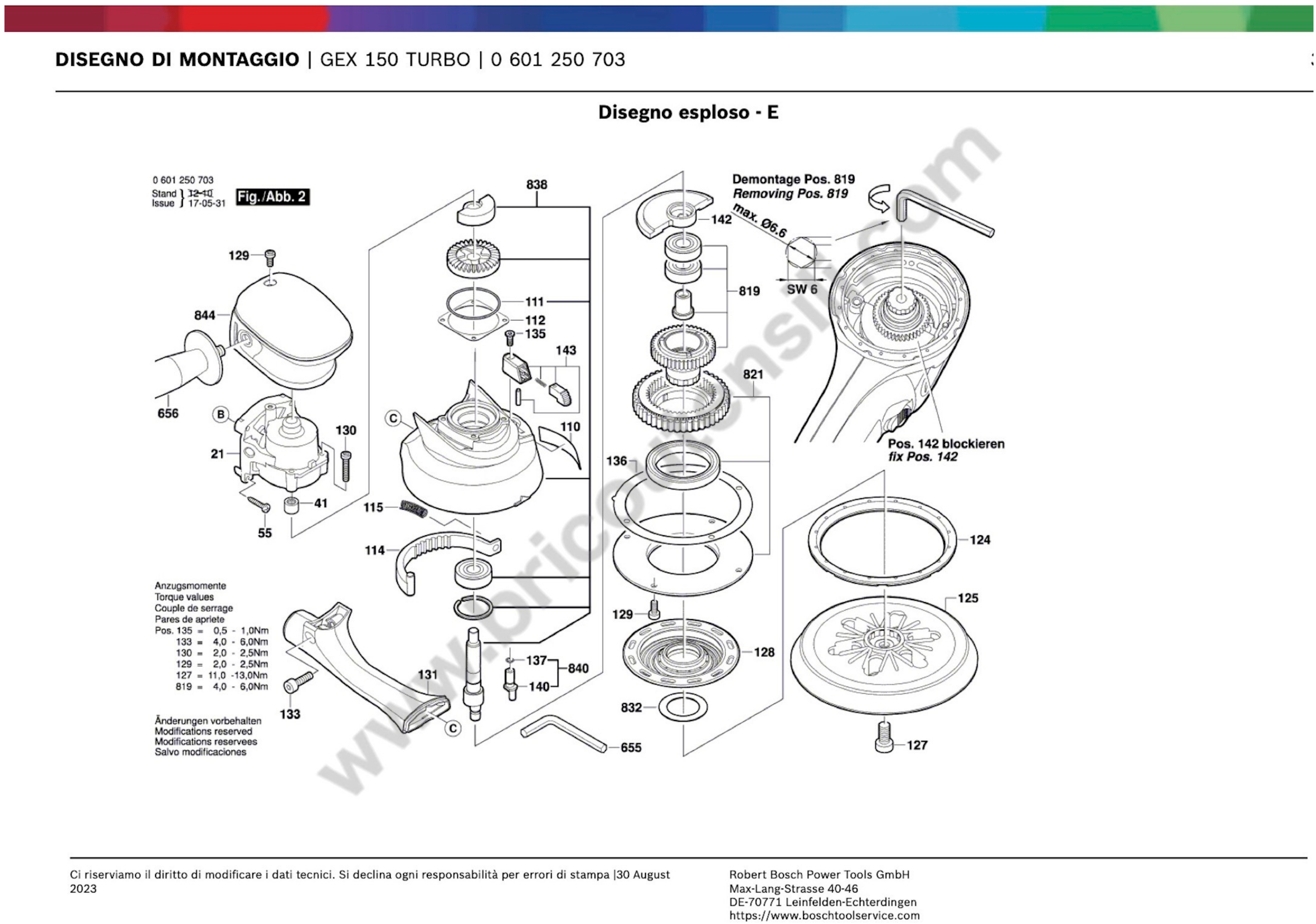

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
21
 photo_cameraImage coming soon 2605806438 Gear Housing €39.78
41
 photo_cameraImage coming soon 2600917003 Needle bearing Ø8x8 MM €2.96
110
 photo_cameraImage coming soon 2601119008 Reference Plate €3.57
112
 photo_cameraImage coming soon 1600136016 Shim 0,1 MM THICK €2.45
114
 photo_cameraImage coming soon 2601990030 Changeover Lever €7.12
115
 photo_cameraImage coming soon 2604601089 Compression Spring €1.44
124
 photo_cameraImage coming soon 2600206019 Friction Ring €5.45
125
 Backing Pad for Sander BOSCH GEX 150 AC 2608601106 Backing Pad for Sander BOSCH GEX 150 AC €48.66
127
 photo_cameraImage coming soon 2910130240 Hex Socket Head Cap Screw DIN 7984-M8x18-8.8 €1.44
128
 photo_cameraImage coming soon 2601015087 Seal €27.35
129
 Thread-form. Tap. Screw M4x10 for Random Orb. Sander Bosch GEX 125 AC 2603435042 Thread-form. Tap. Screw M4x10 for Random Orb. Sander Bosch GEX 125 AC €1.54
131
 photo_cameraImage coming soon 2601328072 Suction Tube €20.74
133
 photo_cameraImage coming soon 2910141203 Hex Socket Head Cap Screw DIN 912-M6x25-8.8 €1.44
135
 photo_cameraImage coming soon 2604421013 Torx Flat-Head Screw €1.44
136
 photo_cameraImage coming soon 2600015008 Seal ring €2.39
137
 photo_cameraImage coming soon 3600210101 O-Ring 5,0x1,0 MM €1.44
140
 photo_cameraImage coming soon 2603102010 Crank Rod €12.74
142
 photo_cameraImage coming soon 2608012010 Counterweight €8.31
143
 photo_cameraImage coming soon 2602026115 Control Lever RED €5.64
655
 photo_cameraImage coming soon 1907950006 Offset Screwdriver DIN 911-SW5 BLACK €5.40
656
 photo_cameraImage coming soon 2602025067 Auxiliary Handle M10, Ø32,5x105 MM €3.67
819
 photo_cameraImage coming soon 2606316902 Pinion €104.49
821
 photo_cameraImage coming soon 2606319903 Toothed Belt Wheel €177.49
832
 photo_cameraImage coming soon 3607031724 Assembly Of Service Parts €5.45
838
 Bosch GEX 150 TURBO Gear Housing 2605806890 Bosch GEX 150 TURBO Gear Housing €193.95 €174.55 -10%
844
 photo_cameraImage coming soon 2602026106 Cap-Handle €20.74

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Parts for Random Orbital Sander GEX 150 TURBO

We are BOSCH original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Random Orbital Sander GEX 150 TURBO - 0601250703.

In the following table, look for the model of the Orbital Sander and the respective parts of the code.
Bosch GEX 150 TURBO - 0601250703

GEX 150 TURBO/0 601 250 703
# Part Num. Description
1 1619P09772 Motor Housing
2 1604220328 Field 220-240V
3 1604010626 Armature 220-240V
3/50 1606610141 Fan
6 2600703012 Grommet Ø6,5-Ø6,9x95 MM
7 1601302017 Fastening Clamp
9 2601116002 Manufacturer's nameplate
12 2609120008 Suppression Filter
13 2600905032 Deep-Groove Ball Bearing 7x19x6
14 1619P11240 Deep-Groove Ball Bearing
16 1604336035 Brush Holder
17 1604652013 Spiral Spring
18 1604611031 Compression Spring
21 2605806438 Gear Housing
22 1602319009 Adjusting Slide
23 1602026068 Switch Handle BLACK
25 2605500167 Housing Cover
26 1600502024 Intermediate Ring
27 1600206025 Rubber Ring
29 1600591023 Air-Deflector Ring
30 2601328071 Air-Deflector Ring
37 1600100033 Cover Disc
39 2609110149 Bevel Gear
41 2600917003 Needle bearing Ø8x8 MM
45 2915011007 Hex Nut DIN 934-M6-8-A
47 2609110052 Special Screw
48 1619P02537 Screw and washer assembly
50 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H
51 1607233167 Speed governor 230-240V
55 2910611022 Tapping Screw DIN 7981-ST3,9x25-C-H
57 2910641081 Oval-Head Screw DIN7985-M3,5x5-4.8-H
90 2607329147 Suppression Filter
110 2601119008 Reference Plate
111 3600210136 O-Ring 42,0x1,0 MM
112 1600136016 Shim 0,1 MM THICK
1600136017 Shim 0,2 MM THICK
114 2601990030 Changeover Lever
115 2604601089 Compression Spring
124 2600206019 Friction Ring
125 2608601106 Backing Pad Ø150
127 2910130240 Hex Socket Head Cap Screw DIN 7984-M8x18-8.8
128 2601015087 Seal
129 2603435042 Thread-forming tap. Screw
130 2603435083 Thread-forming tap. Screw
131 2601328072 Suction Tube
133 2910141203 Hex Socket Head Cap Screw DIN 912-M6x25-8.8
135 2604421013 Torx Flat-Head Screw
136 2600015008 Seal ring
137 3600210101 O-Ring 5,0x1,0 MM
140 2603102010 Crank Rod
142 2608012010 Counterweight
143 2602026115 Control Lever RED
655 1907950006 Offset Screwdriver DIN 911-SW5 BLACK
656 2602025067 Auxiliary Handle M10, Ø32,5x105 MM
657 1619P06843 Key Holder
804 1607200146 Switch
805 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm
808 2601116001 Nameplate
810 1607014145 Carbon-Brush Set
819 2606316902 Pinion
821 2606319903 Toothed Belt Wheel
832 3607031724 Assembly Of Service Parts
838 2605806890 Gear Housing
840 2603102012 Crank Rod
844 2602026106 Cap-Handle
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GEX 150 TURBO - 0601250703
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Bosch GEX 150 TURBO Drawing

Bosch GEX 150 TURBO Drawing

Download (688.86KB)

You might also like

Stator for Angle Grinder and Sander Bosch GWS-GEX 150 Turbo
Bosch SKU: 1604220328
Stator for Angle Grinder and Sander Bosch GWS-GEX 150 Turbo
Stator for Angle Grinder and Sander Bosch GWS-GEX 150 Turbo Original replacement part Bosch, 230V Stator (FIELDS) for Angle Grinder and Sanders Bosch GWS-GEX 150 Turbo. Part for the following products: - Angle Grinder GWS 6-115 E/0...
AVAILABLE €30.35
Details
Rubber Bearing Sleeve for Angle Grinder Bosch GWS 6-115 E
Bosch SKU: 1600502024
Rubber Bearing Sleeve for Angle Grinder Bosch GWS 6-115 E
Rubber Bearing Sleeve for Angle Grinder Bosch GWS 6-115 E Genuine part Bosch, Rubber Bearing Sleeve for Angle Grinders GWS 6-115 E - GWS 660 - EHS 6-115 - 1375. Part for the following products: - Orbital Sander GEX 150 TURBO/0 601 250...
AVAILABLE €2.26
Details
Bosch GEX 150 TURBO Gear Housing -10%
Bosch SKU: 2605806890
Bosch GEX 150 TURBO Gear Housing
Bosch GEX 150 TURBO Gear Housing Genuine part Bosch, Gear Housing for Random Orbital Sander GEX 150 TURBO - 0 601 250 703. Part for the following products: - Random Orbital Sander GEX 150 TURBO - 0601250703...
Last items in stock €174.55 €193.95
Details
Comments (0)
