Bosch

Bosch Spare Parts for Angle Polisher GPO 12 E/0 601 366 703

SKU: Bosch GPO 12 E - 0601366703
€38.38
VAT included

Bosch Spare Parts for Angle Polisher GPO 12 E/0 601 366 703

Bosch genuine replacement parts for to replace broken parts for to fix Angle Polisher Bosch GPO 12 E - 0601366703.

Bosch GPO 12 E - 0601366703

Bosch Spare Parts for Angle Polisher GPO 12 E/0 601 366 703
  • Bosch Spare Parts for Angle Polisher GPO 12 E/0 601 366 703
  • Bosch Spare Parts for Angle Polisher GPO 12 E/0 601 366 703
Bosch

Bosch Spare Parts for Angle Polisher GPO 12 E/0 601 366 703

SKU: Bosch GPO 12 E - 0601366703 Condition: New
€38.38
VAT included

Bosch Spare Parts for Angle Polisher GPO 12 E/0 601 366 703

Bosch genuine replacement parts for to replace broken parts for to fix Angle Polisher Bosch GPO 12 E - 0601366703.

Bosch GPO 12 E - 0601366703

settings 71 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
57 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

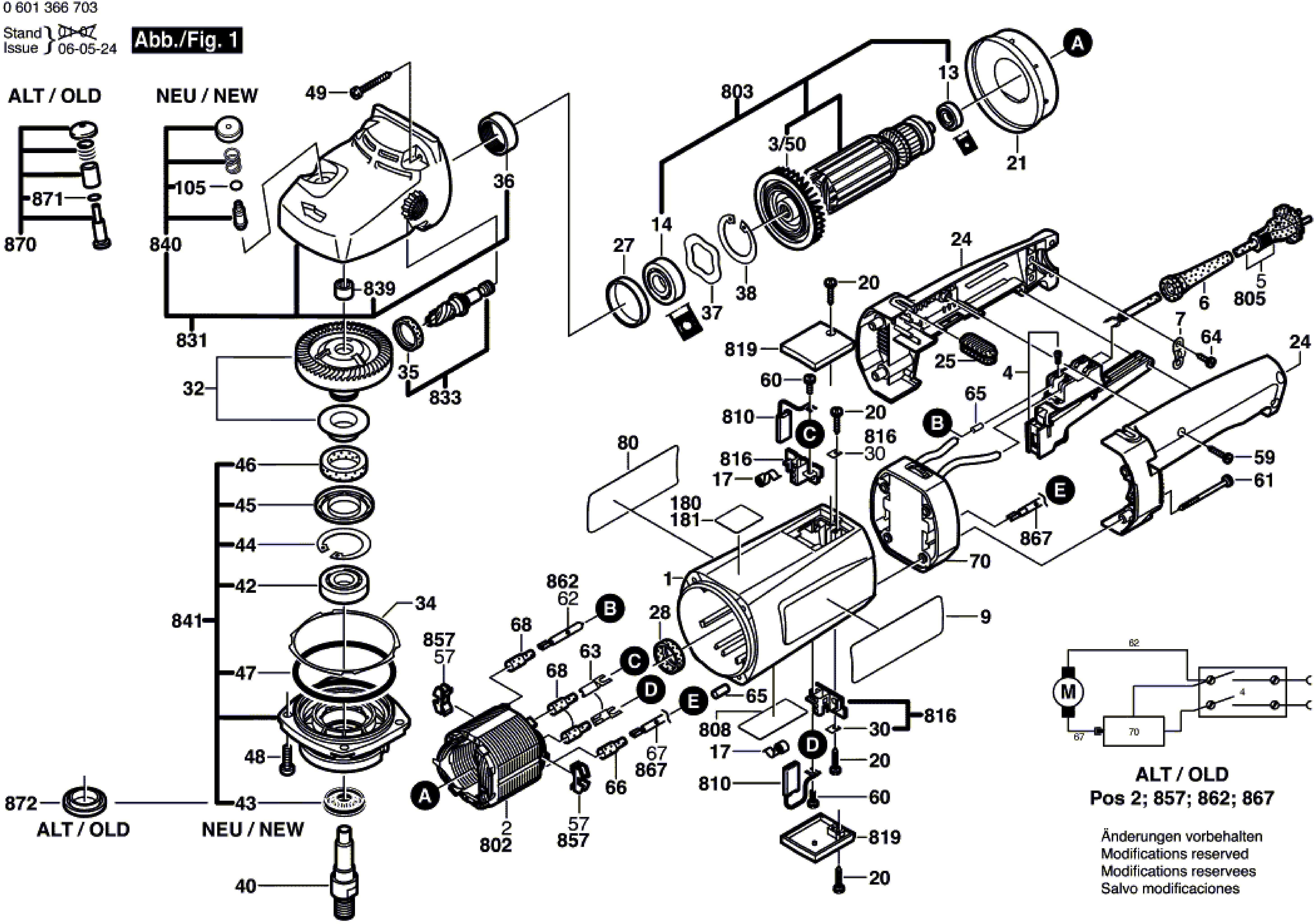

Esploso pagina 1
Pos. Item Price Buy
1
 photo_cameraImage coming soon 3605108129 Motor Housing BLUE €34.12
6
 photo_cameraImage coming soon 3600703011 Grommet Ø9,2-Ø12x120 MM €2.38
7
 photo_cameraImage coming soon 1601302014 Fastening Clamp €1.40
13
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
14
 photo_cameraImage coming soon 3600905131 Deep-Groove Ball Bearing 9x26x8 €11.04
17
 Spiral Spring for Percussion Drill Bosch GBM 13 1604652006 Spiral Spring for Percussion Drill Bosch GBM 13 €1.54
20
 photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
21
 photo_cameraImage coming soon 3600421002 Air-Deflector Ring €2.80
25
 photo_cameraImage coming soon 1602388029 Storage Ledge BLACK €2.10
27
 photo_cameraImage coming soon 1600206026 Intermediate Ring €1.40
28
 Intermediate Ring for Circular Saw Bosch PKS 54 1600502011 Intermediate Ring for Circular Saw Bosch PKS 54 €1.53
30
 photo_cameraImage coming soon 1601030022 Tab Washer €1.40
32
 photo_cameraImage coming soon 3606333052 Crown Gear Z=59 €88.71
34
 Shim mm 0.15 for Angle Grinders Bosch GWS 20-230 1600190020 Shim mm 0.15 for Angle Grinders Bosch GWS 20-230 €2.04
34
 Shim mm 0.3 for Angle Grinders Bosch GWS 20-230 1600190021 Shim mm 0.3 for Angle Grinders Bosch GWS 20-230 €3.10
34
 Shim mm 0.1 for Angle Grinders Bosch GWS 20-230 1600190022 Shim mm 0.1 for Angle Grinders Bosch GWS 20-230 €2.04
34
 photo_cameraImage coming soon 1600190037 Shim 0,2 MM THICK €1.34
35
 photo_cameraImage coming soon 3600290039 Seal ring €5.48
36
 photo_cameraImage coming soon 3600200026 Threaded Ring €11.04
37
 photo_cameraImage coming soon 1600150026 Spring Washer €2.32
38
 photo_cameraImage coming soon 1600119009 Spring retaining ring €1.40
40
 photo_cameraImage coming soon 1603523100 Grinding Spindle M14, SW17 €19.68
42
 photo_cameraImage coming soon 3600905134 Deep-Groove Ball Bearing €14.02
43
 photo_cameraImage coming soon 1600290036 Seal ring BLACK €2.77
44
 Spring Retaining Ring for Angle Grinders Bosch GWS 20-21-22-230 1600119010 Spring Retaining Ring for Angle Grinders Bosch GWS 20-21-22-230 €2.04
45
 photo_cameraImage coming soon 1600290019 Retaining snap ring €2.14
46
 Felt Washer for Angle Grinder Bosch GWS 21-230 1600205034 Felt Washer for Angle Grinder Bosch GWS 21-230 €2.04
47
 O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230 1600210033 O-Ring 79,0x1,78 mm for Angle Grinder Bosch GWS 20-230 €2.04
49
 Tapping Screw DIN 7981-4,8x38-C-Z-ST for Angle Grinder Bosch 2912401038 Tapping Screw DIN 7981-4,8x38-C-Z-ST for Angle Grinder Bosch €1.28
57
 photo_cameraImage coming soon 3601025003 Wire Guide €1.40
61
 photo_cameraImage coming soon 3603435043 Tapping Screw €1.40
62
 photo_cameraImage coming soon 3604438028 Connecting Cable €4.52
63
 photo_cameraImage coming soon 1604477001 Blade terminal €1.40
64
 photo_cameraImage coming soon 2603490021 Torx Oval-Head Screw 4x12 €1.39
65
 photo_cameraImage coming soon 1900452003 End Splice DIN 46 228-A2,5-7 €1.40
66
 photo_cameraImage coming soon 3600707022 Shrinkable Tube €3.47
67
 photo_cameraImage coming soon 3604438026 Connecting Cable €5.29
68
 photo_cameraImage coming soon 3600707022 Shrinkable Tube €3.47
70
 photo_cameraImage coming soon 3607218003 Speed governor 220-240V €81.72
105
 photo_cameraImage coming soon 1600210045 O-Ring 8,0x1,0 MM €2.14
650/20
 photo_cameraImage coming soon 2603481001 Knurled Thumbscrew M 14 €2.32
650
 photo_cameraImage coming soon 3602025017 Auxiliary Handle €11.04
651
 photo_cameraImage coming soon 9618089612 Handle Cover €13.82
805
 photo_cameraImage coming soon 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €36.70
808
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61
810
 photo_cameraImage coming soon 3607014012 Carbon-Brush Set €31.62
816
 photo_cameraImage coming soon 1607000189 Brush Holder €6.25
819
 photo_cameraImage coming soon 3605500063 Sealing cap BLUE €3.70
831
 photo_cameraImage coming soon 3607000109 Bearing Flange €101.45
833
 photo_cameraImage coming soon 3607000079 Bevel Gear Z=6 €60.65
839
 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 2600910001 Needle-Roller Bearing HK1010 for Angle Grinders Bosch GWS 20-230 €5.74
840
 photo_cameraImage coming soon 1607000354 Push-Button €8.15
841
 photo_cameraImage coming soon 3607000108 Bearing Flange €43.51
857
 photo_cameraImage coming soon 1601025001 Wire Guide €1.40
870
 Push Button Set for Angle Grinder Bosch GWS 20-230 1607000206 Push Button Set for Angle Grinder Bosch GWS 20-230 €13.62
871
 photo_cameraImage coming soon 1600210034 O-Ring 4,0x1,0 MM €1.40
872
 photo_cameraImage coming soon 1600290020 Seal ring €2.10

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Angle Polisher GPO 12 E/0 601 366 703

Bosch genuine replacement parts for to replace broken parts for to fix Angle Polisher Bosch GPO 12 E - 0601366703.

In the following table, look for the model of the Angle Polisher and the respective parts of the code.
Bosch GPO 12 E - 0601366703
Angle Polisher GPO 12 E/0 601 366 703
# Part Num. Description
1 3605108129 Motor Housing BLUE
3/50 1606610126 Fan
4 1607200080 Switch
6 3600703011 Grommet Ø9,2-Ø12x120 MM
7 1601302014 Fastening Clamp
9 3601110188 Manufacturer's nameplate
13 2600905032 Deep-Groove Ball Bearing 7x19x6
14 3600905131 Deep-Groove Ball Bearing 9x26x8
17 1604652006 Spiral Spring
20 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
21 3600421002 Air-Deflector Ring
24 3605132062 Handle BLACK
25 1602388029 Storage Ledge BLACK
27 1600206026 Intermediate Ring
28 1600502011 Intermediate Ring
30 1601030022 Tab Washer
32 3606333052 Crown Gear Z=59
34 1600190020 Shim 0,15 MM THICK
34 1600190021 Shim 0,3 MM THICK
34 1600190022 Shim 0,1 MM THICK
34 1600190037 Shim 0,2 MM THICK
35 3600290039 Seal ring
36 3600200026 Threaded Ring
37 1600150026 Spring Washer
38 1600119009 Spring retaining ring
40 1603523100 Grinding Spindle M14, SW17
42 3600905134 Deep-Groove Ball Bearing
43 1600290036 Seal ring BLACK
44 1600119010 Spring retaining ring
45 1600290019 Retaining snap ring
46 1600205034 Felt Washer
47 1600210033 O-Ring 79,0x1,78 MM
48 1603435076 Thread-forming tap. Screw
49 2912401038 Tapping Screw DIN 7981-4,8x38-C-Z-ST
57 3601025003 Wire Guide
59 2910211021 Tapping Screw DIN 7971-ST3,9x22-F
60 2910021118 Socket head cap screw DIN 84-AM4x8-8.8
61 3603435043 Tapping Screw
62 3604438028 Connecting Cable
63 1604477001 Blade terminal
64 2603490021 Torx Oval-Head Screw 4x12
65 1900452003 End Splice DIN 46 228-A2,5-7
66 3600707022 Shrinkable Tube
67 3604438026 Connecting Cable
68 3600707022 Shrinkable Tube
70 3607218003 Speed governor 220-240V
80 3601110189 Reference Plate CAUTION
105 1600210045 O-Ring 8,0x1,0 MM
650 3602025017 Auxiliary Handle
650/20 2603481001 Knurled Thumbscrew M 14
651 9618089612 Handle Cover
740 1601329013 Protecting Cover
766 2607001190 Parts Set
802 3604220135 Field 220-230V
803 3607031329 Armature 220-240V
805 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
808 1601106032 Nameplate 26x52 MM
810 3607014012 Carbon-Brush Set
816 1607000189 Brush Holder
819 3605500063 Sealing cap BLUE
831 3607000109 Bearing Flange
833 3607000079 Bevel Gear Z=6
839 2600910001 Needle bearing Ø14 MM
840 1607000354 Push-Button
841 3607000108 Bearing Flange
857 1601025001 Wire Guide
862 3604438000 Connecting Cable L=235 MM BLUE
867 1604431002 Connecting Cable
870 1607000206 Push-Button BLACK
871 1600210034 O-Ring 4,0x1,0 MM
872 1600290020 Seal ring
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GPO 12 E - 0601366703
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GPO 12 E

Diagram Bosch GPO 12 E

Download (77.34KB)
