Bosch genuine replacement parts for to replace broken parts for to fix Angle Grinder GWS 21-230 - 0601357103.

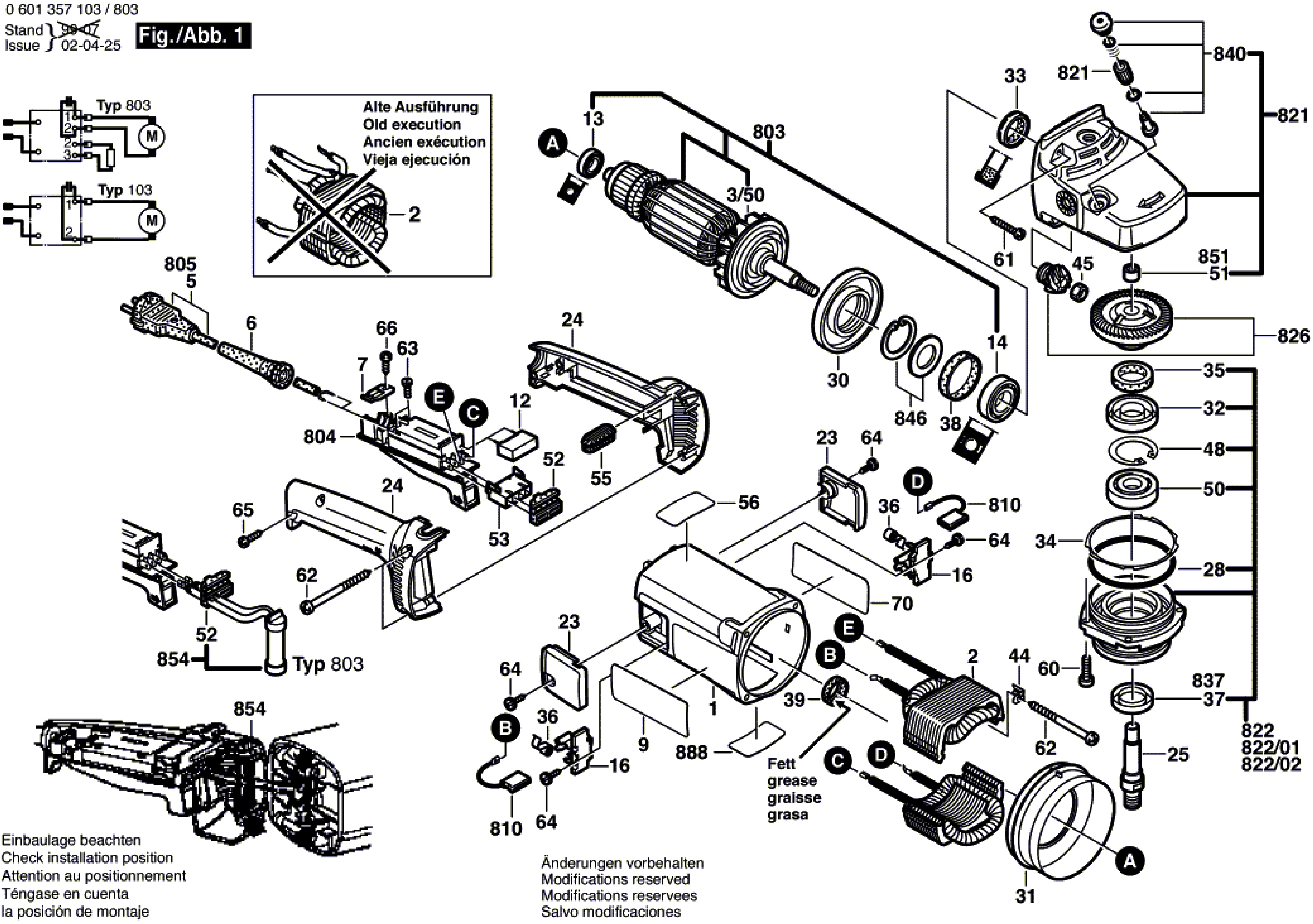

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
| Angle Grinder GWS 21-230/0 601 357 103 | ||
| # | Part NUm. | Description |
| 1 | 1605108144 | Motor Housing BLUE |
| 2 | 1604220380 | Field 220-240V |
| 3/50 | 1606610127 | Fan |
| 6 | 1600703023 | Grommet Ø 10,5-Ø11,0x100 MM |
| 7 | 1601302018 | Fastening Clamp |
| 9 | 1601118333 | Manufacturer's nameplate |
| 12 | 1607328035 | Suppression Filter |
| 13 | 1600905011 | Deep-Groove Ball Bearing 8x22x7 |
| 14 | 1600905025 | Deep-Groove Ball Bearing 10x35x11 |
| 16 | 1604336021 | Brush Holder |
| 23 | 1605500150 | Sealing cap BLACK |
| 24 | 1605132117 | Handle BLUE |
| 25 | 1603523100 | Grinding Spindle M14, SW17 |
| 28 | 1600210033 | O-Ring 79,0x1,78 MM |
| 30 | 1600591010 | Air-Deflector Ring |
| 31 | 1600591011 | Air-Deflector Ring |
| 32 | 1600290019 | Retaining snap ring |
| 33 | 1600290013 | Rotary shaft lip seal 18,7 MM |
| 33 | 1600290064 | Rotary shaft lip seal 16 MM BLUE |
| 34 | 1600190020 | Shim 0,15 MM THICK |
| 34 | 1600190021 | Shim 0,3 MM THICK |
| 34 | 1600190022 | Shim 0,1 MM THICK |
| 35 | 1600205034 | Felt Washer |
| 36 | 1604652015 | Spiral Spring |
| 37 | 1600290036 | Seal ring BLACK |
| 38 | 1600206020 | Rubber Ring 7 MM WIDE |
| 39 | 1600206030 | Rubber Ring |
| 44 | 1601334008 | Holding Bracket |
| 45 | 1603300019 | Hex Nut M10, SW14 |
| 48 | 1600119010 | Spring retaining ring |
| 50 | 3600905134 | Deep-Groove Ball Bearing |
| 51 | 1600200031 | Plain bearing Ø14 MM |
| 52 | 1602388027 | Cable routing |
| 53 | 1605190038 | Socket Housing |
| 55 | 1602388029 | Storage Ledge BLACK |
| 60 | 1603435023 | Thread-forming tap. Screw TT M5x18 MM |
| 61 | 2912401038 | Tapping Screw DIN 7981-4,8x38-C-Z-ST |
| 62 | 1603435024 | Tapping Screw C4,8x63 MM |
| 63 | 1603410014 | Pan head screw M4x10 MM |
| 64 | 1603435042 | Self-Cutting Screw St3,9x12 |
| 65 | 2912401020 | Tapping Screw DIN 7981-3,9x19-C-Z-ST |
| 66 | 2910211019 | Tapping Screw DIN 7971-ST3,9x16-F |
| 70 | 1601110984 | Manufacturer's nameplate WORKING INSTRUCTIONS |
| 650/30/20 | 1600210039 | O-Ring 20,35x1,78 MM |
| 700 | 1607000251 | Parts Set Ø230 MM |
| 700/10 | 1605510223 | Protective Cover Ø230 MM |
| 700/20 | 1608135003 | Guide Block |
| 701 | 1608135003 | Guide Block |
| 702 | 1605510180 | Protective Cover Ø230 MM |
| 703 | 1607000247 | Strap-Shaped Handle |
| 703/20 | 2603450007 | Hex Screw M14x16x1,5 MM |
| 704 | 1605510181 | Protective Cover Ø110 MM |
| 730 | 1608601006 | Backing Pad Ø180 MM |
| 730/20 | 1603345004 | Round Nut M14 |
| 730/30 | 2916011022 | Plain Washer DIN 125-A15-ST |
| 740 | 1601329013 | Protecting Cover |
| 750/10 | 2602025075 | Auxiliary Handle M14x1,5 MM BLACK |
| 750/20 | 1607950048 | Pin-Type Face-Wrench |
| 750/20/30 | 2910281244 | Round-Head Bolt DIN 603-M 8x25 |
| 750/20/40 | 2915191007 | Wing Nut DIN 315-M8-GT-C |
| 750/20/50 | 2600100041 | Plain Washer DIN 315-M8-GT-C |
| 750/20/60 | 1604643003 | Compression Spring |
| 750/30 | 1605703099 | Clamping-Flange Ø22,2x42 MM |
| 750/40 | 1603340040 | Clamping Nut M14 |
| 751 | 1605510223 | Protective Cover Ø230 MM |
| 763 | 1600793007 | Suction Bend Ø 35 MM |
| 764 | 1607950004 | Pin-Type Face-Wrench |
| 770 | 1603340027 | Fast Locking Flange M14, SDS-CLIC |
| 803 | 1604011148 | Armature 230-240V |
| 804 | 1607200103 | Switch |
| 805 | 1607000228 | Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F |
| 810 | 1607014171 | Carbon-Brush Set |
| 821 | 1607000920 | Gear Housing |
| 822 | 1607000985 | Bearing Flange Ø230 MM |
| 822/01 | 1607000932 | Bearing Flange Ø230 MM BLACK |
| 822/02 | 1607000922 | Bearing Flange Ø 230 MM SILVER |
| 826 | 1607000382 | Bevel Gear Set |
| 837 | 1600290020 | Seal ring |
| 840 | 1607000206 | Push-Button BLACK |
| 846 | 1607000C3E | Retaining Washer |
| 851 | 2600910001 | Needle bearing Ø14 MM |
| 888 | 1601106032 | Nameplate 26x52 MM |
