Bosch Spare Parts for Demolition Hammer SDS-Max GSH 27

SKU: Bosch GSH 27 - 0611304103
€2.24
VAT included

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 27

Bosch genuine spare parts or replacement parts for to repair Demolition Hammer GSH 27 - 0611304103.

Bosch GSH 27 - 0611304103
Bosch Spare Parts for Demolition Hammer SDS-Max GSH 27
  • Bosch Spare Parts for Demolition Hammer SDS-Max GSH 27
  • Bosch Spare Parts for Demolition Hammer SDS-Max GSH 27
  • Bosch Spare Parts for Demolition Hammer SDS-Max GSH 27

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 27

SKU: Bosch GSH 27 - 0611304103 Condition: New
€2.24
VAT included

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 27

Bosch genuine spare parts or replacement parts for to repair Demolition Hammer GSH 27 - 0611304103.

Bosch GSH 27 - 0611304103
settings 104 spare parts

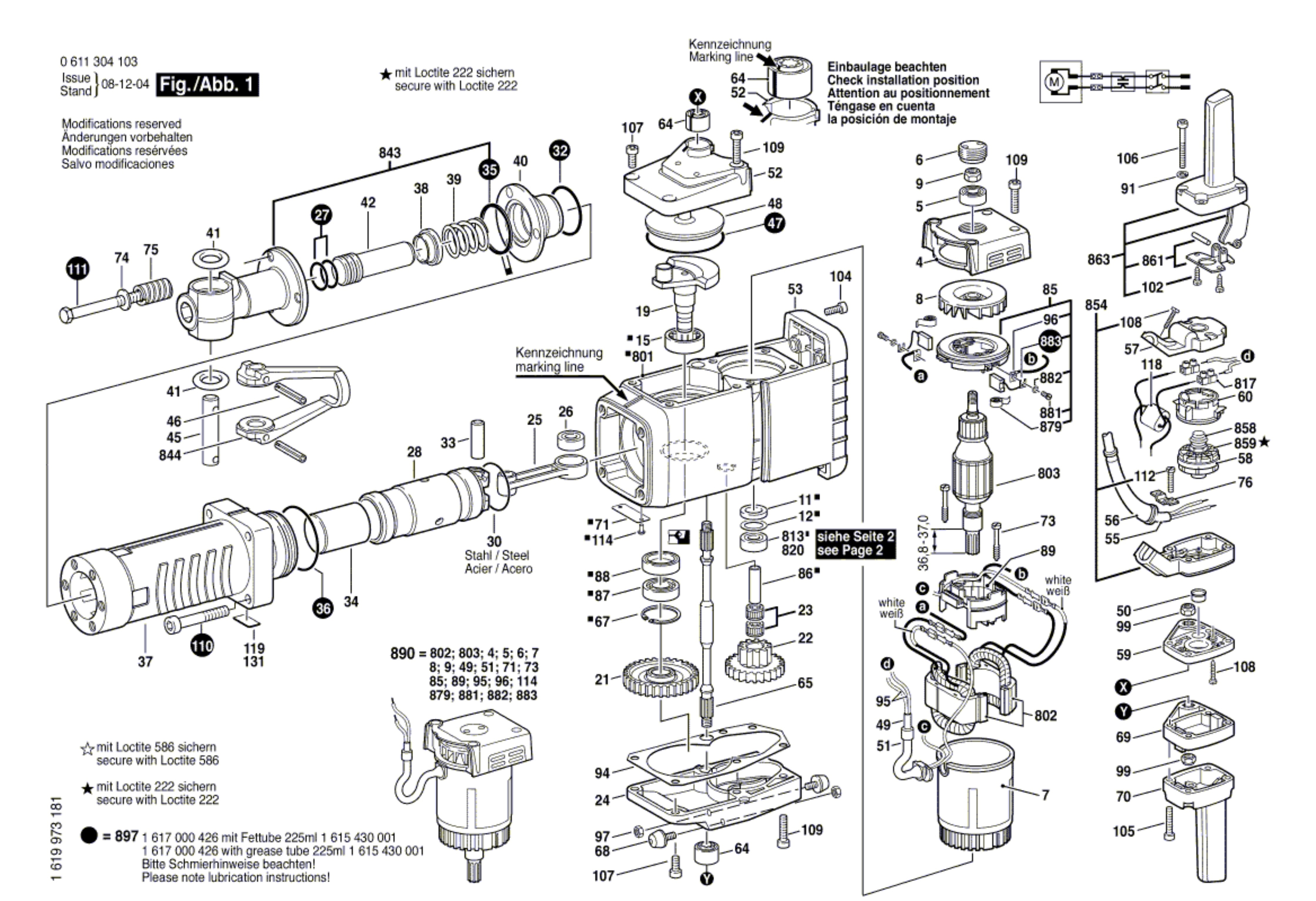

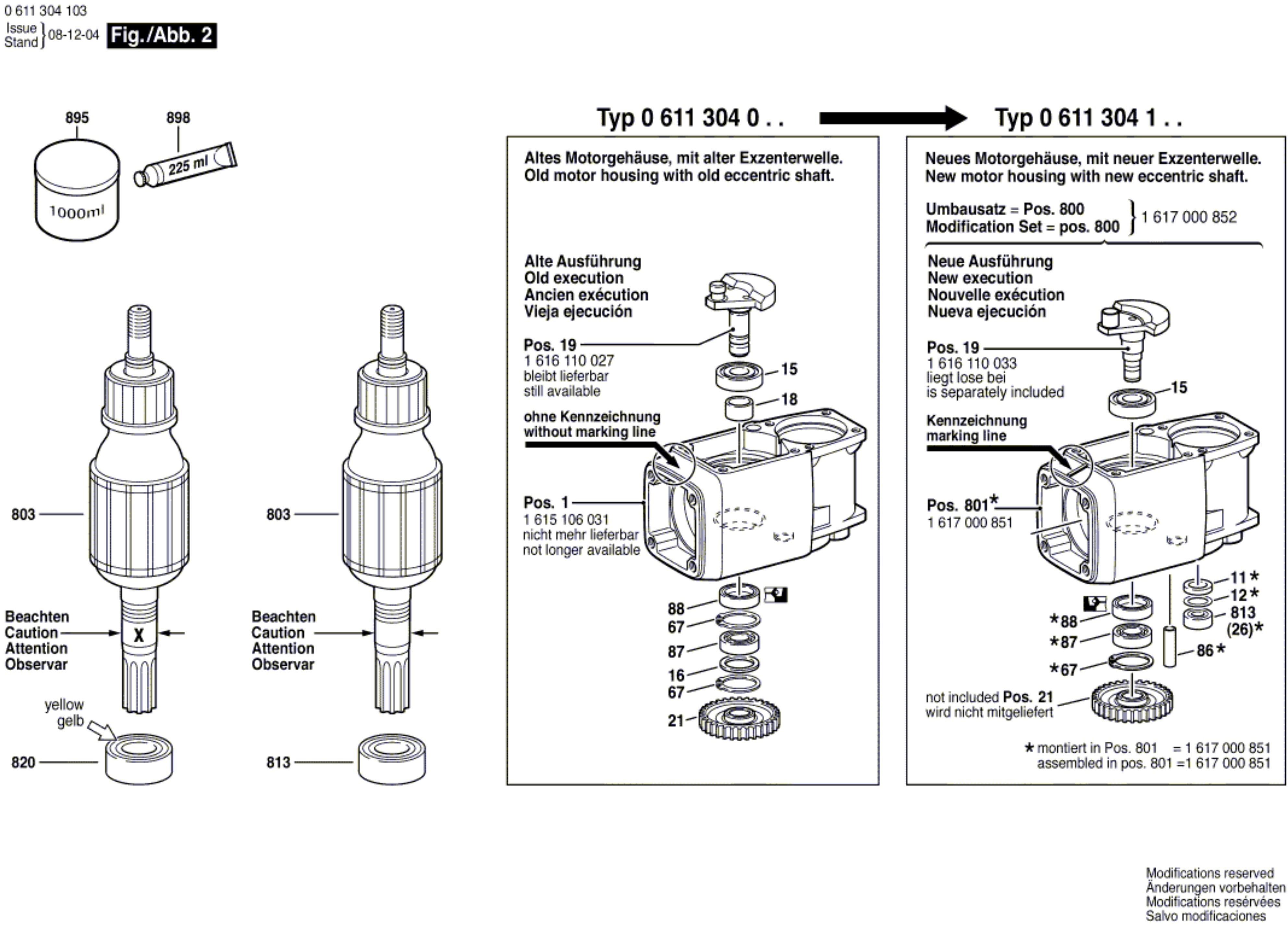

description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

87 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
4
photo_cameraImage coming soon 1615805068 Bearing cover €93.89
5
photo_cameraImage coming soon 1610900015 Deep-Groove Ball Bearing 12x37x12 €33.75
6
photo_cameraImage coming soon 1615500214 Screw Plug €30.29
7
photo_cameraImage coming soon 1615108104 Insulating Housing €43.97
8
photo_cameraImage coming soon 1616610089 Fan €23.03
9
photo_cameraImage coming soon 1613313000 Hex Nut DIN 985-M12X1 €3.40
11
photo_cameraImage coming soon 1610108013 Felt Washer €2.47
12
photo_cameraImage coming soon 1610102616 Supporting Disc 1,0 MM THICK €3.40
15
photo_cameraImage coming soon 1610910091 Needle-Roller Bearing D35xD47x17 €49.53
21
photo_cameraImage coming soon 1616318009 Cylindrical Gear Z=45 €168.49
22
photo_cameraImage coming soon 1616328036 Cylindrical Gear Z=19/52 €288.64
23
photo_cameraImage coming soon 1610913005 Needle-Roller Assembly €9.34
25
photo_cameraImage coming soon 1612001040 Connecting Rod €112.68
26
photo_cameraImage coming soon 1610910092 Needle-Roller Bearing D25xD37x17 €43.97
27
photo_cameraImage coming soon 1610210033 O-Ring 36,0x5,0 MM €2.02
28
photo_cameraImage coming soon 1618700043 Hammer Piston €407.67
30
photo_cameraImage coming soon 1614601039 Retaining ring Ø54,2xØ2,8 €1.34
32
photo_cameraImage coming soon 1900210156 O-Ring 60x4 MM €7.69
33
photo_cameraImage coming soon 3613101500 Piston Pin €6.59
34
photo_cameraImage coming soon 1618710039 Striker €84.49
35
photo_cameraImage coming soon 1610209007 Seal ring €7.69
36
photo_cameraImage coming soon 1900210166 O-Ring 80x3 MM €5.04
38
photo_cameraImage coming soon 1610220009 Guide Bushing €25.29
39
photo_cameraImage coming soon 1614619005 Compression Spring €5.96
40
photo_cameraImage coming soon 1615700017 Intermediate Flange €182.37
41
photo_cameraImage coming soon 1610210008 O-Ring 17,3x17,7 MM €6.47
42
photo_cameraImage coming soon 1613123003 Striker Pin €164.13
45
photo_cameraImage coming soon 1613103004 Locking Bolt €84.53
46
photo_cameraImage coming soon 2917760187 Slotted Spring Pin 8x55 DIN 1481 €2.89
47
photo_cameraImage coming soon 1900210172 O-Ring 100x3 MM €11.23
50
photo_cameraImage coming soon 3600421500 Protection Sleeve €2.89
52
photo_cameraImage coming soon 1615500324 Fan Cover €84.49
53
photo_cameraImage coming soon 1615500313 Covering hood €96.63
55
photo_cameraImage coming soon 1617000723 Power supply cord €45.86
56
photo_cameraImage coming soon 1610703055 Cord guard €11.23
57
photo_cameraImage coming soon 1615500212 Switch Cover €9.24
58
photo_cameraImage coming soon 1617200108 Switch €77.84
60
photo_cameraImage coming soon 1615500330 Insulating Cap €4.31
64
photo_cameraImage coming soon 1616334000 Rubber Torsion-Bar €38.83
65
photo_cameraImage coming soon 1613060005 Toothed Shaft €84.53
67
photo_cameraImage coming soon 2916660023 Spring retaining ring DIN 472 52x2MM €7.27
68
photo_cameraImage coming soon 1613465001 Rubber Buffer €6.47
69
photo_cameraImage coming soon 1615700042 Intermediate Plate €164.13
70
photo_cameraImage coming soon 1615132011 Handle €46.27
71
photo_cameraImage coming soon 161111A018 Nameplate €3.31
73
photo_cameraImage coming soon 1603435036 Tapping Screw 4,8x78 MM, TORX T-20 €1.91
74
photo_cameraImage coming soon 2916160009 Disc Spring DIN 2093-A25X12,2X1,5 €3.31
75
photo_cameraImage coming soon 3614640501 Compression Spring €13.92
76
photo_cameraImage coming soon 1611302011 Fastening Clamp €7.69
85
photo_cameraImage coming soon 1614336045 Brush Holder €49.53
86
photo_cameraImage coming soon 1610300033 Bearing bolt €26.31
87
photo_cameraImage coming soon 1610900027 Deep-Groove Ball Bearing 25x52x15 €38.83
88
photo_cameraImage coming soon 1610283016 Rotary shaft lip seal €11.23
89
photo_cameraImage coming soon 1610009008 Spacer €4.08
94
photo_cameraImage coming soon 1611015021 Sealing Plate €2.89
95
photo_cameraImage coming soon 1614431030 Connecting Cable €5.96
96
photo_cameraImage coming soon 1614448037 Connecting Cable €11.23
97
DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 2915011007 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 €1.32
99
photo_cameraImage coming soon 3613313500 Hex Nut DIN 985-10-M10x1 €3.40
104
photo_cameraImage coming soon 2910141201 Hex Socket Head Cap Screw DIN 912-M6x20-8.8 €2.89
105
photo_cameraImage coming soon 2914551188 Microencapsulated Screw DIN 912-M6X30-8.8 €3.40
107
photo_cameraImage coming soon 2910141242 Hex Socket Head Cap Screw DIN 912-M8x20-8.8 €1.91
108
Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
109
photo_cameraImage coming soon 2910141248 Hex Socket Head Cap Screw DIN 912-M8x35-8.8 €1.91
110
photo_cameraImage coming soon 2910141356 Hex Socket Head Cap Screw DIN-M12x70-8.8 €2.89
111
photo_cameraImage coming soon 2914550034 Microencapsulated Screw DIN EN-24014-M12x110-12.9 €3.31
112
Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE 2910211236 Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE €1.05
800
photo_cameraImage coming soon 1617000852 Modification Set 110-240V €1,200.35
801
photo_cameraImage coming soon 1617000851 Motor Housing €1,061.70
802
photo_cameraImage coming soon 1614220156 Field 220-240V €242.57
803
photo_cameraImage coming soon 1614011091 Armature 220-240V €554.53
813
photo_cameraImage coming soon 1610910035 Needle-Roller Bearing D20xD37x17 €28.21
817
photo_cameraImage coming soon 1901091110 Strip Terminal €1.34
844
photo_cameraImage coming soon 1618045026 Retaining Bracket €288.64
854
photo_cameraImage coming soon 1617000858 Switch Housing €46.27
858
photo_cameraImage coming soon 1610591001 Protective Cap €10.52
861
photo_cameraImage coming soon 1617000429 Fastening Plate €11.79
863
photo_cameraImage coming soon 1617000A10 Parts Set BLACK €63.79
879
photo_cameraImage coming soon 1614652001 Spiral Spring €4.08
881
photo_cameraImage coming soon 1613490005 Torx Oval-Head Screw M4x10 €2.89
883
photo_cameraImage coming soon 1617000425 Carbon-Brush Set €38.83
895
photo_cameraImage coming soon 1615430007 Grease 1000 ML €93.89
897
photo_cameraImage coming soon 1617000426 Wear and Tear Part Set €84.49
898
photo_cameraImage coming soon 1615430001 Grease Tube 225 ML €44.95
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
800
photo_cameraImage coming soon 1617000852 Modification Set 110-240V €1,200.35
895
photo_cameraImage coming soon 1615430007 Grease 1000 ML €93.89
898
photo_cameraImage coming soon 1615430001 Grease Tube 225 ML €44.95

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Demolition Hammer SDS-Max GSH 27

Bosch genuine spare parts or replacement parts for to repair Demolition Hammer GSH 27 - 0611304103.

In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
Bosch GSH 27 - 0611304103

Demolition Hammer GSH 27/0 611 304 103
# Part Num. Description
4 1615805068 Bearing cover
5 1610900015 Deep-Groove Ball Bearing 12x37x12
6 1615500214 Screw Plug
7 1615108104 Insulating Housing
8 1616610089 Fan
9 1613313000 Hex Nut DIN 985-M12X1
11 1610108013 Felt Washer
12 1610102616 Supporting Disc 1,0 MM THICK
15 1610910091 Needle-Roller Bearing D35xD47x17
19 1616110033 Eccentric Shaft
21 1616318009 Cylindrical Gear Z=45
22 1616328036 Cylindrical Gear Z=19/52
23 1610913005 Needle-Roller Assembly
24 1615500323 Gear Cover
25 1612001040 Connecting Rod
26 1610910092 Needle-Roller Bearing D25xD37x17
27 1610210033 O-Ring 36,0x5,0 MM
28 1618700043 Hammer Piston
30 1614601039 Retaining ring Ø54,2xØ2,8
32 1900210156 O-Ring 60x4 MM
33 3613101500 Piston Pin
34 1618710039 Striker
35 1610209007 Seal ring
36 1900210166 O-Ring 80x3 MM
37 1615806029 Guide Tube
38 1610220009 Guide Bushing
39 1614619005 Compression Spring
40 1615700017 Intermediate Flange
41 1610210008 O-Ring 17,3x17,7 MM
42 1613123003 Striker Pin
45 1613103004 Locking Bolt
46 2917760187 Slotted Spring Pin 8x55 DIN 1481
47 1900210172 O-Ring 100x3 MM
48 1610516007 Sealing cap
49 1610707000 Insulation Tubing
50 3600421500 Protection Sleeve
51 1610703019 Cord guard
52 1615500324 Fan Cover
53 1615500313 Covering hood
55 1617000723 Power supply cord
56 1610703055 Cord guard
57 1615500212 Switch Cover
58 1617200108 Switch
59 1615700041 Intermediate Plate
60 1615500330 Insulating Cap
64 1616334000 Rubber Torsion-Bar
65 1613060005 Toothed Shaft
67 2916660023 Spring retaining ring DIN 472 52x2MM
68 1613465001 Rubber Buffer
69 1615700042 Intermediate Plate
70 1615132011 Handle
71 161111A018 Nameplate
73 1603435036 Tapping Screw 4,8x78 MM, TORX T-20
74 2916160009 Disc Spring DIN 2093-A25X12,2X1,5
75 3614640501 Compression Spring
76 1611302011 Fastening Clamp
85 1614336045 Brush Holder
86 1610300033 Bearing bolt
87 1610900027 Deep-Groove Ball Bearing 25x52x15
88 1610283016 Rotary shaft lip seal
89 1610009008 Spacer
94 1611015021 Sealing Plate
95 1614431030 Connecting Cable
96 1614448037 Connecting Cable
97 2915011007 Hex Nut DIN 934-M6-8-A
99 3613313500 Hex Nut DIN 985-10-M10x1
102 2910211025 Tapping Screw DIN 7971-BZ4,2x13
104 2910141201 Hex Socket Head Cap Screw DIN 912-M6x20-8.8
105 2914551188 Microencapsulated Screw DIN 912-M6X30-8.8
106 2914551189 Microencapsulated Screw DIN 912-M6X55-8.8
107 2910141242 Hex Socket Head Cap Screw DIN 912-M8x20-8.8
108 2603490023 Torx Oval-Head Screw 4x20
109 2910141248 Hex Socket Head Cap Screw DIN 912-M8x35-8.8
110 2910141356 Hex Socket Head Cap Screw DIN-M12x70-8.8
111 2914550034 Microencapsulated Screw DIN EN-24014-M12x110-12.9
112 2910211236 Tapping Screw DIN 7971-ST4,8x25-C
114 2917721034 Round-Head Grooved Pin 2x6 DIN 1476-ST
118 1617328029 Suppression Filter
135 3611119512 Reference Plate CAUTION
800 1617000852 Modification Set 110-240V
801 1617000851 Motor Housing
802 1614220156 Field 220-240V
803 1614011091 Armature 220-240V
813 1610910035 Needle-Roller Bearing D20xD37x17
817 1901091110 Strip Terminal
820 1610910094 Needle-Roller Bearing D25xD37x17
843 1617000428 Toolholder
844 1618045026 Retaining Bracket
854 1617000858 Switch Housing
858 1610591001 Protective Cap
859 2910091118 Pan head screw DIN 85-AM4x8-4.8
861 1617000429 Fastening Plate
863 1617000A10 Parts Set BLACK
879 1614652001 Spiral Spring
881 1613490005 Torx Oval-Head Screw M4x10
882 1610151007 Spring Lock Washer
883 1617000425 Carbon-Brush Set
890 1617000849 Un. Flange-Mtd. Motor 220-240V
895 1615430007 Grease 1000 ML
897 1617000426 Wear and Tear Part Set
898 1615430001 Grease Tube 225 ML
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSH 27 - 0611304103
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GSH 27

Diagram Bosch GSH 27

Download (331.07KB)

You might also like

Bosch SKU: 2910211236
Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE Genuine spare part Bosch, Tapping Screw DIN 7971-ST 4,8x25-C for Rotary Hammer GBH 5/40 DCE - GBH 7/45 DE - GBH 8 DCE - Demolition Hammer GSH 27. Part for the following...
AVAILABLE €1.05
Comments (0)
