Bosch Spare Parts for Rotary Hammer SDS-Max GBH5/40DCE

SKU: Bosch GBH 5/40 DCE 0611216703
€2.52
VAT included

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5/40DCE

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer GBH 5/40 DCE - 0611216703.

Bosch GBH 5/40 DCE 0611216703
Bosch Spare Parts for Rotary Hammer SDS-Max GBH5/40DCE
  • Out-of-Stock
  • Bosch Spare Parts for Rotary Hammer SDS-Max GBH5/40DCE
  • Bosch Spare Parts for Rotary Hammer SDS-Max GBH5/40DCE
Bosch

Bosch Spare Parts for Rotary Hammer SDS-Max GBH5/40DCE

SKU: Bosch GBH 5/40 DCE 0611216703 Condition: New
€2.52
VAT included

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5/40DCE

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer GBH 5/40 DCE - 0611216703.

Bosch GBH 5/40 DCE 0611216703
settings 112 Spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
112 spare parts

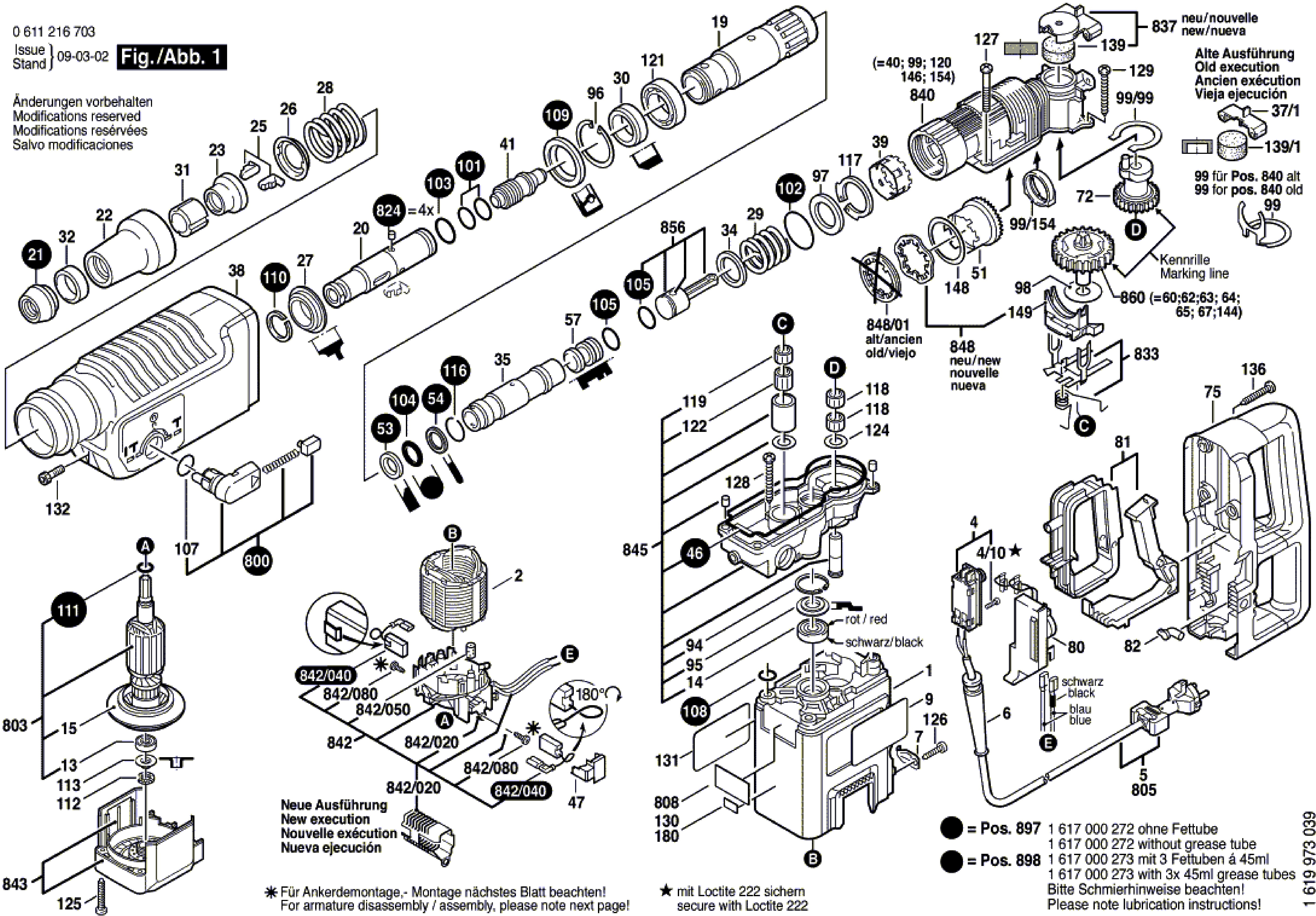

Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
*
 photo_cameraImage coming soon 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8 €1.16
1
 photo_cameraImage coming soon 1615102142 Motor Housing BLUE €20.68
2
 photo_cameraImage coming soon 1604220343 Field 220-230V €70.70
4
 Switch for Demolition Hammer Bosch GSH 11 E 1617200048 Switch for Demolition Hammer Bosch GSH 11 E €25.56
6
 photo_cameraImage coming soon 1610703053 Grommet Ø9,7-Ø12x89 MM €3.60
6
 photo_cameraImage coming soon 3600703011 Grommet Ø9,2-Ø12x120 MM €2.38
7
 photo_cameraImage coming soon 1601302018 Fastening Clamp €2.38
9
 photo_cameraImage coming soon 1611110708 Manufacturer's nameplate €2.38
13
 photo_cameraImage coming soon 1610900025 Deep-Groove Ball Bearing 7x22x7 €12.14
14
 photo_cameraImage coming soon 1610905007 Deep-Groove Ball Bearing 12x32x10 €0.00 Not available for order
15
 Fan for Demolition Hammers Bosch GBH5/40DCE 1616610071 Fan for Demolition Hammers Bosch GBH5/40DCE €0.00 Not available for order
17
 photo_cameraImage coming soon 1610222008 Retaining snap ring €0.00 Not available for order
18
 photo_cameraImage coming soon 1610222008 Retaining snap ring €0.00 Not available for order
19
 photo_cameraImage coming soon 1615806090 Guide Tube €148.78
20
 photo_cameraImage coming soon 1618597060 Toolholder €148.78
21
 Protective Cap for Rotary Hammer Bosch GBH 5/40 DCE 1610508017 Protective Cap for Rotary Hammer Bosch GBH 5/40 DCE €3.60 Not available for order
22
 photo_cameraImage coming soon 1610591009 Protection Sleeve €0.00 Not available for order
23
 Stop Sleeve 1610520001 Stop Sleeve €15.80
25
 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE 1612300027 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE €15.80
26
 Indexing Disk for Hammers Bosch GBH 5/40 1610290025 Indexing Disk for Hammers Bosch GBH 5/40 €9.70
27
 photo_cameraImage coming soon 1610222008 Retaining snap ring €0.00 Not available for order
28
 Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E 1614621000 Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E €10.92
29
 photo_cameraImage coming soon 1614616008 Compression Spring €2.38
30
 photo_cameraImage coming soon 1610250007 Ball Race €0.00 Not available for order
32
 photo_cameraImage coming soon 1610202016 Cylinder Sleeve €0.00 Not available for order
34
 photo_cameraImage coming soon 1610102622 Supporting Disc 1,5 MM THICK €2.38
35
 photo_cameraImage coming soon 1615806089 Hammer Pipe €126.82
37
 photo_cameraImage coming soon 1617000291 Retaining Bracket BLACK €0.00 Not available for order
38
 photo_cameraImage coming soon 1615190026 Covering hood BLACK €25.56
39
 photo_cameraImage coming soon 1610290024 Clutch Ring €7.26
41
 photo_cameraImage coming soon 1613124036 Striker Pin  €0.00 Not available for order
46
 photo_cameraImage coming soon 1611015036 Sealing Frame €0.00 Not available for order
47
 photo_cameraImage coming soon 1610591012 Cover €1.16
51
 photo_cameraImage coming soon 1616333023 Crown Gear Z=37 €137.80
53
 photo_cameraImage coming soon 1610190023 Stop Disc €4.82
54
 photo_cameraImage coming soon 1610101014 Stop Disc €0.00 Not available for order
57
 photo_cameraImage coming soon 1618710053 Striker €18.24
72
 photo_cameraImage coming soon 1616337003 Eccentric Cog Wheel Z=35 €173.18
75
 photo_cameraImage coming soon 1615132045 Handle BLACK €70.70
80
 Speed Governor for Hammers Bosch GBH 5/40 1617233026 Speed Governor for Hammers Bosch GBH 5/40 €102.42
81
 photo_cameraImage coming soon 1612026030 Switch-Pawl BLACK €0.00 Not available for order
81
 photo_cameraImage coming soon 1612026043 Switch-Pawl GRAY €9.70
82
 photo_cameraImage coming soon 1615510000 Light Conductor €2.38
84
 photo_cameraImage coming soon 1612025060 Auxiliary Handle M8 BLACK €7.26
85
 photo_cameraImage coming soon 1618040055 index turning toolholder Ø70 MM €12.14
86
 photo_cameraImage coming soon 1613490001 T-Head Bolt M8x80 MM €20.68
87
 photo_cameraImage coming soon 1611316008 Clamping Band Ø70 MM €8.48
89
 photo_cameraImage coming soon 1613480010 Wing Screw M6x30 MM €2.38
90
 photo_cameraImage coming soon 1613300006 Hex Nut M6 €1.16
91
 photo_cameraImage coming soon 1611030010 Clamping Plate €2.38
94
 photo_cameraImage coming soon 1610119007 Spring retaining ring €1.16
95
 photo_cameraImage coming soon 2916120023 Sealing disk 14,4-6201 ZJV NILOS €3.60
96
 photo_cameraImage coming soon 2916660024 Spring retaining ring 55x2MM, DIN 472 €6.04
97
 photo_cameraImage coming soon 2916190284 Shim ring DIN 988-45x55 €0.00 Not available for order
98
 photo_cameraImage coming soon 1610101622 Friction Washer 0,5 MM THICK €2.38
99/99
 photo_cameraImage coming soon 1610190030 Holding Plate €3.60
99/154
 photo_cameraImage coming soon 1610222010 Retaining snap ring €9.70
99
 photo_cameraImage coming soon 1611329011 Holding Plate €6.04
101
 photo_cameraImage coming soon 1610210094 O-Ring 20,0x3,0 MM €2.38
102
 O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE 1610210095 O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE €3.60
103
 photo_cameraImage coming soon 1610210100 O-Ring 27,0x1,5 MM €0.00 Not available for order
104
 O-Ring 17,0x8,0 mm for Hammer Bosch GBH 5/40 DCE 1610210093 O-Ring 17,0x8,0 mm for Hammer Bosch GBH 5/40 DCE €1.16
105
 O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE 1610210096 O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE €3.60
107
 photo_cameraImage coming soon 1610210116 O-Ring 14,0x2,0 MM €2.38
108
 photo_cameraImage coming soon 1900210103 O-Ring 8,0x1,5 MM €2.38
109
 Radial Seal for Rotary Hammer Bosch GBH 5/40 1610283028 Radial Seal for Rotary Hammer Bosch GBH 5/40 €9.70
110
 photo_cameraImage coming soon 1610116003 Spring retaining ring €0.00 Not available for order
111
 photo_cameraImage coming soon 1610210081 O-Ring 10,0x1,0 MM €3.60 Not available for order
112
 photo_cameraImage coming soon 1610210090 Clamping Ring €4.82
113
 photo_cameraImage coming soon 1610328013 Thrust ring €1.16
116
 photo_cameraImage coming soon 1610116004 Spring retaining ring €1.16
117
 photo_cameraImage coming soon 1610119008 Spring retaining ring €2.38
118
 photo_cameraImage coming soon 1610913009 Needle-Roller Assembly €0.00 Not available for order
119
 photo_cameraImage coming soon 1610913011 Needle-Roller Assembly Ø10 MM €8.48
121
 photo_cameraImage coming soon 1610905014 Deep-Groove Ball Bearing €18.24
122
 Needle-Roller Assembly 1610913029 Needle-Roller Assembly €6.04
124
 photo_cameraImage coming soon 1610101008 Thrust Bearing Disc 1,0 MM THICK €1.16
125
 photo_cameraImage coming soon 2912401036 Tapping Screw DIN7981-ST4,8x25-C-Z €0.00 Not available for order
126
 photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.16
127
 photo_cameraImage coming soon 2912311166 Oval-Head Screw DIN 7985-M5x30-8.8 €0.00 Not available for order
128
 photo_cameraImage coming soon 2910211037 Tapping Screw DIN 7971-BZ4,8x32 €1.16
129
 photo_cameraImage coming soon 2912401037 Tapping Screw DIN 7981-ST4,8x32C-Z €0.00 Not available for order
130
 photo_cameraImage coming soon 1601110265 Sticker €3.60 Not available for order
131
 photo_cameraImage coming soon 1611110709 Manufacturer's nameplate €2.38
132
 photo_cameraImage coming soon 2914551117 Microencapsulated Screw DIN 912-M 5x12-8.8 €1.16
136
 Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE 2910211236 Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE €1.16
139
 photo_cameraImage coming soon 1610005002 Felt Disc Ø39x15 MM €2.38
142
 photo_cameraImage coming soon 1610101015 Shim ring 1,0 MM THICK €2.38
148
 photo_cameraImage coming soon 1610102627 Shim 0,2 MM THICK €0.00 Not available for order
148
 photo_cameraImage coming soon 1610102633 Shim 0,3 MM THICK €0.00 Not available for order
149
 photo_cameraImage coming soon 1612388021 Adapting Piece €3.60
661
 Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.70
750
 photo_cameraImage coming soon 2605438261 Carrying Case €0.00 Not available for order
800
 photo_cameraImage coming soon 1617000945 Clamp Handle BLACK €0.00 Not available for order
803
 photo_cameraImage coming soon 1614010180 Armature 220-240V €0.00 Not available for order
805
 photo_cameraImage coming soon 1617000723 Power supply cord €47.52
808
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.38
824
 Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE 1617000271 Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE €3.60
833
 photo_cameraImage coming soon 1617000949 Control Fork €0.00 Not available for order
837
 photo_cameraImage coming soon 1617000291 Retaining Bracket BLACK €0.00 Not available for order
840
 photo_cameraImage coming soon 1617000811 Impact Mechanism Housing - OUT OF STOCK €0.00 Not available for order
842/050
 photo_cameraImage coming soon 1613212004 Rubber Buffer €3.60
842
 photo_cameraImage coming soon 1614336009 Brush Holder €0.00 Not available for order
842/020
 photo_cameraImage coming soon 1614336043 Brush Guide €0.00 Not available for order
842/040
 Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703 1617014122 Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703 €21.90
842/080
 photo_cameraImage coming soon 2912401005 Tapping Screw DIN7981-ST2,9x9,5C-Z €0.00 Not available for order
843
 photo_cameraImage coming soon 1615808072 Bearing cover BLUE €0.00 Not available for order
845
 photo_cameraImage coming soon 1617000962 Gear Housing €0.00 Not available for order
848
 photo_cameraImage coming soon 1617000415 Clutch Sleeve €0.00 Not available for order
856
 Piston Assembly for Demolition Hammer Bosch GBH 5/40 DCE 1617000999 Piston Assembly for Demolition Hammer Bosch GBH 5/40 DCE €0.00 Not available for order
860
 photo_cameraImage coming soon 1617000818 Spur Wheel Clutch €0.00 Not available for order
879
 Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE 1613001008 Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE €9.70 Not available for order
884
 photo_cameraImage coming soon 1612025035 Auxiliary Handle Ø70 MM €75.58
897
 photo_cameraImage coming soon 1617000272 Wear and Tear Part Set €0.00 Not available for order
898
 photo_cameraImage coming soon 1617000273 Wear and Tear Part Set €0.00 Not available for order

Shipping and delivery information will be available shortly.

Bosch Spare Parts for Rotary Hammer SDS-Max GBH 5/40DCE

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Rotary Hammer GBH 5/40 DCE - 0611216703.

In the following table, look for the model of the Rotary Hammer and the respective parts of the code.
Bosch GBH 5/40 DCE 0611216703

GBH 5/40 DCE/0 611 216 703
# Part Num. Description
1 1615102142 Motor Housing BLUE
2 1604220343 Field 220-230V
4 1617200048 Switch
* 2910011088 Socket head cap screw DIN 84-AM3,5x12-5.8
6 1610703053 Grommet Ø9,7-Ø12x89 MM
6 3600703011 Grommet Ø9,2-Ø12x120 MM
7 1601302018 Fastening Clamp
9 1611110708 Manufacturer's nameplate
13 1610900025 Deep-Groove Ball Bearing 7x22x7
14 1610905007 Deep-Groove Ball Bearing 12x32x10
15 1616610071 Fan
17 1610222008 Retaining snap ring
18 1610222008 Retaining snap ring
19 1615806090 Guide Tube
20 1618597060 Toolholder
21 1610508017 Protective Cap
22 1610591009 Protection Sleeve
23 1610520001 Stop Sleeve
25 1612300027 Stopping Device
26 1610290025 Indexing Disk
27 1610222008 Retaining snap ring
28 1614621000 Compression Spring
29 1614616008 Compression Spring
30 1610250007 Ball Race
32 1610202016 Cylinder Sleeve
34 1610102622 Supporting Disc 1,5 MM THICK
35 1615806089 Hammer Pipe
37 1617000291 Retaining Bracket BLACK
38 1615190026 Covering hood BLACK
39 1610290024 Clutch Ring
46 1611015036 Sealing Frame
47 1610591012 Cover
51 1616333023 Crown Gear Z=37
53 1610190023 Stop Disc
54 1610101014 Stop Disc
57 1618710053 Striker
72 1616337003 Eccentric Cog Wheel Z=35
75 1615132045 Handle BLACK
80 1617233026 Speed governor 220-240V
81 1612026043 Switch-Pawl GRAY
81 1612026030 Switch-Pawl BLACK
82 1615510000 Light Conductor
84 1612025060 Auxiliary Handle M8 BLACK
85 1618040055 index turning toolholder Ø70 MM
86 1613490001 T-Head Bolt M8x80 MM
87 1611316008 Clamping Band Ø70 MM
89 1613480010 Wing Screw M6x30 MM
90 1613300006 Hex Nut M6
91 1611030010 Clamping Plate
94 1610119007 Spring retaining ring
95 2916120023 Sealing disk 14,4-6201 ZJV NILOS
96 2916660024 Spring retaining ring 55x2MM, DIN 472
97 2916190284 Shim ring DIN 988-45x55
98 1610101622 Friction Washer 0,5 MM THICK
99 1611329011 Holding Plate
99/99 1610190030 Holding Plate
99/154 1610222010 Retaining snap ring
101 1610210094 O-Ring 20,0x3,0 MM
102 1610210095 O-Ring 55,0x2,0 MM
103 1610210100 O-Ring 27,0x1,5 MM
104 1610210093 O-Ring 17,0x8,0 MM
105 1610210096 O-Ring 21,0x3,5 MM
107 1610210116 O-Ring 14,0x2,0 MM
108 1900210103 O-Ring 8,0x1,5 MM
109 1610283028 Rotary shaft lip seal DIN 3760-BS, Ø40x55x7 MM
110 1610116003 Spring retaining ring
111 1610210081 O-Ring 10,0x1,0 MM
112 1610210090 Clamping Ring
113 1610328013 Thrust ring
116 1610116004 Spring retaining ring
117 1610119008 Spring retaining ring
118 1610913009 Needle-Roller Assembly
119 1610913011 Needle-Roller Assembly Ø10 MM
121 1610905014 Deep-Groove Ball Bearing
122 1610913029 Needle-Roller Assembly
124 1610101008 Thrust Bearing Disc 1,0 MM THICK
125 2912401036 Tapping Screw DIN7981-ST4,8x25-C-Z
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
127 2912311166 Oval-Head Screw DIN 7985-M5x30-8.8
128 2910211037 Tapping Screw DIN 7971-BZ4,8x32
129 2912401037 Tapping Screw DIN 7981-ST4,8x32C-Z
130 1601110265 Sticker
131 1611110709 Manufacturer's nameplate
132 2914551117 Microencapsulated Screw DIN 912-M 5x12-8.8
136 2910211236 Tapping Screw DIN 7971-ST4,8x25-C
139 1610005002 Felt Disc Ø39x15 MM
142 1610101015 Shim ring 1,0 MM THICK
148 1610102627 Shim 0,2 MM THICK
148 1610102633 Shim 0,3 MM THICK
149 1612388021 Adapting Piece
661 1615430010 Grease Tube 30 ML
750 2605438261 Carrying Case
800 1617000945 Clamp Handle BLACK
803 1614010180 Armature 220-240V
805 1617000723 Power supply cord
808 1601106032 Nameplate 26x52 MM
824 1617000271 Cylindrical Roller
833 1617000949 Control Fork
837 1617000291 Retaining Bracket BLACK
840 1617000811 Impact Mechanism Housing - OUT OF STOCK
842 1614336009 Brush Holder
842/020 1614336043 Brush Guide
842/040 1617014122 Carbon-Brush Set
842/050 1613212004 Rubber Buffer
842/080 2912401005 Tapping Screw DIN7981-ST2,9x9,5C-Z
843 1615808072 Bearing cover BLUE
845 1617000962 Gear Housing
848 1617000415 Clutch Sleeve
856 1617000999 Hammer Piston - ENQUIRE
860 1617000818 Spur Wheel Clutch
879 1613001008 Depth-Gauge SW 6x330 MM
884 1612025035 Auxiliary Handle Ø70 MM
897 1617000272 Wear and Tear Part Set
898 1617000273 Wear and Tear Part Set
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 5/40 DCE 0611216703

Data sheet

SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GBH 5/40 DCE

Diagram Bosch GBH 5/40 DCE

Download (116KB)

You might also like

Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1617000271
Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE
Cylindrical Roller mm 5x5 for Hammer Bosch GBH 5/40 DCE Genuine parts Bosch, Cylindrical Steel roller 5x5 mm for locking cylinder for Hammer GBH 5/40 DCE / 0611216703 Parts for the following products: - Hammer GBH 5/40 DCE /...
AVAILABLE €3.60
Details
Speed Governor for Hammers Bosch GBH 5/40 Sale
Bosch SKU: 1617233026
Speed Governor for Hammers Bosch GBH 5/40
Speed Governor for Hammers Bosch GBH 5/40 Bosch Original replacement part, 220-240V Speed Governor for hammers GBH 5/40 DCE/0 611 216 703. Parts for the following products: Hammer GBH 5/40 DCE/0 611 216 703 - Code: 1617233026
AVAILABLE €102.42
Details
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46
Bosch SKU: 1610210109
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46
O-Ring 26,0x4,0 mm for Hammers Bosch GBH 7-46 DE Original spare Bosch, O-ring 26,0x4,0 MM for Hammers GBH 7-46 DE/0 611 263 703. Part for the following products: -  Hammer GBH...
AVAILABLE €7.26
Details
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE
Bosch SKU: 1617000873
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE
Piston Assembly for Demolition Hammer Bosch GBH 7-46 DE Bosch original replacement part, Piston Assembly for Demolition Hammer GBH 7-46 DE. Part for the following products: -  GBH 7-46 DE / 0611263703 - Code: 1617000873
on 7/10 Business Days Approx €60.94
Details
Indexing Disk for Hammers Bosch GBH 5/40
Bosch SKU: 1610290025
Indexing Disk for Hammers Bosch GBH 5/40
Indexing Disk for Hammers Bosch GBH 5/40 Bosch original parts, Steel Indexing Disk for Demolition Hammers GBH 5/40. Parts for the following products: -  Demolition Hammer GBH 5/40 DCE / 0611216703 - Code: 1610290025
AVAILABLE €9.70
Details
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E
Bosch SKU: 1614621000
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E Bosch original parts, compression spring for Demolition Hammers GBH 5/40 - GBH 11 DE - GSH 3 E. Parts for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703...
AVAILABLE €10.92
Details
Stopping Device for Hammers Bosch GBH GBH 5/40 DCE-GBH 7-46 DE
Bosch SKU: 1612300027
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE
Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE Bosch Genuine part, Steel Stopping Device for Demolition Hammers 5/40 DCE - GBH 7-46 DE. Part for the following products: - Demolition Hammer GBH 5/40 DCE / 0611216703 -...
AVAILABLE €15.80
Details
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703
Bosch SKU: 1617014122
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703
Carbon Brushes for Hammers Bosch GBH5/40DCE - 0 611 216 703 Genuine Parts Bosch, Carbon Brushes, for Demolition Hammers Bosch GBH38 - GBH5/40DCE - 0 611 216 703 - GSH4 - GSH5CE - PBH380 - GBH5DCE Part for the following products: -...
AVAILABLE €21.90
Details
Fan for Demolition Hammers Bosch GBH5/40DCE
Bosch SKU: 1616610071
Fan for Demolition Hammers Bosch GBH5/40DCE
Fan for Demolition Hammers Bosch GBH5/40DCE Genuine Part Bosch, Fan for Demolition Hammers Bosch Bosch GBH 5/40 DCE/0 611 216 703. Part for the following products: - GBH 5/40 DCE/0 611 216 703 - Code : 1616610071
Out-of-Stock €0.00
Details
Radial Seal for Rotary Hammer Bosch GBH 5/40
Bosch SKU: 1610283028
Radial Seal for Rotary Hammer Bosch GBH 5/40
Radial Seal for Rotary Hammer Bosch GBH 5/40 Bosch genuine part, Radial Seal DIN 3760-BS, Ø40x55x7 MM for Rotary Demolition Hammer GBH 5/40. Part for the following products: - Rotary Demolition Hammer GBH 5/40 DCE / 0611216703 -...
AVAILABLE €9.70
Details
Piston Assembly for Demolition Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1617000999
Piston Assembly for Demolition Hammer Bosch GBH 5/40 DCE
Piston Assembly for Demolition Hammer Bosch GBH 5/40 DCE Bosch original parts, Piston Assembly for Demolition Hammer GBH 5/40 DCE/0 611 216 703. Parts for the following products: - GBH 5/40 DCE/0 611 216 703 - Code: 1617000999
Out-of-Stock €0.00
Details
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Bosch SKU: 1615430010
Grease Tube 30 ML for Bosch Hammer GBH-GSH
Grease Tube 30 ML for Bosch Hammer GBH-GSH Genuine spare parts Bosch, Grease Tube 30 ML for Bosch Hammer GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH 8-45 D - 3...
Usually Ships in: 7/10 Business Days Approx. €9.70
Details
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH Sale
Bosch SKU: 1613435010
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH
Torx Oval-Head Screw 5,5x25 for Hammer GBH-GSH Genuine spare parts Bosch, Torx Oval-Head Screw 5,5x25 for Hammer 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GSH 11 E/0 611 316 703. Parts for the following products: - HAMMER GBH...
AVAILABLE €2.38
Details
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 1610009007
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E
Spacer for Hammer Bosch GBH 11 DE-GSH 11 E Genuine spare parts Bosch, Spacer for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: -  DEMOLITION HAMMER GBH 11 DE/0 611 245 703 - HAMMER...
AVAILABLE €2.38
Details
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bosch SKU: 3610501500
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E
Bushing for Hammer Bosch GBH 11 DE-GSH 11 E Original parts Bosch, Bushing for Hammer Bosch GBH 11 DE/0 611 245 703 - GSH 11 E/0 611 316 703. Parts for the following products: - HAMMER GBH 11 DE/0 611 245 703 - HAMMER GSH 11 E/0 611...
AVAILABLE €28.00
Details
Grease Tube 30 ML for Bosch Hammer GBH-GSH Sale
Bosch SKU: 1615430020
Grease Tube 225 ML for Bosch Hammers GBH-GSH
Grease Tube 225 ML for Bosch Hammers GBH-GSH Genuine spare part Bosch, Grease Tube 225 ML for Bosch Hammers GBH 11 DE/0 611 245 703 - GBH 7-46 DE/0 611 263 703 - GBH 5/40 DCE/0 611 216 703 - GBH 5-38 D - 0 611 240 003 - GBH 8-45 D - 3...
AVAILABLE €28.00
Details
Carbon Brushes for Hammers Bosch GBH7/46DE
Bosch SKU: 1617014135
Carbon Brushes for Hammers Bosch GBH7/46DE
Carbon Brushes for Hammers Bosch GBH7/46DE Carbon Brushes for Hammers Bosch GBH7/46DE Genuine spare part Bosch, Carbon Brushes for Drilling Hammers GBH 7-46. Part for the following products: - GBH 7-46 DE/0 611 263 703 - Code :...
AVAILABLE €28.00
Details
Switch for Demolition Hammer Bosch GSH 11 E
Bosch SKU: 1617200048
Switch for Demolition Hammer Bosch GSH 11 E
Switch for Demolition Hammer Bosch GSH 11 E Bosch original replacement part, Switch for Demolition Hammer GSH 11 E/0 611 316 703 - GBH 5/40 DCE/0 611 216 703. Part for the following products: -...
on 7/10 Business Days Approx €25.56
Details
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Bosch SKU: 1610910089
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30
Needle-Roller Bearing for Demolition Hammer Bosch GSH 16-30 Bosch original parts, Needle-Roller Bearing for Rotary Hammer GBH 7-46 DE - GBH 11 DE - GSH 11 E - GBH 8-45 D. Parts for the following products: - Rotary Hammer GBH 7-46 DE/0...
AVAILABLE €32.88
Details
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46
Bosch SKU: 1610290028
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46
Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 Bosch original parts, Rotary Shaft Lip Seal for Rotary Hammers GBH 7-46 DE/0 611 263 703 - GBH 11 DE/0 611 245 703 - Demolition Hammer Bosch GSH 11 E/0...
AVAILABLE €4.82
Details
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1613001008
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE
Depth Adjustment Rod for Hammer Bosch GBH 5/40 DCE Bosch original parts, Depth Adjustment Rod SW 6x330 MM for Rotary Hammer GBH 5/40 DCE - GBH 7/45 - GBH 11 DE - Impact Drill Bosch GBM 13 Parts for the following products: - Rotary...
AVAILABLE €9.70
Details
O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1610210096
O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE
O-Ring 21,0x3,5 mm for Rotary Hammer Bosch GBH 5/40 DCE Original part Bosch, O-Ring 21,0x3,5 mm for Rotary Hammer GBH 5/40 DCE/0 611 216 703 - GBH 11 DE/0 611 245 703 Part for the following products: - Rotary Hammer Bosch GBH 5/40...
AVAILABLE €3.60
Details
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1610210095
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE Original part Bosch, O-Ring 55,0x2,0 mm for Rotary Hammer GBH 5/40 DCE/0 611 216 703 - GBH 11 DE/0 611 245 703 Part for Following products: - Rotary Hammer Bosch GBH 5/40 DCE/0...
AVAILABLE €3.60
Details
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Bosch SKU: 1903230013
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE Bosch genuine parts, Ball DIN 5401-Ø7MM-III-ST, for Rotary Hammer PBH 220 RE - PBH 2000 RE - PBH 2000 SRE - GBH 36 V-LI - GBH 2-20 D Parts for the following products: - Rotary...
AVAILABLE €2.38
Details
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE
Bosch SKU: 1610210144
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE Original spare Bosch, O-Ring 22,0x3,0 mm for Hammers GBH 7-46 DE/0 611 263 703 - GSH 388 - GBH 5/40 DCE - GBH 11 DE - GBH 7 DE. Part for the following products: - Demolition Hammer GBH...
AVAILABLE €7.26
Details
Protective Cap for Rotary Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1610508017
Protective Cap for Rotary Hammer Bosch GBH 5/40 DCE
Protective Cap for Rotary Hammer Bosch GBH 5/40 DCE Bosch original part, Protective Cap for Rotary Hammer GBH 5/40 DCE - Demolition Hammer GSH 5 CE - Rotary Hammer GBH 8 DCE. Part for the following products: - Rotary Hammer GBH 5/40...
AVAILABLE €3.60
Details
Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE
Bosch SKU: 2910211236
Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE
Tapping Screw ST 4,8x25-C for Rotary Hammer Bosch GBH 5/40 DCE Genuine spare part Bosch, Tapping Screw DIN 7971-ST 4,8x25-C for Rotary Hammer GBH 5/40 DCE - GBH 7/45 DE - GBH 8 DCE - Demolition Hammer GSH 27. Part for the following...
AVAILABLE €1.16
Details
O-Ring 17,0x8,0 mm for Hammer Bosch GBH 5/40 DCE
Bosch SKU: 1610210093
O-Ring 17,0x8,0 mm for Hammer Bosch GBH 5/40 DCE
O-Ring 17,0x8,0 mm for Hammer Bosch GBH 5/40 DCE Genuine replacement part Bosch, O-Ring 17,0x8,0 mm for Rotary Hammer GBH 5/40 DCE / 0611216703. Part for the following products: - Rotary Hammer GBH 5/40 DCE - 0611216703 - Demolition...
AVAILABLE €1.16
Details
Comments (0)
No customer reviews for the moment.
