Bosch Spare Parts for Impact Drill GSB 20-2 RCE

SKU: Bosch GSB 20-2 RCE - 0601192703
€2.60
VAT included

Bosch Spare Parts for Impact Drill GSB 20-2 RCE

BOSCH Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Impact Drill GSB 20-2 RCE - 0601192703.

Bosch GSB 20-2 RCE - 0601192703
Bosch Spare Parts for Impact Drill GSB 20-2 RCE
  • Bosch Spare Parts for Impact Drill GSB 20-2 RCE
  • Bosch Spare Parts for Impact Drill GSB 20-2 RCE - Drawing
Bosch

Bosch Spare Parts for Impact Drill GSB 20-2 RCE

SKU: Bosch GSB 20-2 RCE - 0601192703 Condition: New
€2.60
VAT included

Bosch Spare Parts for Impact Drill GSB 20-2 RCE

BOSCH Original spare parts at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Impact Drill GSB 20-2 RCE - 0601192703.

Bosch GSB 20-2 RCE - 0601192703
settings 72 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
72 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

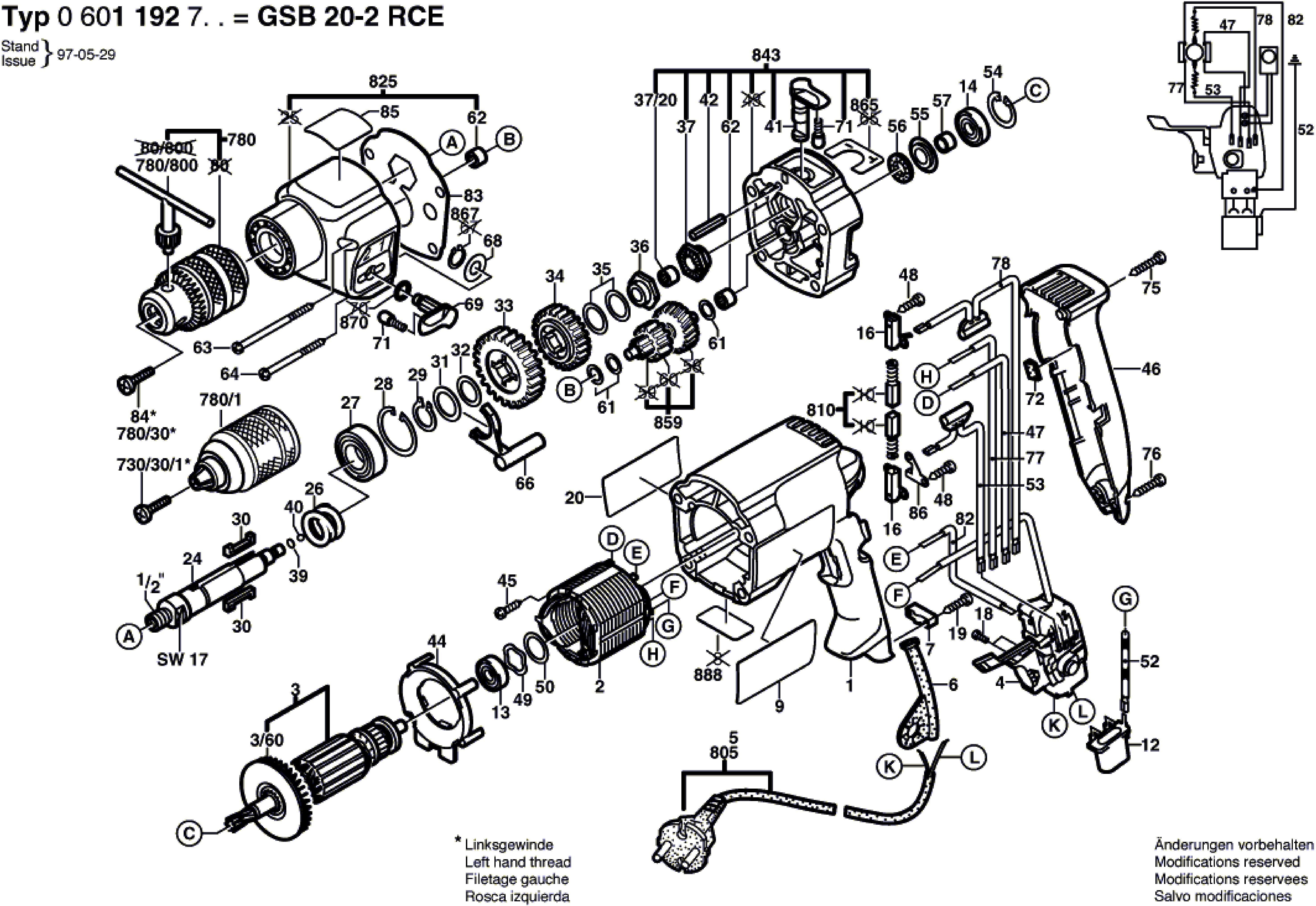

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
photo_cameraImage coming soon 2600000030 Shim washer 1,35 MM €2.18
photo_cameraImage coming soon 2600101027 Shim washer 0,3 MM €2.03
photo_cameraImage coming soon 2600101617 Shim 0,3 MM €1.74
1
 photo_cameraImage coming soon 2605104586 Motor Housing BLUE €14.61
3
 photo_cameraImage coming soon 2604010865 Armature 230-240V €83.91
3/60
 photo_cameraImage coming soon 2606610049 Fan €2.22
6
 Grommet for Percussion Drills Bosch GSB 16-18-20 RE 2600707059 Grommet for Percussion Drills Bosch GSB 16-18-20 RE €3.17
7
 Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
13
 photo_cameraImage coming soon 1900905018 Deep-Groove Ball Bearing 7x22x7 €24.61
14
 photo_cameraImage coming soon 2600905095 Deep-Groove Ball Bearing 9x24x7 €14.32
16
 Brush Holder for Rotorbital Sander Bosch GEX 125-150 AC 2604337016 Brush Holder for Rotorbital Sander Bosch GEX 125-150 AC €1.98
18
 photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
19
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
24
 photo_cameraImage coming soon 2606135013 Drilling Spindle 1/2" €39.78
26
 photo_cameraImage coming soon 2604616002 Compression Spring €1.74
27
 photo_cameraImage coming soon 1900905163 Deep-Groove Ball Bearing 17x35x10 €14.25
28
 photo_cameraImage coming soon 2916660014 Spring retaining ring DIN 472 35x1,5 MM €2.18
29
 photo_cameraImage coming soon 2916650008 Spring retaining ring DIN 471 17x1 MM €2.18
30
 photo_cameraImage coming soon 2602300028 Flat Key €5.58
31
 photo_cameraImage coming soon 2600101671 Retaining Washer €2.18
33
 Cylindrical Gear Z 48 for Hammer Drill Bosch GSB 18-2 RE 2606317045 Cylindrical Gear Z 48 for Hammer Drill Bosch GSB 18-2 RE €14.02
34
 photo_cameraImage coming soon 2606317037 Cylindrical Gear Z=36 €35.11
35
 photo_cameraImage coming soon 2600101616 Shim 0,5 MM €3.07
37
 photo_cameraImage coming soon 2600190057 Catch Disk €14.38
37/20
 photo_cameraImage coming soon 2600917003 Needle bearing Ø8x8 MM €2.96
40
 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 1903230010 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 €1.91
41
 photo_cameraImage coming soon 2602026017 Rotary Knob €7.29
44
 photo_cameraImage coming soon 2601328033 Cover Disc €3.71
45
 photo_cameraImage coming soon 2603435086 Tapping Screw €2.12
46
 photo_cameraImage coming soon 2605132049 Housing Cover BLUE €5.65
47
 photo_cameraImage coming soon 2604448145 Connecting Cable L = 123 MM WHITE €1.74
48
 photo_cameraImage coming soon 2603490017 Torx Oval-Head Screw 3x10 €2.82
49
 photo_cameraImage coming soon 2600150004 Shim €2.66
50
 photo_cameraImage coming soon 2600101667 Shim washer 0,5 MM €1.74
53
 Suppression Filter for Rotary Hammer Bosch GBH 2-24 DFR 2604465086 Suppression Filter for Rotary Hammer Bosch GBH 2-24 DFR €6.37
54
 photo_cameraImage coming soon 2916660008 Spring retaining ring DIN 472-24x1,2 MM €2.74
55
 photo_cameraImage coming soon 2600500002 Cupped Washer €2.03
56
 photo_cameraImage coming soon 2600108077 Felt Washer €2.03
57
 Sleeve-Type Terminal for Hammer Drill Bosch GSB 16 RE 2600400008 Sleeve-Type Terminal for Hammer Drill Bosch GSB 16 RE €2.09
61
 Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE 2600100607 Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE €2.09
62
 photo_cameraImage coming soon 2600914010 Needle bearing Ø6 MM €3.80
63
 photo_cameraImage coming soon 2603435070 Headless Screw €2.27
64
 photo_cameraImage coming soon 2603435071 Headless Screw 65 MM €4.87
66
 photo_cameraImage coming soon 2602033006 Adjusting Slide €3.07
71
 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE 2600590006 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE €2.09
72
 photo_cameraImage coming soon 2601010049 Insert €1.74
75
 photo_cameraImage coming soon 2603490024 Torx Oval-Head Screw 4x25 €2.09
77
 photo_cameraImage coming soon 2604448137 Connecting Cable L=78 MM WHITE €1.74
78
 photo_cameraImage coming soon 2604465087 Suppression Filter L= 156 MM WHITE €6.58
82
 photo_cameraImage coming soon 2604448004 Connecting Cable L=176 MM WHITE €1.74
83
 Flat Gasket Ring for Hammer Drill GSB 20-2 RE 2601073012 Flat Gasket Ring for Hammer Drill GSB 20-2 RE €1.54
85
 photo_cameraImage coming soon 2601110292 Sticker €1.74
86
 photo_cameraImage coming soon 2600034003 Plate GREEN €3.71
753
 photo_cameraImage coming soon 1612025031 Auxiliary Handle Ø43 MM BLACK  €12.76
753/30
 photo_cameraImage coming soon 1613480007 Wing Screw M6x(15)55 €1.74
753/60
 photo_cameraImage coming soon 1613480008 Wing Screw M6x20 MM €1.79
753/50
 photo_cameraImage coming soon 2608040014 Clamping Plate M6 €3.07
753/20
 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 2915011007 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 €1.32
780
 photo_cameraImage coming soon 1608571080 Key Chuck Ø1,5-13 MM €35.12
780/30/1
 Screw M 6x34 MM Left for Percussion Drills Bosch GSB 16 RE 2603421213 Screw M 6x34 MM Left for Percussion Drills Bosch GSB 16 RE €3.17
780/30
 Screw M 6x27 MM Left for Impact Drill Bosch GSB 20-2 RE 2603421226 Screw M 6x27 MM Left for Impact Drill Bosch GSB 20-2 RE €1.74
780/800
 photo_cameraImage coming soon 2607950007 Chuck Wrench SG2 €16.17
805
 photo_cameraImage coming soon 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm  €16.29
810/06
 photo_cameraImage coming soon 2601322013 Ratchet Cap €1.58
810
 Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE 2604321905 Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE €14.02
825
 photo_cameraImage coming soon 2605806990 Gear Housing BLUE €21.62
843
 photo_cameraImage coming soon 2605700936 Intermediate Flange €76.47
859
 photo_cameraImage coming soon 2606100914 Toothed Shaft Z= 10/21/22 €39.78
865
 photo_cameraImage coming soon 2601110076 Sticker DRILL/IMPACT DRILL €1.74
867
 Locking Washer for Percussion Drill GSB 20-2 RE 2916080007 Locking Washer for Percussion Drill GSB 20-2 RE €0.91
870
 photo_cameraImage coming soon 2607010226 Parts Set €1.74
888
 photo_cameraImage coming soon 1601106032 Nameplate 26x52 MM €2.61

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Impact Drill GSB 20-2 RCE

BOSCH Original spare parts

 at the most competitive prices on the web, we are a service center with repair service able to advise you to purchase the most suitable spare part to quickly solve any maintenance or repair issues for Impact Drill GSB 20-2 RCE - 0601192703.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
Bosch GSB 20-2 RCE - 0601192703

Impact Drill GSB 20-2 RCE/0 601 192 703
# Part Num. Description
1 2605104586 Motor Housing BLUE
2 2604220436 Field 220-240V
3 2604010865 Armature 230-240V
3/60 2606610049 Fan
4 2607200239 Switch
6 2600707059 Grommet Ø6,9 MM
7 2601035001 Cable Clip
9 2601119392 Manufacturer's nameplate SUNNY SIDE
12 2607329114 Suppression Filter
13 1900905018 Deep-Groove Ball Bearing 7x22x7
14 2600905095 Deep-Groove Ball Bearing 9x24x7
16 2604337016 Brush Holder
18 2603410001 Socket head cap screw M3x6,5-4.8
19 2603490022 Torx Oval-Head Screw 4x16
20 2601119393 Reference Plate SHADOW SIDE
24 2606135013 Drilling Spindle 1/2"
26 2604616002 Compression Spring
27 1900905163 Deep-Groove Ball Bearing 17x35x10
28 2916660014 Spring retaining ring DIN 472 35x1,5 MM
29 2916650008 Spring retaining ring DIN 471 17x1 MM
30 2602300028 Flat Key
31 2600101671 Retaining Washer
32 2600101515 Shim 1,0 MM
33 2606317045 Cylindrical Gear Z=48
34 2606317037 Cylindrical Gear Z=36
35 2600101616 Shim 0,5 MM
2600101617 Shim 0,3 MM
36 2600190052 Catch Disk
37 2600190057 Catch Disk
37/20 2600917003 Needle bearing Ø8x8 MM
39 2600000012 Shim washer 0,2 MM
2600000014 Shim washer 0,5 MM
2600000030 Shim washer 1,35 MM
40 1903230010 Ball DIN 5401-5,5MM-III-ST
41 2602026017 Rotary Knob
42 2917780105 Slotted Spring Pin 4x30 MM DIN 7346
44 2601328033 Cover Disc
45 2603435086 Tapping Screw
46 2605132049 Housing Cover BLUE
47 2604448145 Connecting Cable L = 123 MM WHITE
48 2603490017 Torx Oval-Head Screw 3x10
49 2600150004 Shim
50 2600101667 Shim washer 0,5 MM
2600101027 Shim washer 0,3 MM
52 2604448103 Earth Conductor
53 2604465086 Suppression Filter L=148 MM BLACK
54 2916660008 Spring retaining ring DIN 472-24x1,2 MM
55 2600500002 Cupped Washer
56 2600108077 Felt Washer
57 2600400008 Receptacle
61 2600100607 Shim 0,3 MM
62 2600914010 Needle bearing Ø6 MM
63 2603435070 Headless Screw
64 2603435071 Headless Screw 65 MM
66 2602033006 Adjusting Slide
68 2600100618 Shim washer
69 2602026038 Rotary Knob BLACK
71 2600590006 Ratchet Cap
72 2601010049 Insert
75 2603490024 Torx Oval-Head Screw 4x25
77 2604448137 Connecting Cable L=78 MM WHITE
78 2604465087 Suppression Filter L= 156 MM WHITE
82 2604448004 Connecting Cable L=176 MM WHITE
83 2601073012 Gasket
85 2601110292 Sticker
86 2600034003 Plate GREEN
753 1612025031 Auxiliary Handle Ø43 MM BLACK
753/20 2915011007 Hex Nut DIN 934-M6-8-A
753/30 1613480007 Wing Screw M6x(15)55
753/50 2608040014 Clamping Plate M6
753/60 1613480008 Wing Screw M6x20 MM
754 2603001019 Depth-Gauge
756 2607000122 Drill Holder
780 1608571080 Key Chuck Ø1,5-13 MM
780/30 2603421226 Countersunk-Head Screw M6x27 LEFTHAND THREADS
780/30/1 2603421213 Countersunk-Head Screw M 6x34 MM LEFTHAND THREADS
780/800 2607950007 Chuck Wrench SG2
805 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm
810 2604321905 Carbon-Brush Set
810/06 2601322013 Ratchet Cap
825 2605806990 Gear Housing BLUE
843 2605700936 Intermediate Flange
859 2606100914 Toothed Shaft Z= 10/21/22
865 2601110076 Sticker DRILL/IMPACT DRILL
867 2916080007 Locking Washer DIN 6799-4-FSt
870 2607010226 Parts Set
888 1601106032 Nameplate 26x52 MM

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Bosch GSB 20-2 RCE - 0601192703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch GSB 20-2 RCE

Diagram Bosch GSB 20-2 RCE

Download (82.71KB)

You might also like

Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22
Bosch SKU: 1903230010
Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22
Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 Bosch genuine parts, Ball DIN 5401-5,5MM-III-ST, for Impact Drills GSB 16 RE - GSB 18-2 RE - GSB 20-2 RE - GSB 22-2 RE - PSB 700-2 RE - PSB 800-2 RA - PBH 240 RE. Parts for...
AVAILABLE €1.91
Details
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE
Bosch SKU: 2604321905
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE Genuine Part Bosch, Carbon Brushes, for Impact Drills GSB 20-2 RE - GSB 20-2 RCE - Circular Saw PKS 40 - Planer PHO 20-82 - PHO 1. Parts for the following products: - Percussion...
AVAILABLE €14.02
Details
Grommet for Drills Bosch PSB550-650-700/2-1000
Bosch SKU: 2600707066
Grommet for Drills Bosch PSB550-650-700/2-1000
Grommet for Drills Bosch PSB550-650-700/2-1000 Genuine parts Bosch, Grommet Ø6,2-Ø6,9x90 MM for Drills Screwdriver PSB 550 RA - PSB 650 RE - PSB 700 RE - PSB 700-2 RE - PSB 1000 RPE - PSB 1000 RCA. Parts for the...
AVAILABLE €2.28
Details
Brush Holder for Rotorbital Sander Bosch GEX 125-150 AC Sale
Bosch SKU: 2604337016
Brush Holder for Rotorbital Sander Bosch GEX 125-150 AC
Brush Holder for Rotorbital Sander Bosch GEX 125-150 AC Genuine parts Bosch, Brush Holder for Rotorbital Sander GEX 125 AC/0601372503 - GEX 150 AC/0601372703 - Orbital Sander GSS 230 AE/0601292703 - Drill GSB 20-2 RCE/0601192703....
AVAILABLE €1.98
Details
Grommet for Percussion Drills Bosch GSB 16-18-20 RE
Bosch SKU: 2600707059
Grommet for Percussion Drills Bosch GSB 16-18-20 RE
Grommet for Percussion Drills Bosch GSB 16-18-20 RE Genuine parts Bosch, Grommet Ø 6,9x90 MM for Percussion Drills GSB 16 RE - GSB 18-2 RE - GSB 20-2 RE - GSB 20-2 RCE. Parts for segunti articles: - Percussion Drill Bosch GSB 16 RE -...
AVAILABLE €3.17
Details
White Wire 130 mm for Rotary Hammer Bosch GBH 2-24 DFR
Bosch SKU: 2604448005
White Wire 130 mm for Rotary Hammer Bosch GBH 2-24 DFR
White Wire 130 mm for Rotary Hammer Bosch GBH 2-24 DFR Bosch original replacement, Carbon Brusches Holders Assy White Wire 130 mm for Rotary Hammer Bosch GBH 2-24 DFR - GSB 20-2 RE - PBH 220 RE - PBH 240 RE Parts for the following...
AVAILABLE €2.61
Details
Screw M 6x34 MM Left for Percussion Drills Bosch GSB 16 RE
Bosch SKU: 2603421213
Screw M 6x34 MM Left for Percussion Drills Bosch GSB 16 RE
Screw M 6x34 MM Left for Percussion Drills Bosch GSB 16 RE Genuine part Bosch, Countersunk-Head Screw M 6x34 MM Lefthand Threads for Percussion Drill GSB 16 RE/0 601 140 603 - GSB 20-2 RCE/0 601 192 703 Parts for the following...
AVAILABLE €3.17
Details
Screw M 6x27 MM Left for Impact Drill Bosch GSB 20-2 RE Sale
Bosch SKU: 2603421226
Screw M 6x27 MM Left for Impact Drill Bosch GSB 20-2 RE
Screw M 6x27 MM Left for Impact Drill Bosch GSB 20-2 RE Genuine part Bosch, Countersunk-Head Screw M 6x27 MM Lefthand Threads for Impact Drill GSB 20-2 RE/0 601 184 606 -  GSB 20-2 RCE/0 601 192 703 Parts for the following products: -...
AVAILABLE €1.74
Details
Sleeve-Type Terminal for Hammer Drill Bosch GSB 16 RE
Bosch SKU: 2600400008
Sleeve-Type Terminal for Hammer Drill Bosch GSB 16 RE
Sleeve-Type Terminal for Hammer Drill Bosch GSB 16 RE Genuine replacement part Bosch, Sleeve-Type Terminal for Hammer Drill GSB 16 RE/0 601 140 603 - GSB 18-2 RE/0 601 141 603 - GSB 20-2 RCE. Part for the following products: - Hammer...
AVAILABLE €2.09
Details
Flat Gasket Ring for Hammer Drill GSB 20-2 RE Sale
Bosch SKU: 2601073012
Flat Gasket Ring for Hammer Drill GSB 20-2 RE
Flat Gasket Ring for Hammer Drill GSB 20-2 RE Original Spare Part Bosch, Flat Gasket Ring for Hammer Drill GSB 20-2 RE/0 601 184 606 - GSB 20-2 RCE. Part for the following products: - Hammer Drill GSB 20-2 RE/0 601 184 606 - Hammer...
AVAILABLE €1.54
Details
Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE
Bosch SKU: 2600100607
Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE
Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE Genuine part Bosch, Shim Washer 0,3 mm for Hammer Drills GSB 18-2 RE - GSB 20-2 RE - GSB 20-2 RCE - GSB 21-2 RE - PSB 700-2 RE. Part for the following products: - Hammer Drill GSB...
AVAILABLE €2.09
Details
Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE
Bosch SKU: 2600590006
Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE
Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE Genuine part Bosch, Ratchet Cap for Hammer Drill GSB 20-2 RE/0 601 184 606 -  GSB 20-2 RCE/0 601 192 703. Parts for the following products: - Hammer Drill GSB 18-2 RE/0 601 141 603 -...
AVAILABLE €2.09
Details
Locking Washer for Percussion Drill GSB 20-2 RE
Bosch SKU: 2916080007
Locking Washer for Percussion Drill GSB 20-2 RE
Locking Washer for Percussion Drill GSB 20-2 RE Original Spare Part Bosch, Locking Washer DIN 6799-4-FST for Percussion Drill GSB 20-2 RE/0 601 184 606. Part for the following products: - Bosch GSB 20-2 RCE/0601192703 - Bosch GSB 18-2...
AVAILABLE €0.91
Details
Cylindrical Gear Z 48 for Hammer Drill Bosch GSB 18-2 RE
Bosch SKU: 2606317045
Cylindrical Gear Z 48 for Hammer Drill Bosch GSB 18-2 RE
Cylindrical Gear Z 48 for Hammer Drill Bosch GSB 18-2 RE Genuine part Bosch, Cylindrical Gear Z=48 for Hammer Drills GSB 18-2 RE - GSB 20-2 RE - GSB 20-2 RCE - CSB 800-2 RE. Part for the following products: -  Hammer Drill GSB 18-2 RE...
on 7/10 Business Days Approx €14.02
Details
Comments (0)
