Bosch Spare Parts for Impact Drill GSB 13 RE

SKU: GSB 13 RE - 0601131603
€17.28
VAT included

Bosch Spare Parts for Impact Drill GSB 13 RE

We have the original Spares BOSCH for Impact Drill GSB 13 RE - 0601131603, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill GSB 13 RE. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

Bosch Spare Parts for Impact Drill GSB13RE
  • Bosch Spare Parts for Impact Drill GSB13RE
  • Bosch Spare Parts for Impact Drill GSB13RE
Bosch

Bosch Spare Parts for Impact Drill GSB 13 RE

SKU: GSB 13 RE - 0601131603 Condition: New
€17.28
VAT included

Bosch Spare Parts for Impact Drill GSB 13 RE

We have the original Spares BOSCH for Impact Drill GSB 13 RE - 0601131603, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill GSB 13 RE. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

settings 35 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
35 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

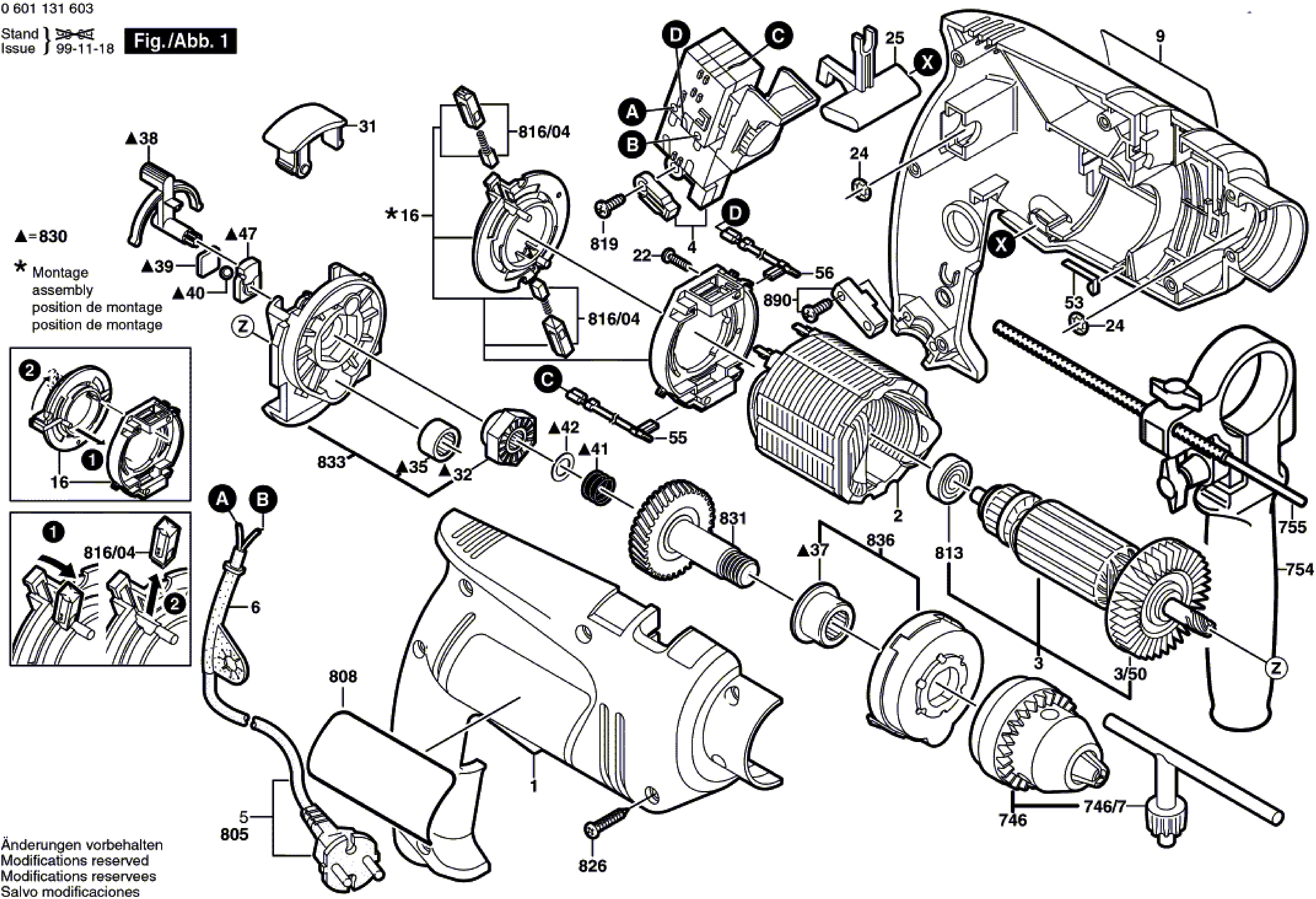

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2605104733 Housing Section €18.67
2
 photo_cameraImage coming soon 2604220601 Field 220-240V  €23.73
3
 photo_cameraImage coming soon 2604011259 Armature 220-230V  €31.18
3/50
 Fan for Percussion Drill Bosch GSB 13 RE 2606610097 Fan for Percussion Drill Bosch GSB 13 RE €5.94
4
 Switch for Drills Bosch PSB500-600-700/GSB13-16 2607200556 Switch for Drills Bosch PSB500-600-700/GSB13-16 €44.69 €40.22 -10%
6
 Grommet for Drills Bosch PSB550-650-700/2-1000 2600707066 Grommet for Drills Bosch PSB550-650-700/2-1000 €2.28
9
 photo_cameraImage coming soon 2601116652 Manufacturer's nameplate  €2.82
16
 Carbon Brushes Holder for Impact Drills Bosch GSB 13 RE 2604337104 Carbon Brushes Holder for Impact Drills Bosch GSB 13 RE €23.86
22
 Tapping Screw DIN 7981 for Percussion Drill Bosh GSB-PSB 2910611002 Tapping Screw DIN 7981 for Percussion Drill Bosh GSB-PSB €1.20
24
 photo_cameraImage coming soon 1900210000 O-Ring 5,0x1,5 MM  €2.13
25
 Red Change-Over Switch for Percussion Drills Bosch PSB500-650-700RE 2602098008 Red Change-Over Switch for Percussion Drills Bosch PSB500-650-700RE €2.89
31
 photo_cameraImage coming soon 2605510189 Locking Piece  €1.90
35
 photo_cameraImage coming soon 2600914019 Needle bearing  €6.90
38
 Indexing Disk for Percussion Drill Bosch PSB 500 RE 2601990010 Indexing Disk for Percussion Drill Bosch PSB 500 RE €1.54
39
 Pressure Plate for Percussion Drill Bosch PSB 500 RE 2601074004 Pressure Plate for Percussion Drill Bosch PSB 500 RE €1.54
40
 photo_cameraImage coming soon 1903230009 Ball DIN 5401-5 G28  €1.43
41
 Compression Spring for Bosch Impact Drills GSB13-16/PSB500-650-700 2604616006 Compression Spring for Bosch Impact Drills GSB13-16/PSB500-650-700 €1.91
42
 Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE 2600101047 Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE €1.52
47
 Sliding Lever Holder for Impact Drill Bosch PSB 500 RE 2608040120 Sliding Lever Holder for Impact Drill Bosch PSB 500 RE €2.10
53
 photo_cameraImage coming soon 2601329043 Contact Strap  €1.57
55
 Carbon Brushes Holder White Wire for Impact Drills Bosch GSB 13 RE 1614431025 Carbon Brushes Holder White Wire for Impact Drills Bosch GSB 13 RE €3.04
56
 Carbon Brushes Holder Blu Wire for Impact Drills Bosch GSB 13 RE 2604448228 Carbon Brushes Holder Blu Wire for Impact Drills Bosch GSB 13 RE €3.04
746/7
 photo_cameraImage coming soon 2607950007 Chuck Wrench SG2 €16.17
754
 photo_cameraImage coming soon 1612025031 Auxiliary Handle Ø43 MM BLACK  €12.76
755
 photo_cameraImage coming soon 1613001009 Depth-Gauge SW 6x210 MM €9.00
805
 photo_cameraImage coming soon 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm  €16.29
808
 photo_cameraImage coming soon 2601117506 Marking Plate  €2.82
813
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
816/04
 Carbon Brushes for Impact Drills Bosch PSB 500-700 RE 2607014017 Carbon Brushes for Impact Drills Bosch PSB 500-700 RE €18.86
819
 photo_cameraImage coming soon 2603490017 Torx Oval-Head Screw 3x10 €2.82
826
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
830
 photo_cameraImage coming soon 2606200094 Gear Unit  €42.93
833
 photo_cameraImage coming soon 2605807933 Bearing Bracket  €18.67
836
 photo_cameraImage coming soon 2605808925 Gear Cover  €14.49
890
 photo_cameraImage coming soon 2607001305 Fastening parts kit  €6.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Impact Drill GSB 13 RE

We have the original Spares BOSCH for Impact Drill GSB 13 RE - 0601131603, the Repair information, Exploded Diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill GSB 13 RE. All Spares are original and can be supplied at discounted prices. Our Spares are Genuine Parts Guaranteed.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.

Impact Drill GSB 13 RE/0 601 131603
1 2605104 33 Housing Section
2 2604220601 Field 220-240V
3 2604011259 Armature 220-230V
3/50 2606610097 Fan
4 2607200556 Switch
6 2600707066 Grommet Ø6,2-Ø6,9x90 MM
9 2601116652 Manufacturer's nameplate
16 2604337104 Brush Plate
22 2910611002 Tapping Screw DIN 7981-ST2,2x9,5-C-H
24 1900210000 O-Ring 5,0x1,5 MM
25 2602098008 Change-Over Switch RED
31 2605510189 Locking Piece
32 2600190078 Catch Disk
35 2600914019 Needle bearing
37 2605805009 Flanged Bearing
38 2601990010 Indexing Disk BLACK
39 2601074004 Pressure Plate
40 1903230009 Ball DIN 5401-5 G28
41 2604616006 Compression Spring
42 2600101047 Shim 0,3 MM
47 2608040120 Frame
53 2601329043 Contact Strap
55 1614431025 Pvc-Insulated Cable L=95 MM
56 2604448228 Pvc-Insulated Cable L=120 MM BLUE
746 2608571056 Key Chuck 1/2"
746/7 2607950007 Chuck Wrench SG2
754 1612025031 Auxiliary Handle Ø43 MM BLACK
755 1613001009 Depth-Gauge SW 6x210 MM
805 1607000385 Power supply cord EU 2,6m 2 x 1,0 mm
808 2601117506 Marking Plate
813 2600905032 Deep-Groove Ball Bearing 7x19x6
816/04 2607014017 Carbon-Brush Set
819 2603490017 Torx Oval-Head Screw 3x10
826 2603490022 Torx Oval-Head Screw 4x16
830 2606200094 Gear Unit
831 2606135933 Drilling Spindle
833 2605807933 Bearing Bracket
836 2605808925 Gear Cover
890 2607001305 Fastening parts kit

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
