Bosch Spare Parts for Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000

SKU: Bosch GSA 18 V-LI - 3601F4J000
€20.01
VAT included

Bosch Spare Parts for Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000

Bosch genuine spare parts for replacing or repairing Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000.
Ability to cut more than 100 spruce beams (100 x 100 mm) with a single battery charge.

Bosch GSA 18 V-LI - 3601F4J000
Bosch Spare Parts for Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000
  • Bosch Spare Parts for Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000

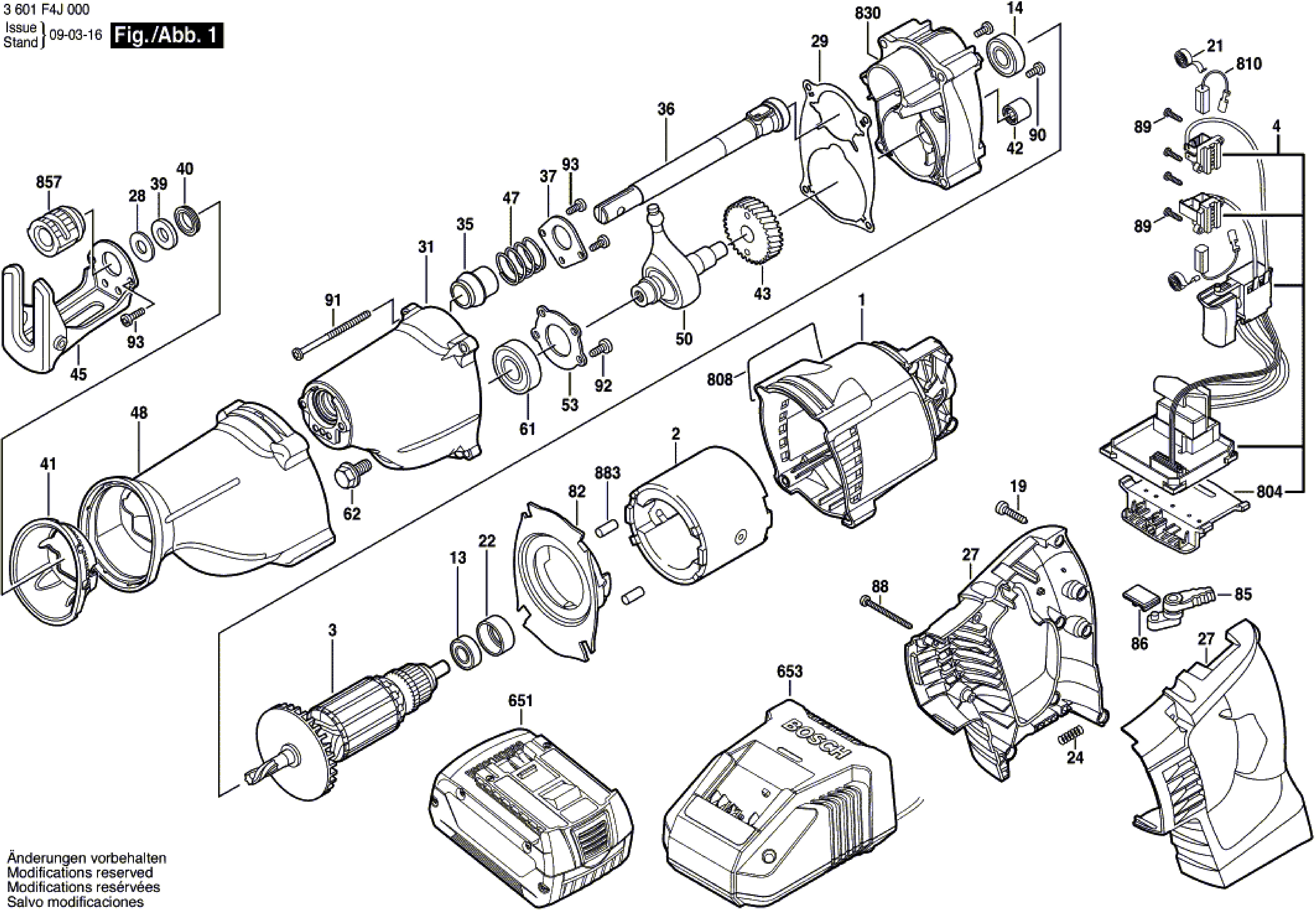

  • Bosch Spare Parts for Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000 - Diagram Exploded

Bosch Spare Parts for Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000

SKU: Bosch GSA 18 V-LI - 3601F4J000 Condition: New
€20.01
VAT included

Bosch Spare Parts for Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000

Bosch genuine spare parts for replacing or repairing Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000.
Ability to cut more than 100 spruce beams (100 x 100 mm) with a single battery charge.

Bosch GSA 18 V-LI - 3601F4J000
settings 48 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 2607225323 Charger GB 230/10,8-18V, 30 MIN €112.85
photo_cameraImage coming soon 2607225325 Fast Charger AUS 240/10,8-18V, 30 MIN €151.00
1
photo_cameraImage coming soon 2610957458 Motor Housing BLUE €14.49
2
photo_cameraImage coming soon 2610942109 Pole housing 14;4-24V €23.92
3
photo_cameraImage coming soon 2610957808 Armature 18V €60.24
4
photo_cameraImage coming soon 1607233567 Electronics Module €95.48
13
photo_cameraImage coming soon 1619P01511 Ball Bearing €5.06
14
photo_cameraImage coming soon 1900905173 Deep-Groove Ball Bearing 6000-2RS DIN 625 €5.70
19
Screw ST 3,9x19 for Rotary Tool Dremel 3000 2610315386 Screw ST 3,9x19 for Rotary Tool Dremel 3000 €1.51
21
photo_cameraImage coming soon 2610907388 Spiral Spring €2.28
22
photo_cameraImage coming soon 1619P01127 Rubber Ring €1.25
24
photo_cameraImage coming soon 2604690055 Compression Spring €1.23
27
photo_cameraImage coming soon 2610956663 Set Of Handles BLUE €14.49
28
photo_cameraImage coming soon 2610908804 Protective Washer €1.90
29
photo_cameraImage coming soon 2610934995 Gasket €2.82
31
photo_cameraImage coming soon 2610935103 Front Housing €23.92
35
photo_cameraImage coming soon 2610934999 Sintered-Metal Bushing €4.29
36
photo_cameraImage coming soon 2610944393 Spindle Assembly €42.93
37
photo_cameraImage coming soon 2610935431 Spring Retaining Plate €1.59
39
photo_cameraImage coming soon 2610030004 Felt Washer SP 14,0 €1.59
40
photo_cameraImage coming soon 2610995815 Shaft Seal €7.85
41
photo_cameraImage coming soon 2610935004 Plastic Collar €1.90
42
photo_cameraImage coming soon 2610908698 Bearing Shell €5.61
43
photo_cameraImage coming soon 2610942118 Conversion Gear €21.45
45
photo_cameraImage coming soon 2610935005 Supporting foot €6.53
48
photo_cameraImage coming soon 2610935008 Insulating Sleeve €35.13
50
photo_cameraImage coming soon 2610938887 Wobble Plate €65.96
53
photo_cameraImage coming soon 2610935010 Retaining Plate €1.59
61
photo_cameraImage coming soon 1900905162 Deep-Groove Ball Bearing 15x32x9 €16.40
82
photo_cameraImage coming soon 2610935014 Baffle €5.06
90
photo_cameraImage coming soon 1603435068 Thread-forming tap. Screw DIN 7500, M4x10, SR10.2 €1.62
651
photo_cameraImage coming soon 2607336091 Slide-In Accu Package 18V, 2,6Ah, LI, MS €375.73
653
photo_cameraImage coming soon 2607225321 Charger EU 230/10,8-18V, 30 MIN €93.69
804
photo_cameraImage coming soon 1609280478 Contact retainer €17.09
808
photo_cameraImage coming soon 2610957921 Nameplate €1.90
810
photo_cameraImage coming soon 2610943623 Carbon-Brush Set €10.01
830
photo_cameraImage coming soon 2610945335 Bearing Plate €35.13
857
photo_cameraImage coming soon 2610920684 Toolholder €35.13

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000

Bosch genuine spare parts for replacing or repairing Cordless Reciprocating Saw GSA 18 V-LI/3 601 F4J 000.
Ability to cut more than 100 spruce beams (100 x 100 mm) with a single battery charge.

In the following table, look for the model of the Cordless Reciprocating Saw and the respective parts of the code.
Bosch GSA 18 V-LI - 3601F4J000

Reciprocating Saw GSA 18 V-LI/3 601 F4J 000
# Part Num. Description
1 2610957458 Motor Housing BLUE
2 2610942109 Pole housing 14;4-24V
3 2610957808 Armature 18V
4 1607233567 Electronics Module
13 1619P01511 Ball Bearing
14 1900905173 Deep-Groove Ball Bearing 6000-2RS DIN 625
19 2610315386 Screw ST3,9x19
21 2610907388 Spiral Spring
22 1619P01127 Rubber Ring
24 2604690055 Compression Spring
27 2610956663 Set Of Handles BLUE
28 2610908804 Protective Washer
29 2610934995 Gasket
31 2610935103 Front Housing
35 2610934999 Sintered-Metal Bushing
36 2610944393 Spindle Assembly
37 2610935431 Spring Retaining Plate
39 2610030004 Felt Washer SP 14,0
40 2610995815 Shaft Seal
41 2610935004 Plastic Collar
42 2610908698 Bearing Shell
43 2610942118 Conversion Gear
45 2610935005 Supporting foot
47 2610937437 Compression Spring
48 2610935008 Insulating Sleeve
50 2610938887 Wobble Plate
53 2610935010 Retaining Plate
61 1900905162 Deep-Groove Ball Bearing 15x32x9
62 2610918051 Trunnion
82 2610935014 Baffle
85 2610956664 Selector Switch
86 2610956683 Sliding Plate
88 1619P01446 Screw
89 1619P06252 Torx Oval-Head Screw
90 1603435068 Thread-forming tap. Screw DIN 7500, M4x10, SR10.2
91 1619P01932 Screw BLACK
92 1619P01447 Screw
93 1619P01931 Screw BLACK
651 2607336091 Slide-In Accu Package 18V, 2,6Ah, LI, MS
653 2607225321 Charger EU 230/10,8-18V, 30 MIN
2607225323 Charger GB 230/10,8-18V, 30 MIN
2607225325 Fast Charger AUS 240/10,8-18V, 30 MIN
804 1609280478 Contact retainer
808 2610957921 Nameplate
810 2610943623 Carbon-Brush Set
830 2610945335 Bearing Plate
857 2610920684 Toolholder
883 3602391503 Rubber-Inter Calation
