Bosch Genuine spare parts or replacement parts for to repair Cordless Drill Driver GSR 10,8 V-LI-2 / 3 601 H68 000.

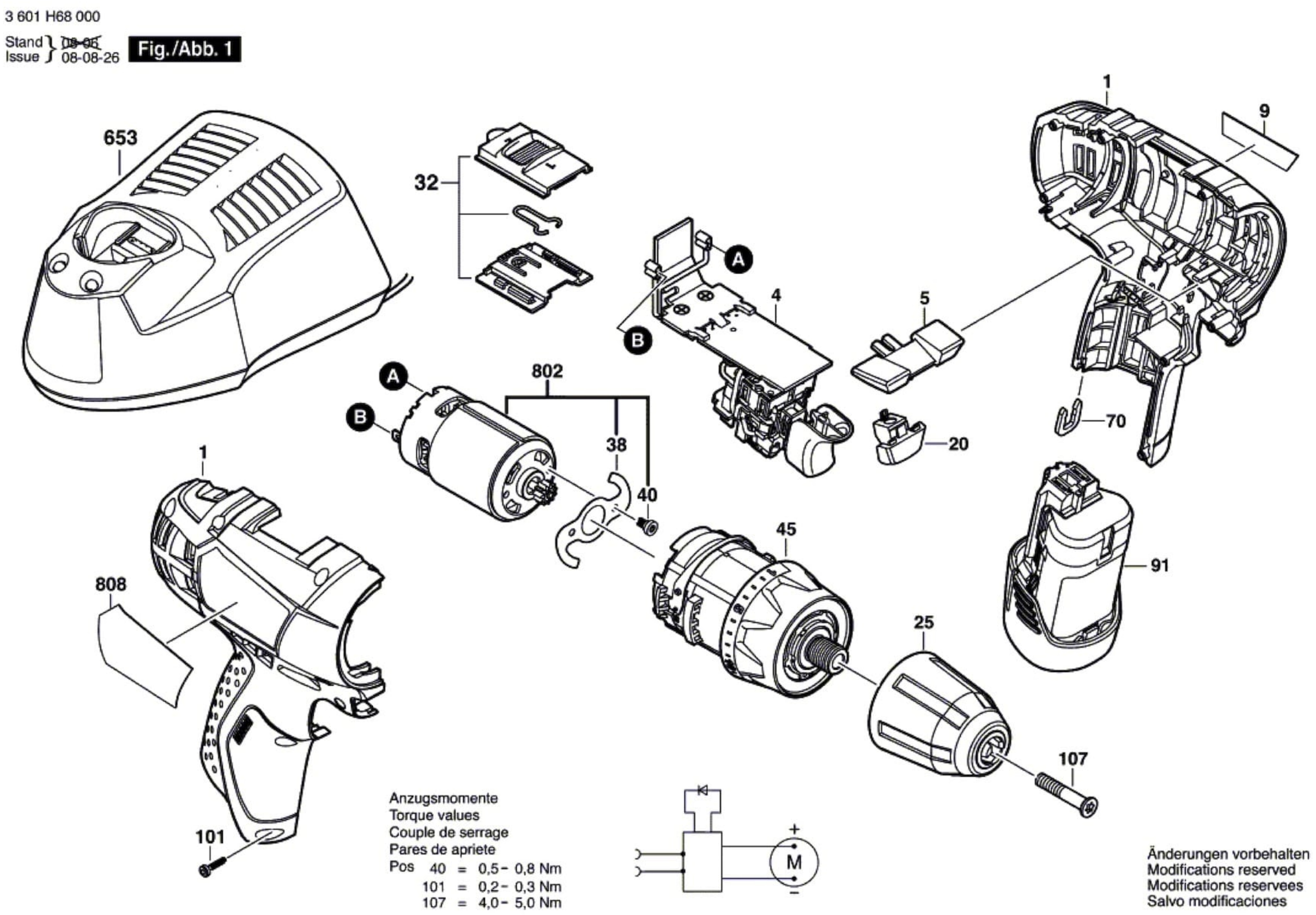

In the following table, look for the model of the Cordles Drill and the respective parts of the code.
| Cordless Drill Driver GSR 10,8 V-LI-2 / 3 601 H68 000. | ||
| # | Part Num. | Description |
| 1 | 2609100666 | Housing BLUE |
| 4 | 1607233508 | Electronics Module |
| 5 | 2609100665 | Button |
| 9 | 2609131731 | Manufacturer's nameplate GSR 10,8 V-LI-2 |
| 20 | 2609100664 | Light Guide |
| 25 | 2609110799 | Keyless Chuck 10 MM |
| 32 | 2609199119 | Slide Switch |
| 38 | 2609110801 | Tab Washer |
| 40 | 2609110802 | Screw |
| 45 | 2609199298 | Gear Box |
| 70 | 2609110537 | Clip |
| 91 | 2607336027 | Battery Pack 10,8V, 1,3Ah, LI |
| 101 | 2609110883 | Screw |
| 107 | 2609110635 | Pan head screw M 6x30 |
| 653 | 2607225133 | Fast Charger EU 230/10,8V, 30 MIN. |
| 653A | 2607225135 | Fast Charger GB 230/10,8V, 30 MIN. |
| 653B | 2607225513 | Fast Charger EU 230/3,6-10,8V, 1h |
| 653C | 2607225515 | Fast Charger GB 230/3,6-10,8V, 1h |
| 802 | 2609199177 | DC motor 10,8V |
| 808 | 2609131733 | Nameplate |
