settings 110 Spare parts
description 6 exploded views
picture_as_pdf Download Exploded PDF
Quantity
Out-of-Stock

SHIPPING IN: ON DEMAND ONLY
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
110 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

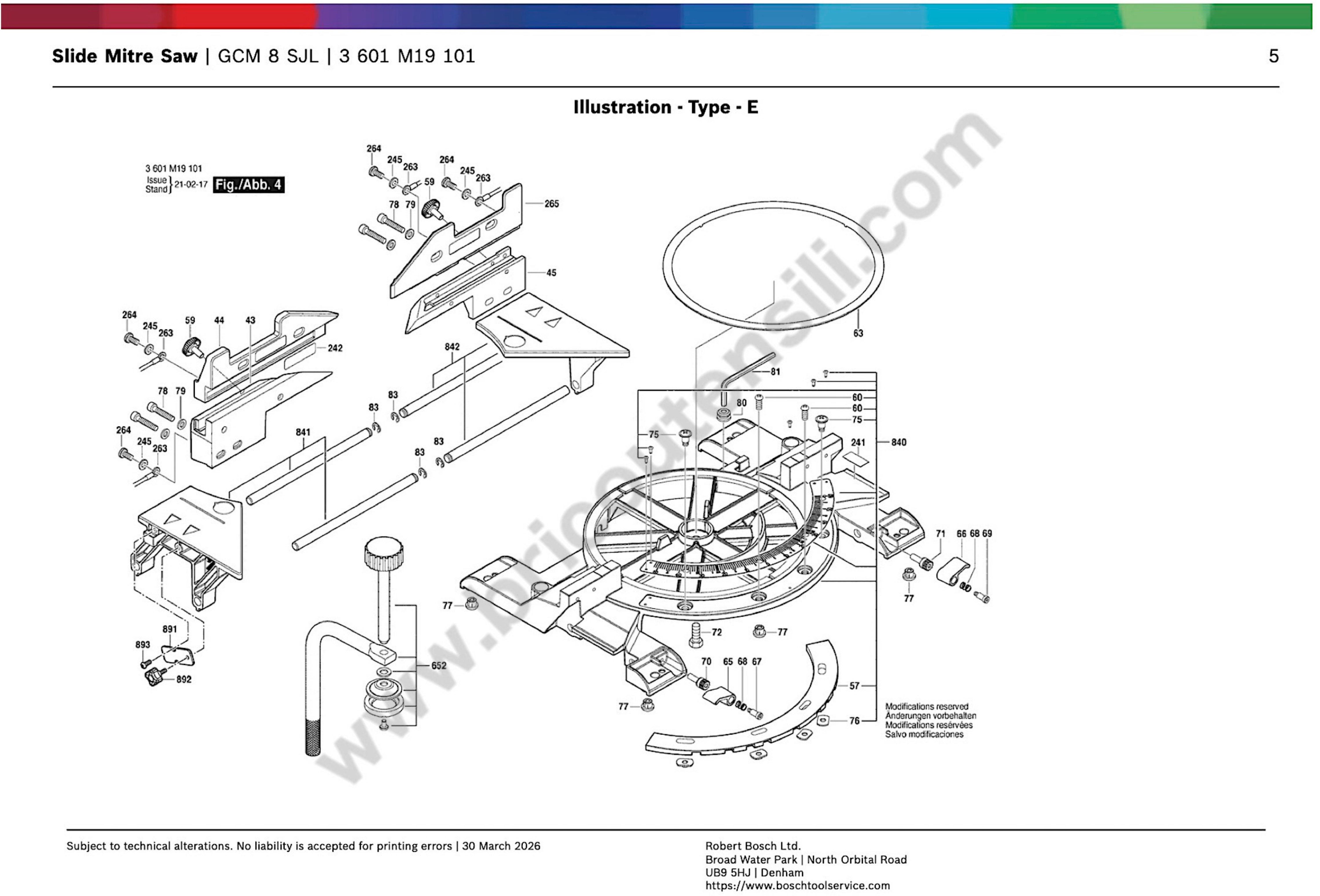

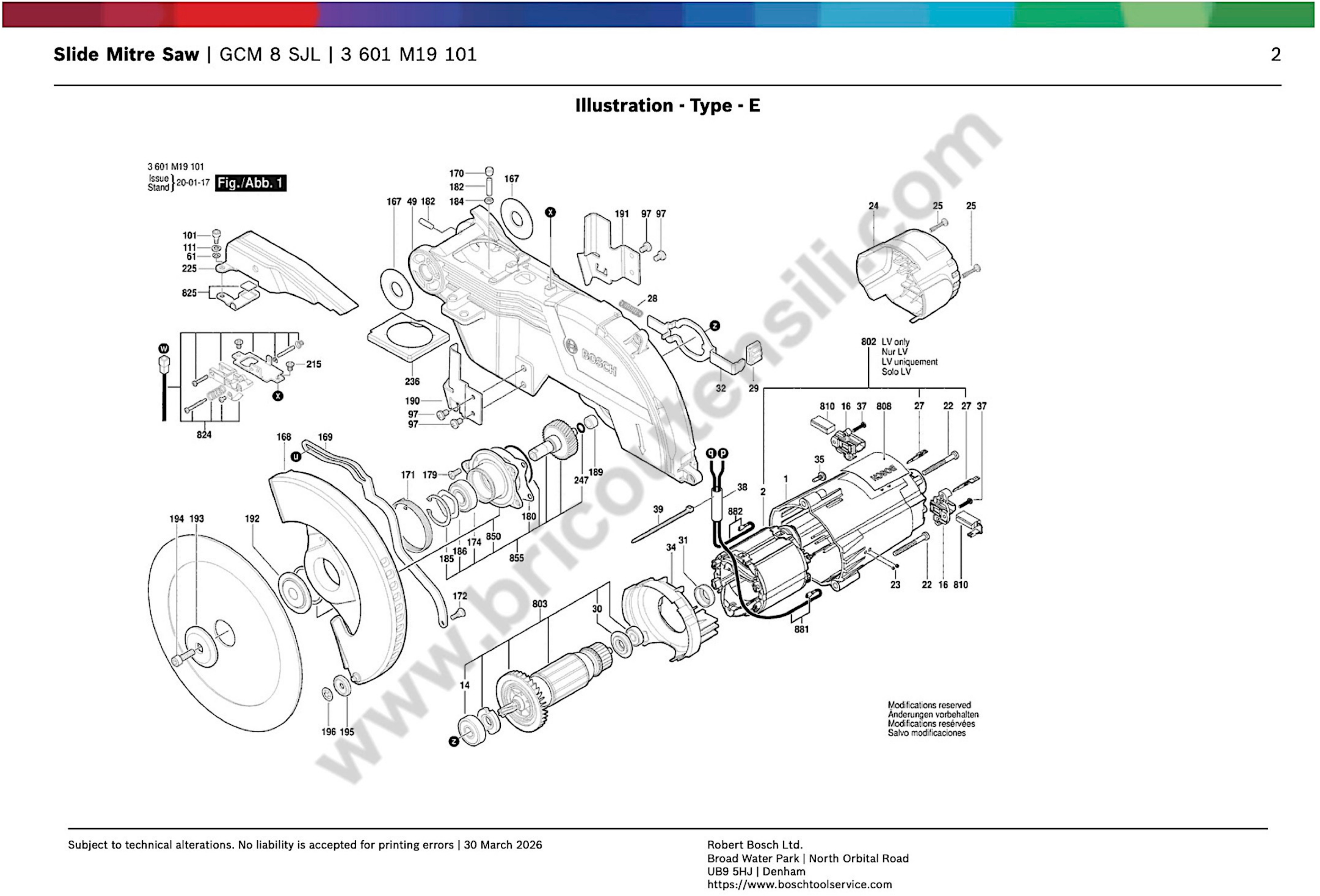

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
22
 photo_cameraImage coming soon 1609B04117 Screw €1.16
28
 photo_cameraImage coming soon 1619P01642 Compression Spring €1.16
29
 photo_cameraImage coming soon 1609B04070 Cap €2.38
32
 photo_cameraImage coming soon 1609B04073 Guide Bracket €7.26
37
 photo_cameraImage coming soon 1609B04208 Screw €1.16
61
 photo_cameraImage coming soon 1609B00863 Plain Washer €1.16
97
 photo_cameraImage coming soon 1609B04086 Screw €2.38
101
 photo_cameraImage coming soon 1609B01462 Shoulder Screw €1.16
111
 photo_cameraImage coming soon 1609B01668 Washer €1.16
167
 photo_cameraImage coming soon 1609B01602 Wear Plate €1.16
168
 photo_cameraImage coming soon 1609B04188 Lower guard €19.46
169
 photo_cameraImage coming soon 1609B04001 Linkage €15.80
170
 photo_cameraImage coming soon 1609B04002 Cover €1.16
171
 photo_cameraImage coming soon 1609B04004 Spring €2.38
172
 photo_cameraImage coming soon 1609BP7145 Screw €1.16
179
 photo_cameraImage coming soon 1609BP7134 Tapping Screw €1.16
182
 photo_cameraImage coming soon 1609B04205 Set screw €1.16
185
 photo_cameraImage coming soon 1609BP7068 Spring retaining ring €2.38
186
 photo_cameraImage coming soon 1609BP7050 Washer €3.60
189
 photo_cameraImage coming soon 1600200029 Plain bearing €6.04
190
 photo_cameraImage coming soon 1609B04017 Deflector €6.04
192
 photo_cameraImage coming soon 1609B04018 Clamping Flange €8.48
193
 photo_cameraImage coming soon 1609B06289 Clamping Flange €6.04
194
 photo_cameraImage coming soon 1609B05364 Flange Bolt €2.38
195
 photo_cameraImage coming soon 1609B04020 Wheel €1.16
196
 photo_cameraImage coming soon 1609B00458 Quick-Lock €1.16
215
 photo_cameraImage coming soon 1609B01561 Screw €1.16
236
 photo_cameraImage coming soon 1609B04220 Rubber Strip €2.38
824
 photo_cameraImage coming soon 1609B01726 Laser €29.22
825
 photo_cameraImage coming soon 1609B04127 Dust-Protection Cover €12.14
850
 photo_cameraImage coming soon 1609B05349 Gear cover €15.80
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

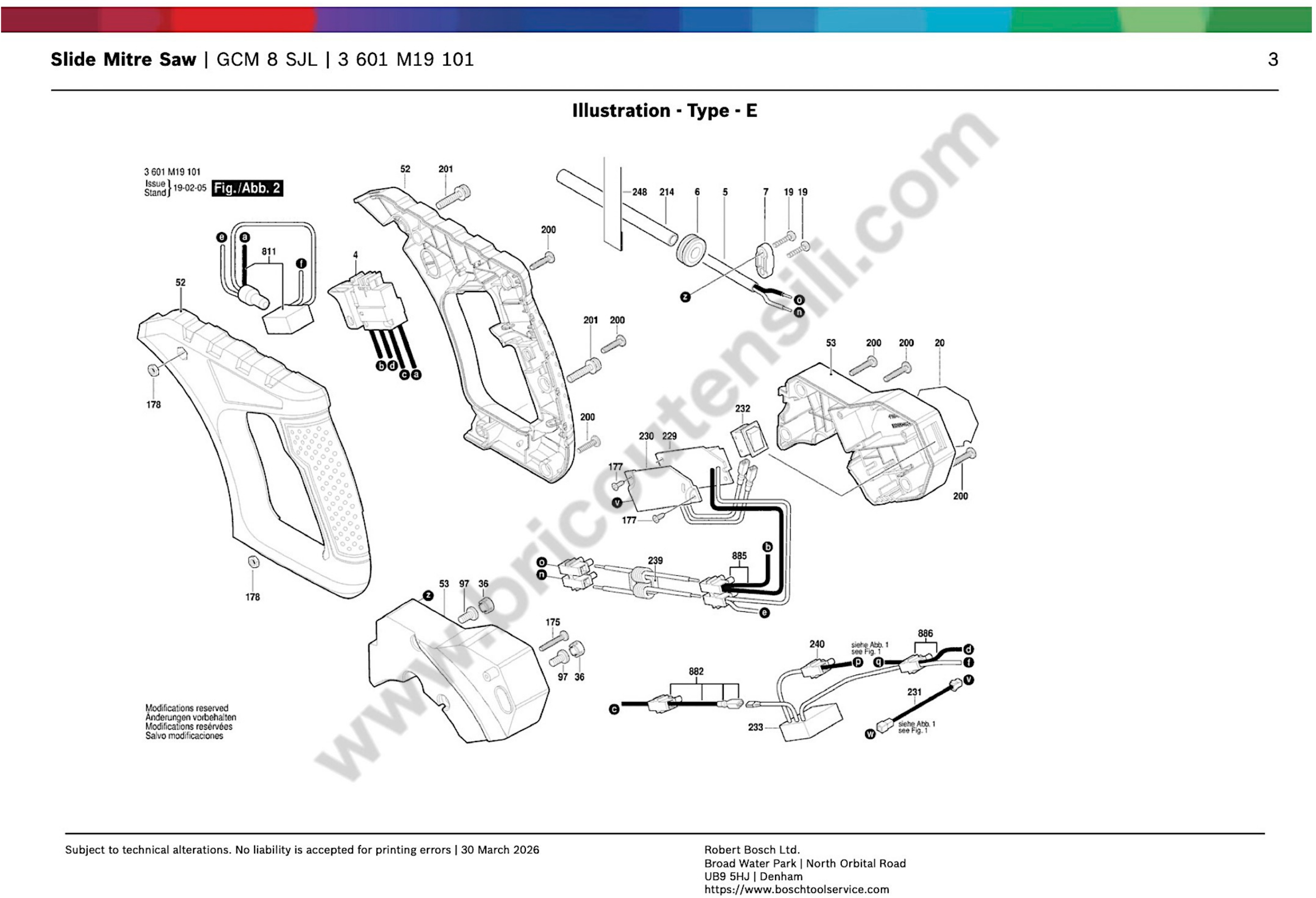

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
178
 photo_cameraImage coming soon 1609B00974 Lock Nut €2.38
200
 photo_cameraImage coming soon 1609B00637 Tapping Screw €1.16
201
 photo_cameraImage coming soon 1609B00973 Screw €1.16
240
 photo_cameraImage coming soon 1609BP7059 Connection Block €1.16
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY

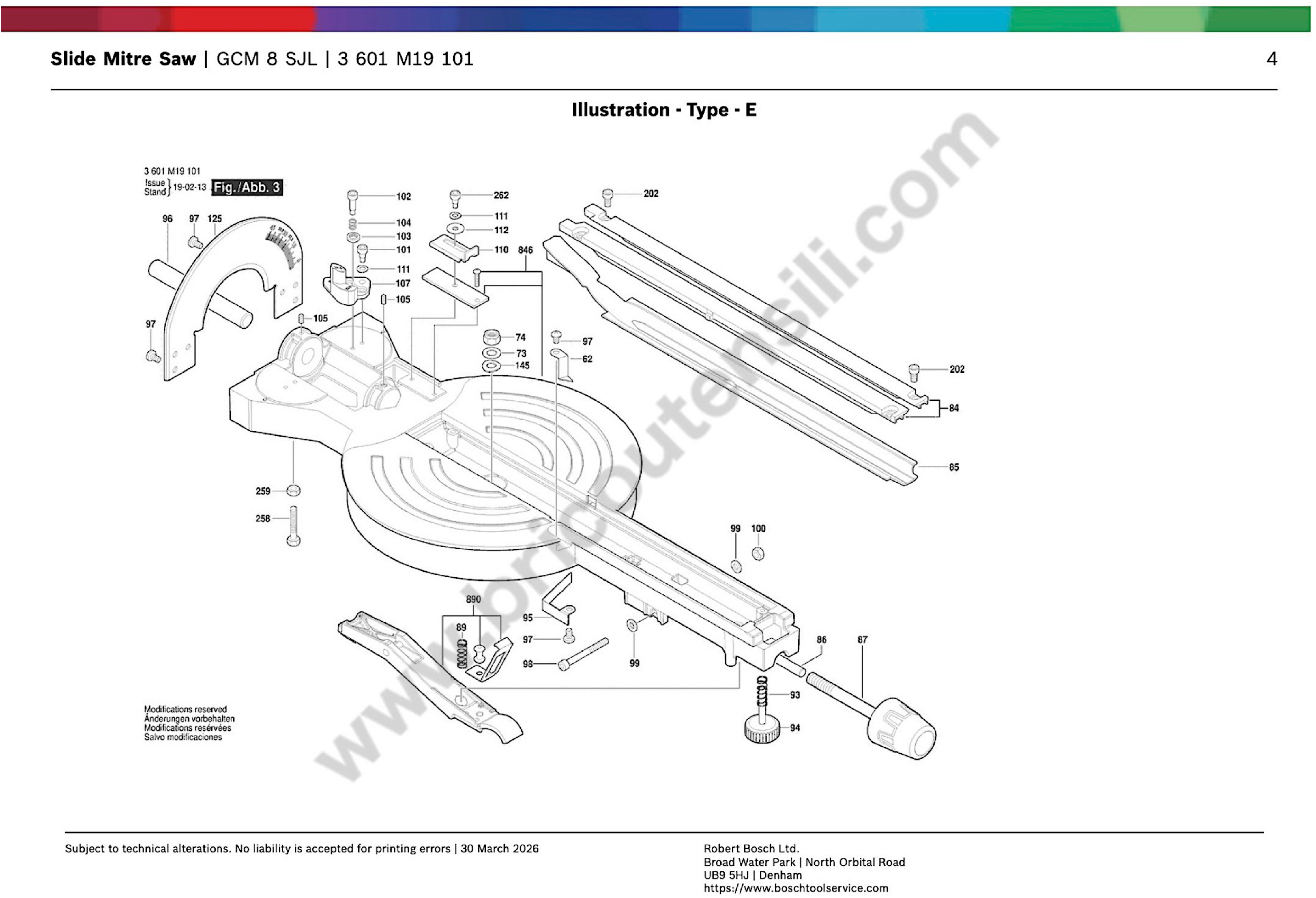

Esploso pagina 3
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
62
 photo_cameraImage coming soon 1609B00717 Pointer €1.16
73
 photo_cameraImage coming soon 1609B00670 Washer €2.38
74
 photo_cameraImage coming soon 1609B00704 Lock Nut €1.16
87
 photo_cameraImage coming soon 1609B04079 Knob €8.48
93
 photo_cameraImage coming soon 1609BP7341 Contact strap €1.16
94
 photo_cameraImage coming soon 1609B03727 Supporting foot €2.38
95
 photo_cameraImage coming soon 1609B03729 Wear Plate €1.16
96
 photo_cameraImage coming soon 1609B04108 Pivot Shaft €6.04
98
 photo_cameraImage coming soon 1609B03723 Screw €1.16
99
 photo_cameraImage coming soon 1609B01324 Plain Washer €1.16
100
 photo_cameraImage coming soon 1609B01949 Nut €1.16
105
 photo_cameraImage coming soon 1609BP7143 Set screw €1.16
112
 photo_cameraImage coming soon 1609B00675 Washer €1.16
145
 photo_cameraImage coming soon 1609B00660 Spring Washer €1.16
202
 photo_cameraImage coming soon 1609B00627 Screw €3.60
258
 photo_cameraImage coming soon 1609B04236 Bolt €2.38
259
 photo_cameraImage coming soon 1609B04227 Adjusting Nut €1.16
Page 4 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
59
 photo_cameraImage coming soon 1609B05382 Knurled Screw €1.16
63
 photo_cameraImage coming soon 1609B03714 Wear Plate €6.04
65
 photo_cameraImage coming soon 1609B00232 Locking Lever €2.38
66
 photo_cameraImage coming soon 1609B00233 Locking Lever €1.16
67
 photo_cameraImage coming soon 1609B00236 Shoulder Screw €2.38
68
 photo_cameraImage coming soon 1609B00237 Compression Spring €1.16
69
 photo_cameraImage coming soon 1609B00238 Shoulder Screw €2.38
72
 photo_cameraImage coming soon 1609B05203 Bolt €1.16
77
 photo_cameraImage coming soon 1609B00705 Rubber Bushing €1.16
79
 photo_cameraImage coming soon 1609B00669 Washer €1.16
80
 photo_cameraImage coming soon 1609BP7098 Rubber Ring €1.16
81
 photo_cameraImage coming soon 1609BP7026 Hexagon Socket Screw Key €3.60
83
 photo_cameraImage coming soon 1609B01992 End Clip €1.16
245
 photo_cameraImage coming soon 1609B04225 Plain Washer €1.16
263
 photo_cameraImage coming soon 1609B05115 Cable €2.38
264
 photo_cameraImage coming soon 1609B00780 Screw €1.16
652
 photo_cameraImage coming soon 1609B04224 Clamp €25.56
891
 photo_cameraImage coming soon 1609B02365 Stop Plate €2.38
892
 photo_cameraImage coming soon 1609B00263 Screw €2.38
893
 photo_cameraImage coming soon 1609B00678 Screw €1.16
Page 5 zoom_in View exploded local_shipping ON DEMAND ONLY

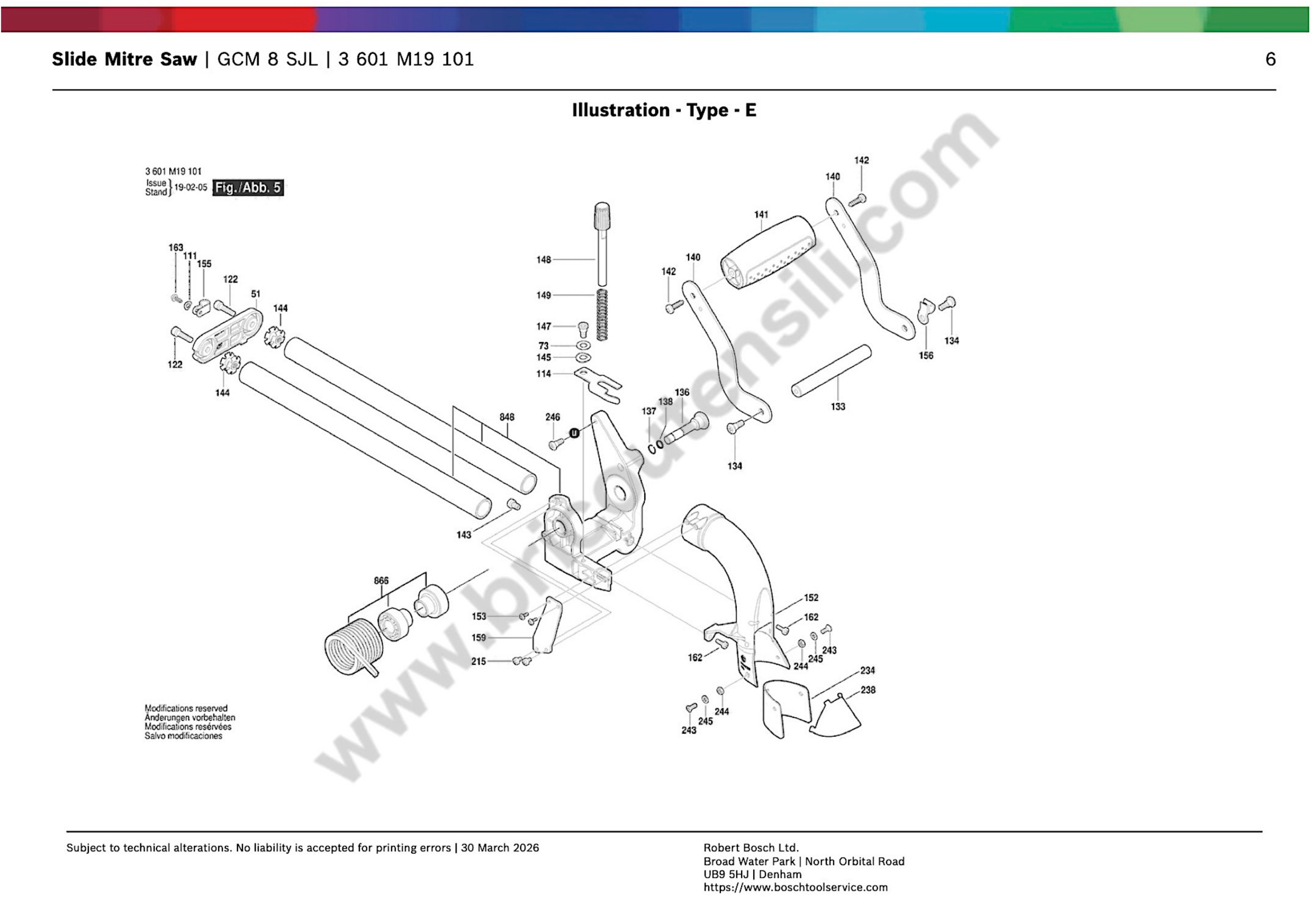

Esploso pagina 5
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
51
 photo_cameraImage coming soon 1609B03746 End cap €8.48
114
 photo_cameraImage coming soon 1609B03739 Stop Plate €1.16
122
 photo_cameraImage coming soon 1609B03749 Hex Socket Head Cap Screw €1.16
133
 photo_cameraImage coming soon 1609B03771 Pivot Pin €8.48
136
 photo_cameraImage coming soon 1609B03767 Detent Pin €3.60
137
 photo_cameraImage coming soon 1609B03757 Clip €2.38
138
 photo_cameraImage coming soon 1609B00601 LOWER MOTOR SEALING €2.38
140
 photo_cameraImage coming soon 1609B03745 Handle Plate €3.60
141
 photo_cameraImage coming soon 1609B03747 Carrying Handle €14.58
142
 photo_cameraImage coming soon 1609B03768 Tapping Screw €1.16
143
 photo_cameraImage coming soon 1609B03753 Slide Stop €2.38
144
 photo_cameraImage coming soon 1609B03752 Special Nut €4.82
147
 photo_cameraImage coming soon 1609B03795 Shoulder Screw €1.16
148
 photo_cameraImage coming soon 1609B00382 Knob €7.26
149
 photo_cameraImage coming soon 1609B00417 Compression Spring €1.16
153
 photo_cameraImage coming soon 1609B03777 Set screw €1.16
162
 photo_cameraImage coming soon 1609B00623 Screw €1.16
234
 photo_cameraImage coming soon 1609B03791 rubber lip €2.38
238
 photo_cameraImage coming soon 1609B04222 Rubber Strip €2.38
243
 photo_cameraImage coming soon 1609B00633 Screw €1.16
244
 photo_cameraImage coming soon 1609B00691 Nut €2.38
246
 photo_cameraImage coming soon 1609B05201 Shoulder Screw €2.38
866
 photo_cameraImage coming soon 1609B04124 Torsion Spring €18.24
Page 6 zoom_in View exploded local_shipping ON DEMAND ONLY

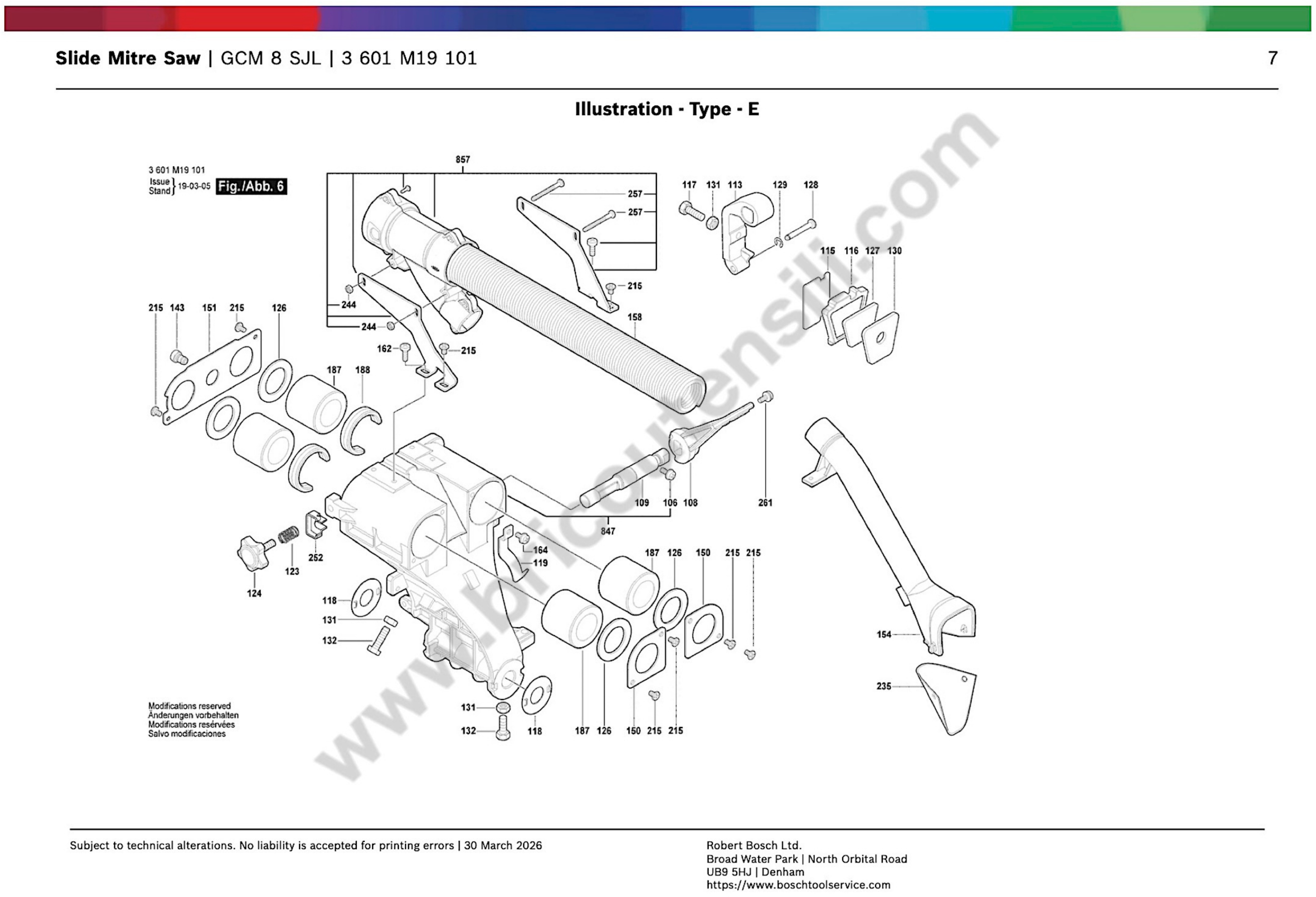

Esploso pagina 6
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
118
 photo_cameraImage coming soon 1609B04134 Wear Plate €1.16
119
 photo_cameraImage coming soon 1609B03758 Pointer €2.38
123
 photo_cameraImage coming soon 1609BP7343 Contact strap €1.16
124
 photo_cameraImage coming soon 1609B03755 Knob €2.38
126
 photo_cameraImage coming soon 1609B03763 Felt Washer €1.16
128
 photo_cameraImage coming soon 1609B00370 Shaft €2.38
129
 photo_cameraImage coming soon 1609B00690 Retaining ring €1.16
130
 photo_cameraImage coming soon 1609B03773 Friction Plate €8.48
131
 photo_cameraImage coming soon 1609B01041 Hex Nut €1.16
132
 photo_cameraImage coming soon 1609B03776 Stop bolt €1.16
151
 photo_cameraImage coming soon 1609B03766 Retaining Plate €2.38
164
 photo_cameraImage coming soon 1609B01690 Screw €1.16
187
 photo_cameraImage coming soon 1609B03774 Ball Bearing €15.80
188
 photo_cameraImage coming soon 1609B03780 Spacer €1.16
252
 photo_cameraImage coming soon 1609B05298 Cover €1.16

Shipping and delivery information will be available shortly.

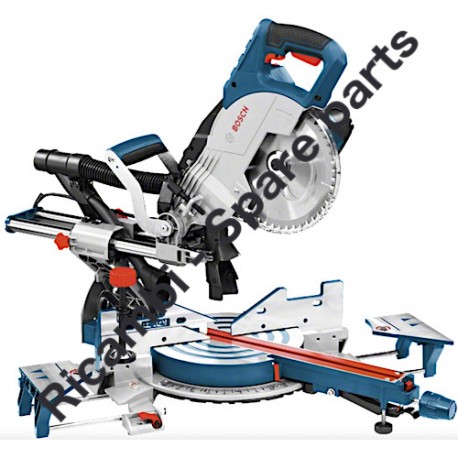

Bosch Spare Parts for Slide Mitre Saw GCM 8 SJL - 3601M19101

We are BOSCH original spare parts Dealers at low at unbeatable prices and a service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Professional Slide Mitre Saw GCM 8 SJL - 3601M19101.

In the following table, look for the model of the Miter Saw and the respective parts of the code.
Troncatrice GCM 8 SJL - 3601M19101

Mitre Saw GCM 8 SJL - 3601M19101
# Part Num Description
1 1609B04181 Motor Housing BLUE
2 1619P04474 Field 230V
4 1609B04011 On-Off Switch
5 1609B02952 Power supply cord EU 3M 2X1MM
6 1609B01533 Cord guard
7 1609B00821 Cable Clip
14 1619P06374 Bearing Cover Plate
16 1619P06212 Brush Holder
19 1609B02357 Screw ECO-SYN ST 3,5X16
20 1609B02127 Warning Label
22 1609B04117 Screw
24 1609B04008 End cap
25 1609B00921 Special Screw
27 1619P06213 Right Angle Plug
28 1619P01642 Compression Spring
29 1609B04070 Cap
30 1609B04071 Sealing washer
31 1609B04072 Rubber Ring
32 1609B04073 Guide Bracket
34 1609B04075 Baffle
35 1609B04200 Cover
36 1609B04202 Cover
37 1609B04208 Screw
38 1609B00799 Bushing
39 1609B05329 Clip
43 1609B01892 Mitre Fence
44 1609B04182 Mitre Fence
45 1609B04185 Mitre Fence
49 1609B04015 Arm
51 1609B03746 End cap
52 1609B04090 Switch Handle
53 1609B04023 Junction Box
57 1609B03704 Detent plate
59 1609B05382 Knurled Screw
60 1609B03711 Screw
61 1609B00863 Plain Washer
62 1609B00717 Pointer
63 1609B03714 Wear Plate
65 1609B00232 Locking Lever
66 1609B00233 Locking Lever
67 1609B00236 Shoulder Screw
68 1609B00237 Compression Spring
69 1609B00238 Shoulder Screw
70 1609B01435 Lock Screw
71 1609B01436 Lock Screw
72 1609B05203 Bolt
73 1609B00670 Washer
74 1609B00704 Lock Nut
75 1609B04067 Special Screw
76 1609B04069 Special Nut
77 1609B00705 Rubber Bushing
78 1609B03722 Screw
79 1609B00669 Washer
80 1609BP7098 Rubber Ring
81 1609BP7026 Hex Socket Screw Key
83 1609B01992 End Clip
84 1609B03717 Support Plate
85 1609B03718 Dust Tray
86 1609B04080 Rod
87 1609B04079 Knob
89 1609B03721 Compression Spring
93 1609BP7341 Contact strap
94 1609B03727 Supporting foot
95 1609B03729 Wear Plate
96 1609B04108 Pivot Shaft
97 1609B04086 Screw
98 1609B03723 Screw
99 1609B01324 Plain Washer
100 1609B01949 Nut
101 1609B01462 Shoulder Screw
102 1609B01463 Shoulder Screw
103 1609B01464 Sliding Block
104 1609B01479 Compression Spring
105 1609BP7143 Set screw
106 1609B01388 Screw
107 1609B03760 Detent
108 1609B03733 Control Lever
109 1609B03734 Shaft
110 1609B03737 Detent
111 1609B01668 Washer
112 1609B00675 Washer
113 1609B03738 Locking element
114 1609B03739 Stop Plate
115 1609B05370 Leaf Spring
116 1609B03741 Lock Plate
117 1609B03742 Adjusting bolt
118 1609B04134 Wear Plate
119 1609B03758 Pointer
122 1609B03749 Hex Socket Head Cap Screw
123 1609BP7343 Contact strap
124 1609B03755 Knob
125 1609B03772 Scale Plate
126 1609B03763 Felt Washer
127 1609B03770 Friction Plate
128 1609B00370 Shaft
129 1609B00690 Retaining ring
130 1609B03773 Friction Plate
131 1609B01041 Hex Nut
132 1609B03776 Stop bolt
133 1609B03771 Pivot Pin
134 1609B03779 Shoulder Screw
136 1609B03767 Detent Pin
137 1609B03757 Clip
138 1609B00601 O-Ring
140 1609B03745 Handle Plate
141 1609B03747 Carrying Handle
142 1609B03768 Tapping Screw
143 1609B03753 Slide Stop
144 1609B03752 Special Nut
145 1609B00660 Spring Washer
147 1609B03795 Shoulder Screw
148 1609B00382 Knob RED
149 1609B00417 Compression Spring
150 1609B03765 Retaining Plate
151 1609B03766 Retaining Plate
152 1609B03750 Dust Extraction
153 1609B03777 Set screw
154 1609B03751 Dust Extraction
155 1609B01512 Cable Clip
156 1609B00339 Cable Clip
158 1609B03782 Vacuum Hose
159 1609B03783 Support bracket
162 1609B00623 Screw
163 1609B01168 Thread-Forming Screw
164 1609B01690 Screw
167 1609B01602 Wear Plate
168 1609B04188 Lower guard
169 1609B04001 Linkage
170 1609B04002 Cover
171 1609B04004 Spring
172 1609BP7145 Screw
174 1609B01255 Ball Bearing
175 1609B04010 Tapping Screw
177 1609B05231 Tapping Screw
178 1609B00974 Lock Nut
179 1609BP7134 Tapping Screw
180 1609B04248 Seal
182 1609B04205 Set screw
184 1609B04207 Nut
185 1609BP7068 Spring retaining ring
186 1609BP7050 Washer
187 1609B03774 Ball Bearing
188 1609B03780 Spacer
189 1600200029 Plain bearing
190 1609B04017 Deflector
191 1609B04028 Deflector
192 1609B04018 Clamping Flange
193 1609B06289 Clamping Flange
194 1609B05364 Flange Bolt
195 1609B04020 Wheel
196 1609B00458 Quick-Lock
200 1609B00637 Tapping Screw
201 1609B00973 Screw
202 1609B00627 Screw
214 1609B00583 Shrinkable Tube
215 1609B01561 Screw
225 1609B04077 Cover
229 1609B01894 Printed Circuit Board
230 1609B04219 Cover Plate
232 1609B05392 Switch
233 1609B03797 Soft Start-Up Module
234 1609B03791 rubber lip
235 1609B03792 rubber lip
236 1609B04220 Rubber Strip
238 1609B04222 Rubber Strip
239 1609B00813 Ring
240 1609BP7059 Connection Block
241 1609B04111 Warning Label
242 1609B04112 Warning Label
243 1609B00633 Screw
244 1609B00691 Nut
245 1609B04225 Plain Washer
246 1609B05201 Shoulder Screw
247 1609B04228 O-Ring
248 1609B01538 Cable Tape
252 1609B05298 Cover
257 1609B05270 Screw
258 1609B04236 Bolt
259 1609B04227 Adjusting Nut
261 1609B01665 Screw
262 1609B04744 Shoulder Screw
263 1609B05115 Cable
264 1609B00780 Screw
265 1609B04184 Mitre Fence
652 1609B04224 Clamp
803 1609B03793 Armature assembly 230V
808 1609BN0263 Nameplate
810 1609B06661 Carbon-Brush Set
811 1609B04141 Capacitor
824 1609B01726 Laser
825 1609B04127 Dust-Protection Cover
840 1609B03744 Assembly Base
841 1609B04128 Feed Table
842 1609B05388 Feed Table
846 1609B05339 Table
847 1609B04123 Pivot
848 1609B03788 Yoke
850 1609B05349 Gear cover
855 1609B03789 Output Shaft
857 1609B04125 Dust Extraction
866 1609B04124 Torsion Spring
881 1609B01895 Connecting Wire
882 1609B04026 Connecting Wire
883 1609B04027 Connecting Wire
885 1609B01896 Connecting Wire
886 1609B04089 Connecting Wire
887 1609B04100 Connecting Wire
890 1609B05340 Lever
891 1609B02365 Stop Plate
892 1609B00263 Screw
893 1609B00678 Screw
1000 1609B04210 Wire
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GCM 8 SJL - 3601M19101

Data sheet

SHIPPING IN
ON DEMAND ONLY
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Bosch GCM 8 SJL Parts Drawing

Bosch GCM 8 SJL Parts Drawing

Download (1.87MB)

You might also like

Switch ON/OFF for Mitre Saw Bosch GTM 12
Bosch SKU: 1619P04138
Switch ON/OFF for Mitre Saw Bosch GTM 12
Switch ON/OFF for Mitre Saw Bosch GTM 12 Genuine part Bosch, Switch ON/OFF for Mitre Saw Bosch GTM 12 - 3601M15000 Parts for the following products: -  Mitre Saw Bosch GTM 12 JL - 3601M15001 - Code: 1619P04138
Usually Ships in: 10 Business Days Approx. €78.02
Details
Carbon Brushe Set for Mitre Saw Bosch GTM 12
Bosch SKU: 1619P04451
Carbon Brushe Set for Mitre Saw Bosch GTM 12
Carbon Brushe Set for Mitre Saw Bosch GTM 12 Genuine part Bosch, Carbon Brushe Set for Mitre Saw Bosch GTM 12 - 3601M15000 Part for the following products: -  Mitre Saw Bosch GTM 12 - 3601M15000 -...
AVAILABLE €28.00
Details
Special Nut for Mitre Saw Bosch GTM 12
Bosch SKU: 2610910774
Special Nut for Mitre Saw Bosch GTM 12
Special Nut for Mitre Saw Bosch GTM 12 Genuine part Bosch, Special Nut M5 for Mitre Saw Bosch GTM 12/3 601 M15 000. Part for the following products: - Mitre Saw Bosch GTM 12/3 601 M15 000 - Code: 2610910774
AVAILABLE €1.16
Details
Washer-And-Screw Assembly for Mitre Saw Bosch GTM 12
Bosch SKU: 2615303029
Washer-And-Screw Assembly for Mitre Saw Bosch GTM 12
Washer-And-Screw Assembly for Mitre Saw Bosch GTM 12 Genuine part Bosch, Washer-And-Screw Assembly M5x15 for Mitre Saw Bosch GTM 12/3 601 M15 000. Part for the following products: - Mitre Saw Bosch GTM 12/3 601...
AVAILABLE €2.38
Details
Washer mm 5.29x10 for Mitre Saw Bosch GTM 12
Bosch SKU: 2610309996
Washer mm 5.29x10 for Mitre Saw Bosch GTM 12
Washer mm 5.29x10 for Mitre Saw Bosch GTM 12 Genuine part Bosch, Washer mm 5.29x10 for Mitre Saw Bosch GTM 12/3 601 M15 000. Part for the following products: - Mitre Saw Bosch GTM 12/3 601 M15 000 -...
AVAILABLE €1.16
Details
Flanged Bolt for Slide Mitre Saw Bosch GTM 12
Bosch SKU: 1619P03482
Flanged Bolt for Slide Mitre Saw Bosch GTM 12
Flanged Bolt for Slide Mitre Saw Bosch GTM 12 Genuine part Bosch, Special Clamping Flanged Bolt for Slide Mitre Saw Bosch GTM 12/3 601 M15 000. Part for the following products: -  Mitre...
AVAILABLE €2.38
Details
Poli-V Belt 8PJ 584 for Slide Mitre Saw Bosch GCM 12 SD
Bosch SKU: 2610916805
Poli-V Belt 8PJ 584 for Slide Mitre Saw Bosch GCM 12 SD
Poli-V Belt 8PJ 584 for Slide Mitre Saw Bosch GCM 12 SD Genuine Part Bosch, Poli-V Belt 8PJ 584 5E for Slide Mitre Saw GCM 12 SD - 0601B23503. Parts for the following products: -  Slide Mitre Saw GCM 12 SD - 0601B23503 - Code :...
on 7/10 Business Days Approx. €59.72
Details
Comments (0)
No customer reviews for the moment.
