Bosch

Bosch GSB 1800-2 RE Parts

SKU: Bosch GSB 1800-2 RE
€29.51
VAT included

Bosch Spare Parts for Impact Drill GSB 22-2 RE

We have the original Spares BOSCH for Impact Drill GSB 1800-2 RE - 0 601 14A 650 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill GSB 1800-2 RE. Genuine Parts can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Guarantee

GSB 1800-2 RE - 0 601 14A 650

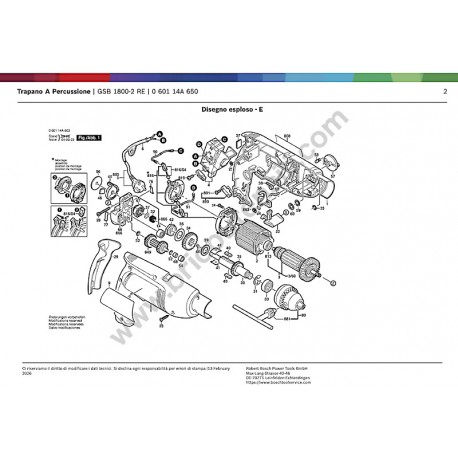

Bosch GSB 1800-2 RE Parts Drawing
  • Bosch GSB 1800-2 RE Parts Drawing
  • Bosch GSB 1800-2 RE Parts Drawing - 1
Bosch

Bosch GSB 1800-2 RE Parts

SKU: Bosch GSB 1800-2 RE Condition: New
€29.51
VAT included

Bosch Spare Parts for Impact Drill GSB 22-2 RE

We have the original Spares BOSCH for Impact Drill GSB 1800-2 RE - 0 601 14A 650 the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Impact Drill GSB 1800-2 RE. Genuine Parts can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Guarantee

GSB 1800-2 RE - 0 601 14A 650

settings 58 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
58 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 2604220689 Field 230-240V €29.51
3
 photo_cameraImage coming soon 2604011166 Armature 230-240V €77.21
3/60
 Fan for Hammer Drill Bosch GSB 18-2 RE 2606610029 Fan for Hammer Drill Bosch GSB 18-2 RE €3.09
4
 Switch for Drills Bosch PSB500-600-700/GSB13-16 2607200556 Switch for Drills Bosch PSB500-600-700/GSB13-16 €44.69 €40.22 -10%
5
 photo_cameraImage coming soon 2604460283 Power supply cord 2,65M €16.04
6
 Grommet for Drills Bosch PSB550-650-700/2-1000 2600707066 Grommet for Drills Bosch PSB550-650-700/2-1000 €2.28
14
 photo_cameraImage coming soon 2600914019 Needle bearing  €6.90
22
 Red Change-Over Switch for Percussion Drills Bosch PSB500-650-700RE 2602098008 Red Change-Over Switch for Percussion Drills Bosch PSB500-650-700RE €2.89
23
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
24
 Tapping Screw DIN 7981 for Percussion Drill Bosh GSB-PSB 2910611002 Tapping Screw DIN 7981 for Percussion Drill Bosh GSB-PSB €1.20
25
 photo_cameraImage coming soon 1900210000 O-Ring 5,0x1,5 MM  €2.13
27
 photo_cameraImage coming soon 2603239024 Damping Element €1.34
28
 photo_cameraImage coming soon 2603429006 Oval-Head Screw €1.39
29
 photo_cameraImage coming soon 2608040109 Handle Cover BLACK €6.01
31
 photo_cameraImage coming soon 2600118001 Rosetta Security 0.6 MM €1.39
31
 photo_cameraImage coming soon 2600118002 Rosetta Security0.8MM €2.13
31
 photo_cameraImage coming soon 2600118006 Rosetta Security0.3MM €1.83
32
 Compression Spring for Bosch Impact Drills GSB13-16/PSB500-650-700 2604616006 Compression Spring for Bosch Impact Drills GSB13-16/PSB500-650-700 €1.91
33
 photo_cameraImage coming soon 1900905163 Deep-Groove Ball Bearing 17x35x10 €14.25
34
 photo_cameraImage coming soon 2606317082 Cylindrical Gear €12.32
35
 photo_cameraImage coming soon 2606317083 Cylindrical Gear €14.25
36
 photo_cameraImage coming soon 2600100695 Shim 0,5 MM €2.18
37
 Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE 2600101047 Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE €1.52
39
 photo_cameraImage coming soon 2600101084 Retaining Washer €2.13
40
 photo_cameraImage coming soon 2602300034 Flat Key €2.51
41
 photo_cameraImage coming soon 2601098031 Guiding Plate €2.13
42
 Catch Disk for Hammer Drill Bosch GSB 20-2 RE 2600190070 Catch Disk for Hammer Drill Bosch GSB 20-2 RE €5.96
44
 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 1903230010 Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 €1.91
45
 photo_cameraImage coming soon 2601990001 Switching element BLACK €1.39
46
 photo_cameraImage coming soon 2601074003 Plate Pressure €1.39
52
 Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE 2600100607 Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE €2.09
54
 photo_cameraImage coming soon 2600400027 Bossole Mount €6.01
56
 Fork Lever for Percussion Drills Bosch PSB 700-2 RE 2601990009 Fork Lever for Percussion Drills Bosch PSB 700-2 RE €2.89
57
 photo_cameraImage coming soon 2602026091 Knob €4.51
58
 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE 2600590006 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE €2.09
59
 photo_cameraImage coming soon 2600100576 Shim 0,3 MM €2.77
60
 photo_cameraImage coming soon 2916650001 Spring retaining ring DIN 471-10x1MM-FSt  €3.22
62
 Driver Pin for Hammer Drill Bosch GSB 18-2 RE 2601335001 Driver Pin for Hammer Drill Bosch GSB 18-2 RE €2.29
67
 photo_cameraImage coming soon 2600190071 Catch Disk €8.15
68
 photo_cameraImage coming soon 2600914010 Needle bearing Ø6 MM €3.80
76
 photo_cameraImage coming soon 2601005011 Band Felt €1.83
90
 Carbon Brushes Holder Blu Wire for Impact Drills Bosch GSB 13 RE 2604448228 Carbon Brushes Holder Blu Wire for Impact Drills Bosch GSB 13 RE €3.04
91
 Carbon Brushes Holder White Wire for Impact Drills Bosch GSB 13 RE 1614431025 Carbon Brushes Holder White Wire for Impact Drills Bosch GSB 13 RE €3.04
96
 photo_cameraImage coming soon 2600100066 Plain Washer €1.39
653/124
 photo_cameraImage coming soon 1611316006 Clamping Band Ø43 MM €3.22
653/120
 photo_cameraImage coming soon 1612025019 Auxiliary Handle M8 €8.15
653/125
 photo_cameraImage coming soon 1613490002 T-Head Bolt M8x40 MM €6.32
653
 photo_cameraImage coming soon 2602025118 Auxiliary Handle Ø43 MM €20.04
653/802
 photo_cameraImage coming soon 2608040176 index turning toolholder Ø43 MM €8.15
813
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
816
 Carbon Brusches Holder Plate for Impact Drill Bosch PSB 500 RE 2604337061 Carbon Brusches Holder Plate for Impact Drill Bosch PSB 500 RE €15.44
816/04
 photo_cameraImage coming soon 2609160125 Carbon-Brush Set €8.15
819
 photo_cameraImage coming soon 2910611006 Tapping Screw DIN 7981-ST2,9x13-C-H  €2.13
849
 photo_cameraImage coming soon 2606309935 Toothed Shaft €29.51
863
 Locking Washer for Percussion Drill GSB 20-2 RE 2916080007 Locking Washer for Percussion Drill GSB 20-2 RE €0.91
881
 photo_cameraImage coming soon 2607950007 Chuck Wrench SG2 €16.17
890
 photo_cameraImage coming soon 2607001305 Fastening parts kit  €6.01
891
 photo_cameraImage coming soon 2603410046 Screw Phillips M3x5 €2.77
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
653/124
 photo_cameraImage coming soon 1611316006 Clamping Band Ø43 MM €3.22
653/120
 photo_cameraImage coming soon 1612025019 Auxiliary Handle M8 €8.15
653/125
 photo_cameraImage coming soon 1613490002 T-Head Bolt M8x40 MM €6.32
653
 photo_cameraImage coming soon 2602025118 Auxiliary Handle Ø43 MM €20.04
653/802
 photo_cameraImage coming soon 2608040176 index turning toolholder Ø43 MM €8.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Impact Drill GSB 1800-2 RE

Bosch genuine spare parts for to fix Impact Drill GSB 1800-2 RE - 0 601 14A 650.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
GSB 1800-2 RE - 0 601 14A 650

Percussion Drill GSB 1800-2 RE - 0 601 14A 650
# Part Num Description
1 2605104683 Housing Section
2 2604220689 Field 230-240V
3 2604011166 Armature 230-240V
3/60 2606610029 Fan
4 2607200556 Switch
5 2604460283 Power supply cord 2,65M
6 2600707066 Grommet Ø6,2-Ø6,9X90 MM
9 2601117631 Manufacturer's nameplate
14 2600914019 Needle bearing
22 2602098008 Change-Over Switch RED
23 2603490022 Screw 4X16
24 2910611002 Tapping Screw DIN 7981
25 1900210000 O-Ring 5,0X1,5 MM
27 2603239024 Damping Element
28 2603429006 Oval-Head Screw
29 2608040109 Handle Cover BLACK
30 2606135094 Drilling Spindle
31 2600118001 Locking washer 0,6 MM
31 2600118002 Locking washer 0,8 MM
31 2600118006 Locking washer 0,3 MM
32 2604616006 Compression Spring
33 1900905163 Groove ball bearing
34 2606317082 Cylindrical Gear
35 2606317083 Cylindrical Gear
36 2600100695 Shim 0,5 MM
37 2600101047 Shim 0,3 MM
38 2601329072 Contact Strap
39 2600101084 Retaining Washer
40 2602300034 Flat Key
41 2601098031 Guiding Plate
42 2600190070 Catch Disk
44 1903230010 Ball DIN 5401 5,5MM
45 2601990001 Indexing Disk BLACK
46 2601074003 Pressure Plate
52 2600100607 Shim 0,3 MM
54 2600400027 Bearing Sleeve
56 2601990009 Fork Lever
57 2602026091 Rotary Head
58 2600590006 Ratchet Cap
59 2600100576 Shim 0,3 MM
60 2916650001 Spring retaining ring DIN 471
62 2601335001 Driver Pin
64 2600100618 Shim washer
67 2600190071 Catch Disk
68 2600914010 Needle-Roller Bearing Ø6 MM
76 2601005011 Felt Strip
77 2601005021 Felt Strip
80 2608571065 Key Chuck
90 2604448228 Pvc-Insulated Cable 120MM BLU
91 1614431025 Pvc-Insulated Cable 95 MM
96 2600100066 Plain Washer
808 2601116370 Marking Plate
813 2600905032 Ball Bearing 7X19X6
816 2604337061 Brush Plate
816/04 2609160125 Carbon-Brush Set
819 2910611006 Tapping Screw DIN 7981
849 2606309935 Toothed Shaft
863 2916080007 Locking washer DIN 6799
866 2605807934 Bearing Bracket
881 2607950007 Chuck Wrench SG2
890 2607001305 Fastening parts kit
891 2603410046 Cross Recessed Screw M3X5
653 2602025118 Auxiliary Handle Ø43 MM
653/120 1612025019 Auxiliary Handle M8
653/124 1611316006 Clamping Band Ø43 MM
653/125 1613490002 T-Head Bolt M8X40 MM
653/802 2608040176 Support clamp Ø43 MM
655 1613001010 Depth-Gauge SW 6X210 MM
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSB 1800-2 RE
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Bosch GSB 1800-2 RE Drawing

Bosch GSB 1800-2 RE Drawing

Download (619.05KB)

You might also like

Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22
Bosch SKU: 1903230010
Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22
Ball DIN 5401-5,5 mm for Bosch Impact Drills GSB16-18-20-22 Bosch genuine parts, Ball DIN 5401-5,5MM-III-ST, for Impact Drills GSB 16 RE - GSB 18-2 RE - GSB 20-2 RE - GSB 22-2 RE - PSB 700-2 RE - PSB 800-2 RA - PBH 240 RE. Parts for...
AVAILABLE €1.91
Details
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE
Bosch SKU: 2604321905
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE Genuine Part Bosch, Carbon Brushes, for Impact Drills GSB 20-2 RE - GSB 20-2 RCE - Circular Saw PKS 40 - Planer PHO 20-82 - PHO 1. Parts for the following products: - Percussion...
AVAILABLE €14.02
Details
Grommet for Drills Bosch PSB550-650-700/2-1000
Bosch SKU: 2600707066
Grommet for Drills Bosch PSB550-650-700/2-1000
Grommet for Drills Bosch PSB550-650-700/2-1000 Genuine parts Bosch, Grommet Ø6,2-Ø6,9x90 MM for Drills Screwdriver PSB 550 RA - PSB 650 RE - PSB 700 RE - PSB 700-2 RE - PSB 1000 RPE - PSB 1000 RCA. Parts for the...
AVAILABLE €2.28
Details
Brush Holder for Rotorbital Sander Bosch GEX 125-150 AC Sale
Bosch SKU: 2604337016
Brush Holder for Rotorbital Sander Bosch GEX 125-150 AC
Brush Holder for Rotorbital Sander Bosch GEX 125-150 AC Genuine parts Bosch, Brush Holder for Rotorbital Sander GEX 125 AC/0601372503 - GEX 150 AC/0601372703 - Orbital Sander GSS 230 AE/0601292703 - Drill GSB 20-2 RCE/0601192703....
AVAILABLE €1.98
Details
Grommet for Percussion Drills Bosch GSB 16-18-20 RE
Bosch SKU: 2600707059
Grommet for Percussion Drills Bosch GSB 16-18-20 RE
Grommet for Percussion Drills Bosch GSB 16-18-20 RE Genuine parts Bosch, Grommet Ø 6,9x90 MM for Percussion Drills GSB 16 RE - GSB 18-2 RE - GSB 20-2 RE - GSB 20-2 RCE. Parts for segunti articles: - Percussion Drill Bosch GSB 16 RE -...
AVAILABLE €3.17
Details
Screw M 6x34 MM Left for Percussion Drills Bosch GSB 16 RE
Bosch SKU: 2603421213
Screw M 6x34 MM Left for Percussion Drills Bosch GSB 16 RE
Screw M 6x34 MM Left for Percussion Drills Bosch GSB 16 RE Genuine part Bosch, Countersunk-Head Screw M 6x34 MM Lefthand Threads for Percussion Drill GSB 16 RE/0 601 140 603 - GSB 20-2 RCE/0 601 192 703 Parts for the following...
AVAILABLE €3.17
Details
Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE
Bosch SKU: 2600100607
Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE
Shim Washer 0,3 mm for Hammer Drill Bosch GSB 18-2 RE Genuine part Bosch, Shim Washer 0,3 mm for Hammer Drills GSB 18-2 RE - GSB 20-2 RE - GSB 20-2 RCE - GSB 21-2 RE - PSB 700-2 RE. Part for the following products: - Hammer Drill GSB...
AVAILABLE €2.09
Details
Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE
Bosch SKU: 2600590006
Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE
Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE Genuine part Bosch, Ratchet Cap for Hammer Drill GSB 20-2 RE/0 601 184 606 -  GSB 20-2 RCE/0 601 192 703. Parts for the following products: - Hammer Drill GSB 18-2 RE/0 601 141 603 -...
AVAILABLE €2.09
Details
Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE
Bosch SKU: 2600101047
Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE
Shim mm 0.3 for Percussion Drill Bosch GSB 13 RE Genuine replacement part Bosch, Shim mm 0.3 for Percussion Drill GSB 13 RE - GSB 19-2 RE - GSB 20-2 RE. Part for the following products: - Percussion Drill GSB 13 RE - Percussion Drill...
AVAILABLE €1.52
Details
Carrier Bracke for Percussion Drill Bosch GSB 22-2 RE
Bosch SKU: 2602319024
Carrier Bracke for Percussion Drill Bosch GSB 22-2 RE
Carrier Bracke for Percussion Drill Bosch GSB 22-2 RE Genuine Part Bosch, Carrier Bracke for Percussion Drills BOSCHGSB 22-2 RE/0 601 146 403 - GSB 2200/230 V/EU - 060115A703. Part for the following products: - Percussion Drill GSB...
AVAILABLE €1.52
Details
Comments (0)
