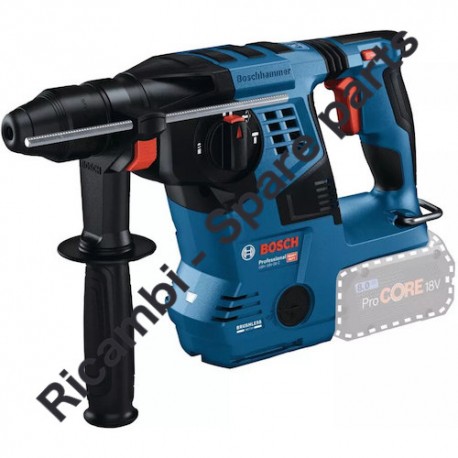

Bosch GBH 18V-28 C Parts

SKU: Bosch GBH 18V-28 C - 3611J20050
€30.39
VAT included

Bosch Spare Parts for Cordless Hammer Drill GBH 18V-28 C

Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Hammer Drill GBH 18V-28 C - 3611J20050.

Bosch GBH 18V-28 C - 3 611 J20 050
Bosch GBH 18V-28 C Parts
  • Online only
  • Bosch GBH 18V-28 C Parts
  • Bosch GBH 18V-28 C Parts Drawing
  • Bosch GBH 18V-28 C Parts Drawing - 1
  • Bosch GBH 18V-28 C Parts Drawing - 2
Bosch

Bosch GBH 18V-28 C Parts

SKU: Bosch GBH 18V-28 C - 3611J20050 Condition: New
€30.39
VAT included

Bosch Spare Parts for Cordless Hammer Drill GBH 18V-28 C

Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Hammer Drill GBH 18V-28 C - 3611J20050.

Bosch GBH 18V-28 C - 3 611 J20 050
settings 114 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: ON DEMAND ONLY
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
114 spare parts
Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY

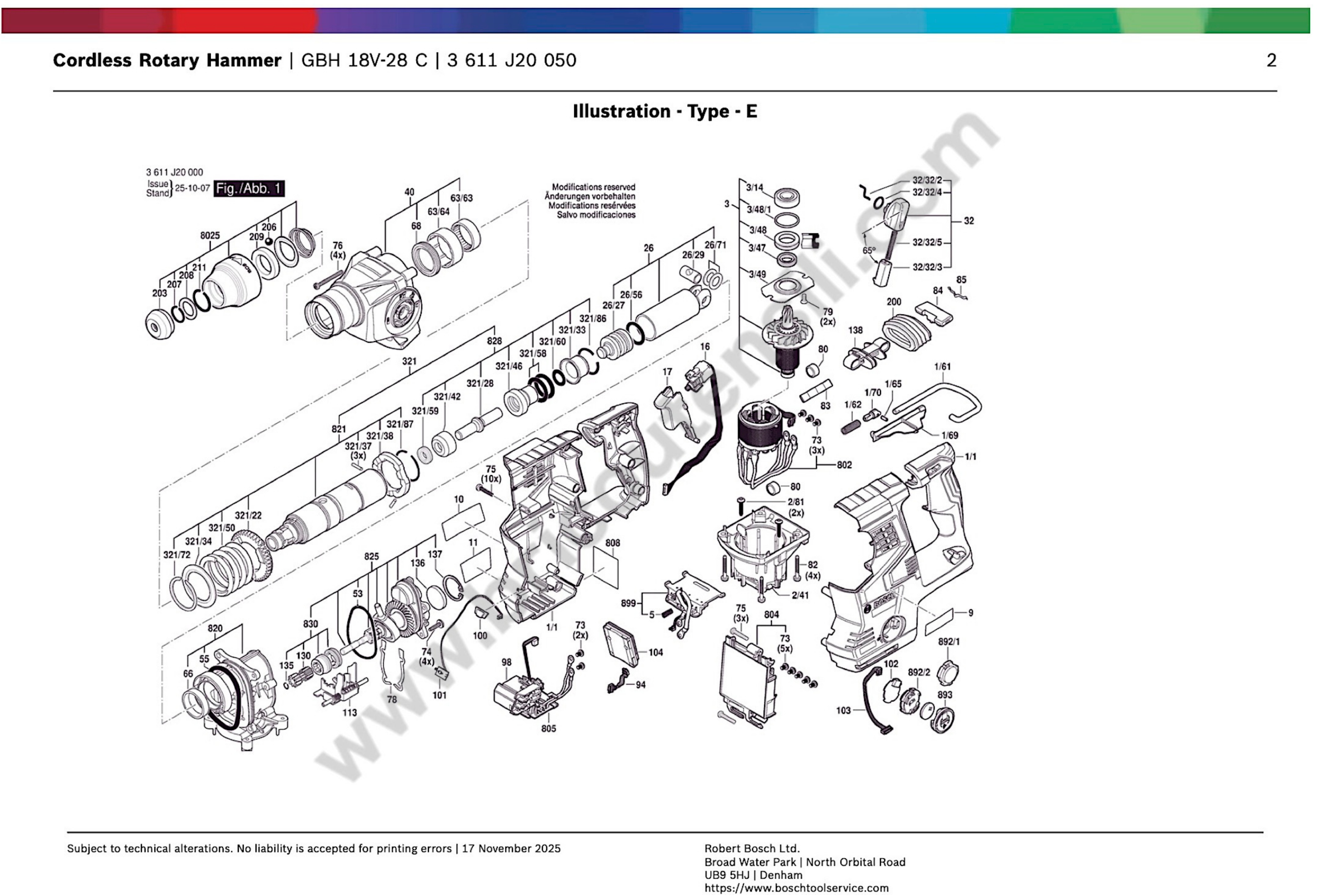

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1/61
 photo_cameraImage coming soon 1600A0202R Hook €6.90
1/70
 photo_cameraImage coming soon 1600A020GG Sliding element €2.13
1/62
 photo_cameraImage coming soon 1600A0248A Compression Spring €1.34
1/65
 photo_cameraImage coming soon 1600A0248B Set screw €1.34
1/1
 photo_cameraImage coming soon 16051082R9 Housing Section €29.51
1/69
 photo_cameraImage coming soon 16055002H3 Cover €2.13
2/41
 photo_cameraImage coming soon 1600A01U07 Stator Casing €4.56
2/81
 photo_cameraImage coming soon 1603435086 Torx head screw €2.56
3
 photo_cameraImage coming soon 1600A01RN0 Rotor €77.21
3/48/1
 photo_cameraImage coming soon 1610210208 O-Ring 24,0x2,0 MM €2.13
3/47
 photo_cameraImage coming soon 1610283047 Rotary shaft lip seal €16.04
3/48
 photo_cameraImage coming soon 1610290102 Bearing Ring €8.15
3/14
 photo_cameraImage coming soon 1610905044 groove ball bearing €10.46
3/49
 photo_cameraImage coming soon 1615700044 End Shield €2.77
5
 photo_cameraImage coming soon 1609280477 Compression Spring €2.44
9
 photo_cameraImage coming soon 160111C4V5 Manufacturer’s nameplate €3.22
10
 photo_cameraImage coming soon 160111C4V6 Manufacturer’s nameplate €3.22
11
 photo_cameraImage coming soon 160111C4UW Reference Plate €3.22
16
 photo_cameraImage coming soon 2607202905 Switch €12.59
17
 photo_cameraImage coming soon 1600A0253T Switch-Pawl €2.13
26/29
 photo_cameraImage coming soon 1600A01TD0 Piston Pin €6.01
26/71
 photo_cameraImage coming soon 1610100016 Guide Disc €4.16
26/56
 O-Ring 17,0x3,0 MM Green for Rotary Hammer Bosch GBH 3-28 DFR 1610210121 O-Ring 17,0x3,0 MM Green for Rotary Hammer Bosch GBH 3-28 DFR €2.76
26/27
 photo_cameraImage coming soon 1610311019 Striker €29.51
26
 photo_cameraImage coming soon 16170006A5 Hammer Piston €67.78
32/32/4
 photo_cameraImage coming soon 16002100A4 LOWER MOTOR SEALING €1.34
32/32/3
 Red Knob Switch for Hammers Bosch GBH 36V-VF-LI 1612026035 Red Knob Switch for Hammers Bosch GBH 36V-VF-LI €1.67
32
 Clamp Handle Black for Rotary Hammer Bosch GBH 3-28 DFR 1612026151 Clamp Handle Black for Rotary Hammer Bosch GBH 3-28 DFR €16.80
32/32/5
 photo_cameraImage coming soon 1614611006 Compression Spring €4.71
32/32/2
 Driver Pin for Rotary Hammer Bosch GBH 3-28 DFR 1614690009 Driver Pin for Rotary Hammer Bosch GBH 3-28 DFR €3.71
40
 photo_cameraImage coming soon 1600A01VU9 Impact Mechanism Housing €23.04
53
 photo_cameraImage coming soon 1610210245 O-Ring €3.80
55
 photo_cameraImage coming soon 1610210206 Seal ring 63,0x5,0 MM €7.24
63/63
 photo_cameraImage coming soon 1600A001CN Needle bearing €3.22
63/64
 photo_cameraImage coming soon 1610390069 Bushing €18.61
66
 photo_cameraImage coming soon 1610202021 Plain bearing €20.15
68
 photo_cameraImage coming soon 1610283036 Rotary shaft lip seal €30.94
73
 photo_cameraImage coming soon 160343003T Screw €15.53
74
 photo_cameraImage coming soon 160343000V Torx Oval-Head Screw €15.53
75
 Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
76
 photo_cameraImage coming soon 2603490027 Torx Oval-Head Screw 4x40 €15.53
78
 photo_cameraImage coming soon 1600A003TA Shim 0,3 mm €15.53
78
 photo_cameraImage coming soon 1600A004FU Shim 0,15 mm €15.53
78
 photo_cameraImage coming soon 1600A004FV Shim 0,45 mm €15.53
79
 photo_cameraImage coming soon 1613435023 Thread-forming tap. Screw €15.53
80
 photo_cameraImage coming soon 1600A0276C Ferrite €15.53
82
 photo_cameraImage coming soon 1613490017 Thread-forming tap. Screw M4x30 DIN7500-1 T-20 €20.15
83
 photo_cameraImage coming soon 1600A029GH Woven-Fabric Flex. Tubing €1.66
84
 photo_cameraImage coming soon 1600A021VM Switch Slide €15.53
85
 photo_cameraImage coming soon 160120000P Leaf Spring €15.53
94
 photo_cameraImage coming soon 1600A02603 Ribbon Cable €17.06
98
 photo_cameraImage coming soon 1600A022TD Contact Block €17.06
100
 photo_cameraImage coming soon 1600A000LE Lens €17.06
101
 photo_cameraImage coming soon 1607503764 Printed-Board Assembly €27.86
102
 photo_cameraImage coming soon 1600A016CY Electronics Module €34.02
103
 photo_cameraImage coming soon 1600A024Y3 Ribbon Cable €17.06
104
 photo_cameraImage coming soon 16072335NS Electronic Module €46.34
113
 Switching Panel for Rotary Hammer Bosch GBH 3-28 DFR 1616325002 Switching Panel for Rotary Hammer Bosch GBH 3-28 DFR €15.97
120/120
 photo_cameraImage coming soon 160202509C Auxiliary Handle €26.31
120
 photo_cameraImage coming soon 16020250AS Auxiliary Handle €32.48
120/124
 photo_cameraImage coming soon 1611316021 Clamping Band Ø50 MM €7.49
120/125
 photo_cameraImage coming soon 1613490001 T-Head Bolt M8x80 MM €20.80
120/802
 photo_cameraImage coming soon 1618040092 Support Clamp €4.16
130
 photo_cameraImage coming soon 1616333049 Gear Sleeve €43.27
135
 photo_cameraImage coming soon 1614601067 Retaining ring €17.06
136
 photo_cameraImage coming soon 1610205017 Felt Disc €15.53
137
 photo_cameraImage coming soon 2916660012 Spring Retaining Ring 30×1,2 mm, DIN 472 €17.06
138
 photo_cameraImage coming soon 1600A028UM Guide Piece €15.53
200
 photo_cameraImage coming soon 1600A001CL Bellows €26.31
203
 Front Hood for Hammer Bosch GBH-PBH 1610508047 Front Hood for Hammer Bosch GBH-PBH €2.89
206
 photo_cameraImage coming soon 1613230003 Ball Ø7,3 MM €17.06
207
 photo_cameraImage coming soon 1614601027 Retaining ring €15.53
208
 photo_cameraImage coming soon 1610101629 Retaining Washer €15.53
209
 photo_cameraImage coming soon 1610102089 Friction Washer €21.69
211
 photo_cameraImage coming soon 160460102S Retaining ring €15.53
321/38
 Catch Disc for Rotary Hammer Bosch GBH 3-28 DFR 1600A008AG Catch Disc for Rotary Hammer Bosch GBH 3-28 DFR €3.89
321/59
 photo_cameraImage coming soon 1600A009VC Shaft Seal €21.69
321/72
 photo_cameraImage coming soon 1604601027 Retaining ring €15.53
321/87
 photo_cameraImage coming soon 1604601028 Retaining ring A22 DIN 7993 €15.53
321/42
 photo_cameraImage coming soon 1610102084 Thrust Ring €32.48
321/34
 photo_cameraImage coming soon 1610190067 Supporting Disc €18.61
321/58
 photo_cameraImage coming soon 1610210105 O-Ring 18,0x3,5 MM €24.77
321/60
 photo_cameraImage coming soon 1610210209 O-Ring 9,5x3,5 MM €17.06
321/46
 photo_cameraImage coming soon 1610390068 Guide Bushing €41.72
321/33
 photo_cameraImage coming soon 1610590020 Holding Jacket €29.40
321/37
 photo_cameraImage coming soon 1613100019 Straight Pin DIN6325-2,5x12-RIKO €17.06
321/28
 photo_cameraImage coming soon 1613124098 Striker Pin €44.81
321/86
 photo_cameraImage coming soon 1614601034 Retaining ring €18.61
321/50
 photo_cameraImage coming soon 1614615008 Compression Spring €27.86
321/22
 photo_cameraImage coming soon 1616312004 Cylindrical Gear €37.10
321
 photo_cameraImage coming soon 1618597135 Tool Holding Fixture €57.13
651
 photo_cameraImage coming soon 1613001009 Depth-Gauge SW 6x210 MM €9.00
653/1/22
 photo_cameraImage coming soon 160111C29Y Sticker €6.32
653
 photo_cameraImage coming soon 1607A350AR Battery Pack €797.18
654
 photo_cameraImage coming soon 2607225931 Charger €436.81
661
 Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
802
 photo_cameraImage coming soon 1607000EX5 Stator €54.05
804
 photo_cameraImage coming soon 1607000EX3 Electronics Module €69.46
805
 photo_cameraImage coming soon 1607000EX6 Electronics Module €35.56
808
 photo_cameraImage coming soon 160111AA1D Nameplate €20.15
820
 photo_cameraImage coming soon 1617000A5J Intermediate Flange €50.97
821
 photo_cameraImage coming soon 1618597138 Tool Holding Fixture €58.68
825
 photo_cameraImage coming soon 1617000A5K Jack Shaft €61.75
828
 photo_cameraImage coming soon 1617000697 Striker Pin €55.59
830
 photo_cameraImage coming soon 1617000698 Gear Sleeve €50.97
870
 photo_cameraImage coming soon 1613523011 Drill Chuck Shank 1/2", SDS-Plus €26.96
870/2
 photo_cameraImage coming soon 2603421207 Countersunk-Head Screw M6x27-KØ11 LEFT THREAD €4.16
871
 photo_cameraImage coming soon 1608571069 Chuck Ø1,5-13 MM, 1/2 " €75.60
872
 photo_cameraImage coming soon 2607950007 Chuck Wrench SG2 €16.17
892/2
 photo_cameraImage coming soon 1600A013WF Electronics Module €54.49
892/1
 photo_cameraImage coming soon 1600A016ML Cover Panel €15.53
893
 photo_cameraImage coming soon 1600A01N8R Cover unit €17.06
899
 photo_cameraImage coming soon 1607000EX4 Contact Plate €37.10
8025
 photo_cameraImage coming soon 1618597139 Tool Holding Fixture €37.10
Page 2 zoom_in View exploded local_shipping ON DEMAND ONLY

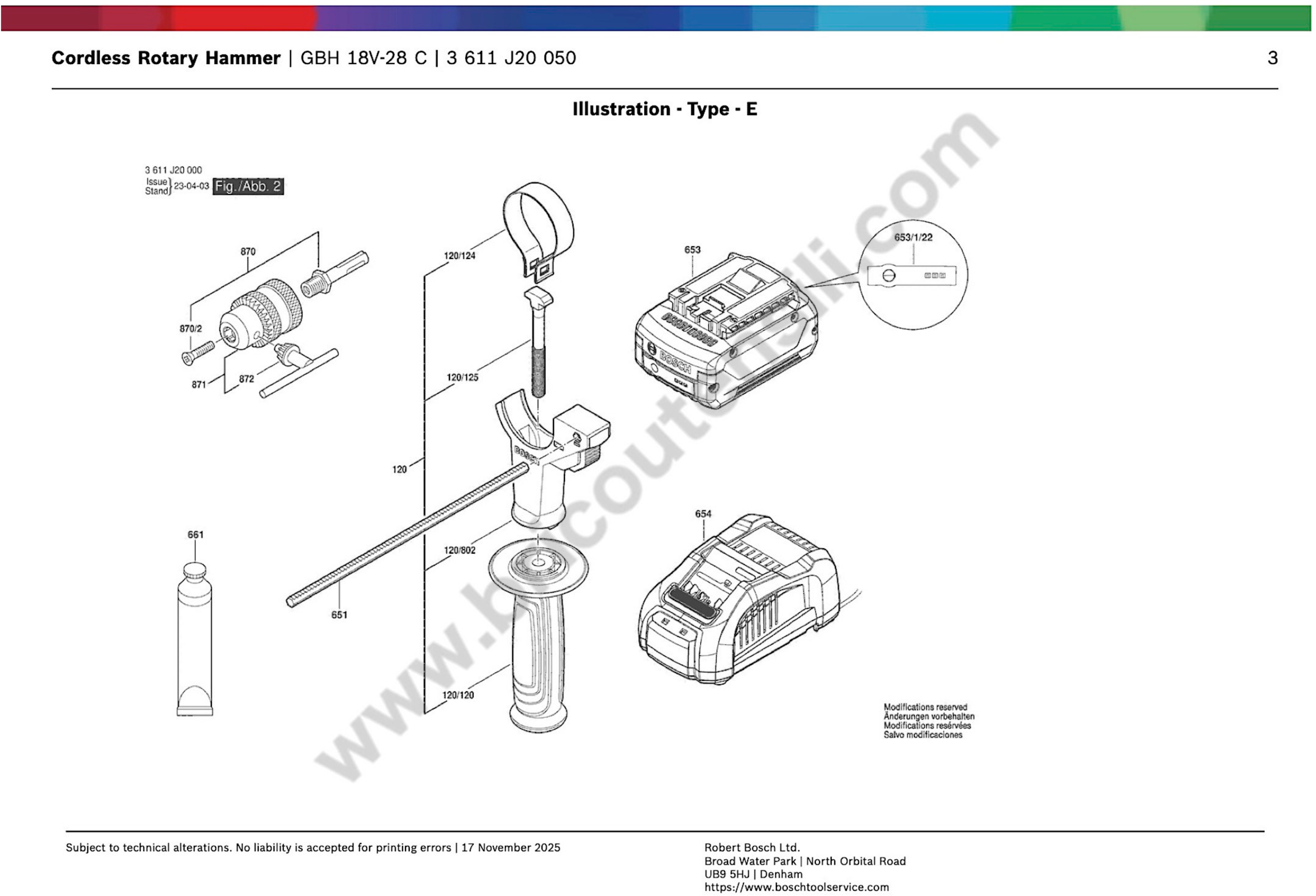

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
120/120
 photo_cameraImage coming soon 160202509C Auxiliary Handle €26.31
120
 photo_cameraImage coming soon 16020250AS Auxiliary Handle €32.48
120/124
 photo_cameraImage coming soon 1611316021 Clamping Band Ø50 MM €7.49
120/125
 photo_cameraImage coming soon 1613490001 T-Head Bolt M8x80 MM €20.80
120/802
 photo_cameraImage coming soon 1618040092 Support Clamp €4.16
651
 photo_cameraImage coming soon 1613001009 Depth-Gauge SW 6x210 MM €9.00
653/1/22
 photo_cameraImage coming soon 160111C29Y Sticker €6.32
653
 photo_cameraImage coming soon 1607A350AR Battery Pack €797.18
654
 photo_cameraImage coming soon 2607225931 Charger €436.81
661
 Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
870
 photo_cameraImage coming soon 1613523011 Drill Chuck Shank 1/2", SDS-Plus €26.96
870/2
 photo_cameraImage coming soon 2603421207 Countersunk-Head Screw M6x27-KØ11 LEFT THREAD €4.16
871
 photo_cameraImage coming soon 1608571069 Chuck Ø1,5-13 MM, 1/2 " €75.60
872
 photo_cameraImage coming soon 2607950007 Chuck Wrench SG2 €16.17
Page 3 zoom_in View exploded local_shipping ON DEMAND ONLY

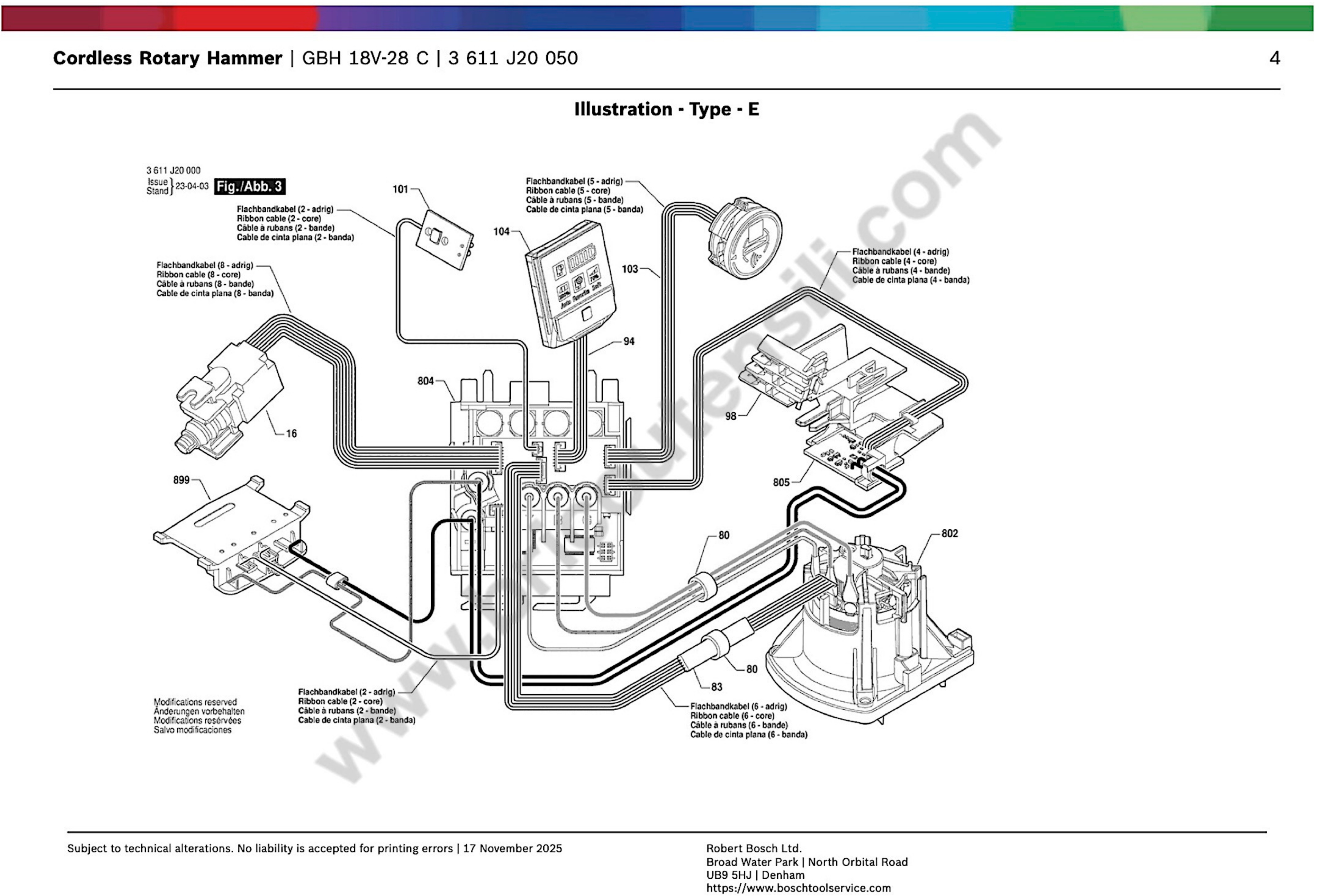

Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Hammer Drill GBH 18V-28 C

Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Hammer Drill GBH 18V-28 C - 3611J20050.

In the following table, look for the model of the Hammer and the respective parts of the code.
GBH 18V-28 C - 3 611 J20 050

GBH 18V-28 C - 3 611 J20 050
Pag.1
# Part Num Description
1/1 16051082R9 Housing Section
1/61 1600A0202R Hook
1/62 1600A0248A Compression Spring
1/65 1600A0248B Set screw
1/69 16055002H3 Cover
1/70 1600A020GG Sliding element
2/41 1600A01U07 Stator Casing
2/81 1603435086 Torx head screw
3 1600A01RN0 Rotor
3/14 1610905044 Groove ball bearing
3/47 1610283047 Rotary shaft lip seal
3/48 1610290102 Bearing Ring
3/48/1 1610210208 O-Ring 24,0X2,0 MM
3/49 1615700044 End Shield
5 1609280477 Compression Spring
9 160111C4V5 Manufacturer’s nameplate
10 160111C4V6 Manufacturer’s nameplate
11 160111C4UW Reference Plate
16 2607202905 Switch
17 1600A0253T Switch-Pawl
26 16170006A5 Hammer Piston
26/27 1610311019 Striker
26/29 1600A01TD0 Piston Pin
26/56 1610210121 O-Ring 17,0X3,0 MM GREEN
26/71 1610100016 Guide Disc
32 1612026151 Clamp Handle BLACK
32/32/2 1614690009 Driver Pin
32/32/3 1612026035 Switch Button RED
32/32/4 16002100A4 O-Ring
32/32/5 1614611006 Compression Spring
40 1600A01VU9 Impact Mechanism Housing
53 1610210245 O-Ring
55 1610210206 Seal Ring 63,0X5,0 MM
63/63 1600A001CN Needle bearing
63/64 1610390069 Bushing
66 1610202021 Plain bearing
68 1610283036 Rotary shaft lip seal
73 160343003T Screw
74 160343000V Torx Oval-Head Screw
75 2603490023 Torx Oval-Head Screw 4×20
76 2603490027 Torx Oval-Head Screw 4×40
78 1600A003TA Shim 0,3 mm
78 1600A004FU Shim 0,15 mm
78 1600A004FV Shim 0,45 mm
79 1613435023 Thread-forming tap. Screw
80 1600A0276C Ferrite
82 1613490017 Thread-forming tap. Screw M4×30 DIN7500-1 T-20
83 1600A029GH Woven-Fabric Flex. Tubing
84 1600A021VM Switch Slide
85 160120000P Leaf Spring
94 1600A02603 Ribbon Cable
98 1600A022TD Contact Block
100 1600A000LE Lens
101 1607503764 Printed-Board Assembly
102 1600A016CY Electronics Module
103 1600A024Y3 Ribbon Cable
104 16072335NS Electronic Module
113 1616325002 Switching Panel
130 1616333049 Gear Sleeve
135 1614601067 Retaining Ring
136 1610205017 Felt Disc
137 2916660012 Spring Retaining Ring 30×1,2 mm, DIN 472
138 1600A028UM Guide Piece
200 1600A001CL Bellows
203 1610508047 Protective Cap
206 1613230003 Ball Ø7,3 mm
207 1614601027 Retaining Ring
208 1610101629 Retaining Washer
209 1610102089 Friction Washer
211 160460102S Retaining ring
321 1618597135 Tool Holding Fixture
321/22 1616312004 Cylindrical Gear
321/28 1613124098 Striker Pin
321/33 1610590020 Holding Jacket
321/34 1610190067 Supporting Disc
321/37 1613100019 Straight Pin DIN6325-2,5X12-RIKO
321/38 1600A008AG Catch Disk
321/42 1610102084 Thrust Ring
321/46 1610390068 Guide Bushing
321/50 1614615008 Compression Spring
321/58 1610210105 O-Ring 18,0X3,5 MM
321/59 1600A009VC Shaft Seal
321/60 1610210209 O-Ring 9,5X3,5 MM
321/72 1604601027 Retaining ring
321/86 1614601034 Retaining ring
321/87 1604601028 Retaining ring A22 DIN 7993
802 1607000EX5 Stator
804 1607000EX3 Electronics Module
805 1607000EX6 Electronics Module
808 160111AA1D Nameplate
820 1617000A5J Intermediate Flange
821 1618597138 Tool Holding Fixture
825 1617000A5K Jack Shaft
828 1617000697 Striker Pin
830 1617000698 Gear Sleeve
892/1 1600A016ML Cover Panel
892/2 1600A013WF Electronics Module
893 1600A01N8R Cover Unit
899 1607000EX4 Contact Plate
8025 1618597139 Tool Holding Fixture
120 16020250AS Auxiliary Handle
120/120 160202509C Auxiliary Handle
120/124 1611316021 Clamping Band Ø50 MM
120/125 1613490001 T-Head Bolt M8X80 MM
120/802 1618040092 Support Clamp
651 1613001009 Depth-Gauge SW 6×210 mm
653 1607A350AR Battery Pack
653/1/22 160111C29Y Sticker
654 2607225931 Charger
661 1615430010 Grease Tube 30 ML
870 1613523011 Drill Chuck Shank 1/2", SDS-PLUS
870/2 2603421207 Countersunk-Head Screw M6×27-KØ11 (Lefthand Threads)
871 1608571069 Chuck Ø1,5–13 mm, 1/2"
872 2607950007 Chuck Wrench SG2
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 18V-28 C - 3611J20050
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Bosch GBH 18V-28 C Parts Drawing

Bosch GBH 18V-28 C Parts Drawing

Download (1.14MB)

You might also like

Comments (0)
