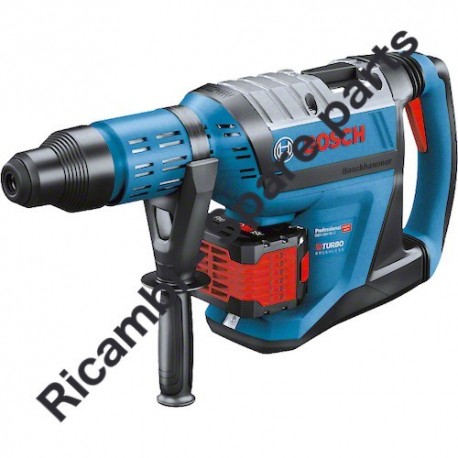

Bosch GBH 18V-45C
Bosch GBH 18V-45C Spare Parts
  • Bosch GBH 18V-45C Spare Parts
  • Bosch GBH 18V-45C Spare Parts - Drawing
  • Bosch GBH 18V-45C Spare Parts - Drawing 1
  • Bosch GBH 18V-45C Spare Parts - Drawing 2
Bosch

Bosch GBH 18V-45C Spare Parts

SKU: Bosch GBH 18V-45C - 3611J13000 Condition: New
€3.35
VAT included

Bosch Cordless Hammer GBH 18V-45C Spare Parts

Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Rotary Hammer GBH 18V-45C - 3611J04000.

Bosch GBH 18V-45C
settings 111 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
111 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
9
 photo_cameraImage coming soon 160111C375 Manufacturer's nameplate €3.17
10
 photo_cameraImage coming soon 160111C376 Manufacturer's nameplate €3.17
14
 photo_cameraImage coming soon 1610910096 Needle-Roller Bearing €33.33
21
 photo_cameraImage coming soon 1610508038 Protective Cap €10.27
22
 photo_cameraImage coming soon 1610591051 Protection Sleeve €15.75
23
 photo_cameraImage coming soon 1610520006 Stop Sleeve €25.35
24
 photo_cameraImage coming soon 1610500025 Headed Bush €12.35
25
 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE 1612300027 Stopping Device for Hammers Bosch GBH 5/40 DCE-GBH 7-46 DE €15.95
26
 photo_cameraImage coming soon 1600A019WL Indexing Disk €3.73
28
 photo_cameraImage coming soon 1614621010 Compression Spring €5.90
31
 photo_cameraImage coming soon 1610290129 Damping Ring €7.99
35
 photo_cameraImage coming soon 1615806249 Hammer Pipe €147.35
37
 photo_cameraImage coming soon 1610322018 Control Bushing €8.84
38
 photo_cameraImage coming soon 1615190177 Covering hood €48.38
43
 photo_cameraImage coming soon 1600A01D7D Fan Cover €28.95
44
 photo_cameraImage coming soon 1614621020 Compression Spring €3.17
45
 photo_cameraImage coming soon 1610591052 Holding-Down-Appliance €2.70
46
 photo_cameraImage coming soon 1600A01S8V Support Element €2.70
47
 photo_cameraImage coming soon 1610300076 Gear Sleeve €10.27
48
 photo_cameraImage coming soon 1619990177 Clutch Sleeve €12.35
52
 photo_cameraImage coming soon 1610224015 Retaining snap ring €1.33
54
 photo_cameraImage coming soon 1600A019Z4 Spacer Tube €3.73
58
 photo_cameraImage coming soon 1616317620 Cylindrical Gear €17.47
59
 photo_cameraImage coming soon 1615805074 Bearing Pedestal €12.35
72
 photo_cameraImage coming soon 1616317090 Eccentric Cog Wheel €123.00
84
 photo_cameraImage coming soon 160202507H Auxiliary Handle €15.01
84
 photo_cameraImage coming soon 160202509C Auxiliary Handle €26.31
85
 photo_cameraImage coming soon 1618040095 index turning toolholder €7.11
87
 photo_cameraImage coming soon 1617000807 Clamping Band Ø87 MM €25.35
94
 photo_cameraImage coming soon 1610290111 Supporting Disc €2.70
95
 photo_cameraImage coming soon 1613120023 Driving Pin €5.90
98
 photo_cameraImage coming soon 1610101015 Shim ring 1,0 MM THICK €2.09
99
 photo_cameraImage coming soon 1600220029 Backup ring €3.73
104
 photo_cameraImage coming soon 1610190027 Stop Disc €7.11
116
 photo_cameraImage coming soon 1610913029 Needle-Roller Assembly €5.90
117
 photo_cameraImage coming soon 1610913023 Needle-Roller Assembly €25.35
119
 photo_cameraImage coming soon 1610910081 Needle-Roller Bearing €19.67
120
 photo_cameraImage coming soon 1610190080 Spacer Tube €15.75
122
 photo_cameraImage coming soon 1610290128 Spacer Ring €8.84
123
 photo_cameraImage coming soon 160343003T Screw €15.53
124
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
125
 photo_cameraImage coming soon 1613435040 Torx Oval-Head Screw €2.70
127
 photo_cameraImage coming soon 1610300079 Bushing €5.90
129
 photo_cameraImage coming soon 1610300080 Bushing €5.90
138
 photo_cameraImage coming soon 1611015064 Sealing Frame €7.99
142
 photo_cameraImage coming soon 1610290112 Rotary shaft lip seal €5.90
143
 photo_cameraImage coming soon 1614601072 Retaining ring €3.17
144
 photo_cameraImage coming soon 1610103025 Supporting Disc €4.47
151
 photo_cameraImage coming soon 1610210222 O-Ring €1.33
152
 photo_cameraImage coming soon 1614601073 Retaining ring €2.09
153
 Retaining Ring for Demolition Hammer Bosch GSH 11 E 2916540017 Retaining Ring for Demolition Hammer Bosch GSH 11 E €1.59
154
 photo_cameraImage coming soon 2916660027 Spring retaining ring DIN 472 62x2 MM €5.90
155
 photo_cameraImage coming soon 1614601074 Retaining ring €3.20
157
 photo_cameraImage coming soon 1610210103 O-Ring 33,0x2,0 MM €3.17
158
 photo_cameraImage coming soon 1610210224 O-Ring €1.33
160
 photo_cameraImage coming soon 1610210246 O-Ring €2.09
161
 photo_cameraImage coming soon 1610210227 Damping Ring €10.27
162
 photo_cameraImage coming soon 1600210080 LOWER MOTOR SEALING €3.17
165
 photo_cameraImage coming soon 1610290125 Seal ring €13.99
166
 photo_cameraImage coming soon 1613200020 Cylindrical Roller €3.73
167
 photo_cameraImage coming soon 161029012A Rotary shaft lip seal €5.90
168
 photo_cameraImage coming soon 1610206027 Packing Washer €3.17
171
 photo_cameraImage coming soon 1613414026 Torx socket button screw €3.17
172
 photo_cameraImage coming soon 1613435041 Torx Oval-Head Screw €2.09
189
 photo_cameraImage coming soon 160513217Z Handle €10.27
190
 photo_cameraImage coming soon 1600A015RL Handle Cover €12.35
192
 photo_cameraImage coming soon 1600A015RV Rocker Foot €3.73
196
 photo_cameraImage coming soon 1600A002PC Damping rubber €2.09
197
 photo_cameraImage coming soon 160120000C Leaf Spring €12.35
204
 photo_cameraImage coming soon 1600A01A78 Rear Housing Section €48.38
206
 photo_cameraImage coming soon 1612386006 Holding strip €1.33
240
 photo_cameraImage coming soon 1600A000K3 Counterweight €12.35
241
 photo_cameraImage coming soon 1615190181 Guide Piece €3.17
242
 photo_cameraImage coming soon 1615190182 Guide Piece €3.17
243
 photo_cameraImage coming soon 1614621013 Compression Spring €3.17
304
 photo_cameraImage coming soon 2607202360 Switch €10.27
381
 photo_cameraImage coming soon 16072335EP Electronic Module €48.38
382
 photo_cameraImage coming soon 1607503566 Ribbon cable €3.17
383
 photo_cameraImage coming soon 1600A016CY Electronics Module €34.02
384
 photo_cameraImage coming soon 1607503567 Ribbon cable €3.17
385
 photo_cameraImage coming soon 1600A013WF Electronics Module €54.49
387
 photo_cameraImage coming soon 1600A01N8R Cover unit €17.06
388
 photo_cameraImage coming soon 1600A01P8Z LED-Module €7.11
653
 photo_cameraImage coming soon 1607A350CL Battery Pack €317.70
800
 photo_cameraImage coming soon 1610102095 Shim €1.66
800
 photo_cameraImage coming soon 1610102096 Shim €2.09 Not available for order
801
 photo_cameraImage coming soon 1607000DN4 Brushless DC motor €274.78
802
 photo_cameraImage coming soon 1600A01R8P Ribbon cable €5.90
805/1
 photo_cameraImage coming soon 1607000DL8 Contact retainer €25.35
805
 photo_cameraImage coming soon 1607000DN6 Contact retainer €66.63
806
 photo_cameraImage coming soon 1607000DF6 Rail €48.38
808
 photo_cameraImage coming soon 160111A3H5 Nameplate €3.39
820
 photo_cameraImage coming soon 1618597102 Toolholder €214.37
821
 photo_cameraImage coming soon 1610508058 Plain bearing €42.72
839
 photo_cameraImage coming soon 1607000EX8 Motor Hood €25.35
840
 photo_cameraImage coming soon 1617000A29 Impact Mechanism Housing €317.70
841
 photo_cameraImage coming soon 1617000A4R Striker Pin €93.03
849
 photo_cameraImage coming soon 1617000A31 Control Fork €8.84
853
 photo_cameraImage coming soon 1610231004 Guide Bushing €42.72
856
 photo_cameraImage coming soon 1617000A32 Hammer Piston €83.69
857
 photo_cameraImage coming soon 1617000A33 Striker €42.72
860
 photo_cameraImage coming soon 1607000EL4 Spur Wheel Clutch €274.78
872
 photo_cameraImage coming soon 1617000A35 Eccentric €147.35
873
 photo_cameraImage coming soon 1617000A36 Housing Cover €83.69
880
 photo_cameraImage coming soon 1607000DN5 Electronics Module €317.70
884
 photo_cameraImage coming soon 16070312E7 Auxiliary Handle €54.49
891
 photo_cameraImage coming soon 1607000DF1 Rocker Arm €19.67
894
 photo_cameraImage coming soon 1607000DF2 Screw Plate €19.67
895
 photo_cameraImage coming soon 1607000DF3 Diaphragm €54.49
897
 photo_cameraImage coming soon 1607000DF4 Boot €25.35
898
 photo_cameraImage coming soon 1607000DF5 Boot €25.35
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
84
 photo_cameraImage coming soon 160202507H Auxiliary Handle €15.01
84
 photo_cameraImage coming soon 160202509C Auxiliary Handle €26.31
85
 photo_cameraImage coming soon 1618040095 index turning toolholder €7.11
87
 photo_cameraImage coming soon 1617000807 Clamping Band Ø87 MM €25.35
653
 photo_cameraImage coming soon 1607A350CL Battery Pack €317.70
884
 photo_cameraImage coming soon 16070312E7 Auxiliary Handle €54.49
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Cordless Hammer GBH 18V-45C Spare Parts

Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Rotary Hammer GBH 18V-45C - 3611J04000.

In the following table, look for the model of the Hammer and the respective parts of the code.
Bosch Cordless Rotary Hammer GBH 18V-45C

Cordless Rotary Hammer GBH 18V-45C - 3611J13000 - 18 V Spare Parts
# Part Number Description
9 160111C375 Manufacturer's nameplate
10 160111C376 Manufacturer's nameplate
14 1610910096 Needle-Roller Bearing
21 1610508038 Protective Cap
22 1610591051 Protection Sleeve
23 1610520006 Stop Sleeve
24 1610500025 Headed Bush
25 1612300027 Stopping Device
26 1600A019WL Indexing Disk
28 1614621010 Compression Spring
31 1610290129 Damping Ring
35 1615806249 Hammer Pipe
37 1610322018 Control Bushing
38 1615190177 Covering hood
43 1600A01D7D Fan Cover
44 1614621020 Compression Spring
45 1610591052 Holding-Down-Appliance
46 1600A01S8V Support Element
47 1610300076 Gear Sleeve
48 1619990177 Clutch Sleeve
52 1610224015 Retaining snap ring
54 1600A019Z4 Spacer Tube
58 1616317620 Cylindrical Gear
59 1615805074 Bearing Pedestal
72 1616317090 Eccentric Cog Wheel
84 160202507H Auxiliary Handle
84 160202509C Auxiliary Handle
85 1618040095 Support clamp
87 1617000807 Clamping Band Ø87 MM
94 1610290111 Supporting Disc
95 1613120023 Driving Pin
98 1610101015 Shim ring 1,0 MM
99 1600220029 Backup ring
104 1610190027 Stop Disc
116 1610913029 Needle-Roller Assembly
117 1610913023 Needle-Roller Assembly
119 1610910081 Needle-Roller Bearing
120 1610190080 Spacer Tube
122 1610290128 Spacer Ring
123 160343003T Screw
124 2603490022 Screw 4X16
125 1613435040 Torx Oval-Head Screw
127 1610300079 Bushing
129 1610300080 Bushing
138 1611015064 Sealing Frame
142 1610290112 Rotary shaft lip seal
143 1614601072 Retaining ring
144 1610103025 Supporting Disc
151 1610210222 O-Ring
152 1614601073 Retaining ring
153 2916540017 Retaining ring DIN 7993 A 30
154 2916660027 Spring retaining ring DIN 472 62X2 MM
155 1614601074 Retaining ring
157 1610210103 O-Ring 33,0X2,0 MM
158 1610210224 O-Ring
160 1610210246 O-Ring
161 1610210227 Damping Ring
162 1600210080 O-Ring
165 1610290125 Seal Ring
166 1613200020 Cylindrical Roller
167 161029012A Rotary shaft lip seal
168 1610206027 Packing Washer
171 1613414026 Torx socket button screw
172 1613435041 Torx Oval-Head Screw
189 160513217Z Handle
190 1600A015RL Handle Cover
192 1600A015RV Rocker Foot
196 1600A002PC Damping rubber
197 160120000C Leaf Spring
204 1600A01A78 Rear Housing Section
206 1612386006 Holding strip
240 1600A000K3 Counterweight
241 1615190181 Guide Piece
242 1615190182 Guide Piece
243 1614621013 Compression Spring
304 2607202360 Switch
381 16072335EP Electronic Module
382 1607503566 Ribbon cable
383 1600A016CY Electronics Module
384 1607503567 Ribbon cable
385 1600A013WF Electronics Module
387 1600A01N8R Cover unit
388 1600A01P8Z LED-Module
653 1607A350CL Battery Pack
654 2607226317 Fast Charger EU GAL 18V-160 C 230
654 2607226319 Fast Charger UK GAL 18V-160 C 230
654 2607226321 Fast Charger CH GAL 18V-160 C 230V
800 1610102095 Shim 0,30 MM
800 1610102096 Shim 0,45 MM
801 1607000DN4 Brushless DC motor
802 1600A01R8P Ribbon cable
805 1607000DN6 Contact retainer
805/1 1607000DL8 Contact retainer
806 1607000DF6 Rail
808 160111A3H5 Nameplate
820 1618597102 Toolholder
821 1610508058 Plain bearing
839 1607000EX8 Motor Hood
840 1617000A29 Impact Mechanism Housing
841 1617000A4R Striker Pin
849 1617000A31 Control Fork
853 1610231004 Guide Bushing
856 1617000A32 Hammer Piston
857 1617000A33 Striker
860 1607000EL4 Spur Wheel Clutch
872 1617000A35 Eccentric
873 1617000A36 Housing Cover
880 1607000DN5 Electronics Module
884 16070312E7 Auxiliary Handle
891 1607000DF1 Rocker Arm
894 1607000DF2 Screw Plate
895 1607000DF3 Diaphragm
897 1607000DF4 Boot
898 1607000DF5 Boot
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 18V-45C - 3611J13000
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Bosch GBH 18V-45C Drawing

Bosch GBH 18V-45C Drawing

Download (857.27KB)

You might also like

Cordless Hammer Drill Bosch GBH 18 V-EC Professional
Bosch SKU: GBH 18 V-EC Prof. 0611904004
Cordless Hammer Drill Bosch GBH 18 V-EC Professional
Cordless Hammer Drill Bosch GBH 18 V-EC Professional An unrivaled combination of weight and power - Long life (153 holes 6 x 40 mm in concrete) with one battery charge (4.0 Ah) thanks to efficient Bosch EC motor - The greater removal...
Last items in stock €874.40
Details
Piston for Rotary Hammer Bosch PBH 2000 RE
Bosch SKU: 1618700083
Piston for Rotary Hammer Bosch PBH 2000 RE
Piston for Rotary Hammer Bosch PBH 2000 RE Bosch original parts, Piston for Rotary Hammers PBH 2000 RE/3 603 C44 300 - GBH 2-20 D/3 611 B5A 400 - GBH 18 V-EC/3 611 J04 000. Parts for the...
Last items in stock €13.71
Details
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Bosch SKU: 1903230013
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE
Ball DIN 5401-7 mm for Rotary Hammer Bosch PBH 220 RE Bosch genuine parts, Ball DIN 5401-Ø7MM-III-ST, for Rotary Hammer PBH 220 RE - PBH 2000 RE - PBH 2000 SRE - GBH 36 V-LI - GBH 2-20 D Parts for the following products: - Rotary...
AVAILABLE €2.83
Details
Support Disc for Rotary Hammer Bosh PBH 2000 RE
Bosch SKU: 1610190054
Support Disc for Rotary Hammer Bosh PBH 2000 RE
Support Disc for Rotary Hammer Bosh PBH 2000 RE Genuine replacement parts Bosch, Support Disc for Rotary Hammers PBH 2000 RE - PBH 2000 SRE - BH 2100 SRE - PBH 2500 SRE. Parts for the following items: - Rotary Hammer PBH 2000 SRE/3...
AVAILABLE €1.72
Details
Shift Plate for Rotary Hammer Bosch PBH 2000 RE
Bosch SKU: 1619P01787
Shift Plate for Rotary Hammer Bosch PBH 2000 RE
Shift Plate for Rotary Hammer Bosch PBH 2000 RE Bosch original part, Shift Plate for Rotary Hammers PBH 2000 RE - PBH 2000 SRE. Part for the following products: -  Rotary Hammer PBH 2000...
AVAILABLE €1.36
Details
Shift Plate for Rotary Hammer Bosch GBH 18 V-EC
Bosch SKU: 1613231031
Shift Plate for Rotary Hammer Bosch GBH 18 V-EC
Shift Plate for Rotary Hammer Bosch GBH 18 V-EC Bosch original part, Shift Plate for Cordless Rotary Hammer Bosch GBH 18 V-EC - 3611J04000. Part for the following products: - ...
on 7/10 Business Days Approx. €3.18
Details
Bosch Hammer Drill GBH 18 V-EC Sealing Frame
Bosch SKU: 1611015062
Bosch Hammer Drill GBH 18 V-EC Sealing Frame
Bosch Cordless Hammer Drill GBH 18 V-EC Sealing Frame Bosch original part, Sealing Frame for Cordless Rotary Hammer Bosch GBH 18 V-EC - 3611J04000. Part for the following products: - ...
on 7/10 Business Days Approx. €6.04
Details
Bosch Cordless Hammer Drill GBH 18 V-EC Torx Screw 3,5x16
Bosch SKU: 1613435036
Bosch Cordless Hammer Drill GBH 18 V-EC Torx Screw 3,5x16
Bosch Cordless Hammer Drill GBH 18 V-EC Torx Oval-Head Screw 3,5x16 Bosch original part, Torx Oval-Head Screw 3,5x16 for Cordless Rotary Hammer Bosch GBH 18 V-EC - 3611J04000. Part for the following products:...
on 7/10 Business Days Approx. €1.21
Details
Comments (0)
