Bosch

Bosch Spare Parts for Circular Saw PKS 66AF

SKU: Bosch PKS 66AF - 3603E02000
€2.90
VAT included

Bosch Spare Parts for Circular Saw PKS 66AF

Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66AF - 3603E02000.

Bosch PKS 66AF - 3603E02000
Bosch Spare Parts for Circular Saw PKS 66AF
  • Bosch Spare Parts for Circular Saw PKS 66AF
  • Bosch Spare Parts for Circular Saw PKS 66AF - Drawing
Bosch

Bosch Spare Parts for Circular Saw PKS 66AF

SKU: Bosch PKS 66AF - 3603E02000 Condition: New
€2.90
VAT included

Bosch Spare Parts for Circular Saw PKS 66AF

Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66AF - 3603E02000.

Bosch PKS 66AF - 3603E02000
settings 38 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
38 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

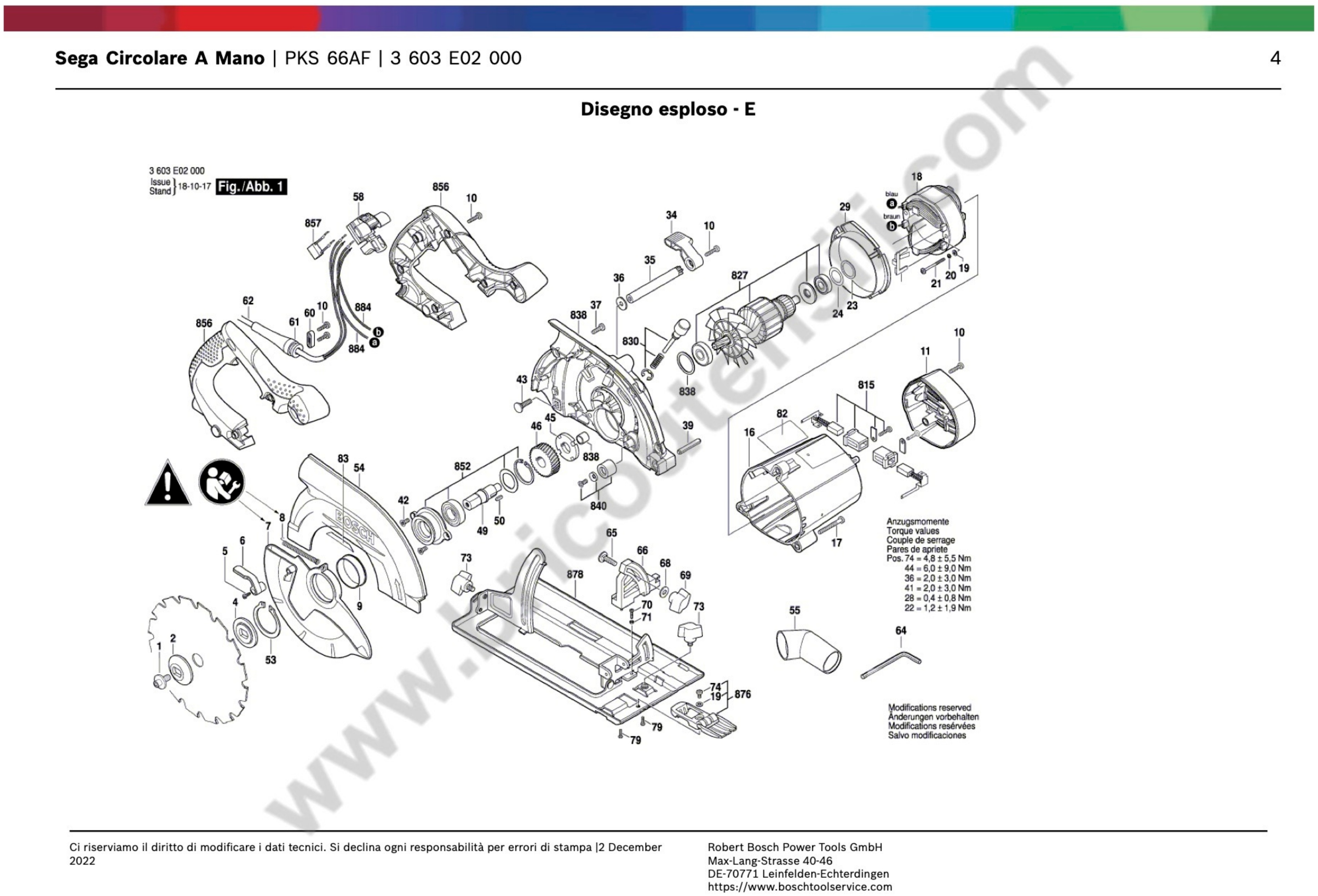

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 1609203Y19 Screw  €2.47
2
 photo_cameraImage coming soon 1609203Y20 Conical Spring Washer €6.47
4
 photo_cameraImage coming soon 1609203Y22 Clamping-Flange €7.27
7
 photo_cameraImage coming soon 1609203Y24 Pivoting Blade Guard €23.03
8
 photo_cameraImage coming soon 1600A000J4 Extension Spring €2.47
11
 photo_cameraImage coming soon 1609203Y28 End cap €12.72
16
 photo_cameraImage coming soon 1609203Y29 Motor Housing €38.83
18
 photo_cameraImage coming soon 1609203Y31 Field 230V €55.30
29
 photo_cameraImage coming soon 1609203Y37 Baffle €1.91
34
 photo_cameraImage coming soon 1609203Y38 Lever  €1.91
35
 photo_cameraImage coming soon 1609203Y39 Rod  €1.91
45
 photo_cameraImage coming soon 1609203Y45 Locking Ring €1.91
46
 photo_cameraImage coming soon 1609203Y46 Gear €15.88
49
 photo_cameraImage coming soon 1609203Y47 Gear Shaft €8.04
54
 photo_cameraImage coming soon 1609203Y50 Protective Cover €20.55
55
 photo_cameraImage coming soon 1609203X86 Vacuum Adapter  €6.17
58
 photo_cameraImage coming soon 1607200234 Switch €26.31
62
 photo_cameraImage coming soon 1609203Y55 Power supply cord  €17.88
64
 photo_cameraImage coming soon 2610364015 Hexagon Socket Screw Key 5 MM €4.08
65
 photo_cameraImage coming soon 1609203Y77 Bolt  €2.89
66
 photo_cameraImage coming soon 1609203Y57 Angle Support  €3.40
68
 photo_cameraImage coming soon 1609203Y58 Plain Washer  €1.91
69
 photo_cameraImage coming soon 1609203Y59 Wing Nut  €2.47
73
 photo_cameraImage coming soon 1609203Y61 Wing Screw  €3.40
82
 photo_cameraImage coming soon 1601118R79 Nameplate €2.89
83
 photo_cameraImage coming soon 1601118R69 Manufacturer's nameplate PKS 66 A €2.89
83
 photo_cameraImage coming soon 1601118R70 Manufacturer's nameplate PKS 66 AF €2.89
815
 photo_cameraImage coming soon 1609203Y64 Carbon-Brush Set €20.55
827
 photo_cameraImage coming soon 1609203Y65 Armature 230V €101.12
830
 photo_cameraImage coming soon 1609203Y66 Stopping Device €5.36
838
 photo_cameraImage coming soon 1609203Y67 Gear Housing €55.30
840
 photo_cameraImage coming soon 1609203Y68 Stopper €1.91
852
 photo_cameraImage coming soon 1609203Y69 Bearing Flange €20.55
856
 photo_cameraImage coming soon 1609203Y70 Set Of Handles €30.29
857
 photo_cameraImage coming soon 1609203Y71 Suppression Capacitor  €2.47
876
 photo_cameraImage coming soon 1609203Y73 Guide Piece  €4.08
878
 photo_cameraImage coming soon 1609203Y74 Base Plate €43.97
884
 photo_cameraImage coming soon 1609203Y75 Connecting Cable €6.17

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Circular Saw PKS 66AF

Bosch genuine spare parts or replacement parts for to repair Circular Saw PKS 66AF - 3603E02000.

In the following table, look for the model of the Circular Saw and the respective parts of the code.
Bosch PKS 66AF - 3603E02000
Circular Saw PKS 66AF - 3603E02000
# Part Num. Description
1 1609203Y19 Screw
2 1609203Y20 Conical Spring Washer
4 1609203Y22 Clamping-Flange
5 1609203Y76 Screw
6 1609203Y23 Lever
7 1609203Y24 Pivoting Blade Guard
8 1600A000J4 Extension Spring
9 1609203Y26 Flange Bushing
10 1609203Y27 Tapping Screw
11 1609203Y28 End cap
16 1609203Y29 Motor Housing
17 1609203Y30 Screw
18 1609203Y31 Field 230V
19 1609203Y32 Plain Washer
20 1609203Y33 Spring Washer
21 1609203Y34 Screw 08.12.08
23 1609203Y35 Extension Spring
24 1609203Y36 Spring Washer
29 1609203Y37 Baffle
34 1609203Y38 Lever
35 1609203Y39 Rod
36 1609203Y40 Plain Washer
37 1609203Y41 Screw
39 1609203Y42 Spring Pin
42 1609203Y43 Screw
43 1609203Y44 Bolt
45 1609203Y45 Locking Ring
46 1609203Y46 Gear
49 1609203Y47 Gear Shaft
50 1609203Y48 Flat Key
53 1609203Y49 Retaining ring
54 1609203Y50 Protective Cover
55 1609203X86 Vacuum Adapter
58 1607200234 Switch
60 1609203Y53 Cable Clip
61 1609203Y54 Grommet
62 1609203Y55 Power supply cord
64 2610364015 Hexagon Socket Screw Key 5 MM
65 1609203Y77 Bolt
66 1609203Y57 Angle Support
68 1609203Y58 Plain Washer
69 1609203Y59 Wing Nut
70 1609203Y78 Screw
71 1609203Y60 Hex Nut
73 1609203Y61 Wing Screw
74 1609203Y79 Screw
79 1609203Y63 Screw
82 1601118R79 Nameplate
83 1601118R69 Manufacturer's nameplate PKS 66 A
83 1601118R70 Manufacturer's nameplate PKS 66 AF
815 1609203Y64 Carbon-Brush Set
827 1609203Y65 Armature 230V
830 1609203Y66 Stopping Device
838 1609203Y67 Gear Housing
840 1609203Y68 Stopper
852 1609203Y69 Bearing Flange
856 1609203Y70 Set Of Handles
857 1609203Y71 Suppression Capacitor
876 1609203Y73 Guide Piece
878 1609203Y74 Base Plate
884 1609203Y75 Connecting Cable

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
