Bosch

Bosch Spare Parts for Table Saw GTS 18V-216

SKU: GTS 18V-216 - 3601M44000
€1.41
VAT included

Bosch Spare Parts for Table Saw GTS 18V-216

We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Table Saw GTS 18V-216 - 3601M44000 - 18 V/EU.

Bosch Spare Parts for Table Saw GTS 18V-216
Bosch Spare Parts for Table Saw GTS 18V-216
  • Online only
  • Bosch Spare Parts for Table Saw GTS 18V-216
  • Bosch Spare Parts for Table Saw GTS 18V-216 - Drawing
  • Bosch Spare Parts for Table Saw GTS 18V-216 - Drawing 1
  • Bosch Spare Parts for Table Saw GTS 18V-216 - Drawing 2
  • Bosch Spare Parts for Table Saw GTS 18V-216 - Drawing 3
Bosch

Bosch Spare Parts for Table Saw GTS 18V-216

SKU: GTS 18V-216 - 3601M44000 Condition: New
€1.41
VAT included

Bosch Spare Parts for Table Saw GTS 18V-216

We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Table Saw GTS 18V-216 - 3601M44000 - 18 V/EU.

Bosch Spare Parts for Table Saw GTS 18V-216
settings 163 spare parts
description 3 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
163 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

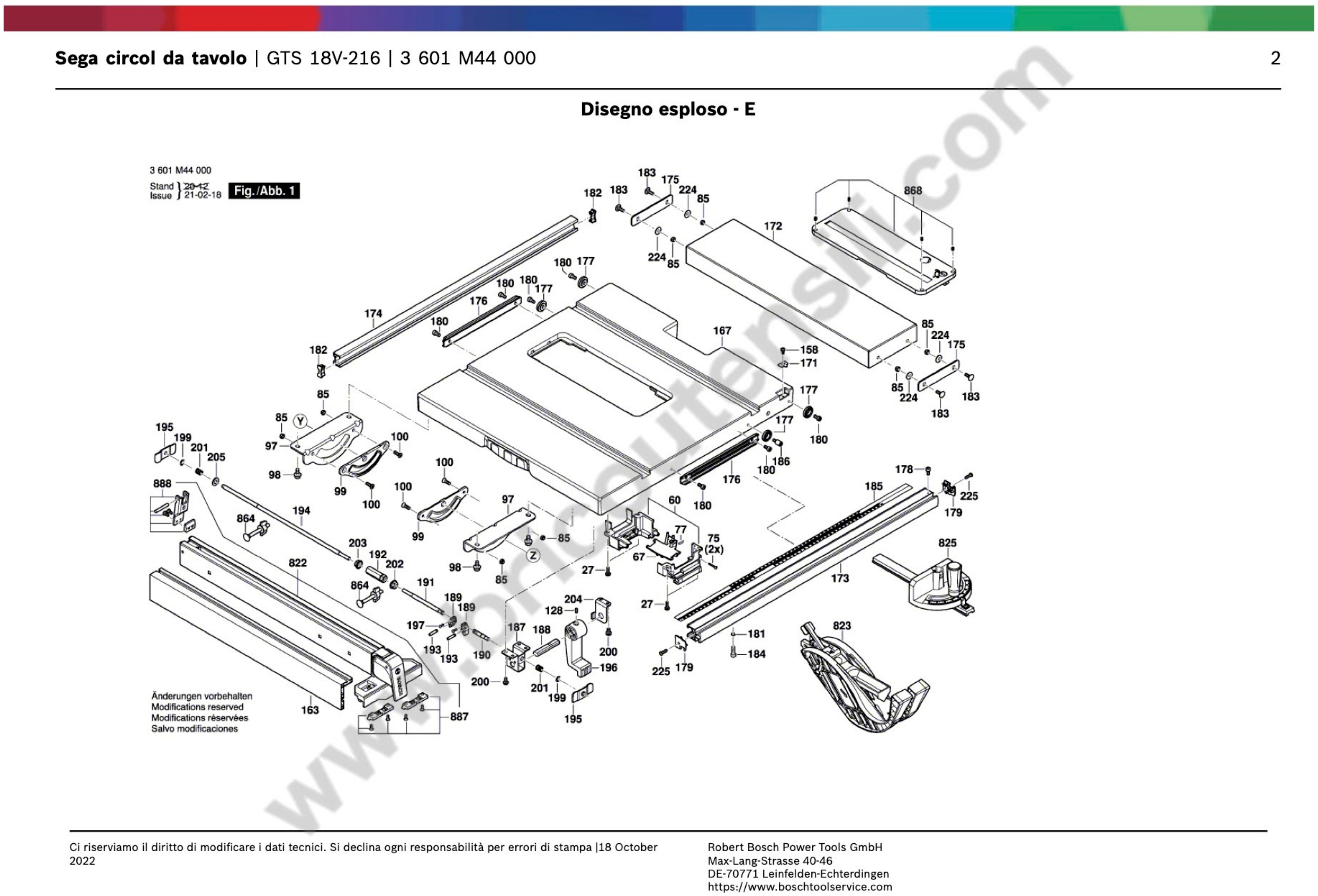

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 160702267K Brushless DC motor €249.64
4
 photo_cameraImage coming soon 2607202394 Switch €29.80
8
 photo_cameraImage coming soon 1609BN0407 Nameplate €3.71
18
 photo_cameraImage coming soon 1609B06380 Screw €1.53
19
 photo_cameraImage coming soon 1609B00655 Screw €1.53
21
 photo_cameraImage coming soon 1609B06685 Motor Jacket €3.71
23
 photo_cameraImage coming soon 1609B06340 Switch Cover €2.44
24
 photo_cameraImage coming soon 1609B06341 Switch Cover €2.44
25
 photo_cameraImage coming soon 1609B06333 Switch Box €2.44
26
 photo_cameraImage coming soon 1609B06265 Ribbon cable €3.17
27
 photo_cameraImage coming soon 1609B01281 Screw €1.53
28
 photo_cameraImage coming soon 16072335GB Electronic Module €249.64
30
 photo_cameraImage coming soon 1609B03361 Screw €1.53
31
 photo_cameraImage coming soon 1609B06223 Cover €3.17
32
 photo_cameraImage coming soon 1609B06686 Cover €1.53
33
 photo_cameraImage coming soon 1609B06698 Cover €1.53
34
 photo_cameraImage coming soon 1609B06352 Rubber Clamp €1.53
38
 photo_cameraImage coming soon 1609B03947 Output Shaft €12.06
39
 photo_cameraImage coming soon 1609B06362 Helical Gear €20.53
40
 photo_cameraImage coming soon 1609B03944 Gear Cover €16.43
41
 photo_cameraImage coming soon 1609B01050 Screw €1.53
42
 photo_cameraImage coming soon 1609B06547 Bearing €6.91
43
 photo_cameraImage coming soon 1609B03948 Bearing cover €2.44
44
 photo_cameraImage coming soon 1609B06785 Locking Lever €7.95
45
 photo_cameraImage coming soon 1609B03937 Torsion Spring €1.53
46
 photo_cameraImage coming soon 1609B03923 Shoulder Screw €1.53
47
 photo_cameraImage coming soon 1609B03929 Adjusting Screw €1.53
48
 photo_cameraImage coming soon 1609BT4033 Nut €1.33
49
 photo_cameraImage coming soon 1609B03913 Inner Disc €7.95
50
 photo_cameraImage coming soon 1609B06217 Cable €6.91
51
 photo_cameraImage coming soon 1609B03915 Flange €6.91
52
 photo_cameraImage coming soon 1609B03916 Nut €1.53
53
 photo_cameraImage coming soon 1609B05720 Guard Plate €1.53
54
 photo_cameraImage coming soon 1609B01690 Screw €1.53
56
 photo_cameraImage coming soon 1609B06694 Bellows €1.53
58
 photo_cameraImage coming soon 1609B06707 Cover €1.53
59
 photo_cameraImage coming soon 1609B00637 Tapping Screw €1.53
60
 photo_cameraImage coming soon 1609B06706 Battery Holder €5.25
61
 photo_cameraImage coming soon 1609B04525 Drive Shaft €4.92
62
 photo_cameraImage coming soon 1609B00675 Washer €1.53
63
 photo_cameraImage coming soon 1609B05390 Hex Socket Head Cap Screw €1.53
64
 photo_cameraImage coming soon 1609B06704 Screw Bar €9.38
65
 photo_cameraImage coming soon 1609B04522 Support Plate €4.36
66
 photo_cameraImage coming soon 1609B06220 Pointer €1.53
67
 photo_cameraImage coming soon 1609B06200 Contact retainer €50.25
68
 photo_cameraImage coming soon 1609B00650 Screw €1.53
69
 photo_cameraImage coming soon 1609B04253 Belt €34.03
70
 photo_cameraImage coming soon 1609B01287 Retaining clip  €1.53
71
 photo_cameraImage coming soon 1609B04524 Bushing €3.17
72
 photo_cameraImage coming soon 1609B04520 Gear €1.53
73
 photo_cameraImage coming soon 1609B00624 Screw €1.53
74
 photo_cameraImage coming soon 1609B04519 Guide Bar €4.36
75
 photo_cameraImage coming soon 2609110353 Torx Oval-Head Screw  €3.17
77
 photo_cameraImage coming soon 1609280477 Compression Spring €2.44
78
 photo_cameraImage coming soon 1609B06808 Washer €1.53
79
 photo_cameraImage coming soon 1609B04528 Hand Wheel €4.92
80
 photo_cameraImage coming soon 1619P03825 Screw and washer assembly M5x16 €1.53
81
 photo_cameraImage coming soon 1609B00757 Plain Washer €1.53
82
 photo_cameraImage coming soon 1609B04529 Crank €1.53
83
 photo_cameraImage coming soon 1609B00689 Screw €2.44
84
 photo_cameraImage coming soon 1609B06368 Screw €1.53
85
 photo_cameraImage coming soon 1609BP7039 Self-locking nut €1.53
86
 photo_cameraImage coming soon 1609B03863 Dust Cleaner €2.44
87
 photo_cameraImage coming soon 1609B06718 Lower guard €19.34
88
 photo_cameraImage coming soon 1609B04530 Supporting Sleeve €1.53
91
 photo_cameraImage coming soon 1609B04531 Compression Spring €1.53
92
 photo_cameraImage coming soon 1609B04517 Carriage €69.15
93
 photo_cameraImage coming soon 1609B04560 Screw €1.53
94
 photo_cameraImage coming soon 1609B03829 Special Washer €1.53
95
 photo_cameraImage coming soon 1609B04551 Stopper €2.44
96
 photo_cameraImage coming soon 1609B06561 Screw €1.53
97
 photo_cameraImage coming soon 1609B06705 Mounting Bracket €16.43
98
 photo_cameraImage coming soon 1609B04541 Screw €1.53
99
 photo_cameraImage coming soon 1609B01186 Bushing  €12.06
100
 photo_cameraImage coming soon 1609B01196 Socket head cap screw €1.53
101
 photo_cameraImage coming soon 1609B06363 Dust Extraction €1.53
103
 photo_cameraImage coming soon 1609B06708 Cover €1.53
105
 photo_cameraImage coming soon 1609B01046 Plastic-Cutting Screw €1.53
109
 photo_cameraImage coming soon 1609B06689 Mounting Plate €4.36
112
 photo_cameraImage coming soon 1609B06809 Washer €1.53
113
 photo_cameraImage coming soon 1609B06690 Mounting Plate €3.17
114
 photo_cameraImage coming soon 1609B06691 Dust-Cover Holder €7.95
128
 photo_cameraImage coming soon 1609B04562 Set screw €1.53
141
 photo_cameraImage coming soon 1609B06711 Label €1.53
158
 photo_cameraImage coming soon 1609B01282 Screw €1.53
163
 photo_cameraImage coming soon 1609B03874 Body €26.59
169
 photo_cameraImage coming soon 1609B06422 Spring Plate €1.53
171
 photo_cameraImage coming soon 1609B06218 Pointer €1.53
172
 photo_cameraImage coming soon 1609B03959 Extension unit €34.03
173
 photo_cameraImage coming soon 1609B03960 Rail €27.03
174
 photo_cameraImage coming soon 1609B03961 Rail €26.31
175
 photo_cameraImage coming soon 1609B03963 Plate €2.44
176
 photo_cameraImage coming soon 1609B06801 Rail €3.17
177
 photo_cameraImage coming soon 1609B06802 Rail €1.53
178
 photo_cameraImage coming soon 1609B02751 Screw €1.53
179
 photo_cameraImage coming soon 1609B06382 Cover €1.53
180
 photo_cameraImage coming soon 1609B00627 Screw €3.17
181
 photo_cameraImage coming soon 1609B02181 Washer €1.53
182
 photo_cameraImage coming soon 1609B06400 Cover €1.53
183
 photo_cameraImage coming soon 1609B03990 Shoulder Screw €1.53
184
 photo_cameraImage coming soon 1609B01322 Flange Bolt €1.53
185
 photo_cameraImage coming soon 1609B03886 Scale €3.71
186
 photo_cameraImage coming soon 1609B06589 Shoulder Screw €1.53
187
 photo_cameraImage coming soon 1609B03964 Mounting Bracket €3.71
188
 photo_cameraImage coming soon 1609B03965 Handle Bar €3.17
189
 photo_cameraImage coming soon 1609B03966 Cam €5.25
190
 photo_cameraImage coming soon 1609B03967 Link Piece €2.44
191
 photo_cameraImage coming soon 1609B03968 Link Piece €3.17
192
 photo_cameraImage coming soon 1609B03969 Nut €3.17
193
 photo_cameraImage coming soon 1609B03970 Pin €1.53
194
 photo_cameraImage coming soon 1609B03971 Bar €6.91
195
 photo_cameraImage coming soon 1609B03972 Spring Plate €2.44
196
 photo_cameraImage coming soon 1609B03973 Clamping Lever €3.17
197
 photo_cameraImage coming soon 1609B03974 Rivet €1.53
199
 photo_cameraImage coming soon 1609B01992 End Clip €1.53
200
 photo_cameraImage coming soon 1609B00647 Screw €2.44
201
 photo_cameraImage coming soon 1609B03976 Compression Spring €1.53
202
 photo_cameraImage coming soon 1609B03975 Flange nut €1.53
203
 photo_cameraImage coming soon 1609B06406 Flange nut €1.53
204
 photo_cameraImage coming soon 1609B03993 Bracket €1.53
205
 photo_cameraImage coming soon 1609B00670 Washer €2.44
206
 photo_cameraImage coming soon 1609B03983 Base €110.91
207
 photo_cameraImage coming soon 1609B03979 Front Plate €23.13
208
 photo_cameraImage coming soon 1609B03984 Tube €56.90
209
 photo_cameraImage coming soon 1609B03985 Bottom Plate €23.13
210
 photo_cameraImage coming soon 1609B03986 Foot Cover €1.53
211
 photo_cameraImage coming soon 1609B03988 Cover €7.95
212
 photo_cameraImage coming soon 1609B03995 Spring Plate €1.53
213
 photo_cameraImage coming soon 1609B06702 Handle €5.25
214
 photo_cameraImage coming soon 1609B01243 Screw €1.53
215
 photo_cameraImage coming soon 1609B03981 Bracket €2.44
216
 photo_cameraImage coming soon 1609BP7098 Rubber Ring €1.53
217
 photo_cameraImage coming soon 1609B06378 Plate €1.53
218
 photo_cameraImage coming soon 1609B06405 Screw €1.53
220
 photo_cameraImage coming soon 1609B03994 Bracket €3.17
221
 photo_cameraImage coming soon 1609B06413 Bracket €1.53
224
 photo_cameraImage coming soon 1609B01253 Plain Washer €1.53
225
 photo_cameraImage coming soon 1609BP7138 Tapping Screw €1.53
229
 photo_cameraImage coming soon 1609B00636 Tapping Screw €3.71
231
 photo_cameraImage coming soon 1609B06383 Bushing €1.53
232
 photo_cameraImage coming soon 1609B06385 Screw €1.53
234
 photo_cameraImage coming soon 1609B06410 Workpiece Pusher €5.25
235
 photo_cameraImage coming soon 1609B06384 Wrench Attachment €2.44
236
 photo_cameraImage coming soon 1609B03891 Wrench Attachment €6.91
237
 photo_cameraImage coming soon 1609B06421 Knob €1.53
238
 photo_cameraImage coming soon 1609B05286 Clip €1.53
241
 photo_cameraImage coming soon 1609B06715 Label €1.53
242
 photo_cameraImage coming soon 1609B04626 Retaining ring €1.53
243
 photo_cameraImage coming soon 1609B00644 Retaining ring €3.17
246
 photo_cameraImage coming soon 1609B06560 Screw €1.53
247
 photo_cameraImage coming soon 1609B00631 Screw €3.71
261
 photo_cameraImage coming soon 1609B06807 Screw €4.36
651
 photo_cameraImage coming soon 1609B06703 Dust Bag €23.13
822
 photo_cameraImage coming soon 1609B04590 Guide €78.44
823
 photo_cameraImage coming soon 1609B06781 Upper guard €43.68
825
 photo_cameraImage coming soon 1609B06423 Mitre Fence €18.50
828
 photo_cameraImage coming soon 1609B06782 Riving Knife €43.68
835
 photo_cameraImage coming soon 1609B06214 Gear Box €64.10
864
 photo_cameraImage coming soon 1609B06424 Fastening parts kit €1.53
868
 photo_cameraImage coming soon 1609B06415 Fixing Plate €29.80
876
 photo_cameraImage coming soon 1609B05713 Locking Lever €6.91
887
 photo_cameraImage coming soon 1609B05715 Pad €3.17
888
 photo_cameraImage coming soon 1609B05657 Clamping Unit €7.95
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

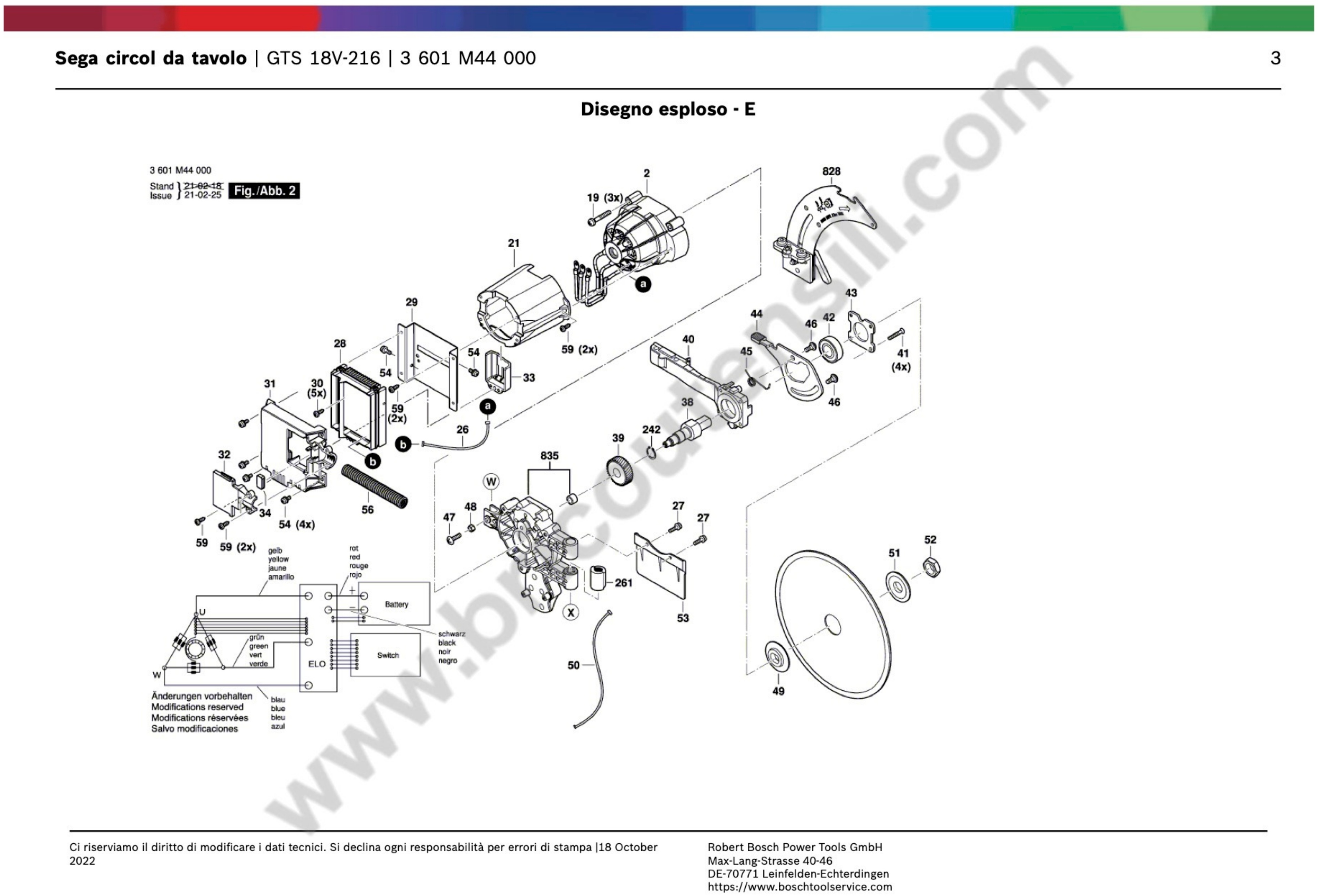

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 160702267K Brushless DC motor €249.64
19
 photo_cameraImage coming soon 1609B00655 Screw €1.53
21
 photo_cameraImage coming soon 1609B06685 Motor Jacket €3.71
26
 photo_cameraImage coming soon 1609B06265 Ribbon cable €3.17
28
 photo_cameraImage coming soon 16072335GB Electronic Module €249.64
30
 photo_cameraImage coming soon 1609B03361 Screw €1.53
31
 photo_cameraImage coming soon 1609B06223 Cover €3.17
32
 photo_cameraImage coming soon 1609B06686 Cover €1.53
33
 photo_cameraImage coming soon 1609B06698 Cover €1.53
34
 photo_cameraImage coming soon 1609B06352 Rubber Clamp €1.53
38
 photo_cameraImage coming soon 1609B03947 Output Shaft €12.06
39
 photo_cameraImage coming soon 1609B06362 Helical Gear €20.53
40
 photo_cameraImage coming soon 1609B03944 Gear Cover €16.43
41
 photo_cameraImage coming soon 1609B01050 Screw €1.53
42
 photo_cameraImage coming soon 1609B06547 Bearing €6.91
43
 photo_cameraImage coming soon 1609B03948 Bearing cover €2.44
44
 photo_cameraImage coming soon 1609B06785 Locking Lever €7.95
45
 photo_cameraImage coming soon 1609B03937 Torsion Spring €1.53
46
 photo_cameraImage coming soon 1609B03923 Shoulder Screw €1.53
47
 photo_cameraImage coming soon 1609B03929 Adjusting Screw €1.53
48
 photo_cameraImage coming soon 1609BT4033 Nut €1.33
49
 photo_cameraImage coming soon 1609B03913 Inner Disc €7.95
50
 photo_cameraImage coming soon 1609B06217 Cable €6.91
51
 photo_cameraImage coming soon 1609B03915 Flange €6.91
52
 photo_cameraImage coming soon 1609B03916 Nut €1.53
53
 photo_cameraImage coming soon 1609B05720 Guard Plate €1.53
54
 photo_cameraImage coming soon 1609B01690 Screw €1.53
56
 photo_cameraImage coming soon 1609B06694 Bellows €1.53
59
 photo_cameraImage coming soon 1609B00637 Tapping Screw €1.53
242
 photo_cameraImage coming soon 1609B04626 Retaining ring €1.53
261
 photo_cameraImage coming soon 1609B06807 Screw €4.36
828
 photo_cameraImage coming soon 1609B06782 Riving Knife €43.68
835
 photo_cameraImage coming soon 1609B06214 Gear Box €64.10
Page 3 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

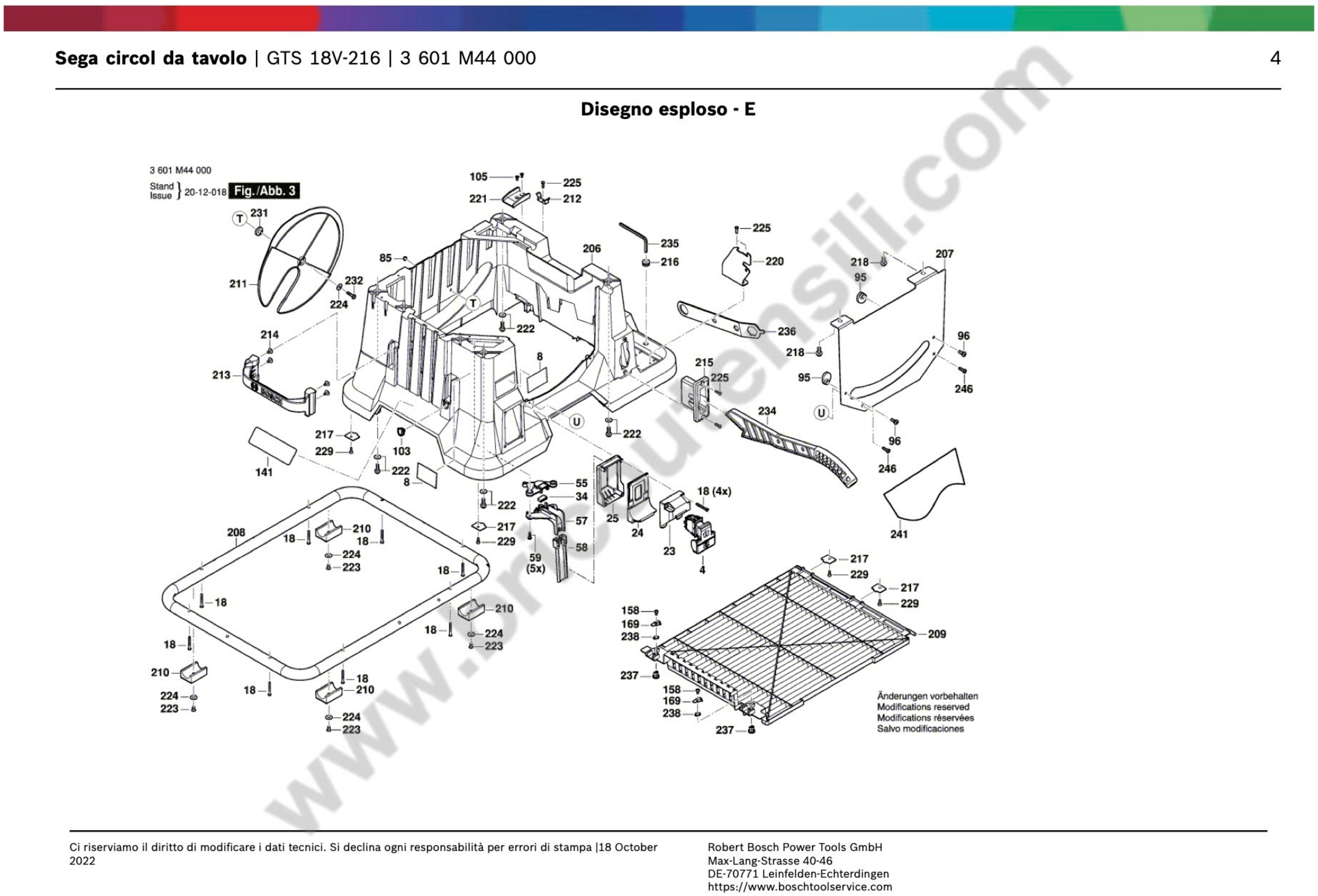

Esploso pagina 3
info_outline

No spare parts mapped to this page.
Check the other pages for available parts.

Page 4 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS
Esploso pagina 4
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
61
 photo_cameraImage coming soon 1609B04525 Drive Shaft €4.92
62
 photo_cameraImage coming soon 1609B00675 Washer €1.53
63
 photo_cameraImage coming soon 1609B05390 Hex Socket Head Cap Screw €1.53
64
 photo_cameraImage coming soon 1609B06704 Screw Bar €9.38
65
 photo_cameraImage coming soon 1609B04522 Support Plate €4.36
66
 photo_cameraImage coming soon 1609B06220 Pointer €1.53
68
 photo_cameraImage coming soon 1609B00650 Screw €1.53
69
 photo_cameraImage coming soon 1609B04253 Belt €34.03
70
 photo_cameraImage coming soon 1609B01287 Retaining clip  €1.53
71
 photo_cameraImage coming soon 1609B04524 Bushing €3.17
72
 photo_cameraImage coming soon 1609B04520 Gear €1.53
73
 photo_cameraImage coming soon 1609B00624 Screw €1.53
74
 photo_cameraImage coming soon 1609B04519 Guide Bar €4.36
78
 photo_cameraImage coming soon 1609B06808 Washer €1.53
79
 photo_cameraImage coming soon 1609B04528 Hand Wheel €4.92
80
 photo_cameraImage coming soon 1619P03825 Screw and washer assembly M5x16 €1.53
81
 photo_cameraImage coming soon 1609B00757 Plain Washer €1.53
82
 photo_cameraImage coming soon 1609B04529 Crank €1.53
83
 photo_cameraImage coming soon 1609B00689 Screw €2.44
84
 photo_cameraImage coming soon 1609B06368 Screw €1.53
86
 photo_cameraImage coming soon 1609B03863 Dust Cleaner €2.44
87
 photo_cameraImage coming soon 1609B06718 Lower guard €19.34
88
 photo_cameraImage coming soon 1609B04530 Supporting Sleeve €1.53
91
 photo_cameraImage coming soon 1609B04531 Compression Spring €1.53
92
 photo_cameraImage coming soon 1609B04517 Carriage €69.15
93
 photo_cameraImage coming soon 1609B04560 Screw €1.53
94
 photo_cameraImage coming soon 1609B03829 Special Washer €1.53
101
 photo_cameraImage coming soon 1609B06363 Dust Extraction €1.53
109
 photo_cameraImage coming soon 1609B06689 Mounting Plate €4.36
112
 photo_cameraImage coming soon 1609B06809 Washer €1.53
113
 photo_cameraImage coming soon 1609B06690 Mounting Plate €3.17
114
 photo_cameraImage coming soon 1609B06691 Dust-Cover Holder €7.95
214
 photo_cameraImage coming soon 1609B01243 Screw €1.53
243
 photo_cameraImage coming soon 1609B00644 Retaining ring €3.17
247
 photo_cameraImage coming soon 1609B00631 Screw €3.71
651
 photo_cameraImage coming soon 1609B06703 Dust Bag €23.13
876
 photo_cameraImage coming soon 1609B05713 Locking Lever €6.91

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Table Saw GTS 18V-216

We are BOSCH original spare parts Dealers at low at unbeatable prices and an authorized service center with repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Table Saw GTS 18V-216 - 3601M44000 - 18 V/EU - Biturbo Brushless.

In the following table, look for the model of the Bench Saw and the respective parts of the code.
GTS 18V-216 - 3601M44000 - 18 V/EU

Table Saw GTS 18V-216 - 3601M44000 - 18 V/EU
# Part Num. Description
27 1609B01281 Screw
60 1609B06706 Battery Holder
67 1609B06200 Contact retainer
75 2609110353 Torx Oval-Head Screw
77 1609280477 Compression Spring
85 1609BP7039 Self-locking nut
97 1609B06705 Mounting Bracket
98 1609B04541 Screw
99 1609B01186 Bushing
100 1609B01196 Socket head cap screw
128 1609B04562 Set screw
158 1609B01282 Screw
163 1609B03874 Body
167 1609B06699 Table top
171 1609B06218 Pointer
172 1609B03959 Extension unit
173 1609B03960 Rail
174 1609B03961 Rail
175 1609B03963 Plate
176 1609B06801 Rail
177 1609B06802 Rail
178 1609B02751 Screw
179 1609B06382 Cover
180 1609B00627 Screw
181 1609B02181 Washer
182 1609B06400 Cover
183 1609B03990 Shoulder Screw
184 1609B01322 Flange Bolt
185 1609B03886 Scale
186 1609B06589 Shoulder Screw
187 1609B03964 Mounting Bracket
188 1609B03965 Handle Bar
189 1609B03966 Cam
190 1609B03967 Link Piece
191 1609B03968 Link Piece
192 1609B03969 Nut
193 1609B03970 Pin
194 1609B03971 Bar
195 1609B03972 Spring Plate
196 1609B03973 Clamping Lever
197 1609B03974 Rivet
199 1609B01992 End Clip
200 1609B00647 Screw
201 1609B03976 Compression Spring
202 1609B03975 Flange nut
203 1609B06406 Flange nut
204 1609B03993 Bracket
205 1609B00670 Washer
224 1609B01253 Plain Washer
225 1609BP7138 Tapping Screw
822 1609B04590 Guide
823 1609B06781 Upper guard
825 1609B06423 Mitre Fence
864 1609B06424 Fastening parts kit
868 1609B06415 Fixing Plate
887 1609B05715 Pad
888 1609B05657 Clamping Unit
Table Saw GTS 18V-216 | 3 601 M44 000 | 18 V / EU
2 160702267K Brushless DC motor
19 1609B00655 Screw
21 1609B06685 Motor Jacket
26 1609B06265 Ribbon cable
28 16072335GB Electronic Module
29 1609B06697 Plate
30 1609B03361 Screw
31 1609B06223 Cover
32 1609B06686 Cover
33 1609B06698 Cover
34 1609B06352 Rubber Clamp
38 1609B03947 Output Shaft
39 1609B06362 Helical Gear
40 1609B03944 Gear Cover
41 1609B01050 Screw
42 1609B06547 Bearing
43 1609B03948 Bearing cover
44 1609B06785 Locking Lever
45 1609B03937 Torsion Spring
46 1609B03923 Shoulder Screw
47 1609B03929 Adjusting Screw
48 1609BT4033 Nut
49 1609B03913 Inner Disc
50 1609B06217 Cable
51 1609B03915 Flange
52 1609B03916 Nut
53 1609B05720 Guard Plate
54 1609B01690 Screw
56 1609B06694 Bellows
59 1609B00637 Tapping Screw
242 1609B04626 Retaining ring
261 1609B06807 Screw
828 1609B06782 Riving Knife
835 1609B06214 Gear Box
Table Saw GTS 18V-216 | 3 601 M44 000 | 18 V / EU
4 2607202394 Switch
8 1609BN0407 Nameplate
18 1609B06380 Screw
23 1609B06340 Switch Cover
24 1609B06341 Switch Cover
25 1609B06333 Switch Box
55 1609B06687 Bracket Support
57 1609B06688 Cover
58 1609B06707 Cover
95 1609B04551 Stopper
96 1609B06561 Screw
103 1609B06708 Cover
105 1609B01046 Plastic-Cutting Screw
141 1609B06711 Label
169 1609B06422 Spring Plate
206 1609B03983 Base
207 1609B03979 Front Plate
208 1609B03984 Tube
209 1609B03985 Bottom Plate
210 1609B03986 Foot Cover
211 1609B03988 Cover
212 1609B03995 Spring Plate
213 1609B06702 Handle
214 1609B01243 Screw
215 1609B03981 Bracket
216 1609BP7098 Rubber Ring
217 1609B06378 Plate
218 1609B06405 Screw
220 1609B03994 Bracket
221 1609B06413 Bracket
222 1609B00969 Screw and washer assembly
223 1609B04082 Rivet
229 1609B00636 Tapping Screw
231 1609B06383 Bushing
232 1609B06385 Screw
234 1609B06410 Workpiece Pusher
235 1609B06384 Wrench Attachment
236 1609B03891 Wrench Attachment
237 1609B06421 Knob
238 1609B05286 Clip
241 1609B06715 Label
246 1609B06560 Screw
Table Saw GTS 18V-216 | 3 601 M44 000 | 18 V / EU
61 1609B04525 Drive Shaft
62 1609B00675 Washer
63 1609B05390 Hex Socket Head Cap Screw
64 1609B06704 Screw Bar
65 1609B04522 Support Plate
66 1609B06220 Pointer
68 1609B00650 Screw
69 1609B04253 Belt
70 1609B01287 Retaining clip
71 1609B04524 Bushing
72 1609B04520 Gear
73 1609B00624 Screw
74 1609B04519 Guide Bar
78 1609B06808 Washer
79 1609B04528 Hand Wheel
80 1619P03825 Screw and washer assembly M5x16
81 1609B00757 Plain Washer
82 1609B04529 Crank
83 1609B00689 Screw
84 1609B06368 Screw
86 1609B03863 Dust Cleaner
87 1609B06718 Lower guard
88 1609B04530 Supporting Sleeve
91 1609B04531 Compression Spring
92 1609B04517 Carriage
93 1609B04560 Screw
94 1609B03829 Special Washer
101 1609B06363 Dust Extraction
109 1609B06689 Mounting Plate
112 1609B06809 Washer
113 1609B06690 Mounting Plate
114 1609B06691 Dust-Cover Holder
243 1609B00644 Retaining ring
247 1609B00631 Screw
651 1609B06703 Dust Bag
876 1609B05713 Locking Lever

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
GTS 18V-216 - 3601M44000
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing Bosch GTS 18V-216

Drawing Bosch GTS 18V-216

Download (1.03MB)

You might also like

Power Cord for Table Saw Bosch GTS 10 Sale
Bosch SKU: 1609203K89
Power Cord for Table Saw Bosch GTS 10
Power Cord for Table Saw Bosch GTS 10 Genuine spare parts Bosch, 220-230V Power Cord 2x1 mmq Mt for Table Saw Bosch GTS 10 Part for the following products: -  Table Saw Bosch GTS 10 - Code : 1609203K89
AVAILABLE €26.00
Details
Wing Screw M 5x12 for Bench Saw Bosch GTS 10 Sale
Bosch SKU: 2610996879
Wing Screw M 5x12 for Bench Saw Bosch GTS 10
Wing Screw M 5x12 for Bench Saw Bosch GTS 10 Genuine spare part Bosch, Wing Screw M 5x12 for Bench Saw Bosch GTS 10. Part for the following products: - Bench Saw Bosch GTS 10 - Code : 2610996879
AVAILABLE €2.51
Details
Round Nut for Bench Saw Bosch GTS 10 Sale
Bosch SKU: 1609902022
Round Nut for Bench Saw Bosch GTS 10
Round Nut for Bench Saw Bosch GTS 10 Genuine spare part Bosch, Round Nut for Bench Saw Bosch GTS 10/0 601 B30 003. Part for the following products: - Bench Saw Bosch GTS 10/0 601 B30 003 - Code : 1609902022
AVAILABLE €2.75
Details
Blade Wrench for Table Saw Bosch GTS 10 Sale
Bosch SKU: 2610996880
Blade Wrench for Table Saw Bosch GTS 10
Blade Wrench for Table Saw Bosch GTS 10 Genuine spare parts Bosch, Blade Wrench for Table Saw Bosch GTS 10/0 601 B30 003 Part for the following products: - Table Saw Bosch GTS 10/0 601 B30 003 - Code : 2610996880
AVAILABLE €8.56
Details
Carbon Brushe Set for Table Saw Bosch GTS 10
Bosch SKU: 1609203L02
Carbon Brushe Set for Table Saw Bosch GTS 10
Carbon Brushe Set for Table Saw Bosch GTS 10 Genuine spare parts Bosch, Carbon Brushe Set for Table Saw Bosch GTS 10/0 601 B30 003 Part for the following products: - Table Saw Bosch GTS 10/0 601 B30 003...
on 7/10 Business Days Approx. €17.84
Details
Hexagon Socket Screw Key for Table Saw Bosch GTS 10 Sale
Bosch SKU: 2610998551
Hexagon Socket Screw Key for Table Saw Bosch GTS 10
Hexagon Socket Screw Key for Table Saw Bosch GTS 10 Genuine spare part Bosch, Hexagon Socket Screw Key for Table Saw Bosch GTS 10/0 601 B30 003. Part for the following products: - Table Saw Bosch GTS 10/0 601 B30 003 - Code : 2610998551
AVAILABLE €2.48
Details
End Stop for Table Saw Bosch GTS 10
Bosch SKU: 1609203L38
End Stop for Table Saw Bosch GTS 10
End Stop for Table Saw Bosch GTS 10 Genuine spare parts Bosch, End Stop for Table Saw Bosch GTS 10 - GTS 10 XC. Part for the following products: -  Table Saw Bosch GTS 10 -  Table Saw Bosch GTS-10-XC /230 V/EU - 3601M30401 - Code :...
Last items in stock €50.52
Details
Base Support for Table Saw Bosch GTS-10-XC
Bosch SKU: 2610997213
Base Support for Table Saw Bosch GTS-10-XC
Base Support for Table Saw Bosch GTS-10-XC Genuine part Bosch, Base Support for Table Saw GTS-10-XC /230 V/EU - 3601M30401 Part for the following products: -  Table Saw GTS-10-XC /230 V/EU - 3601M30401 - CODE : 2610997213
on 7/10 Business Days Approx €3.51
Details
Base Support Screw for Table Saw Bosch GTS-10-XC
Bosch SKU: 2610358832
Base Support Screw for Table Saw Bosch GTS-10-XC
Base Support Screw for Table Saw Bosch GTS-10-XC Genuine part Bosch, Base Support Screw for Table Saw GTS-10-XC /230 V/EU - 3601M30401 Part for the following products: -  Table Saw GTS-10-XC /230 V/EU - 3601M30401 - CODE : 2610358832
on 7/10 Business Days Approx €1.76
Details
Comments (0)
