Bosch Spare Parts for Cordless Drill Driver GSR 18V-55

SKU: Bosch GSR 18V-55 - 3601JH5200
€32.48
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 18V-55

Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Drill Driver GSR 18V-55 - 3601JH5200.

Bosch GBH 18V-21 - 3611J11100
Bosch Spare Parts for Cordless Drill Driver GSR 18V-55
  • Out-of-Stock
  • Bosch Spare Parts for Cordless Drill Driver GSR 18V-55
  • Bosch Spare Parts for Cordless Drill Driver GSR 18V-55 - Drawing
  • Bosch Spare Parts for Cordless Drill Driver GSR 18V-55 - Drawing - 1
Bosch

Bosch Spare Parts for Cordless Drill Driver GSR 18V-55

SKU: Bosch GSR 18V-55 - 3601JH5200 Condition: New
€32.48
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 18V-55

Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Drill Driver GSR 18V-55 - 3601JH5200.

Bosch GBH 18V-21 - 3611J11100
settings 22 Spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Out-of-Stock

SHIPPING IN: Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
Machine Type: Screwdriver
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal PayPal Pay in 3 Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
22 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

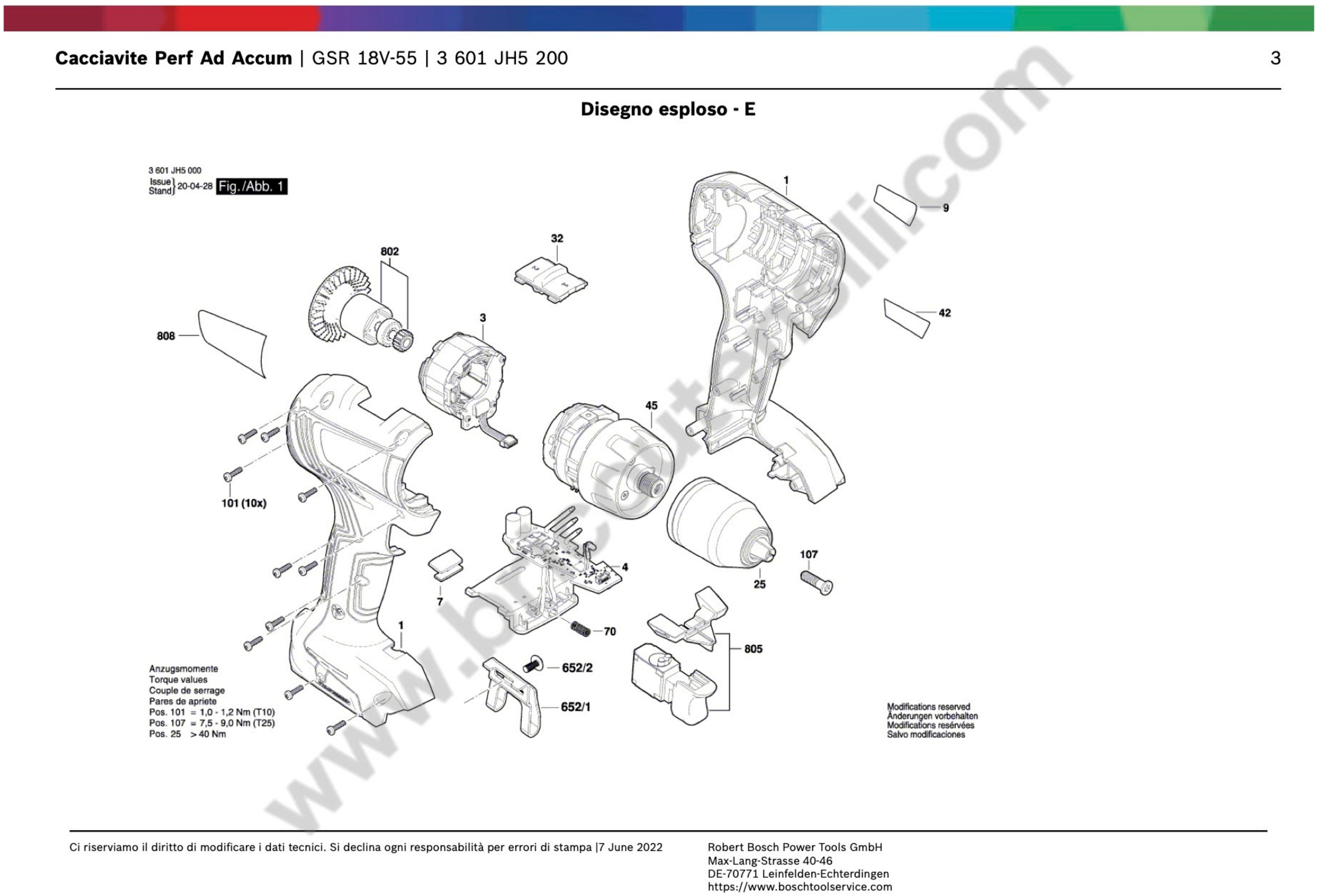

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 16058065S4 Housing €26.78
3
 photo_cameraImage coming soon 1600A016YW Stator €31.66
4
 photo_cameraImage coming soon 16072335FX Electronics Module €81.68
7
 photo_cameraImage coming soon 2609100858 Lens  €2.38
9
 photo_cameraImage coming soon 160111C36G Manufacturer's nameplate €2.38
25
 photo_cameraImage coming soon 2609111944 Keyless Chuck €81.68
32
 photo_cameraImage coming soon 2609199812 Switchover Unit €2.38
42
 photo_cameraImage coming soon 160111C2TS Sticker €2.38
45
 photo_cameraImage coming soon 1600A0160R Gear Box €58.50
70
 photo_cameraImage coming soon 1609280477 Compression Spring €2.38
91
 photo_cameraImage coming soon 1607A350AN Battery Pack GBA 18V 4.0Ah ProCore SCM €208.56
91
 photo_cameraImage coming soon 1607A350BG Battery PackEU GBA 18V 2.0Ah Li SCM €124.38
91
 photo_cameraImage coming soon 2607336815 Slide-In Accu Package BBS MR 18V, 4,0Ah, LI €178.06
101
 photo_cameraImage coming soon 2609110201 Torx Flat-Head Screw 3x16 €2.38
107
 photo_cameraImage coming soon 2603421229 Countersunk-Head Screw M6x23 €2.38
652/2
 photo_cameraImage coming soon 2609110834 Screw  €2.38
652/1
 photo_cameraImage coming soon 2609111584 Clip €3.60
653
 photo_cameraImage coming soon 2607226251 Fast Charger EU GAL 18V-40, 230V/10,8V – 18V €0.00 Not available for order
653
 photo_cameraImage coming soon 2607226253 Fast Charger GB GAL 18V-40 - Price on Application €0.00 Not available for order
802
 photo_cameraImage coming soon 1607000DM8 Motor Spare Parts Set €26.78
805
 photo_cameraImage coming soon 1607000E18 Switch €8.48
808
 photo_cameraImage coming soon 160111A76J Nameplate €2.38
Page 2 zoom_in View exploded local_shipping Usually Ships in 10 BUSYNESS DAYS

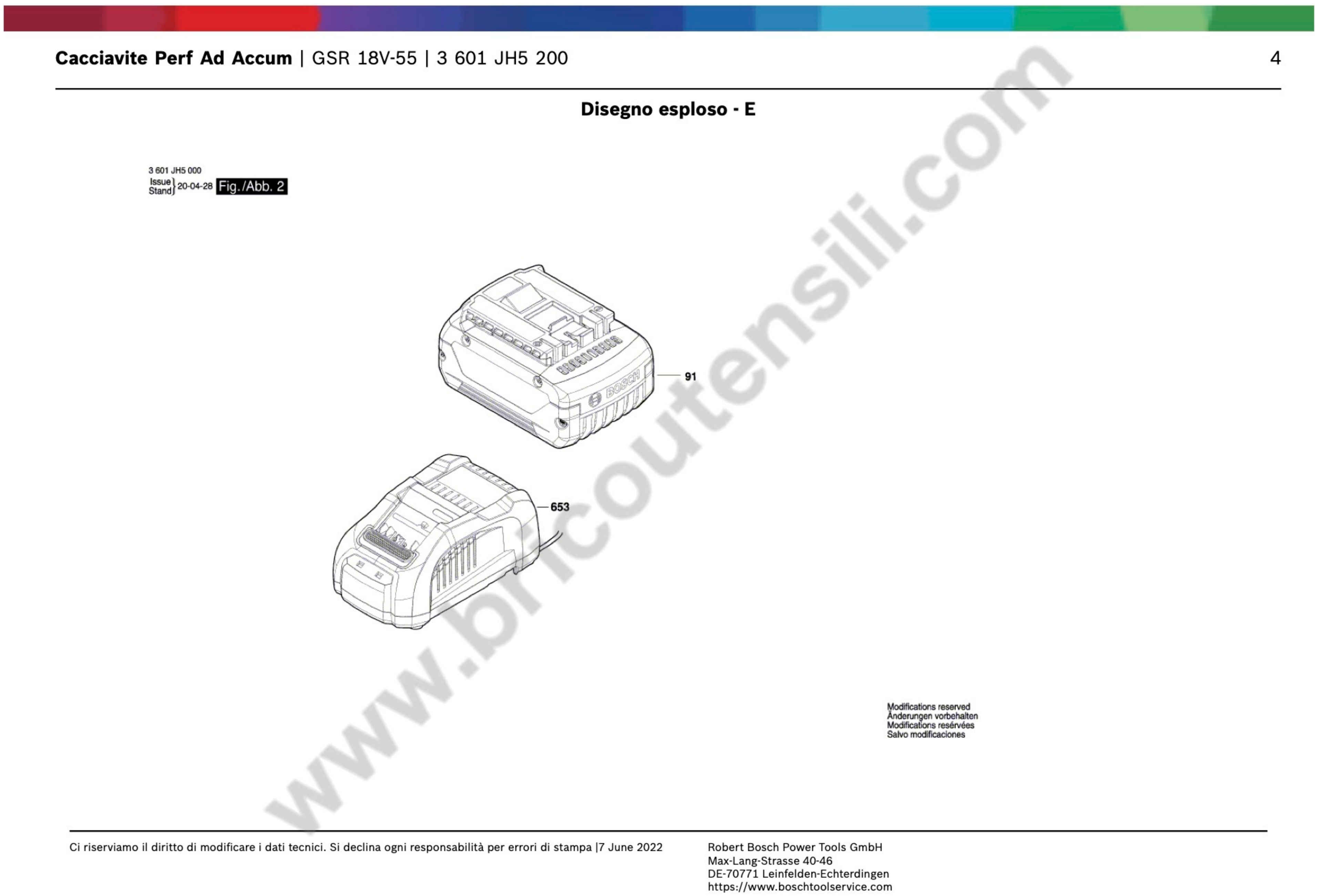

Esploso pagina 2
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
91
 photo_cameraImage coming soon 1607A350AN Battery Pack GBA 18V 4.0Ah ProCore SCM €208.56
91
 photo_cameraImage coming soon 1607A350BG Battery PackEU GBA 18V 2.0Ah Li SCM €124.38
91
 photo_cameraImage coming soon 2607336815 Slide-In Accu Package BBS MR 18V, 4,0Ah, LI €178.06
653
 photo_cameraImage coming soon 2607226251 Fast Charger EU GAL 18V-40, 230V/10,8V – 18V €0.00 Not available for order
653
 photo_cameraImage coming soon 2607226253 Fast Charger GB GAL 18V-40 - Price on Application €0.00 Not available for order

Shipping and delivery information will be available shortly.

Bosch Spare Parts for Cordless Drill Driver GSR 18V-55

Bosch original spare parts, at discounted prices, we are a service center with after-sales service able to quickly solve the maintenance and repair any issues for Cordless Drill Driver GSR 18V-55 - 3601JH5200.

In the following table, look for the model of the Hammer and the respective parts of the code.
Bosch Cordless Drill Driver GSR 18V-55 - 3601JH5200
Bosch Cordless Drill Driver GSR 18V-55 - 3601JH5200
# Part Num. Description
1 16058065S4 Housing
3 1600A016YW Stator
4 16072335FX Electronics Module
7 2609100858 Lens
9 160111C36G Manufacturer's nameplate
25 2609111944 Keyless Chuck
32 2609199812 Switchover Unit
42 160111C2TS Sticker
45 1600A0160R Gear Box
70 1609280477 Compression Spring
101 2609110201 Torx Flat-Head Screw 3x16
107 2603421229 Countersunk-Head Screw M6x23 LEFTHAND THREADS
652/1 2609111584 Clip
652/2 2609110834 Screw
802 1607000DM8 Motor Spare Parts Set
805 1607000E18 Switch
808 160111A76J Nameplate
91 1607A350AN Battery Pack GBA 18V 4.0Ah ProCore SCM
91 1607A350BG Battery Pack EU GBA 18V 2.0Ah Li SCM
91 2607336815 Battery Pack BBS MR 18V, 4,0Ah, 47 S
653 2607226251 Fast Charger EU GAL 18V-40, 230V/10,8V – 18V - Price on Application
653 2607226253 Fast Charger GB GAL 18V-40 - Price on Application
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSR 18V-55 - 3601JH5200

Data sheet

SHIPPING IN
Usually Ships in 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
Machine Type
Screwdriver

Specific References

New

Download

Drawing Bosch GSR 18V-55

Drawing Bosch GSR 18V-55

Download (387.29KB)
