In the following table, look for the model of the Hammer and the respective parts of the code.

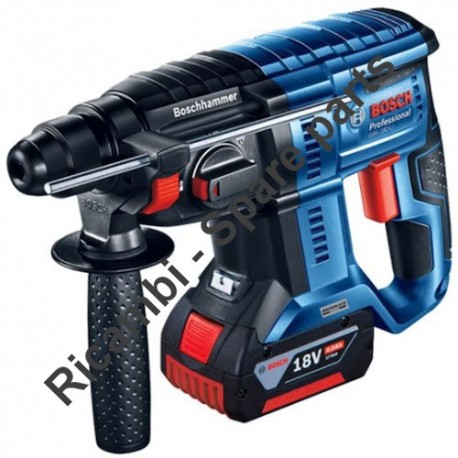

Bosch GBH 18V-21 - 3611J11100

Bosch Cordless Hammer Drill GBH 18V-21 - 3611J11100
# Part Num. Description
1 1619P15614 Motor Housing
2 1619P15329 Stator
3 1619P15328 Rotor
4 1600A020T1 Electronic Module
5 2604690055 Compression Spring
6 1619P13744 Lens
16 2603490022 Screw 4x16
17 1610290108 O-Ring
19 1610210184 O-Ring 22,0x2,5 MM
20 1612026151 Clamp Handle BLACK
20/2 1614690009 Driver Pin
20/3 1612026035 Switch Button RED
20/4 1610210046 O-Ring 10,5x2,7 MM
20/5 1614611006 Compression Spring
22 1616328053 Gear Sleeve
26 1618700083 Hammer Piston
27 1618710085 Striker
28 1613124084 Striker Pin
29 1613100034 Piston Pin
31 1619P09816 Retaining ring
32 1610508051 Rubber Bushing
33 1615820103 Switching Element
34 1619P00829 Retaining ring
36 1610551008 Holding Plate
37 1610100016 Guide Disc
38 1616317084 Cylindrical Gear
39 1614601055 Retaining ring
40 1613100032 Straight Pin
41 1610102072 Ratchet Disc
44 1610102092 Friction Washer
45 1611016003 Holding Plate
46 1614630003 Compression Spring
47 1610202031 Plain bearing
49 1615820104 Switching Element
51 1610021004 Shift Plate
52 1610021006 Shift Plate
53 1610021005 Shift Plate
54 1613023005 Guide Rod
55 1610508052 Protective Cap
60 1614601077 Spring retaining ring
63 1903230013 Ball DIN 5401-Ø7MM-III-ST
65 1610210244 O-Ring 13,0x3,0 MM
67 1619P16119 groove ball bearing
68 1600100037 Plain Washer
69 1619P13747 Change-Over Switch
71 2603490023 Torx Oval-Head Screw 4x20
72 1619P09645 Torx Oval-Head Screw
75 1614643025 Compression Spring
76 1614643023 Compression Spring
77 1610283048 Shaft Seal
211 1619P09815 Hammer Pipe
807 1619P15676 Intermediate housing
808 1619P16107 Label
818 1619P15677 Intermediate Flange
821 1619P09617 Hammer Pipe
824 16170006BC Jack Shaft
843 1619P15678 Gear Housing
856 16170006D3 Protection Sleeve
651 1613001009 Depth-Gauge SW 6x210 MM
653 2607336815 Battery Pack BBS MR 18V, 4,0Ah, 47 S
654 2607226251 Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
691/895 1619P14336 Latch
822 160202508X Auxiliary Handle
822/120 160202507H Auxiliary Handle
822/124 1611316021 Clamping Band Ø50 MM
822/125 1613490002 T-Head Bolt M8x40 MM
822/802 1617000475 Support clamp
892 1615430020 Grease Tube 225 ML
893 1615430001 Grease Tube 225 ML
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GBH 18V-21 - 3611J11100
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

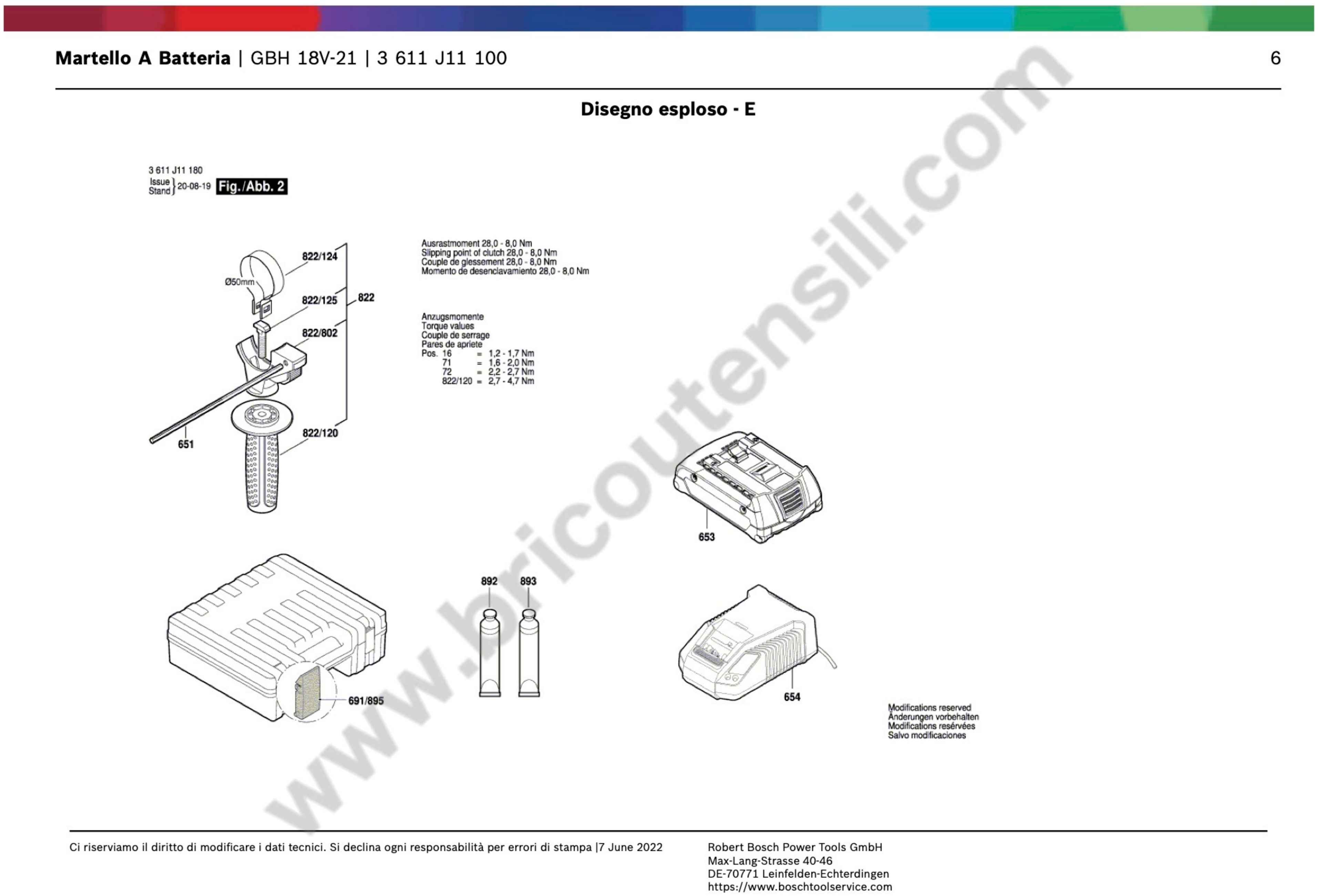

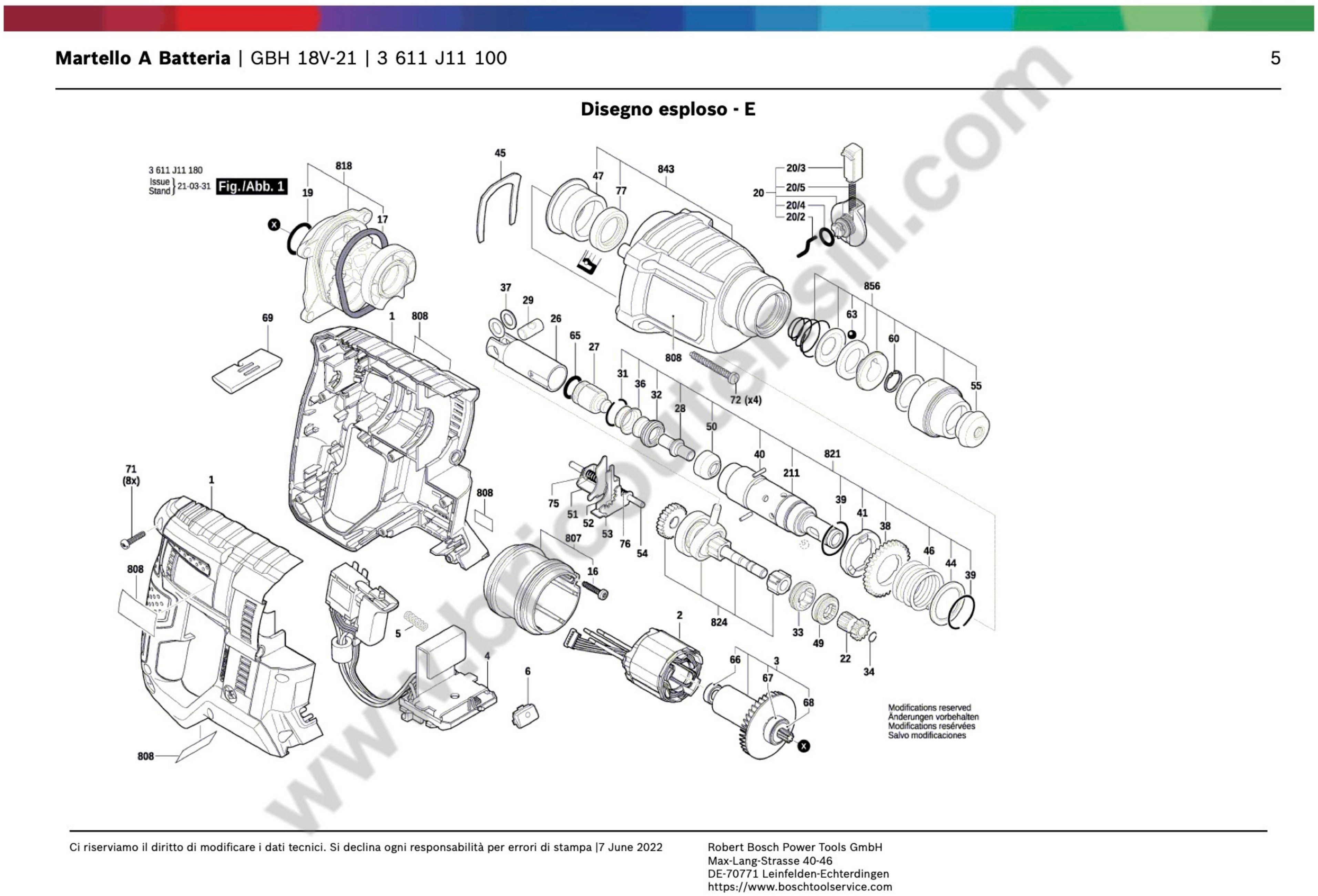

Drawing Bosch GBH 18V-21
