Bosch

Bosch Spare Parts for Lawnmower Rotak 37

SKU: Bosch Rotak 37 - 3600HA4100
€22.95
VAT included

Bosch Spare Parts for Lawnmower Rotak 37

Bosch genuine replacement parts for to replace broken parts for to fix Electric Lawnmower Rotak 37 3600HA4100 230 V/EU.

Fix Your Electric Lawnmower Rotak 37. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch Rotak 37 - 3600HA4100
Bosch Spare Parts for Lawnmower Rotak 37
  • Online only
  • Bosch Spare Parts for Lawnmower Rotak 37
  • Bosch Spare Parts for Lawnmower Rotak 37
Bosch

Bosch Spare Parts for Lawnmower Rotak 37

SKU: Bosch Rotak 37 - 3600HA4100 Condition: New
€22.95
VAT included

Bosch Spare Parts for Lawnmower Rotak 37

Bosch genuine replacement parts for to replace broken parts for to fix Electric Lawnmower Rotak 37 3600HA4100 230 V/EU.

Fix Your Electric Lawnmower Rotak 37. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch Rotak 37 - 3600HA4100
settings 55 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on Demand Only Call Us Before

SHIPPING IN:: ON DEMAND ONLY
MORE INFO:: [email protected]
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
55 spare parts

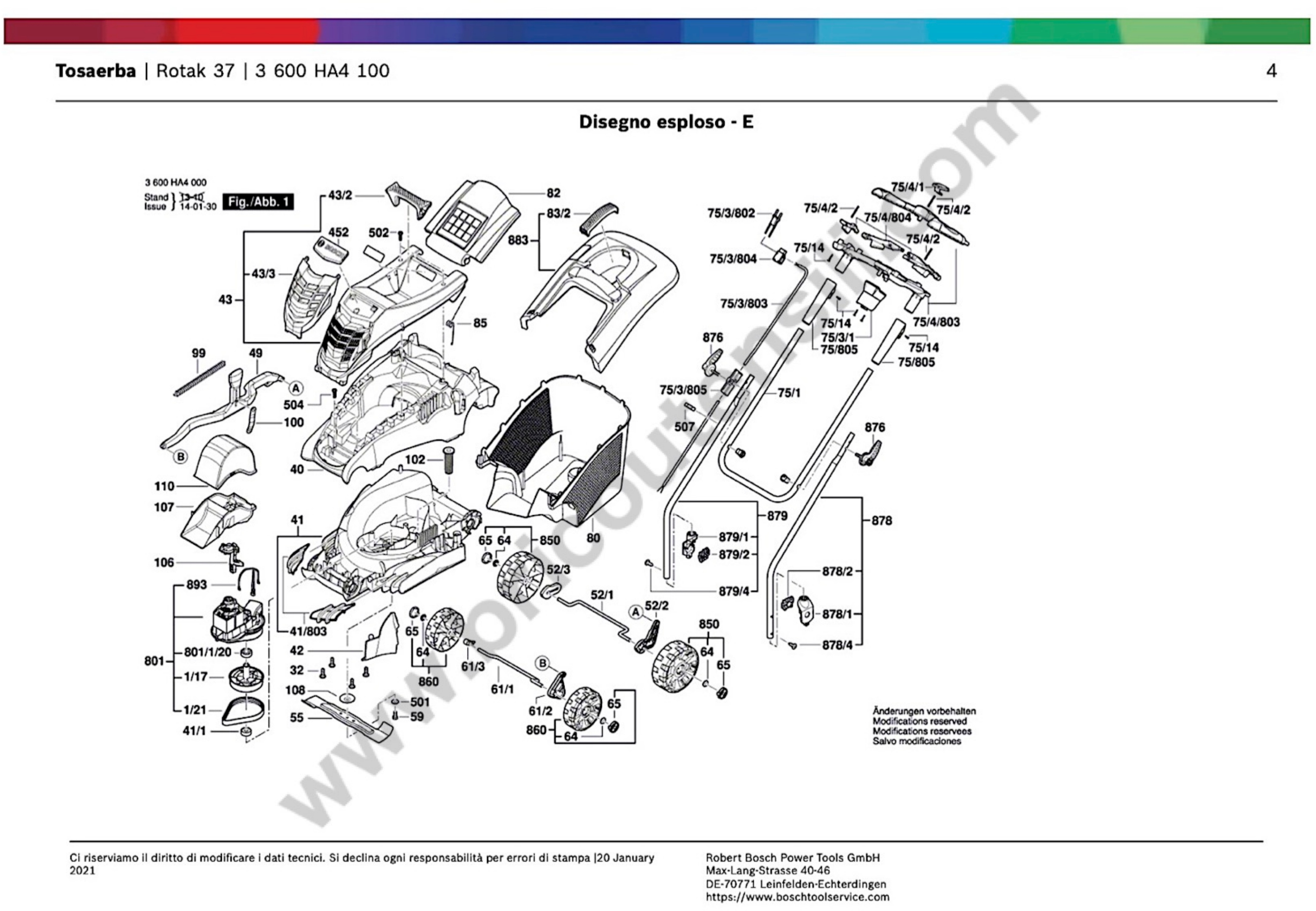

Page 1 zoom_in View exploded local_shipping ON DEMAND ONLY
Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1/17
 photo_cameraImage coming soon F016103758 Drive Shaft €17.80
1/21
 photo_cameraImage coming soon F016L65351 Drive Belt €17.80
32
 Self-Cutting Screw for Lawnmover Bosch Rotak 40 F016L37433 Self-Cutting Screw for Lawnmover Bosch Rotak 40 €1.43
40
 photo_cameraImage coming soon F016L68101 Mower deck €33.59
41/803
 photo_cameraImage coming soon F016104420 Cover Panel €22.93
41/1
 photo_cameraImage coming soon F016L67442 Bearing 6002-2RS  €4.74
41
 photo_cameraImage coming soon F016Z68099 Housing €43.77
42
 photo_cameraImage coming soon F016L66039 Cover Panel €2.88
43/2
 photo_cameraImage coming soon F016L68084 Carrying Handle €2.48
43
 photo_cameraImage coming soon F016L68149 Motor Hood €33.59
43/3
 photo_cameraImage coming soon F016L68150 grille SILVER €6.14
49
 Bosch Linkage Part for Rotak 37 F016L68111 Bosch Linkage Part for Rotak 37 €16.90
52/1
 photo_cameraImage coming soon F016L68527 Axle €3.37
52/3
 photo_cameraImage coming soon F016L90583 Spacer €1.89
55
 photo_cameraImage coming soon F016L65400 Cutter Blade €43.77
59
 photo_cameraImage coming soon F016T48547 Hex Screw M8x20 MM €3.35
61/1
 photo_cameraImage coming soon F016L68526 Axle €2.88
61/2
 photo_cameraImage coming soon F016L90581 Lever €7.23
61/3
 photo_cameraImage coming soon F016L90585 Spacer €1.89
64
 photo_cameraImage coming soon F016L68095 Ratchet Cap €1.89
65
 Wheel Cover for Lawnmover Bosch Rotak 37 F016L68116 Wheel Cover for Lawnmover Bosch Rotak 37 €1.50
75/4/803
 photo_cameraImage coming soon F016104159 Housing Set €26.18
75/4/804
 photo_cameraImage coming soon F016104160 Switch Segment €11.18
75/805
 photo_cameraImage coming soon F016104161 Sleeve €6.44
75/3/804
 photo_cameraImage coming soon F016104162 Switch Kit €15.81
75/3/803
 photo_cameraImage coming soon F016104164 Connecting Cable €12.67
75/3/805
 photo_cameraImage coming soon F016104213 Cable Guide €9.29
75/3/802
 photo_cameraImage coming soon F016104214 Connecting Cable EU €8.02
75/3/1
 photo_cameraImage coming soon F016L67217 Switch Housing €6.44
75/1
 photo_cameraImage coming soon F016L90608 Handle €20.46
75/14
 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 F016T49429 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 €1.43
80
 photo_cameraImage coming soon F016L65674 Collector Box Bottom BLACK €60.26
82
 photo_cameraImage coming soon F016L66137 Guard Flap €12.67
83/2
 photo_cameraImage coming soon F016L66441 Handle BLACK €4.08
85
 photo_cameraImage coming soon F016L66165 Spring €2.48
99
 Spring for Lawnmover Bosch ARM 32 F016L59327 Spring for Lawnmover Bosch ARM 32 €4.74
100
 Leaf Spring for Lawnmover Bosch Rotak 37 F016L68117 Leaf Spring for Lawnmover Bosch Rotak 37 €1.76
102
 photo_cameraImage coming soon F016L68536 Holding plug €26.18
106
 photo_cameraImage coming soon F016L90584 Wire Guide €1.89
107
 photo_cameraImage coming soon F016L68449 Baffle €3.37
108
 photo_cameraImage coming soon F016L67627 Bearing cover €2.09
110
 photo_cameraImage coming soon F016L68448 Baffle €2.88
452
 photo_cameraImage coming soon F016L68175 Company Logo Rotak 37 €4.08
501
 photo_cameraImage coming soon F016T40590 Plain Washer Ø8,15 MM  €2.09
507
 photo_cameraImage coming soon F016L66895 Cable Clip €1.40
801
 photo_cameraImage coming soon F016103595 Motor €193.87
801/1/20
 photo_cameraImage coming soon F016L64594 Bearing €3.37
850
 photo_cameraImage coming soon F016104422 Wheel €15.81
860
 photo_cameraImage coming soon F016104421 Wheel €11.18
876
 photo_cameraImage coming soon F016L67530 Clamping Lever €13.99
878
 photo_cameraImage coming soon F016104581 bottom handle €14.23
879
 photo_cameraImage coming soon F016104582 bottom handle €11.18
879/4
 photo_cameraImage coming soon F016L36542 Screw M5x8 Csk Hd. €3.35
883
 photo_cameraImage coming soon F016104465 Collector Box Top €20.46
893
 photo_cameraImage coming soon F016103604 Thermal protector €8.02

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Lawnmower Rotak 37

Fix Your Electric Lawnmower Rotak 37 3600HA4100 230 V/EU. All Spares are Ready at discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Bosch Rotak 37 - 3600HA4100

Lawnmower Rotak 37 3600HA4100 230 V/EU
# Part Num. Description
1/17 F016103758 Drive Shaft
1/21 F016L65351 Drive Belt
32 F016L37433 Self Cutting Screw
40 F016L68101 Mower deck
41 F016Z68099 Housing
41/1 F016L67442 Bearing 60022RS
41/803 F016104420 Cover Panel
42 F016L66039 Cover Panel
43 F016L68149 Motor Hood
43/2 F016L68084 Carrying Handle
43/3 F016L68150 grille SILVER
49 F016L68111 Linkage part
52/1 F016L68527 Axle
52/2 F016L90582 Lever
52/3 F016L90583 Spacer
55 F016L65400 Cutter Blade
59 F016T48547 Hex Screw M8x20 MM
61/1 F016L68526 Axle
61/2 F016L90581 Lever
61/3 F016L90585 Spacer
64 F016L68095 Ratchet Cap
65 F016L68116 Cover
75/1 F016L90608 Handle
75/14 F016T49429 Self Cutting Screw 4x19 MM
75/3/1 F016L67217 Switch Housing
75/3/802 F016104214 Connecting Cable EU
75/3/803 F016104164 Connecting Cable
75/3/804 F016104162 Switch Kit
75/3/805 F016104213 Cable Guide
75/4/1 F016L67150 PushButton
75/4/2 F016L67151 Button Spring
75/4/803 F016104159 Housing Set
75/4/804 F016104160 Switch Segment
75/805 F016104161 Sleeve
80 F016L65674 Collector Box Bottom BLACK
82 F016L66137 Guard Flap
83/2 F016L66441 Handle BLACK
85 F016L66165 Spring
99 F016L59327 Spring
100 F016L68117 Leaf Spring
102 F016L68536 Holding plug
106 F016L90584 Wire Guide
107 F016L68449 Baffle
108 F016L67627 Bearing cover
110 F016L68448 Baffle
452 F016L68175 Company Logo Rotak 37
501 F016T40590 Plain Washer Ø8,15 MM
502 F016L68124 Torx head screw
507 F016L66895 Cable Clip ROTAK II
801 F016103595 Motor
801/1/20 F016L64594 Bearing
850 F016104422 Wheel
860 F016104421 Wheel
876 F016L67530 Clamping Lever
878 F016104581 bottom handle
878/1 F016L68102 Mounting Bracket
879 F016104582 bottom handle
879/2 F016L68103 PushButton
879/4 F016L36542 Screw M5x8 Csk Hd.
883 F016104465 Collector Box Top
893 F016103604 Thermal protector
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch Rotak 37 - 3600HA4100
6 Items

Data sheet

SHIPPING IN:
ON DEMAND ONLY
MORE INFO:
[email protected]
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing Bosch Rotak 37

Drawing Bosch Rotak 37

Download (302.58KB)
