Bosch

Bosch Spare Parts for Angle Grinder GWS 14-150C - 0601386703

SKU: Bosch GWS 14-150C - 0601806703
€50.11
VAT included

Bosch Spare Parts for Angle Grinder GWS 14-150C - 0601386703

We have the original Bosch Spare Parts for Angle Grinder GWS 14-150C, the diagram, parts list and tool repair that help you need to get your tools running like new again

Fix Your Angle Grinder GWS 14-150C - 0601386703. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine and with a Guarantee

Bosch GWS 14-150C - 0601806703
Bosch Spare Parts for Angle Grinder GWS 14-150C - 0601386703
  • Bosch Spare Parts for Angle Grinder GWS 14-150C - 0601386703
  • Bosch Spare Parts for Angle Grinder GWS 14-150C - 0601386703
  • Bosch Spare Parts for Angle Grinder GWS 14-150C - 0601386703
Bosch

Bosch Spare Parts for Angle Grinder GWS 14-150C - 0601386703

SKU: Bosch GWS 14-150C - 0601806703 Condition: New
€50.11
VAT included

Bosch Spare Parts for Angle Grinder GWS 14-150C - 0601386703

We have the original Bosch Spare Parts for Angle Grinder GWS 14-150C, the diagram, parts list and tool repair that help you need to get your tools running like new again

Fix Your Angle Grinder GWS 14-150C - 0601386703. All Spares are original and can be supplied at Low and discounted prices. Our Spares are Genuine and with a Guarantee

Bosch GWS 14-150C - 0601806703
settings 82 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
56 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

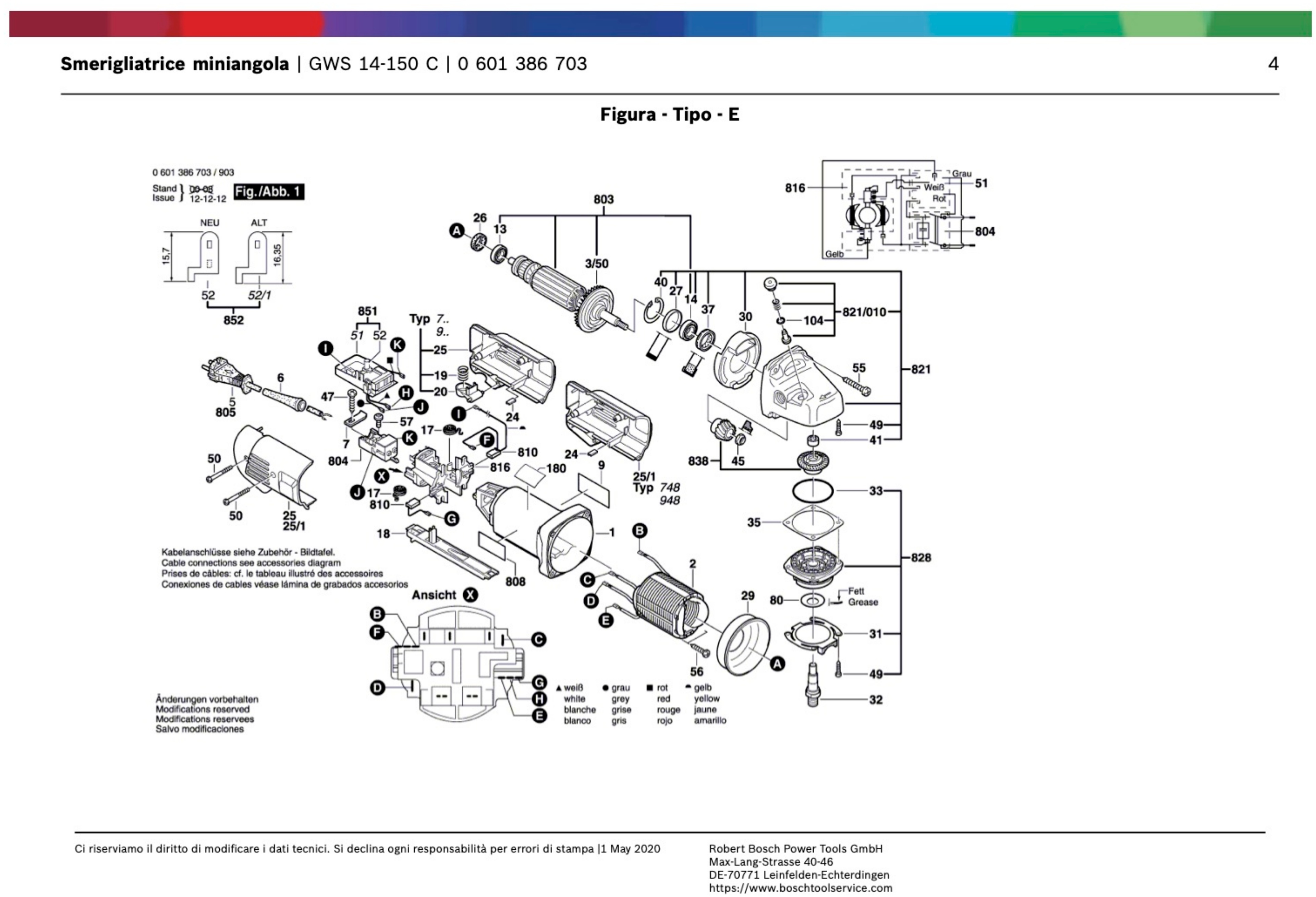

Esploso pagina 1
Pos. Item Price Buy
2
 Stator for Angle Grinder Bosch PWS 13-125 CE 1604220284 Stator for Angle Grinder Bosch PWS 13-125 CE €48.66
3/50
 Fan for Rotary Hammer Bosch PBH 300 E 1606610132 Fan for Rotary Hammer Bosch PBH 300 E €3.08
6
 photo_cameraImage coming soon 1600703030 Grommet Ø6,4-Ø7,2x67 MM €2.62
7
 Fastening Clamp for Angle grinder Bosch GWS 6-115 1601302017 Fastening Clamp for Angle grinder Bosch GWS 6-115 €1.09
9
 photo_cameraImage coming soon 1601118544 Manufacturer's nameplate €2.92
13
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
14
 Ball Bearing 8x22x7 for Angle Grinder Bosch GWS 20-230 1600905011 Ball Bearing 8x22x7 for Angle Grinder Bosch GWS 20-230 €7.10
17
 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 1604652013 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 €2.07
18
 photo_cameraImage coming soon 1602319013 Switch-Pawl BLACK €9.01
19
 photo_cameraImage coming soon 1604611024 Compression Spring €1.37
20
 photo_cameraImage coming soon 1602319007 Shift-Lever Knob BLACK €1.37
24
 photo_cameraImage coming soon 1600499013 Guiding Plate €1.37
25
 photo_cameraImage coming soon 1605500175 Housing Cover BLUE €9.01
26
 photo_cameraImage coming soon 1600206036 Rubber Ring €1.56
27
 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 1600206025 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 €2.28
29
 photo_cameraImage coming soon 1600591013 Air-Deflector Ring €2.08
30
 photo_cameraImage coming soon 1600591014 Air-Deflector Ring €2.08
31
 photo_cameraImage coming soon 1601290007 Clamping Spring €4.39
32
 photo_cameraImage coming soon 1607000D6A Grinding Spindle  €6.80
33
 photo_cameraImage coming soon 1600210035 O-Ring 46,0x1,1 MM €1.62
35
 photo_cameraImage coming soon 1600136013 Shim 0,1 MM THICK €2.46
35
 photo_cameraImage coming soon 1600136014 Shim 0,2 MM THICK €2.46
35
 photo_cameraImage coming soon 1600136015 Shim 0,3 MM THICK €2.46
37
 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 1600290016 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 €2.61
40
 Spring Retaining Ring for Angle Grinder Bosch GWS 8-115 1600119011 Spring Retaining Ring for Angle Grinder Bosch GWS 8-115 €2.25
41
 Needle-Roller Bearing for Angle Grinders Bosch GWS 6-115-GWS 660 1600910018 Needle-Roller Bearing for Angle Grinders Bosch GWS 6-115-GWS 660 €5.66
45
 Hex Nut M7 SW10 for Angle Grinder Bosch PWS 6-115 1603300016 Hex Nut M7 SW10 for Angle Grinder Bosch PWS 6-115 €1.71
47
 photo_cameraImage coming soon 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z €1.41
49
 Thread Forming Screw for Angle Grinder Bosch PWS 10-125 CE 1603435026 Thread Forming Screw for Angle Grinder Bosch PWS 10-125 CE €1.71
50
 photo_cameraImage coming soon 1603435037 Plastic-Cutting Screw €1.37
52
 photo_cameraImage coming soon 1609270562 Light Conductor 15,7 MM €10.12
56
 photo_cameraImage coming soon 1603435044 Plastic-Cutting Screw €1.37
57
 photo_cameraImage coming soon 1603429002 Socket head cap screw M3,5x7 MM €1.37
80
 Sealing Disk for Grinder Bosch GWS 6-115 3600150021 Sealing Disk for Grinder Bosch GWS 6-115 €4.82
650/50/20
 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
700/20/50
 photo_cameraImage coming soon 1604643004 Compression Spring €2.08
700/20/30
 photo_cameraImage coming soon 2910281158 Round-Head Bolt DIN 603-M 5x16 €1.37
700/20/40
 photo_cameraImage coming soon 2915191105 Wing Nut M 5 DIN 315-G-5 €2.92
750/30
 Bosch PWS 7-115 Pin-Type Face-Wrench 1607950043 Bosch PWS 7-115 Pin-Type Face-Wrench €1.75
750/10
 photo_cameraImage coming soon 2602025067 Auxiliary Handle M10, Ø32,5x105 MM €3.67
803
 photo_cameraImage coming soon 1604010455 Armature With Fan 230V €78.87
805
 photo_cameraImage coming soon 1607000228 Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F €37.86
808
 photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22
810
 photo_cameraImage coming soon 1607000499 Carbon-Brush Set 10 x 1 607 014 148 €118.91
810
 photo_cameraImage coming soon 1607014148 Carbon Brush €14.54
816
 photo_cameraImage coming soon 1604336031 Brush Holder €16.28
821
 photo_cameraImage coming soon 1605806451 Gear Housing €45.02
821/010
 photo_cameraImage coming soon 1607000253 Push-Button BLACK €1.80
838
 photo_cameraImage coming soon 1607000D4Z Gear Unit €18.60
852
 photo_cameraImage coming soon 1607000278 Light Conductor €2.42
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

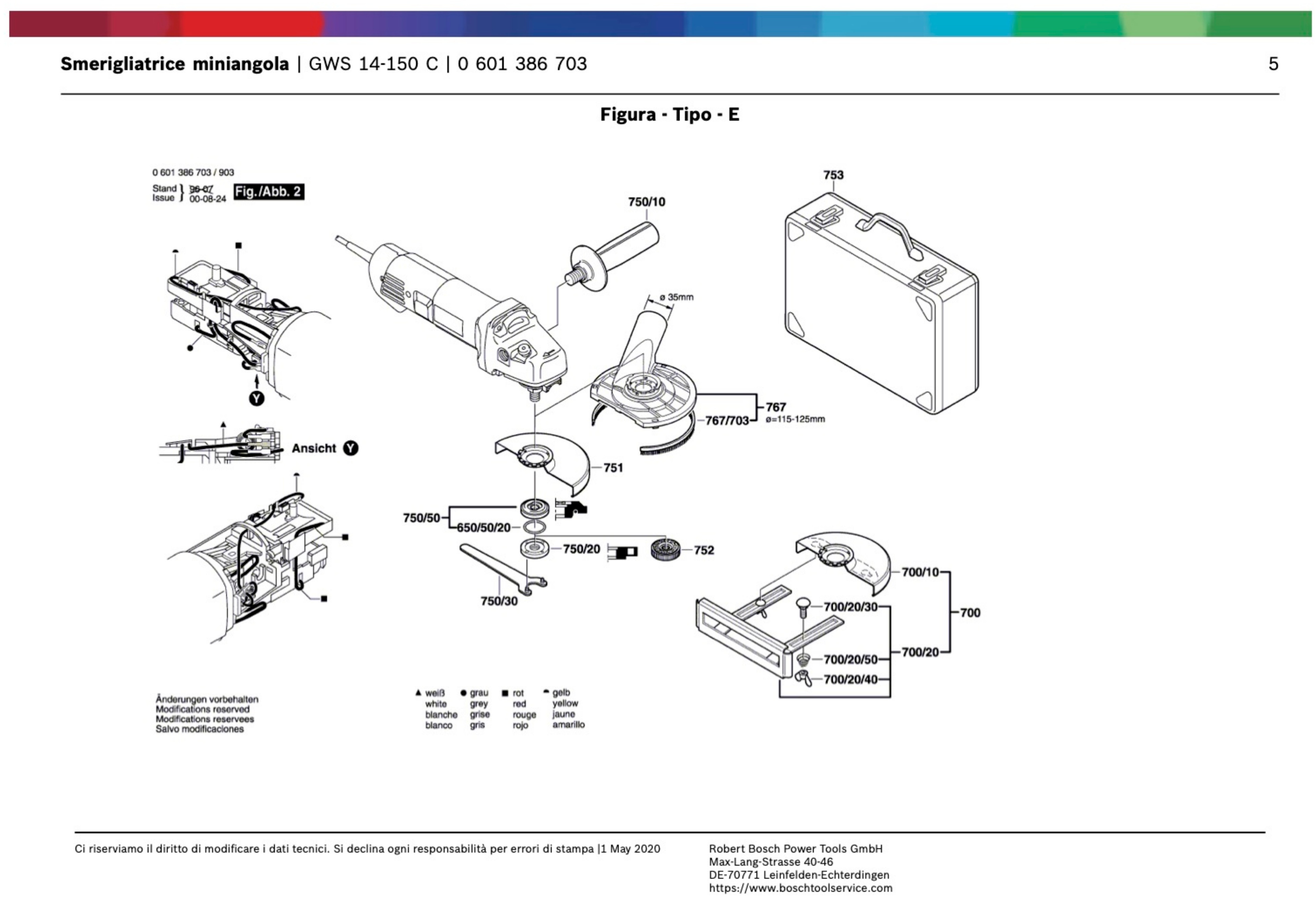

Esploso pagina 2
Pos. Item Price Buy
650/50/20
 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
700/20/50
 photo_cameraImage coming soon 1604643004 Compression Spring €2.08
700/20/30
 photo_cameraImage coming soon 2910281158 Round-Head Bolt DIN 603-M 5x16 €1.37
700/20/40
 photo_cameraImage coming soon 2915191105 Wing Nut M 5 DIN 315-G-5 €2.92
750/30
 Bosch PWS 7-115 Pin-Type Face-Wrench 1607950043 Bosch PWS 7-115 Pin-Type Face-Wrench €1.75
750/10
 photo_cameraImage coming soon 2602025067 Auxiliary Handle M10, Ø32,5x105 MM €3.67

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Angle Grinder GWS 14-150C - 0601386703

Fix Your Angle Grinder GWS 14-150C - 0601386703. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Bosch GWS 14-150C - 0601806703

ANGLE GRINDER GWS 14-150 C - 0601386703 230 V/EU
# Part Num. Description
1 1605108162 Motor Housing BLUE
2 1604220284 Field 220-230V
3/50 1606610132 Fan
6 1600703030 Grommet Ø6,4-Ø7,2x67 MM
7 1601302017 Fastening Clamp
9 1601118544 Manufacturer's nameplate
13 2600905032 Ball Bearing 7x19x6
14 1600905011 groove ball bearing 8x22x7
17 1604652013 Spiral Spring
18 1602319013 Switch-Pawl BLACK
19 1604611024 Compression Spring
20 1602319007 Shift-Lever Knob BLACK
24 1600499013 Guiding Plate
25 1605500175 Housing Cover BLUE
26 1600206036 Rubber Ring
27 1600206025 Rubber Ring
29 1600591013 Air-Deflector Ring
30 1600591014 Air-Deflector Ring
31 1601290007 Clamping Spring
32 1607000D6A Grinding Spindle
33 1600210035 O-Ring 46,0x1,1 MM
35 1600136013 Shim 0,1 MM THICK
35 1600136014 Shim 0,2 MM THICK
35 1600136015 Shim 0,3 MM THICK
37 1600290016 Rotary shaft lip seal
40 1600119011 Retaining clip
41 1600910018 Needle bearing Ø8xØ12x8 MM
45 1603300016 Hex Nut M7,SW10
47 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z
49 1603435026 Thread-forming tap. Screw
50 1603435037 Plastic-Cutting Screw
52 1609270562 Light Conductor 15,7 MM
55 2912401022 Tapping Screw DIN 7981-ST3,9x25-C-Z
56 1603435044 Plastic-Cutting Screw
57 1603429002 Socket head cap screw M3,5x7 MM
80 3600150021 Sealing disk
104 1600210044 O-Ring 4,5x1,0 MM BLUE
803 1604010455 Armature With Fan 230V
804 1607200115 Switch
805 1607000228 Power supply cord EU 4,15m 2 x 1,5mm H07 RN-F
808 160111A3H3 Nameplate
810 1607000499 Carbon-Brush Set 10 x 1 607 014 148
810 1607014148 Carbon Brush
816 1604336031 Brush Holder
821 1605806451 Gear Housing
821/010 1607000253 Push-Button BLACK
828 1605805082 Bearing Flange GRAY
838 1607000D4Z Gear Unit
851 1607000289 Speed governor 220-240V
852 1607000278 Light Conductor
650/50/20 1600210039 O-Ring 20,35x1,78 MM
700 2607001187 Parts Set Ø 150 MM
700/10 2605510100 Protective Cover Ø 150 MM
700/20 1608135004 Guide Block
700/20/30 2910281158 Round-Head Bolt DIN 603-M 5x16
700/20/40 2915191105 Wing Nut M 5 DIN 315-G-5
700/20/50 1604643004 Compression Spring
750/10 2602025067 Auxiliary Handle M10, Ø32,5x105 MM
750/20 1603340040 Clamping Nut M14
750/30 1607950043 Pin-Type Face-Wrench
750/50 1605703099 Clamping-Flange Ø22,2x42 MM
751 2605510103 Protective Cover Ø 150 MM
752 1603340031 Fast Locking Flange M14
753 1605438089 Carrying Case
767 2605510107 Suction Hood Ø115-125MM
767/703 2605730036 Brush
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
