Bosch Spare Parts for Electric Chain Saw AKE 40-19 S

SKU: Bosch AKE 40-19 S 3600H36F00
€1.71
VAT included

Bosch Spare Parts for Electric Chain Saw AKE 40-19 S

Bosch original spare parts for to replace broken parts for to fix Electric Chain Saw AKE 40-19 S - 3600H36F00.

1900 Watt motor, 40 cm bar and 12 m / s chain speed, for an excellent quality cut
Weight of only 4.7 kg, for easy handling
Practical Bosch SDS system, for easy tensioning and without the use of tools

Bosch AKE 40-19 S 3600H36F00
Bosch Spare Parts for Electric Chain Saw AKE 40-19 S
  • Bosch Spare Parts for Electric Chain Saw AKE 40-19 S
  • Bosch Spare Parts for Electric Chain Saw AKE 40-19 S

Bosch Spare Parts for Electric Chain Saw AKE 40-19 S

SKU: Bosch AKE 40-19 S 3600H36F00 Condition: New
€1.71
VAT included

Bosch Spare Parts for Electric Chain Saw AKE 40-19 S

Bosch original spare parts for to replace broken parts for to fix Electric Chain Saw AKE 40-19 S - 3600H36F00.

1900 Watt motor, 40 cm bar and 12 m / s chain speed, for an excellent quality cut
Weight of only 4.7 kg, for easy handling
Practical Bosch SDS system, for easy tensioning and without the use of tools

Bosch AKE 40-19 S 3600H36F00
settings 64 spare parts

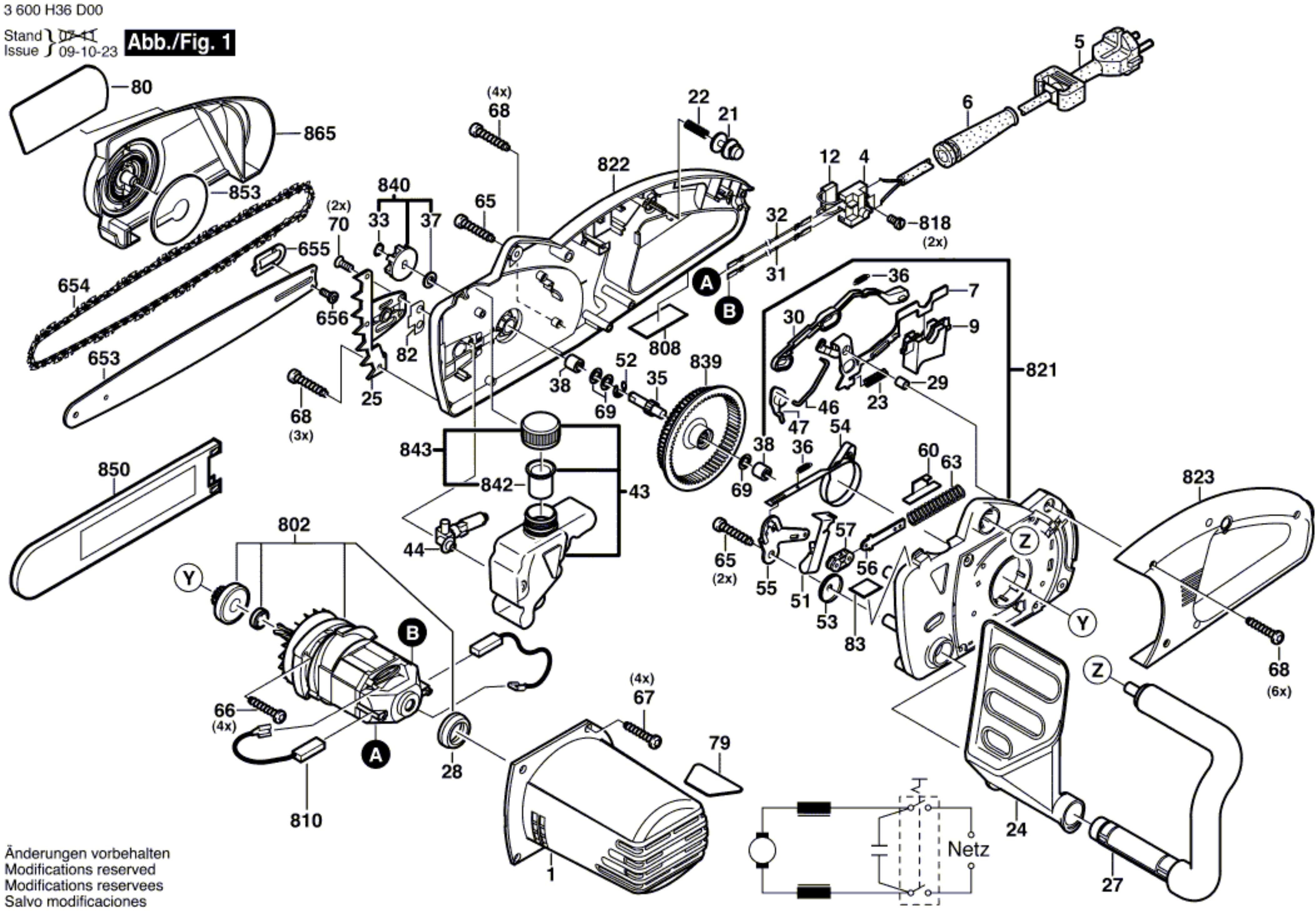

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

55 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1605190228 Motor Housing €5.02
4
photo_cameraImage coming soon 1607200193 Switch  €13.04
5
photo_cameraImage coming soon 1604460242 Power supply cord EU 230V 0,55m 2 x 1,0mm H07 RN-F €6.42
6
photo_cameraImage coming soon 2609005766 Grommet €3.73
7
photo_cameraImage coming soon 1602002008 Lever  €5.53
12
photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
21
photo_cameraImage coming soon 1600390019 Locking Bolt  €1.36
24
photo_cameraImage coming soon 1605510315 Protective Shield  €7.69
25
photo_cameraImage coming soon 1601098008 Spiked bumper  €4.46
27
photo_cameraImage coming soon 1605133045 Handle  €12.30
28
photo_cameraImage coming soon 1600206038 Intermediate Ring €1.36
29
photo_cameraImage coming soon 1600300096 Bushing  €1.36
30
photo_cameraImage coming soon 1602319019 Pusher  €2.86
31
photo_cameraImage coming soon 1604431003 Connecting Cable €1.78
32
photo_cameraImage coming soon 1604431004 Connecting Cable €0.24
33
photo_cameraImage coming soon 2916650001 Spring retaining ring DIN 471-10x1MM-FSt  €3.22
35
photo_cameraImage coming soon 1606100039 Shaft  €14.11
36
photo_cameraImage coming soon 1604650016 Extension Spring  €1.27
37
Felt Washer for Electric Chain Saw Bosch GKE 40 BCE 1600205037 Felt Washer for Electric Chain Saw Bosch GKE 40 BCE €0.90
38
photo_cameraImage coming soon 2600917006 Needle bearing  €3.75
43
Oil Reservoir for Electric Chainsaw Bosch AKE 35-19 S 1605405004 Oil Reservoir for Electric Chainsaw Bosch AKE 35-19 S €20.85
44
Oil Pump for Electric Chain Saws Bosch AKE 35-19 S - AKE 40-19 S 1605437003 Oil Pump for Electric Chain Saws Bosch AKE 35-19 S - AKE 40-19 S €20.13
46
photo_cameraImage coming soon 1603023003 Rod  €4.31
47
photo_cameraImage coming soon 1600590014 Swivelling Lever  €4.46
52
Locking Washer for Electric Chain Saw Bosch GKE 40 BCE 2916080012 Locking Washer for Electric Chain Saw Bosch GKE 40 BCE €1.67
53
photo_cameraImage coming soon 1600328030 Collar Disc  €1.36
54
photo_cameraImage coming soon 1604652020 Brake Band  €4.45
55
photo_cameraImage coming soon 1600590019 Lever Arm  €2.42
56
photo_cameraImage coming soon 1600590016 Spring Guide  €1.36
57
photo_cameraImage coming soon 1600390018 Lever Carrier  €2.42
60
photo_cameraImage coming soon 1600590012 Pressure Plate  €1.36
65
photo_cameraImage coming soon 2914211528 Oval-Head Screw 5x22  €1.27
66
photo_cameraImage coming soon 2914211528 Oval-Head Screw 5x22  €1.27
69
Friction Washer for Electric Chain Saw Bosch GKE 40 BCE 1600100038 Friction Washer for Electric Chain Saw Bosch GKE 40 BCE €1.67
79
photo_cameraImage coming soon 1601118K69 Reference Plate €2.07
80
photo_cameraImage coming soon 1601118K63 Manufacturer's nameplate AKE 40-19 S €2.36
82
photo_cameraImage coming soon 1601010009 Seal Strip  €1.78
83
photo_cameraImage coming soon 1601118A64 Sticker  €2.90
653
photo_cameraImage coming soon 1602317007 Guide Rail 400 MM €57.66
654
photo_cameraImage coming soon 2609007365 Saw Chain AKE 40 €30.01
655
photo_cameraImage coming soon 1601015035 Adjusting Plate  €5.02
802
photo_cameraImage coming soon 1607000A62 Alternating-Current Motor €159.92
808
photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22
810
photo_cameraImage coming soon 1607014170 Carbon-Brush Set  €15.84
818
photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
821
photo_cameraImage coming soon 1607000A88 Housing Section €0.24
822
photo_cameraImage coming soon 1607000884 Housing Section €56.52
823
photo_cameraImage coming soon 1605133046 Handle €26.51
839
Ring Gear for Electric Chain Saw Bosch GKE 40 BCE 1607000A06 Ring Gear for Electric Chain Saw Bosch GKE 40 BCE €27.77
840
photo_cameraImage coming soon 1607000885 Sprocket wheel  €7.64
842
photo_cameraImage coming soon 1607431000 Strainer  €4.31
843
photo_cameraImage coming soon 1607000A47 Reservoir Cap  €5.53
850
photo_cameraImage coming soon 1605510329 Chain Guard  €9.92
853
photo_cameraImage coming soon 1605190190 Dust-Protection Cover  €2.42
865
photo_cameraImage coming soon 1607000A89 Protective Cover €0.24

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Electric Chain Saw AKE 40-19 S

Bosch original spare parts for to replace broken parts for to fix Electric Chain Saw AKE 40-19 S - 3600H36F00.

In the following table, look for the model of the Electric Chain Saw and the respective parts of the code.
Bosch AKE 40-19 S 3600H36F00

Electric Chain Saw AKE 40-19 S
# Part Num. Description
1 1605190228 Motor Housing
4 1607200193 Switch
5 1604460242 Power supply cord EU 230V 0,55m 2 x 1,0mm H07 RN-F
6 2609005766 Grommet
7 1602002008 Lever
9 1603231020 Push-Button
12 1607328028 Suppression Filter
21 1600390019 Locking Bolt
22 1604617008 Compression Spring
23 1604617015 Compression Spring
24 1605510315 Protective Shield
25 1601098008 Spiked bumper
27 1605133045 Handle
28 1600206038 Intermediate Ring
29 1600300096 Bushing
30 1602319019 Pusher
31 1604431003 Connecting Cable
32 1604431004 Connecting Cable
33 2916650001 Spring retaining ring DIN 471-10x1MM-FSt
35 1606100039 Shaft
36 1604650016 Extension Spring
37 1600205037 Felt Washer
38 2600917006 Needle bearing
43 1605405004 Oil Reservoir
44 1605437003 Oil Pump
46 1603023003 Rod
47 1600590014 Swivelling Lever
51 1604651013 Clamp Spring
52 2916080012 Locking Washer DIN 6799-9-FSt
53 1600328030 Collar Disc
54 1604652020 Brake Band
55 1600590019 Lever Arm
56 1600590016 Spring Guide
57 1600390018 Lever Carrier
60 1600590012 Pressure Plate
63 1604617017 Compression Spring
65 2914211528 Oval-Head Screw 5x22
66 2914211528 Oval-Head Screw 5x22
67 2914201506 Oval-Head Screw 4x18 MM,TORX T20
68 2914201506 Oval-Head Screw 4x18 MM,TORX T20
69 1600100038 Friction Washer
70 2910601325 Tapping Screw 4,2x13
79 1601118K69 Reference Plate
80 1601118K63 Manufacturer's nameplate AKE 40-19 S
82 1601010009 Seal Strip
83 1601118A64 Sticker
653 1602317007 Guide Rail 400 MM
654 2609007365 Saw Chain AKE 40
655 1601015035 Adjusting Plate
656 1603421003 Countersunk-Head Screw
802 1607000A62 Alternating-Current Motor
808 160111A3H3 Nameplate
810 1607014170 Carbon-Brush Set
818 2603410001 Socket head cap screw M3x6,5-4.8
821 1607000A88 Housing Section
822 1607000884 Housing Section
823 1605133046 Handle
839 1607000A06 Ring Gear
840 1607000885 Sprocket wheel
842 1607431000 Strainer
843 1607000A47 Reservoir Cap
850 1605510329 Chain Guard
853 1605190190 Dust-Protection Cover
865 1607000A89 Protective Cover
