Bosch Spare Parts for Planer GHO 15-82

SKU: GHO 15-82 - 3601E94003
€3.79
VAT included

Bosch Spare Parts for Planer GHO 15-82

We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Planer GHO 15-82 - 3601E94003.

GHO 15-82 - 3601E94003
Bosch Spare Parts for Planer GHO 15-82
  • Bosch Spare Parts for Planer GHO 15-82
  • Bosch Spare Parts for Planer GHO 15-82
Bosch

Bosch Spare Parts for Planer GHO 15-82

SKU: GHO 15-82 - 3601E94003 Condition: New
€3.79
VAT included

Bosch Spare Parts for Planer GHO 15-82

We are BOSCH original spare parts Worldwide Dealers at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Planer GHO 15-82 - 3601E94003.

GHO 15-82 - 3601E94003
settings 48 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
AVAILABLE

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
48 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

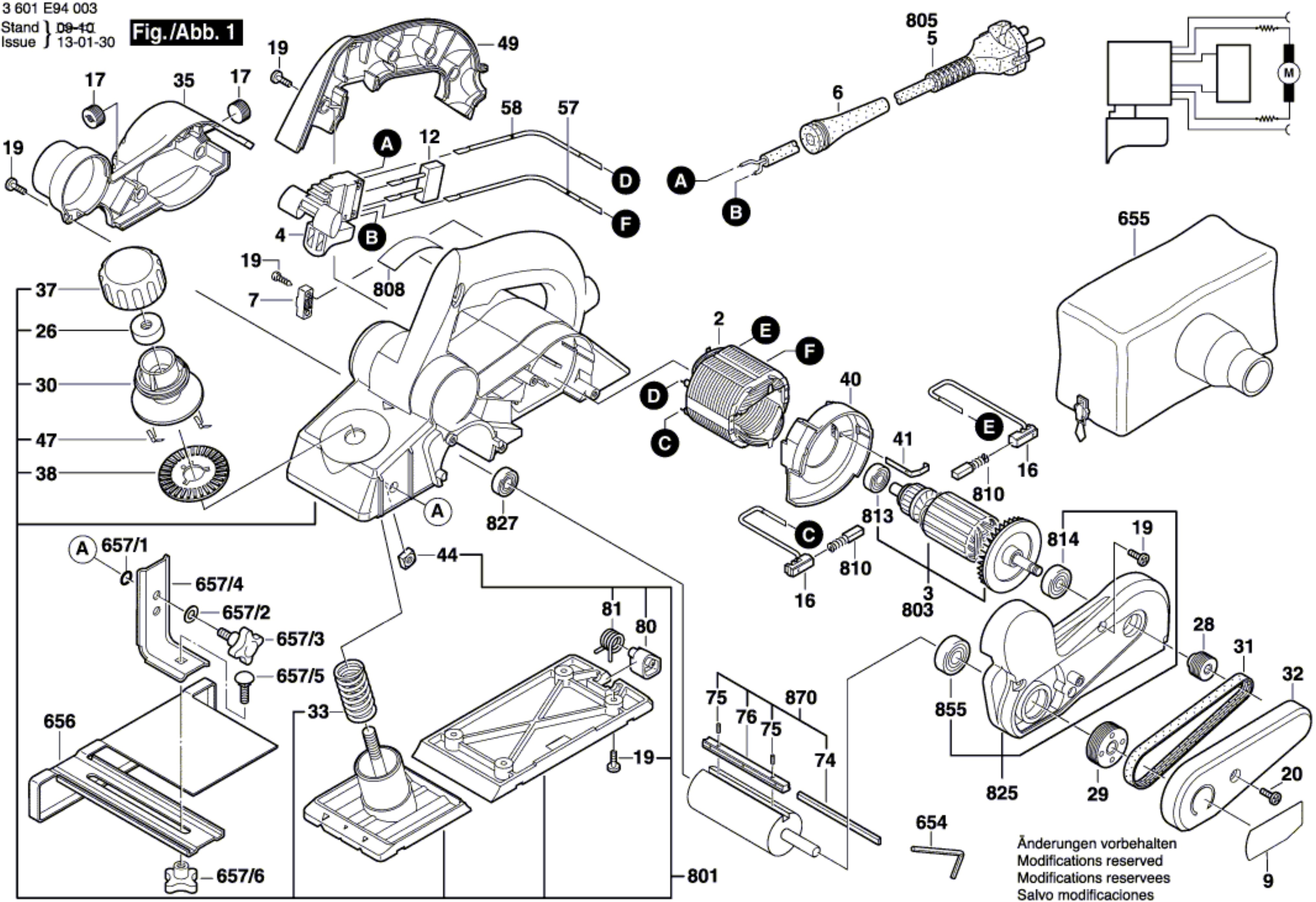

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
2
 photo_cameraImage coming soon 2604220480 Field 230-240V €26.96
4
 photo_cameraImage coming soon 1607200158 Switch €9.92
6
 photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
7
 Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
 photo_cameraImage coming soon 2609132301 Manufacturer's nameplate GHO 15-82 €2.01
12
 photo_cameraImage coming soon 2609120389 Suppression Capacitor €5.51
16
 photo_cameraImage coming soon 2604449055 Carbon Brush Holder €2.02
19
 photo_cameraImage coming soon 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H €1.68
26
 photo_cameraImage coming soon 2609110131 Adjusting Nut €2.92
28
 photo_cameraImage coming soon 2609110268 Pulley €2.92
29
 photo_cameraImage coming soon 2609110267 Pulley €4.71
30
 photo_cameraImage coming soon 2609100805 Handle €3.69
31
 Micro Poli-V Belt for Planer Bosch GHO 15-82 2609100410 Micro Poli-V Belt for Planer Bosch GHO 15-82 €10.86
32
 photo_cameraImage coming soon 2609100024 Gear Cover €4.65
33
 photo_cameraImage coming soon 2609110077 Compression Spring €2.41
35
 photo_cameraImage coming soon 2609100023 Brush-Cover BLUE €6.52
37
 photo_cameraImage coming soon 2609100140 Cap-Handle €3.61
38
 photo_cameraImage coming soon 2609110162 Ratchet Disc €2.92
40
 photo_cameraImage coming soon 2609100028 Air-Deflector Ring €2.41
41
 photo_cameraImage coming soon 2601329053 Contact Strap €1.72
44
 photo_cameraImage coming soon 2603320004 Square Nut M6 €1.63
47
 photo_cameraImage coming soon 2601254000 Ratchet Spring €1.68
49
 photo_cameraImage coming soon 2609100022 Handle Cover BLUE €7.20
57
 photo_cameraImage coming soon 2604448181 Connecting Cable L=233 MM WHITE €2.02
58
 photo_cameraImage coming soon 2604448118 Connecting Cable L=213 MM BLUE €1.46
74
 Carbide Planing Knife for Planer Bosch GHO 15-82 2608635341 Carbide Planing Knife for Planer Bosch GHO 15-82 €18.86
75
 photo_cameraImage coming soon 2603400016 Set screw €1.63
76
 photo_cameraImage coming soon 2603111001 Gripping Wedge €13.78
80
 photo_cameraImage coming soon 2609100088 Knife Guard €2.92
81
 photo_cameraImage coming soon 2609110109 Spring €2.02
654
 photo_cameraImage coming soon 1907950003 Offset Screwdriver DIN 911 SW2,5 €2.41
655
 photo_cameraImage coming soon 2609170013 Dust Bag €33.54
656
 photo_cameraImage coming soon 2608005015 Stop Bracket €11.03
657/4
 photo_cameraImage coming soon 1601332018 Stop Bracket €3.58
657/1
 photo_cameraImage coming soon 1610210043 O-Ring 4,0x1,5 MM €1.63
657/3
 photo_cameraImage coming soon 2603480003 Wing Screw M 6x16 MM €2.51
657/6
 photo_cameraImage coming soon 2609199008 Wing Nut €1.46
657/5
 photo_cameraImage coming soon 2910281201 Round-Head Bolt DIN 603-M6x20  €1.34
801
 photo_cameraImage coming soon 2609199577 Motor Housing €63.26
803
 photo_cameraImage coming soon 2609199269 Armature 230-240V €50.65
805
 photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.17
808
 photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22
810
 photo_cameraImage coming soon 2609120398 Carbon Brush €11.50
813
 photo_cameraImage coming soon 2600905051 groove ball bearing 7x19x6 €8.33
814
 photo_cameraImage coming soon 2600905052 Deep-Groove Ball Bearing 8x22x7 €7.36
825
 photo_cameraImage coming soon 2609110174 Bearing Flange €30.01
827
 photo_cameraImage coming soon 2600905051 groove ball bearing 7x19x6 €8.33
855
 photo_cameraImage coming soon 2600905064 groove ball bearing 10x26x8 €11.03
870
 photo_cameraImage coming soon 2609110193 Planer Head €85.18

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Planer GHO 15-82

We are BOSCH original spare parts Worldwide Dealers

 at low at unbeatable prices and a service center with professional repair service able to advise you on the purchase of the most suitable spare part to quickly resolve any maintenance or repair issues for Planer GHO 15-82 - 3601E94003.

In the following table, look for the model of the Planer and the respective parts of the code.
GHO 15-82 - 3601E94003

Planer GHO 15-82/3 601 E94 003
# Part Num. Description
2 2604220480 Field 230-240V
4 1607200158 Switch
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
7 2601035001 Cable Clip
9 2609132301 Manufacturer's nameplate GHO 15-82
12 2609120389 Suppression Capacitor
16 2604449055 Carbon Brush Holder
17 2609100087 Cover
19 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H
20 2609110155 Screw
26 2609110131 Adjusting Nut
28 2609110268 Pulley
29 2609110267 Pulley
30 2609100805 Handle
31 2609100410 Micro Poli-V-Belt 5PH271
32 2609100024 Gear Cover
33 2609110077 Compression Spring
35 2609100023 Brush-Cover BLUE
37 2609100140 Cap-Handle
38 2609110162 Ratchet Disc
40 2609100028 Air-Deflector Ring
41 2601329053 Contact Strap
44 2603320004 Square Nut M6
47 2601254000 Ratchet Spring
49 2609100022 Handle Cover BLUE
57 2604448181 Connecting Cable L=233 MM WHITE
58 2604448118 Connecting Cable L=213 MM BLUE
74 2608635341 Planing Knife
75 2603400016 Set screw
76 2603111001 Gripping Wedge
80 2609100088 Knife Guard
81 2609110109 Spring
654 1907950003 Offset Screwdriver DIN 911 SW2,5
655 2609170013 Dust Bag
656 2608005015 Stop Bracket
657/1 1610210043 O-Ring 4,0x1,5 MM
657/2 2916011014 Plain Washer DIN 125-A 6,4-ST
657/3 2603480003 Wing Screw M 6x16 MM
657/4 1601332018 Stop Bracket
657/5 2910281201 Round-Head Bolt DIN 603-M6x20
657/6 2609199008 Wing Nut
801 2609199577 Motor Housing
803 2609199269 Armature 230-240V
805 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
808 160111A3H3 Nameplate
810 2609120398 Carbon Brush
813 2600905051 groove ball bearing 7x19x6
814 2600905052 groove ball bearing 8x22x7
825 2609110174 Bearing Flange
827 2600905051 groove ball bearing 7x19x6
855 2600905064 groove ball bearing 10x26x8
870 2609110193 Planer Head
