Bosch Spare Parts for Angle Grinder GWS 880

SKU: Bosch GWS 880 - 3601C96005
€3.10
VAT included

Bosch Spare Parts for Angle Grinder GWS 880

We have the original Spares BOSCH for Angle Grinder GWS 880 - 3601C96005. the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder GWS 880. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch GWS 880 - 3601C96005
Bosch Spare Parts for Angle Grinder GWS 880
  • Bosch Spare Parts for Angle Grinder GWS 880
  • Bosch Spare Parts for Angle Grinder GWS 880
  • Bosch Spare Parts for Angle Grinder GWS 880

Bosch Spare Parts for Angle Grinder GWS 880

SKU: Bosch GWS 880 - 3601C96005 Condition: New
€3.10
VAT included

Bosch Spare Parts for Angle Grinder GWS 880

We have the original Spares BOSCH for Angle Grinder GWS 880 - 3601C96005. the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Angle Grinder GWS 880. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch GWS 880 - 3601C96005
settings 58 spare parts
description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

48 spare parts

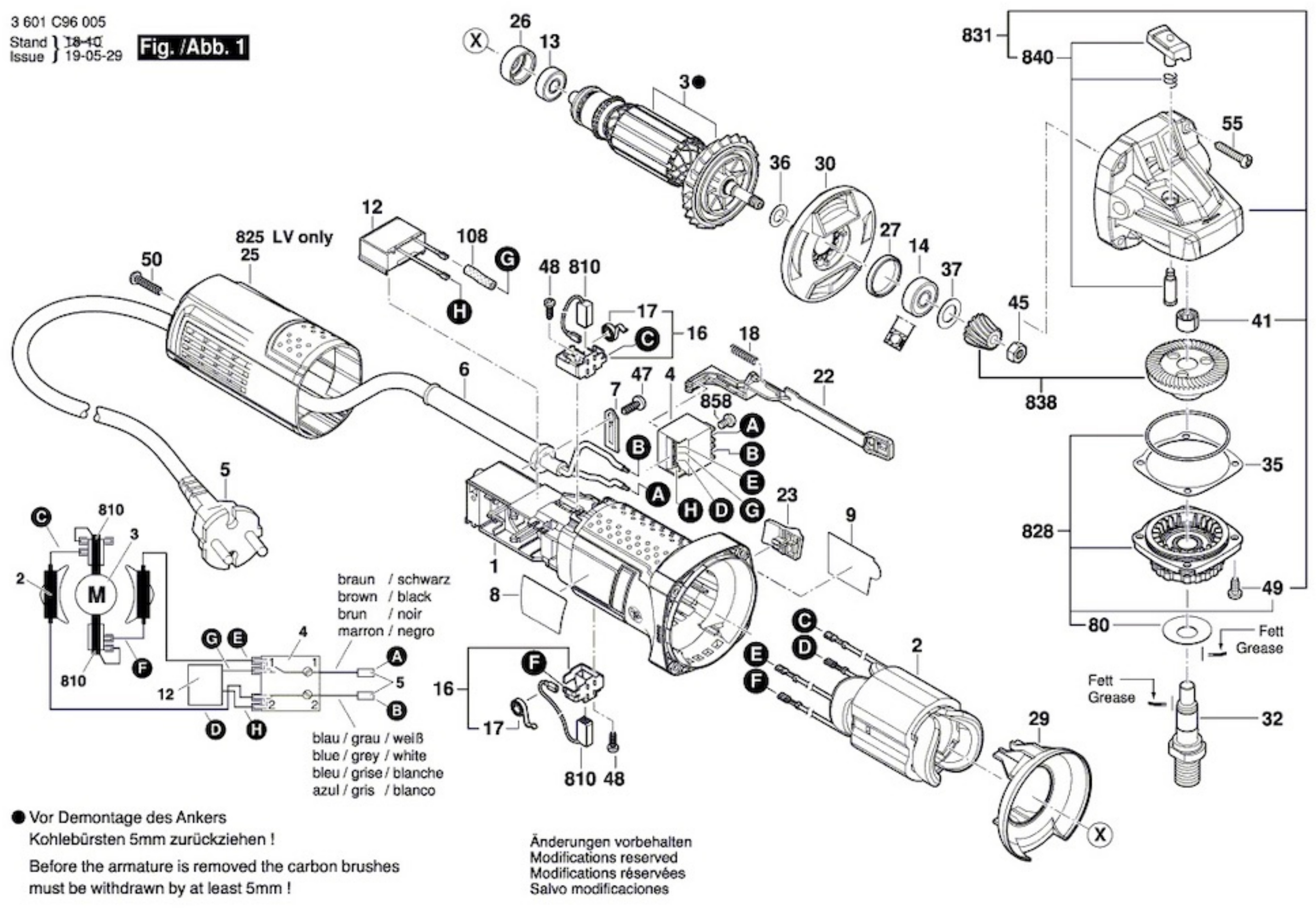

Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 1619P10959 Motor Housing €4.25
2
photo_cameraImage coming soon 1619P10953 Field 220-240V €17.97
3
photo_cameraImage coming soon 1619P10952 Armature 220-240V €20.70
4
photo_cameraImage coming soon 1607200326 Switch €17.32
5
photo_cameraImage coming soon 1604460312 Power supply cord CN 2,65m 2 x 0,75mm H05 W-F €9.99
6
Power Cord Grommet Ø6,5-Ø6,9x95 MM for Power Tools Bosch 2600703012 Power Cord Grommet Ø6,5-Ø6,9x95 MM for Power Tools Bosch €2.53
7
Fastening Clamp for Angle grinder Bosch GWS 6-115 1601302017 Fastening Clamp for Angle grinder Bosch GWS 6-115 €1.09
8
photo_cameraImage coming soon 1619P32505 Nameplate €2.01
9
photo_cameraImage coming soon 1619P11343 Manufacturer's nameplate GWS 880 €2.01
12
photo_cameraImage coming soon 1619P13846 Suppression Filter €3.25
13
photo_cameraImage coming soon 1619P08829 groove ball bearing  €6.51
14
photo_cameraImage coming soon 1619P13103 groove ball bearing €3.03
16
photo_cameraImage coming soon 1619P01811 Brush Holder  €3.03
17
Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 1604652013 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 €2.07
25
photo_cameraImage coming soon 1619P13558 Housing Cover €3.69
26
Intermediate Ring for Angle Grinder Bosch GWS 6-115 1600502023 Intermediate Ring for Angle Grinder Bosch GWS 6-115 €3.04
27
Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 1600206025 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 €2.28
30
photo_cameraImage coming soon 1619P14139 Air Distributor €1.62
32
photo_cameraImage coming soon 1619P06419 Grinding Spindle M 14, SW 17 €12.72
35
photo_cameraImage coming soon 1619P02822 Shim 0,2 MM €1.72
37
Cover Disc for Angle Grinder GWS 1600100033 Cover Disc for Angle Grinder GWS €3.03
41
Needle-Roller Bearing for Angle Grinders Bosch GWS 6-115-GWS 660 1600910018 Needle-Roller Bearing for Angle Grinders Bosch GWS 6-115-GWS 660 €5.66
45
DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 2915011007 DIN 934-M6-8-A for Angle Grinder Bosch GWS 660 €1.32
47
photo_cameraImage coming soon 2609110052 Special Screw €1.47
49
photo_cameraImage coming soon 1619P11118 Thread-forming tap. Screw €1.31
50
photo_cameraImage coming soon 1619P00105 Torx Oval-Head Screw 4x20 €1.62
80
photo_cameraImage coming soon 1619P09390 Cover Disc €2.41
650/5/2
O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
650/2
Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 1603345043 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 €9.26
650/3
Pin-Type Face-Wrench for Angle Grinder Bosch GWS 660 1619P08927 Pin-Type Face-Wrench for Angle Grinder Bosch GWS 660 €5.93
650/1
photo_cameraImage coming soon 1619P10681 Auxiliary Handle €2.85
650/5
Clamping Flange for Angle Grinder Bosch PWS 6-115 2605703014 Clamping Flange for Angle Grinder Bosch PWS 6-115 €7.98
651
photo_cameraImage coming soon 1600A00XU6 Protective Cover Ø115 MM SILVER €12.31
810
photo_cameraImage coming soon 1619P11715 Carbon-Brush Set  €8.26
828
photo_cameraImage coming soon 1619P07452 Bearing Flange €10.56
831
photo_cameraImage coming soon 1619P12186 Gear Housing €17.10
838
photo_cameraImage coming soon 1619P14111 Set Of Gears €15.12
840
photo_cameraImage coming soon 1619P12188 Push Button €2.19
894
Grease Tube 225 ML for Bosch Hammers GBH-GSH 1615430020 Grease Tube 225 ML for Bosch Hammers GBH-GSH €27.30
895
photo_cameraImage coming soon 1605430003 Grease Tube 225 ML  €46.15

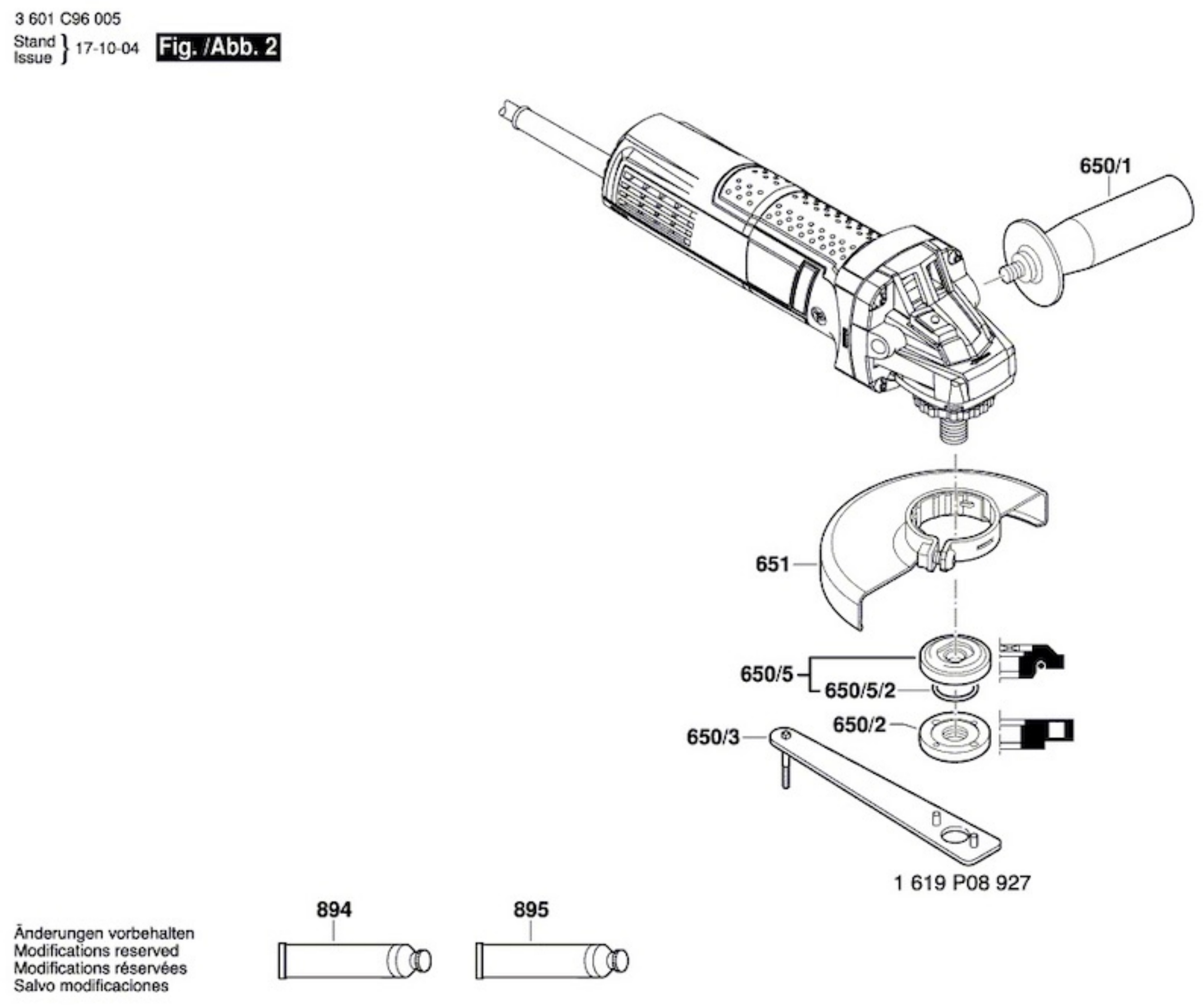

Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
650/5/2
O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
650/2
Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 1603345043 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 €9.26
650/3
Pin-Type Face-Wrench for Angle Grinder Bosch GWS 660 1619P08927 Pin-Type Face-Wrench for Angle Grinder Bosch GWS 660 €5.93
650/1
photo_cameraImage coming soon 1619P10681 Auxiliary Handle €2.85
650/5
Clamping Flange for Angle Grinder Bosch PWS 6-115 2605703014 Clamping Flange for Angle Grinder Bosch PWS 6-115 €7.98
651
photo_cameraImage coming soon 1600A00XU6 Protective Cover Ø115 MM SILVER €12.31
894
Grease Tube 225 ML for Bosch Hammers GBH-GSH 1615430020 Grease Tube 225 ML for Bosch Hammers GBH-GSH €27.30
895
photo_cameraImage coming soon 1605430003 Grease Tube 225 ML  €46.15

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Angle Grinder GWS 880

Fix Your Angle Grinder GWS 880 - 3601C96005. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Bosch GWS 880 - 3601C96005

Angle Grinder GWS 880/3 601 C96 005
# Part Num. Description
1 1619P10959 Motor Housing
2 1619P10953 Field 220-240V
3 1619P10952 Armature 220-240V
4 1607200326 Switch
5 1604460312 Power supply cord CN 2,65m 2 x 0,75mm H05 W-F
6 2600703012 Grommet Ø6,5-Ø6,9x95 MM
7 1601302017 Fastening Clamp
8 1619P32505 Nameplate
9 1619P11343 Manufacturer's nameplate GWS 880
12 1619P13846 Suppression Filter
13 1619P08829 groove ball bearing
14 1619P13103 groove ball bearing
16 1619P01811 Brush Holder
17 1604652013 Spiral Spring
18 1619P11487 Compression Spring
22 1619P10968 Adjusting Slide
23 1619P10969 Switch Button
25 1619P13558 Housing Cover
26 1600502023 Intermediate Ring
27 1600206025 Rubber Ring
29 1619P10970 Air-Deflector Ring
30 1619P14139 Air Distributor
32 1619P06419 Grinding Spindle M 14, SW 17
35 1619P02821 Shim 0,1 MM
35 1619P02822 Shim 0,2 MM
36 1619P00987 Washer
37 1600100033 Cover Disc
41 1600910018 Needle bearing Ø8xØ12x8 MM
45 2915011007 Hex Nut DIN 934-M6-8-A
47 2609110052 Special Screw
48 1619P00220 Torx Oval-Head Screw 3x10
49 1619P11118 Thread-forming tap. Screw
50 1619P00105 Torx Oval-Head Screw 4x20
55 1619P01066 Torx Oval-Head Screw 4x25
80 1619P09390 Cover Disc
108 1619P02866 Shrinkable Tube
650/1 1619P10681 Auxiliary Handle
650/2 1603345043 Round Nut M14
650/3 1619P08927 Pin-Type Face-Wrench
650/5 2605703014 Clamping Flange Ø22,3xØ42 MM
650/5/2 1600210039 O-Ring 20,35x1,78 MM
651 1600A00XU6 Protective Cover Ø115 MM SILVER
810 1619P11715 Carbon-Brush Set
828 1619P07452 Bearing Flange
831 1619P12186 Gear Housing
838 1619P14111 Set Of Gears
840 1619P12188 Push Button
858 2910641081 Oval-Head Screw DIN7985-M3,5x5-4.8-H
894 1615430020 Grease Tube 225 ML
895 1605430003 Grease Tube 225 ML
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GWS 880 - 3601C96005
10 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Diagram Bosch Bosch GWS 880

Diagram Bosch Bosch GWS 880

Download (258.1KB)
