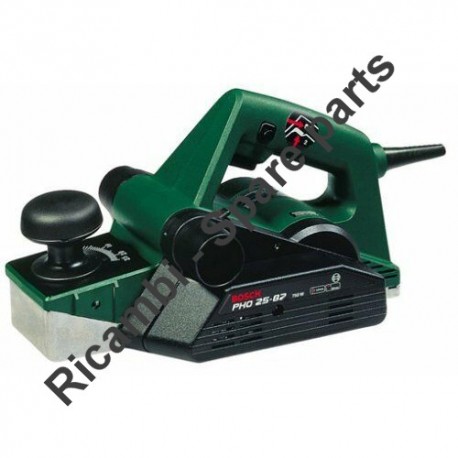

Bosch Spare Parts for Portable Planer PHO 25-87 230 V/I - 0603296050

SKU: Bosch PHO 25-87 - 0603296050
€28.60
VAT included

Bosch Spare Parts for Portable Planer PHO 25-87 230 V/I - 0603296050

Bosch original spare parts with fast delivery and after-sales service at the best price on the web to repair the Planer PHO 25-87 230 V / I - 0603296050.

Fix Your Planer PHO 25-87 230 V/I. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PHO 25-87 - 0603296050
Bosch Spare Parts for Portable Planer PHO 25-87 230 V/I - 0603296050
  • Bosch Spare Parts for Portable Planer PHO 25-87 230 V/I - 0603296050
  • Bosch Spare Parts for Portable Planer PHO 25-87 230 V/I - 0603296050

Bosch Spare Parts for Portable Planer PHO 25-87 230 V/I - 0603296050

SKU: Bosch PHO 25-87 - 0603296050 Condition: New
€28.60
VAT included

Bosch Spare Parts for Portable Planer PHO 25-87 230 V/I - 0603296050

Bosch original spare parts with fast delivery and after-sales service at the best price on the web to repair the Planer PHO 25-87 230 V / I - 0603296050.

Fix Your Planer PHO 25-87 230 V/I. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch PHO 25-87 - 0603296050
settings 72 spare parts

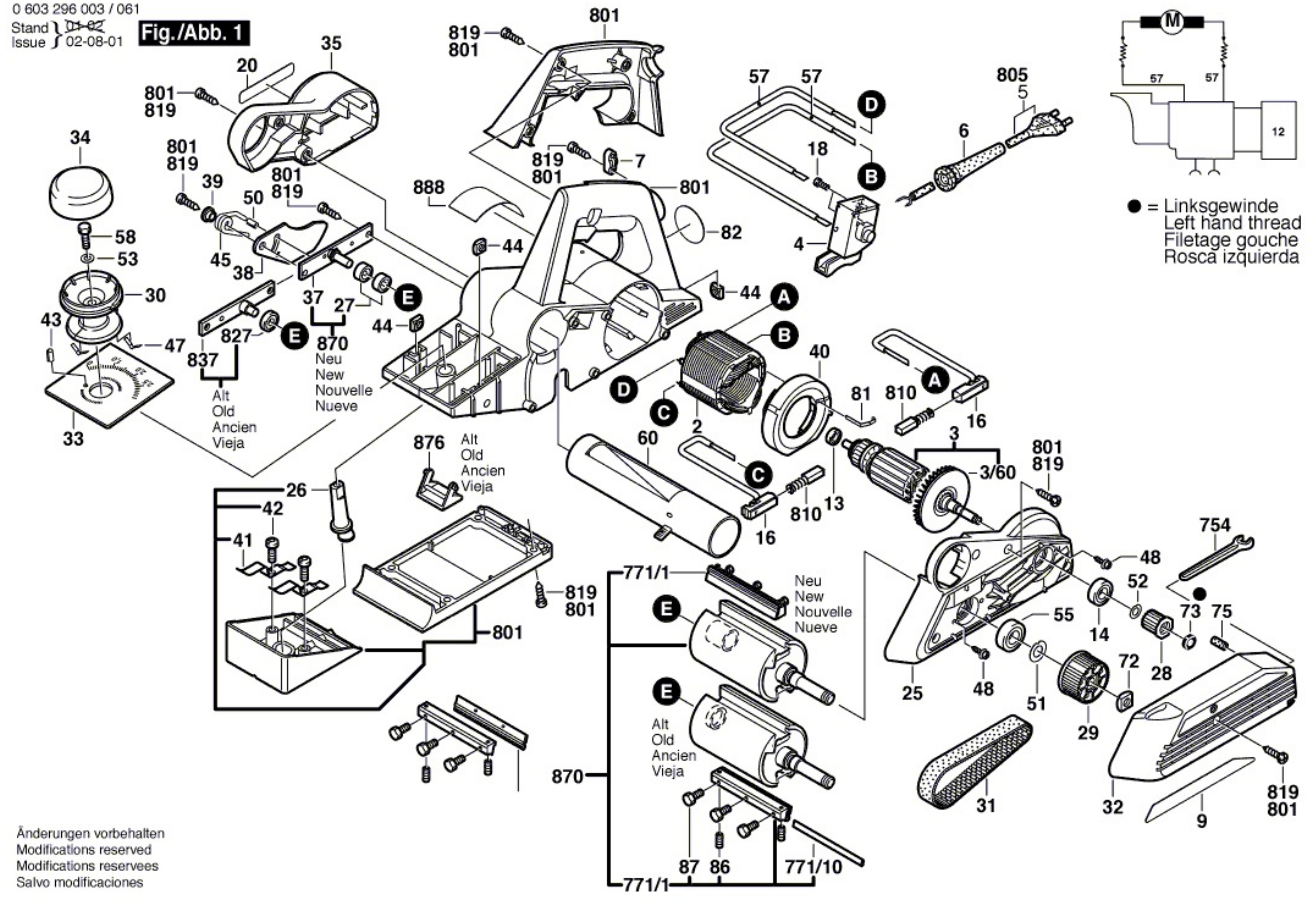

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

53 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 2604220480 Field 230-240V €26.96
3/60
photo_cameraImage coming soon 2606610049 Fan €2.22
4
photo_cameraImage coming soon 2607200367 Switch  €7.49
5
photo_cameraImage coming soon 2604460276 Power supply cord I / BR 4,15m 2 x 1,0mm H05VV-F  €14.30
6
photo_cameraImage coming soon 1600703026 Grommet Ø7,2-Ø9,5x81 MM  €2.00
7
Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
photo_cameraImage coming soon 2601117951 Manufacturer's nameplate  €3.44
12
photo_cameraImage coming soon 1607328028 Suppression Filter €6.13
13
photo_cameraImage coming soon 2600905051 groove ball bearing 7x19x6 €8.33
14
photo_cameraImage coming soon 2600905052 Deep-Groove Ball Bearing 8x22x7 €7.36
16
photo_cameraImage coming soon 2604449027 Brush Holder €1.48
18
photo_cameraImage coming soon 2603410001 Socket head cap screw M3x6,5-4.8 €2.09
20
photo_cameraImage coming soon 1601110481 Manufacturer's nameplate SHADOW SIDE €1.34
26
photo_cameraImage coming soon 2606110001 Adjusting Eccentric €3.23
27
photo_cameraImage coming soon 2600917003 Needle bearing Ø8x8 MM €2.96
28
photo_cameraImage coming soon 2600324009 Toothed Belt Wheel Z=19 €4.31
31
Toothed Belt for Planer Bosch PHO 25-87 2609995917 Toothed Belt for Planer Bosch PHO 25-87 €9.32
32
photo_cameraImage coming soon 2605510064 Gear Cover BLACK  €4.96
33
photo_cameraImage coming soon 2601120003 Scale Plate  €5.86
34
photo_cameraImage coming soon 2605500105 Cap-Handle  €2.00
35
photo_cameraImage coming soon 2605510063 Brush-Cover BLACK  €5.86
37
photo_cameraImage coming soon 2605819011 Bearing Bracket  €5.20
38
photo_cameraImage coming soon 2601098036 Sheet metal cover €1.95
39
photo_cameraImage coming soon 2600324008 Guide Bushing €1.48
40
photo_cameraImage coming soon 2600290009 Air-Deflector Ring €3.23
41
photo_cameraImage coming soon 2601290016 Spring Plate €1.95
42
photo_cameraImage coming soon 2603435027 Thread-forming tap. Screw M 5x12 MM €1.48
44
photo_cameraImage coming soon 2603320004 Square Nut M6 €1.63
45
photo_cameraImage coming soon 2604651007 Torsion Spring €1.48
47
photo_cameraImage coming soon 2601254000 Ratchet Spring €1.68
48
photo_cameraImage coming soon 2603433000 Screw and washer assembly €1.48
51
photo_cameraImage coming soon 2600100041 Plain Washer DIN 315-M8-GT-C €2.10
52
photo_cameraImage coming soon 1600100632 Shim 0,2 MM THICK €1.57
55
photo_cameraImage coming soon 2600905064 groove ball bearing 10x26x8 €11.03
57
photo_cameraImage coming soon 2604448062 Connecting Cable L = 288 MM WHITE €1.52
58
Torx Oval-Head Screw 4x20 for BOSCH Power Tools 2603490023 Torx Oval-Head Screw 4x20 for BOSCH Power Tools €1.09
72
photo_cameraImage coming soon 2603320003 Square Nut M8 €1.48
73
photo_cameraImage coming soon 2603342006 Round Nut M6 LEFTHAND THREADS €1.48
81
photo_cameraImage coming soon 2601329053 Contact Strap €1.72
86
photo_cameraImage coming soon 2603400014 Set screw €1.34
87
photo_cameraImage coming soon 2603450005 Hex Screw €3.31
704
photo_cameraImage coming soon 2609170013 Dust Bag €33.54
754
photo_cameraImage coming soon 2607950504 Single-Head Eng. Wrench €4.31
771/10
Carbide Blades for Planers Bosch 2607000096 Carbide Blades for Planers Bosch €16.90
771/1
Blades Grip Spring Tensioning for Planers Bosch PHO 20-82 2608040039 Blades Grip Spring Tensioning for Planers Bosch PHO 20-82 €29.42
801
photo_cameraImage coming soon 2605190913 Housing  €92.58
810
Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE 2604321905 Carbon Brushes for Impact Drills Bosch GSB 20-2 RE-RCE €14.02
819
photo_cameraImage coming soon 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H €1.68
827
photo_cameraImage coming soon 2600905037 groove ball bearing 6x19x6  €11.43
837
photo_cameraImage coming soon 2605819004 Bearing Bracket  €5.86
870
photo_cameraImage coming soon 2603204908 Planer Head  €173.06
876
photo_cameraImage coming soon 2601329055 Knife Guard  €3.44
888
photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Portable Planer PHO 25-87 230 V/I - 0603296050

Bosch original spare parts with fast delivery and after-sales service at the best price on the web to repair the Planer PHO 25-87 230 V/I - 0603296050

Fix Your Planer PHO 25-87 230 V/I. All Spares are Ready For Quick Delivery. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Planer and the respective parts of the code.
Bosch PHO 25-87 - 0603296050

Portable Planer PHO 25-87 230 V/I - 0603296050
# Part Num. Description
2 2604220480 Field 230-240V
3 2604010763 Armature 230V
3/60 2606610049 Fan
4 2607200367 Switch
5 2604460276 Power supply cord I / BR 4,15m 2 x 1,0mm H05VV-F
6 1600703026 Grommet Ø7,2-Ø9,5x81 MM
7 2601035001 Cable Clip
9 2601117951 Manufacturer's nameplate
12 1607328028 Suppression Filter
13 2600905051 groove ball bearing 7x19x6
14 2600905052 groove ball bearing 8x22x7
16 2604449027 Brush Holder
18 2603410001 Socket head cap screw M3x6,5-4.8
20 1601110481 Manufacturer's nameplate SHADOW SIDE
25 2605719003 Bearing Flange BLACK
26 2606110001 Adjusting Eccentric
27 2600917003 Needle-Roller Bearing Ø8x8 MM
28 2600324009 Toothed Belt Wheel Z=19
29 2606625009 Toothed Belt Wheel Z=43
30 2602026004 Rotary Handle BLACK
31 2609995917 Toothed Belt 17 MM, Z=89
32 2605510064 Gear Cover BLACK
33 2601120003 Scale Plate
34 2605500105 Cap-Handle
35 2605510063 Brush-Cover BLACK
37 2605819011 Bearing Bracket
38 2601098036 Sheet metal cover
39 2600324008 Guide Bushing
40 2600290009 Air-Deflector Ring
41 2601290016 Spring Plate
42 2603435027 Thread-forming tap. Screw M 5x12 MM
43 2917800053 Coiled Spring Pin DIN 7343-5x2,5
44 2603320004 Square Nut M6
45 2604651007 Torsion Spring
47 2601254000 Ratchet Spring
48 2603433000 Screw and washer assembly
50 2917800303 Coiled Spring Pin DIN 7343-3,5x8 MM
51 2600100041 Plain Washer DIN 315-M8-GT-C
52 1600100632 Shim 0,2 MM THICK
53 2916011010 Plain Washer DIN 125-A4,3-ST
55 2600905064 groove ball bearing 10x26x8
57 2604448062 Connecting Cable L = 288 MM WHITE
58 2603490023 Torx Oval-Head Screw 4x20
60 2600409022 Deflector Pipe BLACK
68 2600409020 Shrinkable Tube BLACK
72 2603320003 Square Nut M8
73 2603342006 Round Nut M6 LEFTHAND THREADS
75 2603100053 Rubber Buffer
81 2601329053 Contact Strap
86 2603400014 Set screw
87 2603450005 Hex Screw
704 2609170013 Dust Bag
711 2605702022 Suction Connector
720 2605438119 Carrying Case GRAY
730 2608133001 Blade Sharpening Device
750 2607001077 Width Stop
754 2607950504 Single-Head Eng. Wrench
771/1 2608040039 Grip-Spring Tensioning E
2607000136 Changeover Set
771/10 2607000096 Planing Knife
789 2607000102 Parallel-Guide
796 2607001106 Knife Guard
798 603095000 Straightening Device
799 603095002 Base
801 2605190913 Housing
810 2604321905 Carbon-Brush Set
819 2910611020 Tapping Screw DIN 7981-ST3,9x19-C-H
827 2600905037 groove ball bearing 6x19x6
837 2605819004 Bearing Bracket
870 2603204908 Planer Head
876 2601329055 Knife Guard
888 160111A3H3 Nameplate

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch PHO 25-87 - 0603296050
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing Bosch PHO 25-87

Drawing Bosch PHO 25-87

Download (265.05KB)
