Bosch

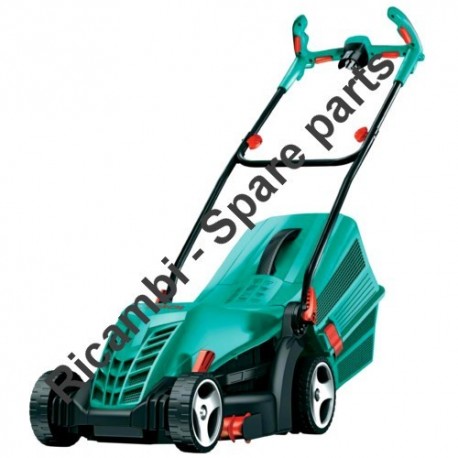

Bosch Spare Parts for Lawnmower Rotak 32 R /230 V/EU - 3600H85B01

SKU: Rotak 32 R - 3600H85B01
€16.45
VAT included

Bosch Spare Parts for Lawnmower Rotak 32 R /230 V/EU - 3600H85B01

We have the original Bosch Spare Parts for Lawnmower Rotak 32 R, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Lawnmower Rotak 32 R /230 V/EU - 3600H85B01. All Spares are original and can be supplied at Low prices. Our Spares are Genuine Parts with a Guarantee.

Rotak 32 R - 3600H85B01
Bosch Spare Parts for Lawnmower Rotak 32 R /230 V/EU - 3600H85B01
  • Online only
  • Bosch Spare Parts for Lawnmower Rotak 32 R /230 V/EU - 3600H85B01
  • Bosch Spare Parts for Lawnmower Rotak 32 R /230 V/EU - 3600H85B01
Bosch

Bosch Spare Parts for Lawnmower Rotak 32 R /230 V/EU - 3600H85B01

SKU: Rotak 32 R - 3600H85B01 Condition: New
€16.45
VAT included

Bosch Spare Parts for Lawnmower Rotak 32 R /230 V/EU - 3600H85B01

We have the original Bosch Spare Parts for Lawnmower Rotak 32 R, the diagram, parts list and tool repair that help you need to get your tools running like new again.

Fix Your Lawnmower Rotak 32 R /230 V/EU - 3600H85B01. All Spares are original and can be supplied at Low prices. Our Spares are Genuine Parts with a Guarantee.

Rotak 32 R - 3600H85B01
settings 45 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10/15 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
45 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10/15 BUSINESS DAYS

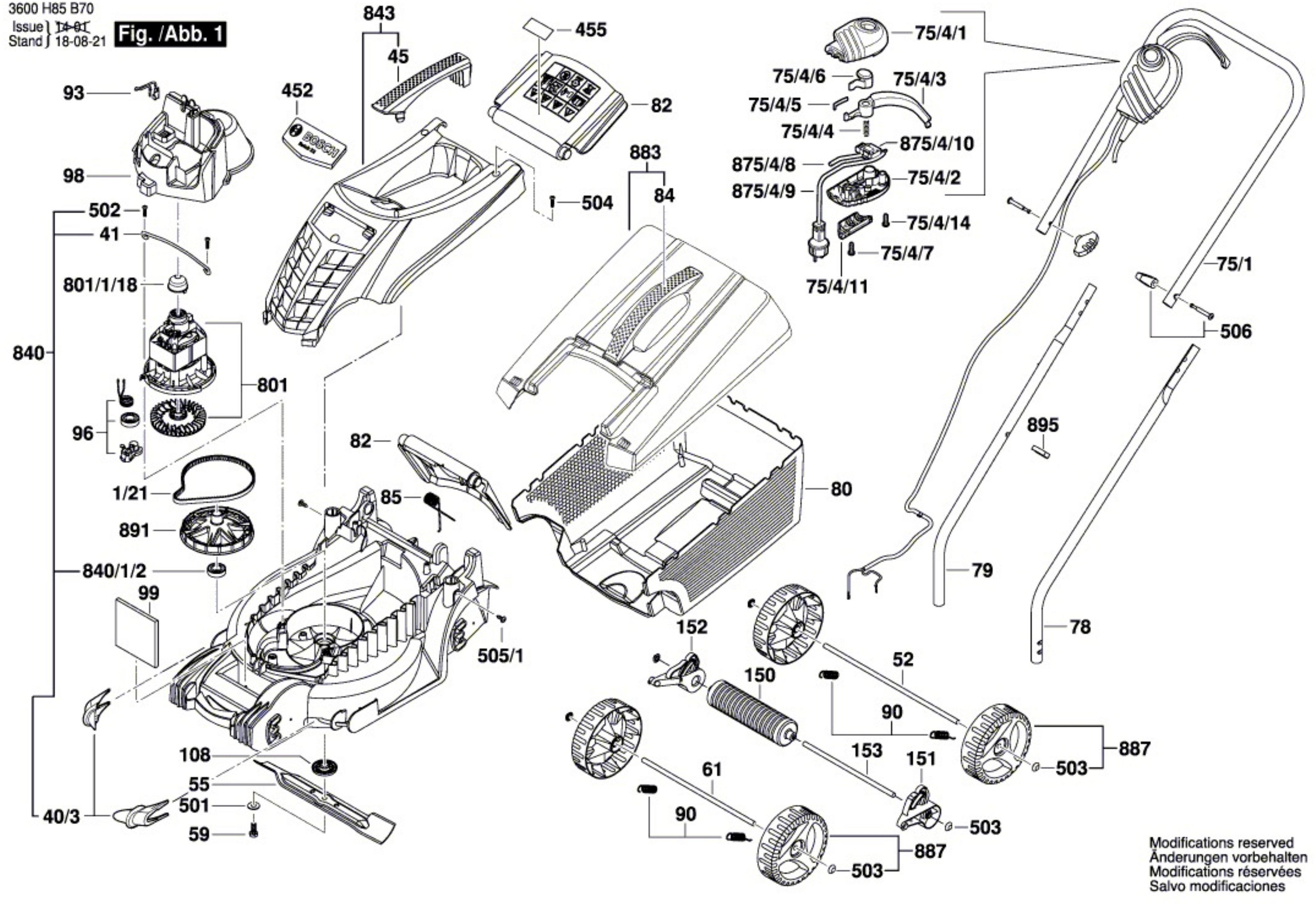

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1/21
 Drive Belt for Lawnmover Bosch ROTAK 32 F016L66677 Drive Belt for Lawnmover Bosch ROTAK 32 €15.98
40/3
 photo_cameraImage coming soon F016L66697 Comb RED  €2.22
41
 photo_cameraImage coming soon F016L67976 Support Element  €1.40
45
 photo_cameraImage coming soon F016L66654 Carrying Handle  €3.95
52
 photo_cameraImage coming soon F016L66849 Axle  €9.37
55
 photo_cameraImage coming soon F016L65515 Cutter Blade 320 MM  €25.19
59
 photo_cameraImage coming soon F016T48547 Hex Screw M8x20 MM €3.35
61
 photo_cameraImage coming soon F016L66848 Axle  €9.37
75/1
 photo_cameraImage coming soon F016L62792 Handle  €39.40
75/4/2
 photo_cameraImage coming soon F016L66235 Switch Housing €3.35
75/4/6
 photo_cameraImage coming soon F016L66237 Push-Button €3.35
75/4/4
 photo_cameraImage coming soon F016L66240 Compression Spring  €1.40
75/4/14
 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 F016T49429 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 €1.43
75/4/7
 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 F016T49429 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 €1.43
78
 photo_cameraImage coming soon F016L66682 bottom handle BLACK  €12.27
79
 photo_cameraImage coming soon F016L66655 bottom handle BLACK  €12.27
80
 photo_cameraImage coming soon F016L66683 Collector Box Bottom  €20.87
82
 photo_cameraImage coming soon F016L66686 Guard Flap  €6.25
84
 photo_cameraImage coming soon F016L66685 Carrying Handle €3.95
85
 photo_cameraImage coming soon F016L66687 closing spring  €2.22
90
 photo_cameraImage coming soon F016L65773 Spring  €2.22
96
 Belt Tensioner for Lawnmover Bosch ROTAK 32 F016L68711 Belt Tensioner for Lawnmover Bosch ROTAK 32 €6.58
98
 photo_cameraImage coming soon F016L66688 Baffle  €7.19
99
 photo_cameraImage coming soon F016L66698 Balance Weights  €10.89
108
 photo_cameraImage coming soon F016L66689 Bearing cover  €2.22
151
 photo_cameraImage coming soon F016L66855 Roller Carrier L/H €2.86
152
 photo_cameraImage coming soon F016L66856 Roller Carrier R/H €2.86
153
 photo_cameraImage coming soon F016L66854 Spindle €7.53
452
 photo_cameraImage coming soon F016L67239 Company Logo ROTAK 32 R €4.74
455
 photo_cameraImage coming soon F016L67252 Sticker €2.66
501
 photo_cameraImage coming soon F016T48185 Plain Washer Ø8,15 BLACK €4.47
502
 photo_cameraImage coming soon F016L68323 flange-head screw  €1.40
503
 Securing Cap Ø8 MM for Lawnmover Bosch ROTAK 32 F016T48990 Securing Cap Ø8 MM for Lawnmover Bosch ROTAK 32 €1.30
504
 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 F016T49429 Self-Cutting Screw mm 4x19 for Lawnmover Bosch Rotak 32 €1.43
505/1
 photo_cameraImage coming soon F016L36542 Screw M5x8 Csk Hd. €3.35
506
 Wing Nut for Lawnmowers Bosch ARM 34 - ARM 37 F016L66155 Wing Nut for Lawnmowers Bosch ARM 34 - ARM 37 €2.35
801
 photo_cameraImage coming soon F016104035 Motor  €180.87
801/1/18
 photo_cameraImage coming soon F016L64499 Cap  €1.40
840
 photo_cameraImage coming soon F016104246 Mower deck  €51.32
840/1/2
 photo_cameraImage coming soon F016L67442 Bearing 6002-2RS  €4.74
843
 photo_cameraImage coming soon F016104033 Motor Hood  €30.70
875/4/9
 photo_cameraImage coming soon F016104086 Power supply cord EU €23.99
875/4/8
 photo_cameraImage coming soon F016104088 Connecting Cable  €16.70
883
 photo_cameraImage coming soon F016104032 Collector Box Top  €35.35
887
 photo_cameraImage coming soon F016104038 Wheel €7.36
891
 photo_cameraImage coming soon F016104155 Drive Shaft  €18.25
895
 photo_cameraImage coming soon F016L66895 Cable Clip €1.40

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Lawnmower Rotak 32 R /230 V/EU - 3600H85B01

Fix Your Lawnmower Rotak 32 R /230 V/EU - 3600H85B01. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Lawnmower and the respective parts of the code.
Rotak 32 R - 3600H85B01

Lawnmower Bosch ROTAK 32 R /230 V/EU - 3600H85B01
# Part Num. Description
1/21 F016L66677 Drive Belt
40/3 F016L66697 CombRED
41 F016L67976 Support Element
45 F016L66654 Carrying Handle
52 F016L66849 Axle
55 F016L65515 Cutter Blade320 MM
59 F016T48547 Hex ScrewM8x20 MM
61 F016L66848 Axle
75/1 F016L62792 Handle
75/4/1 F016L66234 Switch Housing
75/4/2 F016L66235 Switch Housing
75/4/3 F016L66238 Positioning Lever
75/4/4 F016L66240 Compression Spring
75/4/5 F016L66416 Leaf Spring
75/4/6 F016L66237 Push-Button
75/4/7 F016T49429 Self-Cutting Screw4x19 MM
75/4/11 F016L66236 Clamping Piece
75/4/14 F016T49429 Self-Cutting Screw4x19 MM
78 F016L66682 bottom handleBLACK
79 F016L66655 bottom handleBLACK
80 F016L66683 Collector Box Bottom
82 F016L66686 Guard Flap
84 F016L66685 Carrying Handle
85 F016L66687 closing spring
90 F016L65773 Spring
93 F016L65199 Thermal protector
96 F016L68711 Belt Tensioner
98 F016L66688 Baffle
99 F016L66698 Balance Weights
108 F016L66689 Bearing cover
150 F016L66853 Roller
151 F016L66855 Roller Carrier L/H
152 F016L66856 Roller Carrier R/H
153 F016L66854 Spindle
452 F016L67239 Company Logo ROTAK 32 R
455 F016L67252 Sticker
501 F016T48185 Plain Washer Ø8,15 BLACK
502 F016L68323 flange-head screw
503 F016T48990 Securing Cap Ø8 MM BLACK
504 F016T49429 Self-Cutting Screw 4x19 MM
505/1 F016L36542 Screw M5x8 Csk Hd.
506 F016L66155 Parts Set
801 F016104035 Motor
801/1/18 F016L64499 Cap
840 F016104246 Mower deck
840/1/2 F016L67442 Bearing 6002-2RS
843 F016104033 Motor Hood
875/4/8 F016104088 Connecting Cable
875/4/9 F016104086 Power supply cordEU
875/4/10 F016103607 On-Off Switch
883 F016104032 Collector Box Top
887 F016104038 Wheel
891 F016104155 Drive Shaft
895 F016L66895 Cable Clip
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Rotak 32 R - 3600H85B01
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10/15 BUSINESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing Rotak 32 R 3600H85B01

Drawing Rotak 32 R 3600H85B01

Download (248.38KB)
