Bosch Spare Parts for Cordless Drill Driver GSR 14,4-2-LI - 3601JA4400

SKU: Bosch GSR 14,4-2-LI - 3601JA4400
€41.48
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 14,4-2-LI - 3601JA4400

Bosch genuine spare parts or replacement parts for to repair Cordless Drill Driver GSR 14,4-2-LI /14.4 V/EU - 3601JA4400.

Bosch Spare Parts for Cordless Drill Driver GSR 14,4-2-LI - 3601JA4400
  • Bosch Spare Parts for Cordless Drill Driver GSR 14,4-2-LI - 3601JA4400
  • Bosch Spare Parts for Cordless Drill Driver GSR 14,4-2-LI - 3601JA4400

Bosch Spare Parts for Cordless Drill Driver GSR 14,4-2-LI - 3601JA4400

SKU: Bosch GSR 14,4-2-LI - 3601JA4400 Condition: New
€41.48
VAT included

Bosch Spare Parts for Cordless Drill Driver GSR 14,4-2-LI - 3601JA4400

Bosch genuine spare parts or replacement parts for to repair Cordless Drill Driver GSR 14,4-2-LI /14.4 V/EU - 3601JA4400.

settings 23 spare parts

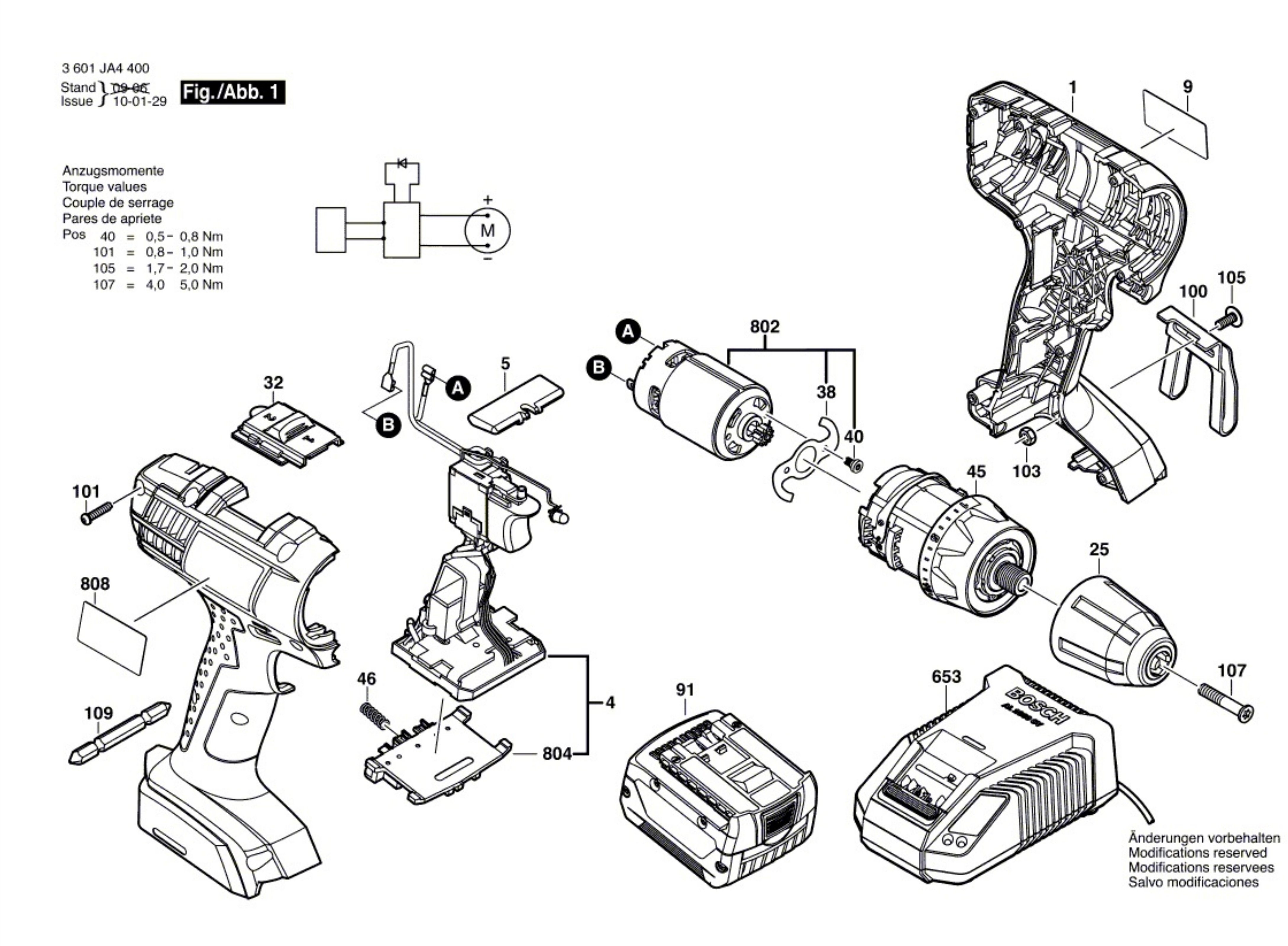

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

22 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 2607225425 Fast Charger GB 230/10,8-18V, 1h €102.13
photo_cameraImage coming soon 2607336877 Slide-In Accu Package 14,4V, 2,0Ah, LI, MS-L €112.02
1
photo_cameraImage coming soon 2609100810 HousingBLUE €30.01
4
photo_cameraImage coming soon 1607233298 Electronics Module €105.60
5
photo_cameraImage coming soon 2609100863 Lever €1.73
9
photo_cameraImage coming soon 2609132504 Manufacturer's nameplateGSR 14,4-2-LI €2.01
25
photo_cameraImage coming soon 2609110799 Keyless Chuck 10 MM €33.79
32
photo_cameraImage coming soon 2609199251 Slide Switch €4.46
38
photo_cameraImage coming soon 2609110801 Tab Washer €1.72
40
TORX Screw for Cordless Screwdriver Bosch GSR 10,8 V-LI-2 2609110802 TORX Screw for Cordless Screwdriver Bosch GSR 10,8 V-LI-2 €1.15
45
photo_cameraImage coming soon 2609199255 Gear Box €132.83
46
photo_cameraImage coming soon 1609280477 Compression Spring €2.44
100
photo_cameraImage coming soon 2609110956 Clip €6.75
101
photo_cameraImage coming soon 2609110201 Torx Flat-Head Screw 3x16 €2.77
103
photo_cameraImage coming soon 2609110835 Nut  €1.92
105
photo_cameraImage coming soon 2609110834 Screw  €1.92
107
Screw TX M 6x30 mm Left for Cordless Drills Bosch GSR 14,4-18 V-LI 2609110635 Screw TX M 6x30 mm Left for Cordless Drills Bosch GSR 14,4-18 V-LI €1.74
109
photo_cameraImage coming soon 2609110342 Screwdriver Blade  €2.12
653
photo_cameraImage coming soon 2607225423 Fast Charger EU 230/10,8-18V, 1h €102.13
802
photo_cameraImage coming soon 2609199253 DC motor14,4V €69.00
804
photo_cameraImage coming soon 1609280474 Contact retainer €12.96
808
photo_cameraImage coming soon 2609135907 Nameplate €2.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Cordless Drill Driver GSR 14,4-2-LI - 3601JA4400

Bosch genuine spare parts or replacement parts for to repair Cordless Drill Driver GSR 14,4-2-LI /14.4 V/EU - 3601JA4400.

In the following table, look for the model of the Cordless Drill Driver and the respective parts of the code.
Bosch GSR 14,4-2-LI - 3601JA4400

Cordless Drill Driver GSR 14,4-2-LI /14.4 V/EU - 3601JA4400
# Part Num. Description
1 2609100810 HousingBLUE
4 1607233298 Electronics Module
5 2609100863 Lever
9 2609132504 Manufacturer's nameplateGSR 14,4-2-LI
25 2609110799 Keyless Chuck10 MM
32 2609199251 Slide Switch
38 2609110801 Tab Washer
40 2609110802 Screw
45 2609199255 Gear Box
46 1609280477 Compression Spring
91 2607336149 Battery Set14,4V, 1,3Ah, LI, MS
2607336877 Slide-In Accu Package14,4V, 2,0Ah, LI, MS-L
100 2609110956 Clip
101 2609110201 Torx Flat-Head Screw3x16
103 2609110835 Nut
105 2609110834 Screw
107 2609110635 Pan head screwM 6x30
109 2609110342 Screwdriver Blade
653 2607225423 Fast ChargerEU AL 1820 CV 220V
2607225425 Fast ChargerGB 230/10,8-18V, 1h
802 2609199253 DC motor14,4V
804 1609280474 Contact retainer
808 2609135907 Nameplate

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.

Bosch GSR 14,4-2-LI - 3601JA4400
6 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing Bosch GSR 14,4-2-LI

Drawing Bosch GSR 14,4-2-LI

Download (230.37KB)
