Bosch

Bosch Spare Parts for Angle Grinder GWS 9-125 CE - 0601344603

SKU: Bosch GWS 9-125 CE - 0601344603
€15.04
VAT included

Bosch Spare Parts for Angle Grinder GWS 9-125 CE - 0601344603

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder GWS 9-125 CE /230 V/EU - 0601344603.

Bosch GWS 9-125 CE - 0601344603
Bosch Spare Parts for Angle Grinder GWS 9-125 CE - 0601344603
  • Bosch Spare Parts for Angle Grinder GWS 9-125 CE - 0601344603
  • Bosch Spare Parts for Angle Grinder GWS 9-125 CE - 0601344603
Bosch

Bosch Spare Parts for Angle Grinder GWS 9-125 CE - 0601344603

SKU: Bosch GWS 9-125 CE - 0601344603 Condition: New
€15.04
VAT included

Bosch Spare Parts for Angle Grinder GWS 9-125 CE - 0601344603

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder GWS 9-125 CE /230 V/EU - 0601344603.

Bosch GWS 9-125 CE - 0601344603
settings 64 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
52 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

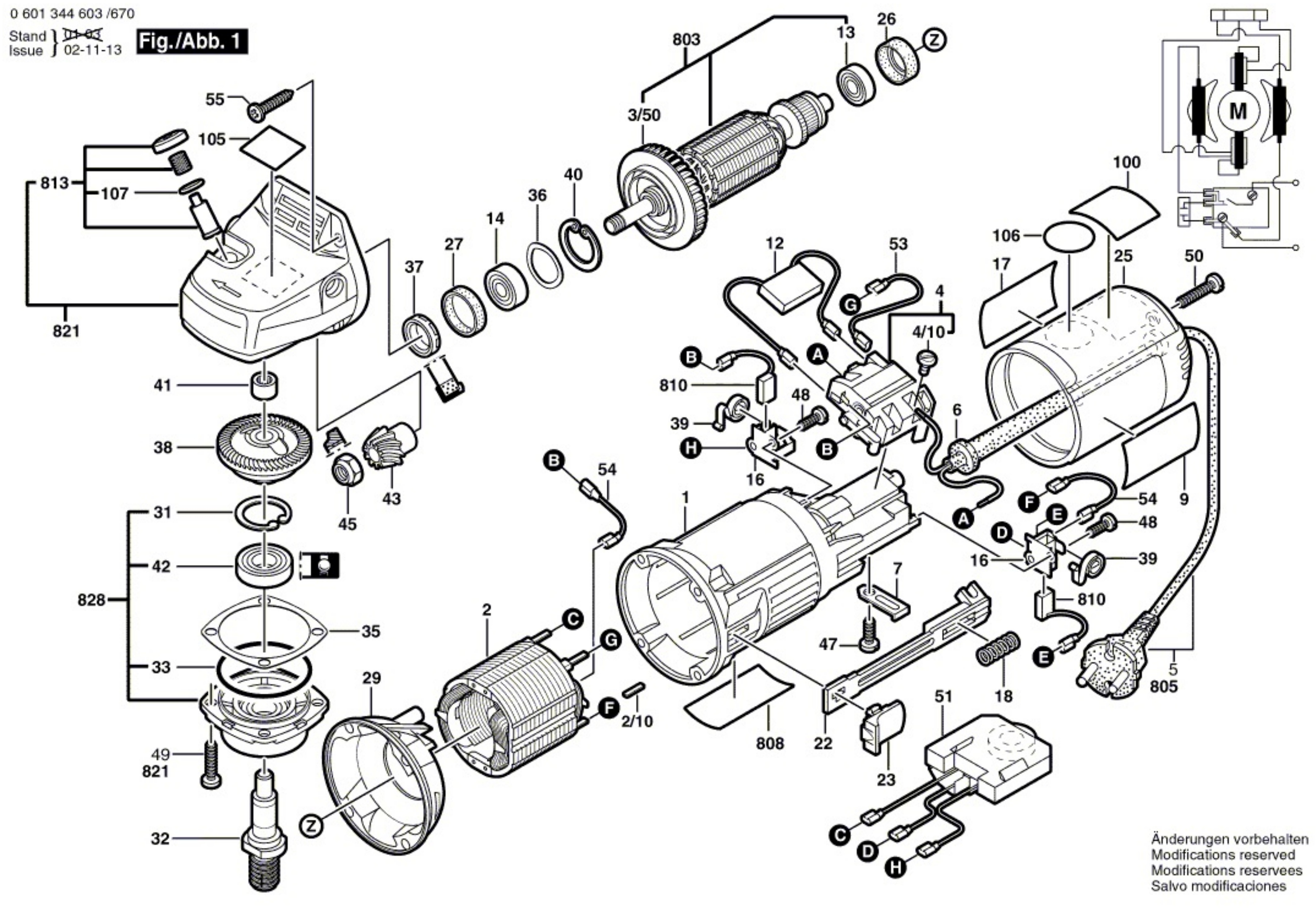

Esploso pagina 1
Pos. Item Price Buy
Shim 0.3 mm for Groover Bosch GNF 20 CA 1600136011 Shim 0.3 mm for Groover Bosch GNF 20 CA €1.54
Shim 0,1 mm for Angle Grinder Bosch PWS 6-115 1600136012 Shim 0,1 mm for Angle Grinder Bosch PWS 6-115 €1.05
1
 photo_cameraImage coming soon 16051082CC Motor Housing €10.90
2
 photo_cameraImage coming soon 1604220220 Field 220-230V €33.79
2/10
 photo_cameraImage coming soon 1604477011 Blade terminal €1.53
3/50
 photo_cameraImage coming soon 1606610121 Fan €1.31
4
 Switch for Angle Grinder Bosch GWS115-PWS115 1607200086 Switch for Angle Grinder Bosch GWS115-PWS115 €17.37
6
 photo_cameraImage coming soon 2600703013 Grommet Ø7,6-Ø8,2x95 MM €2.46
7
 Fastening Clamp for Angle grinder Bosch GWS 6-115 1601302017 Fastening Clamp for Angle grinder Bosch GWS 6-115 €1.09
9
 photo_cameraImage coming soon 1601110609 Manufacturer's nameplate  €1.53
13
 Ball Bearing 7x19x6 for Bosch Power Tools 2600905032 Ball Bearing 7x19x6 for Bosch Power Tools €5.89
14
 photo_cameraImage coming soon 2600905052 Deep-Groove Ball Bearing 8x22x7 €7.36
16
 photo_cameraImage coming soon 1600A003G4 Brush Holder €2.01
17
 photo_cameraImage coming soon 1601110781 Manufacturer's nameplate  €2.26
18
 Compression Spring for Angle Grinders Bosch PWS 7-115 1604611026 Compression Spring for Angle Grinders Bosch PWS 7-115 €0.94
22
 Adjusting Slide for Angle Grinders Bosch PWS 7-115 1602319002 Adjusting Slide for Angle Grinders Bosch PWS 7-115 €2.65
23
 Switch Handle for Angle Grinders Bosch PWS 7-115 1602026057 Switch Handle for Angle Grinders Bosch PWS 7-115 €1.76
25
 photo_cameraImage coming soon 1600508011 Housing Cover BLUE  €6.31
26
 Rubber Bushing for Angle Grinder Bosch PWS 6-115 1600502020 Rubber Bushing for Angle Grinder Bosch PWS 6-115 €1.54
27
 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 1600206025 Armature Bearing Rubber Ring for Angle Grinder Bosch GWS 6-115 €2.28
29
 Air Deflector for Angle Grinder Bosch PWS 7-115 1601328005 Air Deflector for Angle Grinder Bosch PWS 7-115 €2.13
31
 photo_cameraImage coming soon 2916660013 Spring retaining ring DIN 472-32x1,2 MM €1.73
32
 photo_cameraImage coming soon 1607000D6A Grinding Spindle  €6.80
33
 O-Ring 46,0x1,1mm for Circular Saw Bosch GKS 55 3600210124 O-Ring 46,0x1,1mm for Circular Saw Bosch GKS 55 €2.53
35
 Shim 0,2 mm for Groover Bosch GNF 20 CA 1600136010 Shim 0,2 mm for Groover Bosch GNF 20 CA €1.54
36
 Spring Washer for Angle Grinder Bosch PWS 600 1600150011 Spring Washer for Angle Grinder Bosch PWS 600 €0.96
37
 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 1600290016 Rotary Shaft lip Seal for Angle Grinder Bosch GWS 7-115 €2.61
38
 photo_cameraImage coming soon 1606333601 Crown Gear Z=36 €7.58
39
 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 1604652013 Spiral Spring for Angle Grinders Bosch GWS/PWS6-115 €2.07
40
 photo_cameraImage coming soon 2916660009 Spring retaining ring DIN 472-25x1,2MM €2.29
41
 Needle-Roller Bearing for Angle Grinders Bosch GWS 6-115-GWS 660 1600910018 Needle-Roller Bearing for Angle Grinders Bosch GWS 6-115-GWS 660 €5.66
42
 Ball Bearing 12x32x10 for Angle Grinder Bosch GWS 7-115 1600905006 Ball Bearing 12x32x10 for Angle Grinder Bosch GWS 7-115 €13.49
43
 photo_cameraImage coming soon 1606333242 Bevel Gear Z=11 €41.18
45
 Hex Nut M7 SW10 for Angle Grinder Bosch PWS 6-115 1603300016 Hex Nut M7 SW10 for Angle Grinder Bosch PWS 6-115 €1.71
49
 Thread Forming Screw for Angle Grinder Bosch PWS 10-125 CE 1603435026 Thread Forming Screw for Angle Grinder Bosch PWS 10-125 CE €1.71
53
 photo_cameraImage coming soon 1604448005 Connecting Cable L=95 MM WHITE €2.29
54
 photo_cameraImage coming soon 1604448006 Connecting Cable L=40 MM WHITE €1.66
105
 photo_cameraImage coming soon 1601110470 Reference Plate €1.55
650/50/20
 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 1600210039 O-Ring 20,35x1,78 mm for Angle Grinder Bosch PWS 6-115 €1.28
650/20
 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 1603345043 Upper Flange M14 for Angle Grinder Bosch GWS 6-115-GWS 660 €9.26
650/30
 Pin-Type Face-Wrench for Angle Grinders Bosch GWS 850 CE 1607950052 Pin-Type Face-Wrench for Angle Grinders Bosch GWS 850 CE €4.84
650/50
 Clamping Flange for Angle Grinder Bosch PWS 6-115 2605703014 Clamping Flange for Angle Grinder Bosch PWS 6-115 €7.98
651/10
 photo_cameraImage coming soon 2602025067 Auxiliary Handle M10, Ø32,5x105 MM €3.67
652
 photo_cameraImage coming soon 1600A0136N Protective Cover  €22.98
803
 photo_cameraImage coming soon 1604010248 Armature With Fan 220-230V €45.52
805
 photo_cameraImage coming soon 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F €36.70
808
 photo_cameraImage coming soon 160111A3H3 Nameplate  €3.22
810
 Carbon Brushes for Angle Grinders Bosch GWS/PWS115-125 1607014116 Carbon Brushes for Angle Grinders Bosch GWS/PWS115-125 €11.50
813
 photo_cameraImage coming soon 1607000253 Push-Button BLACK €1.80
821
 photo_cameraImage coming soon 1605806480 Gear Housing €51.75
828
 photo_cameraImage coming soon 1607000936 Bearing Flange €28.92
896
 photo_cameraImage coming soon 1603340027 Fast Locking Flange M14, SDS-CLIC €75.80

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Angle Grinder GWS 9-125 CE - 0601344603

Distribution and Sale at attractive prices of BOSCH Original Spare Parts. We guarantee low prices and a professional Assistance and repair service able to advise you on the purchase of the most suitable spare part to quickly solve any maintenance issue for Angle Grinder GWS 9-125 CE /230 V/EU - 0601344603.

In the following table, look for the model of the Angle Grinder and the respective parts of the code.
Bosch GWS 9-125 CE - 0601344603
Angle Grinder GWS 9-125 CE /230 V/EU - 0601344603
# Part Num. Description
1 16051082CC Motor Housing
2 1604220220 Field 220-230V
2/10 1604477011 Blade terminal
3/50 1606610121 Fan
4 1607200086 On-Off Switch
4/10 2910110048 Pan head screw DIN 85-AM3x6-CUZN
6 2600703013 Grommet Ø7,6-Ø8,2x95 MM
7 1601302017 Fastening Clamp
9 1601110609 Manufacturer's nameplate
12 1607328029 Suppression Filter
13 2600905032 Ball Bearing 7x19x6
14 2600905052 groove ball bearing 8x22x7
16 1600A003G4 Brush Holder
17 1601110781 Manufacturer's nameplate
18 1604611026 Compression Spring
22 1602319002 Adjusting Slide
23 1602026057 Switch Handle BLACK
25 1600508011 Housing Cover BLUE
26 1600502020 Rubber Bushing
27 1600206025 Rubber Ring
29 1601328005 Air-Deflector Ring
31 2916660013 Retaining clip DIN 472-32x1,2 MM
32 1607000D6A Grinding Spindle
33 3600210124 O-Ring 46,0x1,1 MM RED
35 1600136010 Shim 0,2 MM THICK
1600136011 Shim 0,3 MM THICK
1600136012 Shim 0,1 MM THICK
36 1600150011 Spring Washer
37 1600290016 Rotary shaft lip seal
38 1606333601 Crown Gear Z=36
39 1604652013 Spiral Spring
40 2916660009 Spring retaining ring DIN 472-25x1,2MM
41 1600910018 Needle bearing Ø8xØ12x8 MM
42 1600905006 groove ball bearing 12x32x10
43 1606333242 Bevel Gear Z=11
45 1603300016 Hex Nut M7, SW10
47 2910211018 Tapping Screw DIN 7971-ST3,9x13-F
48 2910211005 Tapping Screw DIN 7971-ST2,9x9,5-F
49 1603435026 Thread-forming tap. Screw
50 2910211021 Tapping Screw DIN 7971-ST3,9x22-F
51 1607233020 Speed governor 230V
53 1604448005 Connecting Cable L=95 MM WHITE
54 1604448006 Connecting Cable L=40 MM WHITE
55 2912401021 Tapping Screw DIN7981-ST3,9x22-C-Z
100 1601110310 Reference Plate
105 1601110470 Reference Plate
106 2601110041 Sticker YELLOW
107 1600210044 O-Ring 4,5x1,0 MM BLUE
650/20 1603345043 Round Nut M14
650/30 1607950052 Pin-Type Face-Wrench
650/50 2605703014 Clamping Flange Ø22,3xØ42 MM
650/50/20 1600210039 O-Ring 20,35x1,78 MM
651/10 2602025067 Auxiliary Handle M10, Ø32,5x105 MM
652 1600A0136N Protective Cover
652/20 2910022197 Socket head cap screw DIN 84-M 6x16-8.8
2910141197 Hex Socket Head Cap Screw DIN 912-M6x16-8.8
803 1604010248 Armature With Fan 220-230V
805 1607000227 Power supply cord EU 4,15m 2 x 1,0mm H07 RN-F
808 160111A3H3 Nameplate
810 1607014116 Carbon-Brush Set
813 1607000253 Push-Button BLACK
821 1605806480 Gear Housing
828 1607000936 Bearing Flange
896 1603340027 Fast Locking Flange M14, SDS-CLIC
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GWS 9-125 CE - 0601344603
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing Bosch GWS 9-125 CE

Drawing Bosch GWS 9-125 CE

Download (249.03KB)
