Bosch Spare Parts for Router GOF 1300 CE - 0601613660

SKU: GOF 1300 CE - 0601613660
€58.96
VAT included

Bosch Spare Parts for Router GOF 1300 CE - 0601613660

Bosch genuine replacement parts for to replace broken parts for to fix Router GOF 1300 CE/230 V/EU - 0601613660.

Router GOF 1300 CE/230 V/EU - 0601613660

Bosch Spare Parts for Router GOF 1300 CE - 0601613660
  • Bosch Spare Parts for Router GOF 1300 CE - 0601613660
  • Bosch Spare Parts for Router GOF 1300 CE - 0601613660

Bosch Spare Parts for Router GOF 1300 CE - 0601613660

SKU: GOF 1300 CE - 0601613660 Condition: New
€58.96
VAT included

Bosch Spare Parts for Router GOF 1300 CE - 0601613660

Bosch genuine replacement parts for to replace broken parts for to fix Router GOF 1300 CE/230 V/EU - 0601613660.

Router GOF 1300 CE/230 V/EU - 0601613660

settings 77 spare parts

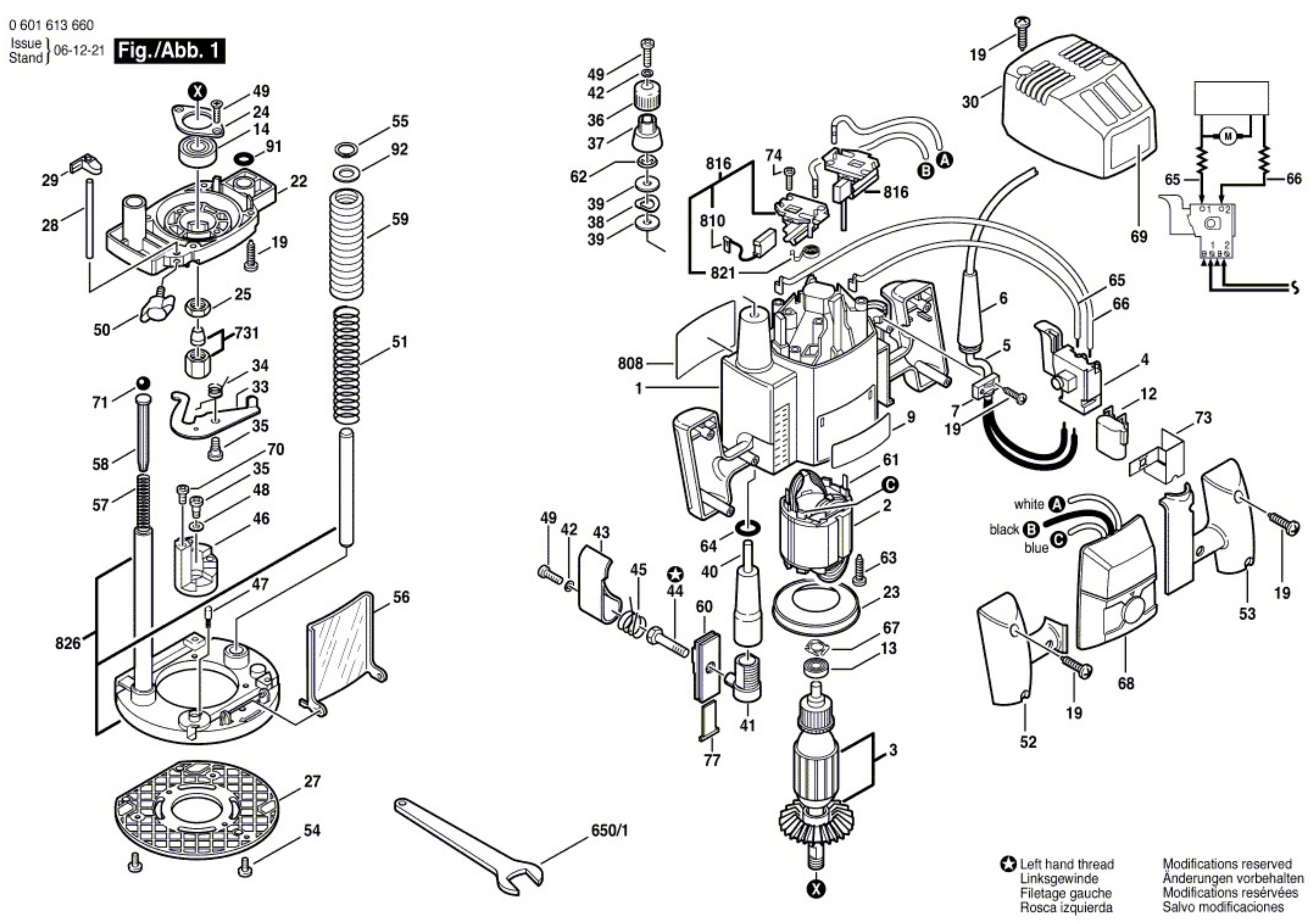

description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

69 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
1
photo_cameraImage coming soon 3605108584 Motor Housing BLUE €43.92
2
photo_cameraImage coming soon 2610941203 Field 230V €76.21
3
photo_cameraImage coming soon 2610941202 Armature 230V €242.31
5
photo_cameraImage coming soon 3604460557 Power supply cord EU 4,25m 2 x 1,0mm H07 RN-F €64.10
6
photo_cameraImage coming soon 2610947359 Grommet €2.36
7
Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
photo_cameraImage coming soon 2610998943 Reference Plate €2.85
12
Suppression Filter for Router Bosch GOF 900-1300 1617328025 Suppression Filter for Router Bosch GOF 900-1300 €8.99 Not available for order
13
photo_cameraImage coming soon 3600905513 Deep-Groove Ball Bearing €9.78
14
photo_cameraImage coming soon 3600905512 Deep-Groove Ball Bearing €14.05
19
photo_cameraImage coming soon 2610910566 Tapping Screw €1.34
22
photo_cameraImage coming soon 2610997096 Housing €69.00
23
photo_cameraImage coming soon 3600590508 Air-Deflector Ring €2.85
24
photo_cameraImage coming soon 3600034506 Retaining Plate €5.02
25
photo_cameraImage coming soon 3603300502 Hex Nut €4.25
27
photo_cameraImage coming soon 2610997099 Cover Plate €23.30
28
photo_cameraImage coming soon 2610997093 Rod €5.51
29
photo_cameraImage coming soon 2610997094 Pointer €5.02
30
photo_cameraImage coming soon 2610943199 Housing Cover €15.72
33
photo_cameraImage coming soon 3601021510 Swing-Plate €5.51
34
photo_cameraImage coming soon 3604651502 Torsion Spring €2.39
35
photo_cameraImage coming soon 3603415556 Pan head screw M4 €2.22
36
Knob for Router Bosch GOF 900 CE 3603231539 Knob for Router Bosch GOF 900 CE €3.49
37
photo_cameraImage coming soon 3600209500 Indicator Ring €4.31
38
photo_cameraImage coming soon 3600100528 Spring Washer €1.87
39
photo_cameraImage coming soon 3600100527 Washer €2.67
41
photo_cameraImage coming soon 3600400507 Locking Piece €5.04
43
photo_cameraImage coming soon 3602000510 Locking Lever €2.93
44
photo_cameraImage coming soon 3603450504 Lock Bolt €4.25
45
photo_cameraImage coming soon 3604651503 Compression Spring €2.22
46
photo_cameraImage coming soon 2610997191 Depth-Gauge €14.90
47
Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE 2600590006 Ratchet Cap for Hammer Drill Bosch GSB 20-2 RE €2.09
49
photo_cameraImage coming soon 2910641122 Oval-Head Screw DIN 7985-M4X12-4.8-H €2.22
50
photo_cameraImage coming soon 1613480009 Wing Screw M6x25 MM €1.34
51
photo_cameraImage coming soon 2610997100 Compression Spring €2.01
52
photo_cameraImage coming soon 2610943197 Handle Cover €7.68
53
photo_cameraImage coming soon 2610943198 Handle Cover €8.73
54
photo_cameraImage coming soon 2610915161 Screw €3.31
55
photo_cameraImage coming soon 2916650003 Spring retaining ring DIN 471-12x1-FSt €2.09
57
photo_cameraImage coming soon 3604613508 Compression Spring €2.01
58
photo_cameraImage coming soon 3603120502 Guide Piece €2.36
59
photo_cameraImage coming soon 3605510548 Bellows €4.46
60
photo_cameraImage coming soon 3601010519 Cover €2.36
61
photo_cameraImage coming soon 1604477005 Blade terminal €1.78
62
photo_cameraImage coming soon 3604680502 Retaining snap ring €2.22
63
photo_cameraImage coming soon 2610991306 Tapping Screw €1.24
64
photo_cameraImage coming soon 3600210507 O-Ring €2.22
65
photo_cameraImage coming soon 2610945855 Cable €2.01
66
photo_cameraImage coming soon 2610945856 Cable €2.85
67
photo_cameraImage coming soon 3600150501 Spring Lock Washer €2.01
68
photo_cameraImage coming soon 1607233153 Control Unit 230V €76.21
69
photo_cameraImage coming soon 2610912471 Nameplate €3.31
70
photo_cameraImage coming soon 3603410504 Socket head cap screw €2.67
71
photo_cameraImage coming soon 1903230007 Ball DIN 5401-4 MM-III-ST €1.58
74
photo_cameraImage coming soon 2910611006 Tapping Screw DIN 7981-ST2,9x13-C-H  €2.13
77
photo_cameraImage coming soon 3601010521 Insert €2.85
91
photo_cameraImage coming soon 1610210233 O-Ring 12,0x2,0 MM €2.01
650/1
photo_cameraImage coming soon 2610992417 Single-Head Eng. Wrench €15.49
731
photo_cameraImage coming soon 2608570103 Collet 6 MM €48.08
731
photo_cameraImage coming soon 2608570104 Collet 1/4" €48.08
731
photo_cameraImage coming soon 2608570105 Collet 8 MM €48.08
731
photo_cameraImage coming soon 2608570106 Collet 3/8" €48.08
731
photo_cameraImage coming soon 2608570107 Collet 12 MM €48.08
731
photo_cameraImage coming soon 2608570108 Collet 1/2" €45.33
731
photo_cameraImage coming soon 2608570125 Collet 10 MM €57.26
808
photo_cameraImage coming soon 2610948995 Nameplate €2.01
810
photo_cameraImage coming soon 2610007957 Carbon-Brush Set €9.52
816
photo_cameraImage coming soon 2610013632 Brush Holder €33.79
821
photo_cameraImage coming soon 3604652501 Spiral Spring €2.85

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Router GOF 1300 CE - 0601613660

Bosch genuine replacement parts for to replace broken parts for to fix Router GOF 1300 CE/230 V/EU - 0601613660.

In the following table, look for the model of the Router and the respective parts of the code.
Router GOF 1300 CE/230 V/EU - 0601613660

Router GOF 1300 CE/230 V/EU - 0601613660
# Part Num. Description
1 3605108584 Motor HousingBLUE
2 2610941203 Field230V
3 2610941202 Armature230V
4 2607200251 Switch
5 3604460557 Power supply cordEU 4,25m 2 x 1,0mm H07 RN-F
6 2610947359 Grommet
7 2601035001 Cable Clip
9 2610998943 Reference Plate
12 1617328025 Suppression Filter
13 3600905513 Ball guide
14 3600905512 Ball guide
19 2610910566 Tapping Screw
22 2610997096 Housing
23 3600590508 Air-Deflector Ring
24 3600034506 Retaining Plate
25 3603300502 Hex Nut
27 2610997099 Cover Plate
28 2610997093 Rod
29 2610997094 Pointer
30 2610943199 Housing Cover
33 3601021510 Swing-Plate
34 3604651502 Torsion Spring
35 3603415556 Shoulder ScrewM4
36 3603231539 Knob
37 3600209500 Indicator Ring
38 3600100528 Spring Washer
39 3600100527 Washer
40 3600360507 Adjusting Sleeve
41 3600400507 Locking Piece
42 2916680005 Spring Lock WasherB 4 DIN 127
43 3602000510 Locking Lever
44 3603450504 Lock Bolt
45 3604651503 Lock Spring
46 2610997191 Depth-Gauge
47 2600590006 Ratchet Cap
48 3916060500 Spring Washer
49 2910641122 Oval-Head ScrewDIN 7985-M4X12-4.8-H
50 1613480009 Wing ScrewM6x25 MM
51 2610997100 Compression Spring
52 2610943197 Handle Cover
53 2610943198 Handle Cover
54 2610915161 Screw
55 2916650003 Spring retaining ringDIN 471-12x1-FSt
56 2610912599 Chip Deflector
57 3604613508 Compression Spring
58 3603120502 Guide Piece
59 3605510548 Bellows
60 3601010519 Insert
61 1604477005 Blade terminal
62 3604680502 Retaining snap ring
63 2610991306 Tapping Screw
64 3600210507 O-Ring
65 2610945855 Cable
66 2610945856 Cable
67 3600150501 Spring Lock Washer
68 1607233153 Control Unit230V
69 2610912471 Nameplate
70 3603410504 Socket head cap screw
71 1903230007 BallDIN 5401-4 MM-III-ST
73 2610996090 Set ring
74 2910611006 Tapping ScrewDIN 7981-ST2,9x13-C-H
77 3601010521 Insert
91 1610210233 O-Ring12,0x2,0 MM
92 2610913282 Plain Washer
650/1 2610992417 Single-Head Eng. Wrench
731 2608570108 Collet1/2"
731 2608570107 Collet12 MM
731 2608570106 Collet3/8"
731 2608570105 Collet8 MM
731 2608570104 Collet1/4"
731 2608570103 Collet6 MM
731 2608570125 Collet10 MM
808 2610948995 Nameplate
810 2610007957 Carbon-Brush Set
816 2610013632 Brush Holder
821 3604652501 Spring
826 2610997115 Base
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
