Bosch Spare Parts for Demolition Hammer GSH 5 E - 0611318703

SKU: Bosch GSH 5 E - 0611318703
€57.08
VAT included

Bosch Spare Parts for Demolition Hammer GSH 5 E - 0611318703

Bosch Genuine spare parts or replacement parts for to repair Demolition Hammer GSH 5 E /230 V/EU - 0611318703.

Fix Your Demolition Hammer GSH 5 E - 0611318703. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch GSH 5 E - 0611318703
Bosch Spare Parts for Demolition Hammer GSH 5 E - 0611318703
  • Bosch Spare Parts for Demolition Hammer GSH 5 E - 0611318703
  • Bosch Spare Parts for Demolition Hammer GSH 5 E - 0611318703
  • Bosch Spare Parts for Demolition Hammer GSH 5 E - 0611318703

Bosch Spare Parts for Demolition Hammer GSH 5 E - 0611318703

SKU: Bosch GSH 5 E - 0611318703 Condition: New
€57.08
VAT included

Bosch Spare Parts for Demolition Hammer GSH 5 E - 0611318703

Bosch Genuine spare parts or replacement parts for to repair Demolition Hammer GSH 5 E /230 V/EU - 0611318703.

Fix Your Demolition Hammer GSH 5 E - 0611318703. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

Bosch GSH 5 E - 0611318703
settings 114 spare parts

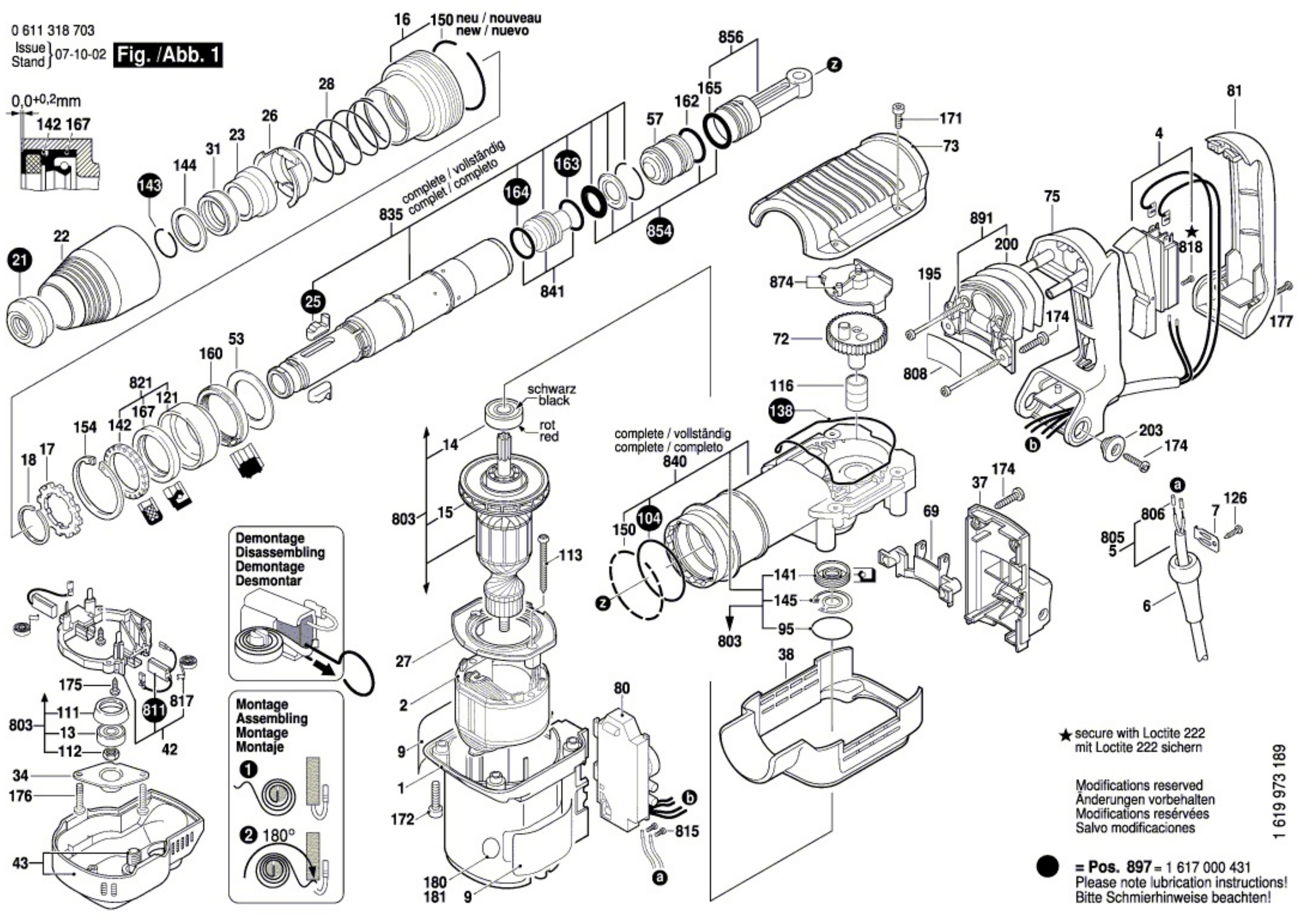

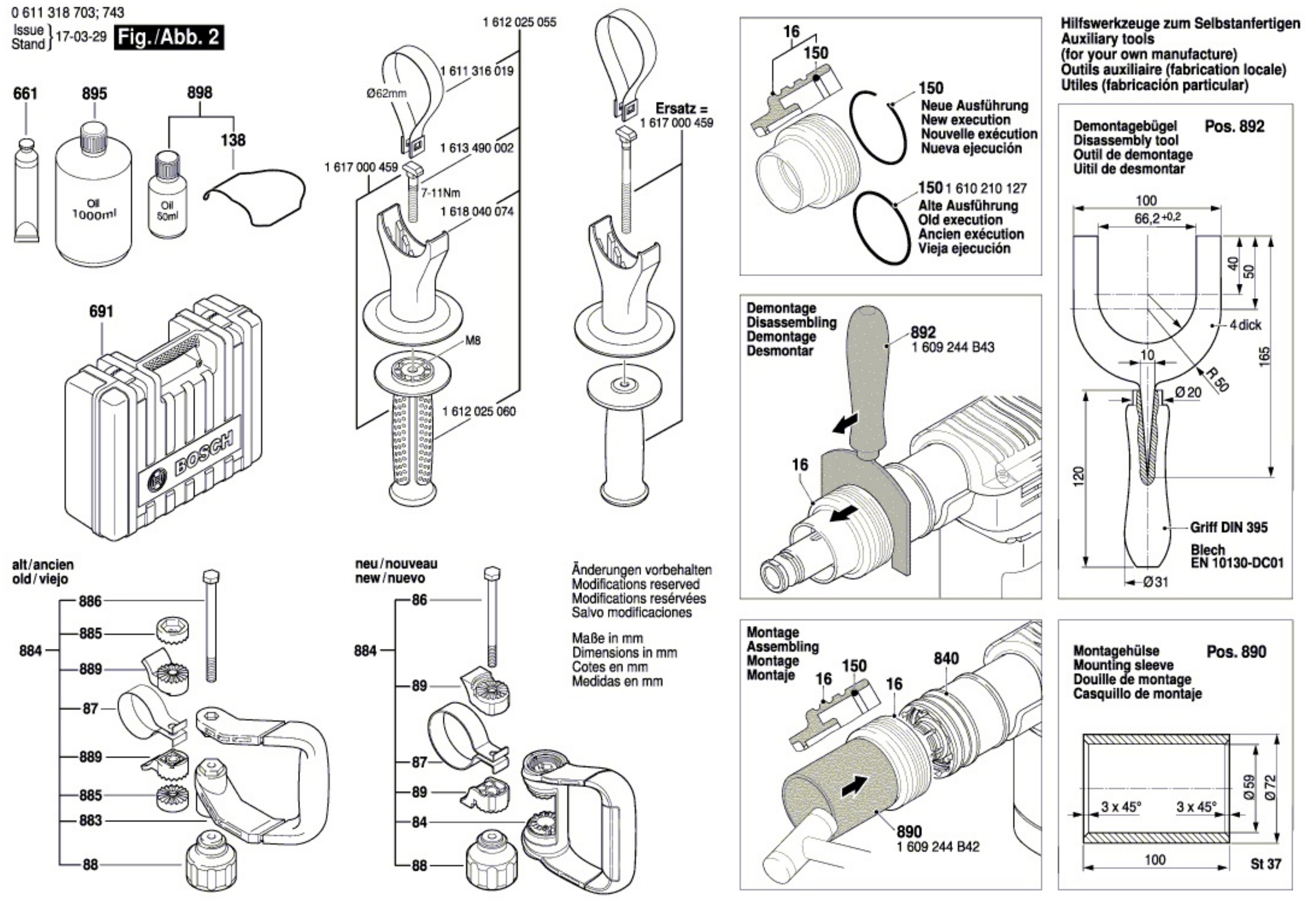

description 2 exploded views
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

109 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
photo_cameraImage coming soon 1607000492 Carbon-Brush Set 10 x 1 617 014 144  €183.77
2
photo_cameraImage coming soon 1614220123 Field 220-240V  €57.08
4
photo_cameraImage coming soon 1617200095 Switch  €23.52
6
photo_cameraImage coming soon 1600703035 Grommet Ø8,7-Ø9,6x66 MM  €3.09
7
photo_cameraImage coming soon 1601302018 Fastening Clamp €2.25
9
photo_cameraImage coming soon 1611110C41 Manufacturer's nameplate  €3.23
13
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D 1610900026 Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D €17.13
14
Ball Bearing 12x32x10 for Rotary Hammer Bosch GBH 5-38 D 1610905028 Ball Bearing 12x32x10 for Rotary Hammer Bosch GBH 5-38 D €19.41
15
photo_cameraImage coming soon 1616610090 Fan  €13.49
16
photo_cameraImage coming soon 1610499055 Ratchet Sleeve €8.04
17
photo_cameraImage coming soon 1610241000 Catch Disk €4.08
18
photo_cameraImage coming soon 1614601030 Retaining ring €2.89
21
photo_cameraImage coming soon 1610508038 Protective Cap €10.27
22
photo_cameraImage coming soon 1610591030 Protection Sleeve  €5.62
23
photo_cameraImage coming soon 1610520001 Stop Sleeve €15.74
25
photo_cameraImage coming soon 1612300036 Stopping Device  €15.24
26
photo_cameraImage coming soon 1610290076 Indexing Disk  €7.37
27
photo_cameraImage coming soon 1610591028 Air-Deflector Ring  €2.73
28
Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E 1614621000 Compression Spring for Hammers Bosch GBH 5/40-11DE-GSH3E €11.05
31
photo_cameraImage coming soon 1610290049 Damping Ring €3.72
34
photo_cameraImage coming soon 1610516013 Flange €2.24
37
photo_cameraImage coming soon 1615500321 Bearing Pedestal BLUE  €4.82
38
photo_cameraImage coming soon 1615190105 Covering hood BLUE  €15.96
42
photo_cameraImage coming soon 1614336046 Brush Holder  €52.13
43
photo_cameraImage coming soon 1615500410 Fan Cover BLACK  €16.29
53
photo_cameraImage coming soon 1610102054 Support Disc €4.08
57
Striker for Demolition for Hammer Bosch GSH 5 E 1618710073 Striker for Demolition for Hammer Bosch GSH 5 E €36.38
69
photo_cameraImage coming soon 1610099005 Retaining Bracket  €1.95
72
photo_cameraImage coming soon 1616317062 Eccentric Cog Wheel €71.89
73
photo_cameraImage coming soon 1615500360 Housing Cover  €20.41
75
photo_cameraImage coming soon 1615132087 Handle BLUE  €71.70
80
photo_cameraImage coming soon 1617233037 Speed governor 220-240V  €89.92
81
photo_cameraImage coming soon 1615132088 Handle Cover BLACK  €30.61
84
photo_cameraImage coming soon 160202508D Auxiliary Handle €17.86
86
photo_cameraImage coming soon 2911021267 Hex Screw €3.23
87
photo_cameraImage coming soon 1611316022 Clamping Band  €7.85
88
photo_cameraImage coming soon 1613349017 Star Knob M8 BLACK €6.15
89
Clamping Piece for Demolition for Hammer Bosch GSH 5 E 1600A00748 Clamping Piece for Demolition for Hammer Bosch GSH 5 E €2.67
95
O-Ring 32,0x1,5 mm for Demolition Hammer Bosch GBH 5-38 D 1610210173 O-Ring 32,0x1,5 mm for Demolition Hammer Bosch GBH 5-38 D €2.90
104
O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE 1610210095 O-Ring 55,0x2,0 mm for Rotary Hammer Bosch GBH 5/40 DCE €3.06
111
Bushing for Rotary Hammer Bosch GBH 5-38 D 1610290064 Bushing for Rotary Hammer Bosch GBH 5-38 D €1.74
112
photo_cameraImage coming soon 1613300008 Hex Nut DIN 936-M8x1-8 €3.39
113
photo_cameraImage coming soon 1613435009 Tapping Screw ST-4,8x57,5-TORX,T20 €2.24
116
photo_cameraImage coming soon 1610311017 Inner Ring €8.56
121
photo_cameraImage coming soon 1610328018 Bushing €17.88
126
photo_cameraImage coming soon 2910211019 Tapping Screw DIN 7971-ST3,9x16-F €1.34
138
photo_cameraImage coming soon 1611015050 Sealing Frame €9.34
141
Radial-Lip-Type Oil Seal for Rotary Hammer Bosch 5-38 D 1610290066 Radial-Lip-Type Oil Seal for Rotary Hammer Bosch 5-38 D €11.95
142
photo_cameraImage coming soon 1610290061 Rotary shaft lip seal €6.47
143
photo_cameraImage coming soon 1614601021 Retaining ring DIN 7993-28x2 €8.56
144
photo_cameraImage coming soon 1610251006 Supporting Disc €7.63
145
Spring Retaining for Rotary Hammer Bosch GBH 5-38 D 1610119012 Spring Retaining for Rotary Hammer Bosch GBH 5-38 D €2.90
154
photo_cameraImage coming soon 2916660024 Spring retaining ring 55x2MM, DIN 472 €6.17
160
photo_cameraImage coming soon 1610210172 Damping Ring €7.27
162
O-Ring 24.0x4.0 mm for Demolition Hammer Bosch GSH 5 CE 1610210091 O-Ring 24.0x4.0 mm for Demolition Hammer Bosch GSH 5 CE €3.71
163
Seal Ring for Demolition Hammer Bosch 5-38 D 1610290065 Seal Ring for Demolition Hammer Bosch 5-38 D €8.27
164
O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE 1610210144 O-Ring 22,0x3,0 mm for Hammer Bosch GBH 7-46 DE €6.73
165
O-Ring 25.0x4.0 for Demolition for Hammer Bosch GSH 5 E 1610210153 O-Ring 25.0x4.0 for Demolition for Hammer Bosch GSH 5 E €6.97
167
photo_cameraImage coming soon 1610290062 Rotary shaft lip seal €4.08
171
photo_cameraImage coming soon 1613435014 Torx Oval-Head Screw M5x16-TORX,T25 SILVER €1.91
172
photo_cameraImage coming soon 1613435013 Torx Oval-Head Screw M6x30-TORX,T30 SILVER €2.90
174
photo_cameraImage coming soon 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER €2.90
175
photo_cameraImage coming soon 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z €1.41
176
photo_cameraImage coming soon 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER €2.90
177
photo_cameraImage coming soon 1603435051 Tapping Screw ST3,9x32 SILVER €2.90
200
photo_cameraImage coming soon 1610284000 Bellows  €10.58
203
photo_cameraImage coming soon 1610322009 Support Disc SILVER  €2.73
661
Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
691
photo_cameraImage coming soon 16054381CC Carrying Case  €53.43
803
photo_cameraImage coming soon 1614011098 Armature 220-240V  €183.77
805
photo_cameraImage coming soon 1617000723 Power supply cord €45.86
806
End Splice for Demolition Hammer Bosch GBH 5-38 D 3604477009 End Splice for Demolition Hammer Bosch GBH 5-38 D €1.60
808
photo_cameraImage coming soon 160111A3H5 Nameplate €3.39
811
Carbon Brushes for Hammers Bosch GBH5/40DCE - 3 611 B64 000 1617014144 Carbon Brushes for Hammers Bosch GBH5/40DCE - 3 611 B64 000 €27.77
817
photo_cameraImage coming soon 1614652004 Spiral Spring €9.47
821
photo_cameraImage coming soon 1617000835 Bushing €30.29
835
photo_cameraImage coming soon 1617000432 Hammer Pipe  €223.73
840
photo_cameraImage coming soon 1617000837 Impact Mechanism Housing - DISCONTINUED €101.12
841
photo_cameraImage coming soon 1617000452 Striker Pin €60.54
854
photo_cameraImage coming soon 1617000442 Stop Disc €55.30
856
photo_cameraImage coming soon 1617000836 Hammer Piston €38.83
874
photo_cameraImage coming soon 1617000422 Holding-Down-Appliance €15.88
883
photo_cameraImage coming soon 1615132109 Auxiliary Handle  €26.22
884
photo_cameraImage coming soon 1602025097 Auxiliary Handle  €46.92
885
Catch Disk for Demolition Hammer Bosch GSH 11 E 1610190053 Catch Disk for Demolition Hammer Bosch GSH 11 E €1.72
886
photo_cameraImage coming soon 2911011270 Hex Screw DIN 931-M8x130-8.8 €4.22
889
photo_cameraImage coming soon 1618040084 Clamping Piece  €2.27
890
photo_cameraImage coming soon 1609244B42 Mounting Sleeve €249.64
891
photo_cameraImage coming soon 1617000853 Spring Pack  €28.60
892
photo_cameraImage coming soon 1609244B43 Bow €249.64
895
photo_cameraImage coming soon 1615430019 Oil Reservoir 1000 ML €109.62
897
photo_cameraImage coming soon 1617000431 Wear and Tear Part Set  €30.12
898
photo_cameraImage coming soon 1615437512 Oil Reservoir 50 ML €15.88
Page 2 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
84
photo_cameraImage coming soon 160202508D Auxiliary Handle €17.86
86
photo_cameraImage coming soon 2911021267 Hex Screw €3.23
87
photo_cameraImage coming soon 1611316022 Clamping Band  €7.85
88
photo_cameraImage coming soon 1613349017 Star Knob M8 BLACK €6.15
89
Clamping Piece for Demolition for Hammer Bosch GSH 5 E 1600A00748 Clamping Piece for Demolition for Hammer Bosch GSH 5 E €2.67
661
Grease Tube 30 ML for Bosch Hammer GBH-GSH 1615430010 Grease Tube 30 ML for Bosch Hammer GBH-GSH €9.33
691
photo_cameraImage coming soon 16054381CC Carrying Case  €53.43
883
photo_cameraImage coming soon 1615132109 Auxiliary Handle  €26.22
884
photo_cameraImage coming soon 1602025097 Auxiliary Handle  €46.92
885
Catch Disk for Demolition Hammer Bosch GSH 11 E 1610190053 Catch Disk for Demolition Hammer Bosch GSH 11 E €1.72
886
photo_cameraImage coming soon 2911011270 Hex Screw DIN 931-M8x130-8.8 €4.22
889
photo_cameraImage coming soon 1618040084 Clamping Piece  €2.27
890
photo_cameraImage coming soon 1609244B42 Mounting Sleeve €249.64
892
photo_cameraImage coming soon 1609244B43 Bow €249.64
895
photo_cameraImage coming soon 1615430019 Oil Reservoir 1000 ML €109.62
898
photo_cameraImage coming soon 1615437512 Oil Reservoir 50 ML €15.88

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Demolition Hammer GSH 5 E - 0611318703

Fix Your Demolition Hammer GSH 5 E - 0611318703. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Demolition Hammer and the respective parts of the code.
Bosch GSH 5 E - 0611318703

Demolition Hammer GSH 5 E /230 V/EU 0611318703
# Part Num. Description
1 1615102155 Motor Housing BLUE
2 1614220123 Field 220-240V
4 1617200095 Switch
6 1600703035 Grommet Ø8,7-Ø9,6x66 MM
7 1601302018 Fastening Clamp
9 1611110C41 Manufacturer's nameplate
13 1610900026 groove ball bearing 8x24x8
14 1610905028 groove ball bearing 12x32x10
15 1616610090 Fan
16 1610499055 Ratchet Sleeve
17 1610241000 Catch Disk
18 1614601030 Retaining ring
21 1610508038 Protective Cap
22 1610591030 Protection Sleeve
23 1610520001 Stop Sleeve
25 1612300036 Stopping Device
26 1610290076 Indexing Disk
27 1610591028 Air-Deflector Ring
28 1614621000 Compression Spring
31 1610290049 Damping Ring
34 1610516013 Flange
37 1615500321 Bearing Pedestal BLUE
38 1615190105 Covering hood BLUE
42 1614336046 Brush Holder
43 1615500410 Fan Cover BLACK
53 1610102054 Support Disc
57 1618710073 Striker
69 1610099005 Retaining Bracket
72 1616317062 Eccentric Cog Wheel
73 1615500360 Housing Cover
75 1615132087 Handle BLUE
80 1617233037 Speed governor 220-240V
81 1615132088 Handle Cover BLACK
84 160202508D Auxiliary Handle
86 2911021267 Hex Screw
87 1611316022 Clamping Band
88 1613349017 Star Knob M8 BLACK
89 1600A00748 Clamping Piece
95 1610210173 O-Ring 32,0x1,5 MM
104 1610210095 O-Ring 55,0x2,0 MM
111 1610290064 Bushing
112 1613300008 Hex Nut DIN 936-M8x1-8
113 1613435009 Tapping Screw ST-4,8x57,5-TORX,T20
116 1610311017 Inner Ring
121 1610328018 Bushing
126 2910211019 Tapping Screw DIN 7971-ST3,9x16-F
138 1611015050 Sealing Frame
141 1610290066 Rotary shaft lip seal
142 1610290061 Rotary shaft lip seal
143 1614601021 Retaining ring DIN 7993-28x2
144 1610251006 Supporting Disc
145 1610119012 Spring retaining ring
150 1614601041 Retaining ring
154 2916660024 Spring retaining ring 55x2MM, DIN 472
160 1610210172 Damping Ring
162 1610210091 O-Ring 24,0x4,0 MM
163 1610290065 Seal Ring
164 1610210144 O-Ring 22,0x3,0 MM
165 1610210153 O-Ring 25,0x4,0 MM
167 1610290062 Rotary shaft lip seal
171 1613435014 Torx Oval-Head Screw M5x16-TORX,T25 SILVER
172 1613435013 Torx Oval-Head Screw M6x30-TORX,T30 SILVER
174 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER
175 2912401018 Tapping Screw DIN7981-ST3,9x13-C-Z
176 1613435012 Torx Oval-Head Screw M4,8x25-TORX,T25 SILVER
177 1603435051 Tapping Screw ST3,9x32 SILVER
195 1613435020 Torx Oval-Head Screw
200 1610284000 Bellows
203 1610322009 Support Disc SILVER
661 1615430010 Grease Tube 30 ML
691 16054381CC Carrying Case
803 1614011098 Armature 220-240V
805 1617000723 Power supply cord
806 3604477009 End Splice
808 160111A3H5 Nameplate
811 1617014144 Carbon-Brush Set
1607000492 Carbon-Brush Set 10 x 1 617 014 144
815 1609271281 Socket head cap screw
817 1614652004 Spiral Spring
818 2910011082 Socket head cap screw DIN 84-AM3,5x6-5.8
821 1617000835 Bushing
835 1617000432 Hammer Pipe
840 1617000837 Impact Mechanism Housing - DISCONTINUED
841 1617000452 Striker Pin
854 1617000442 Stop Disc
856 1617000836 Hammer Piston
874 1617000422 Holding-Down-Appliance
883 1615132109 Auxiliary Handle
884 1602025097 Auxiliary Handle
885 1610190053 Catch Disk
886 2911011270 Hex Screw DIN 931-M8x130-8.8
889 1618040084 Clamping Piece
890 1609244B42 Mounting Sleeve
891 1617000853 Spring Pack
892 1609244B43 Bow
895 1615430019 Oil Reservoir 1000 ML
897 1617000431 Wear and Tear Part Set
898 1615437512 Oil Reservoir 50 ML
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s BOSCH websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to BOSCH brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
Bosch GSH 5 E - 0611318703
12 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

Drawing GSH 5 E 0611318703

Drawing GSH 5 E 0611318703

Download (537.89KB)

You might also like

Bosch SKU: 1610900026
Groove Ball Bearing 628RS for Hammer Bosch GBH 5-38 D Genuine Part Bosch, Groove Ball Bearing 8x24x8 for Rotary Hammer Bosch GBH 5-38 D - 0611240003. Part for the following products: -  Hammer Bosch GBH...
on 7/10 Business Days Approx €17.13
Bosch SKU: 1618710073
Striker for Demolition for Hammer Bosch GSH 5 E Bosch original part, Striker for Demolition Hammer GSH 5 E /230 V - EU 0611318703 - GSH 388 - 0611388003 Part for the following products: -  Demolition Hammer GSH 5 E /230 V/EU...
Last items in stock €36.38
Bosch SKU: 1610905028
Ball Bearing 12x32x10 for Rotary Hammer Bosch GBH 5-38 D Genuine Part Bosch, Groove Ball Bearing 12x32x10 6201LUAI, for Rotary Hammer Bosch GBH 5-38 D - GSH 388. Part for the following products: -  Hammer Bosch GBH 5-38 D -...
on 7/10 Business Days Approx €19.41
Bosch SKU: 1610210153
O-Ring 25.0x4.0 for Demolition for Hammer Bosch GSH 5 E Bosch original part, O-Ring 25.0x4.0 MM for Demolition Hammer GSH 5 E /230 V - EU 0611318703 - GSH 388 - 0611388003 Part for the following products: -  Demolition Hammer GSH 5 E...
on 7/10 Business Days Approx €6.97
Comments (0)
