Bosch

Bosch Spare Parts for Orbital Sander GSS 140-1 A - 3601BA2100

SKU: Bosch GSS 140-1 A - 3601BA2100
€13.49
VAT included

Bosch Spare Parts for Orbital Sander GSS 140-1 A - 3601BA2100

Bosch genuine replacement parts for to replace broken parts for to fix Orbiatal Sander GSS 140-1 A/230 V/EU - 3601BA2100.

Bosch GSS 140-1 A - 3601BA2100
Bosch Spare Parts for Orbital Sander GSS 140-1 A - 3601BA2100
  • Bosch Spare Parts for Orbital Sander GSS 140-1 A - 3601BA2100
  • Bosch Spare Parts for Orbital Sander GSS 140-1 A - 3601BA2100
  • Bosch Spare Parts for Orbital Sander GSS 140-1 A - 3601BA2100
Bosch

Bosch Spare Parts for Orbital Sander GSS 140-1 A - 3601BA2100

SKU: Bosch GSS 140-1 A - 3601BA2100 Condition: New
€13.49
VAT included

Bosch Spare Parts for Orbital Sander GSS 140-1 A - 3601BA2100

Bosch genuine replacement parts for to replace broken parts for to fix Orbiatal Sander GSS 140-1 A/230 V/EU - 3601BA2100.

Bosch GSS 140-1 A - 3601BA2100
settings 31 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
on 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

Share on Facebook
search
31 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS

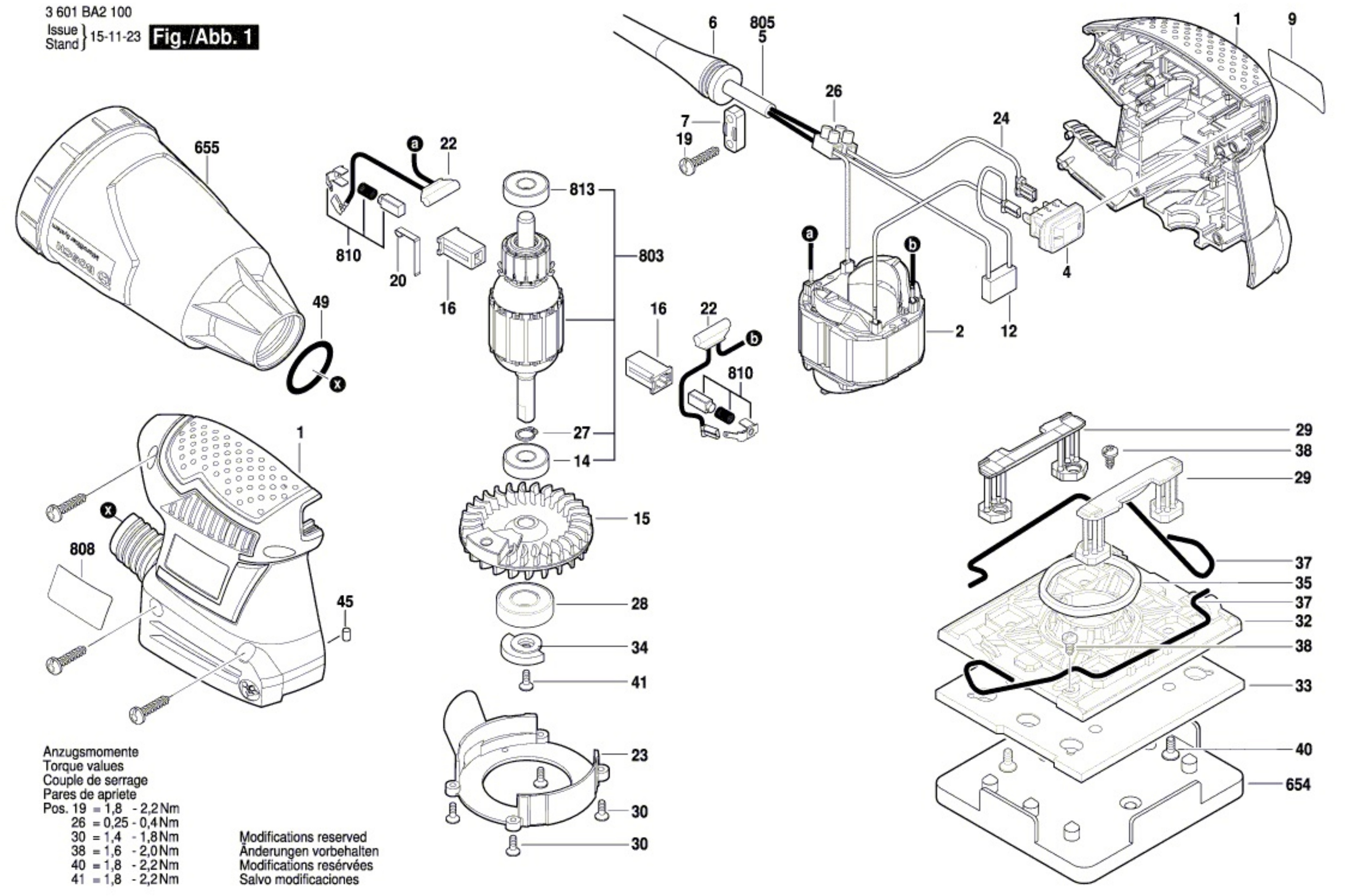

Esploso pagina 1
touch_app Click on the exploded view to buy spare parts
Pos. Item Price Buy
1
 photo_cameraImage coming soon 2609101361 Housing  €9.78
2
 photo_cameraImage coming soon 1604220408 Field 230-240V €14.61
4
 Switch 1607200190 Switch €8.38
6
 photo_cameraImage coming soon 2600703017 Grommet Ø6,4-Ø7,2x76 MM €2.58
7
 Cable Clip 2601035001 for Power Tools Bosch 2601035001 Cable Clip 2601035001 for Power Tools Bosch €2.09
9
 photo_cameraImage coming soon 2609136067 Manufacturer's nameplate  €2.01
12
 photo_cameraImage coming soon 2609120543 Suppression Filter  €2.01
14
 photo_cameraImage coming soon 2609110153 Ball Bearing 8x22x7  €4.46
15
 photo_cameraImage coming soon 2610920618 Fan  €5.65
16
 photo_cameraImage coming soon 2610320548 Brush Holder €2.02
19
 photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
22
 photo_cameraImage coming soon 2610920619 Suppression Filter  €2.85
23
 photo_cameraImage coming soon 2609101301 Fan Cover  €1.31
26
 photo_cameraImage coming soon 2610910009 Connection Block €1.73
28
 photo_cameraImage coming soon 2609110748 Ball Bearing  €5.65
29
 photo_cameraImage coming soon 2609101302 Vibration Foot  €4.25
32
 photo_cameraImage coming soon 2609112106 Swing-Plate 100X110  €6.41
33
 photo_cameraImage coming soon 2609199744 Sander Plate 101x113  €12.23
34
 photo_cameraImage coming soon 2609111657 Counterweight  €1.31
37
 photo_cameraImage coming soon 2609111796 Clamp Handle  €2.01
38
 Torx Screw M 4x8 for Percussion Drills Bosch GSB 20-22-2 RE 2603410048 Torx Screw M 4x8 for Percussion Drills Bosch GSB 20-22-2 RE €1.52
40
 photo_cameraImage coming soon 2610915161 Screw €3.31
45
 photo_cameraImage coming soon 2610350103 Pin  €1.31
49
 photo_cameraImage coming soon 1610210045 O-Ring 23,0x3,0 MM €2.01
654
 photo_cameraImage coming soon 2610920650 Punching Tool  €6.58
655
 photo_cameraImage coming soon 2609199905 Dust container  €8.73
803
 photo_cameraImage coming soon 2609199883 Armature 230V  €23.08
805
 photo_cameraImage coming soon 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F €30.17
808
 photo_cameraImage coming soon 2609135390 Nameplate  €2.01
810
 Carbon Brushes for Orbital Sander Bosch GSS 23 A 2609120199 Carbon Brushes for Orbital Sander Bosch GSS 23 A €10.60
813
 photo_cameraImage coming soon 2610917489 Ball Bearing  €7.91

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Orbital Sander GSS 140-1 A - 3601BA2100

Bosch genuine replacement parts for to replace broken parts for to fix Orbiatal Sander GSS 140-1 A/230 V/EU - 3601BA2100.

In the following table, look for the model of the Orbital Sander and the respective parts of the code.
Bosch GSS 140-1 A - 3601BA2100

Orbital Sander GSS 140-1 A/230 V/EU - 3601BA2100
# Part Num. Description
1 2609101361 Housing
2 1604220408 Field 230-240V
4 1607200190 Switch
6 2600703017 Grommet Ø6,4-Ø7,2x76 MM
7 2601035001 Cable Clip
9 2609136067 Manufacturer's nameplate
12 2609120543 Suppression Filter
14 2609110153 Ball Bearing 8x22x7
15 2610920618 Fan
16 2610320548 Brush Holder
19 2603490022 Screw 4x16
20 2601329057 Contact Spring
22 2610920619 Suppression Filter
23 2609101301 Fan Cover
24 2609120579 Cable
26 2610910009 Connection Block
27 2916540005 Retaining ring DIN 7993-A8
28 2609110748 Ball Bearing
29 2609101302 Vibration Foot
30 2609111844 Screw
32 2609112106 Swing-Plate 100X110
33 2609199744 Sander Plate 101x113
34 2609111657 Counterweight
35 2609170223 Felt 143mm
37 2609111796 Clamp Handle
38 2603410048 Thread-forming tap. Screw M4x8
40 2610915161 Screw
41 2609111845 Torx Oval-Head Screw
45 2610350103 Pin
49 1610210045 O-Ring 23,0x3,0 MM
654 2610920650 Punching Tool
655 2609199905 Dust container
803 2609199883 Armature 230V
805 1607000386 Power supply cord EU 230V 4,15m 2 x 1,0mm H05 RN-F
808 2609135390 Nameplate
810 2609120199 Carbon-Brush Set
813 2610917489 Ball Bearing

All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of
