Bosch Spare Parts for Percussion Drill PSB 500 RE - 0603387680

SKU: PSB 500 RE - 0603387680
€6.11
VAT included

Bosch Spare Parts for Percussion Drill PSB 500 RE - 0603387680

Bosch original spare parts for to replace broken parts for to fix Percussion Drill PSB 500 RE /230 V/EU - 0603387680.

Fix Your Percussion Drill. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
Bosch Spare Parts for Percussion Drill PSB 500 RE - 0603387680
  • Bosch Spare Parts for Percussion Drill PSB 500 RE - 0603387680
  • Bosch Spare Parts for Percussion Drill PSB 500 RE - 0603387680

Bosch Spare Parts for Percussion Drill PSB 500 RE - 0603387680

SKU: PSB 500 RE - 0603387680 Condition: New
€6.11
VAT included

Bosch Spare Parts for Percussion Drill PSB 500 RE - 0603387680

Bosch original spare parts for to replace broken parts for to fix Percussion Drill PSB 500 RE /230 V/EU - 0603387680.

Fix Your Percussion Drill. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.
settings 28 spare parts
description 1 exploded view
picture_as_pdf Download Exploded PDF
ITEM CODE
Quantity
Usually Ships in: 10 Business Days Approx.

SHIPPING IN:: Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:: CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:: BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS
verified_user
Original Product Manufacturer warranty included
support_agent
Technical Support Our team helps you choose
Secure and guaranteed payments
Visa Mastercard PayPal Bonifico Cash on delivery
Share this product

Know someone who might need this product? Share it!

18 spare parts
Page 1 zoom_in View exploded local_shipping Usually Ships in: 10 BUSYNESS DAYS
Pos. Item Price Buy
2
photo_cameraImage coming soon 2604220601 Field 220-240V  €23.73
3/9
Fan for Percussion Drill Bosch GSB 13 RE 2606610097 Fan for Percussion Drill Bosch GSB 13 RE €5.94
3/14
Ball Bearing 608-2Z/C3 for Percussion Drill Bosch PSB 500 RE 3130900020 Ball Bearing 608-2Z/C3 for Percussion Drill Bosch PSB 500 RE €6.00
5
photo_cameraImage coming soon 2604460259 Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-F  €14.61
6
Grommet for Drills Bosch PSB550-650-700/2-1000 2600707066 Grommet for Drills Bosch PSB550-650-700/2-1000 €2.28
19
photo_cameraImage coming soon 2603490022 Torx Oval-Head Screw 4x16 €1.66
22
Tapping Screw DIN 7981 for Percussion Drill Bosh GSB-PSB 2910611002 Tapping Screw DIN 7981 for Percussion Drill Bosh GSB-PSB €1.20
25
Red Change-Over Switch for Percussion Drills Bosch PSB500-650-700RE 2602098008 Red Change-Over Switch for Percussion Drills Bosch PSB500-650-700RE €2.89
30
Indexing Disk for Percussion Drill Bosch PSB 550 RA 2601901012 Indexing Disk for Percussion Drill Bosch PSB 550 RA €6.58 Not available for order
36
photo_cameraImage coming soon 2606135081 Drilling Spindle 1/2"  €6.42
41
Compression Spring for Bosch Impact Drills GSB13-16/PSB500-650-700 2604616006 Compression Spring for Bosch Impact Drills GSB13-16/PSB500-650-700 €1.91
654
photo_cameraImage coming soon 2602025137 Auxiliary Handle Power Light  €21.62
655
photo_cameraImage coming soon 2609005615 Depth-Gauge €4.55
816
Carbon Brusch Set for Impact Drill Bosch PSB 500 RE - 0603387680 2607014013 Carbon Brusch Set for Impact Drill Bosch PSB 500 RE - 0603387680 €13.57
836
photo_cameraImage coming soon 2606135935 Drilling Spindle  €12.24
839
photo_cameraImage coming soon 1608571080 Key Chuck Ø1,5-13 MM €35.12
871
photo_cameraImage coming soon 2607950007 Chuck Wrench SG2 €16.17
890
photo_cameraImage coming soon 2607001305 Fastening parts kit  €6.01

Informazioni sulle spedizioni e consegne saranno disponibili a breve.

Bosch Spare Parts for Percussion Drill PSB 500 RE - 0603387680

Fix Your Percussion Drill PSB 500 RE /230 V/EU - 0603387680. All Spares are original and can be supplied at Low and discounted prices For Shipping. Our Spares are Genuine Parts and Come with a Full Guarantee.

In the following table, look for the model of the Percussion Drill and the respective parts of the code.
Percussion Drill PSB 500 RE /230 V/EU - 0603387680

Percussion Drill 0603387680 - PSB 500 RE/230 V/EU
# Part NUm. Description
1 2605104766 Housing Section
2 2604220601 Field 220-240V
3 2604011315 Armature 230-240V
3/9 2606610097 Armature With Fan
3/14 3130900020 groove ball bearing 8x22x7 608-2Z/C3
5 2604460259 Power supply cord EU 230V 2,7m 2 x 0,75mm H05 VV-F
6 2600707066 Grommet Ø6,2-Ø6,9x90 MM
9 2601117918 Manufacturer's nameplate PSB 500 RE
16 2604337101 Brush Plate
19 2603490022 Screw 4x16
22 2910611002 Tapping Screw DIN 7981-ST2,2x9,5-C-H
25 2602098008 Change-Over Switch RED
30 2601901012 Indexing Disk
31 2601990029 Change-Over Switch
34 2605807107 Bearing Bracket
36 2606135081 Drilling Spindle 1/2"
37 2606320081 Cylindrical Gear
38 2600301066 Porous Bearing
41 2604616006 Compression Spring
654 2602025137 Auxiliary Handle Power Light
655 2609005615 Depth-Gauge
804 2609002056 On-Off Switch
808 2609000158 Nameplate
816 2607014013 Carbon-Brush Set
836 2606135935 Drilling Spindle
839 1608571080 Key Chuck Ø1,5-13 MM
871 2607950007 Chuck Wrench SG2
890 2607001305 Fastening parts kit
All product specifications in this catalog are based on information taken from official sources, including the official manufacturer’s Bosch websites, which we consider as reliable. Unfortunately, even the official documents may contain mistakes and printing errors – we are not able to confirm that all of these data are precise and represent the facts. Most of the manufacturers reserve the right to change the product characteristics or complement without notice. We strongly recommend using the published information as a basic information subject to Bosch brand review. Please refine the important parameters by the selling assistant when making a purchase. All content included in this catalog is the intellectual property of www.bricoutensili.com. Any publication or copying (full or partial) without a reference to the source page is prohibited.
PSB 500 RE - 0603387680
5 Items

Data sheet

SHIPPING IN:
Usually Ships in: 10 BUSYNESS DAYS
CHECK ITEM CODE OR S/N:
CHECK YOUR TOOL CODE OR S/N BEFORE CHECKOUT
CHECK S/N BOSCH:
BOSCH S/N START WITH (0) or (3) AND HAVE 10 DIGITS

Specific References

New

Download

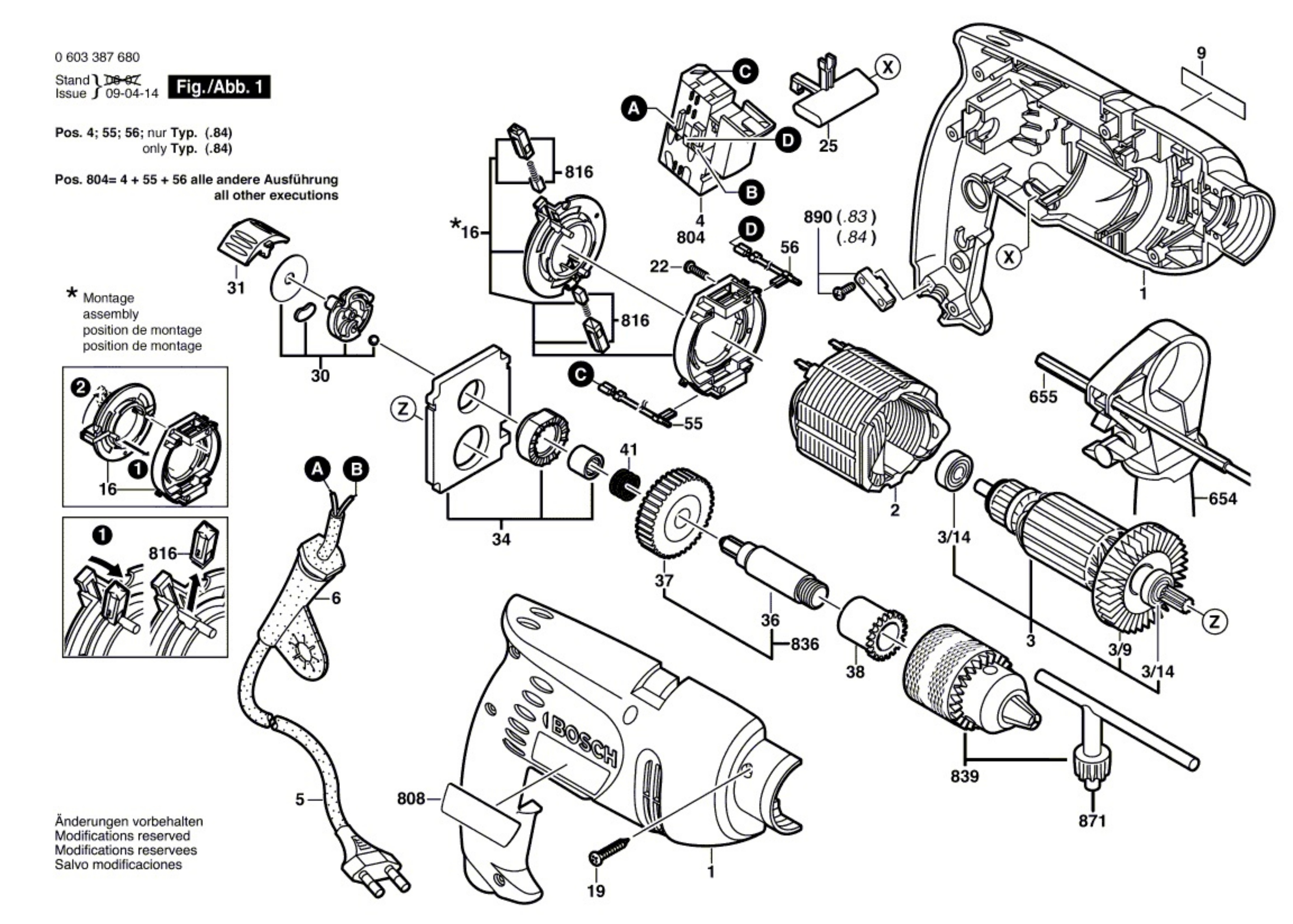

Drawing PSB 500 RE 0603387680

Drawing PSB 500 RE 0603387680

Download (285.34KB)
